Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011

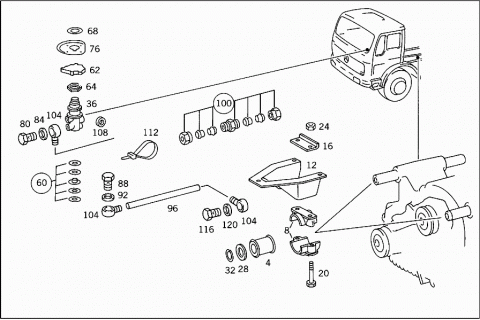

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.5 | ||
| 004 | A 3222850082 | RUBBER MOUNTING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 008 | A 3122801386 | BEARING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 012 | A 3812850340 | BRACKET |
| TRANSFER CASE TO CROSS MEMBER | ||
| 016 | A 3812850084 | SHIM |
| BRACKET TO CROSS MEMBER | ||
| 020 | N 000960012221 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 024 | N 910113012002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 028 | A 3229901940 | WASHER |
| Repalced by: A 3129902840 | ||
| 028 | A 3129902840 | WASHER |
| RUBBER MOUNTING TO TRANSFER CASE | ||
| 032 | A 0009947941 | LOCK |
| RUBBER MOUNTING TO TRANSFER CASE | ||
| 036 | A 0019977936 | VALVE |
| TRANSFER CASE SHIFT | ||
| BOSCH | ||
| 036 | A 0019979136 | VALVE |
| TRANSFER CASE SHIFT | ||
| WESTINGHOUSE | ||
| 060 | A 0025860943 | REPAIR KIT |
| TO 001 997 91 36 | ||
| 062 | A 0009970577 | HANDLE |
| VALVE | ||
| 064 | A 3839900051 | NUT |
| VALVE | ||
| 068 | A 6239900040 | WASHER |
| VALVE | ||
| 076 | A 3855844124 | UNIT IDENTIFICATION PLATE |
| TRANSFER CASE | ||
| 080 | N 915036006202 | HOLLOW SCREW |
| VALVE | ||
| 080 | N 915011004103 | HOLLOW SCREW |
| VALVE | ||
| 084 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 084 | N 007603010110 | SEAL RING |
| VALVE | ||
| 088 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 092 | N 007603012111 | SEAL RING |
| DISTRIBUTOR | ||
| 096 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 096 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 096 | A 0009872627 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO VALVE | ||
| 4X6 MM | ||
| 096 | A 0009872627 | PLASTIC PIPE |
| FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 100 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 104 | N 915052004016 | BANJO UNION |
| TRANSFER CASE CYLINDER | ||
| 4/10 | ||
| 104 | N 915052004015 | BANJO UNION |
| TRANSFER CASE CYLINDER | ||
| 4/12 | ||
| 108 | A 3609902340 | WASHER |
| LINE TO BRACKET | ||
| 112 | A 0019978390 | LOOM TIE |
| LINE TO BRACKET | ||
| 280 MM | ||
| 112 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 376 MM | ||
| 116 | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE CYLINDER | ||
| N 915047008202 | HOLLOW SCREW | |
| TRANSFER CASE CYLINDER | ||
| 120 | N 007603012111 | SEAL RING |
| TRANSFER CASE CYLINDER | ||
