Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011

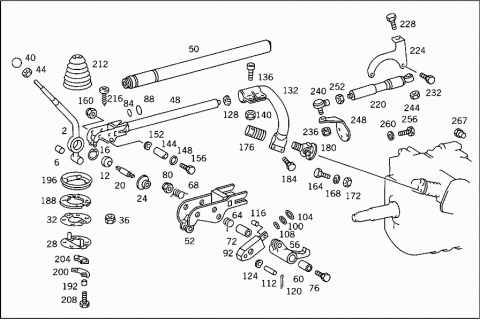

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.0 | ||
| 002 | A 3852607039 | SHIFT LEVER |
| 006 | A 3359920203 | BUSHING |
| SHIFT LEVER | ||
| 012 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 012 | A 0019813931 | JOINT BEARING |
| 012 | A 0009814531 | JOINT BEARING |
| 016 | N 000472042001 | LOCK RING |
| SHIFT LEVER | ||
| 020 | A 3852681474 | PIN |
| SHIFT LEVER | ||
| 024 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 024 | A 6202680196 | BOOT |
| SHIFT LEVER | ||
| 028 | A 3892605262 | BRACKET |
| BOTTOM | ||
| 032 | A 3892680440 | BRACKET |
| TOP | ||
| 036 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 036 | N 913004008001 | NUT |
| GEARSHIFT LEVER KNOB | ||
| 040 | A 3222600040 | HANDLE |
| SHIFT LEVER KNOB | ||
| 044 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 048 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 050 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 052 | A 3852600534 | ROD END |
| SHIFTING ROD | ||
| 056 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 056 | A 6202600087 | PAWL |
| SHIFTING ROD | ||
| 060 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 064 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 068 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 072 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 076 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 076 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 080 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 080 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 084 | A 0009978648 | SEAL RING |
| HYDRAULIC RELEASE | ||
| 088 | A 0009978748 | SEAL RING |
| HYDRAULIC RELEASE | ||
| 092 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| 092 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| 100 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| 104 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| 108 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| 112 | N 001444008234 | PIN |
| HYDRAULIC RELEASE | ||
| 8X45X39 MM | ||
| 116 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 116 | N 001444008235 | PIN |
| HYDRAULIC RELEASE | ||
| 8X22X16 MM | ||
| 120 | N 000094002059 | COTTER PIN |
| HYDRAULIC RELEASE | ||
| 124 | N 900055008002 | SPRING WASHER |
| HYDRAULIC RELEASE | ||
| 128 | A 3852680776 | WASHER |
| HYDRAULIC RELEASE | ||
| 132 | A 3802600233 | SHIFTING ROD |
| HYDRAULIC RELEASE | ||
| 136 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 140 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 140 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 144 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 148 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 152 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 156 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 156 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 160 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 160 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 164 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 168 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 172 | N 304032008006 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 176 | A 3812680128 | CONNECTOR |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 180 | A 3832680489 | JOINT |
| REAR | ||
| 180 | A 3832680289 | JOINT |
| REAR | ||
| 180 | A 3832680589 | JOINT |
| REAR | ||
| 184 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 184 | N 304017010047 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 188 | A 3852680392 | RUBBER PAD |
| 192 | A 3892680525 | BUSHING |
| SHIFT LEVER | ||
| 196 | A 3852601962 | BRACKET |
| GEARSHIFT LEVER UPPER PART | ||
| 200 | A 3852681640 | BRACKET |
| GEARSHIFT LEVER LOWER PART | ||
| 204 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 208 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 208 | N 304017008018 | SCREW |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 212 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 216 | N 007981003203 | SHEET METAL SCREW |
| BOOT TO CAB | ||
| 220 | A 0002680214 | VIBRATION ABSORBER |
| VIBRATION ABSORBER | ||
| 224 | A 3852685240 | BRACKET |
| VIBRATION ABSORBER TO TRANSMISSION | ||
| 228 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 228 | N 304017008034 | SCREW |
| VIBRATION ABSORBER TO TRANSMISSION | ||
| 232 | N 000931010264 | SCREW |
| VIBRATION ABSORBER TO BRACKET | ||
| 236 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 236 | N 910113010000 | NUT |
| VIBRATION ABSORBER TO BRACKET | ||
| 240 | A 0002683389 | JOINT |
| VIBRATION ABSORBER | ||
| 244 | N 304032008006 | NUT |
| ANGLE JOINT TO VIBRATION DAMPER | ||
| 248 | A 3832600562 | BRACKET |
| VIBRATION ABSORBER | ||
| 252 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 252 | N 913004008001 | NUT |
| VIBRATION ABSORBER TO BRACKET | ||
| 256 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 260 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 267 | A 6742640034 | LOCK NUT |
| SPEEDOMETER DRIVE COVERING | ||
