Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 684015
Grupė: 55 SPECIAL INSTALLATIONS - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|

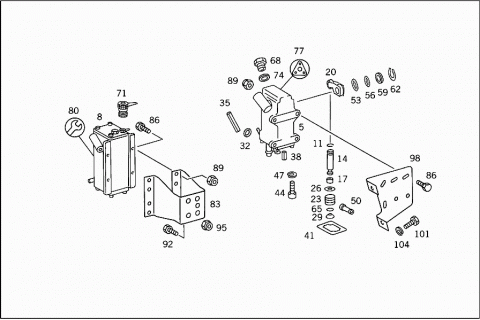

| 005 | A 0005533901 | PUMP |
| Repalced by: A 0005537901 | ||
| 005 | A 0005537901 | PUMP |
| WEBER | ||
| 008 | A 0005535401 | PUMP |
| POWER PACKER | ||
| 011 | N 009045014000 | SNAP RING |
| 014 | A 0005531190 | PISTON |
| TO 000 553 39 01 | ||
| 014 | A 0005531890 | PISTON |
| TO 000 553 79 01 | ||
| 017 | A 0005530096 | BOOT |
| 6X14X6 MM,TO 000 553 39 01 | ||
| 020 | A 0005500113 | LEVER |
| TO 000 553 39 01 | ||
| 023 | A 0005500055 | VALVE |
| Repalced by: A 0005501555 | ||
| 023 | A 0005501555 | VALVE |
| Repalced by: A 0005502855 | ||
| 023 | A 0005502855 | VALVE |
| TO 000 553 39 01,79 01 | ||
| 026 | A 0005534560 | SEAL RING |
| 20X16X2 MM,TO 000 553 39 01 | ||
| 029 | A 0005530350 | BUSHING |
| TO 000 553 39 01 | ||
| 032 | A 0019978748 | SEAL RING |
| 12X2 MM,TO 000 553 39 01 | ||
| 035 | N 001481004015 | CLAMPING SLEEVE |
| 4X28 MM,TO 000 553 39 01 | ||
| 038 | N 001481004001 | CLAMPING SLEEVE |
| 4X12 MM,TO 000 553 39 01 | ||
| 041 | A 0005530280 | GASKET |
| TO 000 553 39 01 | ||
| 044 | N 000912008111 | SCREW |
| TO 000 553 39 01,79 01 | ||
| 047 | N 912004008102 | LOCK WASHER |
| TO 000 553 39 01,79 01 | ||
| 050 | A 0005530403 | FILTER |
| TO 000 553 39 01,79 01 | ||
| 053 | A 0089978645 | SEAL RING |
| 20X2.5 MM,TO 000 553 39 01 | ||
| 056 | A 0019978948 | SEAL RING |
| 15X2.5 MM,TO 000 553 39 01 | ||
| 059 | N 000988020011 | FITTED WASHER |
| TO 000 553 39 01,79 01 | ||
| 062 | N 000471020001 | LOCK RING |
| TO 000 553 39 01,79 01 | ||
| 065 | A 0049971548 | SEAL RING |
| 2.44X1.78 MM,TO 000 553 39 01 | ||
| 068 | A 0009900410 | SCREW |
| Repalced by: A 0009901310 | ||
| 068 | A 0009901310 | SCREW |
| Repalced by: A 0009901610 | ||
| 068 | A 0009901610 | SCREW |
| TO 000 553 39 01,79 01 | ||
| 071 | A 0005530171 | SCREW |
| POWER PACKER | ||
| 074 | N 007603018106 | SEAL RING |
| TO 000 553 39 01 | ||
| 077 | A 0015532760 | GASKET KIT |
| Repalced by: A 0005502583 | ||
| 077 | A 0005502583 | GASKET KIT |
| TO 000 553 39 01 | ||
| 077 | A 0005502783 | GASKET KIT |
| WEBER,TO 000 553 79 01 | ||
| 080 | A 0005500255 | REPAIR KIT |
| VALVE | ||
| POWER PACKER | ||
| 080 | A 0005500275 | REPAIR KIT |
| PISTON | ||
| POWER PACKER | ||
| 083 | A 3875531540 | BRACKET |
| HAND PUMP | ||
| 086 | N 000933010129 | SCREW |
| HAND PUMP TO BRACKET | ||
| 089 | N 913004010008 | NUT |
| HAND PUMP TO BRACKET | ||
| 092 | N 000961014050 | SCREW |
| MANUAL PUMP BRACKET TO FRAME | ||
| 095 | N 913004014002 | NUT |
| MANUAL PUMP BRACKET TO FRAME | ||
| 098 | A 3875531140 | BRACKET |
| HAND PUMP | ||
| 101 | N 000933008279 | SCREW |
| MANUAL PUMP BRACKET TO FRAME | ||
| 104 | N 912004008102 | LOCK WASHER |
| MANUAL PUMP BRACKET TO FRAME | ||

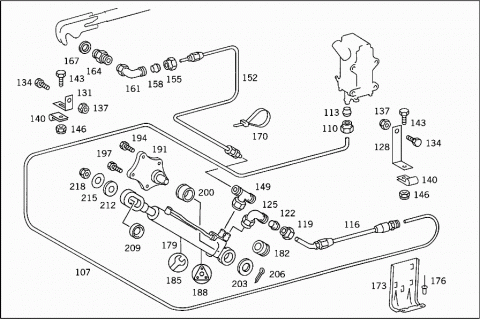

| 107 | A 0004290001 | LINE |
| FROM HAND PUMP TO HIGH PRESSURE HOSE | ||
| 6 MM | ||
| 110 | N 915017006100 | UNION NUT |
| 113 | N 003861006007 | GLAND |
| 116 | A 3875530182 | HOSE |
| FROM HYDRAULIC LINE TO CYLINDER | ||
| 119 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 122 | N 003861006007 | GLAND |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 125 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 125 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 128 | A 3815530640 | BRACKET |
| OIL LINE MOUNTING | ||
| 131 | A 3144290240 | BRACKET |
| OIL LINE MOUNTING | ||
| 134 | N 000933008153 | SCREW |
| BRACKET TO FRAME | ||
| 137 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 140 | A 3609950101 | CLAMP |
| OIL DELIVERY LINE TO BRACKET | ||
| 143 | N 000933006102 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| 146 | N 913004006002 | NUT |
| OIL DELIVERY LINE TO BRACKET | ||
| 149 | N 003953006101 | T-FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 152 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 155 | N 915017006100 | UNION NUT |
| 158 | N 003861006007 | GLAND |
| 161 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 161 | A 0019909871 | ELBOW FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 164 | A 0029978472 | FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 167 | N 007603010103 | SEAL RING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 170 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET AT CAB | ||
| 376 MM | ||
| 173 | A 3816820186 | BRACKET |
| 176 | N 910002004132 | RIVET |
| BRACKET TO CAB | ||
| 179 | A 0015531605 | CYLINDER |
| Repalced by: A 0015533505 | ||
| 179 | A 0015533505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 179 | A 0015531705 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER PACKER | ||
| 182 | A 0005531428 | GUIDE |
| TO 001 553 35 05 | ||
| 185 | A 0005501535 | REPAIR KIT |
| TO 011 553 16 05 | ||
| 188 | A 0005500235 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| TO POWER PACKER | ||
| 188 | A 0005501407 | GASKET KIT |
| TO 001 553 35 05 | ||
| 191 | A 3835530338 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 194 | N 000961012008 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 197 | N 000961014118 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 200 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER | ||
| 203 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 206 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 209 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 212 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 215 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 218 | N 913004016004 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
