Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 684015

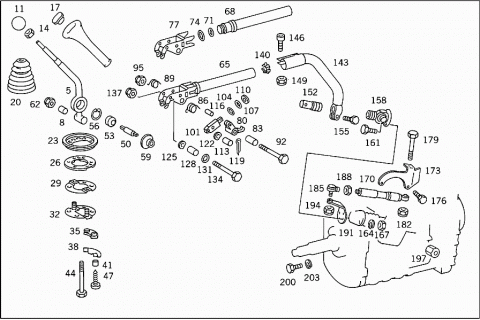

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6162601039 | SHIFT LEVER |
| 008 | A 3359920203 | BUSHING |
| SHIFT LEVER | ||
| 011 | A 3222600040 | HANDLE |
| SHIFT LEVER KNOB | ||
| 014 | N 000936010002 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 017 | A 6202680557 | COVER |
| 020 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 023 | A 3852601962 | BRACKET |
| GEARSHIFT LEVER UPPER PART | ||
| 026 | A 3852680392 | RUBBER PAD |
| 029 | A 3892680440 | BRACKET |
| TOP | ||
| 032 | A 3892605262 | BRACKET |
| BOTTOM | ||
| 035 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 038 | A 3852681640 | BRACKET |
| GEARSHIFT LEVER LOWER PART | ||
| 041 | A 3892680525 | BUSHING |
| SHIFT LEVER | ||
| 044 | N 000931008046 | SCREW |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 047 | N 007981003203 | SHEET METAL SCREW |
| BOOT TO CAB | ||
| 050 | A 3852681474 | PIN |
| SHIFT LEVER | ||
| 053 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 053 | A 0019813931 | JOINT BEARING |
| 053 | A 0009814531 | JOINT BEARING |
| 056 | N 000472042000 | LOCK RING |
| SHIFT LEVER | ||
| 059 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 059 | A 6202680196 | BOOT |
| SHIFT LEVER | ||
| 062 | N 913004008004 | NUT |
| SHIFT LEVER BEARING | ||
| 065 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 068 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 071 | A 0009978648 | SEAL RING |
| HYDRAULIC RELEASE | ||
| 074 | A 0009978748 | SEAL RING |
| HYDRAULIC RELEASE | ||
| 077 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 080 | A 3852600387 | PAWL |
| HYDRAULIC RELEASE | ||
| 083 | A 3359920203 | BUSHING |
| 086 | A 3859930020 | SPRING |
| HYDRAULIC RELEASE | ||
| 089 | A 3859930120 | SPRING |
| HYDRAULIC RELEASE | ||
| 092 | N 000931010120 | SCREW |
| HYDRAULIC RELEASE | ||
| 095 | N 913004010008 | NUT |
| HYDRAULIC RELEASE | ||
| A 3852680153 | SPACER TUBE | |
| HYDRAULIC RELEASE | ||
| 101 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| 101 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| 104 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| 107 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| 110 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| 113 | N 001443008204 | PIN |
| HYDRAULIC RELEASE | ||
| 8X45X39 MM | ||
| 116 | N 001443008203 | PIN |
| HYDRAULIC RELEASE | ||
| 8X22X16 MM | ||
| 119 | N 000094002059 | COTTER PIN |
| HYDRAULIC RELEASE | ||
| 122 | N 900055008002 | SPRING WASHER |
| HYDRAULIC RELEASE | ||
| 125 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 128 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 131 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 134 | N 000931010120 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 137 | N 913004010008 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 140 | A 3852680776 | WASHER |
| HYDRAULIC RELEASE | ||
| 143 | A 6162602933 | SHIFTING ROD |
| HYDRAULIC RELEASE | ||
| 143 | A 6162603133 | SHIFTING ROD |
| HYDRAULIC RELEASE | ||
| 143 | A 6162603133 | SHIFTING ROD |
| HYDRAULIC RELEASE | ||
| 146 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 146 | N 006912010021 | SCREW |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 149 | N 913004010008 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 149 | N 913004010008 | NUT |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 152 | A 6202680028 | CONNECTOR |
| 155 | N 000933014014 | SCREW |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 158 | A 3832680489 | JOINT |
| REAR | ||
| 158 | A 3832680589 | JOINT |
| REAR | ||
| 158 | A 3832680289 | JOINT |
| REAR | ||
| 161 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 164 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 167 | N 000934008010 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 170 | A 0002680214 | VIBRATION ABSORBER |
| VIBRATION ABSORBER | ||
| 173 | A 3852685240 | BRACKET |
| VIBRATION ABSORBER TO TRANSMISSION | ||
| 176 | N 000933008153 | SCREW |
| VIBRATION ABSORBER TO TRANSMISSION | ||
| 179 | N 000931010264 | SCREW |
| VIBRATION ABSORBER TO BRACKET | ||
| 182 | N 913004010008 | NUT |
| VIBRATION ABSORBER TO BRACKET | ||
| 185 | A 0002683389 | JOINT |
| VIBRATION ABSORBER | ||
| 188 | N 000934008010 | NUT |
| ANGLE JOINT TO VIBRATION DAMPER | ||
| 191 | A 3832600562 | BRACKET |
| VIBRATION ABSORBER | ||
| 194 | N 913004008004 | NUT |
| VIBRATION ABSORBER TO BRACKET | ||
| 197 | A 6742640034 | LOCK NUT |
| SPEEDOMETER DRIVE COVERING | ||
| 200 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 203 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
