Transporto priemonė: F 1114 B; VIN numerio dalis: FA1018
Grupė: 27 AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|

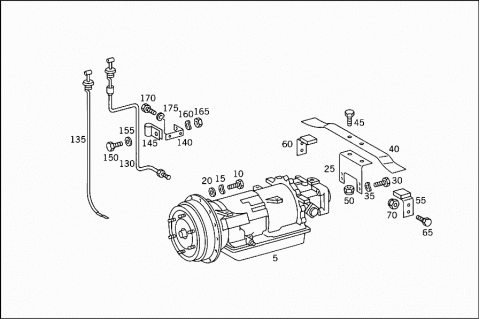

| 005 | Q 502387R91 | PART NAME MISSING |
| ALLISON AUTOMATIC TRANSMISSION | ||
| MTB-643 | ||
| 010 | N 000933010255 | SCREW |
| M 10X1.5X35 ZG8.8 | ||
| 015 | Q 933965R1 | PART NAME MISSING |
| SPRING WASHER | ||
| M 10-Z | ||
| 020 | Q 25709R1 | PART NAME MISSING |
| Repalced by: A 6859900140 | ||
| 020 | A 6859900140 | WASHER |
| 3/8-.812-.089Z | ||
| 025 | Q 502388R1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TRANSMISSION | ||
| 030 | N 000933012077 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 12X1.5X35 MM | ||
| 035 | Q 120384 | PART NAME MISSING |
| SPRING WASHER | ||
| 1/2-.509Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO TRANSMISSION | ||
| 040 | Q 481273C1 | PART NAME MISSING |
| CROSS MEMBER | ||
| 045 | Q 414077C1 | PART NAME MISSING |
| SCREW | ||
| 5/8-18X13/8FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO CROSS MEMBER | ||
| 050 | Q 414089C1 | PART NAME MISSING |
| NUT | ||
| 5/8-18FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO CROSS MEMBER | ||
| 055 | Q 502389R91 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT SIDE MEMBER | ||
| 060 | Q 502390R91 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT SIDE MEMBER | ||
| 065 | Q 414053C1 | PART NAME MISSING |
| SCREW | ||
| 1/2-20X13/4FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| 070 | Q 414087C1 | PART NAME MISSING |
| Repalced by: A 6859900151 | ||
| 070 | A 6859900151 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 1/2-20FG8 | ||

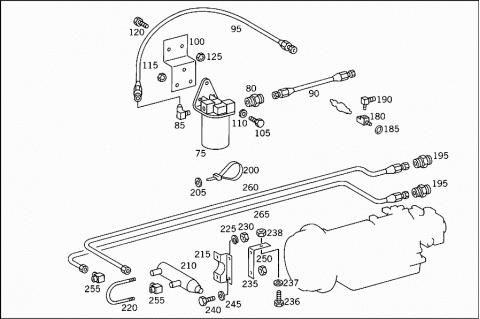

| 075 | Q 502393R91 | PART NAME MISSING |
| OIL FILTER | ||
| ALLISON-NR. 25011159 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TRANSMISSION | ||
| 080 | Q 9402711 | PART NAME MISSING |
| CONNECTOR | ||
| 3/4-14X11/16-12 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| OIL FILTER | ||
| 085 | Q 9402828 | PART NAME MISSING |
| ELBOW FITTING | ||
| 45 GRAD 3/4-14X1X1/16-12 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| OIL FILTER | ||
| 090 | Q 502438R91 | PART NAME MISSING |
| HOSE | ||
| 12.0" | ||
| 095 | Q 502439R91 | PART NAME MISSING |
| HOSE | ||
| 25.0" | ||
| 100 | Q 502406R1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| OIL FILTER TO CHASSIS | ||
| 105 | Q 25751R1 | PART NAME MISSING |
| Repalced by: A 6859900901 | ||
| 105 | A 6859900901 | SCREW |
| OIL FILTER TO BRACKET | ||
| 5/16-18X11/4FG8 | ||
| 110 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 110 | A 6859900240 | WASHER |
| OIL FILTER TO BRACKET | ||
| 5/16X.688-.089Z | ||
| 115 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 115 | A 6859900251 | NUT |
| OIL FILTER TO BRACKET | ||
| 5/16-18FG8 | ||
| 120 | Q 24840R1 | PART NAME MISSING |
| SCREW | ||
| 3/8-16X1FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| 125 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 125 | A 6859900351 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16FG8 | ||
| 130 | Q 502415R91 | PART NAME MISSING |
| OIL DIPSTICK | ||
| ALLISON-NR.5147395 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| COMPLETE | ||
| 135 | Q 502394R1 | PART NAME MISSING |
| OIL DIPSTICK | ||
| 140 | Q 426814R1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| OIL DIPSTICK | ||
| 145 | Q 301272C1 | PART NAME MISSING |
| CLAMP | ||
| 150 | Q 25222R1 | PART NAME MISSING |
| Repalced by: A 6859900501 | ||
| 150 | A 6859900501 | SCREW |
| 1/4-20X3/4FG8 | ||
| 155 | Q 25707R1 | PART NAME MISSING |
| WASHER | ||
| 1/4X625X0.75Z | ||
| 160 | Q 120380 | PART NAME MISSING |
| SPRING WASHER | ||
| 1/4X255Z | ||
| 165 | Q 25519R1 | PART NAME MISSING |
| Repalced by: A 6859900651 | ||
| 165 | A 6859900651 | NUT |
| 1/4-20FGY8 | ||
| 170 | Q 24860R1 | PART NAME MISSING |
| SCREW | ||
| 1/2-13X1FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO TRANSMISSION | ||
| 175 | Q 120384 | PART NAME MISSING |
| SPRING WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO TRANSMISSION | ||
| 180 | Q 502437R91 | PART NAME MISSING |
| T-FITTING | ||
| 1 1/16-12X3/4-14X1/2-14 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TEMPERATURE SENSOR | ||
| 180 | Q 1672250C1 | PART NAME MISSING |
| T-FITTING | ||
| 1 1/16-12X3/4X1/2 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TEMPERATURE SENSOR | ||
| 185 | Q 876108C1 | PART NAME MISSING |
| SEAL RING | ||
| TO Q 1672250C1 | ||
| 190 | Q 9402867 | PART NAME MISSING |
| ELBOW FITTING | ||
| 90 GRAD 3/4-14X1 1/16-12 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| AEROQUIP-NR.2024-12-12S | ||
| 195 | Q 9410208 | PART NAME MISSING |
| CONNECTOR | ||
| 1 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TRANSMISSION | ||
| 200 | Q 306132C1 | PART NAME MISSING |
| LOOM TIE | ||
| 1 1/4 | ||
| 205 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 205 | A 6859900240 | WASHER |
| 5/16-.688-.089Z | ||
| 210 | Q 502632R91 | PART NAME MISSING |
| OIL COOLER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TRANSMISSION | ||
| 215 | Q 502625R91 | PART NAME MISSING |
| CONSOLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| OIL COOLER | ||
| 220 | Q 502621R1 | PART NAME MISSING |
| BRACKET | ||
| "U" 3/8-16 | ||
| 225 | Q 120382 | PART NAME MISSING |
| Repalced by: A 6859900347 | ||
| 225 | A 6859900347 | LOCK WASHER |
| 3/8-.382Z | ||
| 230 | Q 25522R1 | PART NAME MISSING |
| Repalced by: A 6859900851 | ||
| 230 | A 6859900851 | NUT |
| 3/8-16F | ||
| 235 | Q 502622R1 | PART NAME MISSING |
| ANGLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 235 | Q 502623R1 | PART NAME MISSING |
| ANGLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 236 | Q 414052C1 | PART NAME MISSING |
| Repalced by: A 6859900101 | ||
| 236 | A 6859900101 | SCREW |
| BRACKET TO ENGINE SUPPORT | ||
| 1/2-20 X 1 1/2 | ||
| 237 | Q 460908R1 | PART NAME MISSING |
| WASHER | ||
| .531-1.500-.105 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO ENGINE SUPPORT | ||
| 238 | Q 414087C1 | PART NAME MISSING |
| Repalced by: A 6859900151 | ||
| 238 | A 6859900151 | NUT |
| BRACKET TO ENGINE SUPPORT | ||
| 1/2-20 FG8 | ||
| 240 | Q 70427R1 | PART NAME MISSING |
| SCREW | ||
| 7/16-14X11/4 FG8 | ||
| 245 | Q 25846R1 | PART NAME MISSING |
| WASHER | ||
| 7/16-.922-.105 | ||
| 250 | A 6859901551 | NUT |
| 7/16-14 FG8 | ||
| 250 | Q 9143981 | PART NAME MISSING |
| NUT | ||
| 7/16-14 FG8 | ||
| 255 | Q 9402870 | PART NAME MISSING |
| ELBOW FITTING | ||
| 90 GRAD 1 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| OIL COOLER | ||
| 260 | Q 502440R91 | PART NAME MISSING |
| HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RETURN | ||
| 265 | Q 502441R91 | PART NAME MISSING |
| HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FEED | ||

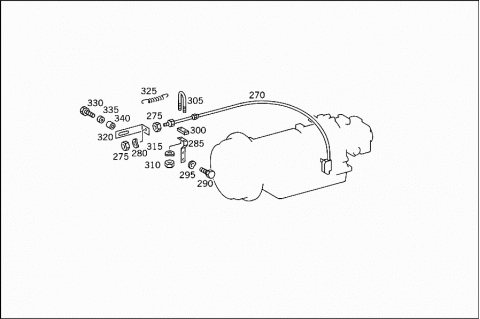

| 270 | Q 502382R91 | PART NAME MISSING |
| BOWDEN CABLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| UPSHIFT RELAY VALVE | ||
| 275 | Q 118623 | PART NAME MISSING |
| Repalced by: A 6859901451 | ||
| 275 | A 6859901451 | NUT |
| 1/4-28FG8 | ||
| 280 | Q 120380 | PART NAME MISSING |
| SPRING WASHER | ||
| 1/4-.255F | ||
| 285 | Q 502467R1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BOWDEN CABLE | ||
| 290 | Q 24860R1 | PART NAME MISSING |
| SCREW | ||
| 1/2-13X1FG8 | ||
| 295 | Q 120384 | PART NAME MISSING |
| SPRING WASHER | ||
| 1/2X.873X.135Z | ||
| 300 | Q 502452R1 | PART NAME MISSING |
| CLAMPING PLATE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BOWDEN CABLE | ||
| 305 | Q 502451R1 | PART NAME MISSING |
| BRACKET | ||
| "U" 5/16-24 Z | ||
| 310 | Q 120368 | PART NAME MISSING |
| NUT | ||
| 5/16-24ZG5 | ||
| 315 | Q 120214 | PART NAME MISSING |
| SPRING WASHER | ||
| 5/16-.318 Z | ||
| 320 | Q 502247R1 | PART NAME MISSING |
| BRACKET | ||
| 325 | Q 10454VA | PART NAME MISSING |
| SPRING | ||
| 330 | Q 25487R1 | PART NAME MISSING |
| SCREW | ||
| 1/4-20X1 1/2FG8 | ||
| 335 | Q 502466R1 | PART NAME MISSING |
| INTERMEDIATE PIECE | ||
| 340 | Q 502465R1 | PART NAME MISSING |
| BUSHING | ||
| Q 120380 | PART NAME MISSING | |
| SPRING WASHER | ||
| 1/4-.255 F | ||
| Q 26110R1 | PART NAME MISSING | |
| Repalced by: A 6859900551 | ||
| A 6859900551 | NUT | |
| 1/4-20 FG8 | ||

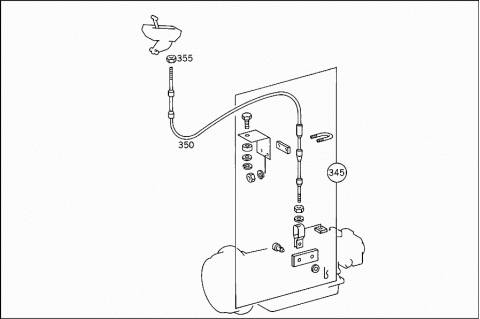

| 345 | Q 502385R91 | PART NAME MISSING |
| (PARTS KIT),REGULATOR VALVE | ||
| 350 | Q 502386R91 | PART NAME MISSING |
| BOWDEN CABLE | ||
| 355 | Q 118623 | PART NAME MISSING |
| Repalced by: A 6859901451 | ||
| 355 | A 6859901451 | NUT |
| 1/4-28FG8 | ||
