Transporto priemonė: F 1114 B; VIN numerio dalis: FA1018
Grupė: 25 CLUTCH

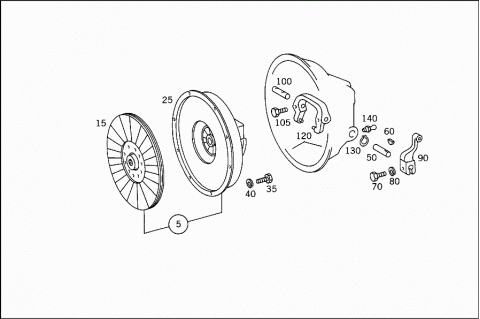

16995
# Kodas Pavadinimas
005 Q 500730R91 PART NAME MISSING
CLUTCH
Y YYYYYYYYYYYY PART NAME MISSING
MANUEL ADJUSTMENT
Q 500730R92 PART NAME MISSING
Repalced by: Q SP B1297011
005 Q SP B1297011 PART NAME MISSING
CLUTCH
Y YYYYYYYYYYYY PART NAME MISSING
AUTOMATIC ADJUSTMENT
015 Q 500692R1 PART NAME MISSING
CLUTCH DISC
TO Q 500730R91
Q 508602R1 PART NAME MISSING
Repalced by: Q SP B127048X
015 Q SP B127048X PART NAME MISSING
CLUTCH DISC
TO QSP B1297011
025 Q 500731R1 PART NAME MISSING
CLUTCH PRESSURE PLATE
TO Q 500730R91
Q 508595R1 PART NAME MISSING
Repalced by: Q SP 4500991X
025 Q SP 4500991X PART NAME MISSING
CLUTCH PRESSURE PLATE
TO QSP B1297011
035 Q 30003R1 PART NAME MISSING
SCREW
M 8X25
040 Q 934309R1 PART NAME MISSING
LOCK WASHER
050 Q 599047C1 PART NAME MISSING
CLUTCH RELEASE SHAFT
060 Q 124553 PART NAME MISSING
WOODRUFF KEY
1/4X1
070 Q 80297R1 PART NAME MISSING
SCREW
3/8-24X11/2 G8
080 Q 120382 PART NAME MISSING
Repalced by: A 6859900347
080 A 6859900347 LOCK WASHER
3/8-.382 Z
090 Q 599038C1 PART NAME MISSING
LEVER
090 Q 501316R1 PART NAME MISSING
LEVER
100 Q 68815C1 PART NAME MISSING
CLUTCH RELEASE SHAFT
105 Q 70427R1 PART NAME MISSING
SCREW
7/16-14X11/4 FSOF G 8
120 Q 697922R1 PART NAME MISSING
RELEASE LEVER
130 Q 32796VA PART NAME MISSING
LOCK RING
140 Q 109461 PART NAME MISSING
GREASE NIPPLE
1/8-27 PTFM AC
