Transporto priemonė: F 1114 B; VIN numerio dalis: FA1018

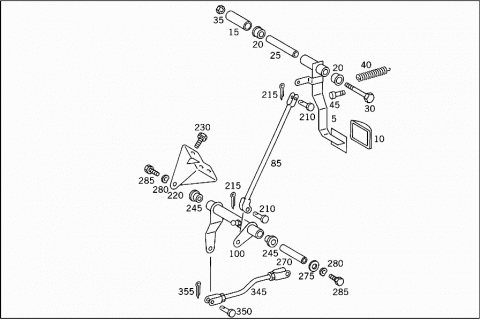

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | Q 479362C1 | PART NAME MISSING |
| CLUTCH PEDAL | ||
| 005 | Q 484116C4 | PART NAME MISSING |
| CLUTCH PEDAL | ||
| 010 | Q 166880R1 | PART NAME MISSING |
| PAD | ||
| 015 | Q 480987C1 | PART NAME MISSING |
| INTERMEDIATE PIECE | ||
| 015 | Q 484099C1 | PART NAME MISSING |
| INTERMEDIATE PIECE | ||
| 020 | Q 477715C1 | PART NAME MISSING |
| BUSHING | ||
| 025 | Q 746408C1 | PART NAME MISSING |
| SPACER TUBE | ||
| 025 | Q 484097C1 | PART NAME MISSING |
| SPACER TUBE | ||
| 030 | Q 25691R1 | PART NAME MISSING |
| SCREW | ||
| 1/2-13X9 | ||
| 030 | Q 25296R1 | PART NAME MISSING |
| SCREW | ||
| 1/2-13 X 6 1/2 | ||
| 035 | Q 9412230 | PART NAME MISSING |
| Repalced by: A 6859901151 | ||
| 035 | A 6859901151 | NUT |
| 1/2-13 | ||
| 040 | Q 481739C2 | PART NAME MISSING |
| RELEASE SPRING | ||
| 040 | Q 872614R1 | PART NAME MISSING |
| RELEASE SPRING | ||
| 045 | Q 489057C1 | PART NAME MISSING |
| RUBBER BUFFER | ||
| 045 | Q 498440R1 | PART NAME MISSING |
| RUBBER BUFFER | ||
| 5/16 - 18 X 1 1/2 | ||
| 046 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 046 | A 6859900251 | NUT |
| 5/16 - 18 | ||
| 050 | Q 501483R1 | PART NAME MISSING |
| STOP | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CLUTCH PEDAL | ||
| 057 | Q 501621R1 | PART NAME MISSING |
| (STOP ANGLE) | ||
| 060 | Q 24840R1 | PART NAME MISSING |
| SCREW | ||
| 3/8 - 16 X 1 | ||
| 065 | Q 120382 | PART NAME MISSING |
| Repalced by: A 6859900347 | ||
| 065 | A 6859900347 | LOCK WASHER |
| 3/8 | ||
| 070 | Q 25522R1 | PART NAME MISSING |
| Repalced by: A 6859900851 | ||
| 070 | A 6859900851 | NUT |
| 3/8 - 16 | ||
| 075 | Q 24841R1 | PART NAME MISSING |
| Repalced by: A 6859901401 | ||
| 075 | A 6859901401 | SCREW |
| 3/8 - 16 X 1 1/2 | ||
| 080 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 080 | A 6859900351 | NUT |
| 3/8 - 16 | ||
| 085 | Q 494313C1 | PART NAME MISSING |
| CLUTCH LINKAGE | ||
| 085 | Q 494315C2 | PART NAME MISSING |
| CLUTCH LINKAGE | ||
| 090 | Q 501610R91 | PART NAME MISSING |
| BOWDEN CABLE | ||
| 095 | Q 144245 | PART NAME MISSING |
| YOKE | ||
| 100 | Q 500749R91 | PART NAME MISSING |
| REVERSING LEVER | ||
| 100 | Q 501074R91 | PART NAME MISSING |
| REVERSING LEVER | ||
| 105 | Q 138086 | PART NAME MISSING |
| PIN | ||
| 1/2 X 1.36 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| YOKE TO LEVER | ||
| 110 | Q 21740R1 | PART NAME MISSING |
| WASHER | ||
| .531 X 1.5 X .054 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| YOKE TO LEVER | ||
| 120 | Q 103388 | PART NAME MISSING |
| COTTER PIN | ||
| 1/8 X 3/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| YOKE TO LEVER | ||
| 200 | Q 501628R1 | PART NAME MISSING |
| EDGE GUARD SECTION | ||
| 210 | Q 16617R1 | PART NAME MISSING |
| PIN | ||
| 3/8 X 1 1/16 | ||
| 210 | Q 138084 | PART NAME MISSING |
| PIN | ||
| 3/8 X 1 1/16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ROD TO PEDAL | ||
| 215 | Q 103375 | PART NAME MISSING |
| COTTER PIN | ||
| 3/32 X 1 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ROD TO PEDAL | ||
| 220 | Q 501902R91 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| REVERSING LEVER | ||
| 230 | Q 403810C91 | PART NAME MISSING |
| SCREW | ||
| 5/16 - 18X1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FRAME | ||
| 245 | Q 477715C1 | PART NAME MISSING |
| BUSHING | ||
| 270 | Q 483770C1 | PART NAME MISSING |
| PIVOT PIN | ||
| 270 | Q 484596C1 | PART NAME MISSING |
| PIVOT PIN | ||
| 275 | Q 25710R1 | PART NAME MISSING |
| WASHER | ||
| 280 | Q 120384 | PART NAME MISSING |
| SPRING WASHER | ||
| 285 | Q 24861R1 | PART NAME MISSING |
| SCREW | ||
| 1/2 - 13X1 1/4 | ||
| 290 | Q 501613R1 | PART NAME MISSING |
| BRACKET | ||
| 295 | Q 24840R1 | PART NAME MISSING |
| SCREW | ||
| 3/8 - 16 X 1 | ||
| 300 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 300 | A 6859900351 | NUT |
| 3/8 - 16 | ||
| 305 | Q 299414C1 | PART NAME MISSING |
| CLAMP | ||
| 310 | Q 25222R1 | PART NAME MISSING |
| Repalced by: A 6859900501 | ||
| 310 | A 6859900501 | SCREW |
| 1/4 - 20 X 3/4 | ||
| 315 | Q 27303R1 | PART NAME MISSING |
| Repalced by: A 6859900247 | ||
| 315 | A 6859900247 | LOCK WASHER |
| 1/4 | ||
| 320 | Q 25519R1 | PART NAME MISSING |
| Repalced by: A 6859900651 | ||
| 320 | A 6859900651 | NUT |
| 1/4 - 20 | ||
| 325 | Q 501489R91 | PART NAME MISSING |
| BRACKET | ||
| 330 | Q 501612R1 | PART NAME MISSING |
| BRACKET | ||
| 345 | Q 500704R91 | PART NAME MISSING |
| CLUTCH OPERATION | ||
| 345 | Q 501657R91 | PART NAME MISSING |
| CLUTCH OPERATION | ||
| 350 | Q 23073R1 | PART NAME MISSING |
| PIN | ||
| 355 | Q 103388 | PART NAME MISSING |
| COTTER PIN | ||
| 1/8 X 3/4 | ||
| 360 | Q 477139C91 | PART NAME MISSING |
| BRAKE BOOSTER ASSEMBLY | ||
| 360 | Q 501524R1 | PART NAME MISSING |
| BRAKE BOOSTER ASSEMBLY | ||
| 360 | Q 492833C91 | PART NAME MISSING |
| BRAKE BOOSTER ASSEMBLY | ||
| 360 | Q 501525R1 | PART NAME MISSING |
| BRAKE BOOSTER ASSEMBLY | ||
| 365 | Q 487432C1 | PART NAME MISSING |
| PEDAL | ||
| TO Q477139C91 | ||
| 365 | Q 104371 | PART NAME MISSING |
| PEDAL | ||
| TO Q501524R1 | ||
| 365 | Q 464898C2 | PART NAME MISSING |
| PEDAL | ||
| TO Q492833C91 | ||
| 365 | Q 104375 | PART NAME MISSING |
| PEDAL | ||
| TO Q501525R1 | ||
| 370 | Q 382495C1 | PART NAME MISSING |
| PAD | ||
| TO Q477139C91,Q492833C91 | ||
| 375 | Q 138084 | PART NAME MISSING |
| PIN | ||
| TO 477139C91,Q492833C91 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRAKE PEDAL TO BEARING | ||
| 380 | Q 552697R1 | PART NAME MISSING |
| PIN | ||
| TO Q477139C91,Q492833C91 | ||
| 380 | Q 297194 | PART NAME MISSING |
| PIN | ||
| TO Q501524R1,Q501525R1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 385 | Q 464902C1 | PART NAME MISSING |
| ROLLER | ||
| TO Q477139C91,Q492833C91 | ||
| 390 | Q 297195 | PART NAME MISSING |
| PISTON | ||
| TO Q501524R1,Q501525R1 | ||
| 390 | Q 487433C1 | PART NAME MISSING |
| PISTON | ||
| TO Q477139C91 | ||
| 390 | Q 1648211C1 | PART NAME MISSING |
| PISTON | ||
| TO Q492833C91 | ||
| 395 | Q 464906C1 | PART NAME MISSING |
| PLATE | ||
| TO Q477139C91,Q492833C91 | ||
| 395 | Q 104368 | PART NAME MISSING |
| PLATE | ||
| TO Q501524R1,Q501525R1 | ||
| 400 | Q 464901C1 | PART NAME MISSING |
| SCREW | ||
| TO Q477139C91,Q492833C91 | ||
| 400 | Q 243890 | PART NAME MISSING |
| SCREW | ||
| TO Q501524R1,Q501525R1 | ||
| 405 | Q 479024C91 | PART NAME MISSING |
| VALVE | ||
| TO Q477139C91,Q492833C91 | ||
| 405 | Q 288383 | PART NAME MISSING |
| VALVE | ||
| TO Q501524R1 | ||
| 405 | Q 288363 | PART NAME MISSING |
| VALVE | ||
| TO Q501525R1 | ||
| 410 | Q 464903C92 | PART NAME MISSING |
| REPAIR KIT | ||
| TO Q477139C91,Q492833C91 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SMALL SCOPE | ||
| 410 | Q 501776C91 | PART NAME MISSING |
| REPAIR KIT | ||
| TO Q477139C91,Q492833C91 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LARGE SCOPE | ||
