Transporto priemonė: F 1114 C; VIN numerio dalis: FA1017
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

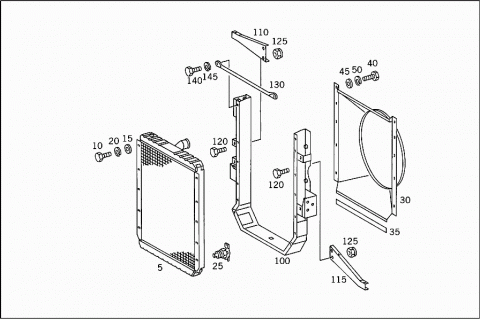

| 005 | A 6855000203 | RADIATOR |
| 010 | Q 25228R1 | PART NAME MISSING |
| Repalced by: A 6859900401 | ||
| 010 | A 6859900401 | SCREW |
| RADIATOR TO SUPPORT | ||
| 015 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 015 | A 6859900240 | WASHER |
| RADIATOR TO SUPPORT | ||
| 020 | Q 27304R1 | PART NAME MISSING |
| Repalced by: A 6859900147 | ||
| 020 | A 6859900147 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 025 | A 6855000025 | DRAIN COCK |
| RADIATOR | ||
| 025 | Q 125407H1 | PART NAME MISSING |
| DRAIN COCK | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RADIATOR | ||
| 030 | A 6855050355 | FAN SHROUD |
| 030 | A 6855050455 | FAN SHROUD |
| 035 | Q 501581R1 | PART NAME MISSING |
| GASKET | ||
| 040 | Q 25493R1 | PART NAME MISSING |
| Repalced by: A 6859900701 | ||
| 040 | A 6859900701 | SCREW |
| FAN SHROUD TO BASE FRAME | ||
| 045 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 045 | A 6859900240 | WASHER |
| FAN SHROUD TO BASE FRAME | ||
| 050 | Q 27304R1 | PART NAME MISSING |
| Repalced by: A 6859900147 | ||
| 050 | A 6859900147 | LOCK WASHER |
| FAN SHROUD TO BASE FRAME | ||

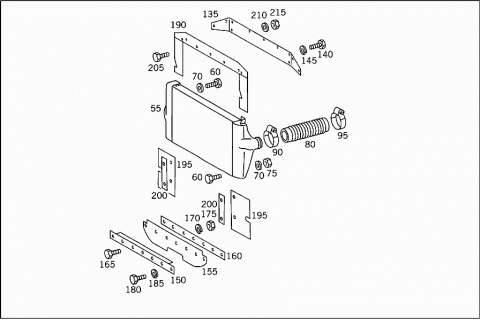

| 055 | A 3765013301 | CHARGING AIR INTERCOOLER |
| "BEHR" | ||
| 055 | A 3765016801 | CHARGING AIR INTERCOOLER |
| 060 | N 000933008271 | SCREW |
| CHARGING AIR INTERCOOLER TO BASE FRAME | ||
| M 8X20 | ||
| 060 | N 000933008268 | SCREW |
| CHARGING AIR INTERCOOLER TO BASE FRAME | ||
| M 8X16 | ||
| 070 | N 000125008417 | WASHER |
| CHARGING AIR INTERCOOLER TO BASE FRAME | ||
| A 8.4 | ||
| 075 | N 913004008001 | NUT |
| CHARGING AIR INTERCOOLER TO BASE FRAME | ||
| M 8 | ||
| 080 | A 6855280582 | HOSE |
| CHARGING-AIR-INTERCOOLER/TURBOCHARGER CONNECTION | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| COLOR CODE RED | ||
| 080 | A 6855280782 | HOSE |
| (INTAKE HOSE) | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| COLOR CODE BLUE | ||
| 090 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 090 | N 000000000675 | CLAMP |
| ACCORDION TUBE TO CHARGE AIR ELBOW | ||
| 80-100 MM | ||
| 095 | N 916017090000 | CLAMP |
| ACCORDION TUBE TO CHARGE AIR ELBOW | ||
| 90-110 MM | ||
| 100 | A 6855000427 | SUPPORT |
| (BASE FRAME) | ||
| 100 | A 6855000327 | SUPPORT |
| (BASE FRAME) | ||
| 110 | A 6855010120 | BRACKET |
| RIGHT | ||
| 115 | A 6855017120 | BRACKET |
| LEFT | ||
| 120 | Q 25493R1 | PART NAME MISSING |
| Repalced by: A 6859900701 | ||
| 120 | A 6859900701 | SCREW |
| BRACKET TO BASE FRAME | ||
| 125 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 125 | A 6859900251 | NUT |
| BRACKET TO BASE FRAME | ||
| 130 | A 6855040030 | RADIATOR STRUT |
| 135 | Q 502631R1 | PART NAME MISSING |
| RADIATOR STRUT | ||
| 140 | Q 25493R1 | PART NAME MISSING |
| Repalced by: A 6859900701 | ||
| 140 | A 6859900701 | SCREW |
| RADIATOR STRUT TO RADIATOR MOUNTING | ||
| 145 | A 6859900147 | LOCK WASHER |
| RADIATOR STRUT TO RADIATOR MOUNTING | ||
| 145 | Q 120214 | PART NAME MISSING |
| SPRING WASHER | ||
| 5/16-.318 Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RADIATOR STRUT TO RADIATOR MOUNTING | ||
| 150 | A 6855010495 | SHIM |
| 155 | A 6855010480 | GASKET |
| SCREENING | ||
| 160 | A 6855010595 | SHIM |
| 165 | Q 25752R1 | PART NAME MISSING |
| Repalced by: A 6859900601 | ||
| 165 | A 6859900601 | SCREW |
| 1/4-20 X 1/2 FOSF G8 | ||
| 170 | Q 27303R1 | PART NAME MISSING |
| Repalced by: A 6859900247 | ||
| 170 | A 6859900247 | LOCK WASHER |
| 1/4-.255 | ||
| 175 | Q 26110R1 | PART NAME MISSING |
| Repalced by: A 6859900551 | ||
| 175 | A 6859900551 | NUT |
| SEG. 1/4-20 FG8 | ||
| 180 | Q 25228R1 | PART NAME MISSING |
| Repalced by: A 6859900401 | ||
| 180 | A 6859900401 | SCREW |
| SCREENING TO RADIATOR BASE FRAME | ||
| 5/16-18 X 3/4 FOSF | ||
| 185 | Q 27304R1 | PART NAME MISSING |
| Repalced by: A 6859900147 | ||
| 185 | A 6859900147 | LOCK WASHER |
| SCREENING TO RADIATOR BASE FRAME | ||
| 5/16-.318 INOX | ||
| 190 | Q 502630R91 | PART NAME MISSING |
| MUD APRON | ||
| 195 | Q 502656R1 | PART NAME MISSING |
| COVERING | ||
| 200 | Q 502657R1 | PART NAME MISSING |
| PLATE | ||
| 205 | Q 25222R1 | PART NAME MISSING |
| Repalced by: A 6859900501 | ||
| 205 | A 6859900501 | SCREW |
| MUD APRON TO RADIATOR STRUT | ||
| 1/4-20 X 3/4 FG8 | ||
| 210 | A 6859900340 | WASHER |
| MUD APRON TO RADIATOR STRUT | ||
| 210 | Q 25707R1 | PART NAME MISSING |
| WASHER | ||
| 1/4-.625-.075 Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON TO RADIATOR STRUT | ||
| 215 | Q 25519R1 | PART NAME MISSING |
| Repalced by: A 6859900651 | ||
| 215 | A 6859900651 | NUT |
| MUD APRON TO RADIATOR STRUT | ||
| 1/4-20 FG8 | ||
| 220 | Q 471478C1 | PART NAME MISSING |
| Repalced by: A 6855040012 | ||

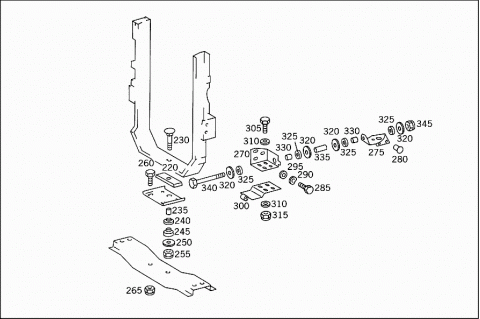

| 220 | A 6855040012 | RUBBER MOUNTING |
| BASE FRAME ON CROSS MEMBER | ||
| 230 | Q 27463R1 | PART NAME MISSING |
| Repalced by: A 6859901001 | ||
| 230 | A 6859901001 | SCREW |
| BASE FRAME ON CROSS MEMBER | ||
| 235 | Q 487704R1 | PART NAME MISSING |
| Repalced by: A 6855040353 | ||
| 235 | A 6855040353 | SPACER TUBE |
| BASE FRAME ON CROSS MEMBER | ||
| 240 | Q 471477C1 | PART NAME MISSING |
| Repalced by: A 6855040065 | ||
| 240 | A 6855040065 | RUBBER BUFFER |
| BASE FRAME ON CROSS MEMBER | ||
| 245 | Q 471475C1 | PART NAME MISSING |
| Repalced by: A 6855040028 | ||
| 245 | A 6855040028 | GUIDE |
| BASE FRAME ON CROSS MEMBER | ||
| 250 | Q 22191R1 | PART NAME MISSING |
| Repalced by: A 6859900440 | ||
| 250 | A 6859900440 | WASHER |
| BASE FRAME ON CROSS MEMBER | ||
| 255 | Q 9412230 | PART NAME MISSING |
| Repalced by: A 6859901151 | ||
| 255 | A 6859901151 | NUT |
| BASE FRAME ON CROSS MEMBER | ||
| 260 | Q 414052C1 | PART NAME MISSING |
| Repalced by: A 6859900101 | ||
| 260 | A 6859900101 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| 265 | Q 414087C1 | PART NAME MISSING |
| Repalced by: A 6859900151 | ||
| 265 | A 6859900151 | NUT |
| CONSOLE TO CROSS MEMBER | ||
| 270 | A 6855040101 | SUPPORT |
| LEFT | ||
| 270 | A 6855040201 | SUPPORT |
| RIGHT | ||
| 275 | A 6855040501 | SUPPORT |
| LEFT | ||
| 275 | A 6855040601 | SUPPORT |
| RIGHT | ||
| 280 | Q 12055R1 | PART NAME MISSING |
| RIVET | ||
| 3/8 X 1 1/8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPORT TO FRAME | ||
| 285 | A 6859901101 | SCREW |
| CONSOLE TO BASE FRAME | ||
| 285 | Q 140483H | PART NAME MISSING |
| SCREW | ||
| 3/8-16 X 1 1/4 FOSF G8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONSOLE TO BASE FRAME | ||
| 290 | Q 120382 | PART NAME MISSING |
| Repalced by: A 6859900347 | ||
| 290 | A 6859900347 | LOCK WASHER |
| CONSOLE TO BASE FRAME | ||
| 3/8-.382 Z | ||
| 295 | Q 25709R1 | PART NAME MISSING |
| Repalced by: A 6859900140 | ||
| 295 | A 6859900140 | WASHER |
| CONSOLE TO BASE FRAME | ||
| 3/8-.812-.089 Z | ||
| 300 | A 6855200029 | HINGE |
| 305 | Q 25751R1 | PART NAME MISSING |
| Repalced by: A 6859900901 | ||
| 305 | A 6859900901 | SCREW |
| HINGE TO CONSOLE | ||
| 310 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 310 | A 6859900240 | WASHER |
| HINGE TO CONSOLE | ||
| 315 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 315 | A 6859900251 | NUT |
| HINGE TO CONSOLE | ||
| 320 | A 6859900640 | WASHER |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 320 | Q 130999 | PART NAME MISSING |
| WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 325 | A 6855040082 | RUBBER RING |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 325 | Q 459591C1 | PART NAME MISSING |
| RUBBER MOUNTING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 330 | A 6855040153 | SPACER TUBE |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 330 | Q 474923 | PART NAME MISSING |
| SPACER TUBE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 335 | A 6855040053 | SPACER TUBE |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 335 | Q 501538R1 | PART NAME MISSING |
| SPACER TUBE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 340 | A 6859902201 | SCREW |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 340 | Q 25697R1 | PART NAME MISSING |
| SCREW | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 345 | A 6859901251 | NUT |
| FROM RADIATOR TO FRAME,LATERAL | ||
| 345 | Q 414089C1 | PART NAME MISSING |
| NUT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM RADIATOR TO FRAME,LATERAL | ||

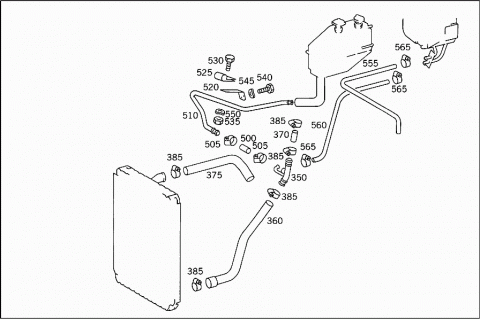

| 350 | A 6855000072 | LINE |
| 355 | A 6855000172 | LINE |
| 360 | A 6855010982 | HOSE |
| BOTTOM | ||
| 365 | Q 502449R1 | PART NAME MISSING |
| MOLDED HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BOTTOM | ||
| 370 | N 900271042008 | HOSE |
| 42 X 54 X 90 MM | ||
| 375 | A 6855011382 | HOSE |
| TOP | ||
| Q 502443R1 | PART NAME MISSING | |
| Repalced by: A 6855010882 | ||
| 380 | A 6855010882 | HOSE |
| Repalced by: A 6855010982 | ||
| 380 | A 6855010982 | HOSE |
| TOP | ||
| 385 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 385 | N 000000000671 | CLAMP |
| PIPE TO HOSE | ||
| 40-60 MM | ||
| 385 | N 000000000671 | CLAMP |
| HOSE TO THERMOSTAT | ||
| 40-60 MM | ||

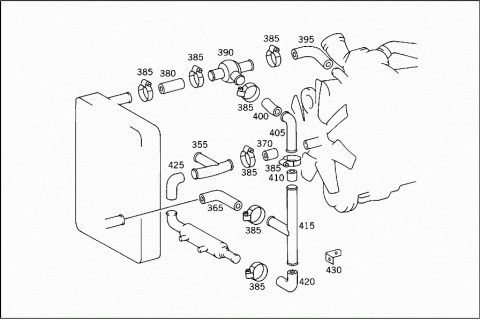

| 390 | Q 502420R91 | PART NAME MISSING |
| THERMOSTAT | ||
| 395 | Q 502442R1 | PART NAME MISSING |
| HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THERMOSTAT | ||
| 400 | Q 502470R1 | PART NAME MISSING |
| HOSE | ||
| 405 | Q 502469R1 | PART NAME MISSING |
| PIPE LINE | ||
| 410 | Q 502471R1 | PART NAME MISSING |
| HOSE | ||
| 415 | Q 502426R91 | PART NAME MISSING |
| PIPE LINE | ||
| 420 | Q 502444R1 | PART NAME MISSING |
| MOLDED HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO OIL COOLER | ||
| 425 | Q 502434R1 | PART NAME MISSING |
| MOLDED HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM OIL COOLER TO WATER PUMP | ||
| 430 | Q 502445R1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PIPE LINE | ||

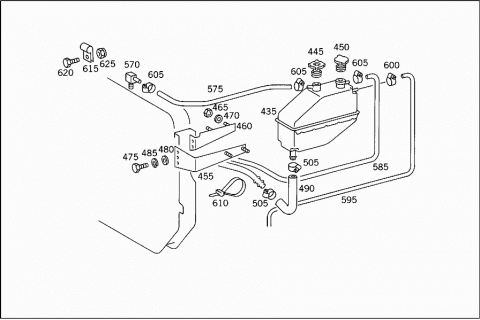

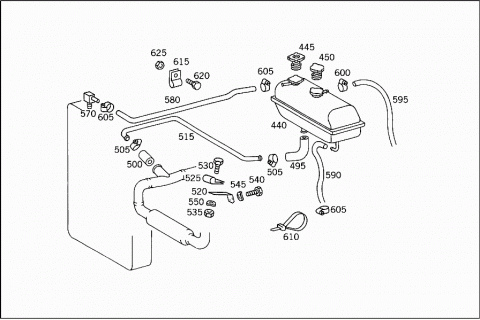

| 435 | A 6855007149 | TANK |
| 440 | A 6855007049 | TANK |
| 445 | A 6855010015 | RADIATOR CAP |
| 445 | A 0005015315 | RADIATOR CAP |
| 450 | A 6855017115 | RADIATOR CAP |
| 455 | A 6855017031 | BRACKET |
| EXPANSION TANK | ||
| 460 | A 6855017131 | BRACKET |
| EXPANSION TANK | ||
| 465 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 465 | A 6859900351 | NUT |
| BRACKET TO EXPANSION TANK | ||
| 470 | Q 25709R1 | PART NAME MISSING |
| Repalced by: A 6859900140 | ||
| 470 | A 6859900140 | WASHER |
| BRACKET TO EXPANSION TANK | ||
| 475 | Q 25493R1 | PART NAME MISSING |
| Repalced by: A 6859900701 | ||
| 475 | A 6859900701 | SCREW |
| BRACKET TO FRAME | ||
| 480 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 480 | A 6859900240 | WASHER |
| BRACKET TO FRAME | ||
| 485 | Q 27304R1 | PART NAME MISSING |
| Repalced by: A 6859900147 | ||
| 485 | A 6859900147 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 490 | A 6855017382 | HOSE |
| 495 | A 6855010082 | HOSE |
| 500 | A 6855010382 | HOSE |
| Repalced by: N 900271025009 | ||
| 500 | N 900271025009 | HOSE |
| (MOLDED HOSE) | ||
| 505 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 505 | N 000000000668 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 25-40 MM | ||
| 505 | N 000000000668 | CLAMP |
| MOLDED HOSE TO PIPE | ||
| 25-40 MM | ||
| 510 | A 6855017124 | COOLING WATER PIPE |
| 515 | A 6855010324 | COOLING WATER PIPE |
| 520 | A 6855010720 | BRACKET |
| 525 | A 6859950901 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 525 | Q 299416C1 | PART NAME MISSING |
| CLAMP | ||
| 15/16 X .38 Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| COOLING WATER LINE TO BRACKET | ||
| 530 | A 6859900401 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 530 | Q 255228R1 | PART NAME MISSING |
| SCREW | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| COOLING WATER LINE TO BRACKET | ||
| 535 | Q 25520R1 | PART NAME MISSING |
| Repalced by: A 6859900751 | ||
| 535 | A 6859900751 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 540 | N 000933010256 | SCREW |
| CLAMP TO BRACKET | ||
| 545 | Q 120383 | PART NAME MISSING |
| SPRING WASHER | ||
| 7/16-.446 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CLAMP TO BRACKET | ||
| 550 | Q 120214 | PART NAME MISSING |
| SPRING WASHER | ||
| 5/16-.318 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CLAMP TO BRACKET | ||
| 555 | N 900271018092 | HOSE |
| 18 X 25 X 865 MM | ||
| 560 | N 900271018064 | HOSE |
| 18 X 25 X 600 MM | ||
| 565 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 565 | N 000000000667 | CLAMP |
| MOLDED HOSE TO HEATER | ||
| 20-32 MM | ||
| 565 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 565 | N 000000000666 | CLAMP |
| MOLDED HOSE TO HEATER | ||
| 16-25 MM | ||
| 565 | N 000000000666 | CLAMP |
| MOLDED HOSE TO PIPE SOCKET | ||
| 16-25 MM | ||
| 570 | A 6855017008 | FILLER NECK |
| 570 | Q 482731C1 | PART NAME MISSING |
| FITTING | ||
| A 6855017282 | HOSE | |
| Repalced by: N 900271008033 | ||
| 575 | N 900271008033 | HOSE |
| DE-AERATION LINE | ||
| 8 X 15 X 500 MM | ||
| 580 | N 900271008085 | HOSE |
| DE-AERATION LINE | ||
| 8 X 15 X 560 MM | ||
| 585 | N 900271008082 | HOSE |
| 590 | N 900271008087 | HOSE |
| DE-AERATION LINE | ||
| 8 X 15 X 1135 MM | ||
| 595 | Q 427698C1 | PART NAME MISSING |
| HOSE | ||
| 5/16X800 MM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DE-AERATION LINE | ||
| 600 | Q 406340C1 | PART NAME MISSING |
| CLAMP | ||
| .520 AC | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DE-AERATION LINE | ||
| 605 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 605 | N 000000000665 | CLAMP |
| DE-AERATION LINE TO SCREW FITTING | ||
| 12-22X12MM | ||
| 610 | A 6859970090 | LOOM TIE |
| HOSE TO COOLING WATER PIPE | ||
| 610 | Q 289862C1 | PART NAME MISSING |
| Repalced by: A 6859970090 | ||
| 610 | A 6859970090 | LOOM TIE |
| LOOM TIE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HOSE TO COOLING WATER PIPE | ||
| 615 | A 6859950801 | CLAMP |
| HOSE TO BASE FRAME BRACKET | ||
| 615 | Q 428913R91 | PART NAME MISSING |
| CLAMP | ||
| 11/16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HOSE TO BASE FRAME BRACKET | ||
| 620 | Q 25228R1 | PART NAME MISSING |
| Repalced by: A 6859900401 | ||
| 620 | A 6859900401 | SCREW |
| HOSE TO BASE FRAME BRACKET | ||
| 625 | Q 25520R1 | PART NAME MISSING |
| Repalced by: A 6859900751 | ||
| 625 | A 6859900751 | NUT |
| HOSE TO BASE FRAME BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
