Transporto priemonė: F 2121; VIN numerio dalis: FA1061

Rinktis kitą modelį

Grupė: 42 BRAKES

Rinktis kitą grupę

#	Kodas	Pavadinimas
005	A 6859900071	ELBOW FITTING
		AT AIR COMPRESSOR
008	N 074305026202	NUT
		AT FITTING
010	A 0039973848	SEAL RING
		COMPRESSED AIR LINE TO AIR COMPRESSOR
012	A 0004290527	THRUST RING
		COMPRESSED AIR LINE TO AIR COMPRESSOR
014	A 6854200036	LINE
		FROM AIR COMPRESSOR TO FITTING
014	A 6854290001	LINE
		FROM AIR COMPRESSOR TO FITTING
016	A 6854200336	LINE
		FROM FITTING TO PRESSURE REGULATOR
016	A 6854290301	LINE
		FROM FITTING TO PRESSURE REGULATOR
016	A 6854200136	LINE
		FROM FITTING TO PRESSURE REGULATOR
016	A 6854290101	LINE
		FROM FITTING TO PRESSURE REGULATOR
018	A 6854200236	LINE
		FROM PRESSURE REGULATOR TO AIR RESERVOIR
018	A 6854297001	LINE
		FROM PRESSURE REGULATOR TO AIR RESERVOIR
018	A 6854200436	LINE
		FROM PRESSURE REGULATOR TO AIR RESERVOIR
018	A 6854290401	LINE
		FROM PRESSURE REGULATOR TO AIR RESERVOIR
020	A 6859901051	NUT
020	Q 55897R1	PART NAME MISSING
		NUT
022	Q 55896R1	PART NAME MISSING
	Repalced by: A 6859900167
022	A 6859900167	SEAL CONE
024	A 6854290040	BRACKET
		COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
026	Q 299410C1	PART NAME MISSING
	Repalced by: A 6859950201
026	A 6859950201	CLAMP
		COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
026	A 6859950201	CLAMP
		COMPRESSED AIR LINE TO BRACKET
028	Q 25222R1	PART NAME MISSING
	Repalced by: A 6859900501
028	A 6859900501	SCREW
		COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
		1/4-20 X 3/4
028	A 6859900501	SCREW
		COMPRESSED AIR LINE TO BRACKET
		1/4-20 X 3/4
030	Q 25519R1	PART NAME MISSING
	Repalced by: A 6859900651
030	A 6859900651	NUT
		COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
030	A 6859900651	NUT
		COMPRESSED AIR LINE TO BRACKET
032	A 6859900271	FITTING
		COMPRESSED AIR LINE TO COMPRESSED AIR LINE
034	Q 373037C1	PART NAME MISSING
	Repalced by: A 6855060240
034	A 6855060240	BRACKET
		AT SIDE MEMBER
036	Q 414052C1	PART NAME MISSING
	Repalced by: A 6859900101
036	A 6859900101	SCREW
		COMPRESSED AIR LINE BRACKET TO FRAME
038	Q 414087C1	PART NAME MISSING
	Repalced by: A 6859900151
038	A 6859900151	NUT
		COMPRESSED AIR LINE BRACKET TO FRAME
040	A 0024314306	PRESSURE REGULATOR
		BOSCH
040	A 0024314906	PRESSURE REGULATOR
		WESTINGHOUSE
042	A 0004301768	REPAIR KIT
		DIAPHRAGM
		TO 002 431 43 06,BOSCH
042	A 0014304960	REPAIR KIT
		TO 002 431 49 06,WESTINGHOUSE
044	A 0004307960	REPAIR KIT
		TIRE INFLATING CONNECTION
		TO 002 431 43 06,BOSCH
045	Q 364360C1	PART NAME MISSING
		HOSE
		3/4" X 1 1/8" X 300 MM
046	Q 122316R91	PART NAME MISSING
		CLAMP
047	A 6859900171	FITTING
		FROM AIR COMPRESSOR TO PRESSURE REGULATOR
047	A 6859900171	FITTING
		FROM PRESSURE REGULATOR TO AIR RESERVOIR
048	A 0004290227	THRUST RING
		FROM AIR COMPRESSOR TO PRESSURE REGULATOR
048	A 0004290227	THRUST RING
		FROM PRESSURE REGULATOR TO AIR RESERVOIR
050	A 0009870446	O-RING
		FROM AIR COMPRESSOR TO PRESSURE REGULATOR
050	A 0009870446	O-RING
		FROM PRESSURE REGULATOR TO AIR RESERVOIR
052	A 6854290140	BRACKET
		PRESSURE REGULATOR
052	A 6854200086	BRACKET
		PRESSURE REGULATOR
054	Q 25751R1	PART NAME MISSING
	Repalced by: A 6859900901
054	A 6859900901	SCREW
		PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
056	Q 25520R1	PART NAME MISSING
	Repalced by: A 6859900751
056	A 6859900751	NUT
		PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
058	Q 25236R1	PART NAME MISSING
	Repalced by: A 6859901301
058	A 6859901301	SCREW
		PRESSURE REGULATOR TO BRACKET
060	Q 27304R1	PART NAME MISSING
	Repalced by: A 6859900147
060	A 6859900147	LOCK WASHER
		PRESSURE REGULATOR TO BRACKET
062	Q 25520R1	PART NAME MISSING
	Repalced by: A 6859900751
062	A 6859900751	NUT
		PRESSURE REGULATOR TO BRACKET
064	A 6859900371	ELBOW FITTING
		AT PRESSURE REGULATOR

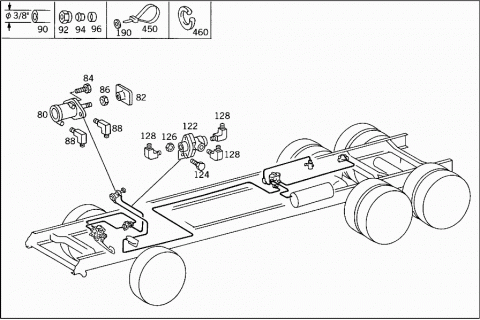

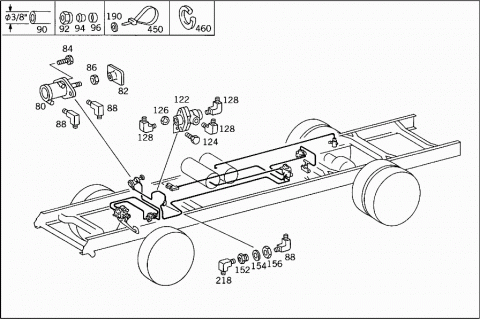

080	Q 592699C1	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		HAND BRAKE VALVE
082	Q 482528C1	PART NAME MISSING
		BUTTON
	T YYYYYYYYYYYY	PART NAME MISSING
		HAND BRAKE VALVE
084	Q 446556	PART NAME MISSING
		SCREW
		10-32 X 1/2
	T YYYYYYYYYYYY	PART NAME MISSING
		VALVE TO CONSOLE
086	Q 118623	PART NAME MISSING
	Repalced by: A 6859901451
086	A 6859901451	NUT
		VALVE TO CONSOLE
		1/4-20
088	Q 30761V	PART NAME MISSING
		ELBOW FITTING
		90 GR.1/4" NPTFM X 3/8"
090	Q 417199C2	PART NAME MISSING
		HOSE
		3/8"
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		890 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		940 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		760 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		460 MM
090	Q 417199C2	PART NAME MISSING
		HOSE
		3/8"
090	Q 417199C2	PART NAME MISSING
		FROM BRAKE VALVE TO TWO-WAY VALVE
		1460 MM
090	Q 417199C2	PART NAME MISSING
		FROM BRAKE VALVE TO TWO-WAY VALVE
		510 MM
090	Q 417199C2	PART NAME MISSING
		FROM BRAKE VALVE TO TWO-WAY VALVE
		670 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		6600 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		7620 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		4570 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		6920 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		4870 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		5730 MM
090	Q 417199C2	PART NAME MISSING
		VALVE TO VALVE
		7820 MM
090	Q 417199C2	PART NAME MISSING
		FROM T-FITTING TO RELAY VALVE
		4080 MM
090	Q 417199C2	PART NAME MISSING
		FROM T-FITTING TO RELAY VALVE
		110 MM
090	Q 417199C2	PART NAME MISSING
		FROM T-FITTING TO RELAY VALVE
		2660 MM
090	Q 417199C2	PART NAME MISSING
		FROM T-FITTING TO RELAY VALVE
		1250 MM
090	Q 417199C2	PART NAME MISSING
		FROM T-FITTING TO RELAY VALVE
		4700 MM
090	Q 417199C2	PART NAME MISSING
		FROM T-FITTING TO RELAY VALVE
		3500 MM
090	Q 417199C2	PART NAME MISSING
		FROM T-FITTING TO RELAY VALVE
		4520 MM
090	Q 417199C2	PART NAME MISSING
		FROM T-FITTING TO RELAY VALVE
		2100 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO RELAY VALVE
		3750 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO RELAY VALVE
		3750 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO RELAY VALVE
		2570 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO RELAY VALVE
		1990 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO RELAY VALVE
		3700 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO RELAY VALVE
		3920 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO RELAY VALVE
		4950 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO RELAY VALVE
		2480 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO SOLENOID VALVE
		3090 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO SOLENOID VALVE
		2990 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO SOLENOID VALVE
		2850 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO SOLENOID VALVE
		3270 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO SOLENOID VALVE
		5350 MM
090	Q 417199C2	PART NAME MISSING
		RELEASE VALVE
		650 MM
090	Q 417199C2	PART NAME MISSING
		RELEASE VALVE
		650 MM
090	Q 417199C2	PART NAME MISSING
		RELEASE VALVE
		780 MM
090	Q 417199C2	PART NAME MISSING
		FROM TWO-WAY VALVE TO TWO-WAY VALVE
		850 MM
090	Q 417199C2	PART NAME MISSING
		FROM TWO-WAY VALVE TO TWO-WAY VALVE
		880 MM
090	Q 417199C2	PART NAME MISSING
		FROM TWO-WAY VALVE TO TWO-WAY VALVE
		880 MM
090	Q 417199C2	PART NAME MISSING
		FROM TWO-WAY VALVE TO TWO-WAY VALVE
		790 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO DRAIN VALVE
		2380 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO DRAIN VALVE
		2660 MM
090	Q 417199C2	PART NAME MISSING
		FROM AIR RESERVOIR TO DRAIN VALVE
		3810 MM
092	Q 414509C2	PART NAME MISSING
		NUT
		3/8"TBR
094	Q 30644V	PART NAME MISSING
		GLAND
		3/8"
096	Q 414505C1	PART NAME MISSING
		SLEEVE
		3/8"

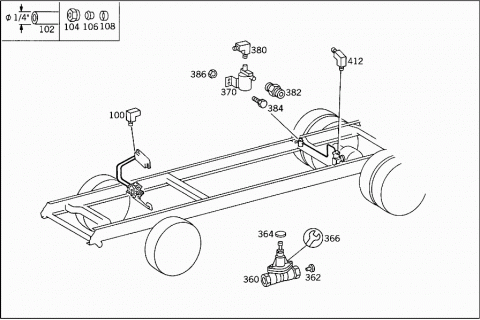

100	Q 91913R1	PART NAME MISSING
		ELBOW FITTING
		90 GR.1/8"NPTFH X 1/4"
	T YYYYYYYYYYYY	PART NAME MISSING
		PRESSURE GAUGE
102	Q 417196C2	PART NAME MISSING
	Repalced by: A 6859870827
102	A 6859870827	PLASTIC PIPE
		FROM BRAKE VALVE TO PRESSURE GAUGE
		1/4", 310 MM
102	A 6859870827	PLASTIC PIPE
		REAR AXLE REGULATING SOLENOID VALVE
		710 MM
104	Q 414510C2	PART NAME MISSING
		NUT
		1/4"
106	Q 30774V	PART NAME MISSING
		GLAND
		1/4"
108	Q 414504C1	PART NAME MISSING
		SLEEVE
		1/4"

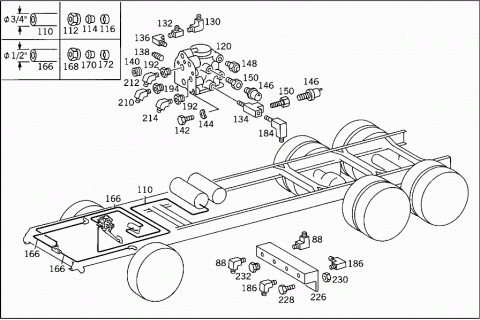

110	Q 417202C2	PART NAME MISSING
		HOSE
		3/4"
110	Q 417202C2	PART NAME MISSING
		FROM AIR RESERVOIR TO BRAKE VALVE
		3250 MM
112	Q 414513C2	PART NAME MISSING
		NUT
		3/4"
114	Q 76263H	PART NAME MISSING
		GLAND
		3/4"
116	Q 414507C1	PART NAME MISSING
		SLEEVE
		3/4"
120	Q 479024C91	PART NAME MISSING
		BRAKE VALVE
120	Q 479024C91	PART NAME MISSING
		BRAKE VALVE
120	Q 574787C91	PART NAME MISSING
		BRAKE VALVE
120	Q 492833C91	PART NAME MISSING
		BRAKE VALVE
122	Q 764368C92	PART NAME MISSING
		TWO-WAY VALVE
122	Q 501527R1	PART NAME MISSING
		TWO-WAY VALVE
124	Q 25493R1	PART NAME MISSING
	Repalced by: A 6859900701
124	A 6859900701	SCREW
		VALVE TO CAB
		5/16"-18X1"
126	Q 9413977	PART NAME MISSING
	Repalced by: A 6859900251
126	A 6859900251	NUT
		VALVE TO CAB
		5/16"-18
128	Q 71466H	PART NAME MISSING
		ELBOW FITTING
		90GR.3/8" NPT X 3/8"
	T YYYYYYYYYYYY	PART NAME MISSING
		TWO-WAY VALVE
130	Q 96644R1	PART NAME MISSING
		ELBOW FITTING
		90 GR.1/4"NPT X 1/4"
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
132	Q 101917R1	PART NAME MISSING
		T-FITTING
134	Q 444150	PART NAME MISSING
		T-FITTING
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
136	Q 444040	PART NAME MISSING
		ELBOW FITTING
		90 GR.1/4" NPTFM X 1/4"NPTFH
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
138	Q 20988R1	PART NAME MISSING
		SCREW PLUG
		1/4"-18 NPT
138	Q 20988R1	PART NAME MISSING
		SCREW PLUG
		1/4"-18 NPT
138	Q 444699	PART NAME MISSING
		SCREW PLUG
		3/8 - 18 NPT
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
140	Q 444614	PART NAME MISSING
		SCREW PLUG
		1/8"-27 NPT
140	Q 444614	PART NAME MISSING
		SCREW PLUG
		1/8"-27 NPT
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
142	Q 24840R1	PART NAME MISSING
		SCREW
		3/8"-16X1"
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
144	Q 120382	PART NAME MISSING
	Repalced by: A 6859900347
144	A 6859900347	LOCK WASHER
		BRAKE VALVE
		3/8-.382
	Q 873706R91	PART NAME MISSING
	Repalced by: Q 505026C1
146	Q 505026C1	PART NAME MISSING
		STOP LIGHT SWITCH
146	Q 598860C1	PART NAME MISSING
		STOP LIGHT SWITCH
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
148	Q 505027C1	PART NAME MISSING
		TEST CONNECTION
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
148	Q 501520R1	PART NAME MISSING
		TEST CONNECTION
150	Q 444028	PART NAME MISSING
		CONNECTOR
		3/8 NPTF X 1/4
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE VALVE
152	Q 123259R1	PART NAME MISSING
		CONNECTOR
152	Q 123259R1	PART NAME MISSING
		CONNECTOR
	T YYYYYYYYYYYY	PART NAME MISSING
		FROM ELBOW FITTING TO ELBOW FITTING
154	Q 138561	PART NAME MISSING
		WASHER
		3/4 X 1.22 Z
154	Q 138561	PART NAME MISSING
		WASHER
		3/4 X 1.22 Z
156	Q 427350	PART NAME MISSING
		NUT
		3/4-16
156	Q 427350	PART NAME MISSING
		NUT
		3/4-16

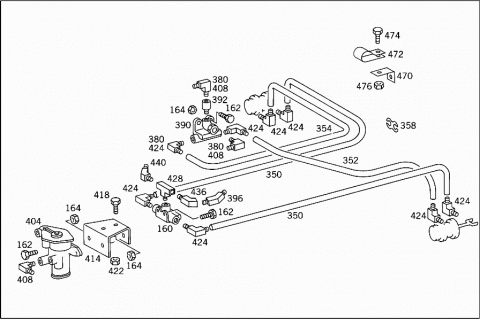

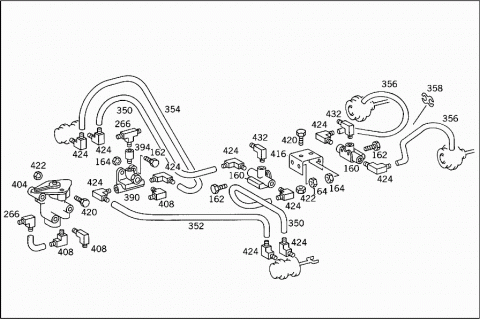

160	Q 500647R91	PART NAME MISSING
		VALVE
160	Q 473794C91	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		FRONT AXLE TWO-WAY VALVE
160	Q 473794C91	PART NAME MISSING
		REAR AXLE TWO-WAY VALVE
162	Q 25493R1	PART NAME MISSING
	Repalced by: A 6859900701
162	A 6859900701	SCREW
		VALVE TO CROSS MEMBER
		5/16"-18X1"
164	Q 9413977	PART NAME MISSING
	Repalced by: A 6859900251
164	A 6859900251	NUT
		VALVE TO CROSS MEMBER
		5/16"-18

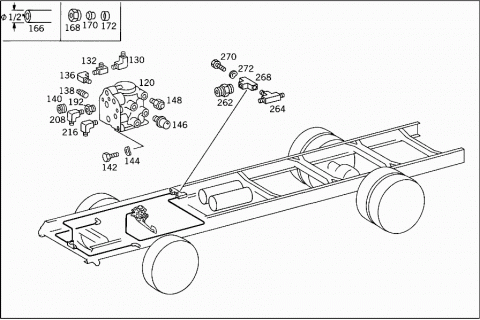

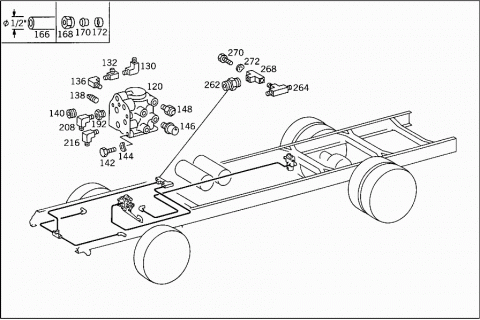

166	Q 417200C2	PART NAME MISSING
	Repalced by: A 6859870727
166	A 6859870727	PLASTIC PIPE
		HOSE
		1/2"
166	A 6859870727	PLASTIC PIPE
		FROM ELBOW FITTING TO T-TITTING
		2710 MM
166	A 6859870727	PLASTIC PIPE
		FROM ELBOW FITTING TO T-TITTING
		380 MM
166	A 6859870727	PLASTIC PIPE
		FROM VALVE TO ELBOW FITTING
		300 MM
166	A 6859870727	PLASTIC PIPE
		FROM VALVE TO ELBOW FITTING
		620 MM
166	A 6859870727	PLASTIC PIPE
		FROM VALVE TO ELBOW FITTING
		3040 MM
166	A 6859870727	PLASTIC PIPE
		HOSE
		1/2"
166	A 6859870727	PLASTIC PIPE
		FROM VALVE TO ELBOW FITTING
		2840 MM
166	A 6859870727	PLASTIC PIPE
		FROM ELBOW FITTING TO T-TITTING
		1/2"
166	A 6859870727	PLASTIC PIPE
		FROM VALVE TO ELBOW FITTING
		4650 MM
166	A 6859870727	PLASTIC PIPE
		FROM VALVE TO ELBOW FITTING
		650 MM
168	Q 414511C2	PART NAME MISSING
		NUT
		1/2"BR
170	Q 47126H	PART NAME MISSING
	Repalced by: A 6859900267
170	A 6859900267	SEAL CONE
		1/2"
172	Q 414506C1	PART NAME MISSING
	Repalced by: A 6854710053
172	A 6854710053	SPACER TUBE
		1/2"

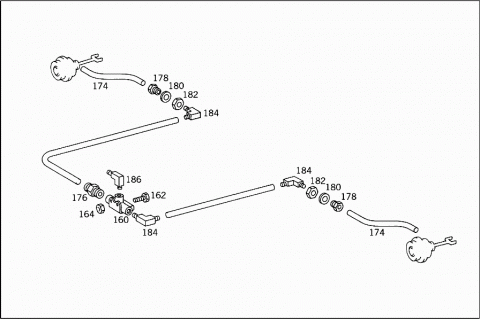

174	Q 783102R91	PART NAME MISSING
		HOSE
	T YYYYYYYYYYYY	PART NAME MISSING
		FROM ELBOW FITTING TO LEFT AND RIGHT BRAKE CYLINDERS
176	Q 59588D	PART NAME MISSING
		CONNECTOR
		3/8"NPT X 1/2"
	T YYYYYYYYYYYY	PART NAME MISSING
		HOSE TO VALVE
178	Q 309449C1	PART NAME MISSING
		CONNECTOR
	T YYYYYYYYYYYY	PART NAME MISSING
		FROM HOSE TO WHEEL CYLINDER
180	Q 138572	PART NAME MISSING
		WASHER
		1 X 1.590 Z
182	Q 181372R1	PART NAME MISSING
		NUT
		ESP.DEL.1-14
184	Q 136830H	PART NAME MISSING
		ELBOW FITTING
		45 GR.3/8" NPTFM X 1/2" TBR
184	Q 136830H	PART NAME MISSING
		ELBOW FITTING
		45 GR.3/8" NPTFM X 1/2" TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		FROM HOSE TO WHEEL CYLINDER
186	Q 53305H	PART NAME MISSING
	Repalced by: A 6854780464
186	A 6854780464	FITTING
		90 GR.3/8" NPTFM X 1/2 TBR
186	A 6854780464	FITTING
		90 GR.3/8" NPTFM X 1/2 TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		HOSE TO VALVE
190	Q 120391	PART NAME MISSING
		WASHER
		10 X.500 X.036
190	Q 120391	PART NAME MISSING
		WASHER
		10 X.500 X.036
	T YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO CROSS MEMBER
192	Q 444004	PART NAME MISSING
		CONNECTOR
		1/2" NPTFM X 1/2" NPTFH
194	Q 219898	PART NAME MISSING
		CONNECTOR
		1/2"NPTFM X 16 MM
	T YYYYYYYYYYYY	PART NAME MISSING
		HOSE TO VALVE

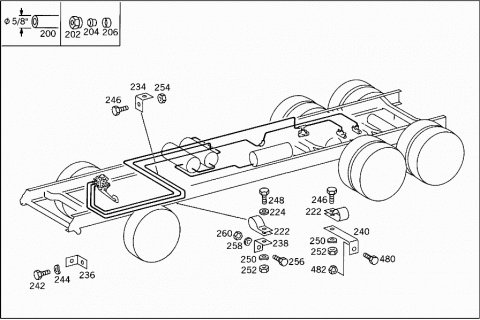

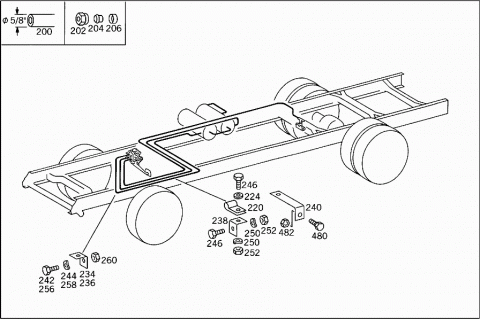

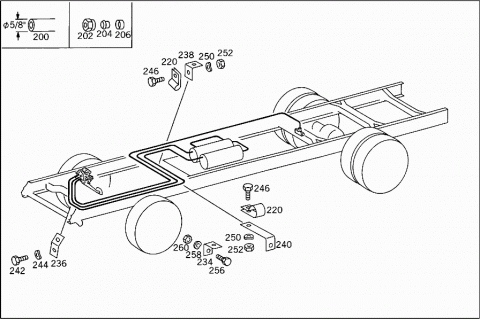

200	Q 417201C2	PART NAME MISSING
		HOSE
		5/8"
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		3250 MM
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		2900 MM
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		4430 MM
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		6150 MM
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		4820 MM
200	Q 417201C2	PART NAME MISSING
		REAR AXLE TWO-WAY VALVE
		6750 MM
200	Q 417201C2	PART NAME MISSING
		REAR AXLE TWO-WAY VALVE
		7770 MM
200	Q 417201C2	PART NAME MISSING
		REAR AXLE TWO-WAY VALVE
		2240 MM
200	Q 417201C2	PART NAME MISSING
		REAR AXLE TWO-WAY VALVE
		4640 MM
200	Q 417201C2	PART NAME MISSING
		REAR AXLE TWO-WAY VALVE
		7120 MM
200	Q 417201C2	PART NAME MISSING
		HOSE
		5/8"
200	Q 417201C2	PART NAME MISSING
		REAR AXLE TWO-WAY VALVE
		5930 MM
200	Q 417201C2	PART NAME MISSING
		REAR AXLE TWO-WAY VALVE
		7950 MM
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		3650 MM
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		3980 MM
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		4150 MM
200	Q 417201C2	PART NAME MISSING
		FROM AIR RESERVOIR TO VALVE
		4820 MM
200	Q 417201C2	PART NAME MISSING
		(AIR RESERVOIR),FRONT AND REAR
		2040 MM
200	Q 417201C2	PART NAME MISSING
		FROM RESERVOIR I TO RESERVOIR II
		330 MM
200	Q 417201C2	PART NAME MISSING
		FROM ELBOW FITTING TO AIR RESERVOIR
		370 MM
202	Q 414512C2	PART NAME MISSING
		NUT
		5/8"BR
204	Q 55896R1	PART NAME MISSING
	Repalced by: A 6859900167
204	A 6859900167	SEAL CONE
		5/8"
206	Q 414508C1	PART NAME MISSING
		SLEEVE
		5/8"
208	Q 152952R1	PART NAME MISSING
		ELBOW FITTING
		45 GR.1/2" NPT X 1/2"
208	Q 152952R1	PART NAME MISSING
		ELBOW FITTING
		45 GR.1/2" NPT X 1/2"
210	Q 111468R1	PART NAME MISSING
		ELBOW FITTING
		90GR.1/2 NPTFM X 5/8 TBR
	Y YYYYYYYYYYYY	PART NAME MISSING
		HOSE TO VALVE
212	Q 55916R1	PART NAME MISSING
	Repalced by: A 6859900371
212	A 6859900371	ELBOW FITTING
		90 GR.1/2" NPTFM X 3/8"
214	Q 103355H	PART NAME MISSING
		ELBOW FITTING
		90GR.1/2 NPTFM X 3/4 TBR
216	Q 59390R1	PART NAME MISSING
		ELBOW FITTING
216	Q 59390R1	PART NAME MISSING
		HOSE TO VALVE
		45 GR.1/2" NPTFM X 5/8"
216	Q 59390R1	PART NAME MISSING
		ELBOW FITTING
216	Q 59390R1	PART NAME MISSING
		HOSE TO AIR RESERVOIR
		45 GR.1/2"NPTFM X 5/8"
216	Q 59390R1	PART NAME MISSING
		ELBOW FITTING
218	Q 68761R1	PART NAME MISSING
		ELBOW FITTING
		45 GR.1/4" NPTFM X 3/8"
218	Q 68761R1	PART NAME MISSING
		ELBOW FITTING
		45 GR.1/4" NPTFM X 3/8"
	T YYYYYYYYYYYY	PART NAME MISSING
		HAND BRAKE VALVE
220	Q 414030C1	PART NAME MISSING
		CLAMP
220	Q 414030C1	PART NAME MISSING
		CLAMP
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FRAME
222	Q 365042C1	PART NAME MISSING
		CLAMP
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FRAME
224	Q 25707R1	PART NAME MISSING
		WASHER
		1/4-.625-.075 Z
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FRAME
226	Q 1667812C1	PART NAME MISSING
		DISTRIBUTOR
228	Q 25228R1	PART NAME MISSING
	Repalced by: A 6859900401
228	A 6859900401	SCREW
		DISTRIBUTOR
		5/16-18 X 3/4
230	Q 9413977	PART NAME MISSING
	Repalced by: A 6859900251
230	A 6859900251	NUT
		DISTRIBUTOR
		SEG.5/16-18
232	Q 444693	PART NAME MISSING
		SCREW PLUG
	T YYYYYYYYYYYY	PART NAME MISSING
		DISTRIBUTOR
234	Q 864340R1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FRAME
236	Q 275182C1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FRAME
236	Q 426814R1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FRAME
238	Q 872114R1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FRAME
240	Q 500868R1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FRAME
242	Q 24839R1	PART NAME MISSING
		SCREW
		3/8"-16 X 3/4"
	T YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FIRE WALL
244	Q 120382	PART NAME MISSING
	Repalced by: A 6859900347
244	A 6859900347	LOCK WASHER
		BRACKET TO FIRE WALL
246	Q 25483R1	PART NAME MISSING
	Repalced by: A 6859901601
246	A 6859901601	SCREW
		CLAMP TO BRACKET
		1/4"-20 X 1"
248	Q 25222R1	PART NAME MISSING
	Repalced by: A 6859900501
248	A 6859900501	SCREW
		BRAKE HOSE TO FRAME
		1/4-20 X 3/4
250	Q 120380	PART NAME MISSING
		SPRING WASHER
		1/4-.255 Z
	T YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO BRACKET
250	Q 120380	PART NAME MISSING
		BRAKE HOSE TO FRAME
		1/4-.255 Z
252	Q 25519R1	PART NAME MISSING
	Repalced by: A 6859900651
252	A 6859900651	NUT
		CLAMP TO BRACKET
		1/4-20
252	A 6859900651	NUT
		BRAKE HOSE TO FRAME
		1/4-20
254	Q 26110R1	PART NAME MISSING
	Repalced by: A 6859900551
254	A 6859900551	NUT
		CLAMP TO BRACKET
		SEG.1/4-20
256	Q 140483H	PART NAME MISSING
		SCREW
		3/8"-16 X 1 1/4"
	T YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
258	Q 120382	PART NAME MISSING
	Repalced by: A 6859900347
258	A 6859900347	LOCK WASHER
		BRACKET TO FRAME
		3/8-.382
260	Q 25522R1	PART NAME MISSING
	Repalced by: A 6859900851
260	A 6859900851	NUT
		BRACKET TO FRAME
		3/8-16
262	Q 59588D	PART NAME MISSING
		CONNECTOR
		3/8" NPTFM X 1/2"
262	Q 59588D	PART NAME MISSING
		CONNECTOR
		3/8" NPTFM X 1/2"
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE HOSE TO FITTING AND TO T-FITTING
264	Q 684958R1	PART NAME MISSING
		T-FITTING
		3/8" NPTF
264	Q 684958R1	PART NAME MISSING
		T-FITTING
		3/8" NPTF
266	Q 55919R1	PART NAME MISSING
		T-FITTING
268	Q 459280C1	PART NAME MISSING
		ELBOW FITTING
268	Q 459280C1	PART NAME MISSING
		ELBOW FITTING
	Y YYYYYYYYYYYY	PART NAME MISSING
		AT T-FITTING
270	Q 25483R1	PART NAME MISSING
	Repalced by: A 6859901601
270	A 6859901601	SCREW
		ELBOW FITTING TO SIDE MEMBER
		1/4"-20 X 1"
272	Q 120380	PART NAME MISSING
		SPRING WASHER
		1/4-.255 Z
	T YYYYYYYYYYYY	PART NAME MISSING
		ELBOW FITTING TO SIDE MEMBER

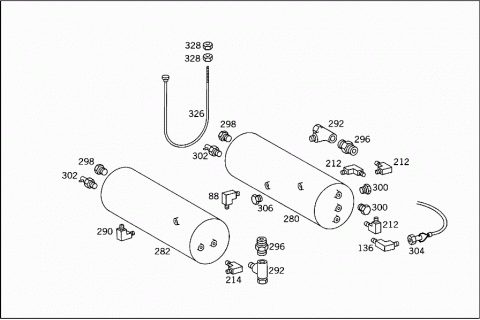

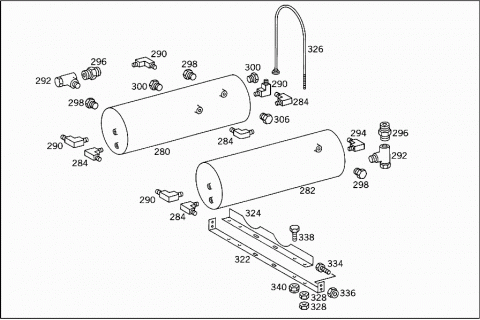

280	Q 498395R1	PART NAME MISSING
		RESERVOIR
	T YYYYYYYYYYYY	PART NAME MISSING
		AIR RESERVOIR I

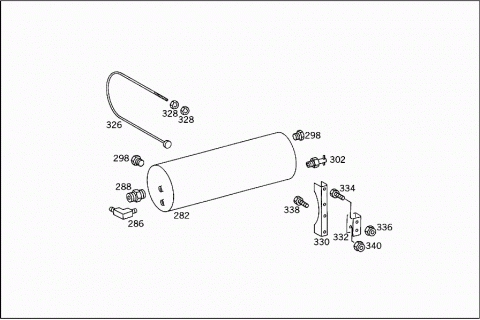

282	Q 475830C1	PART NAME MISSING
		RESERVOIR
	T YYYYYYYYYYYY	PART NAME MISSING
		AIR RESERVOIR II
282	Q 475830C1	PART NAME MISSING
		AIR RESERVOIRS II,III
284	Q 30761V	PART NAME MISSING
		ELBOW FITTING
		90 GR.1/4"NPTFM X 3/8"
	T YYYYYYYYYYYY	PART NAME MISSING
		AT AIR RESERVOIR
286	Q 59390R1	PART NAME MISSING
		ELBOW FITTING
		45 GR.1/2NPTFM X 5/8
	T YYYYYYYYYYYY	PART NAME MISSING
		AT AIR RESERVOIR
288	Q 55931R1	PART NAME MISSING
		CONNECTOR
		1/2 NPTFM X 3/8
	T YYYYYYYYYYYY	PART NAME MISSING
		AT AIR RESERVOIR
290	Q 55916R1	PART NAME MISSING
	Repalced by: A 6859900371
290	A 6859900371	ELBOW FITTING
		AT AIR RESERVOIR
		90 GR.1/2"NPTFM X 5/8"
290	A 6859900371	ELBOW FITTING
		AT AIR RESERVOIR
		90 GR.1/2"NPTFM X 5/8"
290	A 6859900371	ELBOW FITTING
		AT AIR RESERVOIR
		90 GR.1/2"NPTFM X 5/8"
292	Q 483144C91	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		PRESSURE RELIEF VALVE
292	Q 501528R1	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		PRESSURE RELIEF VALVE
294	Q 56233R1	PART NAME MISSING
		ELBOW FITTING
		90 GR.1/2"NPTFM X 3/8"
	T YYYYYYYYYYYY	PART NAME MISSING
		AT AIR RESERVOIR
296	Q 55917R1	PART NAME MISSING
		CONNECTOR
		1/2"NPTFM X 5/8"
	T YYYYYYYYYYYY	PART NAME MISSING
		AT AIR RESERVOIR
298	Q 444632	PART NAME MISSING
		SCREW PLUG
		1/2"-14 NPT
	T YYYYYYYYYYYY	PART NAME MISSING
		AT AIR RESERVOIR
300	Q 20988R1	PART NAME MISSING
		SCREW PLUG
		1/4"-18 NPT
	T YYYYYYYYYYYY	PART NAME MISSING
		AT AIR RESERVOIR
302	Q 25450H	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		DRAIN VALVE
302	Q 25450H	PART NAME MISSING
		AT BRACKET
302	Q 25450H	PART NAME MISSING
		AT AIR RESERVOIR
302	Q 25450H	PART NAME MISSING
		VALVE
304	Q 1659779C1	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		AT AIR RESERVOIR
306	Q 386398C91	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		SAFETY VALVE TO AIR RESERVOIR
306	Q 500648R91	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		SAFETY VALVE TO AIR RESERVOIR
310	Q 501192R1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		DRAIN VALVE
312	Q 25751R1	PART NAME MISSING
	Repalced by: A 6859900901
312	A 6859900901	SCREW
		BRACKET TO SIDE MEMBER
		5/16"-18 X 1 1/4"
314	Q 9413977	PART NAME MISSING
	Repalced by: A 6859900251
314	A 6859900251	NUT
		BRACKET TO SIDE MEMBER
		SEG.5/16-18
316	Q 123259R1	PART NAME MISSING
		CONNECTOR
	T YYYYYYYYYYYY	PART NAME MISSING
		DRAIN VALVE
318	Q 138561	PART NAME MISSING
		WASHER
		3/4 X 1.22 Z
	T YYYYYYYYYYYY	PART NAME MISSING
		HOSE TO BRACKET
320	Q 427350	PART NAME MISSING
		NUT
		3/4-16
	T YYYYYYYYYYYY	PART NAME MISSING
		HOSE TO BRACKET
322	Q 783351R1	PART NAME MISSING
		BRAKE ANCHOR
	T YYYYYYYYYYYY	PART NAME MISSING
		AIR RESERVOIRS I AND II
324	Q 476302C1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		AIR RESERVOIRS I AND II
326	Q 475894C1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		AIR RESERVOIRS I AND II
326	Q 475894C1	PART NAME MISSING
		AIR RESERVOIRS I,II,III
328	Q 118625	PART NAME MISSING
		NUT
		3/8-24
328	Q 118625	PART NAME MISSING
		NUT
		3/8-24
	T YYYYYYYYYYYY	PART NAME MISSING
		MOUNTING BRACKET TO FRAME
330	Q 501949R1	PART NAME MISSING
		BRACKET
	T YYYYYYYYYYYY	PART NAME MISSING
		AIR RESERVOIR III
332	Q 501946R1	PART NAME MISSING
		ELBOW FITTING
	T YYYYYYYYYYYY	PART NAME MISSING
		AIR RESERVOIR III
334	Q 140483H	PART NAME MISSING
		SCREW
		3/8"-16 X 1 1/4"
334	Q 140483H	PART NAME MISSING
		SCREW
		3/8"-16 X 1 1/4"
	T YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
336	Q 9413977	PART NAME MISSING
	Repalced by: A 6859900251
336	A 6859900251	NUT
		SUPPORT TO SIDE MEMBER
		3/8-16
336	A 6859900251	NUT
		SUPPORT TO SIDE MEMBER
		3/8-16
338	Q 24840R1	PART NAME MISSING
		SCREW
		3/8"-16 X 1"
338	Q 24840R1	PART NAME MISSING
		SCREW
		3/8"-16 X 1"
	T YYYYYYYYYYYY	PART NAME MISSING
		MOUNTING ANGLE TO FRAME
340	Q 9413979	PART NAME MISSING
	Repalced by: A 6859900351
340	A 6859900351	NUT
		MOUNTING ANGLE TO FRAME
		3/8-16
340	A 6859900351	NUT
		MOUNTING ANGLE TO FRAME
		3/8-16
342	Q 500459R91	PART NAME MISSING
		BRAKE ANCHOR
	T YYYYYYYYYYYY	PART NAME MISSING
		AIR RESERVOIRS I AND II
344	Q 414051C1	PART NAME MISSING
		SCREW
		1/2"-20 X 1 1/4"
	T YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
346	Q 414087C1	PART NAME MISSING
	Repalced by: A 6859900151
346	A 6859900151	NUT
		SUPPORT TO SIDE MEMBER
		1/2-20
350	Q 523445C1	PART NAME MISSING
		BRAKE HOSE
		1/2" X 38"
	T YYYYYYYYYYYY	PART NAME MISSING
		REAR AXLE TRISTOP CYLINDER
352	Q 459026C1	PART NAME MISSING
		BRAKE HOSE
		1/2 X 41"
354	Q 459021C1	PART NAME MISSING
		BRAKE HOSE
		1/2" X 26"
	T YYYYYYYYYYYY	PART NAME MISSING
		REAR AXLE TRISTOP CYLINDER
356	Q 459025C1	PART NAME MISSING
		BRAKE HOSE
		33"
	T YYYYYYYYYYYY	PART NAME MISSING
		TRAILING AXLE
358	Q 471668C1	PART NAME MISSING
		CLAMP
358	Q 471668C1	PART NAME MISSING
		CLAMP
358	Q 471668C1	PART NAME MISSING
		CLAMP
	T YYYYYYYYYYYY	PART NAME MISSING
		REAR AXLE BRAKE HOSE
360	A 0014296544	VALVE
		(OVERFLOW VALVE)
		WABCO
360	A 0024290044	VALVE
		(OVERFLOW VALVE)
		BOSCH
360	A 0024297044	VALVE
		(OVERFLOW VALVE)
		GRAU
362	A 0024298844	VALVE
		TO 002 429 70 44,GRAU
364	A 0004290745	DIAPHRAGM
		TO 002 429 70 44,GRAU
366	A 0015862042	REPAIR KIT
		TO 001 429 65 44,WABCO
366	A 0015862642	REPAIR KIT
		TO 002 429 00 44,BOSCH
370	Q 213909R92	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		SOLENOID VALVE
370	Q 501979R91	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		SOLENOID VALVE
	Q 213909R92	PART NAME MISSING
		SOLENOID VALVE
	Q 365876C2	PART NAME MISSING
		PLUG HOUSING
	Q 467801C2	PART NAME MISSING
		DIODE
	Q 2643643R1	PART NAME MISSING
		INSULATION
380	Q 30761V	PART NAME MISSING
		ELBOW FITTING
		90 GR.1/4"NPTFM X 3/8"TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		HOSE TO VALVE
382	Q 30775V	PART NAME MISSING
		CONNECTOR
		1/4"NPTFM X 1/4"TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		SOLENOID VALVE
384	Q 25483R1	PART NAME MISSING
	Repalced by: A 6859901601
384	A 6859901601	SCREW
		VALVE TO SIDE MEMBER
		1/4"-20 X 1"
386	Q 26110R1	PART NAME MISSING
	Repalced by: A 6859900551
386	A 6859900551	NUT
		VALVE TO SIDE MEMBER
		SEG.1/4-20
390	Q 501652R1	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		REGULATING VALVE
392	Q 443980	PART NAME MISSING
		CONNECTOR
392	Q 443980	PART NAME MISSING
		CONNECTOR
394	Q 30757V	PART NAME MISSING
		CONNECTOR
	Y YYYYYYYYYYYY	PART NAME MISSING
		SOLENOID VALVE
396	Q 71466H	PART NAME MISSING
		ELBOW FITTING
		90 GR.3/8"NPT X 3/8"
396	Q 71466H	PART NAME MISSING
		REGULATING VALVE
		90 GR.3/8"NPT X 3/8"
396	Q 71466H	PART NAME MISSING
		ELBOW FITTING
		90 GR.3/8"NPT X 3/8"
396	Q 71466H	PART NAME MISSING
		TWO-WAY VALVE
		90 GR.3/8"NPT X 3/8"
396	Q 71466H	PART NAME MISSING
		ELBOW FITTING
		90 GR.3/8"NPT X 3/8"
	Q 77911H	PART NAME MISSING
		CONNECTOR
		3/8"NPT X 3/8"TBR
	Q 77911H	PART NAME MISSING
		CONNECTOR
		3/8"NPT X 3/8"TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		REGULATING VALVE
404	Q 459271C92	PART NAME MISSING
		VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		(SHIFT VALVE)
404	Q 501522R1	PART NAME MISSING
		VALVE
408	Q 30761V	PART NAME MISSING
		ELBOW FITTING
		90 GR.1/4"NPTFM X 3/8"TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		(SHIFT VALVE)
412	Q 359279C1	PART NAME MISSING
		ELBOW FITTING
		45 GR.1/4"NPTFM X 1/4"TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		SHIFTING CYLINDER TO AXLE HOUSING
414	Q 481209C2	PART NAME MISSING
		BRACKET
414	Q 481209C2	PART NAME MISSING
		BRACKET
416	Q 501948R1	PART NAME MISSING
		BRACKET
416	Q 501948R1	PART NAME MISSING
		VALVE TO CROSS MEMBER
418	Q 25493R1	PART NAME MISSING
	Repalced by: A 6859900701
418	A 6859900701	SCREW
		5/16"-18 X 1"
418	A 6859900701	SCREW
		BRACKET TO CROSS MEMBER
		5/16"-18 X 1"
418	A 6859900701	SCREW
		VALVE TO BRACKET
		5/16"-18 X 1"
420	Q 25751R1	PART NAME MISSING
	Repalced by: A 6859900901
420	A 6859900901	SCREW
		BRACKET TO CROSS MEMBER
		5/16-18 X 1 1/4
422	Q 9413977	PART NAME MISSING
	Repalced by: A 6859900251
422	A 6859900251	NUT
		BRACKET TO CROSS MEMBER
		SEG.5/16-18
422	A 6859900251	NUT
		VALVE TO BRACKET
		SEG.5/16-18
424	Q 444042	PART NAME MISSING
		ELBOW FITTING
		90 GR.3/8"NPTFM X 3/8"
424	Q 444042	PART NAME MISSING
		ELBOW FITTING
		90 GR.3/8"NPTFM X 3/8"
424	Q 444042	PART NAME MISSING
		ELBOW FITTING
		90 GR.3/8"NPTFM X 3/8"
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE LINE TO VALVE
428	Q 444136	PART NAME MISSING
		T-FITTING
		3/8"
428	Q 444136	PART NAME MISSING
		T-FITTING
		3/8"
	T YYYYYYYYYYYY	PART NAME MISSING
		BRAKE LINE TO VALVE
428	Q 444136	PART NAME MISSING
		TWO-WAY VALVE
		3/8"
432	Q 84638R1	PART NAME MISSING
		ELBOW FITTING
		45 GR.3/8"NPTFM X 5/8"TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		TWO-WAY VALVE
436	Q 444056	PART NAME MISSING
		ELBOW FITTING
		45 GR.3/8"NPTFM X 3/8"
436	Q 444056	PART NAME MISSING
		ELBOW FITTING
		45 GR.3/8"NPTFM X 3/8"
	T YYYYYYYYYYYY	PART NAME MISSING
		TWO-WAY VALVE
440	Q 458695C1	PART NAME MISSING
		ELBOW FITTING
		45 GR.3/8"NPTFM X 5/8"TBR
	T YYYYYYYYYYYY	PART NAME MISSING
		TWO-WAY VALVE
450	Q 289862C1	PART NAME MISSING
	Repalced by: A 6859970090
450	A 6859970090	LOOM TIE
450	Q 306132C1	PART NAME MISSING
		CLAMP
460	Q 500236R1	PART NAME MISSING
		EDGE GUARD SECTION
470	Q 472300C1	PART NAME MISSING
		ANGLE
	T YYYYYYYYYYYY	PART NAME MISSING
		REAR AXLE BRAKE HOSE
472	Q 299414C1	PART NAME MISSING
		CLAMP
	T YYYYYYYYYYYY	PART NAME MISSING
		REAR AXLE BRAKE HOSE
474	Q 25222R1	PART NAME MISSING
	Repalced by: A 6859900501
474	A 6859900501	SCREW
		REAR AXLE BRAKE HOSE
		1/4-20 X 3/4
476	Q 26110R1	PART NAME MISSING
	Repalced by: A 6859900551
476	A 6859900551	NUT
		REAR AXLE BRAKE HOSE
		SEG.1/4-20
480	Q 24861R1	PART NAME MISSING
		SCREW
		1/2"-13 X 1 1/4"
480	Q 24861R1	PART NAME MISSING
		SCREW
		1/2"-13 X 1 1/4"
	T YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SUPPORT
482	Q 9412230	PART NAME MISSING
	Repalced by: A 6859901151
482	A 6859901151	NUT
		BRACKET TO SUPPORT
		1/2-13
482	A 6859901151	NUT
		BRACKET TO SUPPORT
		1/2-13

Pagrindinis meniu
