Transporto priemonė: F 2121; VIN numerio dalis: FA1061

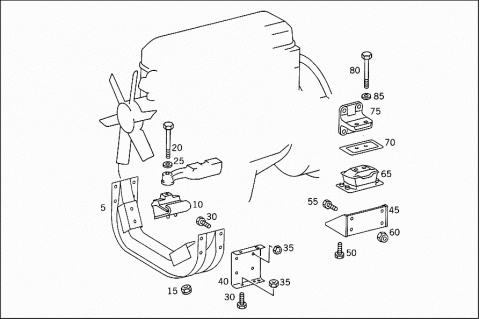

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6852400001 | ENGINE SUPPORT |
| USED WITH OIL PAN IN ALUMINUM VERSION | ||
| 005 | Q 492077C2 | PART NAME MISSING |
| ENGINE CROSS MEMBER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| USED WITH OIL PAN IN ALUMINUM VERSION | ||
| 005 | Q 502213R91 | PART NAME MISSING |
| ENGINE CROSS MEMBER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| USED WITH OIL PAN IN SHEET METAL VERSION | ||
| 010 | A 6152400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 015 | N 913004012003 | NUT |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 020 | N 000961016110 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 025 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 030 | Q 414052C1 | PART NAME MISSING |
| Repalced by: A 6859900101 | ||
| 030 | A 6859900101 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLE | ||
| 035 | Q 414087C1 | PART NAME MISSING |
| Repalced by: A 6859900151 | ||
| 035 | A 6859900151 | NUT |
| ENGINE CROSS MEMBER TO CONSOLE | ||
| 040 | A 6852410002 | SUPPORT |
| LEFT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| USED WITH OIL PAN IN ALUMINUM VERSION | ||
| 040 | A 6852410202 | SUPPORT |
| RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| USED WITH OIL PAN IN ALUMINUM VERSION | ||
| 040 | Q 502219R1 | PART NAME MISSING |
| SUPPORT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| USED WITH OIL PAN IN SHEET METAL VERSION | ||
| 040 | Q 502220R1 | PART NAME MISSING |
| SUPPORT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| USED WITH OIL PAN IN SHEET METAL VERSION | ||
| 045 | A 6852420702 | SUPPORT |
| LEFT | ||
| 045 | A 6852400006 | CONSOLE |
| LEFT | ||
| 045 | A 6852400106 | CONSOLE |
| RIGHT | ||
| 045 | A 6852420602 | SUPPORT |
| RIGHT | ||
| 050 | N 000961012164 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| 055 | A 6859902101 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 055 | Q 414053C1 | PART NAME MISSING |
| SCREW | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONSOLE TO SIDE MEMBER | ||
| 060 | Q 414087C1 | PART NAME MISSING |
| Repalced by: A 6859900151 | ||
| 060 | A 6859900151 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 065 | A 6152400318 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 065 | A 6152400418 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 070 | A 3812420034 | SCREENING PLATE |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 075 | A 3812420305 | SUPPORTING ARM |
| SEE ENGINE STANDARD VERSION | ||
| 080 | N 000961014116 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 085 | A 3609901840 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
