Transporto priemonė: LAB 2624/6X6; VIN numerio dalis: 343134
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

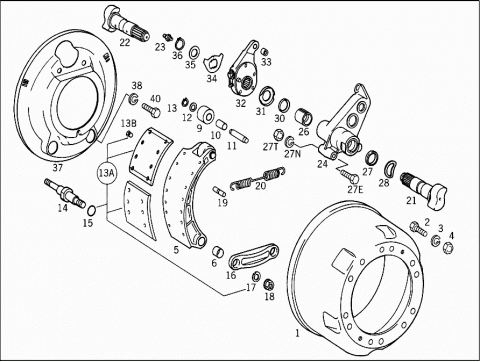

| 001 | A 3354210301 | BRAKE DRUM |
| 002 | A 0009900514 | SCREW |
| 003 | N 912004014100 | LOCK WASHER |
| 004 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 004 | N 308673014001 | NUT |
| 005 | A 3354202920 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 005 | A 3354202520 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 005 | A 3354203020 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 005 | A 3354202620 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 005 | A 3354203120 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 005 | A 3354202720 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 005 | A 3354200119 | BRAKE SHOE |
| LESS LINING | ||
| 006 | A 3354210450 | BUSHING |
| 009 | A 3174200139 | ROLLER |
| Repalced by: A 3014200039 | ||
| 009 | A 3464200039 | ROLLER |
| Repalced by: A 3014200039 | ||
| 009 | A 3014200039 | ROLLER |
| Repalced by: A 3354200039 | ||
| 010 | A 3174210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 010 | A 3464210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 010 | A 3464210550 | BUSHING |
| TO 346 420 00 39 | ||
| 010 | A 6204210050 | BUSHING |
| TO 346 420 00 39 | ||
| 010 | A 3014210050 | BUSHING |
| TO 301 420 00 39 | ||
| A 0039971548 | SEAL RING | |
| 011 | A 3354210074 | PIN |
| Repalced by: A 3354200039 | ||
| A 3354200039 | REPAIR KIT | |
| BRAKE SHOE ROLLER | ||
| 012 | A 3179901640 | WASHER |
| 013 | N 000471017000 | LOCK RING |
| 013A | A 3494210610 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.00 MM,8X 349 421 03 10) | ||
| 013A | A 3494211210 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.00 MM,8X 349 421 09 10) | ||
| 013A | A 3494210710 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.00 MM,8X 349 421 04 10) | ||
| 013A | A 3494211310 | BRAKE LINING |
| Repalced by: A 3494211410 | ||
| 013A | A 3494211410 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.00 MM,8X 349 421 10 10) | ||
| 013A | A 3494210810 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.00 MM,8X 349 421 05 10) | ||
| 013A | A 3494211410 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.00 MM,8X 349 421 11 10) | ||
| 013B | N 007338008307 | RIVET |
| Repalced by: A 3079900297 | ||
| 013B | A 3079900297 | RIVET |
| 014 | A 3354210018 | PIVOT PIN |
| Repalced by: A 3354210218 | ||
| 014 | A 3354210218 | PIVOT PIN |
| 015 | A 0089974245 | SEAL RING |
| 016 | A 3354230044 | THRUST SHACKLE |
| Repalced by: A 3354230144 | ||
| 016 | A 3354230144 | THRUST SHACKLE |
| BRAKE SHOE TO STEERING KNUCKLE | ||
| A 3174210016 | THRUST PIECE | |
| BRAKE SHOE TO STEERING KNUCKLE | ||
| N 000937022000 | NUT | |
| BRAKE SHOE TO STEERING KNUCKLE | ||
| N 000094005013 | COTTER PIN | |
| BRAKE SHOE TO STEERING KNUCKLE | ||
| 017 | N 074361022351 | LOCK WASHER |
| BRAKE SHOE TO STEERING KNUCKLE | ||
| 018 | N 074361022205 | NUT |
| BRAKE SHOE TO STEERING KNUCKLE | ||
| A 3464200182 | REPAIR KIT | |
| BRAKE SHOE BEARING | ||
| 019 | A 3354210174 | PIN |
| 020 | A 3354210192 | SPRING |
| 021 | A 3354210336 | BRAKE CAMSHAFT |
| 022 | A 3354210436 | BRAKE CAMSHAFT |
| 023 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 023 | N 071412008102 | GREASE NIPPLE |
| 024 | A 3354201778 | BEARING BRACKET |
| LEFT | ||
| 024 | A 3354202878 | BEARING BRACKET |
| LEFT | ||
| A 3354201678 | BEARING BRACKET | |
| RIGHT | ||
| A 3354202778 | BEARING BRACKET | |
| RIGHT | ||
| 026 | A 3354210250 | BUSHING |
| 027 | A 0029976946 | SEAL RING |
| Repalced by: A 0219972947 | ||
| 027 | A 0219972947 | SEAL RING |
| 027E | N 000960016172 | SCREW |
| BEARING BRACKET TO STEERING KNUCKLE | ||
| 027N | N 912004016101 | LOCK WASHER |
| BEARING BRACKET TO STEERING KNUCKLE | ||
| 027T | N 000934016002 | NUT |
| BEARING BRACKET TO STEERING KNUCKLE | ||
| 028 | A 3354210752 | SPACER WASHER |
| 030 | A 0059978145 | SEAL RING |
| 031 | A 3354211052 | SPACER WASHER |
| 032 | A 3354200338 | ADJUSTER |
| 032 | A 3054200038 | ADJUSTER |
| 033 | A 0004230550 | BUSHING |
| 034 | A 3614230157 | STOP WASHER |
| 035 | A 3174210352 | SPACER WASHER |
| 2,0 MM | ||
| 036 | N 000471030000 | LOCK RING |
| 037 | A 3354200144 | PROTECTIVE PLATE |
| 038 | N 912004010102 | LOCK WASHER |
| 040 | N 304017010027 | SCREW |
| 042 | A 3044210101 | BRAKE DRUM |
| 042 | A 3364210001 | BRAKE DRUM |
| 043 | A 3043340071 | SCREW |
| 043 | A 0009900514 | SCREW |
| 044 | N 912004014100 | LOCK WASHER |
| 044 | N 912004014100 | LOCK WASHER |
| 045 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 045 | N 308673014001 | NUT |
| 045 | N 308673014001 | NUT |
| A 3354203320 | BRAKE SHOE | |
| Repalced by: A 3354200319 | ||
| A 3354203720 | BRAKE SHOE | |
| Repalced by: A 3354200319 | ||
| A 3464205120 | BRAKE SHOE | |
| Repalced by: A 3464200719 | ||
| A 3464205420 | BRAKE SHOE | |
| Repalced by: A 3464200719 | ||
| A 3354203420 | BRAKE SHOE | |
| Repalced by: A 3354200319 | ||
| A 3354203820 | BRAKE SHOE | |
| Repalced by: A 3354200319 | ||
| A 3464205220 | BRAKE SHOE | |
| Repalced by: A 3464200719 | ||
| A 3464205520 | BRAKE SHOE | |
| Repalced by: A 3464200719 | ||
| A 3354203520 | BRAKE SHOE | |
| Repalced by: A 3354200319 | ||
| A 3354203920 | BRAKE SHOE | |
| Repalced by: A 3354200319 | ||
| A 3464205320 | BRAKE SHOE | |
| Repalced by: A 3464200719 | ||
| A 3464205620 | BRAKE SHOE | |
| Repalced by: A 3464200719 | ||
| 046 | A 3354200319 | BRAKE SHOE |
| LESS LINING | ||
| 046 | A 3464200719 | BRAKE SHOE |
| LESS LINING | ||
| 049 | A 3044210150 | BUSHING |
| 049 | A 3464215050 | BUSHING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 056E | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 056H | ||
| 054 | A 3154230062 | THRUST WASHER |
| 056 | N 007513008401 | TAPPING SCREW |
| 056E | A 3354211510 | BRAKE LINING |
| 10 MM | ||
| 056E | A 3434211210 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 10.00 MM,8X 343 421 03 10) | ||
| 056E | A 3434212110 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 10.00 MM,8X 343 421 18 10) | ||
| 056E | A 3354211610 | BRAKE LINING |
| 11 MM | ||
| 056E | A 3434211310 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 11.00 MM,8X 343 421 04 10) | ||
| 056E | A 3434212210 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 11.00 MM,8X 343 421 19 10) | ||
| 056E | A 3354211710 | BRAKE LINING |
| 12 MM | ||
| 056E | A 3434211410 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 12.00 MM,8X 343 421 05 10) | ||
| 056E | A 3434212310 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 12.00 MM,8X 343 421 20 10) | ||
| 056H | N 007338008307 | RIVET |
| Repalced by: A 3079900297 | ||
| 056H | A 3079900297 | RIVET |
| 057 | A 3044210018 | PIVOT PIN |
| 057 | A 3464215018 | PIVOT PIN |
| Repalced by: A 3464215118 | ||
| 057 | A 3464215118 | PIVOT PIN |
| BRAKE SHOE BEARING | ||
| 058 | A 0089974245 | SEAL RING |
| 058 | A 0009978941 | SEAL RING |
| Repalced by: A 0219974547 | ||
| 058 | A 0219974547 | SEAL RING |
| BRAKE SHOE SHACKLE | ||
| A 3034210052 | SPACER WASHER | |
| N 000471030000 | LOCK RING | |
| N 000960016052 | SCREW | |
| TO CLAMP BRAKE SHOE PIN | ||
| N 912004016101 | LOCK WASHER | |
| TO CLAMP BRAKE SHOE PIN | ||
| N 000934016002 | NUT | |
| TO CLAMP BRAKE SHOE PIN | ||
| A 3024231052 | SPACER WASHER | |
| 060 | N 000988032000 | FITTED WASHER |
| BRAKE SHOE BEARING | ||
| 061 | N 000471032000 | LOCK RING |
| BRAKE SHOE BEARING | ||
| A 3464200382 | REPAIR KIT | |
| BRAKE SHOE BEARING | ||
| 062 | A 3044210154 | PIN |
| 063 | A 3049930510 | SPRING |
| 063 | A 3369930010 | SPRING |
| A 3044210236 | BRAKE CAMSHAFT | |
| A 3034230041 | COVER | |
| N 912004012100 | LOCK WASHER | |
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| N 071412010100 | GREASE NIPPLE | |
| A 3044210143 | THRUST PIECE | |
| 065 | A 3364210036 | BRAKE CAMSHAFT |
| LEFT | ||
| A 3364210136 | BRAKE CAMSHAFT | |
| RIGHT | ||
| 066 | A 3049970240 | SEAL RING |
| 067 | A 3044200477 | GUIDE |
| N 001473005004 | GROOVED PIN | |
| 068 | A 3044200447 | YOKE |
| 070 | N 000471030000 | LOCK RING |
| 071 | A 3354200042 | BRAKE LEVER |
| Repalced by: A 3464215042 | ||
| 071 | A 3464215042 | LEVER |
| LEFT | ||
| A 3354200142 | BRAKE LEVER | |
| Repalced by: A 3464215142 | ||
| A 3464215142 | LEVER | |
| RIGHT | ||
| 073 | N 000471022000 | LOCK RING |
| A 3044210051 | SPACER RING | |
| 074 | N 000961012029 | SCREW |
| 074 | N 000960012342 | SCREW |
| 075 | N 000936012002 | NUT |
| 076 | A 3044210492 | SPRING |
| A 3049902340 | WASHER | |
| N 000125010504 | WASHER | |
| N 000471010001 | LOCK RING | |
| 078 | A 3044200244 | PROTECTIVE PLATE |
| LEFT TOP | ||
| 078 | A 3464205044 | PROTECTIVE PLATE |
| LEFT TOP | ||
| 080 | A 3044200344 | PROTECTIVE PLATE |
| LEFT BOTTOM | ||
| 080 | A 3464205244 | PROTECTIVE PLATE |
| LEFT BOTTOM | ||
| A 3044200444 | PROTECTIVE PLATE | |
| RIGHT TOP | ||
| A 3044200544 | PROTECTIVE PLATE | |
| RIGHT BOTTOM | ||
| A 3464205144 | PROTECTIVE PLATE | |
| RIGHT BOTTOM | ||
| N 912004008102 | LOCK WASHER | |
| 082 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 082 | N 304017008039 | SCREW |
| 082 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 082 | N 304017008034 | SCREW |
| 083 | N 913002008000 | NUT |
| 084 | A 3354210094 | BRACKET |
| FRONT LEFT,FOR BRAKE CYLINDER | ||
| A 3354210194 | BRACKET | |
| FRONT RIGHT,FOR BRAKE CYLINDER | ||
| 085 | A 3354210294 | BRACKET |
| REAR LEFT,FOR BRAKE CYLINDER | ||
| A 3354210394 | BRACKET | |
| REAR RIGHT,FOR BRAKE CYLINDER | ||
| 086 | N 912004012100 | LOCK WASHER |
| 088 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 088 | N 308676012038 | SCREW |

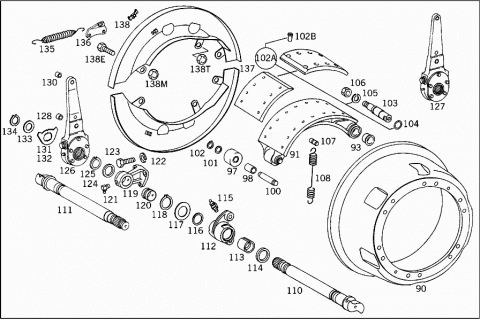

| 090 | A 3204230101 | BRAKE DRUM |
| N 000961014028 | SCREW | |
| N 912004014100 | LOCK WASHER | |
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| A 3354204120 | BRAKE SHOE | |
| Repalced by: A 3354200019 | ||
| A 3354204520 | BRAKE SHOE | |
| Repalced by: A 3354200019 | ||
| A 3354204220 | BRAKE SHOE | |
| Repalced by: A 3354200019 | ||
| A 3354204620 | BRAKE SHOE | |
| Repalced by: A 3354200019 | ||
| A 3354204320 | BRAKE SHOE | |
| Repalced by: A 3354200019 | ||
| A 3354204720 | BRAKE SHOE | |
| Repalced by: A 3354200019 | ||
| 091 | A 3354200019 | BRAKE SHOE |
| LESS LINING | ||
| 093 | A 3354230150 | BUSHING |
| Repalced by: A 3634230150 | ||
| 093 | A 3634230250 | BUSHING |
| Repalced by: A 3634230150 | ||
| 093 | A 3634230150 | BUSHING |
| 097 | A 3174200139 | ROLLER |
| Repalced by: A 3014200039 | ||
| 097 | A 3464200039 | ROLLER |
| Repalced by: A 3014200039 | ||
| 097 | A 3014200039 | ROLLER |
| Repalced by: A 3354200039 | ||
| 098 | A 3174210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 098 | A 3464210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 098 | A 3464210550 | BUSHING |
| TO 346 420 00 39 | ||
| 098 | A 6204210050 | BUSHING |
| TO 346 420 00 39 | ||
| 098 | A 3014210050 | BUSHING |
| TO 301 420 00 39 | ||
| A 0039971548 | SEAL RING | |
| 100 | A 3354210074 | PIN |
| Repalced by: A 3354200039 | ||
| A 3354200039 | REPAIR KIT | |
| BRAKE SHOE ROLLER | ||
| 101 | A 3179901640 | WASHER |
| 102 | N 000471017000 | LOCK RING |
| 102A | A 3324230210 | BRAKE LINING |
| Repalced by: A 3434230610 | ||
| 102A | A 3354230210 | BRAKE LINING |
| Repalced by: A 3434230610 | ||
| 102A | A 3434230610 | BRAKE LINING |
| Repalced by: A 3434231110 | ||
| 102A | A 3434231110 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.00 MM,8X 343 423 03 10) | ||
| 102A | A 3434231510 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.00 MM,8X 343 423 10 10) | ||
| 102A | A 3324230310 | BRAKE LINING |
| Repalced by: A 3434230710 | ||
| 102A | A 3354230310 | BRAKE LINING |
| Repalced by: A 3434230710 | ||
| 102A | A 3434230710 | BRAKE LINING |
| Repalced by: A 3434231010 | ||
| 102A | A 3434231010 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.00 MM,8X 343 423 04 10) | ||
| 102A | A 3434231610 | BRAKE LINING |
| Repalced by: A 3434231710 | ||
| 102A | A 3434231710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.00 MM,8X 343 423 10 10) | ||
| 102A | A 3324230410 | BRAKE LINING |
| Repalced by: A 3434230810 | ||
| 102A | A 3354230410 | BRAKE LINING |
| Repalced by: A 3434230810 | ||
| 102A | A 3434230810 | BRAKE LINING |
| Repalced by: A 3434230910 | ||
| 102A | A 3434230910 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.00 MM,8X 343 423 05 10) | ||
| 102A | A 3434231710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.00 MM,8X 343 423 14 10) | ||
| 102B | A 3079900297 | RIVET |
| 103 | A 3664230018 | PIVOT PIN |
| Repalced by: A 3464200282 | ||
| 103 | A 3464200282 | REPAIR KIT |
| BRAKE SHOE BEARING | ||
| 104 | A 0079973545 | SEAL RING |
| BRAKE SHOE BEARING | ||
| 105 | N 912004020100 | LOCK WASHER |
| BRAKE SHOE BEARING | ||
| 106 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 106 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 106 | N 308674020000 | NUT |
| BRAKE SHOE BEARING | ||
| A 3464200282 | REPAIR KIT | |
| BRAKE SHOE BEARING | ||
| 107 | A 3354210174 | PIN |
| 108 | A 3269930010 | SPRING |
| 110 | A 3354230236 | BRAKE CAMSHAFT |
| 111 | A 3354230336 | BRAKE CAMSHAFT |
| 112 | A 3664200141 | BRAKE CAMSHAFT BEARING |
| OUTSIDE | ||
| 113 | A 3354210250 | BUSHING |
| 114 | A 0029976946 | SEAL RING |
| Repalced by: A 0219972947 | ||
| 114 | A 0219972947 | SEAL RING |
| 115 | N 071412008200 | GREASE NIPPLE |
| 116 | A 0059978145 | SEAL RING |
| 117 | A 3354230052 | SPACER WASHER |
| 118 | N 000471042000 | LOCK RING |
| 119 | A 3264200041 | BRAKE CAMSHAFT BEARING |
| 120 | A 3044230050 | BUSHING |
| 121 | N 071412010100 | GREASE NIPPLE |
| 122 | N 912004010102 | LOCK WASHER |
| 123 | N 000933010105 | SCREW |
| 124 | A 0004230459 | GROOVED RING |
| 125 | N 000471038000 | LOCK RING |
| 126 | A 3434200738 | ADJUSTER |
| FRONT LEFT | ||
| A 3434200838 | ADJUSTER | |
| FRONT RIGHT | ||
| 127 | A 3434200438 | ADJUSTER |
| REAR | ||
| 128 | A 0004230550 | BUSHING |
| 130 | A 0004230650 | BUSHING |
| 131 | A 3354210157 | STOP WASHER |
| Repalced by: A 3614230157 | ||
| 132 | A 3614230157 | STOP WASHER |
| 133 | A 3174210152 | SPACER WASHER |
| 1,25 MM | ||
| 133 | A 3174210252 | SPACER WASHER |
| Repalced by: A 3174210352 | ||
| 133 | A 3174210352 | SPACER WASHER |
| 1,50 MM | ||
| 133 | A 3174210352 | SPACER WASHER |
| 2,0 MM | ||
| 133 | A 3174210452 | SPACER WASHER |
| 2,50 MM | ||
| 133 | A 3174210552 | SPACER WASHER |
| 2,75 MM | ||
| 134 | N 000471030000 | LOCK RING |
| 135 | A 3359930410 | SPRING |
| Repalced by: A 3039930410 | ||
| 135 | A 3039930410 | SPRING |
| 136 | A 3044201086 | BRACKET |
| 137 | A 3354200744 | PROTECTIVE PLATE |
| Repalced by: A 3434200944 | ||
| 137 | A 3434200944 | PROTECTIVE PLATE |
| 138 | A 3094210211 | PLUG |
| 138E | N 000960016161 | SCREW |
| 138M | N 000934016002 | NUT |
| 138T | N 000936016007 | NUT |
| 139 | A 3124271220 | HANDLE |

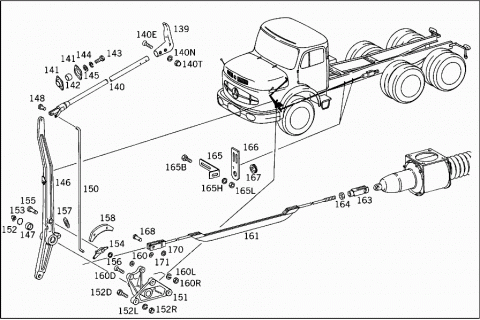

| 140 | A 3434200184 | PARKING BRAKE |
| 140 | A 3434200284 | PARKING BRAKE |
| 140E | N 000964006025 | SCREW |
| 140N | N 912004006102 | LOCK WASHER |
| 140T | N 001587006005 | CAP NUT |
| Repalced by: N 001587006002 | ||
| 140T | N 001587006002 | CAP NUT |
| 141 | A 3044270412 | GUIDE |
| 142 | A 3044270064 | GUIDE BALL |
| 143 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 143 | N 304017008016 | SCREW |
| 144 | N 912004008102 | LOCK WASHER |
| 145 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 145 | N 000125008443 | WASHER |
| 146 | A 3434200312 | BRAKE LEVER |
| 146 | A 3434200412 | BRAKE LEVER |
| 147 | A 3214270250 | BUSHING |
| 148 | N 001444008210 | PIN |
| N 000094002059 | COTTER PIN | |
| 150 | A 3434270130 | PAWL ROD |
| 150 | A 3434270230 | PAWL ROD |
| N 000137006204 | SPRING WASHER | |
| N 000094002059 | COTTER PIN | |
| 151 | A 3434200178 | BEARING BRACKET |
| 151 | A 3434200378 | BEARING BRACKET |
| 152 | N 071412010300 | GREASE NIPPLE |
| 152D | N 000961012122 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 152L | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 152R | N 000934012022 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 153 | N 000471030000 | LOCK RING |
| 154 | A 3044270815 | PAWL |
| 155 | A 3204271474 | PIN |
| 156 | N 000471014000 | LOCK RING |
| N 000094002059 | COTTER PIN | |
| 157 | A 3209931710 | SPRING |
| Repalced by: A 3529930610 | ||
| 157 | A 3529930610 | SPRING |
| 158 | A 3024270124 | TOOTHED SEGMENT |
| Repalced by: A 3124271024 | ||
| 158 | A 3124271024 | TOOTHED SEGMENT |
| 160 | N 000125010504 | WASHER |
| 160D | N 000963010003 | SCREW |
| 160L | N 912004010102 | LOCK WASHER |
| 160R | N 000934010014 | NUT |
| 161 | A 3434204474 | ROD |
| 161 | A 3434204574 | ROD |
| 161 | A 3434204674 | ROD |
| 163 | N 071752014002 | YOKE |
| 164 | N 000934014000 | NUT |
| 165 | A 3324270041 | BRACKET |
| 165B | N 000961012151 | SCREW |
| 165B | N 000961012151 | SCREW |
| 165H | N 912004012100 | LOCK WASHER |
| 165H | N 912004012100 | LOCK WASHER |
| 165L | N 000934012022 | NUT |
| 165L | N 000934012022 | NUT |
| 166 | A 3044922819 | BRACKET |
| Repalced by: A 3344270041 | ||
| 166 | A 3344270041 | BRACKET |
| 167 | A 0009973481 | GROMMET |
| N 000931008252 | SCREW | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| 168 | N 001434014002 | PIN |
| 170 | N 000433015005 | WASHER |
| 171 | N 900055014000 | SPRING WASHER |
| N 000094004021 | COTTER PIN | |
| 172 | A 3434202874 | ROD |
| 173 | N 001434014002 | PIN |
| 174 | N 000433015005 | WASHER |
| N 000094004021 | COTTER PIN | |
| 175 | A 3434270008 | BEARING BRACKET |
| Repalced by: A 3434201078 | ||
| 175 | A 3434201078 | BEARING BRACKET |
| BEARING BRACKET TO HAND BRAKE LEVER | ||
| 175E | N 000961012122 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 175L | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 175S | N 000934012022 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||

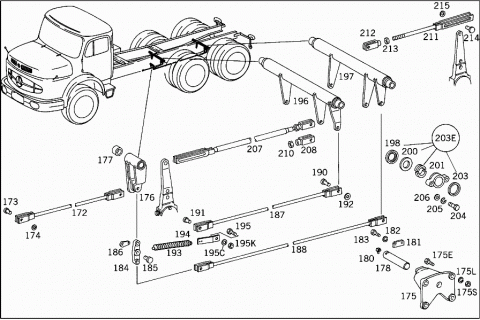

| 176 | A 3434201680 | BRAKE INTERMEDIATE SHAFT |
| BEARING BRACKET TO HAND BRAKE LEVER | ||
| 177 | A 3434270150 | BUSHING |
| 178 | A 3434270074 | PIN |
| INTERMEDIATE SHAFT | ||
| 180 | N 071412010300 | GREASE NIPPLE |
| 181 | A 3129941309 | LOCK |
| BEARING BRACKET TO HAND BRAKE LEVER | ||
| A 3439940005 | LOCK | |
| INTERMEDIATE SHAFT | ||
| 182 | N 912004008102 | LOCK WASHER |
| 182 | N 912004008102 | LOCK WASHER |
| 183 | N 000933008145 | SCREW |
| INTERMEDIATE SHAFT | ||
| 183 | N 000933008145 | SCREW |
| INTERMEDIATE SHAFT | ||
| 184 | A 3434270410 | INTERMEDIATE LEVER |
| 185 | N 001434014050 | PIN |
| INTERMEDIATE LEVER | ||
| 186 | A 3434230194 | BRACKET |
| N 000094004021 | COTTER PIN | |
| 187 | A 3434201774 | ROD |
| 188 | A 3434201874 | ROD |
| 190 | A 3529910107 | PIN |
| 191 | N 001434012045 | PIN |
| 192 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 192 | N 000433013010 | WASHER |
| N 000094004065 | COTTER PIN | |
| 193 | A 3279930010 | SPRING |
| 194 | A 3374295640 | BRACKET |
| 195 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 195 | A 0019909404 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 195C | N 000125010504 | WASHER |
| BRACKET TO LEFT SIDE MEMBER | ||
| 195K | N 000934010014 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 196 | A 3434201180 | BRAKE INTERMEDIATE SHAFT |
| FRONT | ||
| 197 | A 3434201480 | BRAKE INTERMEDIATE SHAFT |
| REAR | ||
| A 3434201580 | BRAKE INTERMEDIATE SHAFT | |
| REAR | ||
| 198 | A 3274270058 | SEAL HOLDER |
| 200 | A 3279970040 | SEAL RING |
| 201 | A 3434200778 | BEARING BRACKET |
| 203 | A 3024260083 | SPHERICAL PIECE |
| Repalced by: A 3025860242 | ||
| 203 | N 000470052000 | EXPANSION PLUG |
| 203E | A 3025860242 | REPAIR KIT |
| Repalced by: A 3534200067 | ||
| 203E | A 3534200067 | REPAIR KIT |
| Repalced by: A 3534200167 | ||
| 203E | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 204 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 204 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 204 | N 308676012011 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 205 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 206 | N 007989014201 | WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 207 | A 3434201174 | ROD |
| 208 | N 071752012002 | YOKE |
| 210 | N 000934012021 | NUT |
| 211 | A 3434202074 | ROD |
| 212 | N 071752012002 | YOKE |
| 213 | N 000934012021 | NUT |
| 214 | A 3529910107 | PIN |
| N 001434012008 | PIN | |
| 215 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 215 | N 000433013010 | WASHER |
| N 000094004051 | COTTER PIN | |
| A 0004290401 | LINE | |
| Repalced by: A 0005516456 | ||

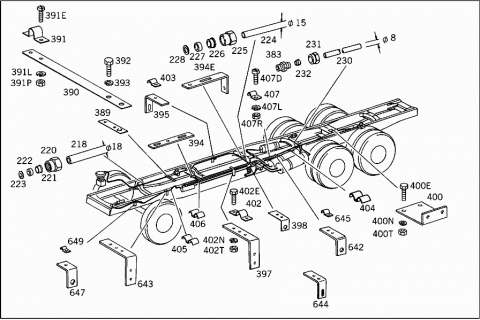

| 218 | A 0005516456 | TUBE |
| 18 MM | ||
| 220 | N 915018018000 | UNION NUT |
| 221 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 221 | A 0019901167 | SEAL CONE |
| 222 | N 915065018101 | THRUST RING |
| 223 | N 915045014100 | SEAL RING |
| 224 | A 0004290201 | LINE |
| Repalced by: A 0005516256 | ||
| 224 | A 0005516256 | TUBE |
| 15 MM | ||
| 225 | N 915018015000 | UNION NUT |
| 226 | N 003861015004 | GLAND |
| 227 | N 915065015101 | THRUST RING |
| 228 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 228 | N 007603012121 | SEAL RING |
| 230 | A 0004290801 | LINE |
| 8 MM | ||
| 231 | N 915017008100 | UNION NUT |
| 232 | N 003861008005 | GLAND |
| 233 | N 007603026104 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 234 | N 074313018201 | FITTING |
| AT AIR COMPRESSOR | ||
| A 0004291584 | SEAL RING | |
| Repalced by: N 915045015100 | ||
| 235 | N 915045015100 | SEAL RING |
| AT AIR COMPRESSOR | ||
| A 0004318006 | PRESSURE REGULATOR | |
| Repalced by: A 0004317906 | ||
| A 0009877746 | SEALING CORD | |
| A 0009875846 | SEALING CORD | |
| A 0039975745 | SEAL RING | |
| A 0004317960 | SEAL RING | |
| N 007603012114 | SEAL RING | |
| A 0004311723 | VALVE | |
| A 0009932405 | SPRING | |
| A 0004311034 | STRAINER | |
| A 0004311623 | VALVE | |
| A 0009877846 | SEALING CORD | |
| A 0004317293 | SPRING | |
| A 0004313460 | SEAL RING | |

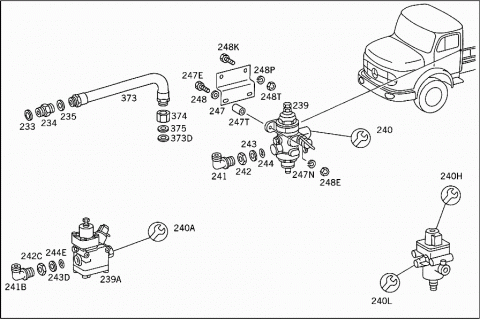

| 239 | A 0004317906 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 239 | A 0024316006 | PRESSURE REGULATOR |
| WITH AIR CLEANER AND TIRE INFLATING CONNECTION | ||
| A 0004313834 | STRAINER | |
| 239A | A 0014314106 | PRESSURE REGULATOR |
| Repalced by: A 0024313506 | ||
| 239A | A 0024313506 | PRESSURE REGULATOR |
| Repalced by: A 0024315906 | ||
| 239A | A 0014312206 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 239A | A 0014314306 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 239A | A 0024316006 | PRESSURE REGULATOR |
| WITH AIR CLEANER AND TIRE INFLATING CONNECTION | ||
| "WESTINGHOUSE" | ||
| 239A | A 0014314206 | PRESSURE REGULATOR |
| Repalced by: A 0024315906 | ||
| 239A | A 0024315906 | PRESSURE REGULATOR |
| WITH AIR CLEANER AND TIRE INFLATING CONNECTION | ||
| "BOSCH" | ||
| A 0004312381 | VALVE DISC | |
| TO 001 431 42 06,GRAU | ||
| A 0059972948 | SEAL RING | |
| TO 001 431 42 06,GRAU | ||
| A 0059973048 | SEAL RING | |
| TO 001 431 42 06,GRAU | ||
| A 0004312481 | VALVE DISC | |
| TO 001 431 42 06,GRAU | ||
| A 0004311328 | DIAPHRAGM | |
| TO 001 431 42 06,GRAU | ||
| A 0004318687 | PROTECTIVE CAP | |
| TO 001 431 42 06,GRAU | ||
| A 0004313423 | VALVE | |
| TO 001 431 42 06,GRAU | ||
| A 0004313534 | STRAINER | |
| TO 001 431 42 06,GRAU | ||
| A 0004312888 | VALVE SEAT | |
| TO 001 431 42 06,GRAU | ||
| A 0059973148 | SEAL RING | |
| TO 001 431 42 06,GRAU | ||
| 240 | A 0005867743 | REPAIR KIT |
| TO 000 431 80 06,000 431 79 06 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| WEST.475 304 201 0,221 0 | ||
| 240A | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 240A | A 0004301407 | REPAIR KIT |
| TO 001 431 41 06,BOSCH 0 481 039 102 | ||
| A 0015864343 | REPAIR KIT | |
| Repalced by: A 0004301107 | ||
| A 0004301107 | REPAIR KIT | |
| TO 001 431 22 06,WEST. 975 300 111 0 | ||
| A 0024304681 | REPAIR KIT | |
| VALVE KIT | ||
| TO 001 431 22 06,WEST. 975 300 111 0 | ||
| A 0025866043 | REPAIR KIT | |
| TO 001 431 42 06,GRAU | ||
| 240H | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 240L | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 241 | A 0004291838 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 241B | N 074301026202 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 242 | N 074305026202 | NUT |
| AT PRESSURE REGULATOR | ||
| 242C | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| 243 | A 0004290527 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 243D | A 0004290227 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 244 | A 0009872846 | SEALING CORD |
| AT PRESSURE REGULATOR | ||
| 244E | A 0009870446 | SEALING CORD |
| AT PRESSURE REGULATOR | ||
| N 007603022102 | SEAL RING | |
| AT PRESSURE REGULATOR | ||
| N 074298022203 | DOUBLE FITTING | |
| AT PRESSURE REGULATOR | ||
| 247 | A 3434311440 | BRACKET |
| PRESSURE REGULATOR | ||
| 247 | A 3434312340 | BRACKET |
| PRESSURE REGULATOR | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| PRESSURE REGULATOR TO BRACKET | ||
| 247E | N 000931008220 | SCREW |
| Repalced by: N 304017008067 | ||
| 247E | N 304017008067 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 247E | N 304017008067 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| N 000931008251 | SCREW | |
| 247N | N 000127008102 | LOCK WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 247T | A 3226660117 | BUSHING |
| PRESSURE REGULATOR TO BRACKET | ||
| 247T | A 3226660117 | BUSHING |
| PRESSURE REGULATOR TO BRACKET | ||
| 248 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 248 | N 009021008213 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 248E | N 304032008006 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 248K | N 000961012122 | SCREW |
| BRACKET TO FRAME | ||
| 248P | N 912004012100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 248T | N 000934012022 | NUT |
| BRACKET TO FRAME | ||

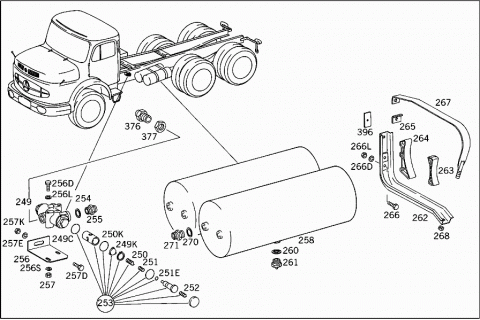

| 249 | A 0004315006 | VALVE |
| 249C | A 0009972145 | SEAL RING |
| Repalced by: A 0029974545 | ||
| 249C | A 0029974545 | SEAL RING |
| 249K | A 0005910095 | VALVE |
| 250 | A 0009933505 | SPRING |
| 250K | A 0009879146 | SEALING CORD |
| 251 | A 0014310293 | SPRING |
| 251E | N 007603038102 | SEAL RING |
| 252 | A 0014310393 | SPRING |
| 253 | A 0005866943 | REPAIR KIT |
| Repalced by: A 0015860843 | ||
| 253 | A 0015860843 | REPAIR KIT |
| 254 | N 007603022102 | SEAL RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 255 | N 074298022203 | DOUBLE FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 256 | A 3434290840 | BRACKET |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 256D | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 256D | N 007604014110 | SCREW PLUG |
| TWO-CIRCUIT PROTECTIVE VALVE TO BRACKET | ||
| 256L | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 256L | N 009021008213 | WASHER |
| TWO-CIRCUIT PROTECTIVE VALVE TO BRACKET | ||
| 256S | N 912004008102 | LOCK WASHER |
| TWO-CIRCUIT PROTECTIVE VALVE TO BRACKET | ||
| 257 | N 304032008006 | NUT |
| TWO-CIRCUIT PROTECTIVE VALVE TO BRACKET | ||
| 257D | N 000961012027 | SCREW |
| BRACKET TO FRAME | ||
| N 007349013003 | WASHER | |
| Repalced by: N 007349013005 | ||
| N 007349013005 | WASHER | |
| BRACKET TO FRAME | ||
| 257E | N 912004012100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 257K | N 000934012022 | NUT |
| BRACKET TO FRAME | ||
| 258 | A 0004321701 | RESERVOIR |
| Repalced by: A 0034322701 | ||
| 258 | A 0034322701 | RESERVOIR |
| 60 L | ||
| 260 | N 007603022102 | SEAL RING |
| 261 | A 0004320407 | VALVE |
| Repalced by: A 0004320807 | ||
| 261 | A 0004321107 | VALVE |
| DRAIN VALVE | ||
| 261 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 262 | A 3354300039 | SUPPORT |
| 263 | A 3354320218 | BASE |
| 264 | A 3434320018 | BASE |
| Repalced by: A 3434320418 | ||
| 264 | A 3434320118 | BASE |
| Repalced by: A 3434320418 | ||
| 264 | A 3434320418 | BASE |
| 265 | A 3434320026 | PLATE |
| 266 | N 000961012029 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 266D | N 912004012100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 266L | N 000934012022 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 267 | A 3434300140 | STRAP |
| 268 | N 000934010014 | NUT |
| 270 | N 007603022102 | SEAL RING |
| AT AIR RESERVOIRS I AND II | ||
| 270 | N 007603022102 | SEAL RING |
| AT AIR RESERVOIRS I AND II | ||
| 271 | N 074298022203 | DOUBLE FITTING |
| AT AIR RESERVOIRS I AND II | ||
| 271 | N 074298022203 | DOUBLE FITTING |
| AT AIR RESERVOIRS I AND II | ||
| N 007604022100 | SCREW PLUG | |
| Repalced by: A 3469970230 | ||
| A 3469970230 | SCREW PLUG | |
| AT AIR RESERVOIR | ||
| N 074302022202 | T-FITTING | |
| AT AIR RESERVOIR | ||
| N 074299022202 | DOUBLE FITTING | |
| AT AIR RESERVOIR | ||
| N 074305022202 | NUT | |
| AT AIR RESERVOIR | ||
| A 0004290227 | THRUST RING | |
| AT AIR RESERVOIR | ||
| A 0009870446 | SEALING CORD | |
| AT AIR RESERVOIR | ||
| N 915045012100 | SEAL RING | |
| Repalced by: N 007603012121 | ||
| N 007603012121 | SEAL RING | |
| N 007605022000 | LOCK NUT | |

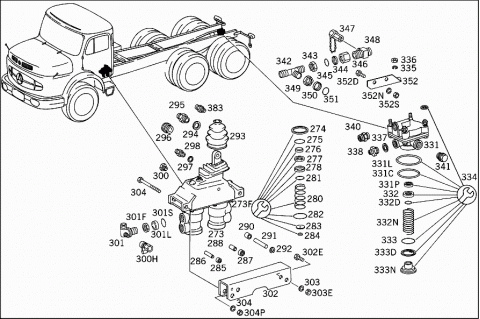

| 273 | A 0004315105 | BRAKE VALVE |
| A 0004316086 | CUP | |
| 273F | A 0005869943 | REPAIR KIT |
| A 0004315205 | BRAKE VALVE | |
| 274 | A 0049973545 | SEAL RING |
| 275 | A 0019871646 | SEALING CORD |
| 276 | A 0004311088 | VALVE SEAT |
| 277 | A 0004310988 | VALVE SEAT |
| 278 | A 0004313387 | PROTECTIVE CAP |
| Repalced by: A 0014310487 | ||
| 278 | A 0014310487 | PROTECTIVE CAP |
| 280 | A 0004318493 | SPRING |
| 281 | A 0049973645 | SEAL RING |
| Repalced by: A 0059976545 | ||
| 281 | A 0059976545 | SEAL RING |
| 282 | A 0019871746 | SEALING CORD |
| 283 | A 0004312576 | WASHER |
| 284 | A 0004312776 | WASHER |
| 285 | A 0019819110 | NEEDLE BEARING |
| 286 | A 0004312274 | PIN |
| 287 | A 0089810210 | NEEDLE BEARING |
| 288 | A 0004311874 | PIN |
| 12X27.5 | ||
| 290 | A 0019920401 | BUSHING |
| 291 | N 001433012021 | PIN |
| 292 | N 000472012000 | LOCK RING |
| 293 | A 0004316086 | CUP |
| A 0005869943 | REPAIR KIT | |
| 294 | N 007603022102 | SEAL RING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 295 | N 074298022203 | DOUBLE FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 296 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 296 | A 3469970230 | SCREW PLUG |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 297 | N 007603012405 | SEAL RING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 298 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 298 | A 0019972572 | FITTING |
| A 0019972872 | FITTING | |
| Repalced by: A 0039979072 | ||
| A 0039979072 | FITTING | |
| Repalced by: A 0029906071 | ||
| A 0029906071 | FITTING | |
| 300 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 300 | N 000908012009 | SCREW PLUG |
| 300 | N 000908012009 | SCREW PLUG |
| 300H | A 0004290439 | CONNECTOR |
| Repalced by: A 0004312031 | ||
| 300H | A 0004291039 | CONNECTOR |
| Repalced by: A 0004312031 | ||
| 300H | A 0004312031 | TEST CONNECTION |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| VOSS | ||
| 300H | A 0004314531 | TEST CONNECTION |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| SCHAEFER | ||
| 300H | A 0004314831 | TEST CONNECTION |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| WESTINGHOUSE | ||
| 300H | A 0004316131 | TEST CONNECTION |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 301 | A 0004291538 | ELBOW FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 301F | N 074305022202 | NUT |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 301L | A 0004290227 | THRUST RING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 301S | A 0009870446 | SEALING CORD |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 302 | A 3364310540 | BRACKET |
| TRUCK-TRACTOR BRAKE VALVE | ||
| N 000961012151 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| 302E | N 000961012122 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| N 000960012189 | SCREW | |
| Repalced by: N 308676012031 | ||
| N 308676012031 | SCREW | |
| Repalced by: N 308676012011 | ||
| N 308676012011 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| A 3044750019 | BASE | |
| BRACKET TO SIDE MEMBER | ||
| 303 | N 912004012100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 303E | N 000934012022 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 304 | N 000960012153 | SCREW |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET | ||
| N 912004012100 | LOCK WASHER | |
| 304P | N 000934012022 | NUT |

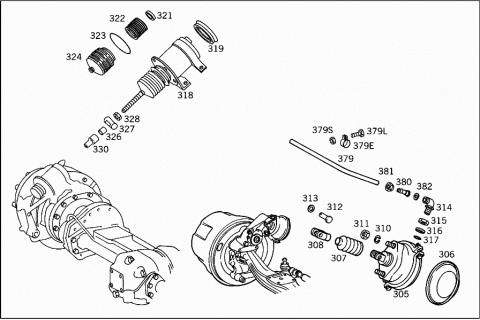

| 305 | A 0014209618 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0004205524 | ||
| 305 | A 0004205524 | BRAKE CYLINDER |
| Repalced by: A 0014203624 | ||
| 305 | A 0014203624 | BRAKE CYLINDER |
| RIGHT | ||
| WESTINGHOUSE | ||
| 305 | A 0004207424 | BRAKE CYLINDER |
| Repalced by: A 0014203924 | ||
| 305 | A 0014203924 | BRAKE CYLINDER |
| RIGHT | ||
| KNORR | ||
| 305 | A 0004209124 | BRAKE CYLINDER |
| Repalced by: A 0014203724 | ||
| 305 | A 0014203724 | BRAKE CYLINDER |
| RIGHT | ||
| GRAU | ||
| 305 | A 0014206724 | BRAKE CYLINDER |
| RIGHT | ||
| BOSCH | ||
| A 0014209618 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0004205624 | ||
| A 0004205624 | BRAKE CYLINDER | |
| Repalced by: A 0014203524 | ||
| 305 | A 0014203524 | BRAKE CYLINDER |
| LEFT | ||
| WESTINGHOUSE | ||
| A 0004207524 | BRAKE CYLINDER | |
| Repalced by: A 0014204024 | ||
| 305 | A 0014204024 | BRAKE CYLINDER |
| LEFT | ||
| KNORR | ||
| A 0004209224 | BRAKE CYLINDER | |
| Repalced by: A 0014203824 | ||
| 305 | A 0014203824 | BRAKE CYLINDER |
| LEFT | ||
| GRAU | ||
| 305 | A 0014206824 | BRAKE CYLINDER |
| LEFT | ||
| BOSCH | ||
| 306 | A 0004212086 | DIAPHRAGM |
| TO 000 420 55 24,000 420 56 24 | ||
| A 0004311528 | DIAPHRAGM | |
| TO 000 420 91 24,000 420 92 24 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 420 37 24,001 420 38 24 | ||
| A 0004311828 | DIAPHRAGM | |
| Repalced by: A 0004314128 | ||
| A 0004311428 | DIAPHRAGM | |
| Repalced by: A 0004314128 | ||
| A 0004314128 | DIAPHRAGM | |
| TO 001 420 39 24,001 420 40 24 | ||
| 307 | A 0004212286 | CUP |
| Repalced by: A 0004215286 | ||
| 307 | A 0004215286 | CUP |
| TO 000 420 55 24,000 420 56 24 | ||
| A 0004319786 | CUP | |
| TO 000 420 91 24,000 420 92 24 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 420 37 24,001 420 38 24 | ||
| A 0014311286 | CUP | |
| Repalced by: A 0004216186 | ||
| A 0004216186 | CUP | |
| TO 001 420 39 24,001 420 40 24 | ||
| A 0009978786 | PLUG | |
| TO 001 420 39 24,001 420 40 24 | ||
| 308 | A 0004210763 | GUIDE |
| TO 000 420 55 24,000 420 56 24 | ||
| A 0025863442 | REPAIR KIT | |
| TO 001 420 39 24,001 420 40 24 | ||
| 310 | N 912004016101 | LOCK WASHER |
| 311 | N 000934016012 | NUT |
| TO 000 420 55 24/74 24/91 24 | ||
| 311 | N 000934016012 | NUT |
| TO 000 420 56 24/75 24/92 24 | ||
| 311 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 311 | N 910113016002 | NUT |
| TO 001 420 36 24,39 24,37 24,67 24 | ||
| 311 | N 910113016002 | NUT |
| TO 001 420 35 24,40 24,38 24,68 24 | ||
| 312 | N 001434014002 | PIN |
| 313 | N 000433015005 | WASHER |
| N 000094004049 | COTTER PIN | |
| 314 | N 074301022200 | ELBOW FITTING |
| DIAPHRAGM CYLINDER | ||
| 315 | N 074305022202 | NUT |
| 316 | A 0004290227 | THRUST RING |
| 317 | A 0009870446 | SEALING CORD |
| 318 | A 0004203824 | BRAKE CYLINDER |
| FRONT | ||
| A 0004318087 | PROTECTIVE CAP | |
| 319 | A 0004230059 | GROOVED RING |
| 321 | A 0004230376 | WASHER |
| 322 | A 0004232293 | SPRING |
| 323 | A 0019874346 | SEALING CORD |
| 324 | A 0004231986 | CUP |
| A 0004232387 | PROTECTIVE CAP | |
| N 007603022102 | SEAL RING | |
| AT FRONT BRAKE CYLINDER | ||
| N 074298022203 | DOUBLE FITTING | |
| AT FRONT BRAKE CYLINDER | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| N 912004012100 | LOCK WASHER | |
| N 000934012022 | NUT | |
| A 3044210172 | NUT | |
| Repalced by: A 3464215061 | ||
| 326 | A 3464215061 | SPACER |
| 327 | A 3044210374 | PIN |
| 328 | N 000936014008 | NUT |
| 330 | A 3044200052 | CAP |
| Repalced by: A 3464215087 | ||
| 330 | A 3464215087 | PROTECTIVE CAP |
| 331 | A 0004296544 | VALVE |
| RELAY | ||
| WESTINGHOUSE | ||
| 331 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 331 | A 0034295244 | VALVE |
| RELAY | ||
| KNORR | ||
| 331 | A 0014293044 | VALVE |
| RELAY | ||
| GRAU | ||
| 331C | A 0059976745 | SEAL RING |
| TO 000 429 65 44 | ||
| 331L | A 0059976845 | SEAL RING |
| TO 000 429 65 44 | ||
| 331P | A 0004311088 | VALVE SEAT |
| TO 000 429 65 44 | ||
| 332 | A 0004310988 | VALVE SEAT |
| TO 000 429 65 44 | ||
| 332D | A 0059976545 | SEAL RING |
| TO 000 429 65 44 | ||
| 332N | A 0004318493 | SPRING |
| TO 000 429 65 44 | ||
| 333 | A 0019871746 | SEALING CORD |
| TO 000 429 65 44 | ||
| 333D | A 0004312576 | WASHER |
| TO 000 429 65 44 | ||
| 333N | A 0004312776 | WASHER |
| TO 000 429 65 44 | ||
| A 0059972648 | SEAL RING | |
| 22.3X2.4 MM,TO 001 429 30 44 | ||
| A 0004312788 | VALVE SEAT | |
| TO 001 429 30 44 | ||
| A 0059972748 | SEAL RING | |
| 80X3 MM,TO 000 429 28 95, GRAU | ||
| A 0014311660 | SEAL RING | |
| 28X2 MM,TO 001 429 30 44 | ||
| A 0014311760 | SEAL RING | |
| 86X2 MM,TO 001 429 30 44 | ||
| A 0014311980 | GASKET | |
| Repalced by: A 0004311980 | ||
| A 0004311980 | GASKET | |
| 33X2X6 MM, TO 001 429 30 44 | ||
| A 0025863542 | REPAIR KIT | |
| TO 001 429 54 44,003 429 52 44 | ||
| 334 | A 0005865742 | REPAIR KIT |
| TO 000 429 65 44 | ||
| 335 | N 912004008102 | LOCK WASHER |
| RELAY VALVE TO BRACKET | ||
| 336 | N 304032008006 | NUT |
| RELAY VALVE TO BRACKET | ||
| 337 | N 007603022102 | SEAL RING |
| AT RELAY VALVE | ||
| 338 | N 074298022203 | DOUBLE FITTING |
| AT RELAY VALVE | ||
| 340 | A 0009970171 | FITTING |
| AT RELAY VALVE | ||
| 341 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 341 | A 3469970230 | SCREW PLUG |
| AT RELAY VALVE | ||
| 342 | N 074302022202 | T-FITTING |
| AT RELAY VALVE | ||
| 343 | N 074305022202 | NUT |
| 344 | A 0004290227 | THRUST RING |
| 345 | A 0009870446 | SEALING CORD |
| 346 | A 0004290734 | ADAPTER FITTING |
| 347 | A 0004290439 | CONNECTOR |
| Repalced by: A 0004312031 | ||
| 347 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 347 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 347 | A 0004314831 | TEST CONNECTION |
| WESTINGHOUSE | ||
| 347 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| A 0009979486 | PLUG | |
| 348 | N 074302022304 | T-FITTING |
| 349 | N 074305022202 | NUT |
| 349 | N 074305022202 | NUT |
| 349 | N 074305022202 | NUT |
| 350 | A 0004290227 | THRUST RING |
| 350 | A 0004290227 | THRUST RING |
| 350 | A 0004290227 | THRUST RING |
| 351 | A 0009870446 | SEALING CORD |
| 351 | A 0009870446 | SEALING CORD |
| 351 | A 0009870446 | SEALING CORD |
| A 0004291538 | ELBOW FITTING | |
| N 003952006102 | FITTING | |
| Repalced by: A 0019909871 | ||
| A 0019909871 | ELBOW FITTING | |
| 352 | A 3434310940 | BRACKET |
| RELAY VALVE | ||
| 352D | N 000961012122 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 352N | N 912004012100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 352S | N 000934012022 | NUT |
| BRACKET TO SIDE MEMBER | ||

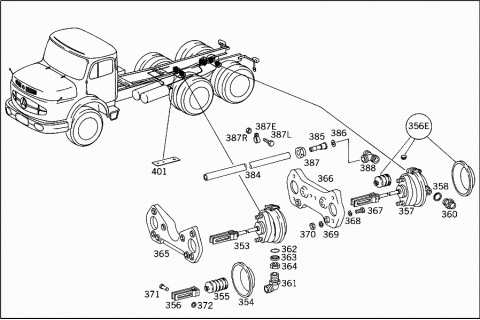

| 353 | A 0024200418 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0014204124 | ||
| 353 | A 0014204124 | BRAKE CYLINDER |
| WABCO | ||
| 353 | A 0064201618 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0014204524 | ||
| 353 | A 0014204524 | BRAKE CYLINDER |
| GRAU | ||
| 353 | A 0064209218 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0014204824 | ||
| 353 | A 0014204824 | BRAKE CYLINDER |
| KNORR | ||
| 353 | A 0014206624 | BRAKE CYLINDER |
| BOSCH | ||
| 354 | A 0004212086 | DIAPHRAGM |
| WABCO | ||
| A 0004233186 | CUP | |
| GRAU 345 044 00 02 | ||
| 355 | A 0003530191 | BOOT |
| WABCO 423 006 510-0 | ||
| 355 | A 0004212286 | CUP |
| Repalced by: A 0004215286 | ||
| 355 | A 0004215286 | CUP |
| WABCO 423 106 407-0/423 106 406-0 | ||
| A 0004214186 | CUP | |
| Repalced by: A 0004215386 | ||
| A 0004215386 | CUP | |
| KNORR I 79146 | ||
| A 0004319786 | CUP | |
| GRAU 345 051 00 02 | ||
| 356 | A 0009961101 | YOKE |
| WABCO 423 006 510-0 | ||
| A 0004230343 | YOKE | |
| GRAU 345 044 00 02 | ||
| N 000439016206 | NUT | |
| Repalced by: N 308675016001 | ||
| N 308675016001 | NUT | |
| GRAU 345 044 00 02 | ||
| A 0004311528 | DIAPHRAGM | |
| GRAU | ||
| N 000933008119 | SCREW | |
| Repalced by: N 304017008042 | ||
| N 304017008042 | SCREW | |
| GRAU 345 044 00 02 | ||
| N 000933008008 | SCREW | |
| GRAU 345 044 00 02 | ||
| 356E | A 0025863442 | REPAIR KIT |
| KNORR I 74129 | ||
| 357 | A 0024202218 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0014204224 | ||
| 357 | A 0014204224 | BRAKE CYLINDER |
| WABCO | ||
| 357 | A 0064201718 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0014204424 | ||
| 357 | A 0014204424 | BRAKE CYLINDER |
| GRAU | ||
| 357 | A 0064209318 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0014204724 | ||
| 357 | A 0014204724 | BRAKE CYLINDER |
| KNORR | ||
| 357 | A 0014206424 | BRAKE CYLINDER |
| BOSCH | ||
| A 0004311528 | DIAPHRAGM | |
| GRAU | ||
| A 0004212086 | DIAPHRAGM | |
| WABCO | ||
| A 0004311828 | DIAPHRAGM | |
| Repalced by: A 0004314128 | ||
| A 0004311428 | DIAPHRAGM | |
| Repalced by: A 0004314128 | ||
| A 0004314128 | DIAPHRAGM | |
| KNORR | ||
| A 0004233186 | CUP | |
| GRAU 345 045 00 02 | ||
| A 0003530191 | BOOT | |
| WABCO 423 006 506-0 | ||
| A 0004212286 | CUP | |
| Repalced by: A 0004215286 | ||
| A 0004215286 | CUP | |
| WABCO 423 106 407-0/423 106 406-0 | ||
| A 0004214186 | CUP | |
| Repalced by: A 0004215386 | ||
| A 0004215386 | CUP | |
| KNORR I 74187 | ||
| A 0004216186 | CUP | |
| KNORR I 79146/ I 79145 | ||
| A 0004319786 | CUP | |
| GRAU 345 052 00 02/345 051 00 02 | ||
| A 0009978786 | PLUG | |
| KNORR I 79146/ I 79145 | ||
| A 0009961101 | YOKE | |
| WABCO 423 006 506-0 | ||
| A 0004230343 | YOKE | |
| GRAU 345 045 00 02 | ||
| N 000439016206 | NUT | |
| Repalced by: N 308675016001 | ||
| N 308675016001 | NUT | |
| GRAU 345 045 00 02 | ||
| N 000933008119 | SCREW | |
| Repalced by: N 304017008042 | ||
| N 304017008042 | SCREW | |
| GRAU 345 045 00 02 | ||
| N 000933008008 | SCREW | |
| GRAU 345 045 00 02 | ||
| A 0025863442 | REPAIR KIT | |
| KNORR I 74187 | ||
| A 0004302968 | REPAIR KIT | |
| KNORR I 79146/ I 79145 | ||
| 358 | N 007603022102 | SEAL RING |
| 360 | N 074298022203 | DOUBLE FITTING |
| WHEEL CYLINDER | ||
| 361 | N 074301022203 | ELBOW FITTING |
| WHEEL CYLINDER | ||
| 362 | A 0009870446 | SEALING CORD |
| 363 | A 0004290227 | THRUST RING |
| 364 | N 074305022202 | NUT |
| 365 | A 3434311540 | BRACKET |
| Repalced by: A 3434312740 | ||
| 365 | A 3434312740 | BRACKET |
| REAR AXLE I | ||
| 366 | A 3354300310 | BRACKET |
| REAR AXLE II | ||
| 367 | N 000960016011 | SCREW |
| N 000961016113 | SCREW | |
| 368 | N 912004016101 | LOCK WASHER |
| 369 | N 912004016101 | LOCK WASHER |
| 370 | N 000934016012 | NUT |
| M 16 | ||
| 370 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 370 | N 910113016002 | NUT |
| M 16X1.5 | ||
| 371 | N 001434014202 | PIN |
| WHEEL CYLINDER TO SLACK ADJUSTER | ||
| 372 | N 000433015005 | WASHER |
| WHEEL CYLINDER TO SLACK ADJUSTER | ||
| N 000094004049 | COTTER PIN | |
| WHEEL CYLINDER TO SLACK ADJUSTER | ||
| 373 | A 0004293335 | BRAKE HOSE |
| Repalced by: A 0004295635 | ||
| 373 | A 0004295635 | BRAKE HOSE |
| Repalced by: A 0004297335 | ||
| 373 | A 0004297335 | BRAKE HOSE |
| 373D | N 915045014100 | SEAL RING |
| 373D | N 915045014100 | SEAL RING |
| N 915065018101 | THRUST RING | |
| N 915065018101 | THRUST RING | |
| 374 | A 3434290034 | ADAPTER FITTING |
| 375 | N 915045014100 | SEAL RING |
| 376 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 376 | A 0019972372 | FITTING |
| PASSAGE OF LINE THRU SIDE MEMBER | ||
| 377 | N 074305022202 | NUT |
| PASSAGE OF LINE THRU SIDE MEMBER | ||
| 378 | N 074302022102 | T-FITTING |
| AIR-RESERVOIR T-FITTING | ||
| 378 | N 074302022102 | T-FITTING |
| AIR-RESERVOIR T-FITTING | ||
| 378 | N 074302022202 | T-FITTING |
| AIR-RESERVOIR T-FITTING | ||
| N 074302022202 | T-FITTING | |
| FRONT AXLE T-FITTING | ||
| N 074305022202 | NUT | |
| T-FITTING TO TWO-WAY VALVE | ||
| A 0004290227 | THRUST RING | |
| T-FITTING TO TWO-WAY VALVE | ||
| A 0009870446 | SEALING CORD | |
| T-FITTING TO TWO-WAY VALVE | ||
| 379 | N 916027013006 | HOSE |
| FRONT AXLE | ||
| 535 MM | ||
| 379E | A 0009950565 | CLAMP |
| Repalced by: A 0029973890 | ||
| 379E | A 0029973890 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 379E | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 379E | N 000000000667 | CLAMP |
| 379L | N 000933006124 | SCREW |
| 379S | N 000934006007 | NUT |
| 380 | A 0029971872 | FITTING |
| 381 | N 915017015200 | UNION NUT |
| 382 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 382 | N 007603012121 | SEAL RING |
| N 074298022203 | DOUBLE FITTING | |
| FROM AIR RESERVOIR TO RELAY VALVE | ||
| 383 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 383 | A 0029905971 | FITTING |
| FROM TRUCK-TRACTOR BRAKE VALVE TO RELAY VALVE | ||
| 383 | A 0029905971 | FITTING |
| FROM TRUCK-TRACTOR BRAKE VALVE TO RELAY VALVE | ||
| 384 | N 916027013006 | HOSE |
| REAR AXLES I AND II | ||
| 13X535 MM | ||
| 385 | A 0029971872 | FITTING |
| 385 | A 0029971872 | FITTING |
| 386 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 386 | N 007603012121 | SEAL RING |
| 386 | N 007603012121 | SEAL RING |
| 387 | N 915017015200 | UNION NUT |
| 387 | N 915017015200 | UNION NUT |
| 387E | A 0009950565 | CLAMP |
| Repalced by: A 0029973890 | ||
| 387E | A 0029973890 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 387E | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 387E | N 000000000667 | CLAMP |
| BRAKE HOSE | ||
| 387L | N 000933006124 | SCREW |
| 387R | N 000934006007 | NUT |
| 388 | A 0009902370 | T-FITTING |
| 389 | A 3354293440 | BRACKET |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 390 | A 3434290940 | BRACKET |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| A 3434291040 | BRACKET | |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 391 | N 001593019001 | CLAMP |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 391E | N 000084006137 | SCREW |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 391L | N 912004006102 | LOCK WASHER |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 391P | N 000934006007 | NUT |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 392 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 392 | N 000961012051 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 393 | N 912004012100 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 394 | A 3044292740 | BRACKET |
| AT CROSS MEMBER | ||
| 394 | A 3044292740 | BRACKET |
| AT CROSS MEMBER | ||
| 394E | A 3434290340 | BRACKET |
| AT SIDE MEMBER | ||
| 394E | A 3434290340 | BRACKET |
| AT SIDE MEMBER | ||
| 395 | A 3354290840 | BRACKET |
| AT SIDE MEMBER | ||
| A 3044760019 | BASE | |
| Repalced by: A 3142030084 | ||
| 396 | A 3142030084 | SHIM |
| 396 | A 3142030084 | SHIM |
| 397 | A 3044760135 | BRACKET |
| 397 | A 3044760135 | BRACKET |
| 398 | A 3044760335 | BRACKET |
| Repalced by: A 6205244040 | ||
| 398 | A 6205244040 | BRACKET |
| AT AIR RESERVOIR CONSOLE | ||
| A 3304760036 | BRACKET | |
| AT LEFT SIDE MEMBER | ||
| N 000126014000 | WASHER | |
| AT LEFT SIDE MEMBER | ||
| 400 | A 3474295240 | BRACKET |
| AT SIDE MEMBER | ||
| 400E | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 400E | N 304017006012 | SCREW |
| 400N | N 912004006102 | LOCK WASHER |
| 400T | N 000934006007 | NUT |
| 401 | A 3434290540 | BRACKET |
| LINE TO REAR AXLE I | ||
| 402 | A 3609950210 | CLAMP |
| LINE TO SHOCK ABSORBER & REAR AXLE | ||
| 402E | N 000084006137 | SCREW |
| 402N | N 912004006102 | LOCK WASHER |
| 402T | N 000934006007 | NUT |
| 403 | A 3049950220 | CLAMP |
| Repalced by: A 3129952420 | ||
| 403 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 403 | A 1109950401 | CLAMP |
| 403 | A 1109950401 | CLAMP |
| 404 | A 3039950232 | CLAMP |
| 404 | A 3039950232 | CLAMP |
| 405 | A 3049950132 | CLAMP |
| 405 | A 3049950132 | CLAMP |
| 406 | A 3379950332 | CLAMP |
| 407 | N 071434008100 | CLAMP |
| 407 | N 071434008100 | CLAMP |
| 407D | N 000084005134 | SCREW |
| BRACKET TO FRAME,AND MOUNTING CLAMP TO BRACKET OR TO PLATE,RESP. | ||
| 407L | N 000127005204 | LOCK WASHER |
| 407R | N 304032005005 | NUT |
| 408 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 408 | A 0004296201 | LINE |
| 6 MM | ||
| 410 | N 915017006100 | UNION NUT |
| 411 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 411 | A 0019901667 | SEAL CONE |
| 412 | A 3379970072 | FITTING |
| Repalced by: A 0019973772 | ||
| 412 | A 0019973772 | FITTING |
| 413 | N 000936012002 | NUT |
| N 006797012153 | TOOTHED WASHER | |
| N 074297012101 | UNION NUT | |
| N 003861006007 | GLAND | |
| Repalced by: A 0019901667 | ||
| A 0019901667 | SEAL CONE | |
| 414 | A 0109977082 | HOSE |
| 6X4 MM | ||
| 415 | N 040621010200 | INSULATING HOSE |
| 300 MM | ||
| 416 | A 0019975072 | FITTING |
| 417 | N 915017006200 | UNION NUT |
| 418 | A 3375420140 | BRACKET |
| FOR FREE SUSPENSION OF LINE,AND LINE TO BEARING BRACKET | ||
| 420 | A 3049950120 | CLAMP |
| Repalced by: A 3609950601 | ||
| 420 | A 3609950601 | CLAMP |
| 420 | A 3609950601 | CLAMP |
| A 3044760019 | BASE | |
| Repalced by: A 3142030084 | ||
| A 3142030084 | SHIM | |
| 421 | N 000084005134 | SCREW |
| 421E | N 912004005103 | LOCK WASHER |
| 421N | N 304032005005 | NUT |
| 423 | A 3129970981 | GROMMET |
| TO PLUG THE HOLE IN FIRE WALL | ||
| A 0009872544 | EXPANSION PLUG | |
| TO PLUG THE HOLE IN FIRE WALL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR OIL PRESSURE GAUGE SENDER UNIT, SEE PARTS LIST,GROUP 01 | ||
| 425 | A 0004290201 | LINE |
| Repalced by: A 0005516256 | ||
| 425 | A 0005516256 | TUBE |
| 15 MM | ||
| 426 | N 915018015000 | UNION NUT |
| 427 | N 003861015004 | GLAND |
| 428 | N 915065015101 | THRUST RING |
| 430 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 430 | N 007603012121 | SEAL RING |
| 431 | A 0004290801 | LINE |
| 8 MM | ||
| 432 | A 0004290529 | UNION NUT |
| Repalced by: N 003870008102 | ||
| 432 | N 915017008100 | UNION NUT |
| 434 | A 0004290328 | SEAL CONE |
| Repalced by: N 003861008004 | ||
| 434 | N 003861008005 | GLAND |
| 435 | A 0004310713 | VALVE |
| NO-LOAD/LOAD | ||
| 435E | N 000472030000 | LOCK RING |
| 435N | A 0004318793 | SPRING |
| 435S | A 0039976545 | SEAL RING |
| 436 | A 0004311523 | VALVE |
| 436C | A 0004310888 | VALVE SEAT |
| 436N | A 0009877046 | SEALING CORD |
| 437 | A 0004313060 | SEAL RING |
| 437F | A 0004311734 | STRAINER |
| 437S | N 000472026000 | LOCK RING |
| 438 | A 0005867143 | REPAIR KIT |
| 440 | N 007603022102 | SEAL RING |
| 441 | N 074298022203 | DOUBLE FITTING |
| 442 | A 0009971772 | FITTING |
| Repalced by: A 0009970171 | ||
| 442 | A 0009970171 | FITTING |
| 443 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 443 | A 3469970230 | SCREW PLUG |
| 444 | N 007603012405 | SEAL RING |
| 445 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 445 | A 0019972572 | FITTING |
| 446 | A 3434311840 | BRACKET |
| NO-LOAD/LOAD VALVE | ||
| 446E | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 446E | N 304017008021 | SCREW |
| NO-LOAD/LOAD VALVE TO BRACKET | ||
| 446N | N 912004008102 | LOCK WASHER |
| NO-LOAD/LOAD VALVE TO BRACKET | ||
| 446S | N 304032008006 | NUT |
| NO-LOAD/LOAD VALVE TO BRACKET | ||
| 447 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 447 | N 304017008027 | SCREW |
| NO-LOAD/LOAD VALVE TO SIDE MEMBER | ||
| 447E | N 912004008102 | LOCK WASHER |
| NO-LOAD/LOAD VALVE TO SIDE MEMBER | ||
| 447P | N 304032008006 | NUT |
| NO-LOAD/LOAD VALVE TO SIDE MEMBER | ||
| 448 | A 0004312112 | REGULATOR VALVE |
| LOAD-DEPENDING,7.2 KG/CM2 | ||
| 449 | A 0019813801 | CYLINDR. ROLLER BEARING |
| A 0004311974 | PIN | |
| 450 | A 0004310249 | GUIDE BUSHING |
| A 0004311233 | FILLER CAP | |
| A 0004310749 | RING | |
| A 0004316560 | SEAL RING | |
| 451 | A 0004312587 | PROTECTIVE CAP |
| A 0004313260 | SEAL RING | |
| A 0004311588 | VALVE SEAT | |
| Repalced by: A 0004312688 | ||
| A 0004312688 | VALVE SEAT | |
| 453 | A 0004318993 | SPRING |
| 453E | A 0009877246 | SEALING CORD |
| 454 | A 0004313660 | SEAL RING |
| A 0009877346 | SEALING CORD | |
| 456 | A 0005868443 | REPAIR KIT |
| N 007603012405 | SEAL RING | |
| A 0009971572 | FITTING | |
| Repalced by: A 0019972572 | ||
| N 003901008001 | SCREW-IN FITTING | |
| Repalced by: A 0019972572 | ||
| A 0019972572 | FITTING | |
| 457 | A 3434300123 | LEVER |
| Repalced by: A 3434300023 | ||
| 457 | A 3434300023 | LEVER |
| 457 | A 3434300623 | LEVER |
| 458 | A 0004310367 | YOKE |
| 460 | N 001481003017 | CLAMPING SLEEVE |
| 461 | N 912004010102 | LOCK WASHER |
| 462 | N 000933010128 | SCREW |
| 463 | A 3434311940 | BRACKET |
| (REGULATING VALVE) | ||
| 463 | A 3434313240 | BRACKET |
| (REGULATING VALVE) | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| 464 | N 900331008420 | PULL ROD |
| TO BE SHORTENED TO 250 MM | ||
| 464 | N 900331008077 | PULL ROD |
| 465 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 465 | N 304035008001 | NUT |
| 465E | N 900055008402 | LOCK RING |
| 466 | A 3434271331 | ROD |
| 466 | A 3434272031 | ROD |
| 467 | A 0004310735 | CONNECTOR |
| 467E | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 467E | N 000125008443 | WASHER |
| N 000094002077 | COTTER PIN | |
| 468 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 468 | N 000000000665 | CLAMP |
| A 3434301510 | BRACKET | |
| 469 | A 0004310418 | METAL SPRING BELLOWS |
| A 0004310918 | METAL SPRING BELLOWS | |
| 470 | A 3434310184 | SHIM |
| 471 | A 3434312140 | BRACKET |
| METAL SPRING BELLOWS,REAR AXLE I | ||
| 471 | A 3434312140 | BRACKET |
| METAL SPRING BELLOWS,REAR AXLE I | ||
| 472 | N 000933010164 | SCREW |
| 472 | N 000933010164 | SCREW |
| 473 | N 912004012100 | LOCK WASHER |
| 474 | N 000931012182 | SCREW |
| 474 | N 000933012128 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| M 12X22 | ||
| 474 | N 000933012128 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| M 12X22 | ||
| 474 | N 000961012047 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| M 12X1.5X18 | ||
| 475 | A 3434312040 | BRACKET |
| METAL SPRING BELLOWS,REAR AXLE II | ||
| 475 | A 3434312040 | BRACKET |
| METAL SPRING BELLOWS,REAR AXLE II | ||
| A 3434313040 | BRACKET | |
| METAL SPRING BELLOWS,REAR AXLE II | ||
| 476 | N 000960012054 | SCREW |
| 477 | N 912004012100 | LOCK WASHER |
| 478 | N 000933012008 | SCREW |
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 480 | A 0005516256 | TUBE |
| 15 MM | ||
| 481 | N 915018015000 | UNION NUT |
| 482 | N 003861015004 | GLAND |
| 483 | N 915065015101 | THRUST RING |
| 484 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 484 | N 007603012121 | SEAL RING |
| 485 | A 0004296344 | VALVE |
| Repalced by: A 0014295244 | ||
| 485 | A 0014297944 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| A 0014295244 | VALVE | |
| (OVERFLOW VALVE) | ||
| WESTINGHOUSE | ||
| A 0014299844 | VALVE | |
| (OVERFLOW VALVE) | ||
| BOSCH | ||
| A 0034290244 | VALVE | |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| 486 | A 0005863642 | REPAIR KIT |
| Repalced by: A 0005865842 | ||
| A 0004290145 | DIAPHRAGM | |
| TO 001 431 54 06 | ||
| A 0024298844 | VALVE | |
| TO 001 429 79 44 | ||
| A 0004290645 | DIAPHRAGM | |
| Repalced by: A 0004290745 | ||
| A 0004290745 | DIAPHRAGM | |
| TO 001 429 79 44 | ||
| 486 | A 0005865842 | REPAIR KIT |
| TO 000 429 63 44 | ||
| A 0015862042 | REPAIR KIT | |
| TO 001 429 52 44 | ||
| A 0004303260 | REPAIR KIT | |
| TO 003 429 02 44 | ||
| 487 | N 007603022102 | SEAL RING |
| AT OVERFLOW VALVE | ||
| 488 | N 074298022203 | DOUBLE FITTING |
| AT OVERFLOW VALVE | ||
| 490 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 490 | A 0019972372 | FITTING |
| AT OVERFLOW VALVE | ||
| N 074305022202 | NUT | |
| A 0004290227 | THRUST RING | |
| A 0009870446 | SEALING CORD | |
| 491 | A 0004322001 | RESERVOIR |
| Repalced by: A 0034321101 | ||
| 491 | A 0034321101 | RESERVOIR |
| RIGHT | ||
| 20 L | ||
| 492 | N 007603022102 | SEAL RING |
| A 0004320407 | VALVE | |
| Repalced by: A 0004320807 | ||
| 493 | A 0004310413 | VALVE |
| 493E | A 0009933405 | SPRING |
| N 000472015000 | LOCK RING | |
| 494 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 495 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 495 | A 3469970230 | SCREW PLUG |
| 496 | A 0009900987 | CROSS FITTING |
| AT AIR RESERVOIR | ||
| 497 | N 074305022202 | NUT |
| 498 | A 0004290227 | THRUST RING |
| 500 | A 0009870446 | SEALING CORD |
| 501 | A 3354320418 | BASE |
| 502 | A 3354300240 | STRAP |
| 503 | N 000934010014 | NUT |
| 504 | A 0004294044 | VALVE |
| Repalced by: A 0004299244 | ||
| 504 | A 0004299244 | VALVE |
| 505 | A 0019872046 | SEALING CORD |
| 506 | A 0004290245 | DIAPHRAGM |
| A 0004291984 | SEAL RING | |
| A 0015865943 | REPAIR KIT | |
| 507 | N 074305022202 | NUT |
| 508 | A 0004290227 | THRUST RING |
| 510 | A 0009870446 | SEALING CORD |
| 511 | N 007603022102 | SEAL RING |
| 512 | N 074298022203 | DOUBLE FITTING |
| A 0004311714 | BRAKE BOOSTER | |
| Repalced by: A 0004316514 | ||
| A 0003530289 | BOOT | |
| A 0009876346 | SEALING CORD | |
| A 0069972745 | SEAL RING | |
| A 0019871846 | SEALING CORD | |
| A 0004311188 | VALVE SEAT | |
| A 0004311288 | VALVE SEAT | |
| A 0004313887 | PROTECTIVE CAP | |
| A 0014310493 | SPRING | |
| N 000472026000 | LOCK RING | |
| A 0009872146 | SEALING CORD | |
| A 0004315260 | SEAL RING | |
| A 0004312923 | VALVE | |
| A 0004312389 | SPRING RETAINER | |
| A 0004313787 | PROTECTIVE CAP | |
| A 0004313687 | PROTECTIVE CAP | |
| 516 | A 0004316514 | BRAKE BOOSTER |
| 517 | A 0004318286 | CUP |
| 518 | A 0004313787 | PROTECTIVE CAP |
| 519 | A 0035860643 | REPAIR KIT |
| BRAKE BOOSTER | ||
| 520 | N 007603014104 | SEAL RING |
| A 0004294134 | ADAPTER FITTING | |
| Repalced by: A 0004291934 | ||
| A 0004291934 | ADAPTER FITTING | |
| Repalced by: A 0009970271 | ||
| A 0009970271 | FITTING | |
| 521 | A 0009970171 | FITTING |
| A 0004290439 | CONNECTOR | |
| Repalced by: A 0004312031 | ||
| A 0004312031 | TEST CONNECTION | |
| VOSS | ||
| A 0004314531 | TEST CONNECTION | |
| SCHAEFER | ||
| A 0004314831 | TEST CONNECTION | |
| WESTINGHOUSE | ||
| A 0004316131 | TEST CONNECTION | |
| WIRA | ||
| A 0009979486 | PLUG | |
| N 074302022304 | T-FITTING | |
| N 074305022202 | NUT | |
| TEST CONNECTION TO ADAPTER FITTING | ||
| A 0004290227 | THRUST RING | |
| TEST CONNECTION TO ADAPTER FITTING | ||
| A 0009870446 | SEALING CORD | |
| TEST CONNECTION TO ADAPTER FITTING | ||
| A 0009970386 | PLUG | |
| N 007605022000 | LOCK NUT | |
| 525 | A 3434300610 | BRACKET |
| A 3434300710 | BRACKET | |
| 526 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 526 | N 308676012012 | SCREW |
| HAND BRAKE BOOSTER TO BRACKET | ||
| 526E | N 000961012164 | SCREW |
| HAND BRAKE BOOSTER TO BRACKET | ||
| 526E | N 000961012164 | SCREW |
| HAND BRAKE BOOSTER TO BRACKET | ||
| 527 | N 912004012100 | LOCK WASHER |
| HAND BRAKE BOOSTER TO BRACKET | ||
| 527 | N 912004012100 | LOCK WASHER |
| HAND BRAKE BOOSTER TO BRACKET | ||
| 527E | N 000934012022 | NUT |
| HAND BRAKE BOOSTER TO BRACKET | ||
| 527E | N 000934012022 | NUT |
| HAND BRAKE BOOSTER TO BRACKET | ||
| 528 | N 916027013006 | HOSE |
| 535 MM | ||
| 528E | A 0009950565 | CLAMP |
| Repalced by: A 0029973890 | ||
| 528E | A 0029973890 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 528E | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 528E | N 000000000667 | CLAMP |
| 528N | N 000933006124 | SCREW |
| 528T | N 000934006007 | NUT |
| 529 | A 0029971872 | FITTING |
| 531 | N 915017015200 | UNION NUT |
| 532 | A 3044292740 | BRACKET |
| AT CROSS MEMBER | ||
| 532 | A 3044292740 | BRACKET |
| AT CROSS MEMBER | ||
| 533 | A 3044290940 | BRACKET |
| 533 | A 3045460643 | BRACKET |
| 535 | A 3049950220 | CLAMP |
| Repalced by: A 3129952420 | ||
| 535 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 535 | A 1109950401 | CLAMP |
| 535 | A 1109950401 | CLAMP |
| 536 | A 3039950232 | CLAMP |
| AT BRACKET AT CROSS MEMBER | ||
| 536 | A 3049950132 | CLAMP |
| AT BRACKET AT CROSS MEMBER | ||
| 537 | N 000084005134 | SCREW |
| 537E | N 912004005103 | LOCK WASHER |
| 538 | N 000433005304 | WASHER |
| 538E | N 304032005005 | NUT |
| 540 | A 0004290201 | LINE |
| Repalced by: A 0005516256 | ||
| 540 | A 0005516256 | TUBE |
| 15 MM | ||
| 541 | N 915018015000 | UNION NUT |
| 542 | N 003861015004 | GLAND |
| 543 | N 915065015101 | THRUST RING |
| 544 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 544 | N 007603012121 | SEAL RING |
| 545 | A 0004290801 | LINE |
| 8 MM | ||
| 546 | N 915017008100 | UNION NUT |
| 547 | N 003861008005 | GLAND |
| 548 | A 0004291444 | VALVE |
| Repalced by: A 0014296644 | ||
| 548 | A 0014296644 | VALVE |
| CONTROL VALVE | ||
| 550 | A 0005863542 | REPAIR KIT |
| 551 | N 007603022102 | SEAL RING |
| AT PRESSURE CONTROL VALVE | ||
| 551 | N 007603022102 | SEAL RING |
| AT PRESSURE CONTROL VALVE | ||
| 552 | N 074298022203 | DOUBLE FITTING |
| AT PRESSURE CONTROL VALVE | ||
| 552 | N 074298022203 | DOUBLE FITTING |
| AT PRESSURE CONTROL VALVE | ||
| 553 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 553 | A 3469970230 | SCREW PLUG |
| AT PRESSURE CONTROL VALVE | ||
| N 074305022202 | NUT | |
| A 0004290227 | THRUST RING | |
| A 0009870446 | SEALING CORD | |
| 555 | A 0004291031 | SHUT-OFF COCK |
| Repalced by: A 0004291431 | ||
| 555 | A 0004291431 | SHUT-OFF COCK |
| A 0004291631 | SHUT-OFF COCK | |
| A 0004292684 | SEAL RING | |
| TO 000 429 16 31 | ||
| A 0004292293 | SPRING | |
| TO 000 429 16 31 | ||
| A 0119976748 | SEAL RING | |
| TO 000 429 16 31 | ||
| A 0009974077 | HANDLE | |
| TO 000 429 16 31 | ||
| A 0004292393 | SPRING | |
| TO 000 429 16 31 | ||
| A 0005866342 | REPAIR KIT | |
| TO 000 429 14 31 | ||
| 556 | N 007603022102 | SEAL RING |
| AT SHUT-OFF COCK | ||
| 557 | N 074298022203 | DOUBLE FITTING |
| AT SHUT-OFF COCK | ||
| 558 | N 074302022202 | T-FITTING |
| 560 | N 074305022202 | NUT |
| T-FITTING TO SHUT-OFF COCK AND TO BRAKE LINE COUPLING,RESP. | ||
| 561 | A 0004290227 | THRUST RING |
| T-FITTING TO SHUT-OFF COCK AND TO BRAKE LINE COUPLING,RESP. | ||
| 562 | A 0009870446 | SEALING CORD |
| T-FITTING TO SHUT-OFF COCK AND TO BRAKE LINE COUPLING,RESP. | ||
| 563 | A 0004292830 | BRAKE LINE COUPLING |
| 564 | A 0004290327 | THRUST RING |
| Repalced by: A 0004292184 | ||
| 564 | A 0004292184 | SEAL RING |
| 565 | A 3664310140 | BRACKET |
| SHUT-OFF COCK | ||
| 565E | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 565E | N 304014008002 | SCREW |
| SHUT-OFF COCK TO BRACKET | ||
| 565N | N 912004008102 | LOCK WASHER |
| SHUT-OFF COCK TO BRACKET | ||
| 565T | N 304032008006 | NUT |
| SHUT-OFF COCK TO BRACKET | ||
| N 000933010105 | SCREW | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 000433013005 | WASHER | |
| Repalced by: N 000433013010 | ||
| N 000433013010 | WASHER | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 000934010035 | NUT | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 567 | A 0009901670 | T-FITTING |
| AT TWO-WAY VALVE | ||
| 568 | N 074305022202 | NUT |
| 570 | A 0004290227 | THRUST RING |
| 571 | A 0009870446 | SEALING CORD |
| 572 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 572 | N 007603012121 | SEAL RING |
| 573 | N 007605022000 | LOCK NUT |
| 574 | A 0004296544 | VALVE |
| RELAY | ||
| WESTINGHOUSE | ||
| 574 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 574 | A 0034295244 | VALVE |
| RELAY | ||
| KNORR | ||
| 574 | A 0014293044 | VALVE |
| RELAY | ||
| GRAU | ||
| 574E | A 0059976745 | SEAL RING |
| TO 000 429 65 44 | ||
| 574N | A 0059976845 | SEAL RING |
| TO 000 429 65 44 | ||
| 574T | A 0004311088 | VALVE SEAT |
| TO 000 429 65 44 | ||
| 575 | A 0004310988 | VALVE SEAT |
| TO 000 429 65 44 | ||
| 575E | A 0059976545 | SEAL RING |
| TO 000 429 65 44 | ||
| 575P | A 0004318493 | SPRING |
| TO 000 429 65 44 | ||
| 576 | A 0019871746 | SEALING CORD |
| TO 000 429 65 44 | ||
| 576C | A 0004312576 | WASHER |
| TO 000 429 65 44 | ||
| 576K | A 0004312776 | WASHER |
| TO 000 429 65 44 | ||
| 577 | N 912004008102 | LOCK WASHER |
| TO 000 429 65 44 | ||
| 578 | N 304032008006 | NUT |
| TO 000 429 65 44 | ||
| A 0059972648 | SEAL RING | |
| 22.3X2.4 MM,TO 001 429 30 44 | ||
| A 0004312788 | VALVE SEAT | |
| TO 001 429 30 44 | ||
| A 0059972748 | SEAL RING | |
| 80X3 MM,TO 000 429 28 95, GRAU | ||
| A 0014311660 | SEAL RING | |
| 28X2 MM,TO 001 429 30 44 | ||
| A 0014311760 | SEAL RING | |
| 86X2 MM,TO 001 429 30 44 | ||
| A 0014311980 | GASKET | |
| Repalced by: A 0004311980 | ||
| A 0004311980 | GASKET | |
| 34X2X6 MM,TO 001 429 30 44 | ||
| A 0025863542 | REPAIR KIT | |
| TO 001 429 54 44,003 429 52 44 | ||
| 580 | A 0005865742 | REPAIR KIT |
| TO 000 429 65 44 | ||
| 577 | N 912004008102 | LOCK WASHER |
| RELAY VALVE TO BRACKET | ||
| 578 | N 304032008006 | NUT |
| RELAY VALVE TO BRACKET | ||
| 581 | N 007603022102 | SEAL RING |
| AT RELAY VALVE | ||
| 582 | N 074298022203 | DOUBLE FITTING |
| AT RELAY VALVE | ||
| 583 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 583 | A 0019972372 | FITTING |
| AT RELAY VALVE | ||
| 584 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 584 | A 3469970230 | SCREW PLUG |
| AT RELAY VALVE | ||
| 585 | A 0004290439 | CONNECTOR |
| Repalced by: A 0004312031 | ||
| 585 | A 0004312031 | TEST CONNECTION |
| AT RELAY VALVE | ||
| VOSS | ||
| 585 | A 0004314531 | TEST CONNECTION |
| AT RELAY VALVE | ||
| SCHAEFER | ||
| 585 | A 0004314831 | TEST CONNECTION |
| AT RELAY VALVE | ||
| WESTINGHOUSE | ||
| 585 | A 0004316131 | TEST CONNECTION |
| AT RELAY VALVE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 586 | N 074302022304 | T-FITTING |
| AT RELAY VALVE | ||
| 587 | N 074305022201 | NUT |
| AT RELAY VALVE | ||
| 588 | A 0004290227 | THRUST RING |
| AT RELAY VALVE | ||
| 589 | A 0009870446 | SEALING CORD |
| AT RELAY VALVE | ||
| 590 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 590 | N 007603012121 | SEAL RING |
| AT RELAY VALVE | ||
| 591 | A 0004294134 | ADAPTER FITTING |
| Repalced by: A 0004291934 | ||
| 591 | A 0004291934 | ADAPTER FITTING |
| Repalced by: A 0009970271 | ||
| 591 | A 0009970271 | FITTING |
| 592 | A 3664310240 | BRACKET |
| RELAY VALVE | ||
| 592E | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 592H | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 592N | N 000934010014 | NUT |
| BRACKET TO SIDE MEMBER | ||
| N 074298022203 | DOUBLE FITTING | |
| FROM PRESSURE CONTROL VALVE TO SHUT-OFF COCK | ||
| 593 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 593 | A 0029905971 | FITTING |
| FROM TWO-WAY VALVE TO RELAY VALVE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINE MOUNTING | ||
| 594 | A 3354292240 | BRACKET |
| LINE TO SIDE MEMBER | ||
| A 3434290340 | BRACKET | |
| LINE TO SIDE MEMBER | ||
| A 3044760335 | BRACKET | |
| Repalced by: A 6205244040 | ||
| A 6205244040 | BRACKET | |
| LINE TO SIDE MEMBER | ||
| 596 | A 3045460643 | BRACKET |
| LINE TO SIDE MEMBER | ||
| 597 | A 3044293040 | BRACKET |
| Repalced by: A 3604292940 | ||
| 597 | A 3604292940 | BRACKET |
| LINE TO SIDE MEMBER | ||
| A 3044290340 | BRACKET | |
| LINE TO SIDE MEMBER | ||
| 598 | A 3354290840 | BRACKET |
| LINE TO SIDE MEMBER | ||
| 600 | A 3044292740 | BRACKET |
| AT CROSS MEMBER | ||
| A 3044760019 | BASE | |
| Repalced by: A 3142030084 | ||
| A 3142030084 | SHIM | |
| 601 | A 3049950220 | CLAMP |
| Repalced by: A 3129952420 | ||
| 601 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 601 | A 1109950401 | CLAMP |
| 602 | A 3039950232 | CLAMP |
| A 3379950332 | CLAMP | |
| A 3049950132 | CLAMP | |
| 603 | N 071434008100 | CLAMP |
| 603C | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 603C | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| TO 304 429 30 40 | ||
| 603K | N 912004008102 | LOCK WASHER |
| 603P | N 304032008006 | NUT |
| 604 | N 000084006137 | SCREW |
| BRACKET TO SIDE AND CROSS MEMBERS | ||
| 604E | N 912004006102 | LOCK WASHER |
| 605 | N 000934006007 | NUT |
| 605E | N 000084005134 | SCREW |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| 606 | N 912004005103 | LOCK WASHER |
| 606E | N 304032005005 | NUT |
| 608 | A 0004290801 | LINE |
| 8 MM | ||
| A 0004290529 | UNION NUT | |
| Repalced by: N 003870008101 | ||
| 611 | N 915017008100 | UNION NUT |
| 612 | A 0004290328 | SEAL CONE |
| Repalced by: N 003861008004 | ||
| 612 | N 003861008005 | GLAND |
| 613 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 613 | A 0004296201 | LINE |
| 6 MM | ||
| 614 | N 915017006100 | UNION NUT |
| 615 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 615 | A 0019901667 | SEAL CONE |
| 616 | A 0004296244 | VALVE |
| Repalced by: A 0014295144 | ||
| 616 | A 0014297544 | VALVE |
| OVERFLOW VALVE | ||
| GRAU | ||
| 616 | A 0014295144 | VALVE |
| OVERFLOW VALVE | ||
| WESTINGHOUSE | ||
| 616 | A 0034294744 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| A 0004290545 | DIAPHRAGM | |
| TO 001 429 51 44 | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| TO 001 429 51 44 | ||
| N 912004006102 | LOCK WASHER | |
| TO 001 429 51 44 | ||
| 616E | A 0024298844 | VALVE |
| TO 001 429 75 44 | ||
| 616N | A 0004290645 | DIAPHRAGM |
| Repalced by: A 0004290745 | ||
| 616N | A 0004290745 | DIAPHRAGM |
| TO 001 429 75 44 | ||
| A 0004290945 | DIAPHRAGM | |
| TO 003 429 47 44 | ||
| 617 | A 0005865842 | REPAIR KIT |
| TO 000 429 62 44 | ||
| 618 | N 074305022202 | NUT |
| 620 | A 0004290227 | THRUST RING |
| 621 | A 0009870446 | SEALING CORD |
| 622 | N 007603022102 | SEAL RING |
| 623 | A 0009970171 | FITTING |
| A 0007631252 | VALVE | |
| Repalced by: A 0004340801 | ||
| A 0007630167 | STRAINER | |
| A 0007630067 | STRAINER | |
| A 0009946535 | SNAP RING | |
| A 0089979745 | SEAL RING | |
| N 000472014000 | LOCK RING | |
| A 0007631652 | VALVE | |
| A 0029935501 | SPRING | |
| A 0089979845 | SEAL RING | |
| N 000472020000 | LOCK RING | |
| A 0005866443 | REPAIR KIT | |
| 629 | A 3354340023 | GUIDE |
| A 0004340801 | VALVE | |
| Repalced by: A 0004342401 | ||
| 630 | A 0004342401 | VALVE |
| OPERATING VALVE | ||
| WESTINGHOUSE | ||
| A 0004341101 | VALVE | |
| OPERATING VALVE | ||
| BOSCH | ||
| A 0079972448 | SEAL RING | |
| TO 000 434 24 01 | ||
| A 0079972548 | SEAL RING | |
| TO 000 434 24 01 | ||
| A 0059979248 | SEAL RING | |
| TO 000 434 11 01 | ||
| A 0014315193 | SPRING | |
| TO 000 434 11 01 | ||
| 630K | A 0009972077 | HANDLE |
| TO 000 434 24 01 | ||
| 630M | A 0004340586 | CUP |
| TO 000 434 24 01 | ||
| A 0025868343 | REPAIR KIT | |
| TO 000 434 11 01 | ||
| A 0025868443 | REPAIR KIT | |
| TO 000 434 11 01 | ||
| 630R | A 0025869843 | REPAIR KIT |
| TO 000 434 24 01 | ||
| A 0005869743 | REPAIR KIT | |
| TO 000 434 08 01 | ||
| N 000137027201 | SPRING WASHER | |
| 630T | N 074305026202 | NUT |
| 631 | N 007603012405 | SEAL RING |
| 632 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 632 | A 0019972572 | FITTING |
| 633 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 633 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 633 | A 0029906071 | FITTING |
| A 3933280065 | PIPE SOCKET | |
| Repalced by: A 4063580065 | ||
| A 4063580065 | BREATHER | |
| Repalced by: A 3933280065 | ||
| A 3933280065 | PIPE SOCKET | |
| 3/2-WAY VALVE;CONNECTION: | ||
| "3" | ||
| 634 | A 3354300610 | BRACKET |
| 635 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 635 | N 304017008021 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 635E | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 635N | N 304032008006 | NUT |
| BRACKET TO CROSS MEMBER | ||
| A 3209970286 | PLUG | |
| T-FITTING CONNECTION | ||
| N 915017006100 | UNION NUT | |
| T-FITTING CONNECTION | ||
| 637 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 637 | A 0029905971 | FITTING |
| 637 | A 0029905971 | FITTING |
| 638 | A 3045730336 | HOSE |
| 320 MM | ||
| 640 | N 007603012405 | SEAL RING |
| 641 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 641 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 641 | A 0029906071 | FITTING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINE MOUNTING | ||
| 642 | A 3044760335 | BRACKET |
| Repalced by: A 6205244040 | ||
| 642 | A 6205244040 | BRACKET |
| AT SIDE MEMBER | ||
| 643 | A 3044760135 | BRACKET |
| AT SIDE MEMBER | ||
| 644 | A 3354290840 | BRACKET |
| AT SIDE MEMBER | ||
| 645 | N 071434008100 | CLAMP |
| 645 | N 071434008100 | CLAMP |
| N 000084005134 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004005103 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 304032005005 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 647 | A 3045460643 | BRACKET |
| A 3045421040 | BRACKET | |
| Repalced by: A 3045420940 | ||
| A 3045420940 | BRACKET | |
| N 000125010500 | WASHER | |
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 649 | A 1869950220 | CLAMP |
| Repalced by: N 072571001035 | ||
| 649 | N 072571001035 | CLAMP |
| Repalced by: A 1279950020 | ||
| 649 | A 1279950020 | CLAMP |
| A 3609950101 | CLAMP | |
| N 000084005134 | SCREW | |
| N 000084005174 | SCREW | |
| N 912004005103 | LOCK WASHER | |
| N 000433005300 | WASHER | |
| N 304032005005 | NUT | |
| A 3375420140 | BRACKET | |
| A 3609950101 | CLAMP | |
| LINE TO BRACKET | ||
| N 000000001147 | SCREW | |
| LINE TO BRACKET | ||
| M 6X20 | ||
| N 912004006102 | LOCK WASHER | |
| LINE TO BRACKET | ||
| N 000934006007 | NUT | |
| LINE TO BRACKET | ||
| A 3044293040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3604292940 | BRACKET | |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 304032008006 | NUT | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO RIGHT SIDE MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
