Transporto priemonė: LAB 2624/6X6; VIN numerio dalis: 343134
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

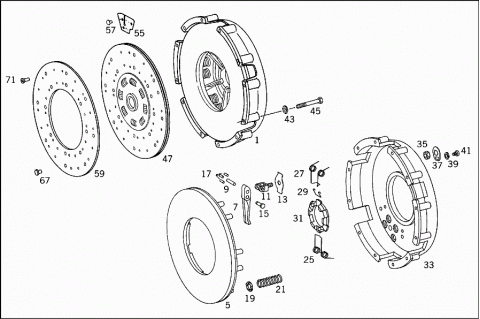

| 001 | A 0012506804 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032502204 | ||
| 001 | A 0032502204 | CLUTCH PRESSURE PLATE |
| A 0002523412 | PRESSURE PLATE | |
| 005 | A 0002520412 | PRESSURE PLATE |
| 007 | A 0002523513 | RELEASE LEVER |
| Repalced by: A 0002524613 | ||
| 007 | A 0002524613 | RELEASE LEVER |
| 009 | A 0002522916 | SPINDLE |
| Repalced by: A 0002520616 | ||
| 009 | A 0002520616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 011 | A 0002522214 | BRACKET |
| Repalced by: A 0002520614 | ||
| 011 | A 0002520614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 013 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 013 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 015 | A 0002522116 | SPINDLE |
| Repalced by: A 0002522816 | ||
| 015 | A 0002522816 | SPINDLE |
| FOR BRACKETS | ||
| 017 | A 0002520118 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| N 006799008005 | LOCK PLATE | |
| TO 000 252 21 16,8 MM | ||
| N 006799007007 | LOCK PLATE | |
| TO 000 252 28 16,7 MM | ||
| 019 | A 0002520024 | INSULATING WASHER |
| TO 001 250 68 04 | ||
| 021 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 021 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| A 0002520535 | SLEEVE | |
| 025 | A 0002520727 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 025 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 027 | A 0002521927 | SPRING |
| Repalced by: A 0002523227 | ||
| 029 | A 0002520929 | CLAMP |
| Repalced by: A 0002523227 | ||
| 029 | A 0002521829 | CLAMP |
| Repalced by: A 0002523227 | ||
| A 0002523227 | SPRING | |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| A 0002524027 | SPRING | |
| SUSPENDED BELOW LEAF SPRING | ||
| 031 | A 0002520345 | FLANGE |
| Repalced by: A 0002522045 | ||
| 031 | A 0002522045 | FLANGE |
| 033 | A 0002520932 | HOUSING |
| 035 | A 0002521372 | NUT |
| Repalced by: A 0002523072 | ||
| 035 | A 0002523072 | NUT |
| BEARING BRACKET TO BELL HOUSING | ||
| 037 | A 0002520373 | LOCK |
| Repalced by: A 0002521073 | ||
| 037 | A 0002521073 | LOCK |
| BEARING BRACKET TO BELL HOUSING | ||
| 039 | N 912004005148 | LOCK WASHER |
| TO 001 250 68 04 | ||
| 041 | N 007985005157 | SCREW |
| M 5X10 | ||
| 041 | A 0002522971 | SCREW |
| M 5X8 | ||
| 043 | N 912004010102 | LOCK WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 045 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 045 | N 304017010050 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 047 | A 0072503803 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 047 | A 0012505503 | CLUTCH DISC |
| Repalced by: A 0032505103 | ||
| 047 | A 0032505103 | CLUTCH DISC |
| 047 | A 0032505103 | CLUTCH DISC |
| 047 | A 0012508303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 055 | A 0002520419 | LEAF SPRING |
| Repalced by: A 0002523819 | ||
| 055 | A 0002523819 | LEAF SPRING |
| 055 | A 0002523819 | LEAF SPRING |
| 057 | A 0002520675 | RIVET |
| Repalced by: A 0002522075 | ||
| 057 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 057 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 057 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 057 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 059 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 059 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 059 | A 0002526410 | CLUTCH LINING |
| Repalced by: A 0002523110 | ||
| 059 | A 0002523110 | CLUTCH LINING |
| Repalced by: A 0012522910 | ||
| 059 | A 0012522910 | CLUTCH LINING |
| CONTAINING ASBESTOS | ||
| 059 | A 0012522910 | CLUTCH LINING |
| CONTAINING ASBESTOS | ||
| 059 | A 0002527510 | CLUTCH LINING |
| 067 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 067 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 067 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 067 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 071 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 071 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 071 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 071 | A 0002521175 | RIVET |
| Repalced by: A 0002524075 | ||
| 071 | A 0002524075 | RIVET |
| LINING WITH CLUTCH DISC | ||

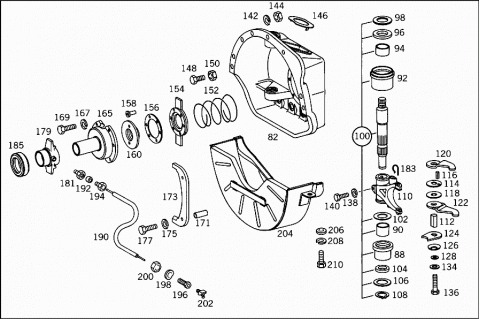

| 082 | A 3432500205 | HOUSING |
| Repalced by: A 3462505005 | ||
| 082 | A 3462505005 | HOUSING |
| CLUTCH | ||
| 082 | A 3432500305 | HOUSING |
| Repalced by: A 3462505105 | ||
| 082 | A 3462505105 | HOUSING |
| CLUTCH | ||
| 088 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 090 | A 3439920103 | BUSHING |
| BOTTOM | ||
| 24X27 MM | ||
| 092 | A 3432510050 | BUSHING |
| TOP | ||
| 094 | A 3439920003 | BUSHING |
| TOP | ||
| 35X39 MM | ||
| 096 | N 005419035101 | FELT RING |
| RELEASE SHAFT,TOP | ||
| 098 | A 3432930027 | COVER PLATE |
| RELEASE SHAFT,TOP | ||
| N 912004018101 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION | ||
| N 000961018024 | SCREW | |
| Repalced by: N 000961018043 | ||
| N 000961018043 | SCREW | |
| BELL HOUSING TO TRANSMISSION | ||
| M18X55 | ||
| N 000960018013 | SCREW | |
| Repalced by: N 000960018109 | ||
| N 000960018109 | SCREW | |
| BELL HOUSING TO TRANSMISSION | ||
| M18X60 | ||
| A 3432930001 | RELEASE SHAFT | |
| Repalced by: A 3635860125 | ||
| 100 | A 3635860125 | REPAIR KIT |
| Repalced by: A 3632500114 | ||
| 100 | A 3632500114 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 102 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 102 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 102 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 102 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 102 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 102 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 104 | N 005419025101 | FELT RING |
| CLUTCH RELEASE SHAFT | ||
| 106 | A 3432930052 | SPACER WASHER |
| CLUTCH RELEASE SHAFT | ||
| 108 | N 000471024000 | LOCK RING |
| CLUTCH RELEASE SHAFT | ||
| 110 | A 3432930011 | RELEASE YOKE |
| 112 | A 3262930053 | SPACER TUBE |
| CLUTCH BRAKE | ||
| 114 | A 3262930077 | WASHER |
| CLUTCH BRAKE | ||
| 116 | N 001481005017 | CLAMPING SLEEVE |
| CLUTCH BRAKE | ||
| 118 | A 3262910076 | WASHER |
| CLUTCH BRAKE | ||
| 120 | A 3432550016 | LEVER |
| TOP | ||
| 122 | A 3432550116 | LEVER |
| BOTTOM | ||
| 124 | A 3262910073 | LOCK |
| CLUTCH BRAKE | ||
| 126 | N 002093031102 | DISC SPRING |
| CLUTCH BRAKE | ||
| 128 | N 000988010016 | FITTED WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 128 | N 000988010019 | FITTED WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 128 | N 000988010020 | FITTED WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 134 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 134 | N 000125010532 | WASHER |
| CLUTCH BRAKE | ||
| 136 | N 000960010072 | SCREW |
| CLUTCH BRAKE | ||
| 138 | N 912004012100 | LOCK WASHER |
| RELEASE YOKE TO SHAFT | ||
| 140 | N 000931012033 | SCREW |
| Repalced by: N 000933012102 | ||
| 140 | N 000933012102 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 142 | N 912004016101 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 142 | N 912004016101 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 144 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 144 | N 308673016001 | NUT |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 146 | A 3352500055 | COVER |
| BELL HOUSING | ||
| 148 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 148 | N 304017006020 | SCREW |
| FOR PRESSURE PLATE ASSEMBLY STOP (CLUTCH BRAKE) | ||
| 150 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 150 | N 304032006008 | NUT |
| FOR PRESSURE PLATE ASSEMBLY STOP (CLUTCH BRAKE) | ||
| 152 | A 3439930105 | SPRING |
| CLUTCH BRAKE | ||
| 154 | A 3432500070 | PRESSURE PLATE |
| CLUTCH BRAKE | ||
| 156 | A 3432550010 | BRAKE LINING |
| CLUTCH BRAKE | ||
| 158 | N 007338005300 | RIVET |
| Repalced by: N 007338005314 | ||
| 158 | N 007338005314 | RIVET |
| CLUTCH BRAKE | ||
| 160 | A 3432550001 | BRAKE DISC |
| CLUTCH BRAKE | ||
| 165 | A 3432540016 | GUIDE |
| Repalced by: A 3432540216 | ||
| 165 | A 3432540216 | GUIDE |
| RELEASE BEARING | ||
| 167 | N 912004010102 | LOCK WASHER |
| GUIDE TO BELL HOUSING | ||
| 169 | N 000933010128 | SCREW |
| GUIDE TO BELL HOUSING | ||
| 171 | A 3432550053 | SPACER TUBE |
| BETWEEN STOP PLATE AND SUPPORTING BODY | ||
| 173 | A 3432550019 | FRICTION PIECE |
| CLUTCH BRAKE | ||
| 175 | N 912004010102 | LOCK WASHER |
| CLUTCH BRAKE | ||
| 177 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 177 | N 304017010050 | SCREW |
| CLUTCH BRAKE | ||
| 179 | A 3432540010 | RELEASE COLLAR |
| CLUTCH RELEASE | ||
| 181 | N 071428004102 | SCREW-IN FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 183 | A 3122541013 | SPRING LOCK |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 185 | A 3202500015 | RELEASE BEARING |
| 190 | A 3355730036 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 192 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 194 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 196 | N 071429014103 | BULKHEAD FITTING |
| RELEASE BEARING LUBRICATION | ||
| 198 | N 000137014201 | SPRING WASHER |
| RELEASE BEARING LUBRICATION | ||
| 200 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 200 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 200 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 202 | N 071412008200 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 204 | A 3435200043 | PROTECTIVE PLATE |
| REAR | ||
| 206 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 206 | N 000125010532 | WASHER |
| PROTECTIVE PLATE TO ENGINE SUPPORT | ||
| 208 | N 912004010102 | LOCK WASHER |
| PROTECTIVE PLATE TO ENGINE SUPPORT | ||
| 210 | N 000933010128 | SCREW |
| PROTECTIVE PLATE TO ENGINE SUPPORT | ||
