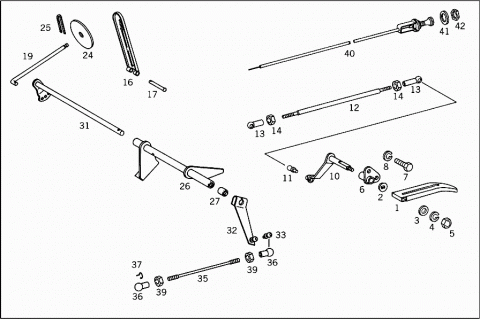

Transporto priemonė: LAB 2624/6X6; VIN numerio dalis: 343134
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3213010002 | PEDAL PLATE |
| Repalced by: A 3523000802 | ||
| 001 | A 3523000802 | PLATE |
| ACCELERATOR PEDAL | ||
| 002 | A 3223010054 | GUARD PLATE |
| ACCELERATOR PEDAL | ||
| 003 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 003 | N 000125008443 | WASHER |
| ACCELERATOR PEDAL | ||
| 004 | N 912004008102 | LOCK WASHER |
| ACCELERATOR PEDAL | ||
| 005 | N 304032008006 | NUT |
| ACCELERATOR PEDAL | ||
| 006 | A 3223000021 | BEARING TUBE |
| ACCELERATOR PEDAL | ||
| 007 | N 000933008145 | SCREW |
| BEARING TUBE TO FIRE WALL | ||
| 008 | N 912004008102 | LOCK WASHER |
| BEARING TUBE TO FIRE WALL | ||
| 010 | A 3373000125 | LEVER |
| ACCELERATOR PEDAL CONTROL | ||
| 011 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 011 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 011 | A 3129910120 | BALL PIVOT |
| 012 | A 3353010315 | ROD |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 013 | A 0009910522 | BALL SOCKET |
| Repalced by: A 0009912422 | ||
| 013 | A 0009912422 | BALL SOCKET |
| ROD TO LEVER | ||
| 013 | N 071805010204 | BALL SOCKET |
| ROD TO LEVER | ||
| N 071805010302 | SNAP RING | |
| ROD TO LEVER | ||
| 014 | N 000934006007 | NUT |
| ROD TO LEVER | ||
| N 071805010403 | SECURING CLIP | |
| ROD TO LEVER | ||
| 016 | A 3223000302 | PLATE |
| ACCELERATOR PEDAL | ||
| 017 | A 3123011009 | PIN |
| PEDAL TO CAB FLOOR | ||
| N 000094002059 | COTTER PIN | |
| PEDAL TO CAB FLOOR | ||
| 019 | A 3363010115 | ROD |
| Repalced by: A 3223010015 | ||
| 019 | A 3223010015 | ROD |
| ACCELERATOR PEDAL CONTROL | ||
| A 0009910522 | BALL SOCKET | |
| Repalced by: A 0009912422 | ||
| A 0009912422 | BALL SOCKET | |
| ROD TO LEVER | ||
| N 071805010302 | SNAP RING | |
| ROD TO LEVER | ||
| N 071805010403 | SECURING CLIP | |
| ROD TO LEVER | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| ROD TO LEVER | ||
| N 071803010301 | BALL PIVOT | |
| ROD TO LEVER | ||
| N 912004006102 | LOCK WASHER | |
| ROD TO LEVER | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| ROD TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| ROD TO LEVER | ||
| 024 | A 3295110076 | WASHER |
| ACCELERATOR PEDAL CONTROL | ||
| 025 | A 3033010007 | SAFETY PIN |
| ACCELERATOR PEDAL CONTROL | ||
| 026 | A 3223001836 | BEARING BRACKET |
| CONTROL | ||
| 026 | A 3383000036 | BEARING BRACKET |
| CONTROL | ||
| 027 | A 3123011150 | BUSHING |
| Repalced by: A 3529921001 | ||
| 027 | A 3529921001 | BUSHING |
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BEARING BRACKET TO FIRE WALL | ||
| N 912004008102 | LOCK WASHER | |
| BEARING BRACKET TO FIRE WALL | ||
| N 304032008006 | NUT | |
| BEARING BRACKET TO FIRE WALL | ||
| 031 | A 3373000020 | SHAFT |
| Repalced by: A 3383000020 | ||
| 031 | A 3383000020 | SHAFT |
| ROD TO LEVER | ||
| 032 | A 3373000525 | LEVER |
| Repalced by: A 3383000225 | ||
| 032 | A 3383000225 | LEVER |
| CONTROL | ||
| 033 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 033 | A 3129910120 | BALL PIVOT |
| CONTROL LEVER | ||
| N 000931006118 | SCREW | |
| LEVER TO SHAFT | ||
| N 000934006007 | NUT | |
| LEVER TO SHAFT | ||
| A 3159960025 | ROD | |
| Repalced by: N 900331006615 | ||
| 035 | N 900331006615 | PULL ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| 036 | N 071805010204 | BALL SOCKET |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| N 071805010302 | SNAP RING | |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| 037 | N 071805010403 | SECURING CLIP |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| 039 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 039 | N 304032006008 | NUT |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| A 3353000026 | MANUAL CONTROL | |
| Repalced by: A 3363000026 | ||
| 040 | A 3363000026 | MANUAL CONTROL |
| 041 | A 3359900240 | WASHER |
| MANUAL CONTROL TO BODY | ||
| 042 | A 3129901151 | NUT |
| MANUAL CONTROL TO BODY | ||
