Transporto priemonė: LAB 2624/6X6; VIN numerio dalis: 343134
Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|

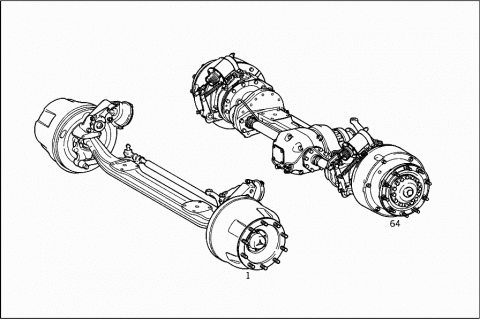

| 001 | A 3433304400 | FRONT AXLE |
| WITH BRAKE | ||
| 001 | A 3433304500 | FRONT AXLE |
| WITH BRAKE | ||

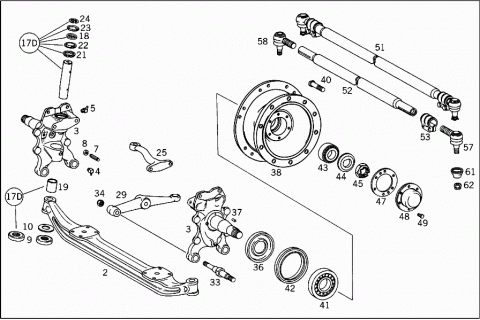

| 002 | A 3433310101 | FRONT AXLE BEAM |
| 003 | A 3353320101 | STEERING KNUCKLE |
| LESS BUSHING | ||
| 004 | N 071412008302 | GREASE NIPPLE |
| 005 | N 071412008200 | GREASE NIPPLE |
| 007 | A 3633320071 | SCREW |
| 008 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 008 | N 308673014001 | NUT |
| 009 | A 0009818318 | ROLLER BEARING |
| 010 | A 3173321952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.7 MM | ||
| 010 | A 3173321852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.8 MM | ||
| 010 | A 3173321752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.9 MM | ||
| 010 | A 3173321252 | SPACER WASHER |
| AS REQUIRED | ||
| 1 MM | ||
| 010 | A 3173321652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.1 MM | ||
| 010 | A 3173321552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.2 MM | ||
| 010 | A 3173321452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.3 MM | ||
| 010 | A 3173320652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 010 | A 3173320852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.1 MM | ||
| 010 | A 3173320952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.2 MM | ||
| 010 | A 3173321152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.4 MM | ||
| 017D | A 3433300219 | KING PIN |
| KINGPIN,STANDARD | ||
| 45.0 MM | ||
| 017D | A 3433300319 | KING PIN |
| KINGPIN,STANDARD SIZE I | ||
| 45.3 MM | ||
| 017D | A 3433300419 | KING PIN |
| Repalced by: A 3433320406 | ||
| 017D | A 3433320406 | KINGPIN |
| KINGPIN,REPAIR SIZE I | ||
| 45.6 MM | ||
| 018 | A 3179970045 | SEAL RING |
| TOP AND BOTTOM | ||
| 019 | A 3173320048 | BUSHING |
| BOTTOM | ||
| 019 | A 3433320048 | BUSHING |
| TOP | ||
| 021 | A 3173320051 | SPACER RING |
| 022 | A 3173320229 | SEALING CAP |
| INSIDE | ||
| 023 | A 3173320129 | SEALING CAP |
| OUTSIDE | ||
| 024 | N 000472055000 | LOCK RING |
| 025 | A 3433380301 | STEERING ARM |
| A 3433380302 | STEERING ARM | |
| A 3439900002 | SCREW | |
| STEERING ARM TO STEERING KNUCKLE | ||
| N 000935018001 | NUT | |
| STEERING ARM TO STEERING KNUCKLE | ||
| N 000094004065 | COTTER PIN | |
| STEERING ARM TO STEERING KNUCKLE | ||
| 029 | A 3433380105 | STEERING ARM |
| LEFT | ||
| A 3433380106 | STEERING ARM | |
| RIGHT | ||
| 033 | A 3354210018 | PIVOT PIN |
| Repalced by: A 3354210218 | ||
| 033 | A 3354210218 | PIVOT PIN |
| 034 | N 000935020000 | NUT |
| N 000094004066 | COTTER PIN | |
| 036 | A 3173340015 | RING |
| 037 | N 001481005022 | CLAMPING SLEEVE |
| 038 | A 3353340101 | WHEEL HUB |
| 040 | A 3384015071 | WHEEL MOUNTING BOLT |
| 041 | A 0019817705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 041 | A 0019817505 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 042 | A 3179970047 | SEAL RING |
| Repalced by: A 3359970047 | ||
| 042 | A 3359970047 | SEAL RING |
| 043 | A 0019812905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 043 | A 0019817605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 043 | A 0019817405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 043 | A 0069819905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 044 | A 3173340062 | THRUST WASHER |
| 045 | A 0009901555 | NUT |
| N 000094008313 | COTTER PIN | |
| 047 | A 3173340059 | SEAL RING |
| 048 | A 3173340025 | HUB CAP |
| 049 | N 304017010027 | SCREW |
| 051 | A 3463302903 | TIE ROD |
| Repalced by: A 3463304303 | ||
| 051 | A 3463304303 | TIE ROD |
| LEMFOERDER | ||
| 051 | A 3463304403 | TIE ROD |
| EHRENREICH | ||
| 052 | A 0003380216 | TIE ROD TUBE |
| 053 | A 0003382545 | CLAMP |
| N 000960012246 | SCREW | |
| Repalced by: N 000960012353 | ||
| N 000960012353 | SCREW | |
| N 910113012002 | NUT | |
| 057 | A 3023300035 | JOINT |
| Repalced by: A 3023300235 | ||
| 057 | A 3023300235 | JOINT |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 057 | A 3023300335 | JOINT |
| L.H. THREAD | ||
| EHRENREICH | ||
| 058 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 058 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 058 | A 0013300235 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 061 | A 0003301085 | BOOT |
| 062 | N 000937020001 | NUT |
| N 000094004066 | COTTER PIN | |
| 064 | A 3463305400 | FRONT AXLE |
| WITH BRAKE | ||
| 064 | A 3463305500 | FRONT AXLE |
| WITH BRAKE | ||

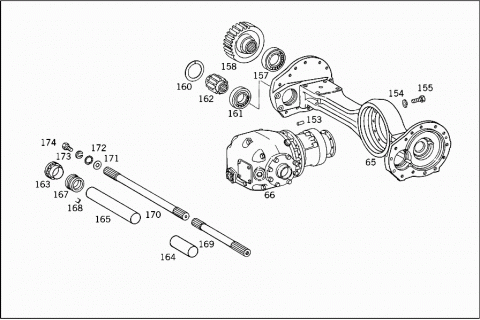

| 065 | A 3433310001 | FRONT AXLE BEAM |
| 066 | A 3433300023 | DIFFERENTIAL GEAR |
| RATIO: | ||
| 9:26 | ||
| 068 | A 3043500541 | HOUSING |
| 070 | N 912004016101 | LOCK WASHER |
| 071 | N 000960016068 | SCREW |
| 072 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 072 | N 000007010102 | CYLINDRICAL PIN |
| 073 | A 3153530006 | COVER |
| 074 | A 3153530080 | GASKET |
| 075 | N 912004010102 | LOCK WASHER |
| 076 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 076 | N 304017010028 | SCREW |
| 077 | A 3039970006 | PLUG |
| 078 | A 3043500480 | LINE |
| 080 | A 3433300063 | OIL COLLECTOR |
| 081 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 081 | N 304017008008 | SCREW |

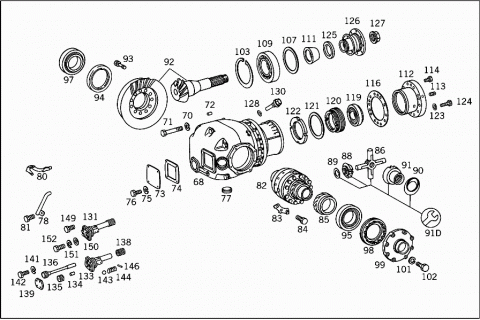

| 082 | A 3433300423 | DIFFERENTIAL GEAR |
| 083 | A 3353530073 | LOCK |
| 084 | N 000960012296 | SCREW |
| 085 | A 3153530068 | GEAR |
| 086 | A 3043530020 | DIFFERENTIAL SPIDER |
| 086 | A 3433530020 | DIFFERENTIAL SPIDER |
| 088 | A 3263530414 | DIFFERENTIAL PINION |
| 089 | A 3043530162 | THRUST WASHER |
| 090 | A 3043530362 | THRUST WASHER |
| 091 | A 3263530315 | SIDE GEAR |
| 091D | A 3435860035 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 092 | A 3433300039 | RING GEAR AND PINION |
| RATIO: | ||
| 9:26 | ||
| 093 | A 3269900003 | SCREW |
| 094 | A 3263530124 | THRUST RING |
| 095 | A 0009810205 | TAPERED ROLLER BEARING |
| 095 | A 0019818505 | TAPERED ROLLER BEARING |
| 097 | A 0009817205 | TAPERED ROLLER BEARING |
| 097 | A 0009819405 | TAPERED ROLLER BEARING |
| 097 | A 0069810605 | TAPERED ROLLER BEARING |
| 098 | A 3663530225 | SCREW COLLAR |
| 099 | A 3043570121 | END PIECE |
| 101 | N 912004010102 | LOCK WASHER |
| 102 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 102 | N 304017010002 | SCREW |
| 103 | N 000472160000 | LOCK RING |
| 107 | A 3043535252 | SPACER WASHER |
| 1.25 MM | ||
| 107 | A 3463355051 | SPACER RING |
| 107 | A 3153350152 | SPACER WASHER |
| 1.00 MM | ||
| 109 | A 0009813401 | CYLINDR. ROLLER BEARING |
| 111 | A 3043530644 | SPACER BUSHING |
| 111 | A 3463355044 | BUSHING |
| 112 | A 3043500150 | BUSHING |
| 113 | N 000906012002 | SCREW PLUG |
| 114 | N 900083011000 | PLUG |
| 114 | A 3469905001 | SCREW |
| 116 | A 3043533652 | SPACER WASHER |
| 0.1 MM | ||
| 116 | A 3043533852 | SPACER WASHER |
| 0.5 MM | ||
| 119 | A 0009810005 | TAPERED ROLLER BEARING |
| 120 | A 3043530348 | RING |
| 121 | A 3043530373 | LOCK |
| 122 | A 3043530126 | NUT |
| 123 | N 912004012100 | LOCK WASHER |
| 124 | N 000960012050 | SCREW |
| 125 | A 3049970847 | SEAL RING |
| 126 | A 3043500645 | FLANGE |
| 127 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 127 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 127 | A 3853510172 | NUT |
| 128 | N 007603024106 | SEAL RING |
| 130 | A 3043500190 | VALVE |
| 131 | A 3433300072 | OIL PUMP |
| 133 | A 3043500578 | PUMP HOUSING |
| Repalced by: A 3433500078 | ||
| 133 | A 3433500078 | PUMP HOUSING |
| 134 | A 3049910101 | PIN |
| 135 | A 3043530269 | GEAR |
| DRIVEN | ||
| 136 | A 3263530069 | GEAR |
| Repalced by: A 3433530069 | ||
| 136 | A 3433530069 | GEAR |
| DRIVING | ||
| N 006888005012 | WOODRUFF KEY | |
| 138 | A 3153530168 | GEAR |
| Repalced by: A 3433530168 | ||
| 138 | A 3433530168 | GEAR |
| DRIVEN | ||
| N 000471014000 | LOCK RING | |
| 139 | A 3043530167 | COVER |
| 141 | N 912004006102 | LOCK WASHER |
| 142 | N 000933006102 | SCREW |
| 143 | N 005401307000 | BALL |
| 144 | A 3049931001 | SPRING |
| A 3049970430 | SCREW PLUG | |
| 146 | N 007346002002 | CLAMPING SLEEVE |
| N 900083009000 | PLUG | |
| 149 | A 3469905001 | SCREW |
| 150 | N 000125010500 | WASHER |
| 151 | N 912004010102 | LOCK WASHER |
| 152 | N 000933010105 | SCREW |
| 153 | A 3039910060 | DOWEL PIN |
| 154 | N 912004012100 | LOCK WASHER |
| 155 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 155 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 155 | N 308676012011 | SCREW |
| 157 | N 005412400005 | CYLINDR. ROLLER BEARING |
| 158 | A 3043542412 | OUTSIDE GEAR |
| NUMBER OF TEETH: | ||
| 28 | ||
| 160 | A 3043360092 | INTERMEDIATE RING |
| 161 | N 005412410212 | CYLINDR. ROLLER BEARING |
| 162 | A 3043543310 | SPUR GEAR |
| NUMBER OF TEETH: | ||
| 11 | ||
| 163 | A 3043570521 | END PIECE |
| 164 | A 3043370220 | PROTECTIVE TUBE |
| LEFT | ||
| 165 | A 3043370320 | PROTECTIVE TUBE |
| RIGHT | ||
| 167 | A 3043570022 | BOOT |
| STANDARD | ||
| 167 | A 3353570022 | BOOT |
| REPAIR SIZE | ||
| 168 | A 0029881078 | CLIP |
| TO 335 357 00 22 | ||
| 169 | A 3043370301 | DRIVE SHAFT |
| LEFT | ||
| 170 | A 3043370202 | DRIVE SHAFT |
| RIGHT | ||
| 171 | A 3049910025 | WASHER |
| 172 | N 000472047000 | LOCK RING |
| 173 | N 912004016101 | LOCK WASHER |
| 174 | N 000961016002 | SCREW |
| N 900263005000 | STRAP | |
| ORDER BY THE METER | ||
| 600 MM | ||
| N 900262005100 | LOOM TIE | |
| X XXXXXXXXXXXX | PART NAME MISSING | |

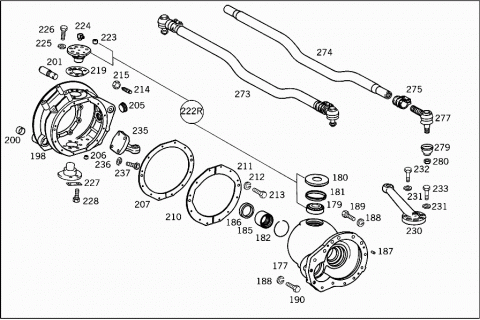

| FRONT AXLE JOINT, PROPELLER SHAFT, AND TIE ROD | ||
| 177 | A 3463315113 | JOINT HEAD |
| RIGHT | ||
| A 3463315013 | JOINT HEAD | |
| LEFT | ||
| 179 | A 0059816305 | TAPERED ROLLER BEARING |
| 180 | A 3363300065 | SEAL HOLDER |
| 181 | A 3049870010 | STRIP |
| 182 | N 009045085001 | SNAP RING |
| 185 | A 0029816510 | NEEDLE BEARING |
| 185 | A 0049817210 | NEEDLE BEARING |
| 186 | A 3049970947 | SEAL RING |
| 186 | A 0099971646 | SEAL RING |
| 187 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 187 | N 000007010102 | CYLINDRICAL PIN |
| 188 | N 912004016101 | LOCK WASHER |
| 189 | N 000960016029 | SCREW |
| 190 | N 000960016046 | SCREW |
| 192 | A 3043370103 | PROPELLER SHAFT |
| 192 | A 3043370403 | PROPELLER SHAFT |
| 193 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 193 | N 071412008102 | GREASE NIPPLE |
| A 3043300815 | FLANGE | |
| LEFT FRONT AXLE JOINT | ||
| A 3463305014 | HOUSING | |
| Repalced by: A 3463305214 | ||
| A 3463305214 | HOUSING | |
| LEFT FRONT AXLE JOINT | ||
| A 3044210350 | BUSHING | |
| A 3439920003 | BUSHING | |
| A 3464215118 | PIVOT PIN | |
| A 3043300915 | FLANGE | |
| RIGHT FRONT AXLE JOINT | ||
| A 3463305114 | HOUSING | |
| Repalced by: A 3463305314 | ||
| 198 | A 3463305314 | HOUSING |
| RIGHT FRONT AXLE JOINT | ||
| 200 | A 3044210350 | BUSHING |
| 200 | A 3439920003 | BUSHING |
| 201 | A 3464215118 | PIVOT PIN |
| 205 | A 3039970006 | PLUG |
| 206 | N 000906016002 | SCREW PLUG |
| A 0009870736 | RUBBER SECTION | |
| 207 | A 3463375080 | GASKET |
| A 3043300121 | COVER | |
| Repalced by: A 3463375430 | ||
| A 3463375430 | COVER | |
| LEFT | ||
| A 3043300121 | COVER | |
| Repalced by: A 3463375530 | ||
| A 3463375530 | COVER | |
| LEFT | ||
| 210 | A 3043300021 | COVER |
| Repalced by: A 3463375230 | ||
| 210 | A 3463375230 | COVER |
| RIGHT | ||
| 211 | A 3043300121 | COVER |
| Repalced by: A 3463375330 | ||
| 211 | A 3463375330 | COVER |
| RIGHT | ||
| 212 | N 912004008102 | LOCK WASHER |
| 213 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 213 | N 304017008021 | SCREW |
| 214 | A 3223510071 | SCREW |
| Repalced by: A 3633320071 | ||
| 214 | A 3633320071 | SCREW |
| 215 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 215 | N 308673014001 | NUT |
| 216 | A 3043320116 | SUPPORTING SLEEVE |
| 216 | A 3463325016 | SUPPORTING SLEEVE |
| A 3043340084 | OIL BAFFLE | |
| 217 | N 912004016101 | LOCK WASHER |
| 218 | N 000960016112 | SCREW |
| Repalced by: N 308676016015 | ||
| 218 | N 308676016015 | SCREW |
| 218 | N 000960016013 | SCREW |
| 219 | A 3043310152 | SPACER WASHER |
| 0.10 MM | ||
| 219 | A 3043310252 | SPACER WASHER |
| 0.25 MM | ||
| 219 | A 3043310352 | SPACER WASHER |
| 0.50 MM | ||
| 219 | A 3043310452 | SPACER WASHER |
| 1.00 MM | ||
| A 3433300119 | KING PIN | |
| Repalced by: A 3363300065 | ||
| A 3363300065 | SEAL HOLDER | |
| KINGPIN | ||
| 222R | A 3433300019 | KING PIN |
| KINGPIN | ||
| 223 | N 000906012002 | SCREW PLUG |
| 224 | N 071412010300 | GREASE NIPPLE |
| 225 | N 912004016101 | LOCK WASHER |
| 226 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 226 | N 308676016020 | SCREW |
| 226 | N 914112014001 | SCREW |
| 227 | A 3049940230 | LOCK |
| 228 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 228 | N 308676016020 | SCREW |
| 228 | N 914112014001 | SCREW |
| 230 | A 3363380001 | STEERING ARM |
| A 3433380401 | STEERING ARM | |
| Repalced by: A 3433380501 | ||
| 230 | A 3433380501 | STEERING ARM |
| 230 | A 3363380102 | STEERING ARM |
| 230 | A 3433380402 | STEERING ARM |
| 231 | N 912004016101 | LOCK WASHER |
| N 007346018000 | CLAMPING SLEEVE | |
| 232 | N 000960016031 | SCREW |
| LENGTH OF THREAD: | ||
| 25 MM | ||
| 232 | N 914112014308 | SCREW |
| Repalced by: A 6529901204 | ||
| 232 | A 6529901204 | SCREW |
| Repalced by: N 914112014016 | ||
| 232 | N 914112014016 | SCREW |
| M 14X55 | ||
| 233 | N 000960016057 | SCREW |
| 233 | N 914112014301 | SCREW |
| A 3353380205 | STEERING ARM | |
| Repalced by: A 3433380205 | ||
| A 3433380205 | STEERING ARM | |
| LEFT | ||
| 235 | A 3353380206 | STEERING ARM |
| Repalced by: A 3433380206 | ||
| 235 | A 3433380206 | STEERING ARM |
| RIGHT | ||
| 236 | N 912004016101 | LOCK WASHER |
| 237 | N 308676016022 | SCREW |
| 238 | N 007603014405 | SEAL RING |
| 239 | A 3049970072 | FITTING |
| 240 | A 3433300182 | LINE |
| 242 | N 003862010000 | DOUBLE TAPER RING |
| 243 | N 915017010100 | UNION NUT |
| N 900117010302 | LINE COUPLING | |
| N 900117010301 | LINE COUPLING | |
| 244 | N 007603014405 | SEAL RING |
| 245 | N 900117014001 | LOCK |
| 246 | N 900117014201 | HOLLOW SCREW |
| 248 | A 3043340515 | RING |
| 248 | A 3463345015 | RING |
| N 001481005022 | CLAMPING SLEEVE | |
| 250 | A 3043341401 | WHEEL HUB |
| 250 | A 3463345001 | WHEEL HUB |
| 251 | A 3043340082 | OIL COLLECTOR |
| 251 | A 3463345082 | OIL COLLECTOR |
| 253 | N 000720030221 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 254 | A 3043340051 | SPACER RING |
| 256 | A 3049970447 | SEAL RING |
| Repalced by: A 0099971846 | ||
| 256 | A 0099971846 | SEAL RING |
| 257 | N 000720030220 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 259 | A 3044010171 | WHEEL MOUNTING BOLT |
| 259 | A 3384015071 | WHEEL MOUNTING BOLT |
| N 000934020008 | NUT | |
| Repalced by: N 308673020002 | ||
| N 308673020002 | NUT | |
| Repalced by: N 308674020000 | ||
| N 308674020000 | NUT | |
| A 3043340162 | THRUST WASHER | |
| A 3043340026 | NUT | |
| SUPPORTING SLEEVE | ||
| 261 | A 3439900460 | NUT |
| Repalced by: A 3469905160 | ||
| A 3469905160 | NUT | |
| SUPPORTING SLEEVE | ||
| 263 | A 3043340073 | LOCK |
| 264 | A 3043340105 | FOLLOWER |
| 264 | A 3463345005 | FOLLOWER |
| 266 | N 900055052311 | LOCK RING |
| 266 | N 000472052000 | LOCK RING |
| 267 | N 912004014100 | LOCK WASHER |
| 268 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 268 | N 308676014008 | SCREW |
| A 3043300055 | THRUST WASHER | |
| A 3123371073 | LOCK | |
| THRUST WASHER TO PROPELLER SHAFT | ||
| A 3123371271 | SCREW | |
| THRUST WASHER TO PROPELLER SHAFT | ||
| 271 | A 0004313060 | SEAL RING |
| 272 | A 3463345071 | SCREW |
| 273 | A 3463305103 | TIE ROD |
| Repalced by: A 3463304503 | ||
| 273 | A 3463304503 | TIE ROD |
| LEMFOERDER | ||
| 274 | A 3433380016 | TIE ROD TUBE |
| Repalced by: A 3433300003 | ||
| 275 | A 0003380645 | CLAMP |
| 275 | A 0003382345 | CLAMP |
| Repalced by: A 0003382545 | ||
| 275 | A 0003382545 | CLAMP |
| N 000960012349 | SCREW | |
| N 910113012002 | NUT | |
| N 000094003029 | COTTER PIN | |
| 277 | A 0004600148 | DRAG LINK END |
| Repalced by: A 0004602648 | ||
| 277 | A 0004602648 | DRAG LINK END |
| 277 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 277 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 277 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 277 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 279 | A 0004621896 | BOOT |
| 279 | A 0004621896 | BOOT |
| 279 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 279 | A 0004621796 | BOOT |
| 280 | N 000937020001 | NUT |
| 280 | N 000937024002 | NUT |
| N 000094004065 | COTTER PIN | |
| N 000094005016 | COTTER PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
