Transporto priemonė: LAB 2624/6X6; VIN numerio dalis: 343134
Grupė: 41 PROPELLER SHAFT

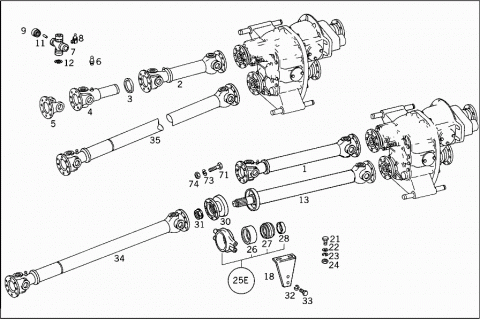

41238

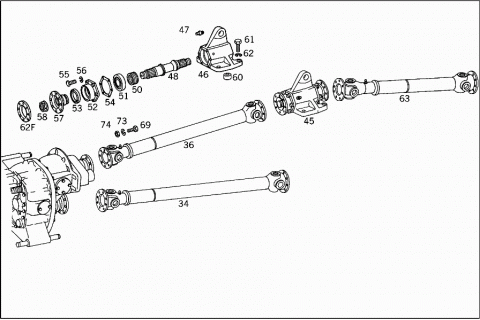

41239
# Kodas Pavadinimas
001 A 3434101801 PROPELLER SHAFT
Repalced by: A 3854107307
001 A 3854107307 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
1715 MM
A 3434101801 PROPELLER SHAFT
Repalced by: A 3854104807
001 A 3854104807 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
1670 MM
A 3434101401 PROPELLER SHAFT
Repalced by: A 3854106207
A 3854106207 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
815 MM
002 A 3394100101 PROPELLER SHAFT
Repalced by: A 3074102602
002 A 3434102401 PROPELLER SHAFT
Repalced by: A 3074102602
002 A 3074102602 PROPELLER SHAFT
Repalced by: A 6174100802
002 A 6174100802 PROPELLER SHAFT
Repalced by: A 3854106607
002 A 3854106607 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
515 MM
003 A 3354110280 GASKET
004 A 3354100728 UNIVERSAL JOINT
Repalced by: A 3434101328
004 A 3434101328 UNIVERSAL JOINT
005 A 3364110011 DRIVE FLANGE
005 A 3854111711 DRIVE FLANGE
005 A 3604110611 DRIVE FLANGE
Repalced by: A 3854111711
006 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
006 N 071412008102 GREASE NIPPLE
007 A 3044100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
007 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
007 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
007 A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
008 N 071412008302 GREASE NIPPLE
009 A 3044100242 BEARING BUSHING
009 A 3854100742 BEARING BUSHING
009 A 3854101042 BEARING BUSHING
011 A 0009812087 NEEDLE
012 A 3354111173 LOCK
AS REQUIRED
1.70 MM
012 A 3354111573 LOCK
Repalced by: A 3354111473
012 A 3354111473 LOCK
AS REQUIRED
1.775 MM
012 A 0029941241 LOCK
Repalced by: A 0069940641
012 A 0069940641 LOCK
AS REQUIRED
1.65 MM
012 A 0029941341 LOCK
Repalced by: A 0069940841
012 A 0069940841 LOCK
AS REQUIRED
1.70 MM
012 A 0029941441 LOCK
Repalced by: N 000472048000
012 N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
012 A 0029941741 LOCK
Repalced by: A 0069941241
012 A 0069941241 LOCK
AS REQUIRED
1.80 MM
012 A 0029941841 LOCK
Repalced by: A 0069941441
012 A 0069941441 LOCK
AS REQUIRED
1.85 MM
012 A 0039943641 LOCK
AS REQUIRED
1.90 MM
N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
N 071412008102 GREASE NIPPLE
013 A 3594105001 PROPELLER SHAFT
FROM TRANSFER CASE TO INTERMEDIATE BEARING
1309 MM
A 3364110011 DRIVE FLANGE
N 071412010100 GREASE NIPPLE
N 071412008302 GREASE NIPPLE
A 3044100031 UNIVERSAL JOINT CROSS
A 3044100242 BEARING BUSHING
A 3354111573 LOCK
Repalced by: A 3354111473
A 3354111473 LOCK
018 A 3434130242 BRACKET
LEFT
A 3434130342 BRACKET
RIGHT
021 N 000961012151 SCREW
BRACKET TO CROSS MEMBER
022 A 3299900040 WASHER
Repalced by: A 1232420366
022 A 1232420366 WASHER
BRACKET TO CROSS MEMBER
023 N 912004012100 LOCK WASHER
BRACKET TO CROSS MEMBER
024 N 000934012022 NUT
BRACKET TO CROSS MEMBER
A 3354130001 HOUSING
Repalced by: A 3465860041
A 3465860041 REPAIR KIT
Repalced by: A 3464100010
025E A 3464100010 REPAIR KIT
INTERMEDIATE SHAFT BEARING
026 A 3384130012 RUBBER MOUNTING
027 A 3544100051 BALL BEARING
Repalced by: A 3634100051
027 A 3634100051 BALL BEARING
028 A 3374130131 BEARING RING
030 A 3364100030 CENTERING FLANGE
031 A 3273530172 NUT
Repalced by: A 3853510072
031 A 3853510072 NUT
Repalced by: A 3853510172
031 A 3853510172 NUT
FOLLOWER FLANGE TO PROPELLER SHAFT
032 N 912004012100 LOCK WASHER
BRACKET TO HOUSING
033 N 000961012052 SCREW
Repalced by: N 308676012012
033 N 308676012012 SCREW
BRACKET TO HOUSING
A 3299900040 WASHER
Repalced by: A 1232420366
A 1232420366 WASHER
BRACKET TO HOUSING
034 A 3434100501 PROPELLER SHAFT
Repalced by: A 3854104707
034 A 3854104707 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
1300 MM
034 A 3854104707 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1300 MM
035 A 3434101801 PROPELLER SHAFT
Repalced by: A 3854107307
035 A 3854107307 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1715 MM
036 A 3434100601 PROPELLER SHAFT
Repalced by: A 3854104407
036 A 3854104407 PROPELLER SHAFT
FROM TRANSFER CASE TO INTERMEDIATE BEARING
1130 MM
036 A 3854104407 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
1130 MM
A 3434102701 PROPELLER SHAFT
Repalced by: A 3854104407
036 A 3434101601 PROPELLER SHAFT
Repalced by: A 3854106107
036 A 3854106107 PROPELLER SHAFT
FROM TRANSFER CASE TO INTERMEDIATE BEARING
995 MM
036 A 3434102601 PROPELLER SHAFT
Repalced by: A 3854106107
A 3364102201 PROPELLER SHAFT
Repalced by: A 3854104507
A 3854104507 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
I,L=1580
036 A 3434101701 PROPELLER SHAFT
Repalced by: A 3854104907
036 A 3854104907 PROPELLER SHAFT
FROM TRANSFER CASE TO INTERMEDIATE BEARING,REAR AXLE I
1450 MM
036 A 3854104907 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1450 MM
A 3354110280 GASKET
A 3354100728 UNIVERSAL JOINT
Repalced by: A 3434101328
A 3434101328 UNIVERSAL JOINT
A 3364110011 DRIVE FLANGE
A 3854111711 DRIVE FLANGE
N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
N 071412008102 GREASE NIPPLE
N 071412008302 GREASE NIPPLE
A 3044100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
N 071412008302 GREASE NIPPLE
A 3044100242 BEARING BUSHING
A 3854100742 BEARING BUSHING
A 3854101042 BEARING BUSHING
A 0009812087 NEEDLE
A 3354111173 LOCK
AS REQUIRED
1.700 MM
A 3354111573 LOCK
Repalced by: A 3354111473
A 3354111473 LOCK
AS REQUIRED
1.775 MM
A 0029941241 LOCK
Repalced by: A 0069940641
A 0069940641 LOCK
AS REQUIRED
1.65 MM
A 0029941341 LOCK
Repalced by: A 0069940841
A 0069940841 LOCK
AS REQUIRED
1.70 MM
A 0029941441 LOCK
Repalced by: N 000472048000
N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
A 0029941741 LOCK
Repalced by: A 0069941241
A 0069941241 LOCK
AS REQUIRED
1.80 MM
A 0029941841 LOCK
Repalced by: A 0069941441
A 0069941441 LOCK
AS REQUIRED
1.85 MM
A 0039943641 LOCK
AS REQUIRED
1.90 MM
045 A 3433500741 HOUSING
046 A 3433520841 BEARING BODY
047 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
047 N 071412008102 GREASE NIPPLE
048 A 3433530335 SHAFT
050 A 3433530153 SPACER TUBE
051 N 000625046212 GROOVED BALL BEARING
052 A 3433520016 COVER
053 A 0009975646 SEAL RING
Repalced by: A 0179973047
053 A 0179973047 SEAL RING
054 A 3433530079 GASKET
055 N 000933010145 SCREW
056 N 912004010102 LOCK WASHER
057 A 3153530045 FLANGE
058 A 3273530172 NUT
Repalced by: A 3853510072
058 A 3853510072 NUT
Repalced by: A 3853510172
058 A 3853510172 NUT
060 A 3433520050 BUSHING
061 N 000961022012 SCREW
062 N 000127022201 LOCK WASHER
Repalced by: N 912004022101
062 N 912004022101 LOCK WASHER
062F A 3434110044 DRIVE FLANGE
063 A 3434101501 PROPELLER SHAFT
Repalced by: A 3854101902
063 A 3854101902 PROPELLER SHAFT
Repalced by: A 3854109807
063 A 3854109807 PROPELLER SHAFT
FROM REAR AXLE I INTERMEDIATE SHAFT BEARING TO REAR AXLE II
920 MM
A 3354110280 GASKET
A 3434100528 UNIVERSAL JOINT
A 3434110011 DRIVE FLANGE
A 3854110111 DRIVE FLANGE
Repalced by: A 3854111811
A 3854111811 DRIVE FLANGE
N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
N 071412008102 GREASE NIPPLE
A 3044100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
N 071412008302 GREASE NIPPLE
A 3044100242 BEARING BUSHING
A 0009812087 NEEDLE
A 3354111173 LOCK
AS REQUIRED
1.700 MM
A 3354111573 LOCK
Repalced by: A 3354111473
A 3354111473 LOCK
AS REQUIRED
1.775 MM
A 0029941241 LOCK
Repalced by: A 0069940641
A 0069940641 LOCK
AS REQUIRED
1.65 MM
A 0029941341 LOCK
Repalced by: A 0069940841
A 0069940841 LOCK
AS REQUIRED
1.70 MM
A 0029941441 LOCK
Repalced by: N 000472048000
N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
A 0029941741 LOCK
Repalced by: A 0069941241
A 0069941241 LOCK
AS REQUIRED
1.80 MM
A 0029941841 LOCK
Repalced by: A 0069941441
A 0069941441 LOCK
AS REQUIRED
1.85 MM
A 0039943641 LOCK
AS REQUIRED
1.90 MM
069 A 0029908201 SCREW
Repalced by: A 0039909601
069 A 0039909601 SCREW
TO MOUNT THE PROPELLER SHAFTS
M12X1,25X30
069 A 0039909601 SCREW
TO MOUNT THE PROPELLER SHAFTS
M12X1,25X30
A 3609901901 SCREW
Repalced by: A 3609903001
A 3609903001 SCREW
TO MOUNT THE PROPELLER SHAFTS
M 12 X 1.25 X 36
071 A 0029908301 SCREW
Repalced by: A 0039909701
071 A 0039909701 SCREW
TO MOUNT THE PROPELLER SHAFTS
M 12 X 1. 25 X 32
A 0029908701 SCREW
Repalced by: A 0039909801
A 0039909801 SCREW
Repalced by: A 3609902901
A 3609902901 SCREW
TO MOUNT THE PROPELLER SHAFTS
M 12 X 1.25 X 45
N 000960012403 SCREW
TO MOUNT THE PROPELLER SHAFTS
M 12 X 1,25 X 50
073 N 912004012100 LOCK WASHER
TO MOUNT THE PROPELLER SHAFTS
074 N 000934012034 NUT
TO MOUNT THE PROPELLER SHAFTS
M 12 X 1.25
