Transporto priemonė: LAB 2624/6X6; VIN numerio dalis: 343134

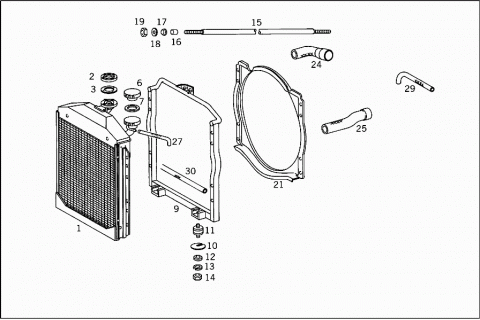

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3465005003 | RADIATOR | |
| Repalced by: A 3465005803 | ||
| 001 | A 3465005803 | RADIATOR |
| BEHR | ||
| A 3465005203 | RADIATOR | |
| Repalced by: A 3465005403 | ||
| A 3465005403 | RADIATOR | |
| Repalced by: A 3465005903 | ||
| 001 | A 3465005903 | RADIATOR |
| HAUGG | ||
| A 0005000840 | VALVE | |
| TO 346 500 50 03 | ||
| 002 | A 0005014315 | RADIATOR CAP |
| TO 346 500 50 03 | ||
| 003 | A 0005010080 | GASKET |
| TO 346 500 50 03 | ||
| A 0005013115 | RADIATOR CAP | |
| TO 346 500 58 03 | ||
| A 0005014315 | RADIATOR CAP | |
| TO 346 500 58 03 | ||
| A 0139978682 | HOSE | |
| TO 346 500 58 03 | ||
| 006 | A 0005012315 | RADIATOR CAP |
| TO 346 500 54 03 | ||
| 006 | A 0005014915 | RADIATOR CAP |
| TO 346 500 54 03 | ||
| 007 | A 0005010580 | GASKET |
| TO 346 500 54 03 | ||
| A 0005010780 | GASKET | |
| TO 346 500 54 03 | ||
| 009 | A 3355001527 | SUPPORT |
| Repalced by: A 3355001127 | ||
| 009 | A 3355001127 | SUPPORT |
| RADIATOR | ||
| 010 | A 3265040284 | SHIM |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 011 | A 3475040012 | RUBBER MOUNTING |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 012 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 012 | N 009021010209 | WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 013 | N 912004010102 | LOCK WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 014 | N 000934010014 | NUT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 015 | A 3385040130 | RADIATOR STRUT |
| Repalced by: A 3385000045 | ||
| 015 | A 3385000045 | RADIATOR STRUT |
| RADIATOR | ||
| 016 | A 3199910540 | SPACER TUBE |
| RADIATOR MOUNTING | ||
| 017 | A 3275045082 | RUBBER RING |
| RADIATOR MOUNTING | ||
| 018 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 018 | N 009021010209 | WASHER |
| RADIATOR MOUNTING | ||
| 019 | N 000934010014 | NUT |
| RADIATOR MOUNTING | ||
| 021 | A 3355050730 | AIR BAFFLE |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| N 007349008003 | WASHER | |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| COOLING WATER LINE | ||
| 024 | A 3465015082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 025 | A 3465015182 | HOSE |
| TO OIL COOLER | ||
| N 916017050000 | CLAMP | |
| Repalced by: N 000000000672 | ||
| N 000000000672 | CLAMP | |
| HOSE | ||
| 027 | A 3465015282 | HOSE |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| A 3465015982 | HOSE | |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| 029 | A 3465015382 | HOSE |
| FOR UPPER HEATING LINE | ||
| 030 | N 900271015037 | HOSE |
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| FAN SHROUD | ||
