Transporto priemonė: LAB 2624/6X6; VIN numerio dalis: 343134
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

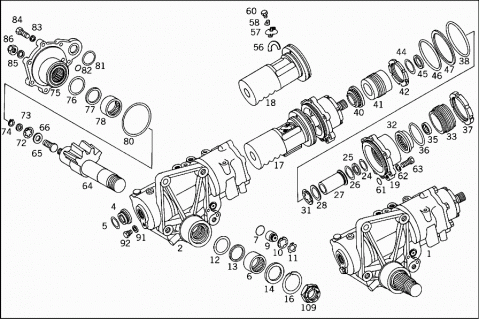

| 001 | A 3664606001 | STEERING BOX ASSEMBLY |
| MERCEDES-BENZ POWER STEERING | ||
| A 3664606602 | STEERING BOX | |
| Repalced by: A 3664607802 | ||
| 002 | A 3664607802 | STEERING BOX |
| WITH SLEEVE VALVE | ||
| 004 | A 3604610005 | COVER |
| EXCHANGEABLE TOGETHER ONLY WITH: | ||
| 005 997 93 45 | ||
| 005 | A 0059979345 | SEAL RING |
| EXCHANGEABLE TOGETHER ONLY WITH: | ||
| 360 461 00 05 | ||
| 006 | A 0039812810 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 007 | A 0059979445 | SEAL RING |
| VALVE HOUSING SEALING | ||
| 28X3 MM | ||
| 009 | A 3604660105 | COVER |
| VALVE HOUSING SEALING | ||
| 009 | A 3604660305 | COVER |
| VALVE HOUSING SEALING | ||
| 009 | A 3604660405 | COVER |
| VALVE HOUSING SEALING | ||
| 010 | A 0019943741 | LOCK |
| VALVE HOUSING SEALING | ||
| 011 | A 0009945541 | LOCK |
| VALVE HOUSING SEALING | ||
| 012 | A 0079971045 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 013 | A 3664665160 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 014 | A 0059975546 | SEAL RING |
| Repalced by: A 0119978046 | ||
| 014 | A 0119978046 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 016 | N 000472070000 | LOCK RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 017 | A 3664605985 | PISTON |
| WITH WORM AND STEERING NUT | ||
| 018 | A 3664660083 | PISTON |
| 019 | A 3664606914 | STEERING BOX COVER |
| WITH PLUG AND CHECK VALVE | ||
| 023 | A 3605861646 | REPAIR KIT |
| CHECK VALVE IN BEARING COVER | ||
| A 3604660071 | SCREW | |
| A 3609930801 | SPRING | |
| A 3604660075 | WASHER | |
| 024 | A 0079973745 | SEAL RING |
| STEERING NUT BEARING | ||
| 33X3 MM | ||
| 025 | A 3604660460 | SEAL RING |
| STEERING NUT BEARING | ||
| 026 | A 0009979745 | SEAL RING |
| STEERING NUT BEARING | ||
| 9X2.5 MM | ||
| 027 | A 3664615050 | BUSHING |
| STEERING NUT BEARING | ||
| 028 | N 000988037006 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.0 MM | ||
| 028 | N 000988037007 | FITTED WASHER |
| AS REQUIRED | ||
| 37 X 47 X 1.1 MM | ||
| 028 | N 000988037008 | FITTED WASHER |
| AS REQUIRED | ||
| 37 X 47 X 1.2 MM | ||
| 028 | N 000988037009 | FITTED WASHER |
| AS REQUIRED | ||
| 37 X 47 X 1.3 MM | ||
| 031 | A 0019943441 | LOCK |
| STEERING NUT BEARING | ||
| 032 | A 3609810027 | ANGULAR CONTACT BEARING |
| STEERING NUT BEARING | ||
| 033 | A 3604620034 | SCREW COLLAR |
| STEERING NUT BEARING | ||
| 035 | A 0029974440 | SEAL RING |
| Repalced by: A 0119977246 | ||
| 035 | A 0059974346 | SEAL RING |
| Repalced by: A 0119977246 | ||
| 035 | A 0119977246 | SEAL RING |
| Repalced by: A 0149976947 | ||
| 035 | A 0149976947 | SEAL RING |
| STEERING NUT BEARING | ||
| 036 | A 0029974745 | SEAL RING |
| STEERING NUT BEARING | ||
| 75X3 MM | ||
| 037 | N 070852085000 | NUT |
| Repalced by: A 6173560026 | ||
| 037 | A 6173560026 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 038 | A 0089971345 | SEAL RING |
| COVER TO STEERING BOX | ||
| 108X4 MM | ||
| 040 | A 3609810227 | ANGULAR CONTACT BEARING |
| STEERING NUT BEARING | ||
| 041 | A 3664665205 | COVER |
| STEERING NUT BEARING | ||
| 042 | N 070852070000 | NUT |
| STEERING NUT BEARING | ||
| 044 | A 0059979645 | SEAL RING |
| STEERING NUT BEARING | ||
| 41X3 MM | ||
| 045 | A 3604660060 | SEAL RING |
| STEERING NUT BEARING | ||
| 046 | A 0079979445 | SEAL RING |
| BETWEEN PISTON AND BOX | ||
| 102X5.5 MM | ||
| 047 | A 3604660660 | SEAL RING |
| BETWEEN PISTON AND BOX | ||
| 117.3X4 MM | ||
| 056 | A 3664625225 | BALL GUIDE |
| 057 | A 3669955020 | CLAMP |
| BALL GUIDE TO PISTON | ||
| 058 | A 1129940005 | LOCK |
| CLAMP TO PISTON | ||
| 060 | A 1209900520 | SCREW |
| CLAMP TO PISTON | ||
| 061 | A 0059979745 | SEAL RING |
| COVER TO PISTON | ||
| 062 | N 912004010102 | LOCK WASHER |
| COVER TO PISTON | ||
| 063 | N 000933010200 | SCREW |
| COVER TO PISTON | ||
| 064 | A 3664605011 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 065 | A 3054620171 | SCREW |
| STEERING WORM SECTOR SHAFT | ||
| 066 | A 3604620152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 066 | A 3604620252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 066 | A 3604620352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 066 | A 3604620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 066 | A 3604620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 066 | A 3604620652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 066 | A 3604620852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.80 MM | ||
| 066 | A 3604620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.75 MM | ||
| 072 | A 0019946541 | LOCK |
| Repalced by: A 0049949441 | ||
| 072 | A 0049949441 | LOCK |
| STEERING SHAFT TO BOX | ||
| 073 | A 3604620062 | THRUST WASHER |
| STEERING SHAFT TO BOX | ||
| 074 | N 000471015000 | LOCK RING |
| STEERING SHAFT TO BOX | ||
| 075 | A 3664606114 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 075 | A 3664607214 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 076 | A 0079971045 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 077 | A 3664665160 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 078 | A 0039812910 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 080 | A 0069972345 | SEAL RING |
| COVER TO BOX | ||
| 081 | A 0059979645 | SEAL RING |
| COVER TO BOX | ||
| 41X3 MM | ||
| 082 | A 0059979745 | SEAL RING |
| COVER TO BOX | ||
| 083 | N 912004012100 | LOCK WASHER |
| COVER TO BOX | ||
| 084 | N 000961012101 | SCREW |
| COVER TO BOX | ||
| 085 | N 007603014405 | SEAL RING |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 14X18 MM | ||
| 086 | A 0019904151 | NUT |
| STEERING WORM SECTOR SHAFT TO COVER | ||

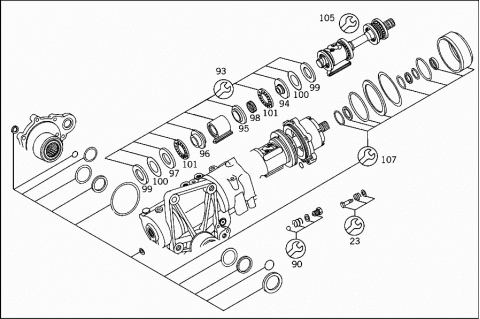

| 090 | A 3605861746 | REPAIR KIT |
| CHECK VALVE IN BOX | ||
| 090 | N 005401310000 | BALL |
| 090 | A 3609930501 | SPRING |
| 090 | N 007603014405 | SEAL RING |
| 090 | A 3604610271 | SCREW |
| 091 | N 007603012405 | SEAL RING |
| OIL DRAIN | ||
| 12X15.5 MM | ||
| 092 | A 3859970030 | SCREW PLUG |
| Repalced by: N 000910012000 | ||
| 092 | N 000910012000 | SCREW PLUG |
| OIL DRAIN | ||
| 093 | A 3604603199 | INSTALLATION KIT |
| CONICAL SPRING WASHER CUSHIONING | ||
| 094 | A 3604620028 | BEARING RING |
| 095 | A 3604620128 | BEARING RING |
| 096 | A 3604620228 | BEARING RING |
| 097 | A 3609902140 | WASHER |
| 098 | A 0059812510 | NEEDLE BEARING |
| 099 | A 3859930026 | DISC SPRING |
| 100 | A 3859930126 | DISC SPRING |
| 101 | A 3859810018 | ROLLER BEARING |
| 105 | A 3665865246 | REPAIR KIT |
| STEERING WORM WITH NUT | ||
| 107 | A 3665865446 | REPAIR KIT |
| (GASKET KIT) | ||
| 109 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||

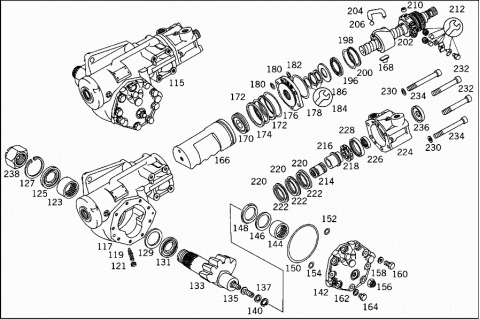

| 115 | A 3464605001 | STEERING BOX ASSEMBLY |
| Repalced by: A 3464600001 | ||
| 115 | A 3464600001 | STEERING BOX ASSEMBLY |
| 117 | A 0004616501 | BOX |
| WITH BEARING BUSHING | ||
| 119 | A 0009900015 | SCREW |
| STEERING BOX | ||
| 121 | A 0004620096 | BOOT |
| Repalced by: A 0004217187 | ||
| 121 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 121 | A 0004210887 | PROTECTIVE CAP |
| STEERING BOX | ||
| 346 460 50 01 | ||
| 123 | A 0019811510 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 125 | A 0039977246 | SEAL RING |
| STEERING SHAFT BEARING | ||
| 127 | N 000472072000 | LOCK RING |
| STEERING SHAFT BEARING | ||
| 129 | A 0004621075 | WASHER |
| STEERING SHAFT BEARING | ||
| 131 | A 0004621765 | RING |
| STEERING SHAFT BEARING | ||
| 133 | A 0004601211 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| TO 346 460 50 01 | ||
| 133 | A 0004601811 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| TO 346 460 00 01 | ||
| 135 | A 0004621571 | SCREW |
| STEERING WORM SECTOR SHAFT | ||
| 137 | A 0004612952 | SPACER WASHER |
| Repalced by: A 0034620452 | ||
| 137 | A 0034620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.950 MM | ||
| 137 | A 0004613052 | SPACER WASHER |
| Repalced by: A 0034620552 | ||
| 137 | A 0034620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.975 MM | ||
| 137 | A 0004613152 | SPACER WASHER |
| Repalced by: A 0034620652 | ||
| 137 | A 0034620652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.000 MM | ||
| 137 | A 0004613252 | SPACER WASHER |
| Repalced by: A 0034620752 | ||
| 137 | A 0034620752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.025 MM | ||
| 137 | A 0004613352 | SPACER WASHER |
| Repalced by: A 0034624952 | ||
| 137 | A 0034624952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.050 MM | ||
| 137 | A 0004613452 | SPACER WASHER |
| Repalced by: A 0034625052 | ||
| 137 | A 0034625052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.075 MM | ||
| 137 | A 0004613552 | SPACER WASHER |
| Repalced by: A 0034625152 | ||
| 137 | A 0034625152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.200 MM | ||
| 137 | A 0004613652 | SPACER WASHER |
| Repalced by: A 0034625252 | ||
| 137 | A 0034625252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.125 MM | ||
| 137 | A 0004613752 | SPACER WASHER |
| Repalced by: A 0034625352 | ||
| 137 | A 0034625352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.150 MM | ||
| 137 | A 0034625452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.175 MM | ||
| 137 | A 0034625552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.200 MM | ||
| 137 | A 0034625652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.225 MM | ||
| 137 | A 0034625752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.250 MM | ||
| 137 | A 0034625852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.275 MM | ||
| 140 | A 0039943041 | LOCK |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 142 | A 0004600914 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 144 | A 0039817110 | NEEDLE BEARING |
| Repalced by: A 0109818310 | ||
| 144 | A 0109818310 | NEEDLE BEARING |
| STEERING SHAFT BEARING IN COVER | ||
| 146 | A 0004622475 | WASHER |
| STEERING SHAFT BEARING | ||
| 148 | A 0004621865 | RING |
| STEERING SHAFT BEARING | ||
| 150 | A 0019870646 | SEALING CORD |
| Repalced by: A 0089971048 | ||
| 150 | A 0049978448 | SEAL RING |
| Repalced by: A 0089971048 | ||
| 150 | A 0089971048 | SEAL RING |
| COVER TO STEERING BOX | ||
| 152 | A 0049979948 | SEAL RING |
| COVER TO STEERING BOX | ||
| 154 | A 0019870846 | SEALING CORD |
| Repalced by: A 0049978548 | ||
| 154 | A 0049978548 | SEAL RING |
| COVER TO STEERING BOX | ||
| 156 | A 0004620372 | NUT |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 158 | A 0009901348 | WASHER |
| COVER TO STEERING BOX | ||
| 160 | N 000961012190 | SCREW |
| Repalced by: N 308676012012 | ||
| 160 | N 308676012012 | SCREW |
| COVER TO STEERING BOX | ||
| 162 | N 007603012102 | SEAL RING |
| BOX COVER | ||
| 164 | N 007604012101 | SCREW PLUG |
| BOX COVER | ||
| 12X1.5 MM | ||
| 166 | A 0004621083 | PISTON |
| 168 | A 0004621074 | PIN |
| STEERING NUT BEARING | ||
| 170 | A 0004620234 | SCREW COLLAR |
| STEERING NUT BEARING | ||
| 172 | A 0004621565 | RING |
| STEERING NUT BEARING | ||
| 174 | A 0004621665 | RING |
| STEERING NUT BEARING | ||
| A 0004626065 | RING | |
| STEERING NUT BEARING | ||
| TO 346 460 00 01 | ||
| A 0079972048 | SEAL RING | |
| Repalced by: A 0129975948 | ||
| A 0129975948 | SEAL RING | |
| Repalced by: A 0149976948 | ||
| A 0149976948 | SEAL RING | |
| STEERING NUT BEARING | ||
| 176 | A 0019870946 | SEALING CORD |
| STEERING NUT BEARING | ||
| 178 | A 0004610146 | COVER |
| Repalced by: A 0004610946 | ||
| 178 | A 0004610946 | COVER |
| STEERING NUT BEARING | ||
| 180 | A 0019871046 | SEALING CORD |
| STEERING NUT BEARING | ||
| TO 346 460 00 01 | ||
| 180 | A 0019871046 | SEALING CORD |
| STEERING NUT BEARING | ||
| TO 346 460 00 01 | ||
| A 0079979748 | SEAL RING | |
| STEERING NUT BEARING | ||
| TO 346 460 00 01 | ||
| A 0149976848 | SEAL RING | |
| STEERING NUT BEARING | ||
| TO 346 460 00 01 | ||
| A 0079972148 | SEAL RING | |
| Repalced by: A 0099971448 | ||
| A 0099971448 | SEAL RING | |
| Repalced by: A 0129976148 | ||
| A 0129976148 | SEAL RING | |
| Repalced by: A 0149976848 | ||
| A 0149976848 | SEAL RING | |
| STEERING NUT BEARING | ||
| 81X2.5 | ||
| 182 | A 0019871146 | SEALING CORD |
| STEERING NUT BEARING | ||
| 184 | A 0005860346 | REPAIR KIT |
| TO SEAL STEERING WORM IN INTERMEDIATE COVER | ||
| 186 | A 0024625052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.910 MM | ||
| 186 | A 0024625152 | SPACER WASHER |
| Repalced by: A 0014620752 | ||
| 186 | A 0024625252 | SPACER WASHER |
| Repalced by: A 0014620752 | ||
| 186 | A 0024625352 | SPACER WASHER |
| Repalced by: A 0014620752 | ||
| 186 | A 0014620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.950 MM | ||
| 186 | A 0024625452 | SPACER WASHER |
| Repalced by: A 0014620952 | ||
| 186 | A 0024625552 | SPACER WASHER |
| Repalced by: A 0014620952 | ||
| 186 | A 0024625652 | SPACER WASHER |
| Repalced by: A 0014620952 | ||
| 186 | A 0024625752 | SPACER WASHER |
| Repalced by: A 0014620952 | ||
| 186 | A 0014620952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.000 MM | ||
| 186 | A 0024625852 | SPACER WASHER |
| Repalced by: A 0014621152 | ||
| 186 | A 0024625952 | SPACER WASHER |
| Repalced by: A 0014621152 | ||
| 186 | A 0024626052 | SPACER WASHER |
| Repalced by: A 0014621152 | ||
| 186 | A 0024626152 | SPACER WASHER |
| Repalced by: A 0014621152 | ||
| 186 | A 0014621152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.050 MM | ||
| 186 | A 0024626252 | SPACER WASHER |
| Repalced by: A 0014621352 | ||
| 186 | A 0024626352 | SPACER WASHER |
| Repalced by: A 0014621352 | ||
| 186 | A 0024626452 | SPACER WASHER |
| Repalced by: A 0014621352 | ||
| 186 | A 0024626552 | SPACER WASHER |
| Repalced by: A 0014621352 | ||
| 186 | A 0014621352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.100 MM | ||
| 186 | A 0024626652 | SPACER WASHER |
| Repalced by: A 0014621552 | ||
| 186 | A 0024626752 | SPACER WASHER |
| Repalced by: A 0014621552 | ||
| 186 | A 0024626852 | SPACER WASHER |
| Repalced by: A 0014621552 | ||
| 186 | A 0024626952 | SPACER WASHER |
| Repalced by: A 0014621552 | ||
| 186 | A 0014621552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.150 MM | ||
| 186 | A 0024627052 | SPACER WASHER |
| Repalced by: A 0014621752 | ||
| 186 | A 0024627152 | SPACER WASHER |
| Repalced by: A 0014621752 | ||
| 186 | A 0024627252 | SPACER WASHER |
| Repalced by: A 0014621752 | ||
| 186 | A 0024627352 | SPACER WASHER |
| Repalced by: A 0014621752 | ||
| 186 | A 0014621752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.200 MM | ||
| 186 | A 0024627452 | SPACER WASHER |
| Repalced by: A 0014621952 | ||
| 186 | A 0024627552 | SPACER WASHER |
| Repalced by: A 0014621952 | ||
| 186 | A 0024627652 | SPACER WASHER |
| Repalced by: A 0014621952 | ||
| 186 | A 0024627752 | SPACER WASHER |
| Repalced by: A 0014621952 | ||
| 186 | A 0014621952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.250 MM | ||
| 186 | A 0024627852 | SPACER WASHER |
| Repalced by: A 0014622152 | ||
| 186 | A 0024627952 | SPACER WASHER |
| Repalced by: A 0014622152 | ||
| 186 | A 0024628052 | SPACER WASHER |
| Repalced by: A 0014622152 | ||
| 186 | A 0024628152 | SPACER WASHER |
| Repalced by: A 0014622152 | ||
| 186 | A 0014622152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.300 MM | ||
| 186 | A 0024628252 | SPACER WASHER |
| Repalced by: A 0014622352 | ||
| 186 | A 0024628352 | SPACER WASHER |
| Repalced by: A 0014622352 | ||
| 186 | A 0024628452 | SPACER WASHER |
| Repalced by: A 0014622352 | ||
| 186 | A 0024628552 | SPACER WASHER |
| Repalced by: A 0014622352 | ||
| 186 | A 0014622352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.350 MM | ||
| 186 | A 0024628652 | SPACER WASHER |
| Repalced by: A 0014622552 | ||
| 186 | A 0024628752 | SPACER WASHER |
| Repalced by: A 0014622552 | ||
| 186 | A 0024628852 | SPACER WASHER |
| Repalced by: A 0014622552 | ||
| 186 | A 0024628952 | SPACER WASHER |
| Repalced by: A 0014622552 | ||
| 186 | A 0014622552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.400 MM | ||
| 196 | A 0019812010 | NEEDLE BEARING |
| STEERING NUT BEARING | ||
| 198 | A 0019871246 | SEALING CORD |
| STEERING NUT BEARING | ||
| 200 | A 0004620865 | RING |
| AS REQUIRED | ||
| 2.200 MM | ||
| 200 | A 0004620965 | RING |
| AS REQUIRED | ||
| 2.300 MM | ||
| N 001481004000 | CLAMPING SLEEVE | |
| STEERING NUT BEARING | ||
| 202 | A 0004605908 | STEERING WORM |
| WITH STEERING NUT | ||
| 204 | A 0004622327 | BALL RACE |
| 206 | A 0009819985 | BALL |
| AS REQUIRED | ||
| 8.985 MM | ||
| 206 | A 0009817385 | BALL |
| AS REQUIRED | ||
| 8.987 MM | ||
| 206 | A 0019810085 | BALL |
| AS REQUIRED | ||
| 8.989 MM | ||
| 206 | A 0009817485 | BALL |
| AS REQUIRED | ||
| 8.991 MM | ||
| 206 | A 0019810185 | BALL |
| AS REQUIRED | ||
| 8.993 MM | ||
| 206 | A 0009817585 | BALL |
| AS REQUIRED | ||
| 8.995 MM | ||
| 206 | A 0019810285 | BALL |
| AS REQUIRED | ||
| 8.997 MM | ||
| 206 | A 0009817685 | BALL |
| AS REQUIRED | ||
| 8.999 MM | ||
| 206 | A 0019810385 | BALL |
| AS REQUIRED | ||
| 9.000 MM | ||
| 206 | A 0009817785 | BALL |
| AS REQUIRED | ||
| 9.003 MM | ||
| 206 | A 0019810485 | BALL |
| AS REQUIRED | ||
| 9.005 MM | ||
| 206 | A 0009817885 | BALL |
| AS REQUIRED | ||
| 9.007 MM | ||
| 206 | A 0019810585 | BALL |
| AS REQUIRED | ||
| 9.009 MM | ||
| 206 | A 0009817985 | BALL |
| AS REQUIRED | ||
| 9.011 MM | ||
| 206 | A 0019810685 | BALL |
| AS REQUIRED | ||
| 9.013 MM | ||
| 206 | A 0009818085 | BALL |
| AS REQUIRED | ||
| 9.015 MM | ||
| 210 | A 0004610482 | VALVE |
| STEERING WORM WITH NUT | ||
| 212 | A 0005862146 | REPAIR KIT |
| FOR HYDRAULIC REACTION | ||
| 214 | A 0019811610 | NEEDLE BEARING |
| Repalced by: A 0009800110 | ||
| 214 | A 0009800110 | NEEDLE BEARING |
| DIA., | ||
| 38X26.009 | ||
| 214 | A 0019811610 | NEEDLE BEARING |
| Repalced by: A 0009800510 | ||
| 214 | A 0009800510 | NEEDLE BEARING |
| DIA., | ||
| 38.015X26.009 | ||
| 214 | A 0019811710 | NEEDLE BEARING |
| Repalced by: A 0009800210 | ||
| 214 | A 0009800210 | NEEDLE BEARING |
| DIA., | ||
| 38X26.012 | ||
| 214 | A 0019811710 | NEEDLE BEARING |
| Repalced by: A 0009800610 | ||
| 214 | A 0009800610 | NEEDLE BEARING |
| DIA., | ||
| 38.015X26.012 | ||
| 214 | A 0019811810 | NEEDLE BEARING |
| Repalced by: A 0009800310 | ||
| 214 | A 0009800310 | NEEDLE BEARING |
| DIA., | ||
| 38X26.015 | ||
| 214 | A 0019811810 | NEEDLE BEARING |
| Repalced by: A 0009800710 | ||
| 214 | A 0009800710 | NEEDLE BEARING |
| DIA., | ||
| 38.015X26.015 | ||
| 214 | A 0019811910 | NEEDLE BEARING |
| Repalced by: A 0009800410 | ||
| 214 | A 0009800410 | NEEDLE BEARING |
| DIA., | ||
| 38X26.018 | ||
| 214 | A 0019811910 | NEEDLE BEARING |
| Repalced by: A 0009800810 | ||
| 214 | A 0009800810 | NEEDLE BEARING |
| DIA., | ||
| 38.015X26.018 | ||
| 214 | A 0039814810 | NEEDLE BEARING |
| 216 | A 0009817481 | INNER RING |
| Repalced by: A 0009800110 | ||
| 216 | A 0009817581 | INNER RING |
| Repalced by: A 0009800510 | ||
| 218 | A 0004620438 | BALL CAGE |
| 220 | A 0004621165 | RING |
| Repalced by: A 0004621265 | ||
| 220 | A 0004621265 | RING |
| AS REQUIRED | ||
| 1.6 MM | ||
| A 0004625865 | RING | |
| GREEN | ||
| 222 | A 0019871346 | SEALING CORD |
| STEERING NUT BEARING | ||
| 224 | A 0004610204 | BOX |
| STEERING NUT BEARING | ||
| TO 346 460 50 01 | ||
| 224 | A 0004611904 | BOX |
| STEERING NUT BEARING | ||
| TO 346 460 00 01 | ||
| 226 | A 0039973946 | SEAL RING |
| Repalced by: A 0059973747 | ||
| 226 | A 0059973747 | SEAL RING |
| Repalced by: A 0089979447 | ||
| 226 | A 0089979447 | SEAL RING |
| STEERING NUT BEARING | ||
| 228 | A 0009816180 | OUTER RACE |
| STEERING NUT BEARING | ||
| A 0004610682 | VALVE | |
| VALVE BOX TO STEERING BOX | ||
| TO 346 460 00 01 | ||
| A 0029938801 | SPRING | |
| VALVE BOX TO STEERING BOX | ||
| TO 346 460 00 01 | ||
| A 0109979445 | SEAL RING | |
| VALVE BOX TO STEERING BOX | ||
| TO 346 460 00 01 | ||
| A 0014625252 | SPACER WASHER | |
| VALVE BOX TO STEERING BOX | ||
| 9X15.8X0.10 TO 346 460 00 01 | ||
| A 0014625352 | SPACER WASHER | |
| VALVE BOX TO STEERING BOX | ||
| 9X15.8X0.15 TO 346 460 00 01 | ||
| A 0014625452 | SPACER WASHER | |
| VALVE BOX TO STEERING BOX | ||
| 9X15.8X0.30 TO 346 460 00 01 | ||
| A 0034627252 | SPACER WASHER | |
| VALVE BOX TO STEERING BOX | ||
| 9X15.8X0.80 TO 346 460 00 01 | ||
| A 0034627352 | SPACER WASHER | |
| VALVE BOX TO STEERING BOX | ||
| 9X15.8X1.00 TO 346 460 00 01 | ||
| A 0034627452 | SPACER WASHER | |
| VALVE BOX TO STEERING BOX | ||
| 9X15.8X1.50 TO 346 460 00 01 | ||
| A 0004611682 | VALVE | |
| VALVE BOX TO STEERING BOX | ||
| TO 346 460 00 01 | ||
| A 0109977145 | SEAL RING | |
| VALVE BOX TO STEERING BOX | ||
| TO 346 460 00 01 | ||
| N 000472018000 | LOCK RING | |
| VALVE BOX TO STEERING BOX | ||
| TO 346 460 00 01 | ||
| A 0004622571 | SCREW | |
| VALVE BOX TO STEERING BOX | ||
| TO 346 460 00 01 | ||
| 230 | A 0014622752 | SPACER WASHER |
| COVER TO BOX | ||
| 232 | N 000912012065 | SCREW |
| COVER TO BOX | ||
| M12X1.5X100 | ||
| 234 | N 000912012066 | SCREW |
| COVER TO BOX | ||
| M 12X120 | ||
| 236 | A 0004620196 | BOOT |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| TO 346 460 50 01 | ||
| 236 | A 0004622096 | BOOT |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| TO 346 460 00 01 | ||

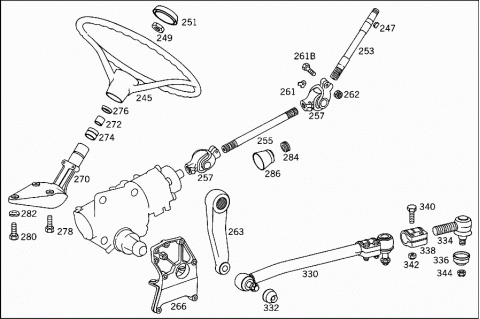

| 238 | N 000937042003 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| A 0004603461 | GASKET KIT | |
| TO 346 460 50 01 | ||
| A 0004600901 | GASKET KIT | |
| TO 346 460 00 01 | ||
| 245 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 245 | A 0004641101 | STEERING WHEEL |
| 245 | A 0004641201 | STEERING WHEEL |
| 247 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL AND STEERING COLUMN | ||
| 249 | N 000936022002 | NUT |
| STEERING WHEEL AND STEERING COLUMN | ||
| 251 | A 0004640131 | CAP |
| Repalced by: A 0004641231 | ||
| 251 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 251 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 253 | A 3354620101 | STEERING SHAFT |
| Repalced by: A 3354621101 | ||
| 253 | A 3354621101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 253 | A 3354620401 | STEERING SHAFT |
| Repalced by: A 3354620701 | ||
| 253 | A 3354620701 | STEERING SHAFT |
| TOP | ||
| 253 | A 3354620301 | STEERING SHAFT |
| Repalced by: A 3354621001 | ||
| 253 | A 3354621001 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 253 | A 3354620501 | STEERING SHAFT |
| Repalced by: A 3354620801 | ||
| 253 | A 3354620801 | STEERING SHAFT |
| TOP | ||
| A 3444620001 | STEERING SHAFT | |
| BOTTOM | ||
| 255 | A 3434620001 | STEERING SHAFT |
| BOTTOM | ||
| 255 | A 3434620101 | STEERING SHAFT |
| BOTTOM | ||
| A 3494620001 | STEERING SHAFT | |
| BOTTOM | ||
| A 3494620301 | STEERING SHAFT | |
| BOTTOM | ||
| A 3464620001 | STEERING SHAFT | |
| BOTTOM | ||
| A 3464620101 | STEERING SHAFT | |
| BOTTOM | ||
| A 3524600057 | UNIVERSAL JOINT | |
| STEERING | ||
| 257 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 4254600457 | ||
| 257 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 4254600457 | ||
| 257 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 4254600457 | ||
| 257 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 4254600457 | ||
| 257 | A 4254600157 | UNIVERSAL JOINT |
| Repalced by: A 4254600457 | ||
| 257 | A 4254600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 257 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 257 | A 0004600057 | UNIVERSAL JOINT |
| 257 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 257 | A 0004600157 | UNIVERSAL JOINT |
| A 3219900401 | SCREW | |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 10X35 | ||
| 261 | N 000463010502 | LOCK PLATE |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 261B | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| A 3169900114 | SCREW | |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| A 4259905601 | SCREW | |
| UNIVERSAL JOINT TO STEERING | ||
| M 10X45 | ||
| A 4259906101 | SCREW | |
| UNIVERSAL JOINT TO STEERING | ||
| M 10X48 | ||
| 262 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| N 913004010011 | NUT | |
| UNIVERSAL JOINT TO STEERING | ||
| 263 | A 3434630401 | PITMAN ARM |
| 263 | A 3434630401 | PITMAN ARM |
| 263 | A 3434630601 | PITMAN ARM |
| 263 | A 3434630601 | PITMAN ARM |
| A 3434630501 | PITMAN ARM | |
| A 3434630501 | PITMAN ARM | |
| A 3434630701 | PITMAN ARM | |
| 266 | A 3434610040 | STEERING SUPPORT |
| Repalced by: A 3434610240 | ||
| 266 | A 3434610240 | STEERING SUPPORT |
| AT FRAME | ||
| A 3434610140 | STEERING SUPPORT | |
| Repalced by: A 3434610340 | ||
| A 3434610340 | STEERING SUPPORT | |
| AT FRAME | ||
| N 000960014237 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| M14X50 | ||
| N 000960014292 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| N 000961014063 | SCREW | |
| Repalced by: A 9429901304 | ||
| A 9429901304 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| M14X40 | ||
| A 9429901304 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| M14X40 | ||
| N 000961014101 | SCREW | |
| Repalced by: N 308676014012 | ||
| N 308676014012 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| M14X45 | ||
| N 912004014100 | LOCK WASHER | |
| STEERING SUPPORT TO FRAME | ||
| N 000934014020 | NUT | |
| STEERING SUPPORT TO FRAME | ||
| N 000960016013 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X60 | ||
| N 000961016077 | SCREW | |
| Repalced by: N 308676016006 | ||
| N 308676016006 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X45 | ||
| N 000961016036 | SCREW | |
| Repalced by: N 308676016013 | ||
| N 308676016013 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X40 | ||
| A 3499900114 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| N 000960016261 | SCREW | |
| Repalced by: N 308676016014 | ||
| N 308676016014 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X65 | ||
| N 000935016002 | NUT | |
| STEERING TO STEERING BRACKET | ||
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| N 000094004023 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||
| 270 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 270 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 270 | A 3434600237 | BEARING |
| STEERING SHAFT TO JOINT | ||
| 272 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 272 | A 0119815110 | NEEDLE BEARING |
| 274 | A 3214620165 | RING |
| 276 | A 3224620023 | COVER |
| 278 | N 000931010258 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| M 10X55 | ||
| 280 | N 000933010157 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| M 10X28 | ||
| 282 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 284 | A 3214620060 | SEAL RING |
| THRU CAB | ||
| 286 | A 3354620095 | COVERING |
| Repalced by: A 3354620096 | ||
| 286 | A 3354620096 | BOOT |
| THRU CAB | ||

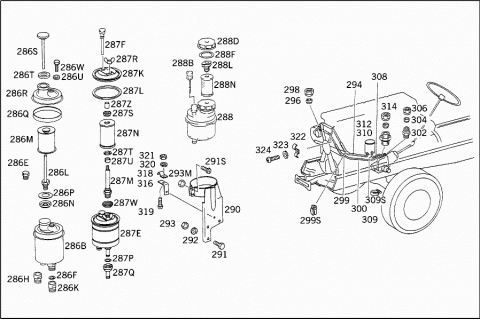

| 286B | A 0004661302 | TANK |
| 286E | A 0004660571 | FITTING |
| A 0009879046 | SEALING CORD | |
| Repalced by: A 0029973245 | ||
| 286F | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| A 0059970848 | SEAL RING | |
| 286H | A 0004660158 | CONNECTOR |
| 286K | A 0004660258 | CONNECTOR |
| 286L | A 0004665065 | FILTER CARRIER |
| 286M | A 0004660004 | FILTER |
| 286N | A 0004660191 | VALVE DISC |
| 286P | A 0004660291 | SPRING |
| 286Q | A 0004660380 | GASKET |
| Repalced by: A 0004660580 | ||
| 286Q | A 0004660580 | GASKET |
| 286R | A 0004660505 | COVER |
| 286S | A 0004660605 | COVER |
| 286T | A 0004660280 | GASKET |
| 286U | A 0004660075 | WASHER |
| 286W | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 286W | N 304017008016 | SCREW |
| 287E | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 287F | A 0004660218 | PIPE |
| 287K | A 0004662005 | COVER |
| 287L | A 0004660260 | SEAL RING |
| 133X3 MM | ||
| 287M | A 0014664465 | FILTER CARRIER |
| A 0004660204 | FILTER | |
| Repalced by: A 0004660604 | ||
| 287N | A 0004660604 | FILTER |
| 287P | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 287P | A 0059970848 | SEAL RING |
| 287Q | A 0004660558 | CONNECTOR |
| 287R | N 000315008010 | NUT |
| 287S | A 0004660675 | CENTERING RING |
| 287T | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 287T | A 9402680552 | SPACER WASHER |
| 287U | A 0004660153 | SPACER TUBE |
| 287W | A 0004660238 | COVER PLATE |
| 287Z | A 0009870643 | RUBBER SLEEVE |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 290 | ||
| 288 | A 0004664502 | TANK |
| 288B | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 288B | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 288D | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 288F | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 288L | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 288N | A 0004660204 | FILTER |
| Repalced by: A 0004660604 | ||
| 288N | A 0004660604 | FILTER |
| TO 000 466 45 02 | ||
| 290 | A 3434600135 | BRACKET |
| OIL TANK | ||
| 290 | A 3434600235 | BRACKET |
| OIL TANK | ||
| 291 | N 000931010282 | SCREW |
| OIL TANK TO BRACKET | ||
| M 10X40 | ||
| N 000084006162 | SCREW | |
| Repalced by: A 0029903712 | ||
| A 0029903712 | SCREW | |
| Repalced by: N 000000001149 | ||
| N 000000001149 | SCREW | |
| OIL TANK TO BRACKET | ||
| M 6X25 | ||
| 291S | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X30 | ||
| 292 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 293 | N 000934010014 | NUT |
| OIL TANK TO BRACKET | ||
| N 000934006007 | NUT | |
| OIL TANK TO BRACKET | ||
| 293M | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 293M | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| 294 | A 3434600424 | LINE |
| Repalced by: A 0014666665 | ||
| 294 | A 0014666665 | LINE |
| FROM OIL TANK TO PUMP | ||
| A 3434660365 | LINE | |
| FROM OIL TANK TO PUMP | ||
| A 3434601224 | LINE | |
| FROM OIL TANK TO PUMP | ||
| A 3434600524 | LINE | |
| Repalced by: A 0014666765 | ||
| A 0014666765 | LINE | |
| FROM OIL TANK TO PUMP | ||
| A 3434660465 | LINE | |
| FROM OIL TANK TO PUMP | ||
| 296 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 296 | A 0019901267 | SEAL CONE |
| FROM OIL TANK TO PUMP | ||
| 296 | A 0019901267 | SEAL CONE |
| FROM OIL TANK TO PUMP | ||
| 298 | N 915017022100 | UNION NUT |
| FROM OIL TANK TO PUMP | ||
| 298 | N 915017022100 | UNION NUT |
| FROM OIL TANK TO PUMP | ||
| A 3439970382 | HOSE | |
| Repalced by: A 3609970982 | ||
| A 3609970982 | HOSE | |
| Repalced by: A 3859971582 | ||
| A 3859971582 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| 299 | A 3834660181 | HOSE |
| Repalced by: A 3609970982 | ||
| 299 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 299 | A 3859971582 | HOSE |
| FROM OIL TANK TO PUMP | ||
| 299S | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 299S | N 000000000667 | CLAMP |
| FROM OIL TANK TO PUMP | ||
| 300 | A 0014666465 | LINE |
| Repalced by: A 3434600024 | ||
| 300 | A 3434600024 | LINE |
| FROM PUMP TO STEERING | ||
| A 0014666565 | LINE | |
| Repalced by: A 3434600124 | ||
| A 3434600124 | LINE | |
| FROM PUMP TO STEERING | ||
| 302 | N 003901012011 | SCREW-IN FITTING |
| OIL LINES | ||
| 304 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 304 | A 0019901967 | SEAL CONE |
| OIL LINES | ||
| 306 | N 915017012100 | UNION NUT |
| OIL LINES | ||
| 308 | A 3434600224 | LINE |
| Repalced by: A 0014666265 | ||
| 308 | A 0014666265 | LINE |
| FROM STEERING TO OIL TANK | ||
| A 3434600824 | LINE | |
| FROM STEERING TO OIL TANK | ||
| A 3434600324 | LINE | |
| Repalced by: A 0014666365 | ||
| A 0014666365 | LINE | |
| FROM STEERING TO OIL TANK | ||
| A 3434600924 | LINE | |
| FROM STEERING TO OIL TANK | ||
| A 3434660265 | LINE | |
| FROM STEERING TO OIL TANK | ||
| 309 | A 3609971182 | HOSE |
| Repalced by: A 3439970582 | ||
| 309 | A 3439970582 | HOSE |
| Repalced by: A 6999974082 | ||
| 309 | A 6999974082 | HOSE |
| Repalced by: A 3859971682 | ||
| 309 | A 3859971682 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 309S | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 309S | N 000000000666 | CLAMP |
| FROM STEERING TO OIL TANK | ||
| 310 | N 003901015005 | SCREW-IN FITTING |
| FROM STEERING TO OIL TANK | ||
| 312 | N 003861015004 | GLAND |
| FROM STEERING TO OIL TANK | ||
| 312 | N 003861015004 | GLAND |
| FROM STEERING TO OIL TANK | ||
| 314 | N 915017015100 | UNION NUT |
| FROM STEERING TO OIL TANK | ||
| 314 | N 915017015100 | UNION NUT |
| FROM STEERING TO OIL TANK | ||
| 316 | A 3354660440 | BRACKET |
| FOR LINES | ||
| 318 | N 072571001012 | CLAMP |
| LINES TO BRACKET | ||
| 319 | N 000084005180 | SCREW |
| Repalced by: N 007985005175 | ||
| 319 | N 007985005175 | SCREW |
| LINES TO BRACKET | ||
| 320 | N 000127005204 | LOCK WASHER |
| LINES TO BRACKET | ||
| 321 | N 304032005005 | NUT |
| LINES TO BRACKET | ||
| 322 | A 3219950532 | CLAMP |
| AT ENGINE | ||
| A 3389950032 | CLAMP | |
| AT ENGINE | ||
| 323 | N 912004006102 | LOCK WASHER |
| AT ENGINE | ||
| 324 | N 000084006137 | SCREW |
| AT ENGINE | ||
| A 3375420140 | BRACKET | |
| LINE TO OIL PUMP | ||
| N 072571001012 | CLAMP | |
| LINE TO OIL PUMP | ||
| N 000084005180 | SCREW | |
| Repalced by: N 007985005175 | ||
| N 007985005175 | SCREW | |
| LINE TO OIL PUMP | ||
| N 912004005103 | LOCK WASHER | |
| LINE TO OIL PUMP | ||
| N 304032005005 | NUT | |
| LINE TO OIL PUMP | ||
| A 3464665140 | BRACKET | |
| BRACKET TO ENGINE, AND LINE TO BRACKET ,RESP. | ||
| A 3049950220 | CLAMP | |
| Repalced by: A 3129952420 | ||
| A 3129952420 | CLAMP | |
| Repalced by: A 1109950401 | ||
| A 1109950401 | CLAMP | |
| BRACKET TO ENGINE, AND LINE TO BRACKET ,RESP. | ||
| N 000084006137 | SCREW | |
| BRACKET TO ENGINE, AND LINE TO BRACKET ,RESP. | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO ENGINE, AND LINE TO BRACKET ,RESP. | ||
| N 000934006007 | NUT | |
| BRACKET TO ENGINE, AND LINE TO BRACKET ,RESP. | ||
| A 3464665070 | STUD | |
| BRACKET TO ENGINE, AND LINE TO BRACKET ,RESP. | ||
| N 304032008006 | NUT | |
| BRACKET TO ENGINE, AND LINE TO BRACKET ,RESP. | ||
| A 3354600005 | DRAG LINK | |
| Repalced by: A 3464605005 | ||
| A 3434600405 | DRAG LINK | |
| Repalced by: A 3434601005 | ||
| 330 | A 3434600805 | DRAG LINK |
| Repalced by: A 3434601005 | ||
| 330 | A 3434601005 | DRAG LINK |
| Repalced by: A 3434601405 | ||
| 330 | A 3434601405 | DRAG LINK |
| LEMFOERDER | ||
| 330 | A 3434601205 | DRAG LINK |
| Repalced by: A 3434601505 | ||
| 330 | A 3434601505 | DRAG LINK |
| EHRENREICH | ||
| 330 | A 3464605005 | DRAG LINK |
| Repalced by: A 3464600005 | ||
| 330 | A 3464600005 | DRAG LINK |
| LEMFOERDER | ||
| 330 | A 3464600005 | DRAG LINK |
| LEMFOERDER | ||
| 330 | A 3464600005 | DRAG LINK |
| LEMFOERDER | ||
| 330 | A 3464600105 | DRAG LINK |
| EHRENREICH | ||
| 330 | A 3464600105 | DRAG LINK |
| EHRENREICH | ||
| 330 | A 3464600105 | DRAG LINK |
| EHRENREICH | ||
| 330 | A 3434601005 | DRAG LINK |
| Repalced by: A 3434601405 | ||
| 330 | A 3434601405 | DRAG LINK |
| LEMFOERDER | ||
| 330 | A 3434601205 | DRAG LINK |
| Repalced by: A 3434601505 | ||
| 330 | A 3434601505 | DRAG LINK |
| EHRENREICH | ||
| 332 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| 332 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| 332 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| 332 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 332 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| 332 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| 334 | A 0004600148 | DRAG LINK END |
| Repalced by: A 0004602648 | ||
| 334 | A 0004602648 | DRAG LINK END |
| ADJUSTABLE | ||
| 334 | A 0004602648 | DRAG LINK END |
| ADJUSTABLE | ||
| 334 | A 0004602648 | DRAG LINK END |
| ADJUSTABLE | ||
| 334 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 334 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 334 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 334 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 334 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 334 | A 0004601048 | DRAG LINK END |
| Repalced by: A 0004602948 | ||
| 334 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 334 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 334 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 334 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 336 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 336 | A 0004621796 | BOOT |
| STEERING JOINT | ||
| 336 | A 0004621896 | BOOT |
| STEERING JOINT | ||
| 338 | A 0003380645 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 338 | A 0003380645 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 338 | A 0003380645 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 338 | A 0003382345 | CLAMP |
| Repalced by: A 0003382545 | ||
| 338 | A 0003382345 | CLAMP |
| 338 | A 0003382545 | CLAMP |
| DRAG LINK | ||
| LEMFOERDER, 42 MM | ||
| A 0003383145 | CLAMP | |
| DRAG LINK | ||
| EHRENREICH, 42 MM | ||
| A 0003382445 | CLAMP | |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER, 40 MM | ||
| A 0003382445 | CLAMP | |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER, 40 MM | ||
| A 0003383445 | CLAMP | |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH, 40 MM | ||
| A 0003383445 | CLAMP | |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH, 40 MM | ||
| N 000960012197 | SCREW | |
| DRAG LINK TO LEVER | ||
| M 12X1.5X55 | ||
| N 000960012197 | SCREW | |
| DRAG LINK TO LEVER | ||
| M 12X1.5X55 | ||
| N 000960012453 | SCREW | |
| Repalced by: N 308676012017 | ||
| N 308676012017 | SCREW | |
| CLAMP TO DRAG LINK | ||
| M 12X1.5X62 | ||
| N 000960012246 | SCREW | |
| Repalced by: N 000960012353 | ||
| N 000960012353 | SCREW | |
| CLAMP TO DRAG LINK | ||
| M 12X1.5X60 | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| CLAMP TO DRAG LINK | ||
| 340 | N 000960012292 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| M12X58 | ||
| 340 | N 000960012292 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| M12X58 | ||
| 340 | N 000960012292 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| M12X58 | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| DRAG LINK TO LEVER | ||
| N 910113012003 | NUT | |
| DRAG LINK TO LEVER | ||
| 342 | N 000935012002 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| 342 | N 000935012002 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| 342 | N 000935012002 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| N 000094003023 | COTTER PIN | |
| DRAG LINK END TO DRAG LINK | ||
| N 000094003023 | COTTER PIN | |
| DRAG LINK END TO DRAG LINK | ||
| N 000094003023 | COTTER PIN | |
| DRAG LINK END TO DRAG LINK | ||
| A 0019905451 | NUT | |
| DRAG LINK TO LEVER | ||
| 344 | N 000937020001 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
| 344 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094005045 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
