Transporto priemonė: LAF 911 B; VIN numerio dalis: 353119

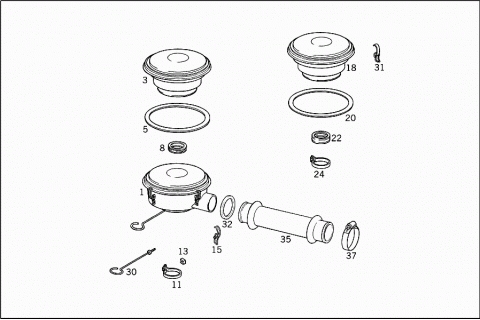

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| AIR CLEANER | ||
| 001 | A 0020945202 | AIR CLEANER |
| MAMM&HUMMEL | ||
| 003 | A 0000946104 | FILTER ELEMENT |
| MAMM&HUMMEL | ||
| 005 | A 0000947280 | GASKET |
| OUTSIDE | ||
| 008 | A 0000945880 | GASKET |
| INSIDE | ||
| 011 | A 0000943042 | CLAMP |
| Repalced by: A 0000944442 | ||
| 011 | A 0000944442 | CLAMP |
| A 0009900938 | SCREW | |
| Repalced by: A 0009901238 | ||
| A 3529900201 | SCREW | |
| Repalced by: A 0009901238 | ||
| A 0009901238 | SCREW | |
| Repalced by: A 0000941571 | ||
| A 0000941571 | SCREW | |
| 013 | N 000557008000 | NUT |
| 015 | A 0000940155 | FASTENER |
| Repalced by: A 0000941255 | ||
| 015 | A 0000941255 | FASTENER |
| ASSEMBLY | ||
| 018 | A 0000946304 | FILTER ELEMENT |
| KNECHT | ||
| 020 | A 0000947280 | GASKET |
| 022 | A 0000948780 | GASKET |
| 024 | A 0000943242 | CLAMP |
| 030 | A 3529900201 | SCREW |
| Repalced by: A 0009901238 | ||
| 030 | A 0009901238 | SCREW |
| Repalced by: A 0000941571 | ||
| 030 | A 0000941571 | SCREW |
| 031 | A 0000940555 | FASTENER |
| 032 | A 0049974145 | SEAL RING |
| 035 | A 3220941808 | INTAKE PIPE |
| 037 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 037 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 037 | A 0059972990 | CLAMP |
