Transporto priemonė: LAF 911 B; VIN numerio dalis: 353119

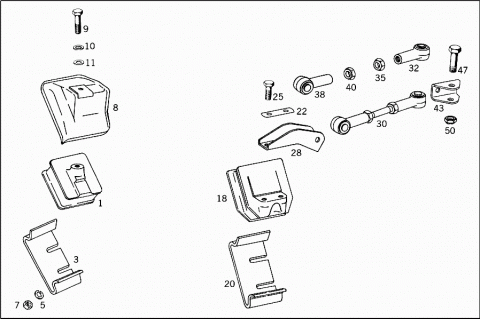

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3522400217 | RUBBER MOUNTING |
| Repalced by: A 3522400417 | ||
| 001 | A 3522400417 | RUBBER MOUNTING |
| FRONT | ||
| 003 | A 3522420509 | ENGINE STAY |
| FRONT | ||
| 005 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 007 | N 000934012022 | NUT |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 008 | A 3022400045 | PROTECTIVE PLATE |
| RUBBER MOUNT | ||
| 009 | N 000960014237 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M14X50 | ||
| 009 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 009 | N 308676016007 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M16X50 | ||
| 009 | N 000960016237 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M16X60 | ||
| 010 | N 000137014201 | SPRING WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 011 | A 3529901040 | WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 011 | A 3529902440 | WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 018 | A 3522400318 | RUBBER MOUNTING |
| REAR | ||
| 020 | A 3522420409 | ENGINE STAY |
| REAR | ||
| N 912004012100 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000934012022 | NUT | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 022 | A 3529940032 | LOCK |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 025 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 025 | N 308676014008 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M14X35 | ||
| 025 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 025 | A 9429901304 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M14X40 | ||
| 028 | A 3522420207 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 028 | A 3522420307 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 030 | A 3522400225 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 030 | A 3522420237 | ROD |
| 032 | A 0009961540 | ROD END |
| 035 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 035 | N 308673016001 | NUT |
| 038 | A 0009961740 | ROD END |
| 040 | N 000934016014 | NUT |
| 043 | A 3522420407 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 047 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BRACKETS | ||
| 050 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 050 | N 000979016007 | NUT |
| ROD TO FRONT AND REAR BRACKETS | ||
| N 000094004065 | COTTER PIN | |
| ROD TO FRONT AND REAR BRACKETS | ||
| N 000961012165 | SCREW | |
| Repalced by: N 000961012051 | ||
| N 000961012051 | SCREW | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
