Transporto priemonė: LAF 911 B; VIN numerio dalis: 353119
Grupė: 43 EXHAUST BRAKE

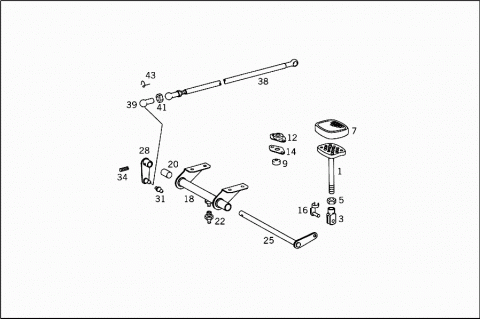

52107
52108
# Kodas Pavadinimas
001 A 3524300318 BRAKE PEDAL
003 N 071752008002 YOKE
005 N 304032008006 NUT
007 A 3203015082 PAD
009 A 3524340123 GUIDE
BRAKE PEDAL THRU CAB FLOOR
012 A 3524340140 BRACKET
BRAKE PEDAL THRU CAB FLOOR
012 A 3524341040 BRACKET
BRAKE PEDAL THRU CAB FLOOR
014 A 3524340087 SHIM
BRAKE PEDAL THRU CAB FLOOR
014 A 3524340187 SHIM
BRAKE PEDAL THRU CAB FLOOR
N 000571006009 WOOD SCREW
BRACKET TO CAB FLOOR
016 N 918001008000 PIN
BRAKE PEDAL TO EXHAUST BRAKE SHAFT
N 900055008002 SPRING WASHER
018 A 3524300438 BEARING
019 A 3524300538 BEARING
020 A 3524340150 BUSHING
022 N 071412010100 GREASE NIPPLE
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER
N 912004008102 LOCK WASHER
EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER
N 304032008006 NUT
EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER
025 A 3524301446 INTERMEDIATE SHAFT
026 A 3524301546 INTERMEDIATE SHAFT
028 A 3524300523 LEVER
029 A 3524300923 LEVER
031 N 071803010209 BALL PIVOT
Repalced by: A 3129910120
031 A 3129910120 BALL PIVOT
034 N 001481004017 CLAMPING SLEEVE
Repalced by: N 308752004001
034 N 308752004001 CLAMPING PIN
038 N 900331006217 PULL ROD
Repalced by: A 3604302092
038 A 3604302092 ROD
039 A 0009910522 BALL SOCKET
Repalced by: A 0009912422
039 A 0009912422 BALL SOCKET
041 N 000934006007 NUT
043 N 071805010403 SECURING CLIP
N 071805010204 BALL SOCKET
N 000934006007 NUT
048 A 3524301192 ROD
050 N 071805010204 BALL SOCKET
052 N 071752006006 YOKE
054 N 000934006007 NUT
056 N 071805010403 SECURING CLIP
058 N 918001006004 PIN
060 A 0004296201 LINE
6 MM
062 N 915017006100 UNION NUT
064 N 003861006007 GLAND
Repalced by: A 0019901667
064 A 0019901667 SEAL CONE
065 A 3609950101 CLAMP
LINE MOUNTING
N 000933006102 SCREW
LINE MOUNTING
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
068 A 0004315406 VALVE
Repalced by: A 0014295244
068 A 0004296344 VALVE
Repalced by: A 0014295244
068 A 0014295244 VALVE
WABO
068 A 0014299844 VALVE
(OVERFLOW VALVE)
BOSCH
068 A 0014297944 VALVE
(OVERFLOW VALVE)
GRAU
068 A 0034290244 VALVE
(OVERFLOW VALVE)
KNORR
A 0024298844 VALVE
TO 001 429 79 44
A 0004290745 DIAPHRAGM
TO 001 429 79 44
A 0004290145 DIAPHRAGM
TO 000 431 54 06
A 0015862642 REPAIR KIT
TO 001 429 98 44
A 0004303260 REPAIR KIT
TO 003 429 02 44
A 0005863642 REPAIR KIT
Repalced by: A 0005865842
A 0005865842 REPAIR KIT
TO 000 429 63 44
A 0015862042 REPAIR KIT
TO 001 429 52 44
N 074305022202 NUT
OVERFLOW VALVE TO T-FITTING
A 0009870446 SEALING CORD
OVERFLOW VALVE TO T-FITTING
A 0004290227 THRUST RING
OVERFLOW VALVE TO T-FITTING
076 A 3609900071 ELBOW FITTING
078 N 074305022202 NUT
080 A 0009870446 SEALING CORD
082 A 0004290227 THRUST RING
A 0019972872 FITTING
Repalced by: A 0039979072
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
AT DISTRIBUTOR
A 0004340801 VALVE
Repalced by: A 0004342401
A 0004341601 VALVE
Repalced by: A 0004342601
A 0004342601 VALVE
A 0004341501 VALVE
BOSCH
083 A 0004341101 VALVE
BOSCH
083 A 0004342401 VALVE
WABO
083E A 0004340586 CUP
TO 000 434 24 01,000 434 26 01
083K A 0009972077 HANDLE
TO 000 434 24 01
A 0059979248 SEAL RING
TO 000 434 11 01
A 0079972448 SEAL RING
TO 000 434 24 01,17X1.5 MM
A 0079972548 SEAL RING
TO 000 434 24 01,5.7X1.9 MM
A 0014315193 SPRING
TO 000 434 11 01
A 0004317387 PROTECTIVE CAP
TO 000 434 16 01,000 434 08 01
A 0005869743 REPAIR KIT
OPERATING VALVE
TO 000 434 08 01,000 434 05 01
A 0005869743 REPAIR KIT
OPERATING VALVE
TO 000 434 16 01
085 A 0025869843 REPAIR KIT
TO 000 434 24 01,000 434 22 01
A 0025868343 REPAIR KIT
000 434 11 01
A 0025868443 REPAIR KIT
TO 000 434 11 01
088 A 3376875013 WASHER
088 A 3296160476 WASHER
090 N 080705026000 NUT
Repalced by: N 080705026003
090 N 080705026003 NUT
093 A 0039979072 FITTING
Repalced by: A 0029906071
093 A 0029906071 FITTING
AT OPERATING VALVE
095 N 007603012405 SEAL RING
AT OPERATING VALVE
098 A 3609900170 T-FITTING
AT OPERATING VALVE
100 N 080705012003 NUT
AT OPERATING VALVE
102 A 0004290827 THRUST RING
AT OPERATING VALVE
105 A 0019875046 SEALING CORD
AT OPERATING VALVE
108 A 3604340044 PROTECTIVE PLATE
AT OPERATING VALVE
N 000137026200 SPRING WASHER
A 3609900071 ELBOW FITTING
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 074305022202 NUT
113 N 007603022102 SEAL RING
115 A 0039972072 FITTING
118 A 0004299244 VALVE
119 A 0015865943 REPAIR KIT
120 A 3604312340 BRACKET
N 000933010164 SCREW
N 912004010102 LOCK WASHER
N 000934010014 NUT
N 000933008154 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
TWO-WAY VALVE TO BRACKET
N 912004008102 LOCK WASHER
TWO-WAY VALVE TO BRACKET
N 304032008006 NUT
TWO-WAY VALVE TO BRACKET
125 A 0039979072 FITTING
Repalced by: A 0029906071
125 A 0029906071 FITTING
AT CONTROL COCK
N 000908012003 SCREW PLUG
Repalced by: N 000908012009
N 000908012009 SCREW PLUG
AT CONTROL COCK
N 007603012405 SEAL RING
AT CONTROL COCK
130 A 0007630157 CONTROL COCK
A 0007630081 ROTARY SLIDE
A 0007630134 SPRING
A 0007630138 LEVER
N 007985006189 SCREW
CONTROL COCK TO SEAT BOX
133 A 3604270453 SPACER TUBE
CONTROL COCK TO SEAT BOX
N 912004006102 LOCK WASHER
CONTROL COCK TO SEAT BOX
N 000934006007 NUT
CONTROL COCK TO SEAT BOX
138 A 3045730336 HOSE
A 0019972872 FITTING
Repalced by: A 0039979072
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
AT OPERATING VALVE
N 007603012405 SEAL RING
AT OPERATING VALVE
A 0004340301 VALVE
3/2-WAY
BOSCH
140 A 0004340601 VALVE
Repalced by: A 0004342201
140 A 0004342201 VALVE
3/2-WAY
WESTINGHOUSE
142 A 0004340586 CUP
TO 000 434 22 01
142K A 0009971977 HANDLE
TO 000 434 22 01
A 0005869743 REPAIR KIT
TO 000 434 06 01
142R A 0025869843 REPAIR KIT
TO 000 434 22 01
N 074305026202 NUT
OPERATING VALVE TO BRACKET
145 A 3524314440 BRACKET
OPERATING VALVE TO BRACKET
N 000933008145 SCREW
BRACKET TO CONSOLE
N 912004008102 LOCK WASHER
BRACKET TO CONSOLE
N 000934008035 NUT
BRACKET TO CONSOLE
149 A 3524341047 LEVER
152 A 3524340350 BUSHING
155 A 3604300050 ROLLER
N 007341005108 RIVET
158 A 3529902101 SCREW
OPERATING VALVE ADJUSTMENT
N 304032008006 NUT
OPERATING VALVE ADJUSTMENT
160 N 001434010092 PIN
BRACKET TO CONSOLE
N 000433010505 WASHER
Repalced by: N 000433010510
N 000433010510 WASHER
BRACKET TO CONSOLE
N 000094003201 COTTER PIN
BRACKET TO CONSOLE
N 007603012405 SEAL RING
AT CYLINDER
A 0019972872 FITTING
Repalced by: A 0039979072
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
AT CYLINDER
N 003902006001 CONNECTION FITTING
Repalced by: A 0039979172
A 0039979172 FITTING
AT CYLINDER
A 3025841621 GUIDE SIGN
DAUERBREMSE
N 007971002316 SHEET METAL SCREW
A 3605840621 GUIDE SIGN
EXHAUST BRAKE SHUT-OFF COCK
A 3875840055 ADHESIVE FOIL
EXHAUST BRAKE SHUT-OFF COCK
A 3604340040 BRACKET
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
LINE MOUNTING
N 000084006197 SCREW
LINE MOUNTING
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
