Transporto priemonė: LAF 911 B; VIN numerio dalis: 353119

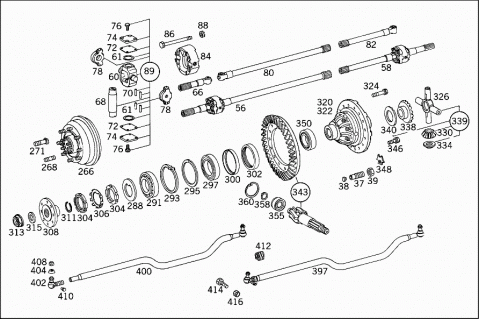

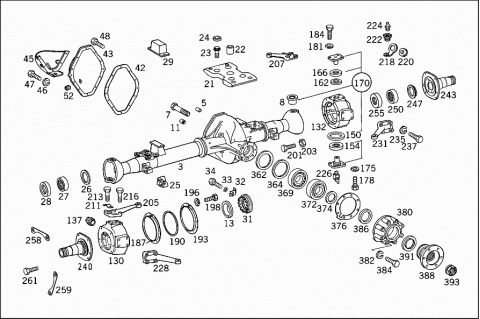

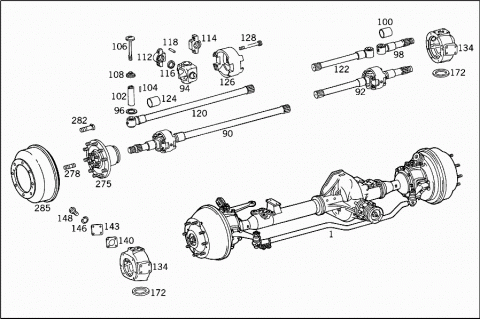

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3533301200 | FRONT AXLE |
| WITH BRAKES,RATIO: | ||
| 6:41 | ||
| 001 | A 3533301200 | FRONT AXLE |
| WITH BRAKES,RATIO: | ||
| 6:41 | ||
| 001 | A 3533301500 | FRONT AXLE |
| WITH BRAKES,RATIO: | ||
| 7:40 | ||
| 001 | A 3603300097 | FRONT AXLE |
| WITH BRAKES,RATIO: | ||
| 9:40 | ||
| 001 | A 3533301300 | FRONT AXLE |
| WITH BRAKES,RATIO: | ||
| 6:41 | ||
| 001 | A 3533301300 | FRONT AXLE |
| WITH BRAKES,RATIO: | ||
| 6:41 | ||
| 001 | A 3533301600 | FRONT AXLE |
| RATIO 7:40 | ||
| 003 | A 3523300205 | FRONT AXLE HOUSING |
| 003 | A 3603302505 | FRONT AXLE HOUSING |
| 005 | N 000007006205 | CYLINDRICAL PIN |
| 007 | N 914126016000 | SCREW |
| Repalced by: A 0009905704 | ||
| 007 | A 0009905704 | SCREW |
| 008 | A 3403310250 | BUSHING |
| 008 | A 3603310050 | BUSHING |
| 011 | A 3523510174 | PIN |
| 013 | A 3853570082 | OIL COLLECTOR |
| 021 | A 3603220512 | SPRING SADDLE |
| 022 | A 3529910064 | BUSHING |
| 023 | A 3529900304 | SCREW |
| 024 | A 3389945043 | LOCK |
| 025 | A 3603230040 | BRACKET |
| 026 | A 3223310351 | SPACER RING |
| 027 | A 0049814410 | NEEDLE BEARING |
| 027 | A 0059816310 | NEEDLE BEARING |
| 027 | A 0029817410 | NEEDLE BEARING |
| 027 | A 0039815610 | NEEDLE BEARING |
| 027 | A 0039815910 | NEEDLE BEARING |
| 027 | A 0039816010 | NEEDLE BEARING |
| 028 | A 0039972546 | SEAL RING |
| 028 | A 0069971246 | SEAL RING |
| 029 | A 3853300075 | RUBBER MOUNTING |
| 031 | A 3853350025 | ADJUSTING NUT |
| Repalced by: A 6743530025 | ||
| 031 | A 6743530025 | SCREW COLLAR |
| 032 | A 3123531173 | LOCK |
| 033 | N 006797008120 | TOOTHED WASHER |
| 034 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 034 | N 304017008016 | SCREW |
| 037 | A 3143530176 | SET SCREW |
| 038 | A 3123531049 | SLIDE |
| 039 | N 000936022000 | NUT |
| 042 | A 3123511080 | GASKET |
| Repalced by: A 3123511480 | ||
| 042 | A 3123511480 | GASKET |
| 043 | A 3813300121 | COVER |
| 045 | A 3603300083 | PROTECTIVE PLATE |
| 046 | N 912004010102 | LOCK WASHER |
| 047 | N 000933010164 | SCREW |
| 048 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 048 | N 304017010028 | SCREW |
| 052 | A 3529970032 | SCREW PLUG |
| 056 | A 3813300201 | DRIVE SHAFT |
| LEFT | ||
| 058 | A 3813300301 | DRIVE SHAFT |
| RIGHT | ||
| 060 | A 3123371011 | JOINT CROSS |
| A 3123371080 | GASKET | |
| 061 | A 3463370060 | SEAL RING |
| 066 | A 3233370701 | DRIVE SHAFT |
| 068 | A 3123371174 | PIN |
| STANDARD SIZE | ||
| 27.00 MM | ||
| 068 | A 3533370074 | PIN |
| 068 | A 3123371274 | PIN |
| REPAIR SIZE I | ||
| 27.10 MM | ||
| 068 | A 3123371374 | PIN |
| REPAIR SIZE II | ||
| 27.20 MM | ||
| 068 | A 3123371474 | PIN |
| REPAIR SIZE III | ||
| 27.40 MM | ||
| 070 | N 005402203103 | CYLINDRICAL ROLLER |
| 072 | A 3123371015 | THRUST RING |
| 074 | A 3123371130 | COVER |
| 076 | A 0009900521 | SCREW |
| 078 | A 3533300233 | BEARING HOUSING |
| REPAIR KIT | ||
| 078 | A 3533300133 | BEARING HOUSING |
| REPAIR KIT | ||
| 080 | A 3533370001 | DRIVE SHAFT |
| 082 | A 3533370101 | DRIVE SHAFT |
| 084 | A 3123371117 | FOLLOWER |
| 084 | A 3533370017 | FOLLOWER |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 086 | N 914125010902 | SCREW |
| 088 | N 000935010007 | NUT |
| N 000094002034 | COTTER PIN | |
| 089 | A 3533300035 | REPAIR KIT |
| DRIVE SHAFT JOURNAL CROSS | ||
| 090 | A 3833300301 | DRIVE SHAFT |
| 092 | A 3833300401 | DRIVE SHAFT |
| 094 | A 3803300035 | REPAIR KIT |
| DRIVE SHAFT INNER JOURNAL CROSS | ||
| 094 | A 3803300135 | REPAIR KIT |
| DRIVE SHAFT,OUTER JOURNAL CROSS | ||
| 096 | A 3603300060 | SEAL RING |
| 098 | A 3833300201 | DRIVE SHAFT |
| 100 | A 3609810381 | INNER RING |
| 102 | A 3603370274 | PIN |
| 104 | A 3529810087 | NEEDLE |
| SET = 140 PIECES | ||
| 106 | A 3609900201 | SCREW |
| 108 | A 3603370030 | COVER |
| N 000094003024 | COTTER PIN | |
| 112 | A 3603371818 | BEARING BRACKET |
| Repalced by: A 3603300033 | ||
| A 3603300033 | BEARING HOUSING | |
| OUTSIDE | ||
| 114 | A 3603371918 | BEARING BRACKET |
| Repalced by: A 3603300133 | ||
| A 3603300133 | BEARING HOUSING | |
| INSIDE | ||
| 116 | A 3603300360 | SEAL RING |
| 118 | A 3529810287 | NEEDLE |
| SET = 128 PIECES | ||
| 120 | A 3603300701 | DRIVE SHAFT |
| Repalced by: A 3833300101 | ||
| 120 | A 3833300101 | DRIVE SHAFT |
| LEFT INSIDE | ||
| A 3609810381 | INNER RING | |
| A 3859810281 | INNER RING | |
| Repalced by: A 3819810281 | ||
| A 3819810281 | INNER RING | |
| 122 | A 3603300801 | DRIVE SHAFT |
| Repalced by: A 3833300001 | ||
| 122 | A 3833300001 | DRIVE SHAFT |
| RIGHT INSIDE | ||
| 124 | A 3609810381 | INNER RING |
| 124 | A 3859810281 | INNER RING |
| Repalced by: A 3819810281 | ||
| 124 | A 3819810281 | INNER RING |
| 126 | A 3603370217 | FOLLOWER |
| 128 | A 3609900804 | SCREW |
| 130 | A 3223370606 | HOUSING |
| LEFT | ||
| 132 | A 3223370706 | HOUSING |
| RIGHT | ||
| 134 | A 3603370006 | HOUSING |
| 137 | N 000906042002 | SCREW PLUG |
| 140 | A 3603370079 | GASKET |
| 143 | A 3603370130 | COVER |
| 146 | N 912004012100 | LOCK WASHER |
| 148 | N 000961012004 | SCREW |
| 150 | A 3123320259 | SEAL RING |
| LEFT AND RIGHT BOTTOM | ||
| 150 | A 3603320159 | SEAL RING |
| 154 | A 0009810518 | ROLLER BEARING |
| 154 | A 0009812118 | ROLLER BEARING |
| 162 | A 3403320362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| 162 | A 3403320562 | THRUST WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 162 | A 3403320762 | THRUST WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 162 | A 3403320962 | THRUST WASHER |
| AS REQUIRED | ||
| 4.40 MM | ||
| 162 | A 3403321162 | THRUST WASHER |
| AS REQUIRED | ||
| 4.60 MM | ||
| 162 | A 3403321362 | THRUST WASHER |
| AS REQUIRED | ||
| 4.80 MM | ||
| 162 | A 3403321562 | THRUST WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 166 | A 3403320062 | THRUST WASHER |
| 166 | A 3603320362 | THRUST WASHER |
| 170 | A 3403300019 | KING PIN |
| PARTS KIT | ||
| 170 | A 3603301019 | KING PIN |
| KINGPIN | ||
| 172 | A 3603320251 | SPACER RING |
| AS REQUIRED | ||
| 3.80 MM | ||
| 172 | A 3603320451 | SPACER RING |
| AS REQUIRED | ||
| 4.00 MM | ||
| 172 | A 3603321351 | SPACER RING |
| Repalced by: A 3603320551 | ||
| 172 | A 3603320651 | SPACER RING |
| AS REQUIRED | ||
| 4.20 MM | ||
| 172 | A 3603320751 | SPACER RING |
| AS REQUIRED | ||
| 4.30 MM | ||
| 172 | A 3603320851 | SPACER RING |
| AS REQUIRED | ||
| 4.40 MM | ||
| 172 | A 3603322251 | SPACER RING |
| AS REQUIRED | ||
| 4.60 MM | ||
| 172 | A 3603322051 | SPACER RING |
| AS REQUIRED | ||
| 4.80 MM | ||
| 175 | N 912004012100 | LOCK WASHER |
| 175 | N 912004014100 | LOCK WASHER |
| 178 | N 000961012164 | SCREW |
| 178 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 178 | N 308676014020 | SCREW |
| 181 | N 912004014100 | LOCK WASHER |
| 184 | N 000961014113 | SCREW |
| 184 | A 3609901101 | SCREW |
| 184 | A 3609900501 | SCREW |
| 187 | A 3223310009 | SEAL HOLDER |
| 187 | A 3603310058 | CONSOLE |
| 190 | A 3223310080 | GASKET |
| 193 | A 3223310109 | SEAL HOLDER |
| 193 | A 3603310158 | CONSOLE |
| 196 | N 912004008102 | LOCK WASHER |
| 198 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 198 | N 304017008016 | SCREW |
| 201 | A 3603370171 | SCREW |
| 203 | N 000936010008 | NUT |
| 205 | A 3523380101 | STEERING ARM |
| 205 | A 3813380501 | STEERING ARM |
| 207 | A 3523380102 | STEERING ARM |
| 211 | A 3229940130 | LOCK |
| 211 | A 3229940230 | LOCK |
| 213 | N 000960014017 | SCREW |
| 216 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 216 | N 308676014013 | SCREW |
| 218 | A 3404280240 | BRACKET |
| 220 | A 3129970581 | GROMMET |
| 222 | A 3124281026 | HOLLOW SCREW |
| 224 | N 071412010100 | GREASE NIPPLE |
| 226 | N 071412010200 | GREASE NIPPLE |
| 228 | A 3453380205 | STEERING ARM |
| 228 | A 3453380205 | STEERING ARM |
| LEFT | ||
| 231 | A 3453380306 | STEERING ARM |
| 235 | N 912004012100 | LOCK WASHER |
| 237 | N 000961012027 | SCREW |
| 240 | A 3223321016 | SUPPORTING SLEEVE |
| LEFT | ||
| 240 | A 3603320716 | SUPPORTING SLEEVE |
| LEFT | ||
| 243 | A 3223321016 | SUPPORTING SLEEVE |
| RIGHT | ||
| 243 | A 3603320716 | SUPPORTING SLEEVE |
| RIGHT | ||
| 247 | A 3223310351 | SPACER RING |
| 250 | A 0049814410 | NEEDLE BEARING |
| 250 | A 0059816310 | NEEDLE BEARING |
| 250 | A 0029817410 | NEEDLE BEARING |
| 250 | A 0039815610 | NEEDLE BEARING |
| 250 | A 0039815910 | NEEDLE BEARING |
| 250 | A 0039816010 | NEEDLE BEARING |
| 255 | A 0039972546 | SEAL RING |
| 255 | A 0069971246 | SEAL RING |
| 258 | A 3229940125 | LOCK |
| 259 | A 3229940025 | LOCK |
| 261 | N 000960012043 | SCREW |
| 261 | A 3609900901 | SCREW |
| 261 | N 000961016064 | SCREW |
| 261 | A 3609900304 | SCREW |
| 261 | N 000961014127 | SCREW |
| 266 | A 3533340204 | DRUM HUB |
| 268 | A 3129901705 | STUD |
| 271 | A 3184020271 | WHEEL MOUNTING BOLT |
| 275 | A 3603340101 | WHEEL HUB |
| 278 | A 3129901705 | STUD |
| 282 | A 3894010071 | WHEEL MOUNTING BOLT |
| 285 | A 3604210101 | BRAKE DRUM |
| 288 | A 3123311052 | SPACER WASHER |
| 291 | A 3129810301 | CYLINDR. ROLLER BEARING |
| OUTSIDE | ||
| A 0029819505 | TAPERED ROLLER BEARING | |
| A 0039810005 | TAPERED ROLLER BEARING | |
| 293 | A 3123311073 | LOCK |
| 293 | A 3603340273 | LOCK |
| 295 | A 3523340015 | RING |
| 297 | A 0009816105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 297 | A 0019811405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 297 | A 0019819605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 297 | A 0049815805 | TAPERED ROLLER BEARING |
| 297 | A 0029819605 | TAPERED ROLLER BEARING |
| 300 | A 3403340051 | SPACER RING |
| 300 | A 3213560051 | SPACER RING |
| 302 | A 0039972247 | SEAL RING |
| Repalced by: A 0169976347 | ||
| 302 | A 0169976347 | SEAL RING |
| 302 | A 0039972347 | SEAL RING |
| 304 | A 3123560126 | GROOVED NUT |
| 304 | A 3603340026 | NUT |
| 306 | A 3123321073 | LOCK |
| 306 | A 3603340173 | LOCK |
| 308 | A 3223370417 | FOLLOWER |
| 308 | A 3603370117 | FOLLOWER |
| 311 | A 3229940034 | SNAP RING |
| 311 | A 3459940134 | SNAP RING |
| N 900055050310 | LOCK RING | |
| 313 | A 3853510272 | NUT |
| 315 | A 3223370051 | SPACER RING |
| 315 | A 3603370015 | THRUST RING |
| 320 | A 3803300723 | DIFFERENTIAL GEAR |
| 322 | A 3833502223 | DIFFERENTIAL GEAR |
| Repalced by: A 6763503223 | ||
| 322 | A 6763503223 | DIFFERENTIAL GEAR |
| 324 | N 900170014004 | SCREW |
| 324 | A 3609900501 | SCREW |
| 326 | A 3213530220 | DIFFERENTIAL SPIDER |
| 326 | A 3833530120 | DIFFERENTIAL SPIDER |
| 330 | A 3223530614 | DIFFERENTIAL PINION |
| 330 | A 3023530014 | DIFFERENTIAL PINION |
| 334 | A 3123531224 | SPHERICAL WASHER |
| 334 | A 3523530024 | SPHERICAL WASHER |
| 338 | A 3123531515 | SIDE GEAR |
| 338 | A 3583530015 | SIDE GEAR |
| 339 | A 3815860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 340 | A 3123531062 | THRUST WASHER |
| 340 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 340 | A 6743530362 | THRUST WASHER |
| 343 | A 3833300439 | RING GEAR AND PINION |
| Repalced by: A 3833301539 | ||
| 343 | A 3833301539 | RING GEAR AND PINION |
| RATIO: | ||
| 6:41 | ||
| 343 | A 3833301539 | RING GEAR AND PINION |
| RATIO: | ||
| 6:41 | ||
| 343 | A 3833301639 | RING GEAR AND PINION |
| RATIO 7:40 | ||
| 343 | A 3233501539 | RING GEAR AND PINION |
| RATIO 7:40 | ||
| 343 | A 3603300839 | RING GEAR AND PINION |
| RATIO: | ||
| 8:39 | ||
| 346 | A 3239900101 | SCREW |
| 346 | A 3529900701 | SCREW |
| 348 | A 3223530273 | LOCK |
| 350 | A 0019817905 | TAPERED ROLLER BEARING |
| 350 | A 0019812405 | TAPERED ROLLER BEARING |
| 350 | A 0019818205 | TAPERED ROLLER BEARING |
| 350 | A 0029812305 | TAPERED ROLLER BEARING |
| 350 | A 0019814905 | TAPERED ROLLER BEARING |
| 350 | A 0039815005 | TAPERED ROLLER BEARING |
| 355 | A 0009818701 | CYLINDR. ROLLER BEARING |
| 355 | A 0009819001 | CYLINDR. ROLLER BEARING |
| 358 | N 000471025002 | LOCK RING |
| 360 | A 3129940141 | LOCK |
| 362 | A 3603350052 | SPACER WASHER |
| 1.00 MM | ||
| 364 | A 3123531352 | SPACER WASHER |
| 0.10 MM | ||
| 364 | A 3123531452 | SPACER WASHER |
| 0.25 MM | ||
| 364 | A 3123533252 | SPACER WASHER |
| 0.50 MM | ||
| 369 | N 005412100309 | CYLINDR. ROLLER BEARING |
| 372 | A 0009810027 | ANGULAR CONTACT BEARING |
| 374 | A 3123531951 | SPACER RING |
| 376 | A 3123532852 | SPACER WASHER |
| 0.10 MM | ||
| 376 | A 3123532952 | SPACER WASHER |
| 0.25 MM | ||
| 376 | A 3123533152 | SPACER WASHER |
| 0.50 MM | ||
| 380 | A 3123511915 | FLANGE |
| 382 | N 912004010102 | LOCK WASHER |
| 384 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 384 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 384 | N 304017010053 | SCREW |
| 384 | N 000931010000 | SCREW |
| 386 | A 0019973247 | SEAL RING |
| Repalced by: A 0119977447 | ||
| 386 | A 0119977447 | SEAL RING |
| 386 | A 0099976347 | SEAL RING |
| 386 | A 0129972947 | SEAL RING |
| 388 | A 3123301044 | COUPLING FLANGE |
| Repalced by: A 3583300044 | ||
| 388 | A 3583300044 | COUPLING FLANGE |
| 388 | A 3523300144 | COUPLING FLANGE |
| 391 | A 3122621063 | PROTECTIVE PLATE |
| 393 | A 3853510372 | NUT |
| 397 | A 3523302303 | TIE ROD |
| LEMFOERDER | ||
| 397 | A 3523302403 | TIE ROD |
| EHRENREICH | ||
| 400 | A 3523300009 | TIE ROD TUBE |
| 402 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 402 | A 0003309535 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 404 | A 0003300885 | BOOT |
| 408 | N 000937018003 | NUT |
| N 000094004065 | COTTER PIN | |
| 410 | N 900087008000 | PLUG |
| 412 | A 0003381345 | CLAMP |
| 412 | A 0003381545 | CLAMP |
| 414 | N 000960010039 | SCREW |
| 416 | N 000935010010 | NUT |
| N 000094002034 | COTTER PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
