Transporto priemonė: LAF 911 B; VIN numerio dalis: 353119

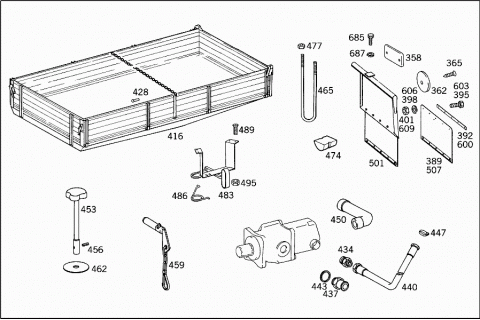

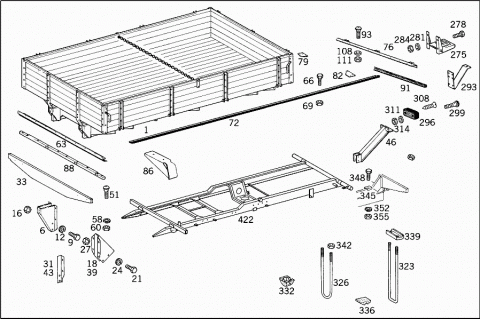

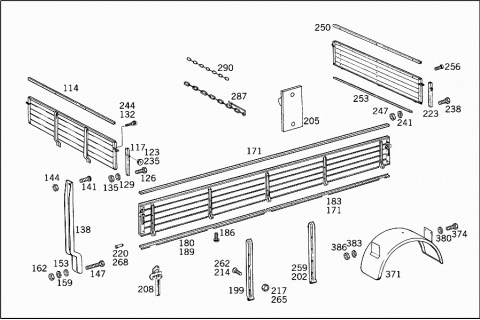

Grupė: 60 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3586000203 | PLATFORM |
| WITH TENSION CHAIN;LOADING SPACE: | ||
| 3600X2350X500 MM | ||
| 001 | A 3586000303 | PLATFORM |
| LOADING SPACE,4500X2350X500 MM | ||
| A 3586100001 | SUBSTRUCTURE | |
| A 3586100101 | SUBSTRUCTURE | |
| A 3526101801 | SUBSTRUCTURE | |
| Repalced by: A 3526111023 | ||
| A 3526111023 | TUBE | |
| A 3526101901 | SUBSTRUCTURE | |
| Repalced by: A 3526110923 | ||
| A 3526110923 | TUBE | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 422 | ||
| 006 | A 3526100230 | CONSOLE |
| 009 | N 000603008054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 8X60 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 428 | ||
| 012 | N 912004008102 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 434 | ||
| 016 | N 304032008006 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 018 | A 3226110416 | REINFORCEMENT |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 437 | ||
| 021 | N 000603008054 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 8X60 | ||
| 024 | N 912004008102 | LOCK WASHER |
| REINFORCEMENT TO SIDE MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 440 | ||
| 027 | N 304032008006 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 443 | ||
| 031 | A 3406140012 | ANGLE |
| LEFT | ||
| 031 | A 3406140112 | ANGLE |
| RIGHT | ||
| A 3586100201 | SUBSTRUCTURE | |
| Repalced by: A 3526110923 | ||
| A 3586100301 | SUBSTRUCTURE | |
| Repalced by: A 3526110923 | ||
| 033 | A 3526110923 | TUBE |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 450 | ||
| 039 | A 3226110416 | REINFORCEMENT |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 453 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 456 | ||
| 043 | A 3406140012 | ANGLE |
| LEFT | ||
| 043 | A 3406140112 | ANGLE |
| RIGHT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 459 | ||
| A 3586100034 | SUPPORT | |
| Repalced by: A 3526100034 | ||
| 046 | A 3526100034 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 462 | ||
| A 3526120814 | CROSS MEMBER | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 465 | ||
| 051 | N 000603008054 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X60 | ||
| 051 | N 000603008051 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X55 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 474 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 477 | ||
| 058 | N 912004008102 | LOCK WASHER |
| PLATFORM MOUNTING | ||
| 060 | N 304032008006 | NUT |
| PLATFORM MOUNTING | ||
| 063 | A 3526100085 | EDGING |
| Repalced by: A 3606102885 | ||
| 063 | A 3606102885 | EDGING |
| FRONT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 483 | ||
| 066 | N 000603008050 | SCREW |
| EDGING TO FLOOR | ||
| M 8X45 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 486 | ||
| 069 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 069 | N 913004008001 | NUT |
| EDGING TO FLOOR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 501 | ||
| A 3586100085 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3586100285 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3586100185 | EDGING | |
| Repalced by: A 0009853547 | ||
| 072 | A 3586100385 | EDGING |
| Repalced by: A 0009853547 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 507 | ||
| 076 | A 3526100185 | EDGING |
| Repalced by: A 0009853547 | ||
| 076 | A 0009853547 | METAL SECTION |
| PLATFORM FLOOR | ||
| 5314 MM | ||
| 079 | A 3128510145 | PANELLING |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 600 | ||
| 082 | A 3226160111 | PLATE |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 685 | ||
| 086 | A 3826160286 | STOP |
| SIDE PANELS | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 687 | ||
| 088 | A 3526160161 | LEDGE |
| FRONT | ||
| A 3526160061 | LEDGE | |
| Repalced by: A 3526160261 | ||
| 091 | A 3526160261 | LEDGE |
| REAR | ||
| 093 | N 000603008056 | SCREW |
| EDGING TO FLOOR | ||
| M 8X10 | ||
| 093 | N 000603008055 | SCREW |
| EDGING TO FLOOR | ||
| M8X90 | ||
| 093 | N 000605008037 | SCREW |
| EDGING TO FLOOR | ||
| M 8X90 | ||
| 093 | N 000603008051 | SCREW |
| EDGING TO FLOOR | ||
| M 8X55 | ||
| 093 | N 000603008050 | SCREW |
| EDGING TO FLOOR | ||
| M 8X45 | ||
| 108 | N 000440009103 | WASHER |
| EDGING TO FLOOR | ||
| 111 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 111 | N 913004008001 | NUT |
| EDGING TO FLOOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT PANEL | ||
| A 3526270070 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| 114 | A 3146371470 | BINDING RAIL |
| A 3529900196 | RIVET | |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 117 | A 3526200043 | RAIL |
| LEFT | ||
| A 3526200143 | RAIL | |
| RIGHT | ||
| A 3526370011 | PLATE | |
| THREADED | ||
| A 3529900296 | RIVET | |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 123 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 126 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 126 | N 304017010002 | SCREW |
| FRONT PANEL | ||
| M 10X30 | ||
| 129 | N 912004010102 | LOCK WASHER |
| FRONT PANEL | ||
| 132 | A 3526250015 | RING |
| FRONT PANEL | ||
| 135 | N 000934010014 | NUT |
| FRONT PANEL | ||
| 138 | A 3526200028 | BRACING |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 141 | N 000603008027 | SCREW |
| BRACING TO FRONT PANEL | ||
| M 8X35 | ||
| 144 | N 000934010014 | NUT |
| BRACING TO FRONT PANEL | ||
| 147 | N 000603008027 | SCREW |
| FRONT PANEL TO SUBSTRUCTURE | ||
| M 8X35 | ||
| 147 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 147 | N 304017008034 | SCREW |
| FRONT PANEL TO SUBSTRUCTURE | ||
| M 8X25 | ||
| 153 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 153 | N 009021008213 | WASHER |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 153 | N 000125008410 | WASHER |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 159 | N 912004008102 | LOCK WASHER |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 162 | N 304032008006 | NUT |
| FRONT PANEL TO SUBSTRUCTURE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SIDE PANEL | ||
| A 3526371370 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3526370070 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| 171 | A 3146371470 | BINDING RAIL |
| TOP | ||
| A 3529900196 | RIVET | |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| A 3526371470 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| 171 | A 3146371970 | BINDING RAIL |
| BOTTOM;LESS BORE AND LESS CUT-OUT | ||
| 180 | A 3526370370 | BINDING RAIL |
| ON LEFT SIDE PANEL AT THE FRONT,AND ON RIGHT SIDE PANEL AT THE REAR | ||
| 183 | A 3526370470 | BINDING RAIL |
| ON LEFT SIDE PANEL AT THE REAR,AND ON RIGHT SIDE PANEL AT THE FRONT | ||
| 186 | N 000097005025 | WOOD SCREW |
| 5X25 MM | ||
| 189 | A 3526370970 | BINDING RAIL |
| LEFT | ||
| 189 | A 3526371070 | BINDING RAIL |
| RIGHT | ||
| A 3529900296 | RIVET | |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 199 | A 3526370054 | HINGE |
| 202 | A 3526300082 | HINGE |
| WITH CHAIN FASTENER | ||
| 205 | A 3146300036 | BRACKET |
| TENSION CHAIN | ||
| 208 | A 3526370063 | HOOK |
| FASTENER TO PLATFORM SIDE PANEL | ||
| 208 | A 3526370163 | HOOK |
| FASTENER TO PLATFORM SIDE PANEL | ||
| 214 | N 000603008027 | SCREW |
| TENSION CHAIN FASTENER AND HINGE TO SIDE PANEL | ||
| M 8X35 | ||
| 217 | N 304032008006 | NUT |
| TENSION CHAIN FASTENER AND HINGE TO SIDE PANEL | ||
| 220 | N 001434012052 | PIN |
| SIDE PANEL TO SUBSTRUCTURE | ||
| N 000094004065 | COTTER PIN | |
| SIDE PANEL TO SUBSTRUCTURE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR PANEL | ||
| 223 | A 3526400054 | BINDING RAIL |
| LEFT | ||
| 223 | A 3526400154 | BINDING RAIL |
| RIGHT | ||
| A 3526370011 | PLATE | |
| THREADED | ||
| A 3529900296 | RIVET | |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| 235 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 238 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 238 | N 304017010002 | SCREW |
| REAR PANEL | ||
| M 10X30 | ||
| 241 | N 912004010102 | LOCK WASHER |
| REAR PANEL | ||
| 244 | A 3526250015 | RING |
| REAR PANEL | ||
| 247 | N 000555010014 | NUT |
| REAR PANEL | ||
| A 3526470070 | RAIL | |
| Repalced by: A 3146371470 | ||
| 250 | A 3146371470 | BINDING RAIL |
| TOP | ||
| A 3529900196 | RIVET | |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| A 3526470370 | RAIL | |
| Repalced by: A 3146371970 | ||
| 253 | A 3146371970 | BINDING RAIL |
| 256 | N 000097005025 | WOOD SCREW |
| 5X25 MM | ||
| 259 | A 3526370054 | HINGE |
| 262 | N 000603008027 | SCREW |
| HINGE TO PLATFORM REAR PANEL | ||
| M 8X35 | ||
| 265 | N 304032008006 | NUT |
| HINGE TO PLATFORM REAR PANEL | ||
| 268 | N 001434012052 | PIN |
| REAR PANEL TO SUBSTRUCTURE | ||
| N 000094004021 | COTTER PIN | |
| REAR PANEL TO SUBSTRUCTURE | ||
| 275 | A 0008700008 | FOLDING STEP |
| FOR REAR PANEL | ||
| 278 | N 000966008020 | SCREW |
| Repalced by: N 000965008007 | ||
| 278 | N 000965008007 | SCREW |
| FOLDING STEP TO REAR PANEL | ||
| M 8 X 30 | ||
| 281 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 281 | N 009021008213 | WASHER |
| FOLDING STEP TO REAR PANEL | ||
| A 0009842425 | THREADED CHUCK | |
| FOLDING STEP TO REAR PANEL | ||
| 284 | N 304032008006 | NUT |
| FOLDING STEP TO REAR PANEL | ||
| A 3406600094 | FASTENER | |
| Repalced by: A 3406600093 | ||
| 287 | A 3406600093 | CHAIN |
| WITH CHAIN LOCK | ||
| 290 | N 000763006004 | CHAIN |
| 293 | A 3526160686 | STOP |
| STOP BUFFER | ||
| 296 | A 3129870040 | RUBBER BUFFER |
| 299 | N 007985005146 | SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| M 5X25 | ||
| 299 | N 000603008050 | SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| M 8X45 | ||
| 299 | N 000603008051 | SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| M 8X55 | ||
| 308 | N 000096005027 | WOOD SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| 311 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 311 | N 000433005304 | WASHER |
| RUBBER BUFFER TO PLATFORM | ||
| 9 MM | ||
| 311 | N 000440009103 | WASHER |
| RUBBER BUFFER TO PLATFORM | ||
| 314 | N 304032005005 | NUT |
| RUBBER BUFFER TO PLATFORM | ||
| 314 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 314 | N 913004008001 | NUT |
| RUBBER BUFFER TO PLATFORM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM MOUNTING | ||
| H 613218910030 | CLAMP | |
| Repalced by: A 3218910030 | ||
| 323 | A 3218910030 | CLAMP |
| PLATFORM TO FRAME | ||
| 385 MM | ||
| A 3128582530 | CLAMP | |
| Repalced by: A 3228910630 | ||
| 326 | A 3228910630 | CLAMP |
| PLATFORM TO FRAME | ||
| 395 MM | ||
| A 3128582030 | CLAMP | |
| Repalced by: A 3608910630 | ||
| 326 | A 3608910630 | CLAMP |
| PLATFORM TO FRAME | ||
| 420 MM | ||
| 332 | A 3528910296 | BASE |
| CLAMP TO FRAME | ||
| 336 | A 3218580042 | PAD |
| CLAMP TO FRAME | ||
| 339 | A 3528910011 | PLATE |
| CLAMP TO FRAME | ||
| 342 | N 913002012004 | NUT |
| CLAMP TO FRAME | ||
| 345 | A 3528910013 | PLATE |
| PLATFORM MOUNTING | ||
| 348 | N 000960012388 | SCREW |
| Repalced by: N 000960012443 | ||
| 348 | N 000960012443 | SCREW |
| PLATFORM MOUNTING | ||
| M 12X150 | ||
| 352 | N 912004012100 | LOCK WASHER |
| PLATFORM MOUNTING | ||
| 355 | N 000934012022 | NUT |
| PLATFORM MOUNTING | ||
| 358 | A 0008261741 | SIDE REFLECTOR |
| Repalced by: A 0008262440 | ||
| 358 | A 0008262440 | REFLECTOR |
| AMBER | ||
| 362 | A 0005443505 | REFLECTOR |
| AMBER | ||
| A 0005443605 | REFLECTOR | |
| AMBER | ||
| A 0005443905 | REFLECTOR | |
| AMBER | ||
| 365 | N 007996004021 | WOOD SCREW |
| REFLECTOR TO PLATFORM | ||
| 4X25 MM | ||
| 365 | N 007996005012 | WOOD SCREW |
| 5X25 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR FENDER | ||
| 371 | A 3528800021 | REAR FENDER |
| 374 | N 000603008050 | SCREW |
| M 8X45 | ||
| 374 | N 000603008051 | SCREW |
| FENDER TO PLATFORM | ||
| M 8X55 | ||
| 380 | N 000440009152 | WASHER |
| Repalced by: N 000440009103 | ||
| 380 | N 000440009103 | WASHER |
| FENDER TO PLATFORM | ||
| 383 | N 000127008102 | LOCK WASHER |
| FENDER TO PLATFORM | ||
| 386 | N 304032008006 | NUT |
| FENDER TO PLATFORM | ||
| 389 | A 3818810205 | SPLASH GUARD |
| 392 | A 3818810206 | RAIL |
| 395 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 395 | N 304017006020 | SCREW |
| MUD APRON | ||
| M 6X20 | ||
| 398 | N 912004006102 | LOCK WASHER |
| 401 | N 000934006007 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM USED FOR MEILLER THREE-SIDE DUMP TRUCK | ||
| 416 | A 3536000103 | PLATFORM |
| LOADING SPACE, 3.6X2.1X0.4 M; ASSEMBLY WITH TENSION CHAIN AND SUBSTRUCTURE | ||
| 416 | A 3536000603 | PLATFORM |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| AUXILIARY FRAME | ||
| 422 | A 3536100801 | SUBSTRUCTURE |
| (AUXILIARY FRAME) | ||
| 422 | A 3536100901 | SUBSTRUCTURE |
| (AUXILIARY FRAME) | ||
| 428 | N 001433016007 | PIN |
| RETAINING ROPE TO PLATFORM | ||
| N 000094004021 | COTTER PIN | |
| RETAINING ROPE TO PLATFORM | ||
| 434 | A 0019971672 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 437 | A 0019971872 | FITTING |
| SUCTION LINE TO PUMP | ||
| 440 | A 0089971882 | HOSE |
| FROM PUMP TO T-FITTING | ||
| 443 | N 007603030107 | SEAL RING |
| SUCTION LINE TO PUMP | ||
| 447 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 447 | N 000000000668 | CLAMP |
| SUCTION LINE | ||
| 450 | A 3606190165 | LINE |
| OIL-TANK-TO-PUMP SUCTION LINE | ||
| 453 | A 3536190215 | SHAFT |
| DUMPER VALVE OPERATION | ||
| 456 | N 001481005026 | CLAMPING SLEEVE |
| DUMPER VALVE SHAFT TO DUMPER VALVE | ||
| 459 | A 0003150606 | COUPLING PIN |
| FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME | ||
| 462 | A 3296160476 | WASHER |
| (SEAL) | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM MOUNTING | ||
| 465 | A 3528910030 | CLAMP |
| DUMPER AUXILIARY FRAME TO CHASSIS, FRONT | ||
| 270 MM | ||
| 465 | A 3408910530 | CLAMP |
| DUMPER AUXILIARY FRAME TO CHASSIS, FRONT | ||
| 300 MM | ||
| 465 | A 3528910330 | CLAMP |
| DUMPER AUXILIARY FRAME TO CHASSIS, FRONT | ||
| 320 MM | ||
| A 3528910196 | BASE | |
| Repalced by: A 3528910296 | ||
| 474 | A 3528910296 | BASE |
| DUMPER AUXILIARY FRAME TO CHASSIS, FRONT | ||
| 477 | N 913002012004 | NUT |
| DUMPER AUXILIARY FRAME TO CHASSIS, FRONT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CHOCK FIXTURE | ||
| A 3528900010 | FIXTURE | |
| Repalced by: A 3528900110 | ||
| 483 | A 3528900110 | FIXTURE |
| CHOCK | ||
| 486 | A 3528990035 | SPRING |
| CHOCK FIXTURE | ||
| 489 | N 000603008049 | SCREW |
| BRACKET TO BODY | ||
| M 8X40 | ||
| 489 | N 000603008050 | SCREW |
| BRACKET TO PLATFORM | ||
| M 8X45 | ||
| 489 | N 007985008142 | SCREW |
| BRACKET TO PLATFORM | ||
| M 8X15 | ||
| 495 | N 304032008006 | NUT |
| BRACKET TO PLATFORM | ||
| 495 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 495 | N 913004008001 | NUT |
| BRACKET TO PLATFORM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MUD APRON | ||
| 501 | A 3538800208 | MUD APRON |
| LEFT | ||
| 501 | A 3538800308 | MUD APRON |
| RIGHT | ||
| 507 | A 0008820404 | SPLASH GUARD |
| 450X300 MM | ||
| 600 | A 0008820314 | BRACKET |
| MUD APRON | ||
| 603 | N 000085005110 | SCREW |
| 606 | N 000127005206 | LOCK WASHER |
| 609 | N 304032005005 | NUT |
| 685 | N 000933012001 | SCREW |
| MUD APRON TO AUXILIARY FRAME | ||
| M 12X15 | ||
| 687 | N 912004012100 | LOCK WASHER |
| MUD APRON TO AUXILIARY FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
