Transporto priemonė: LAF 911 B; VIN numerio dalis: 353119
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

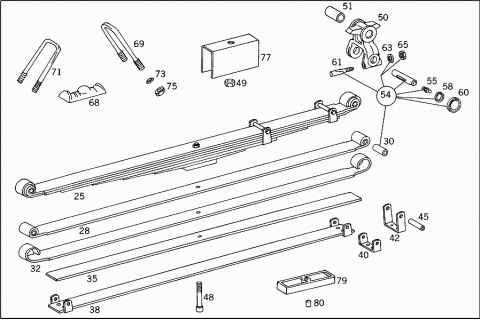

| 025 | A 3533201002 | FRONT SPRING |
| 7-LEAF | ||
| 025 | A 3533201002 | FRONT SPRING |
| 7-LEAF | ||
| 025 | A 3533201002 | FRONT SPRING |
| 7-LEAF | ||
| 025 | A 3533201302 | FRONT SPRING |
| 9-LEAF | ||
| 025 | A 3533201302 | FRONT SPRING |
| 9-LEAF | ||
| 025 | A 3603200602 | FRONT SPRING |
| 9-LEAF | ||
| 028 | A 3533201394 | SPRING LEAF |
| NO.1 | ||
| 028 | A 3533201394 | SPRING LEAF |
| NO.1 | ||
| 028 | A 3533201394 | SPRING LEAF |
| NO.1 | ||
| 028 | A 3533202294 | SPRING LEAF |
| NO.1 | ||
| 028 | A 3533202294 | SPRING LEAF |
| NO.1 | ||
| 028 | A 3603200894 | SPRING LEAF |
| NO.1 | ||
| 030 | A 3533220050 | BUSHING |
| 030 | A 3853220150 | BUSHING |
| 032 | A 3533210612 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3533210612 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3533210612 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3533210912 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3533210912 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3603210612 | SPRING LEAF |
| NO.2 | ||
| A 3533201494 | SPRING LEAF | |
| NO.3 | ||
| A 3533201494 | SPRING LEAF | |
| NO.3 | ||
| A 3533201494 | SPRING LEAF | |
| NO.3 | ||
| A 3603200994 | SPRING LEAF | |
| NO.3 | ||
| A 0013212133 | SPRING CLAMP | |
| Repalced by: A 3223242033 | ||
| A 3223242033 | SPRING CLAMP | |
| A 3223242033 | SPRING CLAMP | |
| A 3223242033 | SPRING CLAMP | |
| A 3123213333 | SPRING CLAMP | |
| Repalced by: A 3123240633 | ||
| A 3123240633 | SPRING CLAMP | |
| N 000660008026 | RIVET | |
| N 000660008026 | RIVET | |
| N 000660008026 | RIVET | |
| 035 | A 3533210913 | SPRING LEAF |
| NO.3 | ||
| 035 | A 3533210913 | SPRING LEAF |
| NO.3 | ||
| A 3533210614 | SPRING LEAF | |
| Repalced by: A 3533210414 | ||
| A 3533210414 | SPRING LEAF | |
| NO.4 | ||
| A 3533210414 | SPRING LEAF | |
| NO.4 | ||
| A 3533210414 | SPRING LEAF | |
| NO.4 | ||
| A 3603210614 | SPRING LEAF | |
| Repalced by: A 3603210514 | ||
| A 3603210514 | SPRING LEAF | |
| NO.4 | ||
| 038 | A 3533202394 | SPRING LEAF |
| Repalced by: A 3533210912 | ||
| 038 | A 3533210912 | SPRING LEAF |
| NO.4 | ||
| 038 | A 3533210912 | SPRING LEAF |
| NO.4 | ||
| 040 | A 0013210033 | SPRING CLAMP |
| Repalced by: A 3223242033 | ||
| 040 | A 3223242033 | SPRING CLAMP |
| 040 | A 3223242033 | SPRING CLAMP |
| N 000660008026 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| N 000660008026 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| 042 | A 0033212533 | SPRING CLAMP |
| Repalced by: A 3223242033 | ||
| 042 | A 3533210033 | SPRING CLAMP |
| Repalced by: A 3223242033 | ||
| 042 | A 3223242033 | SPRING CLAMP |
| 042 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 042 | A 3123240633 | SPRING CLAMP |
| N 000660008026 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| 045 | A 0003212153 | SPACER TUBE |
| Repalced by: A 0003212353 | ||
| 045 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 045 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| N 000931008189 | SCREW | |
| FOR SPRING CLAMPS | ||
| N 304032008006 | NUT | |
| FOR SPRING CLAMPS | ||
| 048 | N 004626012136 | SPRING BOLT |
| M 12X110 | ||
| 048 | N 004626012136 | SPRING BOLT |
| M 12X110 | ||
| 048 | N 004626012136 | SPRING BOLT |
| M 12X110 | ||
| 048 | N 004626012100 | SPRING BOLT |
| Repalced by: N 004626012272 | ||
| 048 | N 004626012272 | SPRING BOLT |
| M 12X135 | ||
| 048 | N 004626012272 | SPRING BOLT |
| M 12X135 | ||
| 048 | N 004626012164 | SPRING BOLT |
| M 12X140 | ||
| 049 | N 000934012021 | NUT |
| 050 | A 3533200162 | SHACKLE |
| LEAF SPRING | ||
| 050 | A 3523200063 | SHACKLE |
| Repalced by: A 6173200163 | ||
| 050 | A 6173200163 | SHACKLE |
| LEAF SPRING | ||
| 051 | A 3533220050 | BUSHING |
| 051 | A 3853220150 | BUSHING |
| 051 | A 3523220050 | BUSHING |
| 051 | A 3853220050 | BUSHING |
| A 3523220530 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| A 3853220030 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| 054 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 054 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 054 | A 3585860032 | REPAIR KIT |
| Repalced by: A 3583200065 | ||
| 054 | A 3583200065 | SHACKLE PIN |
| PARTS KIT | ||
| 055 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 055 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 058 | A 3523230176 | WASHER |
| Repalced by: A 3523230376 | ||
| 058 | A 3523230276 | WASHER |
| Repalced by: A 3523230376 | ||
| 058 | A 3523231476 | WASHER |
| Repalced by: A 3523230376 | ||
| 058 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 058 | A 3523231576 | WASHER |
| Repalced by: A 3523230476 | ||
| 058 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 058 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 060 | A 0029973140 | SEAL RING |
| SHACKLE PIN | ||
| 061 | A 3529900337 | BOLT |
| PIN IN SHACKLE | ||
| 063 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 063 | N 000125010532 | WASHER |
| PIN IN SHACKLE | ||
| 065 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 065 | N 910113010000 | NUT |
| PIN IN SHACKLE | ||
| 068 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 069 | A 3523310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 210 MM | ||
| 071 | A 3523311025 | U-BOLT |
| Repalced by: A 3523311125 | ||
| 071 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 073 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 075 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 077 | A 3533210084 | SHIM |
| Repalced by: A 3583210084 | ||
| 077 | A 3583210084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 077 | A 3583210084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 077 | A 3583210084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 079 | A 3533220884 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 080 | A 3289910060 | DOWEL PIN |
| Repalced by: A 3229910060 | ||
| 080 | A 3229910060 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 080 | A 3229910060 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 080 | A 3229910060 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3523300175 | RUBBER MOUNTING | |
| Repalced by: A 3853300075 | ||
| A 3853300075 | RUBBER MOUNTING | |
| STOP BUFFER TO FRAME | ||
| N 000933010105 | SCREW | |
| STOP BUFFER TO FRAME | ||
| M 10X25 | ||
| N 000933010128 | SCREW | |
| STOP BUFFER TO FRAME | ||
| M 10X20 | ||
| N 912004010102 | LOCK WASHER | |
| STOP BUFFER TO FRAME | ||
| N 000934010014 | NUT | |
| STOP BUFFER TO FRAME | ||

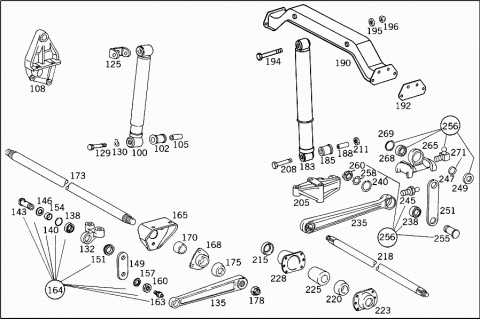

| 100 | A 0023230600 | SHOCK ABSORBER |
| Repalced by: A 0043236200 | ||
| 100 | A 0043236200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 100 | A 0023233400 | SHOCK ABSORBER |
| Repalced by: A 0043237500 | ||
| 100 | A 0043237500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 100 | A 3453230000 | SHOCK ABSORBER |
| Repalced by: A 0013263100 | ||
| 100 | A 0013263100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 102 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 06 00,002 323 34 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 345 323 00 00,004 323 62 00 | ||
| 102 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 102 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 75 00 | ||
| 105 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 105 | A 0003233150 | SPACER RING |
| TO 002 323 06 00,002 323 34 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 345 323 00 00,004 323 62 00 | ||
| 105 | A 0003235250 | BUSHING |
| TO 004 323 75 00 | ||
| 108 | A 3283230063 | BEARING BRACKET |
| FRONT | ||
| 108 | A 3523232063 | BEARING BRACKET |
| Repalced by: A 3523232463 | ||
| 108 | A 3523232463 | BEARING BRACKET |
| FRONT | ||
| 108 | A 3413230263 | BEARING BRACKET |
| Repalced by: A 3413230463 | ||
| 108 | A 3413230463 | BEARING BRACKET |
| FRONT | ||
| 108 | A 3283230163 | BEARING BRACKET |
| FRONT | ||
| 108 | A 3523232163 | BEARING BRACKET |
| Repalced by: A 3523232563 | ||
| 108 | A 3523232563 | BEARING BRACKET |
| FRONT | ||
| 108 | A 3413230363 | BEARING BRACKET |
| Repalced by: A 3413230563 | ||
| 108 | A 3413230563 | BEARING BRACKET |
| FRONT | ||
| N 000933010145 | SCREW | |
| TOP BEARING BRACKET TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| TOP BEARING BRACKET TO FRAME | ||
| N 000934010014 | NUT | |
| TOP BEARING BRACKET TO FRAME | ||
| A 3523230195 | REINFORCEMENT | |
| AT SIDE MEMBER | ||
| N 000963010033 | SCREW | |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| A 3523230118 | END PIECE | |
| SHOCK ABSORBER | ||
| 125 | A 3523230340 | BRACKET |
| SHOCK ABSORBER TO TOP BRACKET | ||
| N 000937024002 | NUT | |
| FORK TO BRACKET | ||
| N 913004020004 | NUT | |
| Repalced by: N 913004020003 | ||
| N 913004020003 | NUT | |
| SHOCK ABSORBER TO TOP BRACKET | ||
| N 000094005045 | COTTER PIN | |
| FORK TO BRACKET | ||
| A 3529903201 | SCREW | |
| SHOCK ABSORBER TO TOP BRACKET | ||
| A 3409900002 | SCREW | |
| SHOCK ABSORBER TO FORK | ||
| N 000960016164 | SCREW | |
| SHOCK ABSORBER TO TOP BRACKET | ||
| N 000979016006 | NUT | |
| Repalced by: N 000979016007 | ||
| N 000979016007 | NUT | |
| SHOCK ABSORBER TO FORK | ||
| N 000094004065 | COTTER PIN | |
| SHOCK ABSORBER TO FORK | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 129 | A 3529901501 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 130 | N 000093017002 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 132 | A 3603230463 | BEARING BRACKET |
| TORSION BAR | ||
| 135 | A 3603230269 | LEVER |
| TORSION BAR | ||
| 135 | A 3603230369 | LEVER |
| TORSION BAR | ||
| 138 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 138 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 138 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 138 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 138 | A 0019814631 | JOINT BEARING |
| TORSION BAR | ||
| 138 | A 0019814831 | JOINT BEARING |
| TORSION BAR | ||
| 140 | N 009045035001 | SNAP RING |
| ARTICULATED ROD TO LEVER | ||
| 143 | A 3603230274 | PIN |
| Repalced by: A 3605860032 | ||
| 146 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 149 | A 3603230116 | LINK |
| TORSION BAR | ||
| 151 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 154 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 157 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 160 | N 000936020010 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 163 | N 071412010100 | GREASE NIPPLE |
| 164 | A 3605860032 | REPAIR KIT |
| Repalced by: A 3603200041 | ||
| 164 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 165 | A 3603200378 | CONSOLE |
| Repalced by: A 3533200378 | ||
| 165 | A 3533200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 168 | A 3523230283 | HOUSING |
| TORSION BAR | ||
| 170 | A 3523230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 170 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR | ||
| N 000933010105 | SCREW | |
| HOUSING TO BEARING BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| HOUSING TO BEARING BRACKET | ||
| N 000934010014 | NUT | |
| HOUSING TO BEARING BRACKET | ||
| 173 | A 3603230165 | TORSION BAR |
| Repalced by: A 3603230465 | ||
| 173 | A 3603230465 | TORSION BAR |
| FRONT | ||
| 173 | A 3603230265 | TORSION BAR |
| FRONT | ||
| 175 | A 3523230751 | SPACER RING |
| TORSION BAR | ||
| 175 | A 3603230151 | SPACER RING |
| TORSION BAR | ||
| 178 | N 000937028000 | NUT |
| LEVER TO TORSION BAR | ||
| M 28X1.5 | ||
| 178 | N 000937027004 | NUT |
| LEVER TO TORSION BAR | ||
| M 27X1.5 | ||
| 178 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| N 000094005045 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| N 000094006317 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| 183 | A 0013263000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 183 | A 0013264600 | SHOCK ABSORBER |
| Repalced by: A 0033269900 | ||
| 183 | A 0033269900 | SHOCK ABSORBER |
| REAR AXLE | ||
| 183 | A 0023261000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 185 | A 0003232885 | RUBBER MOUNTING |
| SHOCK ABSORBER | ||
| 185 | A 0003260268 | RUBBER BUFFER |
| Repalced by: A 0003230785 | ||
| 185 | A 0003230785 | RUBBER MOUNTING |
| SHOCK ABSORBER | ||
| 188 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 188 | A 0003233150 | SPACER RING |
| SHOCK ABSORBER | ||
| 188 | A 0003260750 | BUSHING |
| Repalced by: A 0003230553 | ||
| 188 | A 0003230553 | SPACER TUBE |
| SHOCK ABSORBER | ||
| 190 | A 3583100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 190 | A 3523100140 | CROSS MEMBER |
| Repalced by: A 3523101440 | ||
| 190 | A 3523101440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 192 | A 3123121557 | MOUNTING PLATE |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 000933010157 | SCREW | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 912004010102 | LOCK WASHER | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 000934010014 | NUT | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 194 | A 3129903301 | SCREW |
| Repalced by: A 6749901204 | ||
| 194 | A 6749901204 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 194 | A 3529901301 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| A 3123231576 | WASHER | |
| Repalced by: A 3379900540 | ||
| 195 | A 3379900540 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 195 | A 3529901540 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 196 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 196 | N 000979016007 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 196 | N 000937020001 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| N 000094004065 | COTTER PIN | |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| A 3523260371 | SCREW | |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| A 3523260273 | LOCK | |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 205 | A 3523261240 | BRACKET |
| LEFT | ||
| 205 | A 3523261340 | BRACKET |
| RIGHT | ||
| N 000960014212 | SCREW | |
| Repalced by: N 000960014269 | ||
| N 000960014263 | SCREW | |
| BRACKET TO SPRING SADDLE | ||
| M 14X120 | ||
| N 000960014244 | SCREW | |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| N 912004014100 | LOCK WASHER | |
| BRACKET TO SPRING SADDLE | ||
| 208 | A 3529901201 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 211 | N 000937020001 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| N 000094004065 | COTTER PIN | |
| SHOCK ABSORBER TO BRACKET | ||
| 215 | A 3523230751 | SPACER RING |
| TORSION BAR TO FRAME | ||
| 218 | A 3223260065 | TORSION BAR |
| Repalced by: A 3523260665 | ||
| 218 | A 3523260665 | TORSION BAR |
| REAR | ||
| 220 | A 3523260181 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 223 | A 3403260082 | HOUSING |
| TORSION BAR TO FRAME | ||
| 225 | A 3523260081 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 228 | A 3403260182 | HOUSING |
| TORSION BAR TO FRAME | ||
| N 000933010145 | SCREW | |
| HOUSING TO PLATE | ||
| N 912004010102 | LOCK WASHER | |
| HOUSING TO PLATE | ||
| N 000934010014 | NUT | |
| HOUSING TO PLATE | ||
| A 3223200027 | LEVER | |
| TORSION BAR | ||
| A 0003261081 | RUBBER MOUNTING | |
| LEVER | ||
| A 0003260350 | BUSHING | |
| LEVER | ||
| A 0003260076 | WASHER | |
| LEVER | ||
| N 000472050000 | LOCK RING | |
| LEVER | ||
| A 0003260057 | SEAL RING | |
| LEVER | ||
| 10.00 MM | ||
| A 0003260157 | SEAL RING | |
| LEVER | ||
| 7.50 MM | ||
| A 3403260174 | PIN | |
| Repalced by: A 3605860132 | ||
| N 000937020001 | NUT | |
| LEVER | ||
| N 000094004065 | COTTER PIN | |
| LEVER | ||
| A 3605860132 | REPAIR KIT | |
| Repalced by: A 3603200141 | ||
| A 3603200141 | REPAIR KIT | |
| TORSION BAR,REAR | ||
| 235 | A 3523260369 | LEVER |
| TORSION BAR,REAR | ||
| 238 | A 0009810831 | JOINT BEARING |
| LEVER | ||
| 238 | A 0009811231 | JOINT BEARING |
| LEVER | ||
| 240 | N 000472055000 | LOCK RING |
| MOUNTING TO LEVER | ||
| 245 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 245 | N 071412008102 | GREASE NIPPLE |
| LEVER | ||
| N 000937028000 | NUT | |
| LEVER TO TORSION BAR | ||
| N 000937027004 | NUT | |
| LEVER TO TORSION BAR | ||
| N 000094005045 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| A 3403260047 | SHACKLE | |
| TORSION BAR | ||
| 247 | A 3523260153 | SPACER TUBE |
| LINK TO BEARING BRACKET | ||
| 249 | A 3603230560 | SEAL RING |
| LINK TO BEARING BRACKET | ||
| 251 | A 3523260216 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 255 | A 3523260274 | PIN |
| Repalced by: A 3605860332 | ||
| 256 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 256 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 258 | N 070952035101 | LOCK PLATE |
| LINK TO LEVER | ||
| 260 | N 070852035000 | NUT |
| LINK TO LEVER | ||
| A 3223200029 | PLATE | |
| TORSION BAR,REAR | ||
| A 0003261081 | RUBBER MOUNTING | |
| A 0003260350 | BUSHING | |
| A 0003260076 | WASHER | |
| N 000472050000 | LOCK RING | |
| A 0003260057 | SEAL RING | |
| 10.00 MM | ||
| A 0003260157 | SEAL RING | |
| 7.50 MM | ||
| A 3403260174 | PIN | |
| Repalced by: A 3605860132 | ||
| N 000937020001 | NUT | |
| N 000094004065 | COTTER PIN | |
| A 3605860132 | REPAIR KIT | |
| Repalced by: A 3603200141 | ||
| A 3603200141 | REPAIR KIT | |
| TORSION BAR,REAR | ||
| 265 | A 3523250331 | PLATE |
| Repalced by: A 3523200035 | ||
| 265 | A 3523200035 | PLATE |
| (GUIDE PLATE) | ||
| 268 | A 0009810831 | JOINT BEARING |
| 268 | A 0009811231 | JOINT BEARING |
| 269 | N 000472055000 | LOCK RING |
| 271 | N 071412008302 | GREASE NIPPLE |

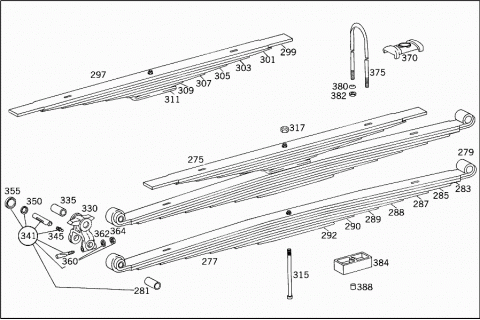

| 275 | A 3533201008 | REAR SPRING |
| 8-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 275 | A 3533201008 | REAR SPRING |
| 8-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 275 | A 3583200408 | REAR SPRING |
| 7-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 275 | A 3583200408 | REAR SPRING |
| 7-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 275 | A 3583200508 | REAR SPRING |
| 9-LEAF;WITH 9-LEAF HELPER SPRING | ||
| 277 | A 3533201306 | REAR SPRING |
| 8-LEAF | ||
| 277 | A 3533201306 | REAR SPRING |
| 8-LEAF | ||
| 277 | A 3583200406 | REAR SPRING |
| Repalced by: A 3583200408 | ||
| 277 | A 3583200406 | REAR SPRING |
| Repalced by: A 3583200408 | ||
| 277 | A 3583200706 | REAR SPRING |
| 9-LEAF | ||
| 279 | A 3533201693 | SPRING LEAF |
| NO.1 | ||
| 279 | A 3533201693 | SPRING LEAF |
| NO.1 | ||
| 279 | A 3583200693 | SPRING LEAF |
| NO.1 | ||
| 279 | A 3583200693 | SPRING LEAF |
| NO.1 | ||
| 279 | A 3583201093 | SPRING LEAF |
| NO.1 | ||
| 281 | A 3523220050 | BUSHING |
| 281 | A 3523220050 | BUSHING |
| 281 | A 3853220050 | BUSHING |
| 281 | A 3853220050 | BUSHING |
| 281 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 281 | A 3523250150 | BUSHING |
| 281 | A 3523250150 | BUSHING |
| 281 | A 3853250050 | BUSHING |
| 281 | A 3853250050 | BUSHING |
| 283 | A 3533241312 | SPRING LEAF |
| NO.2 | ||
| 283 | A 3533241312 | SPRING LEAF |
| NO.2 | ||
| 283 | A 3583240412 | SPRING LEAF |
| NO.2 | ||
| 283 | A 3583240412 | SPRING LEAF |
| NO.2 | ||
| 283 | A 3583240612 | SPRING LEAF |
| Repalced by: A 3583240912 | ||
| 283 | A 3583240912 | SPRING LEAF |
| NO.2 | ||
| 285 | A 3533241313 | SPRING LEAF |
| NO.3 | ||
| 285 | A 3533241313 | SPRING LEAF |
| NO.3 | ||
| 285 | A 3583240413 | SPRING LEAF |
| NO.3 | ||
| 285 | A 3583240413 | SPRING LEAF |
| NO.3 | ||
| 285 | A 3583240613 | SPRING LEAF |
| NO.3 | ||
| 287 | A 3533241314 | SPRING LEAF |
| NO.4 | ||
| 287 | A 3533241314 | SPRING LEAF |
| NO.4 | ||
| 287 | A 3583240414 | SPRING LEAF |
| NO.4 | ||
| 287 | A 3583240414 | SPRING LEAF |
| NO.4 | ||
| 287 | A 3583240614 | SPRING LEAF |
| NO.4 | ||
| 288 | A 3533241315 | SPRING LEAF |
| NO.5 | ||
| 288 | A 3533241315 | SPRING LEAF |
| NO.5 | ||
| 288 | A 3583240415 | SPRING LEAF |
| NO.5 | ||
| 288 | A 3583240415 | SPRING LEAF |
| NO.5 | ||
| 288 | A 3583240615 | SPRING LEAF |
| NO.5 | ||
| 289 | A 3533241316 | SPRING LEAF |
| NO.6 | ||
| 289 | A 3533241316 | SPRING LEAF |
| NO.6 | ||
| 289 | A 3583240416 | SPRING LEAF |
| NO.6 | ||
| 289 | A 3583240416 | SPRING LEAF |
| NO.6 | ||
| 289 | A 3583240616 | SPRING LEAF |
| NO.6 | ||
| 290 | A 3533241217 | SPRING LEAF |
| NO.7 | ||
| 290 | A 3533241217 | SPRING LEAF |
| NO.7 | ||
| 290 | A 3583240417 | SPRING LEAF |
| NO.7 | ||
| 290 | A 3583240417 | SPRING LEAF |
| NO.7 | ||
| 292 | A 3583240518 | SPRING LEAF |
| NO.8 | ||
| 292 | A 3533240818 | SPRING LEAF |
| NO.8 | ||
| 292 | A 3533240818 | SPRING LEAF |
| NO.8 | ||
| A 3583240519 | SPRING LEAF | |
| NO.9 | ||
| A 3583220184 | SHIM | |
| A 3583220184 | SHIM | |
| 297 | A 3533201010 | HELPER SPRING |
| 6-LEAF | ||
| 297 | A 3533201010 | HELPER SPRING |
| 6-LEAF | ||
| 297 | A 3583200310 | HELPER SPRING |
| 5-LEAF | ||
| 297 | A 3583200310 | HELPER SPRING |
| 5-LEAF | ||
| 297 | A 3583200410 | HELPER SPRING |
| 9-LEAF | ||
| 299 | A 3533241040 | SPRING LEAF |
| NO.1 | ||
| 299 | A 3533241040 | SPRING LEAF |
| NO.1 | ||
| 299 | A 3583240340 | SPRING LEAF |
| NO.1 | ||
| 299 | A 3583240340 | SPRING LEAF |
| NO.1 | ||
| 299 | A 3583240440 | SPRING LEAF |
| NO.1 | ||
| 301 | A 3533241041 | SPRING LEAF |
| NO.2 | ||
| 301 | A 3533241041 | SPRING LEAF |
| NO.2 | ||
| 301 | A 3583240341 | SPRING LEAF |
| NO.2 | ||
| 301 | A 3583240341 | SPRING LEAF |
| NO.2 | ||
| 301 | A 3583240441 | SPRING LEAF |
| NO.2 | ||
| 303 | A 3533241042 | SPRING LEAF |
| NO.3 | ||
| 303 | A 3533241042 | SPRING LEAF |
| NO.3 | ||
| 303 | A 3583240342 | SPRING LEAF |
| NO.3 | ||
| 303 | A 3583240342 | SPRING LEAF |
| NO.3 | ||
| 303 | A 3583240542 | SPRING LEAF |
| NO.3 | ||
| 305 | A 3533241043 | SPRING LEAF |
| NO.4 | ||
| 305 | A 3533241043 | SPRING LEAF |
| NO.4 | ||
| 305 | A 3583240343 | SPRING LEAF |
| NO.4 | ||
| 305 | A 3583240343 | SPRING LEAF |
| NO.4 | ||
| 305 | A 3583240543 | SPRING LEAF |
| NO.4 | ||
| 307 | A 3533241044 | SPRING LEAF |
| NO.5 | ||
| 307 | A 3533241044 | SPRING LEAF |
| NO.5 | ||
| 307 | A 3583240344 | SPRING LEAF |
| NO.5 | ||
| 307 | A 3583240344 | SPRING LEAF |
| NO.5 | ||
| 307 | A 3583240444 | SPRING LEAF |
| NO.5 | ||
| 309 | A 3533240645 | SPRING LEAF |
| NO.6 | ||
| 309 | A 3533240645 | SPRING LEAF |
| NO.6 | ||
| 309 | A 3583240445 | SPRING LEAF |
| NO.6 | ||
| A 3583240246 | SPRING LEAF | |
| NO.7 | ||
| A 3583240047 | SPRING LEAF | |
| NO.8 | ||
| A 3583240048 | SPRING LEAF | |
| NO.9 | ||
| 311 | A 3583240035 | SPACER |
| 311 | A 3583240035 | SPACER |
| 315 | N 004626012114 | SPRING BOLT |
| M 12X190 | ||
| 315 | N 004626012114 | SPRING BOLT |
| M 12X190 | ||
| 315 | N 004626012143 | SPRING BOLT |
| M 12X185 | ||
| 315 | N 004626012143 | SPRING BOLT |
| M 12X185 | ||
| 315 | N 004626012139 | SPRING BOLT |
| M12X235 | ||
| 317 | N 000934012010 | NUT |
| 317 | N 000934012010 | NUT |
| A 3533201006 | REAR SPRING | |
| 9-LEAF | ||
| A 3533201593 | SPRING LEAF | |
| NO.1 | ||
| A 3523220050 | BUSHING | |
| A 3853220050 | BUSHING | |
| A 3533241212 | SPRING LEAF | |
| NO.2 | ||
| A 3533241213 | SPRING LEAF | |
| NO.3 | ||
| A 3533202293 | SPRING LEAF | |
| NO.4 | ||
| A 3603210133 | SPRING CLAMP | |
| N 910006008024 | RIVET | |
| A 3533241215 | SPRING LEAF | |
| NO.5 | ||
| A 3533241216 | SPRING LEAF | |
| NO.6 | ||
| A 3533241117 | SPRING LEAF | |
| NO.7 | ||
| A 3533240718 | SPRING LEAF | |
| NO.8 | ||
| A 3533240519 | SPRING LEAF | |
| NO.9 | ||
| A 0003212553 | SPACER TUBE | |
| Repalced by: A 0003212753 | ||
| A 3033210153 | SPACER TUBE | |
| Repalced by: A 0003212753 | ||
| A 0003212753 | SPACER TUBE | |
| N 000931012081 | SCREW | |
| N 000934012022 | NUT | |
| N 004626012109 | SPRING BOLT | |
| N 000934012010 | NUT | |
| 330 | A 3533200063 | SHACKLE |
| (SPRING SHACKLE) | ||
| 330 | A 3523200163 | SHACKLE |
| (SPRING SHACKLE) | ||
| 330 | A 3523200163 | SHACKLE |
| (SPRING SHACKLE) | ||
| 335 | A 3523220050 | BUSHING |
| 335 | A 3853220050 | BUSHING |
| 335 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 335 | A 3523250150 | BUSHING |
| 335 | A 3523250150 | BUSHING |
| 335 | A 3853250050 | BUSHING |
| 335 | A 3853250050 | BUSHING |
| A 3523220530 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| A 3853220030 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| 341 | A 3855860032 | REPAIR KIT |
| Repalced by: A 3855860332 | ||
| 341 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 341 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 341 | A 3523250530 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| 341 | A 3853250030 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| 341 | A 3855860132 | REPAIR KIT |
| Repalced by: A 3855860232 | ||
| 341 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 341 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 341 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 345 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 350 | A 3523230176 | WASHER |
| Repalced by: A 3523230376 | ||
| 350 | A 3523230276 | WASHER |
| Repalced by: A 3523230376 | ||
| 350 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 350 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 350 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 350 | A 3523230776 | WASHER |
| Repalced by: A 3523230976 | ||
| 350 | A 3523230876 | WASHER |
| Repalced by: A 3523230976 | ||
| 350 | A 3523231276 | WASHER |
| Repalced by: A 3523230976 | ||
| 350 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 350 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 350 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 350 | A 3523231376 | WASHER |
| Repalced by: A 3523231076 | ||
| 350 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 350 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 355 | A 0029973140 | SEAL RING |
| SHACKLE PIN | ||
| 355 | A 0029973040 | SEAL RING |
| SHACKLE PIN | ||
| 355 | A 0029973040 | SEAL RING |
| SHACKLE PIN | ||
| 360 | A 3529900337 | BOLT |
| SPRING TO SHACKLE | ||
| 362 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 362 | N 000125010532 | WASHER |
| SPRING TO SHACKLE | ||
| 364 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 364 | N 910113010000 | NUT |
| SPRING TO SHACKLE | ||
| 370 | A 3213250831 | PLATE |
| Repalced by: A 3833250031 | ||
| 370 | A 3543515026 | SPRING CLAMPING PLATE |
| Repalced by: A 3833250031 | ||
| 370 | A 3833250031 | PLATE |
| 375 | A 3423510425 | U-BOLT |
| Repalced by: A 3523510325 | ||
| 375 | A 3523510325 | U-BOLT |
| 350 MM | ||
| 375 | A 3523510325 | U-BOLT |
| 350 MM | ||
| 375 | A 3123514825 | U-BOLT |
| Repalced by: A 3523511225 | ||
| 375 | A 3523511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 330 MM | ||
| 375 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| 375 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| 375 | A 3213512325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 375 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 430 MM | ||
| 375 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 430 MM | ||
| 375 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 460 MM | ||
| 380 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 382 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 384 | A 3523250384 | SHIM |
| SPRING LEAVES | ||
| 384 | A 3523250184 | SHIM |
| Repalced by: A 3523250384 | ||
| 384 | A 3523250384 | SHIM |
| SPRING LEAVES | ||
| 388 | A 3289910060 | DOWEL PIN |
| SHIM TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
