Transporto priemonė: LAF 911 B; VIN numerio dalis: 353119
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

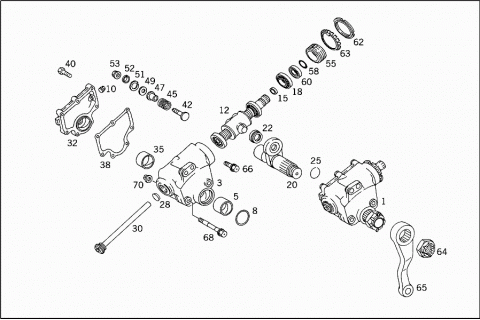

| 001 | A 3274606101 | STEERING BOX ASSEMBLY |
| Repalced by: A 3274606501 | ||
| 001 | A 3274606501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601201 | ||
| 001 | A 3444601201 | STEERING BOX ASSEMBLY |
| 001 | A 3274606201 | STEERING BOX ASSEMBLY |
| Repalced by: A 3094601501 | ||
| 001 | A 3094601501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 001 | A 3084600001 | STEERING BOX ASSEMBLY |
| 003 | A 3214601302 | STEERING BOX |
| WITH BEARING BUSHING | ||
| 003 | A 3274600202 | STEERING BOX |
| WITH BEARING BUSHING | ||
| 005 | A 3214610350 | BUSHING |
| STANDARD | ||
| 47.1 MM | ||
| 005 | A 3214610550 | BUSHING |
| REPAIR SIZE I | ||
| 47.6 MM | ||
| 008 | A 0019970645 | SEAL RING |
| 008 | A 0049976845 | SEAL RING |
| 010 | N 000906016002 | SCREW PLUG |
| BOX COVER | ||
| A 3274602208 | STEERING WORM | |
| Repalced by: A 4064600118 | ||
| A 4064600118 | STEERING NUT | |
| Repalced by: A 4064600218 | ||
| A 4064600218 | STEERING NUT | |
| WITH WORM | ||
| 012 | A 3274602308 | STEERING WORM |
| Repalced by: A 3094600708 | ||
| 012 | A 3094600708 | STEERING WORM |
| Repalced by: A 3094601018 | ||
| 012 | A 3094601018 | STEERING NUT |
| Repalced by: A 3094600708 | ||
| 012 | A 3094600708 | STEERING WORM |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| 015 | A 3219970740 | SEAL RING |
| STEERING NUT BEARING | ||
| 018 | A 0009811306 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 018 | A 3459817006 | BARREL-TYPE BEARING |
| 018 | A 0009810806 | BARREL-TYPE BEARING |
| 020 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 022 | A 3214620537 | BALL CUP |
| STEERING WORM SECTOR SHAFT | ||
| 025 | N 009045038001 | SNAP RING |
| STEERING WORM SECTOR SHAFT | ||
| 028 | A 3219970640 | SEAL RING |
| STEERING BOX | ||
| 030 | A 3214600315 | OIL LEVEL CHECK PIPE |
| STEERING BOX | ||
| N 007603030400 | SEAL RING | |
| STEERING BOX | ||
| N 007604030206 | SCREW PLUG | |
| STEERING BOX | ||
| 032 | A 3274600214 | STEERING BOX COVER |
| Repalced by: A 3214600414 | ||
| 032 | A 3214600414 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| A 3274600314 | STEERING BOX COVER | |
| Repalced by: A 3214600514 | ||
| A 3214600514 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| 035 | A 3214620250 | BUSHING |
| 038 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 038 | A 3524610180 | GASKET |
| COVER TO BOX | ||
| 040 | A 0019909101 | SCREW |
| COVER TO BOX | ||
| 042 | A 3214620171 | SCREW |
| STEERING SHAFT TO BOX | ||
| 045 | A 3219932201 | SPRING |
| STEERING SHAFT TO BOX | ||
| 047 | A 3214620185 | THRUST PIECE |
| STEERING SHAFT TO BOX | ||
| 049 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT TO BOX | ||
| 051 | A 0009946041 | LOCK |
| STEERING SHAFT TO BOX | ||
| 052 | A 0019976140 | SEAL RING |
| STEERING SHAFT TO BOX | ||
| A 3219900050 | NUT | |
| STEERING SHAFT TO BOX | ||
| 053 | A 0029900251 | NUT |
| STEERING SHAFT TO BOX | ||
| 055 | A 3224620151 | RING |
| STEERING NUT BEARING | ||
| 058 | A 0029979845 | SEAL RING |
| STEERING NUT BEARING | ||
| 060 | A 0029974346 | SEAL RING |
| STEERING NUT BEARING | ||
| 062 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 063 | A 3229940115 | LOCK |
| STEERING NUT BEARING | ||
| 064 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094006317 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 065 | A 3524631401 | PITMAN ARM |
| 065 | A 3524631501 | PITMAN ARM |
| 066 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 068 | A 3229900914 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 070 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| N 000094003222 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

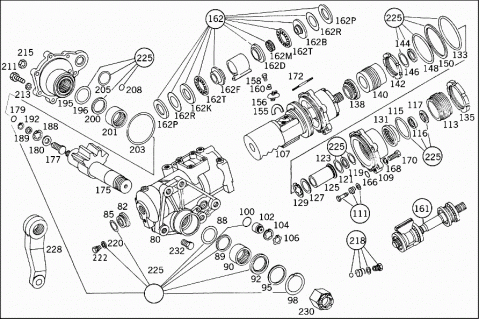

| MERCEDES-BENZ POWER STEERING | ||
| A 3604603101 | STEERING BOX ASSEMBLY | |
| 080 | A 3604602802 | STEERING BOX |
| WITH SLEEVE VALVE | ||
| 082 | A 3604610005 | COVER |
| EXCHANGEABLE TOGETHER ONLY WITH: | ||
| 005 997 93 45 | ||
| 085 | A 0059979345 | SEAL RING |
| STEERING BOX | ||
| 088 | A 0069977445 | SEAL RING |
| STEERING NUT BEARING | ||
| 22X3 MM | ||
| 089 | A 3604660260 | SEAL RING |
| STEERING NUT BEARING | ||
| 090 | A 0039812110 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 092 | A 0059974246 | SEAL RING |
| Repalced by: A 0119977946 | ||
| 095 | A 0029974340 | SEAL RING |
| Repalced by: A 0119977946 | ||
| 095 | A 0119977946 | SEAL RING |
| STEERING SHAFT BEARING | ||
| 098 | A 1124660173 | LOCK |
| STEERING SHAFT BEARING | ||
| 100 | A 0059979445 | SEAL RING |
| VALVE HOUSING SEALING | ||
| 38X3 MM | ||
| 102 | A 3604660305 | COVER |
| VALVE HOUSING SEALING | ||
| 102 | A 3604660405 | COVER |
| VALVE HOUSING SEALING | ||
| 104 | A 0019943741 | LOCK |
| VALVE HOUSING SEALING | ||
| 106 | A 0009945541 | LOCK |
| VALVE HOUSING SEALING | ||
| 107 | A 3604602185 | PISTON |
| WITH STEERING WORM AND STEERING NUT | ||
| 109 | A 3604602014 | STEERING BOX COVER |
| PISTON | ||
| 111 | A 3605861646 | REPAIR KIT |
| CHECK VALVE IN BEARING COVER | ||
| 113 | A 3604620034 | SCREW COLLAR |
| 115 | A 0029974745 | SEAL RING |
| STEERING NUT BEARING | ||
| 75X3 MM | ||
| 116 | A 0059974346 | SEAL RING |
| Repalced by: A 0119977246 | ||
| 117 | A 0029974440 | SEAL RING |
| Repalced by: A 0119977246 | ||
| 117 | A 0119977246 | SEAL RING |
| Repalced by: A 0149976947 | ||
| 117 | A 0149976947 | SEAL RING |
| STEERING NUT BEARING | ||
| 119 | A 3604660460 | SEAL RING |
| STEERING NUT BEARING | ||
| 121 | A 0079973745 | SEAL RING |
| STEERING NUT BEARING | ||
| 33X3 MM | ||
| 123 | A 0009979745 | SEAL RING |
| STEERING NUT BEARING | ||
| 125 | A 3604610050 | BUSHING |
| STEERING NUT BEARING | ||
| 127 | N 000988037006 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.0 MM | ||
| 127 | N 000988037007 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.1 MM | ||
| 127 | N 000988037008 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.2 MM | ||
| 127 | N 000988037009 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.3 MM | ||
| 129 | A 0019943441 | LOCK |
| 131 | A 3609810027 | ANGULAR CONTACT BEARING |
| STEERING WORM | ||
| 133 | A 0089971345 | SEAL RING |
| STEERING NUT BEARING | ||
| 135 | A 6173560026 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 138 | A 3609810227 | ANGULAR CONTACT BEARING |
| STEERING NUT BEARING | ||
| 140 | A 3604660205 | COVER |
| STEERING NUT BEARING | ||
| 142 | N 070852070000 | NUT |
| STEERING NUT BEARING | ||
| 144 | A 3604660060 | SEAL RING |
| STEERING NUT BEARING | ||
| 146 | A 0059979645 | SEAL RING |
| STEERING NUT BEARING | ||
| 41X3 MM | ||
| 148 | A 3604660660 | SEAL RING |
| STEERING NUT BEARING | ||
| 117.3X4 MM | ||
| 150 | A 0079979445 | SEAL RING |
| STEERING NUT BEARING | ||
| A 3605860246 | REPAIR KIT | |
| 8.000 MM | ||
| A 3605860446 | REPAIR KIT | |
| 8.002 MM | ||
| A 3605860646 | REPAIR KIT | |
| 8.004 MM | ||
| A 3605860846 | REPAIR KIT | |
| 8.006 MM | ||
| A 3605861046 | REPAIR KIT | |
| 8.008 MM | ||
| A 3605861246 | REPAIR KIT | |
| A 3605861346 | REPAIR KIT | |
| 8.010 MM | ||
| A 3605861446 | REPAIR KIT | |
| 8.014 MM | ||
| A 3605861546 | REPAIR KIT | |
| 8.016 MM | ||
| 155 | A 3604620225 | BALL GUIDE |
| 156 | A 3609950120 | CLAMP |
| BALL GUIDE TO PISTON | ||
| 158 | A 1209900520 | SCREW |
| BALL GUIDE TO PISTON | ||
| 160 | A 1129940005 | LOCK |
| BALL GUIDE TO PISTON | ||
| 161 | A 3605861946 | REPAIR KIT |
| STEERING WORM WITH NUT | ||
| 162 | A 3604603199 | INSTALLATION KIT |
| CONICAL SPRING WASHER CUSHIONING | ||
| 162B | A 3604620028 | BEARING RING |
| 162D | A 3604620128 | BEARING RING |
| 162F | A 3604620228 | BEARING RING |
| 162K | A 3609902140 | WASHER |
| 162M | A 0059812510 | NEEDLE BEARING |
| 162P | A 3859930026 | DISC SPRING |
| 162R | A 3859930126 | DISC SPRING |
| 162T | A 3859810018 | ROLLER BEARING |
| 166 | A 0059979745 | SEAL RING |
| COVER TO STEERING BOX | ||
| 168 | N 912004010102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 170 | N 000933010200 | SCREW |
| COVER TO STEERING BOX | ||
| M 10X30 | ||
| 172 | A 3604660983 | PISTON |
| STROKE LIMIT | ||
| 175 | A 3604600011 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 177 | A 3604620071 | SCREW |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 179 | A 0059979845 | SEAL RING |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 10X3 MM | ||
| 180 | A 3604620152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.1 MM | ||
| 180 | A 3604620252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.05MM | ||
| 180 | A 3604620352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.0 MM | ||
| 180 | A 3604620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 180 | A 3604620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.9 MM | ||
| 180 | A 3604620652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 180 | A 3604620852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.8 MM | ||
| 180 | A 3604620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.75 MM | ||
| 180 | A 3604620952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.70 MM | ||
| 180 | A 3604621052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.65 MM | ||
| 180 | A 3604621152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.60 MM | ||
| 180 | A 3604621252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.55 MM | ||
| 180 | A 3604621352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 180 | A 3604621452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.45 MM | ||
| 180 | A 3604621552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.40 MM | ||
| 188 | A 0049949441 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 189 | A 3604620062 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 192 | N 000471015000 | LOCK RING |
| STEERING SHAFT BEARING IN COVER | ||
| 15X1 | ||
| 195 | A 3604602214 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 196 | A 3604660260 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 200 | A 0069977445 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 55X3 MM | ||
| 201 | A 0039812210 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 203 | A 0059979945 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 114X4 MM | ||
| 205 | A 0059979645 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 41X3 MM | ||
| 208 | A 0059979745 | SEAL RING |
| BOX COVER | ||
| 9X2.5 MM | ||
| 211 | N 000933010200 | SCREW |
| COVER TO STEERING BOX | ||
| 213 | N 912004010102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 215 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 215 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 215 | N 308675014002 | NUT |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 218 | A 3605861746 | REPAIR KIT |
| CHECK VALVE IN BOX | ||
| 220 | N 007603012405 | SEAL RING |
| OIL DRAIN | ||
| 222 | N 000910012000 | SCREW PLUG |
| OIL DRAIN | ||
| 225 | A 3605861846 | REPAIR KIT |
| (GASKET KIT) | ||
| 228 | A 3604630201 | PITMAN ARM |
| 230 | N 000937042000 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 232 | A 3529900302 | SCREW |
| STEERING TO STEERING BRACKET | ||
| N 000177001003 | WIRE | |
| STEERING TO STEERING BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

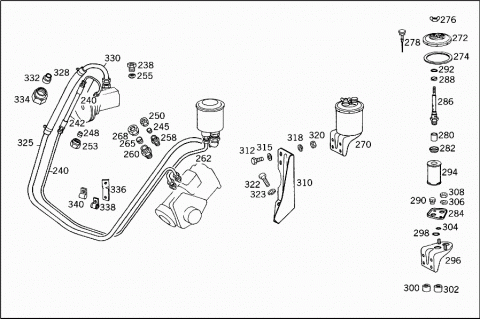

| OIL TANK AND LINES | ||
| 238 | A 1899970172 | FITTING |
| LINE TO OIL PUMP | ||
| 240 | A 0002610283 | OIL PIPE |
| FROM PUMP TO STEERING | ||
| 10 MM | ||
| 240 | A 0002610283 | OIL PIPE |
| FROM PUMP TO HOSE | ||
| 10 MM | ||
| 240 | A 0002610283 | OIL PIPE |
| FROM HOSE TO STEERING | ||
| 10 MM | ||
| 242 | A 3609970682 | HOSE |
| 242 | A 3609971282 | HOSE |
| 245 | N 003861010009 | GLAND |
| FOR 10-MM PIPE | ||
| 248 | N 003861010009 | GLAND |
| FOR 10-MM PIPE | ||
| 250 | N 915017010104 | UNION NUT |
| FOR 10-MM PIPE | ||
| 253 | N 915017010100 | UNION NUT |
| FOR 10-MM PIPE | ||
| 255 | A 3229970076 | SEAL CONE |
| FOR DELIVERY LINE | ||
| 258 | N 003901010009 | SCREW-IN FITTING |
| FOR DELIVERY LINE | ||
| 260 | N 003901015005 | SCREW-IN FITTING |
| FOR DELIVERY LINE | ||
| A 3604660065 | LINE | |
| Repalced by: A 3604600024 | ||
| 262 | A 3604600024 | LINE |
| FROM OIL TANK TO PUMP | ||
| 265 | N 003861015004 | GLAND |
| OIL LINES | ||
| 268 | N 915017015100 | UNION NUT |
| OIL LINES | ||
| 270 | A 0004662402 | TANK |
| OIL TANK | ||
| 272 | A 0004661305 | COVER |
| 274 | A 0004660260 | SEAL RING |
| 276 | N 000315008006 | NUT |
| 278 | A 0004660067 | OIL DIPSTICK |
| 280 | A 0009870643 | RUBBER SLEEVE |
| 282 | A 0004660675 | CENTERING RING |
| 284 | A 0004660037 | REINFORCEMENT |
| 286 | A 0014664465 | FILTER CARRIER |
| 288 | A 0004660153 | SPACER TUBE |
| 290 | A 0004660571 | FITTING |
| 292 | A 0004660775 | WASHER |
| 294 | A 0004660604 | FILTER |
| 296 | A 0004660840 | BRACKET |
| 298 | A 0059970848 | SEAL RING |
| 22X3.5 MM | ||
| 300 | A 0004660358 | CONNECTOR |
| 302 | A 0004660458 | CONNECTOR |
| 304 | A 0099970145 | SEAL RING |
| 306 | N 912004008102 | LOCK WASHER |
| 308 | N 304032008006 | NUT |
| 310 | A 3604660240 | BRACKET |
| OIL TANK | ||
| 312 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET | ||
| 312 | N 000933010105 | SCREW |
| OIL TANK TO BRACKET | ||
| 315 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 315 | N 000125010532 | WASHER |
| OIL TANK TO BRACKET | ||
| 318 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 320 | N 000934010014 | NUT |
| OIL TANK TO BRACKET | ||
| 322 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET | ||
| 323 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 325 | A 3604606324 | LINE |
| FROM OIL TANK TO HOSE | ||
| 328 | A 3859971582 | HOSE |
| FROM OIL TANK TO PUMP | ||
| N 916017025000 | CLAMP | |
| Repalced by: N 000000000668 | ||
| N 000000000668 | CLAMP | |
| FROM OIL TANK TO PUMP | ||
| 330 | A 3604605724 | LINE |
| FROM HOSE TO PUMP | ||
| 332 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 332 | A 0019901267 | SEAL CONE |
| OIL LINES | ||
| 334 | N 915017022100 | UNION NUT |
| OIL LINES | ||
| 336 | A 3604660740 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| 338 | A 3609950301 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 340 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 340 | N 916016018202 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 000084006197 | SCREW | |
| DELIVERY AND SUCTION LINES | ||
| AM 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| DELIVERY AND SUCTION LINES | ||
| N 000934006007 | NUT | |
| DELIVERY AND SUCTION LINES | ||

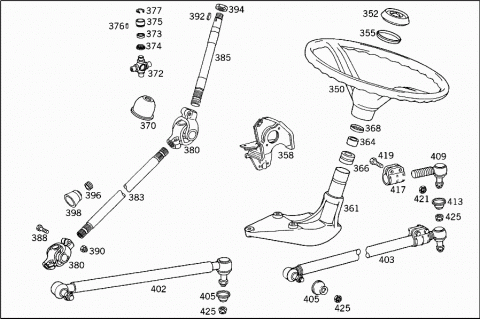

| 350 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 350 | A 0004641101 | STEERING WHEEL |
| 350 | A 0004641201 | STEERING WHEEL |
| 352 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| A 0004642631 | CAP | |
| STEERING WHEEL | ||
| 355 | A 0004640177 | PROTECTIVE RING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING MOUNTING | ||
| 358 | A 3224600935 | BRACKET |
| STEERING | ||
| A 3604600029 | STEERING BRACKET | |
| A 3224601235 | BRACKET | |
| STEERING | ||
| N 910005012080 | RIVET | |
| STEERING BRACKET TO FRAME | ||
| A 0029908201 | SCREW | |
| STEERING BRACKET TO SIDE MEMBER | ||
| A 3229903101 | SCREW | |
| STEERING TO FRAME | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| STEERING BRACKET TO SIDE MEMBER | ||
| N 000934014008 | NUT | |
| STEERING TO FRAME | ||
| 361 | A 3434600037 | BEARING |
| Repalced by: A 3434600137 | ||
| 361 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 361 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 361 | A 3434600237 | BEARING |
| STEERING | ||
| 364 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 364 | A 0119815110 | NEEDLE BEARING |
| 366 | A 3214620165 | RING |
| 368 | A 3224620023 | COVER |
| N 000931010093 | SCREW | |
| STEERING COLUMN BRACKET TO CAB | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| STEERING COLUMN BRACKET TO CAB | ||
| N 000137010201 | SPRING WASHER | |
| STEERING COLUMN BRACKET TO CAB | ||
| 370 | A 3524620296 | BOOT |
| Repalced by: A 3604620596 | ||
| 370 | A 3604620596 | BOOT |
| UNIVERSAL JOINT TO STEERING | ||
| 372 | A 3274600157 | UNIVERSAL JOINT |
| Repalced by: A 3524600057 | ||
| 372 | A 1884100231 | UNIVERSAL JOINT CROSS |
| 373 | A 1884110258 | SEAL HOLDER |
| 374 | A 1884110460 | RUBBER RING |
| 375 | A 1104110242 | BEARING BUSHING |
| AS REQUIRED | ||
| 28.013-28.023 MM | ||
| 375 | A 1104110342 | BEARING BUSHING |
| 28.024-28.036 MM | ||
| 376 | A 3229810087 | NEEDLE |
| SET = 192 PIECES | ||
| 377 | A 1889940534 | SNAP RING |
| 1.45 MM | ||
| 377 | A 1889940034 | SNAP RING |
| 1.50 MM | ||
| 377 | A 1889940134 | SNAP RING |
| 1.55 MM | ||
| 377 | A 1889940234 | SNAP RING |
| 1.60 MM | ||
| 377 | A 1889940334 | SNAP RING |
| 1.65 MM | ||
| 377 | A 1889940434 | SNAP RING |
| 1.70 MM | ||
| A 3524600057 | UNIVERSAL JOINT | |
| 380 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 380 | A 0004600057 | UNIVERSAL JOINT |
| 380 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 380 | A 0004600157 | UNIVERSAL JOINT |
| 380 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| A 3384625101 | STEERING SHAFT | |
| BOTTOM | ||
| 383 | A 3604621201 | STEERING SHAFT |
| BOTTOM | ||
| 383 | A 3604622101 | STEERING SHAFT |
| BOTTOM | ||
| 383 | A 3604621301 | STEERING SHAFT |
| BOTTOM | ||
| 383 | A 3604622201 | STEERING SHAFT |
| BOTTOM | ||
| 385 | A 3354620101 | STEERING SHAFT |
| Repalced by: A 3524620001 | ||
| 385 | A 3524620001 | STEERING SHAFT |
| Repalced by: A 3524623901 | ||
| 385 | A 3524623901 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 385 | A 3524622601 | STEERING SHAFT |
| Repalced by: A 3524623101 | ||
| 385 | A 3524623101 | STEERING SHAFT |
| TOP | ||
| 385 | A 3524621801 | STEERING SHAFT |
| Repalced by: A 3524624101 | ||
| 385 | A 3524624101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 385 | A 3524622801 | STEERING SHAFT |
| Repalced by: A 3524623601 | ||
| 385 | A 3524623601 | STEERING SHAFT |
| TOP | ||
| A 3219900401 | SCREW | |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 10X35 | ||
| 388 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X38 | ||
| 388 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X42 | ||
| N 000463010500 | LOCK PLATE | |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 390 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 392 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 394 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 396 | A 3214620060 | SEAL RING |
| 398 | A 3354620096 | BOOT |
| 402 | A 3524602305 | DRAG LINK |
| Repalced by: A 3524603105 | ||
| 402 | A 3524602405 | DRAG LINK |
| Repalced by: A 3524603105 | ||
| 403 | A 3524603105 | DRAG LINK |
| Repalced by: A 3524605605 | ||
| 403 | A 3524605605 | DRAG LINK |
| LEMFOERDER | ||
| 403 | A 3524604805 | DRAG LINK |
| EHRENREICH | ||
| 405 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 405 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 409 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 409 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 409 | A 0013300435 | JOINT |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 409 | A 0013300435 | JOINT |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 413 | A 0003301185 | BOOT |
| 413 | A 0003301185 | BOOT |
| 417 | A 0003381545 | CLAMP |
| CLAMP, TWO-HOLE | ||
| 417 | A 0003381545 | CLAMP |
| CLAMP, TWO-HOLE | ||
| A 4619955044 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| "6245" | ||
| 419 | N 000960010035 | SCREW |
| CLAMP TO DRAG LINK | ||
| 419 | N 000960010035 | SCREW |
| CLAMP TO DRAG LINK | ||
| N 000960010072 | SCREW | |
| CLAMP, ONE-HOLE | ||
| 421 | N 000935010010 | NUT |
| CLAMP, TWO-HOLE | ||
| 421 | N 000935010010 | NUT |
| CLAMP, TWO-HOLE | ||
| N 913004010010 | NUT | |
| Repalced by: N 910113010002 | ||
| N 910113010002 | NUT | |
| CLAMP, ONE-HOLE | ||
| N 000094002077 | COTTER PIN | |
| CLAMP TO DRAG LINK | ||
| N 000094002077 | COTTER PIN | |
| CLAMP TO DRAG LINK | ||
| 425 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
