Transporto priemonė: LAF 911 B; VIN numerio dalis: 353119
Grupė: 26 TRANSMISSION

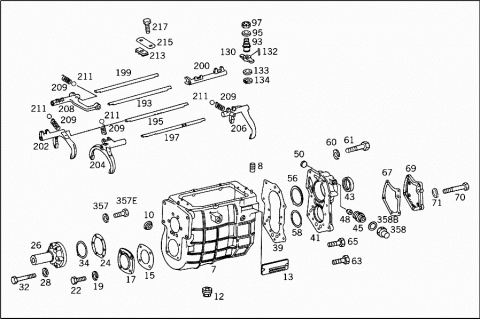

19246

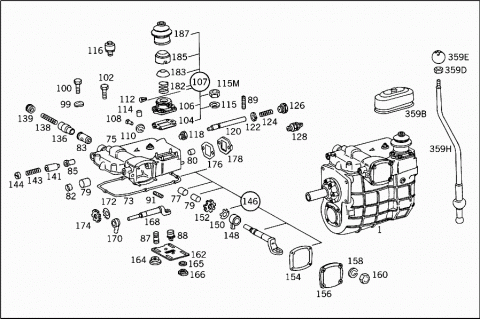

19247

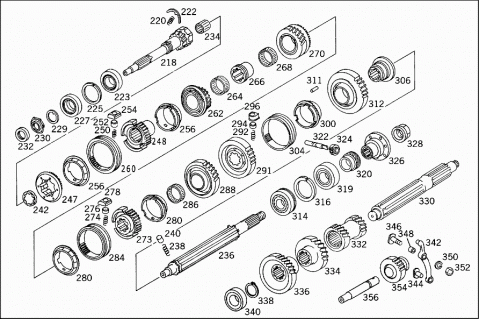

19252

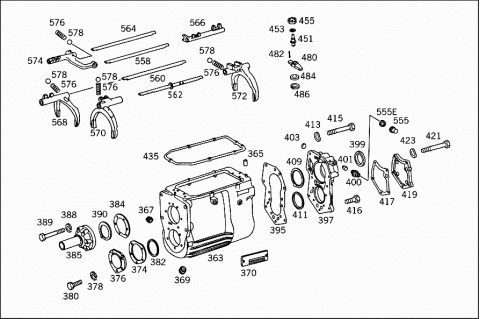

19248

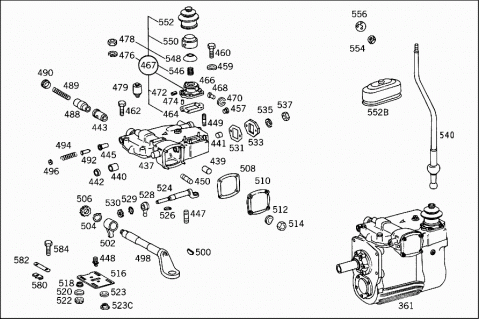

19249

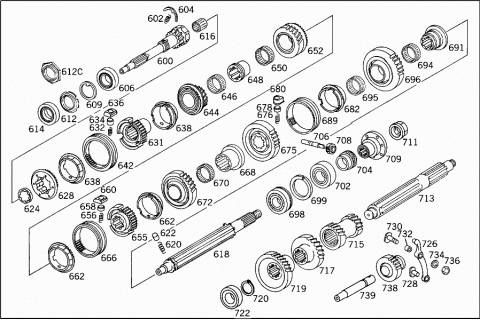

19250

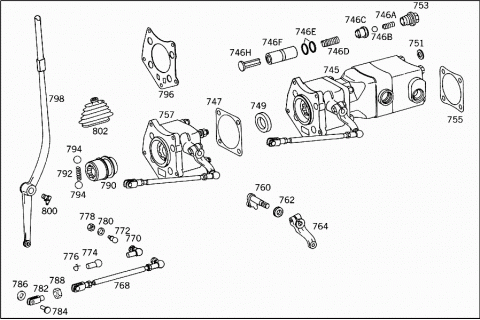

19251
# Kodas Pavadinimas
001 A 3582600600 TRANSMISSION
Repalced by: A 3582605900
001 A 3582600800 TRANSMISSION
Repalced by: A 3582605900
001 A 3582605900 TRANSMISSION
G 32
001 A 3582600700 TRANSMISSION
Repalced by: A 3582606000
001 A 3582600900 TRANSMISSION
Repalced by: A 3582606000
001 A 3582606000 TRANSMISSION
Repalced by: A 3802600500
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
357
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
357 E
007 A 3522600011 TRANSMISSION CASE
Repalced by: A 3022600611
007 A 3022600311 TRANSMISSION CASE
Repalced by: A 3022600611
007 A 3022600611 TRANSMISSION CASE
008 N 000007010239 CYLINDRICAL PIN
Repalced by: N 000007010102
008 N 000007010102 CYLINDRICAL PIN
010 A 1869970032 SCREW PLUG
Repalced by: A 3529970032
010 A 3529970032 SCREW PLUG
OIL FILLING
012 A 0009971332 SCREW PLUG
Repalced by: A 0009972632
012 A 0009972632 SCREW PLUG
OIL DRAIN
012 A 0009973432 SCREW PLUG
OIL DRAIN
013 A 3215841024 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
013 A 3855841824 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
013 A 3855845824 UNIT IDENTIFICATION PLATE
Repalced by: A 6755840024
013 A 6755840024 UNIT IDENTIFICATION PLATE
N 001476003007 GROOVED NAIL
015 A 3212610779 GASKET
Repalced by: A 3522611280
015 A 3522611280 GASKET
Repalced by: A 3522611880
015 A 3522611880 GASKET
FRONT BOTTOM
017 A 3212610133 COVER
FRONT BOTTOM
019 N 912004008102 LOCK WASHER
END COVER TO TRANSMISSION CASE
022 N 000933008147 SCREW
Repalced by: N 304017008021
022 N 304017008021 SCREW
END COVER TO TRANSMISSION CASE
024 A 3122612179 GASKET
Repalced by: A 3122611180
024 A 3122611180 GASKET
END COVER TO TRANSMISSION CASE
026 A 3212610318 TRANSMISSION CASE COVER
Repalced by: A 3212610418
026 A 3212610418 TRANSMISSION CASE COVER
FRONT TOP
028 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
028 N 000137008212 SPRING WASHER
CASE COVER TO TRANSMISSION
032 N 000931008246 SCREW
Repalced by: N 304017008028
032 N 304017008028 SCREW
CASE COVER TO TRANSMISSION
034 A 3122625362 SEAL RING
AS REQUIRED
2.85 MM
034 A 3122625462 SEAL RING
AS REQUIRED
2.90 MM
034 A 3122625562 SEAL RING
AS REQUIRED
2.95 MM
034 A 3122623462 SEAL RING
AS REQUIRED
3.00 MM
034 A 3122624362 SEAL RING
AS REQUIRED
3.05 MM
034 A 3122624462 SEAL RING
AS REQUIRED
3.10 MM
034 A 3122623562 SEAL RING
AS REQUIRED
3.15 MM
034 A 3122623662 SEAL RING
AS REQUIRED
3.20 MM
034 A 3122623762 SEAL RING
AS REQUIRED
3.25 MM
039 A 3212611379 GASKET
Repalced by: A 3812610480
039 A 3812610480 GASKET
Repalced by: A 3812610780
039 A 3812610780 GASKET
REAR
041 A 3372610120 TRANSMISSION CASE COVER
Repalced by: A 3372610220
041 A 3372610220 TRANSMISSION CASE COVER
REAR
043 A 0089971146 SEAL RING
CASE COVER
045 A 3212610031 THREADED BUSHING
CASE COVER
048 A 0119976447 SEAL RING
050 N 915015024000 PLUG
CASE COVER
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
358
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
358B
056 A 3122832452 SPACER WASHER
AS REQUIRED
0.15 MM
056 A 3212620862 SEAL RING
AS REQUIRED
2.90 MM
056 A 3212620962 SEAL RING
AS REQUIRED
3.00 MM
056 A 3212621062 SEAL RING
AS REQUIRED
3.10 MM
056 A 3212621162 SEAL RING
AS REQUIRED
3.20 MM
056 A 3212621262 SEAL RING
AS REQUIRED
3.30 MM
056 A 3212621362 SEAL RING
AS REQUIRED
3.40 MM
056 A 3212621462 SEAL RING
AS REQUIRED
3.50 MM
056 A 3212621562 SEAL RING
AS REQUIRED
3.60 MM
058 A 3122831752 SPACER WASHER
AS REQUIRED
0.05 MM
058 A 3122831052 SPACER WASHER
AS REQUIRED
0.10 MM
058 A 3122831152 SPACER WASHER
AS REQUIRED
0.20 MM
058 A 3122831252 SPACER WASHER
AS REQUIRED
0.40 MM
058 A 3122832152 SPACER WASHER
AS REQUIRED
0.80 MM
060 N 912004008102 LOCK WASHER
CASE COVER TO TRANSMISSION
061 N 000931008123 SCREW
CASE COVER TO TRANSMISSION
M 8X85
063 N 000931008408 SCREW
CASE COVER TO TRANSMISSION
M 8X140
065 N 000931008327 SCREW
Repalced by: N 304017008043
065 N 304017008043 SCREW
CASE COVER TO TRANSMISSION
M 8X55
067 A 3212611479 GASKET
Repalced by: A 3522611180
067 A 3522611180 GASKET
Repalced by: A 3522611680
067 A 3522611680 GASKET
Repalced by: A 3522611980
067 A 3522611980 GASKET
Repalced by: A 6752611280
067 A 6752611280 GASKET
CASE COVER
069 A 3212610333 COVER
CASE COVER
070 N 000931008266 SCREW
CASE COVER
071 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
071 N 000137008212 SPRING WASHER
CASE COVER
073 A 3212611279 GASKET
Repalced by: A 3812610880
073 A 3812610880 GASKET
TOP
075 A 3522601214 TRANSMISSION CASE COVER
Repalced by: A 3522601914
075 A 3522601714 TRANSMISSION CASE COVER
Repalced by: A 3522601914
075 A 3522601914 TRANSMISSION CASE COVER
Repalced by: A 3522603114
075 A 3522603114 TRANSMISSION CASE COVER
TOP
075 A 3522601314 TRANSMISSION CASE COVER
Repalced by: A 3522601814
075 A 3522601814 TRANSMISSION CASE COVER
Repalced by: A 3522603014
075 A 3522603014 TRANSMISSION CASE COVER
TOP
077 A 3212610050 BUSHING
26X30 MM
077 A 3212610050 BUSHING
26X30 MM
079 A 3212610150 BUSHING
20X30 MM
079 A 3212610150 BUSHING
20X30 MM
080 A 3212610350 BUSHING
26X25 MM
082 N 000443020000 EXPANSION PLUG
082 N 000443020000 EXPANSION PLUG
083 A 3212650250 BUSHING
RIGHT
085 A 3212650150 BUSHING
FRONT
087 N 000835008007 STUD
Repalced by: N 000835008077
087 N 000835008077 STUD
088 A 1362650247 INTERLOCK PLUG
Repalced by: A 3142650044
088 A 3142650044 GUIDE PIN
089 N 000835008007 STUD
Repalced by: N 000835008077
089 N 000835008077 STUD
SHIFTING DOME TO CASE COVER
M 8X18
089 N 000835008077 STUD
SHIFTING DOME TO CASE COVER
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
091 N 000835008008 STUD
COVER TO SHIFT CASE
M 8X20
091 N 000835008008 STUD
COVER TO SHIFT CASE
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
093 A 3212650474 PIN
SHIFT CASE
093 A 3212650474 PIN
SHIFT CASE
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
095 N 000125013008 WASHER
095 N 000125013008 WASHER
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
097 N 000979012001 NUT
SHIFT CASE
097 N 000979012001 NUT
SHIFT CASE
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
N 000094003219 COTTER PIN
SHIFT CASE
N 000094003219 COTTER PIN
SHIFT CASE
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
A 3852611450 BUSHING
SHIFTING SHAFT
13X36 MM,TO 352 260 31 14
A 3102680035 BEARING
SHIFT LEVER
TO 352 260 31 14
A 3192670050 BUSHING
DETENT
TO 352 260 31 14
A 3219970035 PLUG
SHIFT CASE
TO 352 260 31 14
A 1369970830 SCREW PLUG
SHIFTING DOME
TO 352 260 31 14
N 001473005010 GROOVED PIN
TO 352 260 31 14
099 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
099 N 000137008212 SPRING WASHER
CASE COVER TO TRANSMISSION
100 N 000931008266 SCREW
CASE COVER TO TRANSMISSION
M 8X40
102 N 000931008246 SCREW
Repalced by: N 304017008028
102 N 304017008028 SCREW
CASE COVER TO TRANSMISSION
M 8X50
104 A 3212611979 GASKET
CASE COVER TO TRANSMISSION
106 A 3222603214 TRANSMISSION CASE COVER
Repalced by: A 3232600614
107 A 3232600614 REPAIR KIT
SHIFTING PARTS
108 A 3212670025 SLIDING BLOCK
SHIFTING DOME
110 N 009045008002 SNAP RING
SHIFTING DOME
112 N 001473005012 GROOVED PIN
SHIFTING DOME
114 N 000007008205 CYLINDRICAL PIN
SHIFTING DOME
115 N 912004008102 LOCK WASHER
SHIFT CASE
115M N 304032008006 NUT
SHIFT CASE
116 A 1112600058 BREATHER
SHIFT CASE
118 A 1369970830 SCREW PLUG
SHIFT CASE
120 A 3212610274 PIN
Repalced by: A 3172610174
120 A 3172610174 PIN
SHIFT CASE
122 A 0019946341 LOCK
SHIFT CASE
124 A 3129934201 SPRING
SHIFT CASE
126 A 3219970330 SCREW PLUG
Repalced by: N 007604018101
126 N 007603018101 SEAL RING
SHIFT CASE
128 A 0005455011 SWITCH
BACK-UP LIGHT
130 A 3372650007 LEVER
SHIFT CASE,TOP
132 N 005402302104 CYLINDRICAL ROLLER
SHIFT CASE,TOP
133 N 000433017004 WASHER
SHIFT CASE,TOP
134 N 900055017300 LOCK RING
HOUSING,TOP
136 A 3212650316 THRUST PIECE
Repalced by: A 3212650416
136 A 3212650416 THRUST PIECE
Repalced by: A 3802650016
136 A 3802650016 THRUST PIECE
HOUSING,TOP
138 A 3219931701 SPRING
HOUSING,TOP
139 A 3219970103 PLUG
HOUSING,TOP
141 A 3212650248 INTERLOCK PIN
HOUSING,TOP
143 A 3219930601 SPRING
HOUSING,TOP
144 N 071022024000 SLOTTED PLUG
HOUSING,TOP
A 3142670125 SLIDING BLOCK
TO 352 260 31 14
N 007993006100 SNAP RING
TO 352 260 31 14
A 3212681329 SHIFTING ROD
Repalced by: A 3225860126
A 3222601433 SHIFTING ROD
Repalced by: A 3225860126
A 3222680029 SHIFTING ROD
Repalced by: A 3225860226
A 3222601533 SHIFTING ROD
Repalced by: A 3225860226
146 A 3225860126 REPAIR KIT
Repalced by: A 3222602233
146 A 3222602233 REPAIR KIT
Repalced by: A 3222602533
146 A 3222602533 SHIFTING ROD
SHIFTING ROD
146 A 3225860226 REPAIR KIT
Repalced by: A 3222601933
146 A 3222601933 SHIFTING ROD
Repalced by: A 3222602333
146 A 3222602333 SHIFTING ROD
N 006888005006 WOODRUFF KEY
SHIFTING ROD
148 A 3212680533 SHIFTING FINGER
SHIFTING ROD
150 N 070952020101 LOCK PLATE
SHIFTING ROD
152 A 3219900160 NUT
SHIFTING ROD
154 A 3222610080 GASKET
Repalced by: A 3972610180
154 A 3972610180 GASKET
COVER TO TRANSMISSION CASE TOP COVER
156 A 3222610133 COVER
Repalced by: A 3972610033
156 A 3972610033 COVER
COVER TO TRANSMISSION CASE TOP COVER
158 N 912004008102 LOCK WASHER
COVER TO TRANSMISSION CASE TOP COVER
160 N 304032008006 NUT
COVER TO TRANSMISSION CASE TOP COVER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
TO 352 260 31 14
160 A 3212600846 PLATE
CASE COVER
162 A 3852600046 PLATE
CASE COVER
164 A 3212650350 BUSHING
CASE COVER
N 900055008002 SPRING WASHER
CASE COVER
N 000979008000 NUT
CASE COVER
N 000094002077 COTTER PIN
CASE COVER
165 A 1369908240 WASHER
CASE COVER
166 A 1362650272 NUT
CASE COVER
168 A 3212681229 SHIFTING ROD
Repalced by: A 3225860626
A 3225860626 REPAIR KIT
Repalced by: A 3222602933
A 3222602933 SHIFTING ROD
PARTS KIT
N 006888005006 WOODRUFF KEY
SHIFTING ROD
170 A 3212650430 SELECTOR LEVER
SHIFTING ROD
172 N 070952020101 LOCK PLATE
SHIFTING ROD
174 A 3219900160 NUT
SHIFTING ROD
176 A 3212612079 GASKET
Repalced by: A 3222610180
176 A 3222610180 GASKET
CASE COVER
176 A 3222610180 GASKET
CASE COVER
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
A 3522611580 GASKET
TO 352 260 31 14
178 A 3212610433 COVER
Repalced by: A 3222610233
178 A 3222610233 COVER
CASE COVER
178 A 3222610233 COVER
CASE COVER
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
A 3522610533 COVER
TO 352 260 31 14
N 000137008204 SPRING WASHER
Repalced by: N 000137008212
N 000137008212 SPRING WASHER
CASE COVER
N 304032008006 NUT
CASE COVER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
CASE COVER
TO 352 260 31 14
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
359H
182 A 3179930501 SPRING
SHIFT LEVER TO BEARING BRACKET
183 A 3022670008 SPHERICAL PIECE
SHIFT LEVER TO BEARING BRACKET
185 A 3142680005 COVER
SHIFT LEVER TO BEARING BRACKET
187 A 3372670096 BOOT
Repalced by: A 3522670196
187 A 3522670196 BOOT
SHIFTING DOME,TOP
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
359B
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
359D
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
359E
193 A 3212650805 SHIFTING ROD
1ST SPEED
195 A 3212651805 SHIFTING ROD
2ND AND 3RD SPEED
197 A 3212651905 SHIFTING ROD
4TH AND 5TH SPEED
199 A 3222650305 SHIFTING ROD
REVERSE SPEED
200 A 3222650123 SHIFTING DOG
1ST SPEED
202 A 3212651202 SHIFTING FORK
2ND AND 3RD SPEED
204 A 3212650802 SHIFTING FORK
4TH AND 5TH SPEED
206 A 3212651301 SHIFTING FORK
1ST SPEED
208 A 3212650403 SHIFTING FORK
REVERSE SPEED
209 A 3129931001 SPRING
SHIFTING FORK
211 N 005401311000 BALL
SHIFTING FORK
213 A 3122651236 BRACKET
SHIFTING ROD
215 A 3129940332 LOCK
BRACKET TO TRANSMISSION CASE
217 N 000933008153 SCREW
Repalced by: N 304017008034
217 N 304017008034 SCREW
BRACKET TO TRANSMISSION CASE
218 A 3222620102 DRIVE SHAFT
Repalced by: A 3222620802
218 A 3222620802 DRIVE SHAFT
220 A 3219931201 SPRING
OUTPUT SHAFT
222 A 3212620073 LOCK
OUTPUT SHAFT
223 A 0019813101 CYLINDR. ROLLER BEARING
85 MM
223 A 0019818701 CYLINDR. ROLLER BEARING
225 N 005417085001 SNAP RING
AS REQUIRED
1.70 MM
225 A 0009943435 SNAP RING
AS REQUIRED
1.80 MM
225 A 0009942835 SNAP RING
AS REQUIRED
1.90 MM
227 A 0009812827 ANGULAR CONTACT BEARING
227 A 0009814327 ANGULAR CONTACT BEARING
227 A 0019811627 ANGULAR CONTACT BEARING
229 A 3122623162 SEAL RING
230 A 3122621172 NUT
L.H. THREAD
232 A 0029971346 SEAL RING
Repalced by: A 0089970146
232 A 0089970146 SEAL RING
Repalced by: A 0159977747
232 A 0159977747 SEAL RING
OUTPUT SHAFT
232 A 0159977647 SEAL RING
OUTPUT SHAFT
232 A 0179971447 SEAL RING
OUTPUT SHAFT
234 A 0009814312 ROLLER ASSEMBLY
234 A 0009814512 ROLLER ASSEMBLY
234 A 0009814612 ROLLER ASSEMBLY
236 A 3222620005 MAIN SHAFT
Repalced by: A 3222620705
236 A 3222620505 MAIN SHAFT
Repalced by: A 3222620705
236 A 3222620705 MAIN SHAFT
238 A 3129931701 SPRING
MAIN SHAFT
240 A 3212620374 PIN
Repalced by: A 3852621074
240 A 3852621074 PIN
MAIN SHAFT
242 A 3212622162 SEAL RING
Repalced by: A 3212623862
242 A 3212623862 SEAL RING
AS REQUIRED
6.90 MM
242 A 3212622062 SEAL RING
Repalced by: A 3212623762
242 A 3212623762 SEAL RING
AS REQUIRED
7.00 MM
242 A 3212621962 SEAL RING
Repalced by: A 3212623662
242 A 3212623662 SEAL RING
AS REQUIRED
7.10 MM
242 A 3212621862 SEAL RING
Repalced by: A 3212623562
242 A 3212623562 SEAL RING
AS REQUIRED
7.20 MM
242 A 3212621762 SEAL RING
Repalced by: A 3212623462
242 A 3212623462 SEAL RING
AS REQUIRED
7.30 MM
242 A 3212620462 SEAL RING
Repalced by: A 3212623962
242 A 3212623962 SEAL RING
AS REQUIRED
7.40 MM
242 A 3212622862 SEAL RING
Repalced by: A 3212624662
242 A 3212624662 SEAL RING
AS REQUIRED
7.45 MM
242 A 3212620562 SEAL RING
Repalced by: A 3212624062
242 A 3212624062 SEAL RING
AS REQUIRED
7.50 MM
242 A 3212622962 SEAL RING
Repalced by: A 3212624762
242 A 3212624762 SEAL RING
AS REQUIRED
7.55 MM
242 A 3212620662 SEAL RING
Repalced by: A 3212624162
242 A 3212624162 SEAL RING
AS REQUIRED
7.60 MM
242 A 3212623062 SEAL RING
Repalced by: A 3212624862
242 A 3212624862 SEAL RING
AS REQUIRED
7.65 MM
242 A 3212620762 SEAL RING
Repalced by: A 3212624262
242 A 3212624262 SEAL RING
AS REQUIRED
7.70 MM
242 A 3212622562 SEAL RING
Repalced by: A 3212624362
242 A 3212624362 SEAL RING
AS REQUIRED
7.80 MM
242 A 3212622662 SEAL RING
Repalced by: A 3212624462
242 A 3212624462 SEAL RING
AS REQUIRED
7.90 MM
242 A 3212622762 SEAL RING
Repalced by: A 3212624562
242 A 3212624562 SEAL RING
AS REQUIRED
8.00 MM
247 A 3222620034 SYNCHRONIZER RING
Repalced by: A 3222620434
247 A 3222620434 SYNCHRONIZER RING
5TH SPEED
248 A 3222600645 SYNCHRONIZER BODY
4TH AND 5TH SPEED
248 A 3222600845 SYNCHRONIZER BODY
4TH AND 5TH SPEED
248 A 3222620735 SYNCHRONIZER BODY
4TH AND 5TH SPEED
250 A 3219930701 SPRING
4TH AND 5TH SPEED
252 A 3212620774 PIN
4TH AND 5TH SPEED
254 A 3212621040 FOLLOWER
4TH AND 5TH SPEED
256 A 3222620137 SYNCHRONIZER CONE
4TH AND 5TH SPEED
A 3212600469 SPRING
260 A 3212620823 SLIDING COLLAR
Repalced by: A 3212621223
260 A 3212621223 SLIDING COLLAR
4TH AND 5TH SPEED
262 A 3222600244 GEAR
Repalced by: A 3222602044
262 A 3222601744 GEAR
Repalced by: A 3222602044
262 A 3222602044 GEAR
4TH SPEED
264 A 3229810612 ROLLER ASSEMBLY
Repalced by: A 3529810012
264 A 3229810812 ROLLER ASSEMBLY
Repalced by: A 3529810012
264 A 3529810012 ROLLER ASSEMBLY
4TH SPEED
266 A 3222624050 BUSHING
Repalced by: A 3222626550
266 A 3222626550 BUSHING
AS REQUIRED
44.50MM
266 A 3222624150 BUSHING
Repalced by: A 3222626650
266 A 3222626650 BUSHING
AS REQUIRED
44.60MM
268 A 3229810512 ROLLER ASSEMBLY
Repalced by: A 3529810112
268 A 3229810712 ROLLER ASSEMBLY
Repalced by: A 3529810112
268 A 3529810112 ROLLER ASSEMBLY
3RD SPEED
270 A 3222600644 GEAR
Repalced by: A 3222602444
270 A 3222601944 GEAR
Repalced by: A 3222602444
270 A 3222602444 GEAR
3RD SPEED
273 A 3222600545 SYNCHRONIZER BODY
2ND AND 3RD SPEED
273 A 3222600745 SYNCHRONIZER BODY
2ND AND 3RD SPEED
273 A 3222620635 SYNCHRONIZER BODY
2ND AND 3RD SPEED
274 A 3219930701 SPRING
2ND AND 3RD SPEED
276 A 3212620774 PIN
2ND AND 3RD SPEED
278 A 3212621040 FOLLOWER
2ND AND 3RD SPEED
280 A 3222620137 SYNCHRONIZER CONE
2ND AND 3RD SPEED
A 3212600469 SPRING
2ND AND 3RD SPEED
284 A 3212620823 SLIDING COLLAR
Repalced by: A 3212621223
284 A 3212621223 SLIDING COLLAR
2ND AND 3RD SPEED
286 A 3229810512 ROLLER ASSEMBLY
Repalced by: A 3529810112
286 A 3229810712 ROLLER ASSEMBLY
Repalced by: A 3529810112
286 A 3529810112 ROLLER ASSEMBLY
2ND SPEED
288 A 3222620112 GEAR
Repalced by: A 3222620412
288 A 3222620412 GEAR
2ND SPEED
291 A 3222600625 GEAR
REVERSE SPEED
291 A 3222600925 GEAR
REVERSE SPEED
291 A 3222630433 REVERSE IDLER GEAR
292 A 3219930701 SPRING
1ST SPEED
294 A 3212620674 PIN
1ST SPEED
296 A 3212620940 FOLLOWER
1ST SPEED
A 3212620376 BALL SOCKET
Repalced by: A 3142620076
A 3142620076 BALL SOCKET
300 A 3222620137 SYNCHRONIZER CONE
1ST SPEED
A 3212600469 SPRING
304 A 3212620723 SLIDING COLLAR
Repalced by: A 3212621123
304 A 3212621123 SLIDING COLLAR
1ST SPEED
306 A 3222621450 BUSHING
Repalced by: A 3222625950
306 A 3222625950 BUSHING
44.50 MM
306 A 3222621550 BUSHING
Repalced by: A 3222626050
306 A 3222626050 BUSHING
44.60 MM
311 N 005402004203 CYLINDRICAL ROLLER
312 A 3222620211 GEAR
Repalced by: A 3222620511
312 A 3222620511 GEAR
1ST SPEED
314 A 0009811201 CYLINDR. ROLLER BEARING
STANDARD
100 MM
314 A 0019818901 CYLINDR. ROLLER BEARING
REPAIR SIZE
100.50 MM
316 A 3219940040 SNAP RING
AS REQUIRED
2.68 MM
316 A 3219940140 SNAP RING
AS REQUIRED
2.73 MM
316 A 3219940240 SNAP RING
AS REQUIRED
2.78 MM
316 A 3219940340 SNAP RING
AS REQUIRED
2.83 MM
316 A 3219940440 SNAP RING
AS REQUIRED
2.88 MM
316 A 3219940540 SNAP RING
AS REQUIRED
2.93 MM
319 A 0009812927 ANGULAR CONTACT BEARING
319 A 0009814227 ANGULAR CONTACT BEARING
319 A 0019811527 ANGULAR CONTACT BEARING
320 A 3212640630 DRIVE GEAR
Repalced by: A 3522640130
320 A 3522640130 DRIVE GEAR
SPEEDOMETER
322 A 3212640532 SHAFT
Repalced by: A 3142640032
322 A 3142640032 SHAFT
Repalced by: A 3142640332
322 A 3142640332 SHAFT
SPEEDOMETER
324 A 3212640631 DRIVE GEAR
Repalced by: A 3812640031
324 A 3812640031 DRIVE GEAR
SPEEDOMETER
326 A 3222620045 FLANGE
REAR DRIVE SHAFT
A 3219900240 WASHER
REAR DRIVE SHAFT
N 000937028000 NUT
REAR DRIVE SHAFT
N 000094005017 COTTER PIN
REAR DRIVE SHAFT
328 A 3222620072 NUT
REAR DRIVE SHAFT
330 A 3222630402 COUNTERSHAFT
Repalced by: A 3222630302
330 A 3222630302 COUNTERSHAFT
332 A 3222630313 GEAR
Repalced by: A 3222630513
332 A 3222630513 GEAR
2ND AND 3RD SPEED
334 A 3222630314 GEAR
Repalced by: A 3222630614
334 A 3222630514 GEAR
Repalced by: A 3222630614
334 A 3222630614 GEAR
4TH SPEED
336 A 3222630010 GEAR
Repalced by: A 3222630610
336 A 3222630610 GEAR
CONSTANT
338 N 900055052300 LOCK RING
340 A 0019813105 TAPERED ROLLER BEARING
340 A 0019815005 TAPERED ROLLER BEARING
340 A 0069814305 TAPERED ROLLER BEARING
340 A 0069815305 TAPERED ROLLER BEARING
A 0039814605 TAPERED ROLLER BEARING
COUNTERSHAFT,FRONT
90.50 MM
340 A 0039816305 TAPERED ROLLER BEARING
COUNTERSHAFT,REAR
90.50 MM
342 A 3212650208 LEVER
REVERSE SPEED
344 A 3212650449 SLIDE
Repalced by: A 3142650349
344 A 3142650349 SLIDE
REVERSE SPEED
346 A 3212650074 PIN
LEVER BEARING
348 A 3212650050 BUSHING
LEVER BEARING
350 N 912004010102 LOCK WASHER
REVERSE IDLER SHAFT TO TRANSMISSION CASE
352 N 000934010014 NUT
REVERSE IDLER SHAFT TO TRANSMISSION CASE
A 3022650074 PIN
REVERSE SPEED
354 A 3222600325 GEAR
Repalced by: A 3222600825
354 A 3222600725 GEAR
Repalced by: A 3222600825
354 A 3222600825 GEAR
REVERSE SPEED
356 A 3212630430 REVERSE IDLER SHAFT
Repalced by: A 3212630630
356 A 3212630530 REVERSE IDLER SHAFT
Repalced by: A 3212630630
356 A 3212630630 REVERSE IDLER SHAFT
A 0005861126 REPAIR KIT
Repalced by: A 0002600400
A 0002600400 GASKET KIT
Repalced by: A 0002606800
A 0002606800 GASKET KIT
(GASKET KIT)
357 N 912004014100 LOCK WASHER
TRANSMISSION TO BELL HOUSING
357E N 000933014014 SCREW
TRANSMISSION TO BELL HOUSING
358 A 3122641034 LOCK NUT
Repalced by: A 6742640034
358 A 6742640034 LOCK NUT
CASE COVER
358B N 007603022102 SEAL RING
CASE COVER
359B A 3222670096 BOOT
Repalced by: A 3522670296
359B A 3522670096 BOOT
Repalced by: A 3522670296
359B A 3522670296 BOOT
359B A 3522670396 BOOT
359D N 000936010010 NUT
GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
359E A 3222600040 HANDLE
(GEARSHIFT LEVER KNOB)
359H A 3222601139 SHIFT LEVER
Repalced by: A 3222602939
359H A 3222602939 SHIFT LEVER
359H A 3222601339 SHIFT LEVER
361 A 3522604600 TRANSMISSION
Repalced by: A 3522609500
361 A 3522609500 TRANSMISSION
G 60/6.1
361 A 3522604700 TRANSMISSION
Repalced by: A 3522609600
361 A 3522609600 TRANSMISSION
G 60/6.1
363 A 3272600011 TRANSMISSION CASE
Repalced by: A 3272600111
363 A 3272600111 TRANSMISSION CASE
Repalced by: A 3052600111
363 A 3052600111 TRANSMISSION CASE
365 N 000007010239 CYLINDRICAL PIN
Repalced by: N 000007010102
365 N 000007010102 CYLINDRICAL PIN
367 A 1869970032 SCREW PLUG
OIL FILLING
369 A 0009971332 SCREW PLUG
Repalced by: A 0009972632
369 A 0009972632 SCREW PLUG
OIL DRAIN
369 A 0009973432 SCREW PLUG
OIL DRAIN
370 A 3215841024 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
370 A 3855841824 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
370 A 3855845824 UNIT IDENTIFICATION PLATE
Repalced by: A 6755840024
370 A 6755840024 UNIT IDENTIFICATION PLATE
N 001476003007 GROOVED NAIL
374 A 3542610280 GASKET
Repalced by: A 3542610480
374 A 3542610480 GASKET
FRONT BOTTOM
376 A 3372610133 COVER
FRONT BOTTOM
378 N 912004008102 LOCK WASHER
END COVER TO TRANSMISSION CASE
380 N 000933008147 SCREW
Repalced by: N 304017008021
380 N 304017008021 SCREW
END COVER TO TRANSMISSION CASE
382 A 3122831752 SPACER WASHER
AS REQUIRED
0.05 MM
382 A 3122831052 SPACER WASHER
AS REQUIRED
0.10 MM
382 A 3122831152 SPACER WASHER
AS REQUIRED
0.20 MM
382 A 3122831252 SPACER WASHER
AS REQUIRED
0.40 MM
382 A 3122832152 SPACER WASHER
AS REQUIRED
0.80 MM
384 A 3172611479 GASKET
FRONT TOP
385 A 3402610118 TRANSMISSION CASE COVER
Repalced by: A 3832610018
385 A 3832610018 TRANSMISSION CASE COVER
FRONT TOP
N 900190006000 THREADED PIN
CASE COVER
388 N 912004008102 LOCK WASHER
CASE COVER TO TRANSMISSION
389 N 000931008333 SCREW
CASE COVER TO TRANSMISSION
390 A 3172623962 SEAL RING
AS REQUIRED
3.10 MM
390 A 3172625262 SEAL RING
AS REQUIRED
3.18 MM
390 A 3172625362 SEAL RING
AS REQUIRED
3.26 MM
390 A 3172625462 SEAL RING
AS REQUIRED
3.34 MM
390 A 3172625562 SEAL RING
AS REQUIRED
3.42 MM
390 A 3172625662 SEAL RING
AS REQUIRED
3.50 MM
390 A 3172625762 SEAL RING
AS REQUIRED
3.58 MM
390 A 3172625862 SEAL RING
AS REQUIRED
3.66 MM
390 A 3172625962 SEAL RING
AS REQUIRED
3.74 MM
395 A 3212611379 GASKET
Repalced by: A 3812610480
395 A 3812610480 GASKET
Repalced by: A 3812610780
395 A 3812610780 GASKET
REAR
397 A 3372610120 TRANSMISSION CASE COVER
Repalced by: A 3372610220
397 A 3372610220 TRANSMISSION CASE COVER
REAR
399 A 0089971146 SEAL RING
CASE COVER
400 A 3212610031 THREADED BUSHING
CASE COVER
401 A 0119976647 SEAL RING
Repalced by: A 1152740060
401 A 1152740060 SEAL RING
Repalced by: A 0119976447
401 A 0119976447 SEAL RING
CASE COVER
403 N 071022024000 SLOTTED PLUG
CASE COVER
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
555
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
555E
409 A 3212620862 SEAL RING
AS REQUIRED
2.90 MM
409 A 3212620962 SEAL RING
AS REQUIRED
3.00 MM
409 A 3212621062 SEAL RING
AS REQUIRED
3.10 MM
409 A 3212621162 SEAL RING
AS REQUIRED
3.20 MM
409 A 3212621262 SEAL RING
AS REQUIRED
3.30 MM
409 A 3212621362 SEAL RING
AS REQUIRED
3.40 MM
409 A 3212621462 SEAL RING
AS REQUIRED
3.50 MM
409 A 3212621562 SEAL RING
AS REQUIRED
3.60 MM
411 A 3122831752 SPACER WASHER
AS REQUIRED
0.05 MM
411 A 3122831052 SPACER WASHER
AS REQUIRED
0.10 MM
411 A 3122831152 SPACER WASHER
AS REQUIRED
0.20 MM
411 A 3122831252 SPACER WASHER
AS REQUIRED
0.40 MM
411 A 3122832152 SPACER WASHER
AS REQUIRED
0.80 MM
413 N 912004008102 LOCK WASHER
CASE COVER TO TRANSMISSION
415 N 000931008123 SCREW
CASE COVER TO TRANSMISSION
M 8X85
415 N 000931008327 SCREW
Repalced by: N 304017008043
415 N 304017008043 SCREW
CASE COVER TO TRANSMISSION
M 8X55
416 N 000933008152 SCREW
Repalced by: N 304017008027
416 N 304017008027 SCREW
CASE COVER TO TRANSMISSION
M 8X30
417 A 3522611180 GASKET
Repalced by: A 3522611680
417 A 3522611680 GASKET
Repalced by: A 3522611980
417 A 3522611980 GASKET
Repalced by: A 6752611280
417 A 6752611280 GASKET
CASE COVER
419 A 3212610333 COVER
CASE COVER
421 N 000931008266 SCREW
CASE COVER
423 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
423 N 000137008212 SPRING WASHER
CASE COVER
435 A 3212611279 GASKET
Repalced by: A 3812610880
435 A 3812610880 GASKET
CASE COVER
437 A 3522601714 TRANSMISSION CASE COVER
Repalced by: A 3522601914
437 A 3522601914 TRANSMISSION CASE COVER
Repalced by: A 3522603114
437 A 3522603114 TRANSMISSION CASE COVER
TOP
437 A 3522601314 TRANSMISSION CASE COVER
Repalced by: A 3522601814
437 A 3522601814 TRANSMISSION CASE COVER
Repalced by: A 3522603014
437 A 3522603014 TRANSMISSION CASE COVER
TOP
439 A 3212610050 BUSHING
26X30 MM
439 A 3212610050 BUSHING
26X30 MM
440 A 3212610150 BUSHING
20X30 MM
440 A 3212610150 BUSHING
20X30 MM
441 A 3212610350 BUSHING
26X25 MM
442 N 000443020000 EXPANSION PLUG
REAR
442 N 000443020000 EXPANSION PLUG
REAR
443 A 3212650250 BUSHING
RIGHT
445 A 3212650150 BUSHING
FRONT
447 N 000835008007 STUD
Repalced by: N 000835008077
447 N 000835008077 STUD
M 8X18
448 A 1362650247 INTERLOCK PLUG
Repalced by: A 3142650044
448 A 3142650044 GUIDE PIN
449 N 000835008067 STUD
SHIFTING DOME TO CASE COVER
M 8X18
449 N 000835008067 STUD
SHIFTING DOME TO CASE COVER
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
450 N 000835008008 STUD
COVER TO SHIFT CASE
M 8X20
450 N 000835008008 STUD
COVER TO SHIFT CASE
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
451 A 3212650474 PIN
SHIFT CASE
451 A 3212650474 PIN
SHIFT CASE
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
453 N 000125013008 WASHER
453 N 000125013008 WASHER
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
455 N 000979012001 NUT
SHIFT CASE
455 N 000979012001 NUT
SHIFT CASE
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
N 000094003219 COTTER PIN
SHIFT CASE
N 000094003219 COTTER PIN
SHIFT CASE
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
A 3852611450 BUSHING
SHIFTING SHAFT
13X36 MM,TO 352 260 31 14
A 3102680035 BEARING
SHIFT CASE AND COVER PLATE TO SUPPORT
TO 352 260 31 14
A 3192670050 BUSHING
DETENT
TO 352 260 31 14
A 3219970035 PLUG
SHIFT CASE
TO 352 260 31 14
A 1369970830 SCREW PLUG
SHIFTING DOME
TO 352 260 31 14
N 001473005010 GROOVED PIN
TO 352 260 31 14
457 A 1369970830 SCREW PLUG
TRANSMISSION CASE REAR COVER
459 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
459 N 000137008212 SPRING WASHER
CASE COVER TO TRANSMISSION
460 N 000931008266 SCREW
CASE COVER TO TRANSMISSION
M 8X40
462 N 000931008246 SCREW
Repalced by: N 304017008028
462 N 304017008028 SCREW
CASE COVER TO TRANSMISSION
M 8X50
464 A 3212611979 GASKET
CASE COVER TO TRANSMISSION
466 A 3222603214 TRANSMISSION CASE COVER
Repalced by: A 3232600614
467 A 3232600614 TRANSMISSION CASE COVER
SHIFTING PARTS
468 A 3212670025 SLIDING BLOCK
SHIFTING DOME
470 N 009045008002 SNAP RING
SHIFTING DOME
472 N 001473005012 GROOVED PIN
SHIFTING DOME
474 N 000007008205 CYLINDRICAL PIN
SHIFTING DOME
476 N 912004008102 LOCK WASHER
SHIFT CASE
478 N 304032008006 NUT
SHIFT CASE
479 A 1112600058 BREATHER
SHIFT CASE
480 A 3372650007 LEVER
SHIFT CASE,TOP
482 N 005402302104 CYLINDRICAL ROLLER
SHIFT CASE,TOP
484 N 000433017004 WASHER
SHIFT CASE,TOP
486 N 900055017300 LOCK RING
SHIFT CASE,TOP
488 A 3212650416 THRUST PIECE
Repalced by: A 3802650016
488 A 3802650016 THRUST PIECE
HOUSING,TOP
489 A 3219931701 SPRING
HOUSING,TOP
490 A 3219970103 PLUG
HOUSING,TOP
492 A 3212650248 INTERLOCK PIN
HOUSING,TOP
494 A 3219930601 SPRING
HOUSING,TOP
496 N 071022024000 SLOTTED PLUG
HOUSING,TOP
A 3142670125 SLIDING BLOCK
TO 352 260 31 14
N 007993006100 SNAP RING
TO 352 260 31 14
498 A 3602680029 SHIFTING ROD
Repalced by: A 3602601233
498 A 3602601233 SHIFTING ROD
SELECTOR AND SHIFTING ROD
498 A 3602680129 SHIFTING ROD
Repalced by: A 3602601333
498 A 3602601333 SHIFTING ROD
SELECTOR AND SHIFTING ROD
500 N 006888005006 WOODRUFF KEY
SHIFTING FINGER TO SHIFTING ROD
502 A 3212680533 SHIFTING FINGER
SELECTOR AND SHIFTING ROD
504 N 070952020101 LOCK PLATE
SHIFTING FINGER TO SHIFTING ROD
506 A 3219900160 NUT
SHIFTING FINGER TO SHIFTING ROD
508 A 3222610080 GASKET
Repalced by: A 3972610180
508 A 3972610180 GASKET
COVER TO TRANSMISSION CASE TOP COVER
510 A 3222610133 COVER
Repalced by: A 3972610033
510 A 3972610033 COVER
COVER TO TRANSMISSION CASE TOP COVER
512 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
512 N 000137008212 SPRING WASHER
COVER TO TRANSMISSION CASE TOP COVER
514 N 304032008006 NUT
COVER TO TRANSMISSION CASE TOP COVER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
COVER TO TRANSMISSION CASE TOP COVER
TO 352 260 31 14
A 3212600846 PLATE
CASE COVER
516 A 3852600046 PLATE
CASE COVER
518 A 3212650350 BUSHING
CASE COVER
520 N 900055008002 SPRING WASHER
CASE COVER
522 N 000979008000 NUT
CASE COVER
N 000094002077 COTTER PIN
CASE COVER
523 A 1369908240 WASHER
CASE COVER
523C A 1362650272 NUT
CASE COVER
524 A 3212681229 SHIFTING ROD
Repalced by: A 3225860626
A 3225860626 REPAIR KIT
Repalced by: A 3222602933
A 3222602933 SHIFTING ROD
PARTS KIT
526 N 006888005006 WOODRUFF KEY
SELECTOR LEVER TO SHIFTING ROD
528 A 3602650030 SELECTOR LEVER
529 N 070952020101 LOCK PLATE
SELECTOR LEVER TO SHIFTING ROD
530 A 3219900160 NUT
SELECTOR LEVER TO SHIFTING ROD
531 A 3212612079 GASKET
Repalced by: A 3222610180
531 A 3222610180 GASKET
SHIFTING DOME
531 A 3222610180 GASKET
SHIFTING DOME
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
A 3522611580 GASKET
TO 352 260 31 14
533 A 3212610433 COVER
Repalced by: A 3222610233
533 A 3222610233 COVER
SHIFTING DOME
533 A 3222610233 COVER
SHIFTING DOME
TO 352 260 12 14,352 260 17 14,
Y YYYYYYYYYYYY PART NAME MISSING
352 260 19 14
A 3522610533 COVER
TO 352 260 31 14
535 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
535 N 000137008212 SPRING WASHER
COVER TO TRANSMISSION CASE TOP COVER
537 N 304032008006 NUT
COVER TO TRANSMISSION CASE TOP COVER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
COVER TO TRANSMISSION CASE TOP COVER
TO 352 260 31 14
540 A 3602600839 SHIFT LEVER
540 A 3222601139 SHIFT LEVER
Repalced by: A 3222602939
540 A 3222602939 SHIFT LEVER
GEARSHIFT LEVER LOWER PART
N 912004012100 LOCK WASHER
N 000934012021 NUT
546 A 3179930501 SPRING
SHIFT LEVER
548 A 3022670008 SPHERICAL PIECE
SHIFT LEVER
550 A 3142680005 COVER
SHIFT LEVER
552 A 3372670096 BOOT
Repalced by: A 3522670196
552 A 3522670196 BOOT
SHIFT LEVER
552B A 3522670096 BOOT
Repalced by: A 3522670296
552B A 3522670296 BOOT
SHIFT LEVER
552B A 3522670396 BOOT
SHIFT LEVER
554 N 000936010010 NUT
SHIFT LEVER
555 A 3122641034 LOCK NUT
Repalced by: A 6742640034
555 A 6742640034 LOCK NUT
CASE COVER
555E N 007603022102 SEAL RING
CASE COVER
556 A 3222600040 HANDLE
SHIFT LEVER
558 A 3212650805 SHIFTING ROD
1ST SPEED
560 A 3372650505 SHIFTING ROD
2ND AND 3RD SPEED
562 A 3372600131 SHIFTING ROD
4TH AND 5TH SPEED
564 A 3372650305 SHIFTING ROD
REVERSE SPEED
566 A 3222650123 SHIFTING DOG
1ST SPEED
568 A 3222650401 SHIFTING FORK
2ND AND 3RD SPEED
570 A 3372650902 SHIFTING FORK
4TH AND 5TH SPEED
572 A 3222650501 SHIFTING FORK
1ST SPEED
574 A 3372650103 SHIFTING FORK
REVERSE SPEED
576 A 3129931001 SPRING
DETENT
578 N 005401311000 BALL
DETENT
580 A 3122651236 BRACKET
SHIFTING ROD
582 A 3129940332 LOCK
BRACKET TO TRANSMISSION CASE
584 N 000933008153 SCREW
Repalced by: N 304017008034
584 N 304017008034 SCREW
BRACKET TO TRANSMISSION CASE
600 A 3402620302 DRIVE SHAFT
602 A 3179931301 SPRING
OUTPUT SHAFT
604 A 3172620473 LOCK
DRIVE SHAFT
606 A 0019811701 CYLINDR. ROLLER BEARING
STANDARD
110 MM
606 A 0019818801 CYLINDR. ROLLER BEARING
REPAIR SIZE
110.50 MM
606 A 0009812727 ANGULAR CONTACT BEARING
DRIVE SHAFT
606 A 0009814427 ANGULAR CONTACT BEARING
DRIVE SHAFT
606 A 0019811527 ANGULAR CONTACT BEARING
DRIVE SHAFT
609 A 3172624062 SEAL RING
Repalced by: A 3022620162
609 A 3022620162 SEAL RING
BEARING TO DRIVE SHAFT
612 A 3179900260 NUT
Repalced by: A 3859900351
612C A 3529900151 NUT
Repalced by: A 3859900351
612C A 3859900251 NUT
Repalced by: A 3859900351
612C A 3859900351 NUT
BEARING TO DRIVE SHAFT
614 A 0039973546 SEAL RING
DRIVE SHAFT
616 A 0009813012 ROLLER ASSEMBLY
Repalced by: A 0019811612
616 A 0019811612 ROLLER ASSEMBLY
MAIN SHAFT,FRONT
616 A 0019819312 ROLLER ASSEMBLY
MAIN SHAFT,FRONT
618 A 3372620505 MAIN SHAFT
620 A 3129931701 SPRING
MAIN SHAFT
622 A 3212620374 PIN
Repalced by: A 3852621074
622 A 3852621074 PIN
MAIN SHAFT
624 A 3172624162 SEAL RING
Repalced by: A 3172624262
624 A 3172624262 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.00 MM
624 A 3172624262 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.00 MM
624 A 3172624362 SEAL RING
Repalced by: A 3172624462
624 A 3172624462 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.20 MM
624 A 3172624462 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.20 MM
624 A 3172624562 SEAL RING
Repalced by: A 3172624662
624 A 3172624662 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.40 MM
624 A 3172624662 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.40 MM
624 A 3172624762 SEAL RING
Repalced by: A 3172624862
624 A 3172624862 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.60 MM
624 A 3172624862 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.60 MM
624 A 3172624962 SEAL RING
Repalced by: A 3172625062
624 A 3172625062 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.80 MM
624 A 3172625062 SEAL RING
AS REQUIRED
70.50 X 58.00 X 7.80 MM
624 A 3172625162 SEAL RING
AS REQUIRED
7.90 MM
628 A 3372621034 SYNCHRONIZER RING
Repalced by: A 3372621234
628 A 3372621234 SYNCHRONIZER RING
5TH SPEED
631 A 3372601245 SYNCHRONIZER BODY
631 A 3372601445 SYNCHRONIZER BODY
631 A 3372620735 SYNCHRONIZER BODY
4TH AND 5TH SPEED
632 A 3379935001 SPRING
4TH AND 5TH SPEED
634 A 3372620174 PIN
4TH AND 5TH SPEED
636 A 3372620140 FOLLOWER
4TH AND 5TH SPEED
638 A 3222620237 SYNCHRONIZER CONE
4TH AND 5TH SPEED
A 3372600069 SPRING
642 A 3372620223 SLIDING COLLAR
4TH AND 5TH SPEED
644 A 3372602744 GEAR
Repalced by: A 3372603044
644 A 3372603044 GEAR
4TH SPEED
646 A 0019812412 ROLLER ASSEMBLY
Repalced by: A 3279810212
646 A 3279810212 ROLLER ASSEMBLY
646 A 0009816712 ROLLER ASSEMBLY
648 A 3372621650 BUSHING
Repalced by: A 3372622850
648 A 3372622850 BUSHING
AS REQUIRED
43.00 MM
648 A 3372621750 BUSHING
Repalced by: A 3372622750
648 A 3372622750 BUSHING
AS REQUIRED
43.10 MM
650 A 3279810112 ROLLER ASSEMBLY
650 A 0009816612 ROLLER ASSEMBLY
652 A 3372620313 GEAR
Repalced by: A 3372620713
652 A 3372620713 GEAR
3RD SPEED
655 A 3372600845 SYNCHRONIZER BODY
655 A 3372601345 SYNCHRONIZER BODY
655 A 3372620635 SYNCHRONIZER BODY
2ND AND 3RD SPEED
656 A 3219930701 SPRING
2ND AND 3RD SPEED
658 A 3212620774 PIN
2ND AND 3RD SPEED
660 A 3212621040 FOLLOWER
2ND AND 3RD SPEED
662 A 3222620137 SYNCHRONIZER CONE
2ND AND 3RD SPEED
A 3212600469 SPRING
2ND AND 3RD SPEED
666 A 3212621223 SLIDING COLLAR
2ND AND 3RD SPEED
668 A 3372621450 BUSHING
Repalced by: A 3832621450
668 A 3372621550 BUSHING
Repalced by: A 3832621450
668 A 3832621450 BUSHING
AS REQUIRED
50.60 MM
670 A 3279810012 ROLLER ASSEMBLY
672 A 3372620312 GEAR
Repalced by: A 3372620512
672 A 3372620512 GEAR
2ND SPEED
675 A 3372601325 GEAR
675 A 3372601525 GEAR
675 A 3372630633 REVERSE IDLER GEAR
676 A 3219930701 SPRING
1ST SPEED
678 A 3212620674 PIN
1ST SPEED
680 A 3212620940 FOLLOWER
1ST SPEED
682 A 3222620137 SYNCHRONIZER CONE
1ST SPEED
A 3212620376 BALL SOCKET
Repalced by: A 3142620076
A 3142620076 BALL SOCKET
1ST SPEED
A 3212600469 SPRING
1ST SPEED
689 A 3212621123 SLIDING COLLAR
1ST SPEED
691 A 3272620450 BUSHING
Repalced by: A 3272622250
691 A 3272622250 BUSHING
AS REQUIRED
49.2O MM
691 A 3272620550 BUSHING
Repalced by: A 3272622350
691 A 3272622350 BUSHING
AS REQUIRED
49.30 MM
691 A 3272620650 BUSHING
Repalced by: A 3272622450
691 A 3272622450 BUSHING
AS REQUIRED
49.40 MM
691 A 3272620750 BUSHING
Repalced by: A 3272622550
691 A 3272622550 BUSHING
AS REQUIRED
49.50 MM
691 A 3272620850 BUSHING
Repalced by: A 3272622650
691 A 3272622650 BUSHING
AS REQUIRED
49.60 MM
691 A 3272620950 BUSHING
Repalced by: A 3272622750
691 A 3272622750 BUSHING
AS REQUIRED
49.70 MM
691 A 3272621050 BUSHING
Repalced by: A 3272622850
691 A 3272622850 BUSHING
AS REQUIRED
49.80 MM
691 A 3272621150 BUSHING
Repalced by: A 3272622950
691 A 3272622950 BUSHING
AS REQUIRED
49.90 MM
691 A 3272621250 BUSHING
Repalced by: A 3272623050
691 A 3272623050 BUSHING
AS REQUIRED
50.00 MM
694 A 0009816912 ROLLER ASSEMBLY
Repalced by: A 0019819012
694 A 0009817212 ROLLER ASSEMBLY
Repalced by: A 0019819012
694 A 0019819012 ROLLER ASSEMBLY
695 A 3279810112 ROLLER ASSEMBLY
695 A 0009816612 ROLLER ASSEMBLY
AS REQUIRED
696 A 3372620311 GEAR
1ST SPEED
698 A 0009811201 CYLINDR. ROLLER BEARING
STANDARD
100 MM
698 A 0019818901 CYLINDR. ROLLER BEARING
REPAIR SIZE
100.50 MM
699 A 3219940040 SNAP RING
AS REQUIRED
2.68 MM
699 A 3219940140 SNAP RING
AS REQUIRED
2.73 MM
699 A 3219940240 SNAP RING
AS REQUIRED
2.78 MM
699 A 3219940340 SNAP RING
AS REQUIRED
2.83 MM
699 A 3219940440 SNAP RING
AS REQUIRED
2.88 MM
699 A 3219940540 SNAP RING
AS REQUIRED
2.93 MM
702 A 0009812927 ANGULAR CONTACT BEARING
702 A 0009814227 ANGULAR CONTACT BEARING
702 A 0019811527 ANGULAR CONTACT BEARING
704 A 3522640130 DRIVE GEAR
SPEEDOMETER
706 A 3212640532 SHAFT
Repalced by: A 3142640032
706 A 3142640032 SHAFT
Repalced by: A 3142640332
706 A 3142640332 SHAFT
SPEEDOMETER
708 A 3212640631 DRIVE GEAR
Repalced by: A 3812640031
708 A 3812640031 DRIVE GEAR
SPEEDOMETER
709 A 3522620045 FLANGE
REAR DRIVE SHAFT
711 A 3222620072 NUT
REAR DRIVE SHAFT
713 A 3372630602 COUNTERSHAFT
Repalced by: A 3372630702
713 A 3372630702 COUNTERSHAFT
715 A 3372630513 GEAR
Repalced by: A 3372630713
715 A 3372630713 GEAR
2ND AND 3RD SPEED
717 A 3372630314 GEAR
Repalced by: A 3372630814
717 A 3372630814 GEAR
4TH SPEED
719 A 3372630610 GEAR
Repalced by: A 3372630810
719 A 3372630810 GEAR
CONSTANT
720 N 900055058300 LOCK RING
722 A 0019813105 TAPERED ROLLER BEARING
722 A 0019815005 TAPERED ROLLER BEARING
722 A 0069814305 TAPERED ROLLER BEARING
722 A 0069815305 TAPERED ROLLER BEARING
A 0039814605 TAPERED ROLLER BEARING
COUNTERSHAFT,FRONT
90.50 MM
A 0039816305 TAPERED ROLLER BEARING
COUNTERSHAFT,REAR
90.50 MM
726 A 3212650208 LEVER
REVERSE SPEED
728 A 3142650349 SLIDE
REVERSE SPEED
730 A 3212650074 PIN
LEVER TO TRANSMISSION CASE
732 A 3212650050 BUSHING
LEVER TO TRANSMISSION CASE
734 N 912004010102 LOCK WASHER
LEVER TO TRANSMISSION CASE
736 N 000934010014 NUT
LEVER TO TRANSMISSION CASE
A 3022650074 PIN
LEVER TO TRANSMISSION CASE
738 A 3372601425 GEAR
Repalced by: A 3372601625
738 A 3372601625 GEAR
REVERSE SPEED
739 A 3372630130 REVERSE IDLER SHAFT
Repalced by: A 3372630430
739 A 3372630430 REVERSE IDLER SHAFT
N 912004014100 LOCK WASHER
TRANSMISSION TO BELL HOUSING
N 000931014024 SCREW
TRANSMISSION TO BELL HOUSING
745 A 0002362405 HYDRAULIC PUMP
WITH CONTROL MECHANISM AND WITH LINKAGE
745 A 0002363005 HYDRAULIC PUMP
WITH CONTROL MECHANISM AND WITH LINKAGE
746A A 0049936301 SPRING
OUTSIDE
746A A 0049936101 SPRING
OUTSIDE
746B A 0019814085 BALL
Repalced by: A 0019815085
746B A 0019815085 BALL
12.70 MM
746B N 005401310000 BALL
10 MM
746C A 0002360935 VALVE
INSIDE
746C A 0002360835 VALVE
INSIDE
746D A 0049936401 SPRING
INSIDE
746D A 0049936201 SPRING
INSIDE
746E A 0002361160 SEAL RING
INSIDE
746E A 0002361060 SEAL RING
INSIDE
746F A 0002360817 PISTON
Repalced by: A 0002361117
746F A 0002361117 PISTON
PUMP
746F A 0002360717 PISTON
PUMP
746H A 0002360635 VALVE
OUTSIDE
746H A 0002360735 VALVE
OUTSIDE
747 A 0002360180 GASKET
MEILLER DUMPER PUMP TO P.T.O. CASE
747 A 0002360380 GASKET
MEILLER DUMPER PUMP TO P.T.O. CASE
A 0059977246 SEAL RING
IN FLANGE BEARING
A 0002360376 WASHER
IN FLANGE BEARING
749 A 0079977446 SEAL RING
IN FLANGE BEARING
N 007603010107 SEAL RING
IN FLANGE BEARING
A 0002360271 SCREW
IN FLANGE BEARING
N 007603022101 SEAL RING
IN FLANGE BEARING
A 0009979430 SCREW PLUG
OIL PUMP HOUSING
751 N 007603022102 SEAL RING
OIL PUMP HOUSING
753 A 0009974430 SCREW PLUG
Repalced by: A 0019974430
753 A 0019974430 SCREW PLUG
OIL PUMP HOUSING
755 A 0002640479 GASKET
PUMP
757 A 0002300045 FLANGE
ASSEMBLY,WITH CONTROL MECHANISM
760 A 0002300120 LEVER
Repalced by: A 0002300220
760 A 0002300220 LEVER
INSIDE
762 A 0019978346 SEAL RING
SHIFTING SHAFT
764 A 0002300020 LEVER
OUTSIDE
N 000933008150 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
SHIFT LEVER TO SHAFT
N 912004008102 LOCK WASHER
SHIFT LEVER TO SHAFT
N 304032008006 NUT
SHIFT LEVER TO SHAFT
768 A 0002300021 ROD
SHIFTING ROD
770 N 071802013203 ANGLE JOINT
SHIFTING ROD TO SHIFT LEVER
772 N 071803013102 BALL PIVOT
SHIFTING ROD TO SHIFT LEVER
774 N 071805013203 BALL SOCKET
SHIFTING ROD TO SHIFT LEVER
N 071805013300 SNAP RING
SHIFTING ROD TO SHIFT LEVER
776 N 071805013402 SECURING CLIP
SHIFTING ROD TO SHIFT LEVER
778 N 304032008006 NUT
SHIFTING ROD TO SHIFT LEVER
780 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
780 N 000137008212 SPRING WASHER
SHIFTING ROD TO SHIFT LEVER
782 N 071752008002 YOKE
SHIFTING ROD TO SHIFT LEVER
784 A 0009910305 PIN
SHIFTING ROD TO SHIFT LEVER
786 N 000433008406 WASHER
SHIFTING ROD TO SHIFT LEVER
N 000094002059 COTTER PIN
SHIFTING ROD TO SHIFT LEVER
788 N 304032008006 NUT
SHIFTING ROD TO SHIFT LEVER
790 A 0002300023 DRIVE
MEILLER DUMPER PUMP
792 A 0029932701 SPRING
DETENT
794 N 005401308000 BALL
DETENT
796 A 0002640279 GASKET
MEILLER DUMPER PUMP TO INTERMEDIATE FLANGE
A 3212640074 PIN
SHIFT LEVER PIVOT PIN,BOTTOM
A 3129900148 WASHER
SHIFT LEVER TO PIVOT PIN
798 A 3222640124 SHIFT LEVER
Repalced by: A 3222603039
798 A 3222603039 SHIFT LEVER
P.T.O.
798 A 3222640424 SHIFT LEVER
P.T.O.
800 N 071412008302 GREASE NIPPLE
SHIFT LEVER
N 000433015005 WASHER
SHIFT LEVER TO PIVOT PIN
N 000471015000 LOCK RING
SHIFT LEVER TO PIVOT PIN
802 A 3322640096 BOOT
Repalced by: A 3522640096
802 A 3522640096 BOOT
Repalced by: A 3222640096
802 A 3222640096 BOOT
SHIFT LEVER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
