Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122

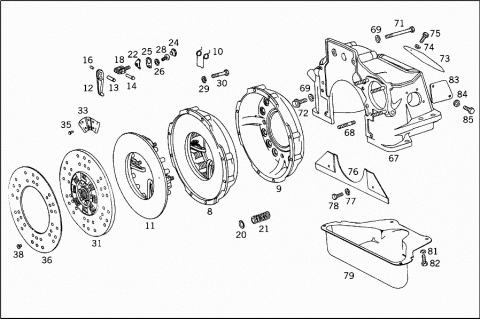

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0002508704 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032501104 | ||
| 008 | A 0032501104 | CLUTCH PRESSURE PLATE |
| 008 | A 0002506304 | CLUTCH PRESSURE PLATE |
| A 0002522032 | HOUSING | |
| 009 | A 0002521932 | HOUSING |
| 010 | A 0002520527 | SPRING |
| 010 | A 0002520827 | SPRING |
| CLUTCH PRESSURE PLATE | ||
| 011 | A 0002509204 | CLUTCH PRESSURE PLATE |
| 011 | A 0002509504 | CLUTCH PRESSURE PLATE |
| A 0002525312 | PRESSURE PLATE | |
| Repalced by: A 0002526012 | ||
| A 0002526012 | PRESSURE PLATE | |
| A 0002525412 | PRESSURE PLATE | |
| Repalced by: A 0002526112 | ||
| A 0002526112 | PRESSURE PLATE | |
| 012 | A 0002525713 | RELEASE LEVER |
| Repalced by: A 0002526413 | ||
| 012 | A 0002526413 | RELEASE LEVER |
| 012 | A 0002522513 | RELEASE LEVER |
| Repalced by: A 0002526513 | ||
| 012 | A 0002526513 | RELEASE LEVER |
| 013 | A 0002520016 | SPINDLE |
| Repalced by: A 0002523516 | ||
| 013 | A 0002523516 | SPINDLE |
| Repalced by: A 0002524216 | ||
| 013 | A 0002524216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 013 | A 0002520816 | SPINDLE |
| Repalced by: A 0002523716 | ||
| 013 | A 0002523716 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 014 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 014 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 014 | A 0002523616 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 014 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| 014 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| N 000094002059 | COTTER PIN | |
| PRESSURE PLATE | ||
| N 006799007007 | LOCK PLATE | |
| PRESSURE PLATE | ||
| 016 | A 0002520018 | ROLLER |
| 016 | A 0002520018 | ROLLER |
| 018 | A 0002522414 | BRACKET |
| Repalced by: A 0002522914 | ||
| 018 | A 0002522914 | BRACKET |
| 018 | A 0002521314 | BRACKET |
| Repalced by: A 0002522514 | ||
| 018 | A 0002522514 | BRACKET |
| Repalced by: A 0002523014 | ||
| 018 | A 0002523014 | BRACKET |
| 020 | A 0002520024 | INSULATING WASHER |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 020 | A 0002520024 | INSULATING WASHER |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 021 | A 0002523220 | PRESSURE SPRING |
| PRESSURE PLATE | ||
| 021 | A 0002523820 | PRESSURE SPRING |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 021 | A 0002524120 | PRESSURE SPRING |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 022 | A 0002521419 | LEAF SPRING |
| PRESSURE PLATE | ||
| 022 | A 0002521319 | LEAF SPRING |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 024 | A 0002522872 | NUT |
| PRESSURE PLATE | ||
| 024 | A 0002523372 | NUT |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 025 | A 0002520573 | LOCK |
| PRESSURE PLATE | ||
| 025 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 025 | A 0002521173 | LOCK |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 026 | N 912004008102 | LOCK WASHER |
| PRESSURE PLATE | ||
| 026 | N 912004005103 | LOCK WASHER |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| PRESSURE PLATE | ||
| 028 | A 0009902721 | SCREW |
| Repalced by: N 007985005157 | ||
| 028 | N 007985005157 | SCREW |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| M 5X8 | ||
| 028 | A 0009907021 | SCREW |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| M 5X6 | ||
| 029 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 029 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 030 | N 000931008292 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 030 | A 3122521071 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 031 | A 0072501803 | CLUTCH DISC |
| Repalced by: A 0102508503 | ||
| 031 | A 0102508503 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 031 | A 0072501903 | CLUTCH DISC |
| Repalced by: A 0132508903 | ||
| 031 | A 0132508903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 031 | A 0042506603 | CLUTCH DISC |
| 031 | A 0092503203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 031 | A 0092503303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 031 | A 0012503803 | CLUTCH DISC |
| 033 | A 0002520219 | LEAF SPRING |
| Repalced by: A 0002524519 | ||
| 033 | A 0002524519 | LEAF SPRING |
| 033 | A 0002520719 | LEAF SPRING |
| Repalced by: A 0002525219 | ||
| 033 | A 0002525219 | LEAF SPRING |
| 035 | A 0002520175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 4X5 MM | ||
| 035 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 036 | A 0012524410 | CLUTCH LINING |
| Repalced by: A 0012527810 | ||
| 036 | A 0012527810 | CLUTCH LINING |
| Repalced by: A 0002521310 | ||
| 036 | A 0002521310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 036 | A 0012520610 | CLUTCH LINING |
| 036 | A 0012525510 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 036 | A 0002523810 | CLUTCH LINING |
| 038 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 038 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 038 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| A 0012500404 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0022509504 | ||
| A 0022509504 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0012509004 | ||
| A 0012509004 | CLUTCH PRESSURE PLATE | |
| A 0012509004 | CLUTCH PRESSURE PLATE | |
| A 0022506404 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0022509704 | ||
| A 0022509704 | CLUTCH PRESSURE PLATE | |

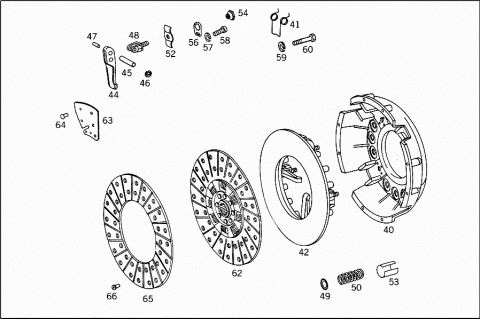

| 040 | A 0002522332 | HOUSING |
| Repalced by: A 0002524332 | ||
| 040 | A 0002524332 | HOUSING |
| 040 | A 0002523832 | HOUSING |
| Repalced by: A 0002524432 | ||
| 040 | A 0002524432 | HOUSING |
| 041 | A 0002520827 | SPRING |
| FOR RELEASE LEVERS | ||
| 042 | A 0012505104 | CLUTCH PRESSURE PLATE |
| 042 | A 0002523912 | PRESSURE PLATE |
| A 0002524312 | PRESSURE PLATE | |
| WITH RELEASE LEVERS AND BRACKETS | ||
| 044 | A 0002523713 | RELEASE LEVER |
| PRESSURE PLATE | ||
| A 0002525013 | RELEASE LEVER | |
| 045 | A 0002521616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| A 0002521716 | SPINDLE | |
| FOR BRACKETS | ||
| 046 | N 006799007007 | LOCK PLATE |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 047 | A 0002520318 | ROLLER |
| RELEASE LEVER TO CLUTCH PRESSURE PLATE | ||
| 048 | A 0002521514 | BRACKET |
| Repalced by: A 0002522314 | ||
| 048 | A 0002522314 | BRACKET |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 049 | A 0002520024 | INSULATING WASHER |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 050 | A 0002525120 | PRESSURE SPRING |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 050 | A 0002526420 | PRESSURE SPRING |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 052 | A 0002520119 | LEAF SPRING |
| Repalced by: A 0002520619 | ||
| 052 | A 0002520619 | LEAF SPRING |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 053 | A 0002520253 | SPACER TUBE |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 054 | A 0002522472 | NUT |
| Repalced by: A 0002523372 | ||
| 054 | A 0002523372 | NUT |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 056 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 056 | A 0002521173 | LOCK |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 057 | N 912004005103 | LOCK WASHER |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 058 | N 007985005157 | SCREW |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 059 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 060 | A 3522520071 | SCREW |
| Repalced by: N 304017008036 | ||
| 060 | N 304017008036 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 060 | N 000931008229 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 062 | A 0072502603 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 062 | A 0082507203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 062 | A 0012506003 | CLUTCH DISC |
| Repalced by: A 0032508303 | ||
| 062 | A 0022503903 | CLUTCH DISC |
| Repalced by: A 0032508303 | ||
| 062 | A 0022508803 | CLUTCH DISC |
| Repalced by: A 0032508303 | ||
| 062 | A 0032508303 | CLUTCH DISC |
| 063 | A 0002522019 | LEAF SPRING |
| 064 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 064 | A 0002522175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X 8 MM | ||
| 064 | A 0002522575 | RIVET |
| Repalced by: A 0002523975 | ||
| 064 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| A 0012525010 | CLUTCH LINING | |
| ASBESTOS-FREE | ||
| 065 | A 0002525210 | CLUTCH LINING |
| Repalced by: A 0002529010 | ||
| 065 | A 0002525710 | CLUTCH LINING |
| Repalced by: A 0002529010 | ||
| 065 | A 0002529010 | CLUTCH LINING |
| 066 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 066 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 066 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 066 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 066 | A 0002523875 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| A 3222500805 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3102500105 | HOUSING | |
| Repalced by: A 3102510301 | ||
| A 3102510301 | BELL HOUSING | |
| Repalced by: A 3102510501 | ||
| A 3102510501 | BELL HOUSING | |
| Repalced by: A 3102510601 | ||
| A 3102510601 | BELL HOUSING | |
| N 000939010027 | STUD BOLT | |
| BELL HOUSING | ||
| TO 322 250 08 05,310 250 01 05 | ||
| A 0009902805 | STUD | |
| BELL HOUSING | ||
| TO 310 251 03 01,310 251 05 01 | ||
| 067 | A 3522500305 | HOUSING |
| Repalced by: A 3522512001 | ||
| 067 | A 3522502005 | HOUSING |
| Repalced by: A 3522512001 | ||
| 067 | A 3522501605 | HOUSING |
| Repalced by: A 3522512001 | ||
| 067 | A 3522511501 | BELL HOUSING |
| Repalced by: A 3522512001 | ||
| 067 | A 3522512001 | BELL HOUSING |
| 067 | A 3522512101 | BELL HOUSING |
| N 000908016008 | SCREW PLUG | |
| BELL HOUSING | ||
| N 007603016401 | SEAL RING | |
| BELL HOUSING | ||
| 068 | N 000939010027 | STUD BOLT |
| BELL HOUSING | ||
| M10X50 | ||
| 068 | A 0009902605 | STUD |
| BELL HOUSING | ||
| M10X72 | ||
| 069 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 071 | N 000931012156 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X110 | ||
| 071 | N 000931012227 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X135 | ||
| 071 | N 000931012227 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X135 | ||
| 072 | N 900170012004 | SCREW |
| Repalced by: N 914141012800 | ||
| 072 | N 914141012800 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X40 | ||
| 072 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 072 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 072 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 073 | A 3122511004 | END COVER |
| Repalced by: A 3602510004 | ||
| 073 | A 3602510004 | END COVER |
| AT BELL HOUSING,TOP | ||
| 074 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 075 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 075 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| 076 | N 900170012005 | SCREW |
| Repalced by: A 3522500055 | ||
| 076 | A 3522510106 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 076 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 076 | A 3522510106 | PROTECTIVE PLATE |
| BOTTOM | ||
| 077 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 078 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 078 | N 304017006034 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 079 | A 3122511002 | BELL HOUSING |
| Repalced by: A 3142510002 | ||
| 079 | A 3142510002 | BELL HOUSING |
| Repalced by: A 3142501005 | ||
| 079 | A 3142501005 | HOUSING |
| Repalced by: A 3142510302 | ||
| 079 | A 3142510302 | BELL HOUSING |
| LOWER PART | ||
| 079 | A 3522510002 | BELL HOUSING |
| Repalced by: A 3522510202 | ||
| 079 | A 3522510102 | BELL HOUSING |
| Repalced by: A 3522510202 | ||
| 079 | A 3812510102 | BELL HOUSING |
| Repalced by: A 3522510202 | ||
| 079 | A 3522510202 | BELL HOUSING |
| Repalced by: A 3522503105 | ||
| 079 | A 3522503105 | HOUSING |
| Repalced by: A 3522510202 | ||
| 079 | A 3522510202 | BELL HOUSING |
| LOWER PART | ||
| 079 | A 3522510202 | BELL HOUSING |
| LOWER PART | ||
| 081 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 082 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 082 | N 304017006034 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 083 | A 3272510033 | COVER |
| Repalced by: A 3522510004 | ||
| 083 | A 3522510004 | END COVER |
| BELL HOUSING | ||
| 083 | A 3522510004 | END COVER |
| BELL HOUSING | ||
| 083 | A 3522510004 | END COVER |
| BELL HOUSING | ||
| 084 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 085 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 085 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
