Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122

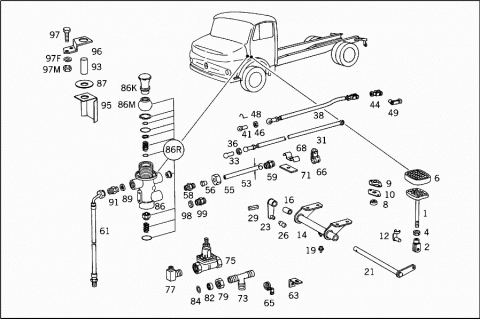

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
001	A 3524300318	BRAKE PEDAL
001	A 3524300318	BRAKE PEDAL
002	N 071752008002	YOKE
002	N 071752008002	YOKE
004	N 304032008006	NUT
004	N 304032008006	NUT
006	A 3203015082	PAD
006	A 3203015082	PAD
008	A 3524340123	GUIDE
008	A 3524340123	GUIDE
009	A 3524340140	BRACKET
	A 3524341040	BRACKET
	A 3524341040	BRACKET
010	A 3524340087	SHIM
	A 3524340187	SHIM
	A 3524340187	SHIM
	N 000571006009	WOOD SCREW
	N 000571006009	WOOD SCREW
012	N 918001008000	PIN
012	N 918001008000	PIN
	N 900055008002	SPRING WASHER
	N 900055008002	SPRING WASHER
014	A 3524300438	BEARING
014	A 3524300438	BEARING
014	A 3524300538	BEARING
014	A 3524300538	BEARING
016	A 3524340150	BUSHING
016	A 3524340150	BUSHING
019	N 071412010200	GREASE NIPPLE
019	N 071412010200	GREASE NIPPLE
	N 000933008212	SCREW
	Repalced by: N 304017008016
	N 304017008016	SCREW
	N 304017008016	SCREW
	N 912004008102	LOCK WASHER
	N 912004008102	LOCK WASHER
	N 304032008006	NUT
	N 304032008006	NUT
021	A 3524301446	INTERMEDIATE SHAFT
021	A 3524301446	INTERMEDIATE SHAFT
021	A 3524301546	INTERMEDIATE SHAFT
021	A 3524301546	INTERMEDIATE SHAFT
023	A 3524300523	LEVER
023	A 3524300523	LEVER
023	A 3524300923	LEVER
023	A 3524300923	LEVER
026	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
026	A 3129910120	BALL PIVOT
026	A 3129910120	BALL PIVOT
029	N 001481004017	CLAMPING SLEEVE
	Repalced by: N 308752004001
029	N 308752004001	CLAMPING PIN
029	N 308752004001	CLAMPING PIN
031	A 3604302092	ROD
031	A 3604302092	ROD
	N 071805010204	BALL SOCKET
	N 071805010204	BALL SOCKET
033	A 0009912422	BALL SOCKET
036	N 000934006007	NUT
036	N 000934006007	NUT
	A 3524301192	ROD
	Repalced by: A 3524300079
038	A 3524300079	CONNECTOR
038	A 3524300079	CONNECTOR
041	N 071805010204	BALL SOCKET
041	N 071805010204	BALL SOCKET
044	N 071752006006	YOKE
044	N 071752006006	YOKE
046	N 000934006007	NUT
046	N 000934006007	NUT
048	N 071805010403	SECURING CLIP
048	N 071805010403	SECURING CLIP
049	N 918001006004	PIN
049	N 918001006004	PIN
053	A 0004290701	LINE
	Repalced by: A 0004296201
053	A 0004296201	LINE
		6 MM
055	N 915017006100	UNION NUT
056	N 003861006007	GLAND
	Repalced by: A 0019901667
056	A 0019901667	SEAL CONE
058	A 0039979172	FITTING
		BETWEEN THE LINES
059	A 0039979072	FITTING
	Repalced by: A 0029906071
059	A 0029906071	FITTING
061	A 3215420035	HOSE
063	A 3604340040	BRACKET
	N 000933008153	SCREW
	Repalced by: N 304017008034
	N 304017008034	SCREW
	N 912004008102	LOCK WASHER
	N 304032008006	NUT
065	A 3609950101	CLAMP
	N 000084006107	SCREW
	N 912004006102	LOCK WASHER
	N 000934006007	NUT
066	A 3604300143	CLAMP
	Repalced by: N 916016008200
066	N 916016008200	CLAMP
068	A 3609950101	CLAMP
071	A 3125421039	PLATE
	N 000084005106	SCREW
	N 912004005101	LOCK WASHER
	N 304032005002	NUT
	Repalced by: N 304032005005
	N 304032005005	NUT
073	N 074302022202	T-FITTING
		AT AIR RESERVOIR
	A 0039979072	FITTING
	Repalced by: A 0029906071
	A 0029906071	FITTING
		AT DISTRIBUTOR
075	A 0004296344	VALVE
	Repalced by: A 0014295244
075	A 0014295244	VALVE
		WABCO
075	A 0004315406	VALVE
	Repalced by: A 0014295244
075	A 0014299844	VALVE
		(OVERFLOW VALVE)
		BOSCH
075	A 0014297944	VALVE
		(OVERFLOW VALVE)
		GRAU
075	A 0034290244	VALVE
		(OVERFLOW VALVE)
		KNORR
	A 0024298844	VALVE
		TO 001 429 79 44,GRAU
	A 0004290745	DIAPHRAGM
		TO 001 429 79 44,GRAU
	A 0004290145	DIAPHRAGM
		TO 000 431 54 06,BOSCH
	A 0015862642	REPAIR KIT
		TO 001 429 98 44,BOSCH
	A 0004303260	REPAIR KIT
		TO 003 429 02 44,KNORR
	A 0005863642	REPAIR KIT
	Repalced by: A 0005865842
	A 0005865842	REPAIR KIT
		TO 000 429 63 44,WABCO
	A 0015862042	REPAIR KIT
		TO 001 429 52 44,WABCO
077	A 3609900071	ELBOW FITTING
079	N 074305022202	NUT
082	A 0004290227	THRUST RING
084	A 0009870446	SEALING CORD
	A 3214340001	VALVE
	Repalced by: A 0004341101
	A 0004341101	VALVE
		BOSCH
086	A 0004340801	VALVE
	Repalced by: A 0004342401
086	A 0004342401	VALVE
		WABCO
	A 0004342601	VALVE
		WABCO
	A 0004341501	VALVE
		BOSCH
	A 0079972448	SEAL RING
		TO 000 434 24 01,17X1,5 MM,WABCO
	A 0079972548	SEAL RING
		TO 000 434 24 01,5,7X1,9 MM,WABCO
	A 0059979248	SEAL RING
		TO 000 434 11 01,BOSCH
	A 0014315193	SPRING
		TO 000 434 11 01,BOSCH
086K	A 0009972077	HANDLE
		TO 000 434 24 01,WABCO
086M	A 0004340586	CUP
		TO 000 434 24 01,WABCO
	A 0025868343	REPAIR KIT
		TO 000 434 11 01,BOSCH
	A 0025868443	REPAIR KIT
		TO 000 434 11 01,BOSCH
086R	A 0025869843	REPAIR KIT
		TO 000 434 24 01,WABCO
	A 0007631252	VALVE
	Repalced by: A 0004340801
	A 0005869743	REPAIR KIT
		TO 000 434 08 01,WABCO
	N 080705026000	NUT
	Repalced by: N 080705026003
	N 080705026003	NUT
	A 3296160476	WASHER
087	A 3376875013	WASHER
089	N 007603012405	SEAL RING
091	N 074298012202	DOUBLE FITTING
	Repalced by: A 0019972872
091	A 0019972872	FITTING
	Repalced by: A 0039979072
091	A 0039979072	FITTING
	Repalced by: A 0029906071
091	A 0029906071	FITTING
093	A 3354340023	GUIDE
	N 000137026200	SPRING WASHER
095	A 3604340044	PROTECTIVE PLATE
096	A 3604312140	BRACKET
097	N 000933008147	SCREW
	Repalced by: N 304017008021
097	N 304017008021	SCREW
097F	N 912004008102	LOCK WASHER
097M	N 304032008006	NUT
098	N 007603012405	SEAL RING
099	A 0039979072	FITTING
	Repalced by: A 0029906071
099	A 0029906071	FITTING
