Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122

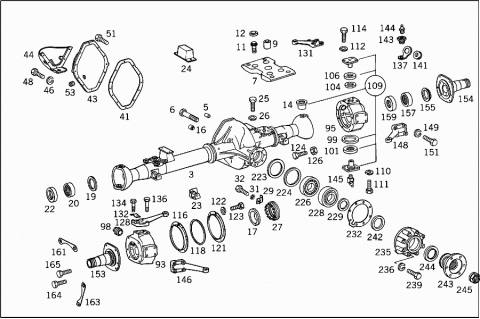

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|

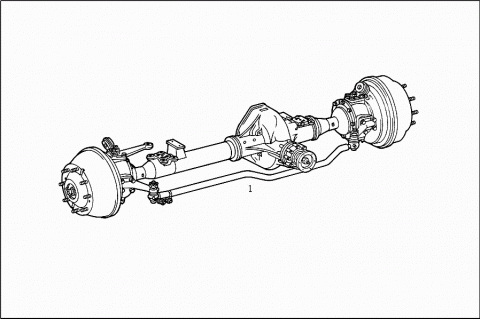

| 001 | A 3583302400 | FRONT AXLE |
| 002 | A 3583300600 | FRONT AXLE |
| 002 | A 3583302400 | FRONT AXLE |
| 002 | A 3583302500 | FRONT AXLE |
| 003 | A 3523300205 | FRONT AXLE HOUSING |
| 005 | N 000007006205 | CYLINDRICAL PIN |
| 006 | A 3129902201 | SCREW |
| Repalced by: N 914126016000 | ||
| 006 | N 914126016000 | SCREW |
| Repalced by: A 0009905704 | ||
| 006 | A 0009905704 | SCREW |
| 007 | A 3523220412 | SPRING SADDLE |
| Repalced by: A 3603220512 | ||
| 007 | A 3603220512 | SPRING SADDLE |
| 009 | A 3529910064 | BUSHING |
| 011 | A 3529900304 | SCREW |
| 012 | A 3389945043 | LOCK |
| 014 | A 3403310050 | BUSHING |
| Repalced by: A 3403310250 | ||
| 014 | A 3403310250 | BUSHING |
| 016 | A 3523510174 | PIN |
| 017 | A 3123571082 | OIL COLLECTOR |
| Repalced by: A 3853570082 | ||
| 017 | A 3853570082 | OIL COLLECTOR |
| 019 | A 3223310351 | SPACER RING |
| 020 | A 0009815312 | ROLLER ASSEMBLY |
| Repalced by: A 0049814410 | ||
| 020 | A 0049814410 | NEEDLE BEARING |
| 020 | A 0059816310 | NEEDLE BEARING |
| 022 | A 0039972546 | SEAL RING |
| 023 | A 3523230240 | BRACKET |
| Repalced by: A 3603230040 | ||
| 023 | A 3603230040 | BRACKET |
| 024 | A 3523300175 | RUBBER MOUNTING |
| Repalced by: A 3853300075 | ||
| 024 | A 3853300075 | RUBBER MOUNTING |
| N 000933010105 | SCREW | |
| N 000934010014 | NUT | |
| 025 | N 000933010128 | SCREW |
| 026 | N 912004010102 | LOCK WASHER |
| 027 | A 3403350025 | ADJUSTING NUT |
| Repalced by: A 3853350025 | ||
| 027 | A 3853350025 | ADJUSTING NUT |
| Repalced by: A 6743530025 | ||
| 027 | A 6743530025 | SCREW COLLAR |
| 029 | A 3123531173 | LOCK |

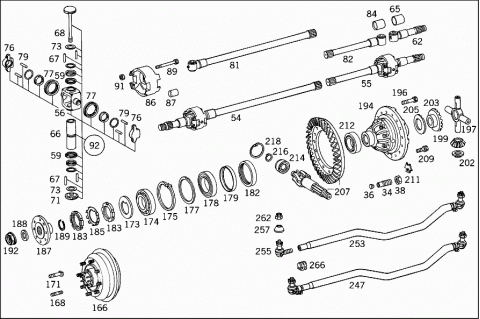

| 031 | N 006797008120 | TOOTHED WASHER |
| 032 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 032 | N 304017008016 | SCREW |
| 034 | A 3143530176 | SET SCREW |
| 036 | A 3123531049 | SLIDE |
| 038 | N 000936022000 | NUT |
| 041 | A 3123511080 | GASKET |
| Repalced by: A 3123511480 | ||
| 041 | A 3123511480 | GASKET |
| 043 | A 3813300021 | COVER |
| Repalced by: A 3813300121 | ||
| 043 | A 3813300121 | COVER |
| 044 | A 3123301283 | PROTECTIVE PLATE |
| Repalced by: A 3603300083 | ||
| 044 | A 3603300083 | PROTECTIVE PLATE |
| 046 | N 912004010102 | LOCK WASHER |
| 048 | N 000933010164 | SCREW |
| 051 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 051 | N 304017010028 | SCREW |
| 053 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 053 | A 3529970032 | SCREW PLUG |
| A 3223303001 | DRIVE SHAFT | |
| Repalced by: A 3813300201 | ||
| 054 | A 3813300201 | DRIVE SHAFT |
| 055 | A 3223303101 | DRIVE SHAFT |
| Repalced by: A 3813300301 | ||
| 055 | A 3813300301 | DRIVE SHAFT |
| 056 | A 3813300135 | JOINT |
| Repalced by: A 3815860133 | ||
| 056 | A 3813300035 | JOINT |
| Repalced by: A 3815860033 | ||
| 059 | A 3223370380 | GASKET |
| Repalced by: A 3819970046 | ||
| 059 | A 3819970046 | SEAL RING |
| 062 | A 3813300601 | DRIVE SHAFT |
| A 3229810181 | INNER RING | |
| Repalced by: A 3819810081 | ||
| 065 | A 3819810081 | INNER RING |
| 066 | A 3223370074 | PIN |
| Repalced by: A 3813370074 | ||
| 066 | A 3523370074 | PIN |
| Repalced by: A 3813370074 | ||
| 066 | A 3813370074 | PIN |
| 28.65 MM | ||
| A 0009812687 | NEEDLE | |
| Repalced by: A 0005860435 | ||
| 067 | A 0005860435 | REPAIR KIT |
| SET = 33 PIECES | ||
| A 3609900077 | SCREW | |
| 068 | A 3229900801 | SCREW |
| 071 | A 3223370030 | COVER |
| 073 | A 3223370062 | THRUST WASHER |
| 076 | A 3523370018 | HOUSING |
| Repalced by: A 3953300033 | ||
| 076 | A 3223370118 | BEARING BRACKET |
| Repalced by: A 3953300033 | ||
| 076 | A 3953300033 | BEARING HOUSING |
| 077 | A 3223370180 | GASKET |
| Repalced by: A 4949970246 | ||
| 077 | A 4949970246 | SEAL RING |
| A 0009812587 | NEEDLE | |
| Repalced by: A 0005860235 | ||
| 079 | A 0005860235 | REPAIR KIT |
| SET = 30 PIECES | ||
| 081 | A 3813300401 | DRIVE SHAFT |
| 082 | A 3813300501 | DRIVE SHAFT |
| A 3229810181 | INNER RING | |
| Repalced by: A 3819810081 | ||
| 084 | A 3819810081 | INNER RING |
| 086 | A 3223370217 | FOLLOWER |
| Repalced by: A 3523370017 | ||
| 086 | A 3523370017 | FOLLOWER |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 087 | A 3223370280 | GASKET |
| 089 | A 3229900102 | SCREW |
| Repalced by: N 914125010900 | ||
| 089 | N 914125010900 | SCREW |
| 091 | A 3229900055 | NUT |
| Repalced by: N 000935010007 | ||
| 091 | N 000935010007 | NUT |
| N 000094002008 | COTTER PIN | |
| 092 | A 3815860033 | REPAIR KIT |
| Repalced by: A 3813300435 | ||
| 092 | A 3813300435 | REPAIR KIT |
| LEFT DRIVE SHAFT JOURNAL CROSS | ||
| 092 | A 3815860133 | REPAIR KIT |
| Repalced by: A 3813300535 | ||
| 092 | A 3813300535 | REPAIR KIT |
| RIGHT DRIVE SHAFT JOURNAL CROSS | ||
| 093 | A 3223370606 | HOUSING |
| 095 | A 3223370706 | HOUSING |
| 098 | N 000906042002 | SCREW PLUG |
| 099 | A 0109979847 | SEAL RING |
| 101 | A 0009810518 | ROLLER BEARING |
| A 3403321306 | KINGPIN | |
| Repalced by: A 3405860033 | ||
| 104 | A 3403320362 | THRUST WASHER |
| 3.8 MM | ||
| 104 | A 3403320562 | THRUST WASHER |
| 4.0 MM | ||
| 104 | A 3403320762 | THRUST WASHER |
| 4.2 MM | ||
| 104 | A 3403320962 | THRUST WASHER |
| 4.4 MM | ||
| 104 | A 3403321162 | THRUST WASHER |
| 4.6 MM | ||
| 104 | A 3403321362 | THRUST WASHER |
| 4.8 MM | ||
| 104 | A 3403321562 | THRUST WASHER |
| 5.0 MM | ||
| 106 | A 3403320062 | THRUST WASHER |
| 109 | A 3405860033 | REPAIR KIT |
| Repalced by: A 3403300019 | ||
| 109 | A 3403300019 | KING PIN |
| PARTS KIT | ||
| 110 | N 912004012100 | LOCK WASHER |
| 111 | N 000961012164 | SCREW |
| 112 | N 912004014100 | LOCK WASHER |
| 114 | N 000961014113 | SCREW |
| 116 | A 3223310009 | SEAL HOLDER |
| 118 | A 3223310080 | GASKET |
| 121 | A 3223310109 | SEAL HOLDER |
| 122 | N 912004008102 | LOCK WASHER |
| 123 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 123 | N 304017008016 | SCREW |
| 124 | A 3403370071 | SCREW |
| Repalced by: A 3603370171 | ||
| 124 | A 3603370171 | SCREW |
| 126 | N 000936010008 | NUT |
| 128 | A 3523380101 | STEERING ARM |
| 131 | A 3523380102 | STEERING ARM |
| 132 | A 3229940130 | LOCK |
| A 3229940230 | LOCK | |
| RIGHT | ||
| 134 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 134 | N 308676014012 | SCREW |
| 136 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 136 | N 308676014013 | SCREW |
| 137 | A 3404280240 | BRACKET |
| 141 | A 3129970581 | GROMMET |
| 143 | A 3124281026 | HOLLOW SCREW |
| 144 | N 071412010100 | GREASE NIPPLE |
| 145 | N 071412010200 | GREASE NIPPLE |
| 146 | A 3123381005 | STEERING ARM |
| Repalced by: A 3453380205 | ||
| 146 | A 3453380205 | STEERING ARM |
| 148 | A 3123381006 | STEERING ARM |
| Repalced by: A 3453380306 | ||
| 148 | A 3453380306 | STEERING ARM |
| 149 | N 912004012100 | LOCK WASHER |
| 151 | N 000961012027 | SCREW |
| 153 | A 3223320816 | SUPPORTING SLEEVE |
| Repalced by: A 3223321016 | ||
| 153 | A 3223321016 | SUPPORTING SLEEVE |
| 154 | A 3223320916 | SUPPORTING SLEEVE |
| Repalced by: A 3223321016 | ||
| 154 | A 3223321016 | SUPPORTING SLEEVE |
| 155 | A 3223310351 | SPACER RING |
| 157 | A 0009815312 | ROLLER ASSEMBLY |
| Repalced by: A 0049814410 | ||
| 157 | A 0049814410 | NEEDLE BEARING |
| 157 | A 0059816310 | NEEDLE BEARING |
| 159 | A 0039972546 | SEAL RING |
| 161 | A 3229940125 | LOCK |
| 163 | A 3229940025 | LOCK |
| 164 | N 000960012043 | SCREW |
| 165 | N 308765016002 | SCREW |
| A 3533300437 | DRUM HUB | |
| Repalced by: A 3533340204 | ||
| A 3533300737 | DRUM HUB | |
| Repalced by: A 3533340204 | ||
| 166 | A 3533340204 | DRUM HUB |
| 168 | A 3129901705 | STUD |
| 171 | A 3274010071 | WHEEL MOUNTING BOLT |
| Repalced by: A 3184020271 | ||
| 171 | A 3184020271 | WHEEL MOUNTING BOLT |
| 173 | A 3123311052 | SPACER WASHER |
| 174 | A 3129810301 | CYLINDR. ROLLER BEARING |
| 174 | A 0019815205 | TAPERED ROLLER BEARING |
| 175 | A 3123311073 | LOCK |
| 5 MM | ||
| A 3123311273 | LOCK | |
| 6 MM | ||
| 177 | A 3523340015 | RING |
| 178 | A 0009816105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 178 | A 0019811405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 178 | A 0019819605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 179 | A 3403340051 | SPACER RING |
| 182 | A 0029976446 | SEAL RING |
| Repalced by: A 0039972247 | ||
| 182 | A 0039972247 | SEAL RING |
| Repalced by: A 0169976347 | ||
| 182 | A 0169976347 | SEAL RING |
| 183 | A 3123560126 | GROOVED NUT |
| 185 | A 3123321073 | LOCK |
| 187 | A 3223370417 | FOLLOWER |
| 188 | A 3223370051 | SPACER RING |
| N 000934012022 | NUT | |
| 189 | A 3229940034 | SNAP RING |
| 189 | A 3459940134 | SNAP RING |
| 192 | A 3273530272 | NUT |
| Repalced by: A 3853510272 | ||
| 192 | A 3853510272 | NUT |
| 194 | A 3803300723 | DIFFERENTIAL GEAR |
| 194 | A 3803300723 | DIFFERENTIAL GEAR |
| WITH COVER | ||
| 196 | N 900170014004 | SCREW |
| 197 | A 3213530220 | DIFFERENTIAL SPIDER |
| 199 | A 3223530614 | DIFFERENTIAL PINION |
| 202 | A 3123531224 | SPHERICAL WASHER |
| 203 | A 3123531515 | SIDE GEAR |
| 205 | A 3123531062 | THRUST WASHER |
| 2.0 MM | ||
| 207 | A 3833300439 | RING GEAR AND PINION |
| Repalced by: A 3833301539 | ||
| 207 | A 3833301539 | RING GEAR AND PINION |
| RATIO: | ||
| 6:41 | ||
| 207 | A 3233501239 | RING GEAR AND PINION |
| Repalced by: A 3833301639 | ||
| 207 | A 3833301639 | RING GEAR AND PINION |
| RATIO 7:40 | ||
| 207 | A 3233501539 | RING GEAR AND PINION |
| RATIO 7:40 | ||
| 209 | A 3239900101 | SCREW |
| 211 | A 3233530273 | LOCK |
| 212 | A 0019817905 | TAPERED ROLLER BEARING |
| 212 | A 0019818205 | TAPERED ROLLER BEARING |
| 212 | A 0029812305 | TAPERED ROLLER BEARING |
| 212 | A 0019812405 | TAPERED ROLLER BEARING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| DRIVE PINION BEARING | ||
| 214 | A 0009818701 | CYLINDR. ROLLER BEARING |
| 214 | A 0009819001 | CYLINDR. ROLLER BEARING |
| 216 | N 000471025002 | LOCK RING |
| 218 | A 3129940141 | LOCK |
| 224 | A 3123531352 | SPACER WASHER |
| 0.1 MM | ||
| 224 | A 3123531452 | SPACER WASHER |
| 0.25 MM | ||
| 224 | A 3123533252 | SPACER WASHER |
| 0.50 MM | ||
| 226 | N 005412100309 | CYLINDR. ROLLER BEARING |
| 228 | A 0009810027 | ANGULAR CONTACT BEARING |
| 229 | A 3123531951 | SPACER RING |
| 232 | A 3123532852 | SPACER WASHER |
| 0.10 MM | ||
| 232 | A 3123532952 | SPACER WASHER |
| 0.25 MM | ||
| 232 | A 3123533152 | SPACER WASHER |
| 0.50 MM | ||
| 235 | A 3123511915 | FLANGE |
| 236 | N 912004010102 | LOCK WASHER |
| 239 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 239 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 239 | N 304017010053 | SCREW |
| 239 | A 0009976647 | SEAL RING |
| Repalced by: A 0019973247 | ||
| 242 | A 0099976347 | SEAL RING |
| 242 | A 0019973247 | SEAL RING |
| Repalced by: A 0119977447 | ||
| 242 | A 0119977447 | SEAL RING |
| 242 | A 0129972947 | SEAL RING |
| 243 | A 3123301044 | COUPLING FLANGE |
| Repalced by: A 3583300044 | ||
| 243 | A 3583300044 | COUPLING FLANGE |
| 244 | A 3122621063 | PROTECTIVE PLATE |
| 245 | A 3243530072 | NUT |
| Repalced by: A 3853510372 | ||
| 245 | A 3853510372 | NUT |
| 247 | A 3523302303 | TIE ROD |
| LEMFOERDER | ||
| 247 | A 3523302403 | TIE ROD |
| EHRENREICH | ||
| 253 | A 3523300009 | TIE ROD TUBE |
| 255 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 255 | A 0003309535 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 257 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 257 | A 0003300885 | BOOT |
| 262 | N 000937018003 | NUT |
| N 000094004065 | COTTER PIN | |
| 266 | A 0003381345 | CLAMP |
| 266 | A 0003381545 | CLAMP |
| N 000960010030 | SCREW | |
| N 000935010010 | NUT | |
| N 000094002034 | COTTER PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
