Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122
Grupė: 47 FUEL SYSTEM

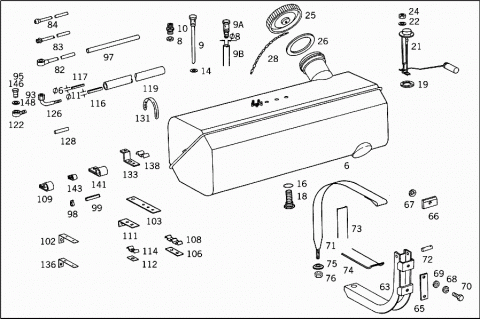

56525
56536
# Kodas Pavadinimas
006 A 3524700101 FUEL TANK
Repalced by: A 3834700601
006 A 3834700601 FUEL TANK
Repalced by: A 6734701201
006 A 6734701201 FUEL TANK
105 L
006 A 3524701001 FUEL TANK
Repalced by: A 3834700701
006 A 3834700701 FUEL TANK
Repalced by: A 6734701001
006 A 6734701001 FUEL TANK
105 L
008 N 915035000014 SEAL RING
AT TANK
A 3524700226 RISING PIPE
Repalced by: A 3374700126
A 3374700126 RISING PIPE
FUEL LINE TO FUEL TANK
370 MM
009 A 3604700226 RISING PIPE
Repalced by: A 3609900263
009 A 3464705126 RISING PIPE
Repalced by: A 3609900263
A 3524700078 HOLLOW SCREW
Repalced by: A 3609900263
009A A 3609900263 HOLLOW SCREW
FUEL LINE TO FUEL TANK
009B A 0089975482 HOSE
FUEL LINE TO FUEL TANK
337 MM
010 A 3214710220 FITTING
FUEL LINE TO FUEL TANK
012 N 915036012203 HOLLOW SCREW
FUEL LINE TO FUEL TANK
014 A 0009971548 SEAL RING
FUEL LINE TO FUEL TANK
N 007604014106 SCREW PLUG
Repalced by: N 007604014110
N 007604014110 SCREW PLUG
AT TANK
N 007603014405 SEAL RING
AT TANK
016 A 0029977245 SEAL RING
FUEL STRAINER SCREEN TO FUEL TANK
018 A 3214700006 FUEL STRAINER
Repalced by: A 3604700006
018 A 3604700006 FUEL STRAINER
Repalced by: A 3074700106
018 A 3074700106 FUEL STRAINER
018 A 0004710235 FUEL STRAINER
019 A 3524710080 GASKET
Repalced by: A 4044710080
019 A 4044710080 GASKET
FUEL GAUGE SENDER UNIT TO FUEL TANK
019 A 0119970745 SEAL RING
FUEL GAUGE SENDER UNIT TO FUEL TANK
021 A 0015422017 SENDER UNIT
FUEL GAUGE SENDER UNIT TO FUEL TANK
021 A 0055423317 SENDER UNIT
Repalced by: A 0085427617
021 A 0085427617 SENDER UNIT
FUEL GAUGE SENDER UNIT TO FUEL TANK
022 A 0669970640 SEAL RING
FUEL GAUGE SENDER UNIT TO FUEL TANK
024 N 304032005002 NUT
Repalced by: N 304032005005
024 N 304032005005 NUT
FUEL GAUGE SENDER UNIT TO FUEL TANK
025 A 3524700405 FILLER CAP
Repalced by: A 3094700005
025 A 3044700005 FILLER CAP
Repalced by: A 3094700005
025 A 3094700005 FILLER CAP
025 A 0004710530 FILLER CAP
Repalced by: A 0004717930
025 A 0004717930 FILLER CAP
Repalced by: A 0004700305
025 A 0004718030 FILLER CAP
Repalced by: A 0004700305
025 A 0004700305 FILLER CAP
025 A 0004700105 FILLER CAP
Repalced by: A 0004700305
026 A 3049970340 SEAL RING
028 A 3034700031 CHAIN
029 A 3224704901 FUEL TANK
Repalced by: A 3524703901
029 A 3524703801 FUEL TANK
Repalced by: A 3524703901
029 A 3524703901 FUEL TANK
65 L
031 N 915035000014 SEAL RING
FUEL LINE TO FUEL TANK
032 A 3524700926 RISING PIPE
FUEL LINE TO FUEL TANK
034 A 3524700026 RISING PIPE
Repalced by: A 3374700126
034 A 3374700126 RISING PIPE
FUEL LINE TO FUEL TANK
200 MM
036 A 3284710053 SPACER TUBE
FUEL LINE TO FUEL TANK
037 N 007603014405 SEAL RING
FUEL LINE TO FUEL TANK
037 N 915035000014 SEAL RING
FUEL LINE TO FUEL TANK
039 A 3224700426 RISING PIPE
Repalced by: A 3284700226
039 A 3284700226 RISING PIPE
FUEL LINE TO FUEL TANK
168 MM
042 A 0029977245 SEAL RING
FUEL STRAINER SCREEN TO FUEL TANK
043 A 3604700206 FUEL STRAINER
043 A 3604700206 FUEL STRAINER
044 N 071401014100 DRAIN COCK
Repalced by: N 900121006100
045 N 900121006100 VALVE
FUEL STRAINER SCREEN
045 N 900121006100 VALVE
FUEL STRAINER SCREEN
046 A 3124761426 HOSE
Repalced by: A 3054760126
046 A 3054760126 HOSE
CONNECTION OF FUEL TANKS
048 N 916026010000 CLAMP
Repalced by: N 000000000665
048 N 000000000665 CLAMP
CONNECTION OF FUEL TANKS
052 A 3524710080 GASKET
Repalced by: A 4044710080
052 A 4044710080 GASKET
FUEL GAUGE SENDER UNIT TO FUEL TANK
N 007603014405 SEAL RING
FUEL STRAINER SCREEN
053 A 3604710320 FITTING
FUEL STRAINER SCREEN
055 A 0005428517 SENDER UNIT
FUEL GAUGE SENDER UNIT TO FUEL TANK
056 A 0669970640 SEAL RING
FUEL GAUGE SENDER UNIT TO FUEL TANK
057 N 304032005002 NUT
Repalced by: N 304032005005
057 N 304032005005 NUT
FUEL GAUGE SENDER UNIT TO FUEL TANK
058 A 3094700005 FILLER CAP
059 A 3049970340 SEAL RING
061 A 3034700031 CHAIN
062 A 3224705101 FUEL TANK
Repalced by: A 3524704001
A 3524704001 FUEL TANK
40 L
063 A 3524700042 SUPPORT
FUEL TANK
063 A 3524702142 SUPPORT
Repalced by: A 3524703242
063 A 3524703242 SUPPORT
Repalced by: A 3834701442
A 3524703242 SUPPORT
Repalced by: A 3834701442
A 3834701442 SUPPORT
Repalced by: A 3834701842
A 3834701842 SUPPORT
FUEL TANK
063 A 3524700142 SUPPORT
FUEL TANK
063 A 3524703142 SUPPORT
Repalced by: A 3534700042
063 A 3534700042 SUPPORT
Repalced by: A 3534700242
063 A 3534700042 SUPPORT
063 A 3534700242 SUPPORT
FUEL TANK
065 N 007349013003 WASHER
Repalced by: N 007349013005
065 N 007349013005 WASHER
CONSOLE TO SIDE MEMBER
065 A 3604750084 SHIM
Repalced by: A 6245611240
065 A 6245611240 BRACKET
CONSOLE TO SIDE MEMBER
065 A 3604750284 SHIM
CONSOLE TO SIDE MEMBER
066 A 3524750084 SHIM
Repalced by: A 3604750484
066 A 3604750484 SHIM
CONSOLE TO SIDE MEMBER
066 A 3604750484 SHIM
CONSOLE TO SIDE MEMBER
067 A 3209906040 WASHER
CONSOLE TO SIDE MEMBER
067 N 007349013003 WASHER
Repalced by: N 007349013005
067 N 007349013005 WASHER
CONSOLE TO SIDE MEMBER
067 N 007349015003 WASHER
CONSOLE TO SIDE MEMBER
068 N 912004012100 LOCK WASHER
CONSOLE TO SIDE MEMBER
068 N 912004014100 LOCK WASHER
CONSOLE TO SIDE MEMBER
069 A 3529900640 WASHER
CONSOLE TO SIDE MEMBER
069 A 3839900440 WASHER
CONSOLE TO SIDE MEMBER
069 A 3609900640 WASHER
CONSOLE TO SIDE MEMBER
069 A 3609900640 WASHER
CONSOLE TO SIDE MEMBER
069 A 3609900640 WASHER
CONSOLE TO SIDE MEMBER
070 N 000961012151 SCREW
CONSOLE TO SIDE MEMBER
070 N 000960012015 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X35
070 N 000961012122 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X40
070 N 000961012151 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X30
070 N 000960012331 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X95
070 N 000961012097 SCREW
Repalced by: N 308676012026
070 N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X35
070 N 000961014050 SCREW
Repalced by: N 308676014020
070 N 308676014020 SCREW
CONSOLE TO SIDE MEMBER
M 14X1.5X35
070 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
M 14X1.5X40
070 N 000961014054 SCREW
CONSOLE TO SIDE MEMBER
M 14X1.5X45
070 N 000960012050 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X48
070 N 000960012197 SCREW
Repalced by: N 000960012384
070 N 000960012384 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X55
070 N 000960012246 SCREW
Repalced by: N 000960012353
070 N 000960012353 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X60
071 A 3524700040 STRAP
FUEL TANK
071 A 3604700140 STRAP
Repalced by: A 3834700340
071 A 3834700340 STRAP
FUEL TANK
A 3834700040 STRAP
Repalced by: A 6174700340
A 6174700340 STRAP
072 N 001443016203 PIN
STRAP TO SUPPORT
N 000094004065 COTTER PIN
STRAP TO SUPPORT
A 3609870014 RUBBER STRIP
FUEL TANK TO CONSOLE
A 3529870014 RUBBER STRIP
073 A 6174750420 PAD
Repalced by: A 6174750020
073 A 6174750020 PAD
FUEL TANK TO CONSOLE
074 A 6204750920 PAD
Repalced by: A 6204750620
074 A 6204750620 PAD
Repalced by: A 6254750520
074 A 6254750520 PAD
FUEL TANK TO CONSOLE
075 A 3609970126 WASHER
FUEL TANK TO SUPPORT
076 N 000934012022 NUT
FUEL TANK TO SUPPORT
M 12X1.5
076 N 000934012021 NUT
FUEL TANK TO SUPPORT
M 12
A 3604292940 BRACKET
SUPPORT TO SIDE MEMBER
A 3604293040 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
SUPPORT TO SIDE MEMBER
077 A 3224750020 PAD
FUEL TANK
078 A 3224750140 CLAMPING RAIL
FUEL TANK
078 A 3224750240 CLAMPING RAIL
FUEL TANK
079 A 3224700440 STRAP
FUEL TANK
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
STRAP
M8X15
N 912004008102 LOCK WASHER
STRAP
N 304032008006 NUT
STRAP
N 000934010014 NUT
STRAP
A 3224760026 HOSE
Repalced by: A 3054760126
A 3054760126 HOSE
FUEL TANK BREATHING
N 916026010000 CLAMP
Repalced by: N 000000000665
N 000000000665 CLAMP
FUEL TANK BREATHING
A 3224760826 HOSE
FUEL TANK
A 3604760126 HOSE
Repalced by: A 3524760226
A 3524760226 HOSE
FUEL TANK
N 900269049100 CLAMP
FUEL TANK
N 916002039100 CLAMP
FUEL TANK
N 916002039100 CLAMP
FUEL TANK
A 3524701564 LINE
Repalced by: A 3404702165
A 3404702165 LINE
WITH SEAL CONE,3000MM, FROM SCREW CONNECTION TO TANK
A 3584700664 LINE
Repalced by: A 3404701965
A 3404701965 LINE
WITH SEAL CONE,1000MM, FROM SCREW CONNECTION TO TANK
A 3524701864 LINE
Repalced by: A 3404701265
A 3224762202 LINE
Repalced by: A 3404761202
A 3404761202 LINE
Repalced by: A 0004290901
A 0004290901 LINE
FROM RUBBER HOSE TO RUBBER HOSE
1000 MM
082 A 3404701265 LINE
WITH BANJO UNION; FROM HOSE TO PUMP
082 A 3404701265 LINE
WITH BANJO UNION; FROM HOSE TO PUMP
A 3524701664 LINE
Repalced by: A 3404702165
A 3404702165 LINE
WITH SEAL CONE,3000MM, FROM SCREW CONNECTION TO TANK
A 3404701965 LINE
WITH SEAL CONE,1000MM, FROM SCREW CONNECTION TO TANK
083 A 3524701764 LINE
Repalced by: A 3404702665
083 A 3404702665 LINE
WITH FITTING; FROM HOSE TO SCREW CONNECTION
N 007603014405 SEAL RING
AT FEED PUMP
N 007603014405 SEAL RING
AT FEED PUMP
N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
N 915036010108 HOLLOW SCREW
AT FEED PUMP
N 915036010108 HOLLOW SCREW
AT FEED PUMP
084 A 3524702064 LINE
Repalced by: A 3404702165
A 3404702165 LINE
WITH SEAL CONE,3000MM, FROM SCREW CONNECTION TO TANK
084 A 3524702164 LINE
Repalced by: A 3404701965
A 3404701965 LINE
WITH SEAL CONE,1000MM, FROM SCREW CONNECTION TO TANK
084 A 3524702264 LINE
Repalced by: A 3404702165
A 3404702165 LINE
WITH SEAL CONE,3000MM, FROM RUBBER HOSE TO TANK
A 0004290901 LINE
FROM RUBBER HOSE TO RUBBER HOSE
1000 MM
A 3524702364 LINE
Repalced by: A 3404702665
A 3404702665 LINE
WITH FITTING; FROM HOSE TO SCREW CONNECTION
A 3524702464 LINE
Repalced by: A 3404702165
A 3404702165 LINE
WITH SEAL CONE,3000MM, FROM SCREW CONNECTION TO TANK
A 3404701965 LINE
WITH SEAL CONE,1000MM, FROM SCREW CONNECTION TO TANK
A 3524700764 LINE
Repalced by: A 3404701965
A 3404701965 LINE
WITH SEAL CONE,1000MM, FROM RUBBER HOSE TO TANK
093 N 007603014405 SEAL RING
FILTER
093 N 007603014405 SEAL RING
FILTER
095 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
095 N 915036010108 HOLLOW SCREW
FILTER
095 N 915036010108 HOLLOW SCREW
FILTER
097 A 3054760126 HOSE
RETURN LINE
097 A 3054760126 HOSE
RETURN LINE
098 N 900269016100 CLAMP
RETURN LINE
098 N 900269017100 CLAMP
RETURN LINE
099 N 073379006203 HOSE
LEAK LINE TO CYLINDER HEAD
099 N 073379006203 HOSE
LEAK LINE TO CYLINDER HEAD
N 900288010000 CLAMP
LEAK LINE TO CYLINDER HEAD
N 900288010000 CLAMP
LEAK LINE TO CYLINDER HEAD
A 3524706265 LINE
FROM CYLINDER HEAD TO TANK
A 3584701064 LINE
FROM CYLINDER HEAD TO RUBBER HOSE
A 3124760026 HOSE
Repalced by: A 3054760126
A 3054760126 HOSE
N 900269017100 CLAMP
A 3584700864 LINE
Repalced by: A 3404701965
A 3404701965 LINE
WITH SEAL CONE,1000MM, FROM RUBBER HOSE TO TANK
N 915035000014 SEAL RING
AT TANK
A 3214710220 FITTING
AT TANK
A 3524702664 LINE
Repalced by: A 3404702665
A 3404702665 LINE
WITH FITTING,1000 MM,FROM CYLINDER HEAD TO HOSE
A 3124760026 HOSE
Repalced by: A 3054760126
A 3054760126 HOSE
TO CONNECT THE FUEL LINES
N 900269016100 CLAMP
TO CONNECT THE FUEL LINES
A 3524702864 LINE
Repalced by: A 3404702665
A 3404702665 LINE
FROM RUBBER HOSE TO SCREW CONNECTION
A 3524702964 LINE
Repalced by: A 3404702165
A 3404702165 LINE
WITH SEAL CONE,3000MM, FROM SCREW CONNECTION TO TANK
A 3404701965 LINE
WITH SEAL CONE,1000MM, FROM SCREW CONNECTION TO TANK
102 A 3524760036 BRACKET
Repalced by: A 3274925819
102 A 3274925819 BRACKET
FUEL LINE TO SIDE MEMBER
102 A 3274925819 BRACKET
FUEL LINE TO SIDE MEMBER
103 A 3125420038 SHIM
Repalced by: A 3184924841
103 A 3184924841 BRACKET
FUEL LINE TO SIDE MEMBER
103 A 3184924841 BRACKET
FUEL LINE TO SIDE MEMBER
103 A 3184924841 BRACKET
FUEL LINE TO SIDE MEMBER
103 A 3184924841 BRACKET
FUEL LINE TO SIDE MEMBER
N 000933010164 SCREW
FUEL LINE TO SIDE MEMBER
M10X22
N 000933010164 SCREW
FUEL LINE TO SIDE MEMBER
M10X22
N 912004010102 LOCK WASHER
FUEL LINE TO SIDE MEMBER
N 912004010102 LOCK WASHER
FUEL LINE TO SIDE MEMBER
N 000934010014 NUT
FUEL LINE TO SIDE MEMBER
N 000934010014 NUT
FUEL LINE TO SIDE MEMBER
106 A 3124761236 BRACKET
Repalced by: A 3604293140
106 A 3604293140 BRACKET
FUEL LINES
106 A 3604293140 BRACKET
FUEL LINES
108 A 3609950301 CLAMP
FUEL LINES
108 A 3609950301 CLAMP
FUEL LINES
109 A 3129950232 CLAMP
Repalced by: A 4429955032
N 000084006107 SCREW
FUEL LINES
M6X15
N 000084006107 SCREW
FUEL LINES
M6X15
N 912004006102 LOCK WASHER
FUEL LINES
N 912004006102 LOCK WASHER
FUEL LINES
N 000934006007 NUT
FUEL LINES
N 000934006007 NUT
FUEL LINES
111 A 3524760836 BRACKET
FUEL LINE TO ENGINE SUPPORT
A 3124761236 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
FUEL LINE TO ENGINE SUPPORT
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
FUEL LINE TO ENGINE SUPPORT
M8X20
N 912004008102 LOCK WASHER
FUEL LINE TO ENGINE SUPPORT
N 000934008013 NUT
FUEL LINE TO ENGINE SUPPORT
112 A 3124761036 BRACKET
Repalced by: A 3124761236
112 A 3124761236 BRACKET
Repalced by: A 3604293140
112 A 3604293140 BRACKET
LEAK RETURN LINE TO RETURN LINE
112 A 3604293140 BRACKET
LEAK RETURN LINE TO RETURN LINE
114 A 3179950832 CLAMP
LEAK RETURN LINE TO RETURN LINE
114 A 3179950832 CLAMP
LEAK RETURN LINE TO RETURN LINE
N 000084006107 SCREW
LEAK RETURN LINE TO RETURN LINE
M6X15
N 000084006107 SCREW
LEAK RETURN LINE TO RETURN LINE
M6X15
N 912004006102 LOCK WASHER
LEAK RETURN LINE TO RETURN LINE
N 912004006102 LOCK WASHER
LEAK RETURN LINE TO RETURN LINE
N 000934006007 NUT
LEAK RETURN LINE TO RETURN LINE
N 000934006007 NUT
LEAK RETURN LINE TO RETURN LINE
116 A 0089975482 HOSE
FEED LINE AND RETURN LINE
8X11 MM
116 A 0089975482 HOSE
FEED LINE AND RETURN LINE
8X11 MM
117 A 0109977082 HOSE
LEAK LINE
117 A 0109977082 HOSE
LEAK LINE
119 N 040621025200 INSULATING HOSE
OVER PLASTIC PIPES
119 N 040621025200 INSULATING HOSE
OVER PLASTIC PIPES
N 040621011200 INSULATING HOSE
FEED LINE
A 3879900078 CONNECTOR
Repalced by: N 915062008000
N 915062008000 SLEEVE
FEED LINE AND RETURN LINE
A 3054760126 HOSE
FEED LINE AND RETURN LINE
A 0029978790 CLIP
FEED LINE AND RETURN LINE
122 A 0009905088 BANJO UNION
Repalced by: N 915052008019
122 N 915052008019 BANJO UNION
RISING PIPE TO FUEL TANK
122 N 915052008019 BANJO UNION
RISING PIPE TO FUEL TANK
A 0009904188 BANJO UNION
Repalced by: N 915052008001
N 915052008019 BANJO UNION
FROM RETURN LINE TO FUEL TANK
N 915052008019 BANJO UNION
FROM RETURN LINE TO FUEL TANK
N 915052008016 BANJO UNION
FUEL LINE TO FEED PUMP
N 915052008016 BANJO UNION
FUEL LINE TO FEED PUMP
A 0009904288 BANJO UNION
Repalced by: N 915052004002
N 915052004019 BANJO UNION
LEAK LINE TO TANK
A 0009908188 BANJO UNION
FEED LINE
A 0019974972 FITTING
FOR LINES
8 MM
A 0019975072 FITTING
FOR LINES
4 MM
A 0019975272 FITTING
FEED LINE
8 MM
A 0019975272 FITTING
RETURN LINE
8 MM
A 0019900270 T-FITTING
FEED LINE
N 915017010201 UNION NUT
FOR LINES
N 915017006200 UNION NUT
FOR LINES
N 915017008201 UNION NUT
FEED LINE
N 915017008201 UNION NUT
RETURN LINE
126 A 3604700062 ELBOW FITTING
FOR LINES
126 A 0004760524 ELBOW FITTING
FOR LINES
126 A 0004760524 ELBOW FITTING
FOR LINES
128 N 073379006203 HOSE
LEAK LINE
128 N 073379006203 HOSE
LEAK LINE
A 0009920105 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
N 900288010001 CLAMP
LEAK LINE
N 900288010001 CLAMP
LEAK LINE
A 0089979082 HOSE
FUEL LINE TO SENDER UNIT
500 MM
N 916026010000 CLAMP
Repalced by: N 000000000665
N 000000000665 CLAMP
FUEL LINE TO SENDER UNIT
131 A 0009972490 LOOM TIE
Repalced by: A 0009974390
131 A 0009974390 LOOM TIE
FOR LINES
131 A 0009974390 LOOM TIE
FOR LINES
131 A 0019978390 LOOM TIE
FOR LINES
131 A 0019978490 LOOM TIE
FOR LINES
133 A 3164290040 BRACKET
BRACKET TO ENGINE
133 A 3164290040 BRACKET
BRACKET TO ENGINE
N 912004008102 LOCK WASHER
BRACKET TO ENGINE
N 912004008102 LOCK WASHER
BRACKET TO ENGINE
N 000933008005 SCREW
BRACKET TO ENGINE
M8X12
N 000933008005 SCREW
BRACKET TO ENGINE
M8X12
136 A 3354292640 BRACKET
FUEL LINE TO CAB CONSOLE
A 3604292940 BRACKET
FUEL LINES
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
FUEL LINES
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FUEL LINES
A 3604280243 ANGLE
AT BELL HOUSING
A 0019978790 LOOM TIE
AT BELL HOUSING
138 A 3179950832 CLAMP
LINES TO BRACKET
138 A 3179950832 CLAMP
LINES TO BRACKET
N 000933006102 SCREW
LINES TO BRACKET
M6X15
N 000933006102 SCREW
LINES TO BRACKET
M6X15
N 912004006102 LOCK WASHER
LINES TO BRACKET
N 912004006102 LOCK WASHER
LINES TO BRACKET
N 000934006007 NUT
LINES TO BRACKET
N 000934006007 NUT
LINES TO BRACKET
141 A 3609951701 CLAMP
Repalced by: N 916016018202
141 N 916016018202 CLAMP
LINES TO FRAME
141 N 916016018202 CLAMP
LINES TO FRAME
N 000933008046 SCREW
LINES TO FRAME
M8X20
N 000933008046 SCREW
LINES TO FRAME
M8X20
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
LINES TO FRAME
N 000125008443 WASHER
LINES TO FRAME
N 304032008006 NUT
LINES TO FRAME
N 304032008006 NUT
LINES TO FRAME
143 A 3609950701 CLAMP
Repalced by: N 916016018202
143 N 916016018202 CLAMP
LINES TO CONSOLE AT CAB
N 000933006122 SCREW
Repalced by: N 304017006034
N 304017006034 SCREW
LINES TO CONSOLE AT CAB
M6X10
N 912004006102 LOCK WASHER
LINES TO CONSOLE AT CAB
N 000934006007 NUT
LINES TO CONSOLE AT CAB
146 N 007603014405 SEAL RING
FUEL LINES TO ENGINE
146 N 007603014405 SEAL RING
FUEL LINES TO ENGINE
148 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
148 N 915036010108 HOLLOW SCREW
FUEL LINES TO ENGINE
148 N 915036010108 HOLLOW SCREW
FUEL LINES TO ENGINE
A 0019978390 LOOM TIE
FUEL LINES TO ENGINE
280 MM
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
