Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122

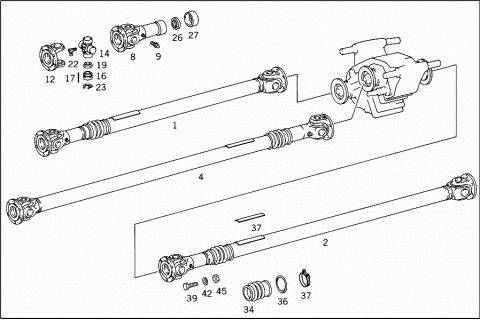

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
001	A 3224101502	PROPELLER SHAFT
		FROM TRANSMISSION TO TRANSFER CASE
		L=678 MM
001	A 3214103402	PROPELLER SHAFT
		FROM TRANSMISSION TO TRANSFER CASE
		L=1291 MM
002	A 3214103502	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		L=1280 MM
002	A 3164100002	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1418 MM
002	A 3214103202	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		L=9995 MM
002	A 3274104102	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1020 MM
004	A 3214103302	PROPELLER SHAFT
		L = 1085 MM; FROM TRANSFER CASE TO FRONT AXLE
004	A 3214103602	PROPELLER SHAFT
		L = 1672 MM; FROM TRANSFER CASE TO FRONT AXLE
008	A 3224101208	UNIVERSAL JOINT YOKE
009	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
009	N 071412008102	GREASE NIPPLE
012	A 3024110011	DRIVE FLANGE
012	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
014	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
016	A 3224100542	BEARING BUSHING
017	A 0009815087	NEEDLE
	Repalced by: A 3189810287
017	A 3189810287	NEEDLE
		SET = 132 PIECES
019	A 3124111233	EXPANSION PLUG
022	N 071412008302	GREASE NIPPLE
023	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
023	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
023	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
023	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
023	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
023	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
026	A 3374130080	SEAL RING
027	A 3214110158	SEAL HOLDER
034	A 3524100080	BOOT
		67 MM
036	A 3214110053	WIRE RING
037	N 916002078100	CLAMP
039	A 3219901501	SCREW
	Repalced by: A 3539900001
039	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO FRONT AND REAR AXLES
042	N 912004010102	LOCK WASHER
045	N 000934010010	NUT
