Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122

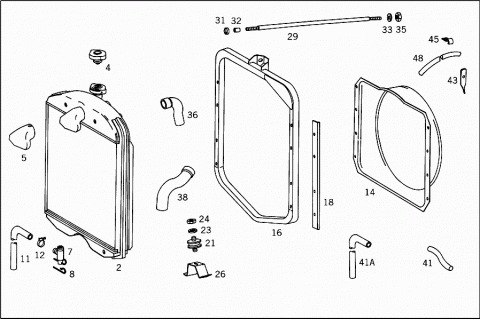

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3235010201 | RADIATOR |
| Repalced by: A 3525011801 | ||
| 002 | A 3525011401 | RADIATOR |
| Repalced by: A 3525011801 | ||
| 002 | A 3525011801 | RADIATOR |
| Repalced by: A 3525012201 | ||
| 002 | A 3525012201 | RADIATOR |
| WITH FILLER CAP | ||
| BEHR | ||
| 002 | A 3525010701 | RADIATOR |
| Repalced by: A 3525012701 | ||
| 002 | A 3525012701 | RADIATOR |
| WITH FILLER CAP | ||
| BEHR | ||
| A 0005010215 | RADIATOR CAP | |
| Repalced by: A 0005012915 | ||
| 004 | A 0005012915 | RADIATOR CAP |
| WITH PRESSURE RELIEF VALVE | ||
| A 0005010880 | GASKET | |
| O.D., | ||
| 37 MM | ||
| 005 | A 0005010556 | PIPE ELBOW |
| N 000433003206 | WASHER | |
| N 007974003200 | SHEET METAL SCREW | |
| B3.5X6.5 | ||
| A 0009976436 | VALVE | |
| Repalced by: A 0009970436 | ||
| 007 | A 0009970436 | VALVE |
| RADIATOR | ||
| 008 | A 0009930225 | SPRING |
| RADIATOR | ||
| 011 | A 3049972582 | HOSE |
| RADIATOR | ||
| 012 | N 900262005000 | LOOM TIE |
| RADIATOR | ||
| N 900263005000 | STRAP | |
| 014 | A 3405050055 | FAN SHROUD |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 016 | A 3225002027 | SUPPORT |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 016 | A 3225001827 | SUPPORT |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 016 | A 3525002227 | SUPPORT |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 018 | A 3225050024 | COVER PLATE |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 021 | A 3225040312 | RUBBER MOUNTING |
| Repalced by: A 3605040012 | ||
| 021 | A 3605040012 | RUBBER MOUNTING |
| RUBBER BUFFER TO BASE FRAME | ||
| 023 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 024 | N 000934010014 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| RUBBER BUFFER TO BASE FRAME | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| M8X20 | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| 026 | A 3525040039 | CLAMP |
| CLAMP TO RADIADOR | ||
| N 000961012164 | SCREW | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| M12X28 | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| M12X25 | ||
| N 912004012102 | LOCK WASHER | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| N 000934010014 | NUT | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 029 | A 3225001345 | RADIATOR STRUT |
| Repalced by: A 3525000345 | ||
| 029 | A 3525000345 | RADIATOR STRUT |
| 029 | A 3225001445 | RADIATOR STRUT |
| Repalced by: A 3225000845 | ||
| 029 | A 3225000845 | RADIATOR STRUT |
| 031 | A 3275045082 | RUBBER RING |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 032 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 033 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 033 | N 009021010209 | WASHER |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 035 | N 000934010014 | NUT |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 036 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 038 | A 3405010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| A 3525012082 | HOSE | |
| FROM RADIATOR TO WATER PUMP | ||
| A 3525012182 | HOSE | |
| FROM RADIATOR TO ENGINE | ||
| N 916017032000 | CLAMP | |
| Repalced by: N 000000000670 | ||
| N 000000000670 | CLAMP | |
| HOSE TO WATER PUMP | ||
| N 916017040000 | CLAMP | |
| Repalced by: N 000000000671 | ||
| N 000000000671 | CLAMP | |
| FROM HOSE TO RADIATOR | ||
| 041 | N 900271015037 | HOSE |
| FROM UPPER LINE TO HEATING SHUT-OFF COCK | ||
| 041A | A 3525011982 | HOSE |
| Repalced by: A 3355010782 | ||
| 041A | A 3355010782 | HOSE |
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| 043 | A 3225060040 | BRACKET |
| 045 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 045 | A 1109950401 | CLAMP |
| RETURN LINE TO BRACKET | ||
| N 000084006197 | SCREW | |
| RETURN LINE TO BRACKET | ||
| M6X16 | ||
| N 912004006102 | LOCK WASHER | |
| RETURN LINE TO BRACKET | ||
| N 000934006007 | NUT | |
| RETURN LINE TO BRACKET | ||
| 048 | N 900271015037 | HOSE |
| RETURN | ||
| 15 X 24 X 260 | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
