Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122

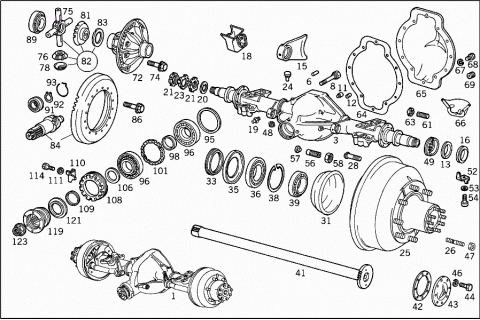

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3583502500 | REAR AXLE |
| WITH BRAKES,BRAKE DRUMS,HUBS,AND HAND BRAKE LINKAGE; RATIO: | ||
| 7:48 | ||
| 001 | A 3583507100 | REAR AXLE |
| WITH BRAKES,BRAKE DRUMS,HUBS,AND HAND BRAKE LINKAGE; RATIO: | ||
| 7:48 | ||
| 001 | A 3583507100 | REAR AXLE |
| WITH BRAKES,BRAKE DRUMS,HUBS,AND HAND BRAKE LINKAGE; RATIO: | ||
| 7:48 | ||
| 001 | A 3583503200 | REAR AXLE |
| RATIO 7:40 | ||
| 001 | A 3523508901 | REAR AXLE |
| RATIO 7:40 | ||
| 003 | A 3583500020 | AXLE HOUSING |
| WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS | ||
| 003 | A 3583500420 | AXLE HOUSING |
| WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS | ||
| 003 | A 3583500420 | AXLE HOUSING |
| WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS | ||
| 003 | A 3523502820 | AXLE HOUSING |
| WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS | ||
| 006 | N 000007006205 | CYLINDRICAL PIN |
| 008 | A 3529900801 | SCREW |
| Repalced by: N 914126016005 | ||
| 008 | N 914126016005 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 011 | A 3523510174 | PIN |
| 012 | A 3129971002 | PLUG |
| 013 | A 3213570082 | OIL COLLECTOR |
| 015 | A 3534260008 | BEARING BRACKET |
| 016 | A 3223560015 | THRUST RING |
| LEFT | ||
| 016 | A 3223560015 | THRUST RING |
| LEFT | ||
| 016 | A 3523560415 | THRUST RING |
| LEFT | ||
| 016 | A 3223560115 | THRUST RING |
| RIGHT | ||
| 016 | A 3223560115 | THRUST RING |
| RIGHT | ||
| 016 | A 3523560415 | THRUST RING |
| RIGHT | ||
| 018 | A 3523201043 | BRACKET |
| 019 | N 071412010100 | GREASE NIPPLE |
| 020 | A 3213560152 | SPACER WASHER |
| 020 | A 3213560152 | SPACER WASHER |
| 020 | A 3523560052 | SPACER WASHER |
| 021 | A 3213560126 | GROOVED NUT |
| 021 | A 3213560126 | GROOVED NUT |
| 021 | A 3223560126 | GROOVED NUT |
| 023 | A 3213560173 | LOCK PLATE |
| 023 | A 3213560173 | LOCK PLATE |
| 023 | A 3223560173 | LOCK PLATE |
| 024 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 024 | A 3833510065 | FITTING |
| 025 | A 3583500347 | DRUM HUB |
| Repalced by: A 3583560102 | ||
| 025 | A 3583560102 | DRUM HUB |
| 025 | A 3583500447 | DRUM HUB |
| Repalced by: A 3583560202 | ||
| 025 | A 3583560202 | DRUM HUB |
| 025 | A 3583560202 | DRUM HUB |
| A 3223503835 | WHEEL HUB | |
| Repalced by: A 3523560401 | ||
| A 3523501035 | WHEEL HUB | |
| Repalced by: A 3523560401 | ||
| A 3523560401 | WHEEL HUB | |
| Repalced by: A 3523500935 | ||
| A 3523500935 | WHEEL HUB | |
| 026 | A 3129901605 | STUD |
| 026 | A 3129902105 | STUD |
| 026 | A 3129902105 | STUD |
| 028 | A 3124021071 | WHEEL MOUNTING BOLT |
| Repalced by: A 3524020171 | ||
| 028 | A 3524020171 | WHEEL MOUNTING BOLT |
| 028 | A 3524020171 | WHEEL MOUNTING BOLT |
| 028 | A 3524020071 | WHEEL MOUNTING BOLT |
| 028 | A 3024020071 | WHEEL MOUNTING BOLT |
| 031 | A 3213560082 | OIL COLLECTOR |
| 031 | A 3213560082 | OIL COLLECTOR |
| 031 | A 3223560282 | OIL COLLECTOR |
| 033 | A 0009977446 | SEAL RING |
| Repalced by: A 3813500068 | ||
| 033 | A 3813500068 | REPAIR KIT |
| 033 | A 3813500068 | REPAIR KIT |
| 033 | A 0049977745 | SEAL RING |
| Repalced by: A 3833500068 | ||
| 033 | A 3833500068 | REPAIR KIT |
| A 3223560253 | SPACER TUBE | |
| 035 | A 3213560051 | SPACER RING |
| A 3223560051 | SPACER RING | |
| 036 | A 0009817205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 036 | A 0009817205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 036 | A 0009819405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 036 | A 0009819405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 036 | A 0069810605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 036 | A 0069810605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 036 | A 0029811805 | TAPERED ROLLER BEARING |
| 036 | A 0029811705 | TAPERED ROLLER BEARING |
| 038 | N 000472120000 | LOCK RING |
| 038 | N 000472120000 | LOCK RING |
| 038 | N 000472125000 | LOCK RING |
| 039 | A 0009814605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 039 | A 0009814605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 039 | A 0009814105 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 039 | A 0009814105 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 039 | A 0029815605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 039 | A 0029815505 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 041 | A 3223572601 | REAR AXLE SHAFT |
| 041 | A 3223572601 | REAR AXLE SHAFT |
| 041 | A 3833570601 | REAR AXLE SHAFT |
| 042 | A 3223560179 | GASKET |
| 043 | A 3223560020 | HUB CAP |
| Repalced by: A 3003560020 | ||
| 043 | A 3003560020 | HUB CAP |
| 044 | N 000933008145 | SCREW |
| 046 | N 912004008102 | LOCK WASHER |
| 047 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 047 | N 308673012002 | NUT |
| 047 | A 3223530072 | NUT |
| 047 | A 3223530072 | NUT |
| 048 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 048 | A 3529970032 | SCREW PLUG |
| 049 | A 3213530025 | SCREW COLLAR |
| 052 | A 3123531173 | LOCK |
| 053 | N 006797008120 | TOOTHED WASHER |
| 054 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 054 | N 304017008016 | SCREW |
| 056 | A 3223530176 | SET SCREW |
| Repalced by: A 3833530376 | ||
| 056 | A 3833530376 | SET SCREW |
| Repalced by: A 6743530076 | ||
| 056 | A 6743530076 | SET SCREW |
| 057 | A 3223530049 | SLIDE |
| Repalced by: A 3853530149 | ||
| 057 | A 3853530149 | SLIDE |
| 058 | A 3159900051 | NUT |
| 061 | A 3223510171 | SCREW |
| Repalced by: A 3853370171 | ||
| 061 | A 3853370171 | SCREW |
| 063 | N 080705014002 | NUT |
| 064 | A 3223510180 | GASKET |
| Repalced by: A 6503510080 | ||
| 064 | A 6503510080 | GASKET |
| 064 | A 3023510180 | GASKET |
| Repalced by: A 6503510180 | ||
| 064 | A 6503510180 | GASKET |
| 065 | A 3223500621 | COVER |
| Repalced by: A 6153500421 | ||
| 065 | A 3603500021 | COVER |
| Repalced by: A 6163500021 | ||
| 065 | A 6163500021 | COVER |
| Repalced by: A 6163510208 | ||
| 065 | A 6163510208 | COVER |
| AXLE HOUSING | ||
| 066 | A 3223500083 | PROTECTIVE PLATE |
| Repalced by: A 6153500421 | ||
| 066 | A 6153500421 | COVER |
| Repalced by: A 6153510708 | ||
| 066 | A 6153510708 | COVER |
| 066 | A 3603500083 | PROTECTIVE PLATE |
| Repalced by: A 6163500021 | ||
| 067 | N 912004010102 | LOCK WASHER |
| COVER TO REAR AXLE HOUSING | ||
| 068 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 068 | N 304017010028 | SCREW |
| COVER TO REAR AXLE HOUSING | ||
| 068 | N 000933010164 | SCREW |
| COVER TO REAR AXLE HOUSING | ||
| N 914112010016 | SCREW | |
| COVER TO REAR AXLE HOUSING | ||
| M 10X20 | ||
| 069 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 069 | A 3529970032 | SCREW PLUG |
| 072 | A 3833502323 | DIFFERENTIAL GEAR |
| WITH SIDE GEARS AND DIFFERENTIAL PINIONS | ||
| 072 | A 3833502323 | DIFFERENTIAL GEAR |
| WITH SIDE GEARS AND DIFFERENTIAL PINIONS | ||
| 072 | A 3833502123 | DIFFERENTIAL GEAR |
| Repalced by: A 6763501923 | ||
| 072 | A 6763501923 | DIFFERENTIAL GEAR |
| WITH SIDE GEARS AND DIFFERENTIAL PINIONS | ||
| 074 | A 3229903001 | SCREW |
| 075 | A 3833530120 | DIFFERENTIAL SPIDER |
| 076 | A 3023530014 | DIFFERENTIAL PINION |
| 078 | A 3523530024 | SPHERICAL WASHER |
| 081 | A 3583530015 | SIDE GEAR |
| 082 | A 3815860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 082 | A 3815860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| A 3022530015 | RING GEAR | |
| 083 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 083 | A 6743530362 | THRUST WASHER |
| 2.00 MM | ||
| 084 | A 3223501839 | RING GEAR AND PINION |
| Repalced by: A 3833500039 | ||
| 084 | A 3833500039 | RING GEAR AND PINION |
| Repalced by: A 6163500139 | ||
| 084 | A 6163500139 | RING GEAR AND PINION |
| RATIO: | ||
| 7:48 | ||
| 084 | A 3223502139 | RING GEAR AND PINION |
| Repalced by: A 3833500139 | ||
| 084 | A 3833500139 | RING GEAR AND PINION |
| RATIO 7:40 | ||
| 086 | A 3229902901 | SCREW |
| 089 | A 0029811605 | TAPERED ROLLER BEARING |
| 089 | A 0009815705 | TAPERED ROLLER BEARING |
| 089 | A 0029812605 | TAPERED ROLLER BEARING |
| 091 | A 0009818601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029817901 | ||
| 091 | A 0029817901 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 091 | A 0009819601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029818201 | ||
| 091 | A 0029818201 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 091 | A 0019814501 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029819601 | ||
| 091 | A 0029819601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029819501 | ||
| 091 | A 0029819501 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 092 | N 000471035000 | LOCK RING |
| 093 | A 3229940137 | SNAP RING |
| 095 | A 3273536252 | SPACER WASHER |
| Repalced by: A 6703530852 | ||
| 095 | A 6703530852 | SPACER WASHER |
| 0.10 MM | ||
| 095 | A 3273532262 | THRUST WASHER |
| Repalced by: A 6703530752 | ||
| 095 | A 6703530752 | SPACER WASHER |
| 0.15 MM | ||
| 095 | A 3273536352 | SPACER WASHER |
| Repalced by: A 6703530652 | ||
| 095 | A 6703530652 | SPACER WASHER |
| 0.20 MM | ||
| 095 | A 3273536452 | SPACER WASHER |
| Repalced by: A 6703530552 | ||
| 095 | A 6703530552 | SPACER WASHER |
| 0.50 MM | ||
| 095 | A 3273532362 | THRUST WASHER |
| Repalced by: A 6703533752 | ||
| 095 | A 6703533752 | SPACER WASHER |
| 1.50 MM | ||
| 096 | A 0009814005 | TAPERED ROLLER BEARING |
| 096 | A 0029811105 | TAPERED ROLLER BEARING |
| 096 | A 0019819805 | TAPERED ROLLER BEARING |
| 098 | A 3223530051 | SPACER RING |
| 15.50 MM | ||
| 101 | A 3223531352 | SPACER WASHER |
| Repalced by: A 6163530152 | ||
| 101 | A 6163530152 | SPACER WASHER |
| 10.10 MM | ||
| 101 | A 3223531552 | SPACER WASHER |
| Repalced by: A 6163530352 | ||
| 101 | A 6163530352 | SPACER WASHER |
| 10.14 MM | ||
| 101 | A 3223531752 | SPACER WASHER |
| Repalced by: A 6163530552 | ||
| 101 | A 6163530552 | SPACER WASHER |
| 10.18 MM | ||
| 101 | A 3223531952 | SPACER WASHER |
| Repalced by: A 6163530752 | ||
| 101 | A 6163530752 | SPACER WASHER |
| 10.22 MM | ||
| 101 | A 3223532152 | SPACER WASHER |
| Repalced by: A 6163530952 | ||
| 101 | A 6163530952 | SPACER WASHER |
| 10.26 MM | ||
| 101 | A 3223530252 | SPACER WASHER |
| Repalced by: A 6163531152 | ||
| 101 | A 6163531152 | SPACER WASHER |
| 10.30 MM | ||
| 101 | A 3223530452 | SPACER WASHER |
| Repalced by: A 6163531352 | ||
| 101 | A 6163531352 | SPACER WASHER |
| 10.34 MM | ||
| 101 | A 3223530652 | SPACER WASHER |
| Repalced by: A 6163531552 | ||
| 101 | A 6163531552 | SPACER WASHER |
| 10.38 MM | ||
| 101 | A 3223530852 | SPACER WASHER |
| Repalced by: A 6163531752 | ||
| 101 | A 6163531752 | SPACER WASHER |
| 10.42 MM | ||
| 101 | A 3223531052 | SPACER WASHER |
| Repalced by: A 6163531952 | ||
| 101 | A 6163531952 | SPACER WASHER |
| 10.46 MM | ||
| 101 | A 3223531252 | SPACER WASHER |
| Repalced by: A 6163532152 | ||
| 101 | A 6163532152 | SPACER WASHER |
| 10.50 MM | ||
| 106 | A 3213530762 | THRUST WASHER |
| 7 MM | ||
| 108 | A 3273531025 | SCREW COLLAR |
| 109 | A 0109975746 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 109 | A 0089970747 | SEAL RING |
| Repalced by: A 0169976847 | ||
| 109 | A 0169976847 | SEAL RING |
| 110 | A 3223530073 | LOCK |
| 111 | N 006797008120 | TOOTHED WASHER |
| 114 | N 000933008005 | SCREW |
| 119 | A 3273500245 | FLANGE |
| Repalced by: A 3583500045 | ||
| 119 | A 3583500045 | FLANGE |
| 121 | A 3273530291 | PROTECTIVE PLATE |
| 123 | A 3853510172 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
