Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122

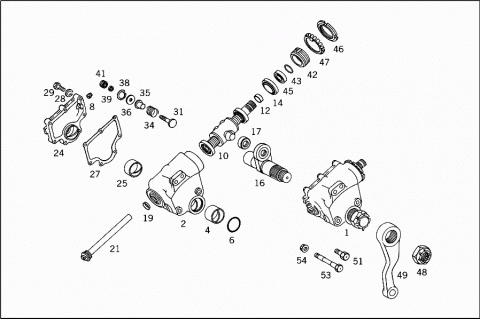

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3274606101 | STEERING BOX ASSEMBLY |
| Repalced by: A 3274606501 | ||
| 001 | A 3274606501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601201 | ||
| 001 | A 3444601201 | STEERING BOX ASSEMBLY |
| 001 | A 3274606201 | STEERING BOX ASSEMBLY |
| Repalced by: A 3094601501 | ||
| 001 | A 3094601501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 001 | A 3084600001 | STEERING BOX ASSEMBLY |
| 002 | A 3214601302 | STEERING BOX |
| 002 | A 3274600202 | STEERING BOX |
| 004 | A 3214610350 | BUSHING |
| 47.1 MM | ||
| 004 | A 3214610550 | BUSHING |
| 47.6 MM | ||
| 006 | A 0019970645 | SEAL RING |
| 006 | A 0049976845 | SEAL RING |
| 008 | N 000906016002 | SCREW PLUG |
| M 16X1.5 | ||
| 010 | A 3274602208 | STEERING WORM |
| Repalced by: A 4064600118 | ||
| 010 | A 4064600118 | STEERING NUT |
| Repalced by: A 4064600218 | ||
| 010 | A 4064600218 | STEERING NUT |
| A 3274602308 | STEERING WORM | |
| Repalced by: A 3094600708 | ||
| A 3094600708 | STEERING WORM | |
| Repalced by: A 3094601018 | ||
| A 3094601018 | STEERING NUT | |
| Repalced by: A 3094600708 | ||
| A 3094600708 | STEERING WORM | |
| 012 | A 3219970740 | SEAL RING |
| 014 | A 0009811306 | BARREL-TYPE BEARING |
| 014 | A 3459817006 | BARREL-TYPE BEARING |
| 014 | A 0009810806 | BARREL-TYPE BEARING |
| 016 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 017 | A 3214620537 | BALL CUP |
| N 009045038001 | SNAP RING | |
| 019 | A 3219970640 | SEAL RING |
| 021 | A 3214600315 | OIL LEVEL CHECK PIPE |
| N 007603030400 | SEAL RING | |
| N 007604030201 | SCREW PLUG | |
| Repalced by: N 007604030206 | ||
| N 007604030206 | SCREW PLUG | |
| 024 | A 3274600214 | STEERING BOX COVER |
| Repalced by: A 3214600414 | ||
| 024 | A 3214600414 | STEERING BOX COVER |
| 024 | A 3274600314 | STEERING BOX COVER |
| 025 | A 3214620250 | BUSHING |
| 027 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 027 | A 3524610180 | GASKET |
| 028 | N 912004008102 | LOCK WASHER |
| 029 | A 0019909101 | SCREW |
| 031 | A 3214620171 | SCREW |
| 034 | A 3219932201 | SPRING |
| 035 | A 3214620185 | THRUST PIECE |
| 036 | A 3214610162 | THRUST WASHER |
| 038 | A 0009946041 | LOCK |
| 039 | A 0019976140 | SEAL RING |
| 041 | A 3219900050 | NUT |
| 041 | A 0029900251 | NUT |
| 042 | A 3224620151 | RING |
| 043 | A 0029979845 | SEAL RING |
| 045 | A 0029974346 | SEAL RING |
| 046 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 046 | A 6743560226 | GROOVED NUT |
| 047 | A 3229940115 | LOCK |
| 048 | A 0009902555 | NUT |
| N 000094006013 | COTTER PIN | |
| 049 | A 3524631401 | PITMAN ARM |
| 049 | A 3524631501 | PITMAN ARM |
| N 000937042000 | NUT | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 051 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 053 | A 3229900914 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 054 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| N 000094003222 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

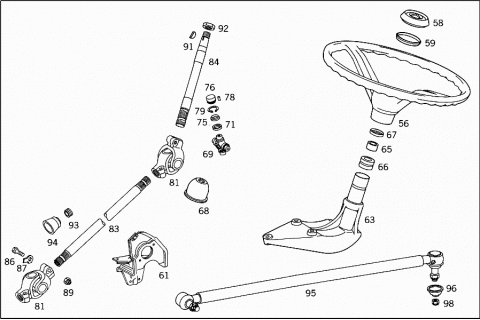

| STEERING WHEEL | ||
| A 0004640601 | STEERING WHEEL | |
| Repalced by: A 0004641101 | ||
| 056 | A 0004641101 | STEERING WHEEL |
| 056 | A 0004641201 | STEERING WHEEL |
| 056 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 058 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 059 | A 0004640177 | PROTECTIVE RING |
| 061 | A 3224600935 | BRACKET |
| 061 | A 3224601235 | BRACKET |
| N 910005012080 | RIVET | |
| STEERING BRACKET TO SIDE MEMBER | ||
| A 0029908201 | SCREW | |
| STEERING BRACKET TO SIDE MEMBER | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| STEERING BRACKET TO SIDE MEMBER | ||
| 063 | A 3434600037 | BEARING |
| Repalced by: A 3434600137 | ||
| 063 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 063 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 063 | A 3434600237 | BEARING |
| 065 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 065 | A 0119815110 | NEEDLE BEARING |
| 066 | A 3214620165 | RING |
| 067 | A 3224620023 | COVER |
| N 000931010258 | SCREW | |
| M 10X55 | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| M 10X30 | ||
| N 000137010201 | SPRING WASHER | |
| 068 | A 3524620296 | BOOT |
| Repalced by: A 3604620596 | ||
| 068 | A 3604620596 | BOOT |
| A 3274600157 | UNIVERSAL JOINT | |
| Repalced by: A 3524600057 | ||
| 069 | A 1884100231 | UNIVERSAL JOINT CROSS |
| 071 | A 1884110258 | SEAL HOLDER |
| 075 | A 1884110460 | RUBBER RING |
| 076 | A 1104110242 | BEARING BUSHING |
| 076 | A 1104110342 | BEARING BUSHING |
| 078 | A 3229810087 | NEEDLE |
| SET = 192 PIECES | ||
| 079 | A 1889940534 | SNAP RING |
| AS REQUIRED | ||
| 1.45 MM | ||
| 079 | A 1889940034 | SNAP RING |
| AS REQUIRED | ||
| 1.50 MM | ||
| 079 | A 1889940134 | SNAP RING |
| AS REQUIRED | ||
| 1.55 MM | ||
| 079 | A 1889940234 | SNAP RING |
| AS REQUIRED | ||
| 1.60 MM | ||
| 079 | A 1889940334 | SNAP RING |
| AS REQUIRED | ||
| 1.65 MM | ||
| 079 | A 1889940434 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 081 | A 3524600057 | UNIVERSAL JOINT |
| 081 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 081 | A 0004600057 | UNIVERSAL JOINT |
| 081 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 081 | A 0004600157 | UNIVERSAL JOINT |
| 081 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 083 | A 3604622201 | STEERING SHAFT |
| 083 | A 3384625101 | STEERING SHAFT |
| 083 | A 3604621301 | STEERING SHAFT |
| 084 | A 3354620101 | STEERING SHAFT |
| Repalced by: A 3524620001 | ||
| 084 | A 3524620001 | STEERING SHAFT |
| Repalced by: A 3524623901 | ||
| 084 | A 3524623901 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 084 | A 3524622601 | STEERING SHAFT |
| Repalced by: A 3524623101 | ||
| 084 | A 3524623101 | STEERING SHAFT |
| 084 | A 3524621801 | STEERING SHAFT |
| Repalced by: A 3524624101 | ||
| 084 | A 3524624101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 084 | A 3524622801 | STEERING SHAFT |
| Repalced by: A 3524623601 | ||
| 084 | A 3524623601 | STEERING SHAFT |
| 086 | A 3219900401 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 10X35 | ||
| 086 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X38 | ||
| 086 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X42 | ||
| 087 | N 000463010502 | LOCK PLATE |
| 089 | N 910113008001 | NUT |
| 091 | N 006888005006 | WOODRUFF KEY |
| 092 | N 000936022002 | NUT |
| 093 | A 3214620060 | SEAL RING |
| 094 | A 3354620096 | BOOT |
| 095 | A 3524602305 | DRAG LINK |
| Repalced by: A 3524603105 | ||
| 095 | A 3524602405 | DRAG LINK |
| Repalced by: A 3524603105 | ||
| 095 | A 3524603105 | DRAG LINK |
| Repalced by: A 3524605605 | ||
| 095 | A 3524605605 | DRAG LINK |
| LEMFOERDER | ||
| 095 | A 3524604805 | DRAG LINK |
| EHRENREICH | ||
| 096 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 096 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 096 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| A 0003303135 | JOINT | |
| Repalced by: A 0013300335 | ||
| A 0013300335 | JOINT | |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| A 0013300435 | JOINT | |
| ADJUSTABLE | ||
| EHRENREICH | ||
| A 0003300385 | BOOT | |
| Repalced by: A 0003301185 | ||
| A 0003301185 | BOOT | |
| A 0003381545 | CLAMP | |
| CLAMP, TWO-HOLE | ||
| A 0003381645 | CLAMP | |
| Repalced by: A 4619955044 | ||
| A 4619955044 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| "6245" | ||
| A 0003383345 | CLAMP | |
| Repalced by: A 4619955044 | ||
| N 000960010035 | SCREW | |
| CLAMP, TWO-HOLE | ||
| N 000960010072 | SCREW | |
| CLAMP, ONE-HOLE | ||
| N 913004010010 | NUT | |
| Repalced by: N 910113010002 | ||
| N 910113010002 | NUT | |
| CLAMP, ONE-HOLE | ||
| N 000935010010 | NUT | |
| CLAMP, TWO-HOLE | ||
| N 000094002077 | COTTER PIN | |
| CLAMP, TWO-HOLE | ||
| 098 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
