Transporto priemonė: LAKO 1113 B; VIN numerio dalis: 358122

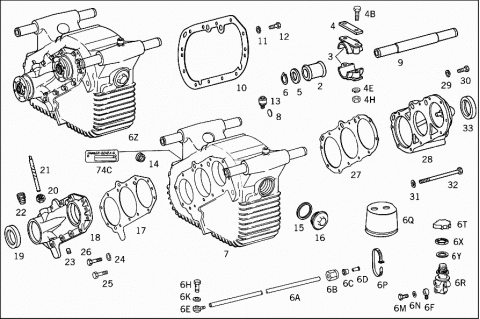

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 6 Z | ||
| 002 | A 3222850082 | RUBBER MOUNTING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 003 | A 3122801386 | BEARING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 004 | A 3122851484 | SHIM |
| TRANSFER CASE TO CROSS MEMBER | ||
| 004B | N 000960012184 | SCREW |
| TRANSFER CASE TO CROSS MEMBER | ||
| M 12X85 | ||
| 004B | N 000960012331 | SCREW |
| TRANSFER CASE TO CROSS MEMBER | ||
| M 12X95 | ||
| 004E | N 912004012100 | LOCK WASHER |
| TRANSFER CASE TO CROSS MEMBER | ||
| 004H | N 910113012002 | NUT |
| TRANSFER CASE TO CROSS MEMBER | ||
| 005 | A 3129902840 | WASHER |
| TRANSFER CASE TO CROSS MEMBER | ||
| 006 | A 0009947941 | LOCK |
| TRANSFER CASE TO CROSS MEMBER | ||
| 006A | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 006A | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| A 0039979172 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 006B | N 915017006100 | UNION NUT |
| LINE CONNECTION TO VALVE AND TO TRANSFER CASE | ||
| 006C | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 006C | A 0019901667 | SEAL CONE |
| LINE CONNECTION TO VALVE AND TO TRANSFER CASE | ||
| 006D | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 006D | N 915062004000 | SLEEVE |
| LINE CONNECTION TO VALVE AND TO TRANSFER CASE | ||
| 006E | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 006E | N 915052004015 | BANJO UNION |
| LINE CONNECTION TO VALVE AND TO TRANSFER CASE | ||
| 12 MM | ||
| 006F | N 915052004016 | BANJO UNION |
| LINE CONNECTION TO VALVE AND TO TRANSFER CASE | ||
| 10 MM | ||
| 006H | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE | ||
| 006K | N 007603012405 | SEAL RING |
| TRANSFER CASE | ||
| N 915047008202 | HOLLOW SCREW | |
| TRANSFER CASE | ||
| 006M | N 915036006202 | HOLLOW SCREW |
| PNEUMATIC VALVE | ||
| 006N | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 006N | N 007603010110 | SEAL RING |
| PNEUMATIC VALVE | ||
| N 915036008202 | HOLLOW SCREW | |
| AT DISTRIBUTOR | ||
| N 007603012405 | SEAL RING | |
| AT DISTRIBUTOR | ||
| 006P | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 006P | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 006Q | A 3602810064 | COVERING |
| COMPRESSED AIR SHIFT VALVE | ||
| 006R | A 0019977936 | VALVE |
| COMPRESSED AIR SHIFT VALVE | ||
| BOSCH | ||
| 006R | A 0019979136 | VALVE |
| COMPRESSED AIR SHIFT VALVE | ||
| WESTINGHOUSE | ||
| 006T | A 0009970577 | HANDLE |
| COMPRESSED AIR SHIFT VALVE | ||
| A 0025860943 | REPAIR KIT | |
| TO 001 997 91 36 | ||
| A 3855841124 | UNIT IDENTIFICATION PLATE | |
| COMPRESSED AIR SHIFT VALVE | ||
| 006X | A 3839900051 | NUT |
| COMPRESSED AIR SHIFT VALVE | ||
| 006Y | A 3859901640 | WASHER |
| COMPRESSED AIR SHIFT VALVE | ||
| A 3819970486 | PLUG | |
| COMPRESSED AIR SHIFT VALVE | ||
| A 3602840098 | BRACKET | |
| Repalced by: A 3852670040 | ||
| A 3852670040 | BRACKET | |
| BRACKET TO SPRING SADDLE | ||
| 006Z | A 3282800001 | TRANSFER CASE |
| Repalced by: A 3282800101 | ||
| 006Z | A 3282800101 | TRANSFER CASE |
| 007 | A 3122801703 | HOUSING |
| Repalced by: A 3522800003 | ||
| 007 | A 3522800003 | HOUSING |
| TRANSFER CASE | ||
| N 000007008102 | CYLINDRICAL PIN | |
| TRANSMISSION CASE | ||
| 008 | N 000470020000 | EXPANSION PLUG |
| TRANSMISSION CASE | ||
| N 000007010103 | CYLINDRICAL PIN | |
| TRANSMISSION CASE | ||
| N 000007012107 | CYLINDRICAL PIN | |
| Repalced by: N 000007012218 | ||
| N 000007012218 | CYLINDRICAL PIN | |
| FOR REPAIR PURPOSES ONLY | ||
| 009 | A 3222850174 | PIN |
| SUSPENSION | ||
| 010 | A 3222810379 | GASKET |
| Repalced by: A 3522810179 | ||
| 010 | A 3522810179 | GASKET |
| Repalced by: A 3522810680 | ||
| 010 | A 3522810680 | GASKET |
| INTERMEDIATE FLANGE TO HOUSING | ||
| N 912004010102 | LOCK WASHER | |
| INTERMEDIATE FLANGE TO HOUSING | ||
| 011 | N 000125013008 | WASHER |
| 012 | N 000931010282 | SCREW |
| INTERMEDIATE FLANGE TO HOUSING | ||
| M 10X40 | ||
| 012 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 012 | N 000960012384 | SCREW |
| INTERMEDIATE FLANGE TO HOUSING | ||
| M 12X35 | ||
| 013 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 013 | A 3833510065 | FITTING |
| TRANSFER CASE | ||
| 013 | A 1112600058 | BREATHER |
| TRANSFER CASE | ||
| 014 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 014 | A 3529970032 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 015 | N 915035000012 | SEAL RING |
| CASE,LEFT | ||
| 016 | N 007604052200 | SCREW PLUG |
| CASE,LEFT | ||
| 017 | A 3222810179 | GASKET |
| Repalced by: A 3522810380 | ||
| 017 | A 3522810380 | GASKET |
| Repalced by: A 3522810880 | ||
| 017 | A 3522810880 | GASKET |
| COVER TO TRANSMISSION CASE | ||
| 018 | A 3222810814 | COVER |
| FRONT | ||
| 018 | A 3522810114 | COVER |
| FRONT | ||
| 018 | A 3832810314 | COVER |
| Repalced by: A 3832810114 | ||
| 018 | A 3832810114 | COVER |
| FRONT | ||
| 019 | A 0039977546 | SEAL RING |
| FRONT | ||
| 020 | A 3122831131 | DRIVE GEAR |
| Repalced by: A 3832830131 | ||
| 020 | A 3832830131 | DRIVE GEAR |
| SPEEDOMETER | ||
| 021 | A 3122641232 | SHAFT |
| Repalced by: A 3142640032 | ||
| 021 | A 3142640032 | SHAFT |
| Repalced by: A 3142640332 | ||
| 021 | A 3142640332 | SHAFT |
| SPEEDOMETER | ||
| 022 | A 3122611131 | THREADED BUSHING |
| TRANSFER CASE | ||
| N 001473004016 | GROOVED PIN | |
| TRANSFER CASE | ||
| 023 | A 1532640055 | PLUG |
| TRANSFER CASE | ||
| N 912004008102 | LOCK WASHER | |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 024 | N 000137010201 | SPRING WASHER |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 025 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 025 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 025 | A 0099900101 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| M 8X28 | ||
| 025 | N 000933010260 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| M 10X32 | ||
| 026 | N 000933008194 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| M 8X28 | ||
| 026 | N 000933010197 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| M 10X32 | ||
| 027 | A 3222811179 | GASKET |
| Repalced by: A 3522810480 | ||
| 027 | A 3522810480 | GASKET |
| Repalced by: A 3522810780 | ||
| 027 | A 3522810780 | GASKET |
| REAR COVER | ||
| 028 | A 3222801334 | COVER |
| REAR | ||
| 028 | A 3222802034 | COVER |
| REAR | ||
| N 912004008102 | LOCK WASHER | |
| COVER TO TRANSMISSION CASE | ||
| 029 | N 000137010201 | SPRING WASHER |
| COVER TO TRANSMISSION CASE | ||
| 030 | N 000933008047 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M 8X20 | ||
| 030 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 030 | N 304017010002 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M 10X30 | ||
| 031 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 031 | N 000125010532 | WASHER |
| COVER TO TRANSMISSION CASE | ||
| 032 | N 000931010345 | SCREW |
| Repalced by: N 304014010015 | ||
| 032 | N 304014010015 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M 10X140 | ||
| 033 | A 0039977546 | SEAL RING |
| REAR COVER | ||

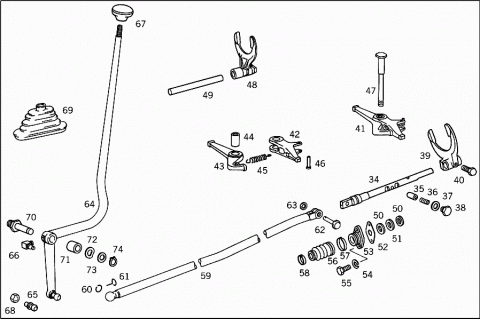

| 034 | A 3122841020 | SHIFTING ROD |
| 035 | A 3222840148 | INTERLOCK PIN |
| SHIFTING ROD | ||
| 036 | A 3229931701 | SPRING |
| SHIFTING ROD | ||
| 037 | N 007603014103 | SEAL RING |
| SHIFTING ROD | ||
| 038 | A 3229970330 | SCREW PLUG |
| SHIFTING ROD | ||
| 039 | A 3122841301 | SHIFTING FORK |
| Repalced by: A 3832840401 | ||
| 039 | A 3832840401 | SHIFTING FORK |
| TOP | ||
| 040 | A 3122641071 | SCREW |
| SHIFTING FORK TO SHIFTING ROD | ||
| N 000177001000 | WIRE | |
| 120 MM | ||
| 041 | A 3522800245 | SHIFT LEVER |
| 042 | A 3522840011 | SHIFT LEVER |
| TOP | ||
| 043 | A 3522840111 | SHIFT LEVER |
| BOTTOM | ||
| 044 | A 3122841050 | BUSHING |
| SHIFT LEVER | ||
| 045 | A 3129931410 | SPRING |
| SHIFT LEVER | ||
| 046 | A 3129911205 | PIN |
| SHIFT LEVER | ||
| N 000125006421 | WASHER | |
| SHIFT LEVER | ||
| N 000094001617 | COTTER PIN | |
| SHIFT LEVER | ||
| 047 | A 3122841015 | PIVOT PIN |
| SHIFT LEVER TO CASE | ||
| 047 | A 3522840015 | PIVOT PIN |
| SHIFT LEVER TO CASE | ||
| N 000125013008 | WASHER | |
| N 000937012001 | NUT | |
| SHIFT LEVER TO CASE | ||
| N 910113012002 | NUT | |
| SHIFT LEVER TO CASE | ||
| N 000094003226 | COTTER PIN | |
| SHIFT LEVER TO CASE | ||
| 048 | A 3222840401 | SHIFTING FORK |
| BOTTOM | ||
| 049 | A 3122841021 | SHIFTING SHAFT |
| LOWER SHIFTING FORK | ||
| 050 | A 3122841060 | SEAL RING |
| SHIFTING ROD | ||
| 051 | A 3122841151 | SPACER RING |
| SHIFTING ROD | ||
| 052 | A 3122841079 | GASKET |
| SHIFTING ROD | ||
| 053 | A 3122841038 | FLANGE |
| SHIFTING ROD | ||
| 054 | N 912004006102 | LOCK WASHER |
| SHIFTING ROD | ||
| 055 | N 000933006130 | SCREW |
| SHIFTING ROD | ||
| 056 | A 3122841097 | BOOT |
| SHIFTING ROD | ||
| 057 | A 3129940034 | SNAP RING |
| BOOT | ||
| 058 | A 3129940134 | SNAP RING |
| BOOT | ||
| 059 | A 3222800656 | SHIFTING ROD |
| FROM SHIFT LEVER TO TRANSFER CASE | ||
| 059 | A 3222800056 | SHIFTING ROD |
| FROM SHIFT LEVER TO TRANSFER CASE | ||
| 060 | N 071805016300 | SNAP RING |
| SHIFTING ROD | ||
| 061 | N 071805016402 | SECURING CLIP |
| SHIFTING ROD | ||
| 062 | N 001434010009 | PIN |
| SHIFTING ROD TO SHIFT LEVER | ||
| 063 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 063 | N 000433010510 | WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| N 000094003219 | COTTER PIN | |
| SHIFTING ROD TO SHIFT LEVER | ||
| 064 | A 3222800345 | SHIFT LEVER |
| TRANSFER CASE | ||
| 064 | A 3222800445 | SHIFT LEVER |
| TRANSFER CASE | ||
| 065 | N 071803016202 | BALL PIVOT |
| SHIFT LEVER LOWER PART | ||
| 066 | N 071412008302 | GREASE NIPPLE |
| SHIFT LEVER LOWER PART | ||
| 067 | A 3122802246 | KNOB |
| SHIFT LEVER UPPER PART | ||
| 068 | N 000936010010 | NUT |
| BALL PIVOT TO LEVER | ||
| 069 | A 3522640096 | BOOT |
| Repalced by: A 3222640096 | ||
| 069 | A 0002640396 | BOOT |
| Repalced by: A 3222640096 | ||
| 069 | A 0002640496 | BOOT |
| Repalced by: A 3222640096 | ||
| 069 | A 3222640096 | BOOT |
| SHIFT LEVER | ||
| 070 | A 3212640174 | PIN |
| SHIFT LEVER TO TRANSMISSION | ||
| 071 | A 3212640153 | SPACER TUBE |
| SHIFT LEVER TO TRANSMISSION | ||
| 072 | A 3129900148 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 073 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 073 | N 000125015019 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 074 | N 000471015000 | LOCK RING |
| SHIFT LEVER TO TRANSMISSION | ||
| 074C | A 3285840324 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855841824 | ||
| 074C | A 3215841024 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 074C | A 3855841824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 074C | A 3855845824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 6755840024 | ||
| 074C | A 6755840024 | UNIT IDENTIFICATION PLATE |
| TRANSFER CASE | ||
| N 001476003007 | GROOVED NAIL | |
| UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE | ||

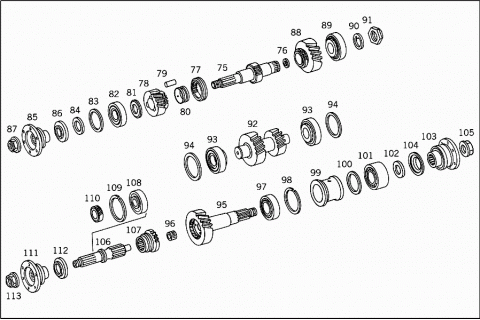

| 075 | A 3222800521 | DRIVE SHAFT |
| Repalced by: A 3222801121 | ||
| 075 | A 3222800821 | DRIVE SHAFT |
| Repalced by: A 3222801121 | ||
| 075 | A 3222801121 | DRIVE SHAFT |
| 076 | A 3122831055 | OIL BAFFLE |
| DRIVE SHAFT | ||
| 077 | A 3222820123 | SHIFTING DOG |
| 078 | A 3122822211 | GEAR |
| FRONT | ||
| 079 | N 005402004303 | CYLINDRICAL ROLLER |
| 080 | A 3122820253 | SPACER TUBE |
| 081 | A 3122822562 | THRUST WASHER |
| Repalced by: A 3122822762 | ||
| 081 | A 3122822762 | THRUST WASHER |
| 082 | A 0019813105 | TAPERED ROLLER BEARING |
| FRONT | ||
| 082 | A 0019815005 | TAPERED ROLLER BEARING |
| FRONT | ||
| 082 | A 0069814305 | TAPERED ROLLER BEARING |
| FRONT | ||
| 082 | A 0069815305 | TAPERED ROLLER BEARING |
| FRONT | ||
| 083 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 083 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 083 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 083 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 083 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 084 | A 3122822062 | THRUST WASHER |
| 085 | A 3122601417 | FLANGE |
| Repalced by: A 3163500045 | ||
| 085 | A 3163500045 | FLANGE |
| DRIVE SHAFT | ||
| 086 | A 3122621063 | PROTECTIVE PLATE |
| A 3129901740 | WASHER | |
| DRIVE SHAFT | ||
| N 000937028000 | NUT | |
| DRIVE SHAFT | ||
| N 000094005017 | COTTER PIN | |
| DRIVE SHAFT | ||
| 087 | A 3224110072 | NUT |
| DRIVE SHAFT | ||
| 088 | A 3222820211 | GEAR |
| REAR | ||
| 089 | A 0019813705 | TAPERED ROLLER BEARING |
| Repalced by: A 0099810305 | ||
| 089 | A 0099810305 | TAPERED ROLLER BEARING |
| REAR DRIVE SHAFT | ||
| 089 | A 0109816305 | TAPERED ROLLER BEARING |
| REAR DRIVE SHAFT | ||
| 089 | A 0069814205 | TAPERED ROLLER BEARING |
| REAR DRIVE SHAFT | ||
| 089 | A 0109815905 | TAPERED ROLLER BEARING |
| REAR DRIVE SHAFT | ||
| 090 | A 3122821962 | THRUST WASHER |
| REAR DRIVE SHAFT | ||
| 091 | A 3122821072 | NUT |
| REAR DRIVE SHAFT | ||
| 092 | A 3222830102 | SHAFT |
| (COUNTERSHAFT) | ||
| 093 | A 0019813705 | TAPERED ROLLER BEARING |
| Repalced by: A 0099810305 | ||
| 093 | A 0099810305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 093 | A 0109816305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 093 | A 0069814205 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 093 | A 0109815905 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 094 | A 3122831652 | SPACER WASHER |
| Repalced by: A 4063370252 | ||
| 094 | A 3122831352 | SPACER WASHER |
| Repalced by: A 4063370252 | ||
| 094 | A 4063370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 094 | A 3122831452 | SPACER WASHER |
| Repalced by: A 4063370352 | ||
| 094 | A 3122831552 | SPACER WASHER |
| Repalced by: A 4063370352 | ||
| 094 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 095 | A 3222830806 | DRIVE SHAFT |
| Repalced by: A 3222831106 | ||
| 095 | A 3222831106 | DRIVE SHAFT |
| REAR AXLE | ||
| 096 | A 0009810512 | ROLLER ASSEMBLY |
| Repalced by: A 0029811912 | ||
| 096 | A 0029811912 | ROLLER ASSEMBLY |
| FRONT DRIVE SHAFT | ||
| 097 | A 0019810801 | CYLINDR. ROLLER BEARING |
| FRONT DRIVE SHAFT | ||
| 097 | A 0019812701 | CYLINDR. ROLLER BEARING |
| FRONT DRIVE SHAFT | ||
| 098 | N 005417100001 | SNAP RING |
| FRONT DRIVE SHAFT | ||
| 099 | A 3122831653 | SPACER TUBE |
| DRIVE SHAFT | ||
| 72 MM | ||
| 100 | A 3122831652 | SPACER WASHER |
| Repalced by: A 4063370252 | ||
| 100 | A 3122831352 | SPACER WASHER |
| Repalced by: A 4063370252 | ||
| 100 | A 4063370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 100 | A 3122831452 | SPACER WASHER |
| Repalced by: A 4063370352 | ||
| 100 | A 3122831552 | SPACER WASHER |
| Repalced by: A 4063370352 | ||
| 100 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 101 | A 0009810027 | ANGULAR CONTACT BEARING |
| REAR DRIVE SHAFT | ||
| 102 | A 3123531951 | SPACER RING |
| REAR DRIVE SHAFT | ||
| 103 | A 3122601517 | FLANGE |
| REAR AXLE | ||
| 104 | A 3122621063 | PROTECTIVE PLATE |
| FLANGE TO SHAFT | ||
| A 3129901740 | WASHER | |
| FLANGE TO SHAFT | ||
| N 000937028000 | NUT | |
| FLANGE TO SHAFT | ||
| N 000094005017 | COTTER PIN | |
| FLANGE TO SHAFT | ||
| 105 | A 3224110072 | NUT |
| FLANGE TO SHAFT | ||
| 106 | A 3222830505 | DRIVE SHAFT |
| Repalced by: A 3222830605 | ||
| 106 | A 3222830605 | DRIVE SHAFT |
| FRONT AXLE | ||
| 107 | A 3222830723 | SHIFTING DOG |
| FRONT AXLE | ||
| 108 | A 3129811325 | BALL BEARING |
| FRONT AXLE | ||
| 109 | N 005417090001 | SNAP RING |
| FRONT AXLE | ||
| 110 | A 3122831430 | DRIVE GEAR |
| SPEEDOMETER | ||
| 111 | A 3122601417 | FLANGE |
| Repalced by: A 3163500045 | ||
| 111 | A 3163500045 | FLANGE |
| FRONT AXLE | ||
| 112 | A 3122621063 | PROTECTIVE PLATE |
| FRONT AXLE | ||
| A 3129901740 | WASHER | |
| FRONT AXLE | ||
| N 000937028000 | NUT | |
| FRONT AXLE | ||
| N 000094005017 | COTTER PIN | |
| FRONT AXLE | ||
| 113 | A 3224110072 | NUT |
| FRONT AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
