Transporto priemonė: LAK 1113 B; VIN numerio dalis: 358112

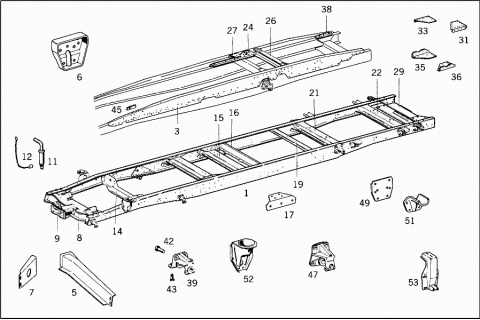

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3583102301 | FRAME |
| 001 | A 3583102501 | FRAME |
| 001 | A 3893100701 | FRAME |
| 001 | A 3583102701 | FRAME |
| 001 | A 3583105201 | FRAME |
| 001 | A 3583109101 | FRAME |
| 001 | A 3583101302 | FRAME |
| 001 | A 3583103002 | FRAME |
| 001 | A 3583102902 | FRAME |
| 001 | A 3583106701 | FRAME |
| Repalced by: A 3583108602 | ||
| 001 | A 3583108602 | FRAME |
| 001 | A 3583106401 | FRAME |
| Repalced by: A 3583108702 | ||
| 001 | A 3583108702 | FRAME |
| 001 | A 3583103802 | FRAME |
| Repalced by: A 3583108402 | ||
| 001 | A 3583108402 | FRAME |
| 001 | A 3583103902 | FRAME |
| Repalced by: A 3583108502 | ||
| 001 | A 3583108502 | FRAME |
| 003 | A 3583110060 | REINFORCEMENT |
| LEFT | ||
| 003 | A 3583110560 | REINFORCEMENT |
| LEFT | ||
| 003 | A 3583110160 | REINFORCEMENT |
| RIGHT | ||
| 003 | A 3583110460 | REINFORCEMENT |
| RIGHT | ||
| 005 | A 3523100053 | STRUT |
| LEFT | ||
| 005 | A 3523100153 | STRUT |
| RIGHT | ||
| N 000933010105 | SCREW | |
| STRUT TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| STRUT TO FRAME | ||
| N 000934010014 | NUT | |
| STRUT TO FRAME | ||
| 006 | A 3523230895 | REINFORCEMENT |
| PEDAL BEARING BRACKET | ||
| N 000963012010 | SCREW | |
| REINFORCEMENT TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| REINFORCEMENT TO SIDE MEMBER | ||
| N 000934012021 | NUT | |
| REINFORCEMENT TO SIDE MEMBER | ||
| 007 | A 3523130826 | BRACKET |
| LEFT | ||
| 007 | A 3523130926 | BRACKET |
| RIGHT | ||
| N 000933010105 | SCREW | |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| N 000934010014 | NUT | |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 008 | A 3523100126 | ENGINE CROSS MEMBER |
| FRONT | ||
| 009 | A 3523100109 | BRACKET |
| WITH COUPLING MOUTH | ||
| N 000933010164 | SCREW | |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M10X22 | ||
| N 000933010164 | SCREW | |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M10X22 | ||
| N 000933010238 | SCREW | |
| Repalced by: N 304017010028 | ||
| N 304017010028 | SCREW | |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M10X18 | ||
| N 000933010105 | SCREW | |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M 10X25 | ||
| N 007349010003 | WASHER | |
| Repalced by: N 007349010007 | ||
| N 007349010007 | WASHER | |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| N 910113010000 | NUT | |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| N 000933010128 | SCREW | |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M10X20 | ||
| N 000933010105 | SCREW | |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M10X25 | ||
| N 000934010014 | NUT | |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M12X25 | ||
| N 000934012022 | NUT | |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 011 | A 3223150206 | COUPLING PIN |
| COUPLING MOUTH | ||
| 012 | A 0008500095 | FASTENER |
| COUPLING PIN | ||
| 014 | A 3603100028 | ENGINE CROSS MEMBER |
| NO.2 | ||
| 015 | A 3523100336 | CROSS MEMBER |
| NO.3 | ||
| 015 | A 3523101336 | CROSS MEMBER |
| NO.3 | ||
| 015 | A 3583100036 | CROSS MEMBER |
| NO.3 | ||
| 015 | A 3523100436 | CROSS MEMBER |
| NO.4 | ||
| 016 | A 3213100037 | CROSS MEMBER |
| NO.4 | ||
| 016 | A 3213100037 | CROSS MEMBER |
| NO.5 | ||
| 017 | A 3123122652 | ANGLE |
| LEFT AND RIGHT | ||
| 019 | A 3524000039 | BRACKET |
| SPARE WHEEL | ||
| 021 | A 3523100242 | CROSS MEMBER |
| Repalced by: A 3603100142 | ||
| 021 | A 3603100142 | CROSS MEMBER |
| NO.5 | ||
| 022 | A 3603100142 | CROSS MEMBER |
| NO.6,NO.7 | ||
| 024 | A 3583110053 | ANGLE |
| LEFT | ||
| 024 | A 3583110153 | ANGLE |
| RIGHT | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| N 000934012022 | NUT | |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| 026 | A 3523120125 | CROSS MEMBER |
| NO.6,NO.7 | ||
| 027 | A 3523120060 | REINFORCEMENT |
| CROSS MEMBER NO.6,OR NO.7,RESP. | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| REINFORCEMENTS TO CROSS MEMBER AND SIDE MEMBERS | ||
| N 000934012022 | NUT | |
| REINFORCEMENTS TO CROSS MEMBER AND SIDE MEMBERS | ||
| 029 | A 3523100146 | CROSS MEMBER |
| REAR | ||
| 029 | A 3523120235 | CROSS MEMBER |
| REAR | ||
| 031 | A 3213120087 | GUSSET PLATE |
| TOP LEFT | ||
| 033 | A 3213120187 | GUSSET PLATE |
| TOP RIGHT | ||
| 035 | A 3523120187 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 036 | A 3523120287 | GUSSET PLATE |
| BOTTOM LEFT | ||
| N 000961012164 | SCREW | |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X28 | ||
| N 000961012056 | SCREW | |
| Repalced by: N 308676012038 | ||
| N 308676012038 | SCREW | |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X20 | ||
| N 000960012342 | SCREW | |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X45 | ||
| N 000960014237 | SCREW | |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X50 | ||
| N 912004012100 | LOCK WASHER | |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| N 912004014100 | LOCK WASHER | |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| N 000934012022 | NUT | |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 038 | A 3523110053 | ANGLE |
| REAR LEFT AND RIGHT | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| ANGLE TO SIDE MEMBER | ||
| M 12X35 | ||
| N 000961012164 | SCREW | |
| ANGLE TO SIDE MEMBER | ||
| M 12X28 | ||
| N 000934012022 | NUT | |
| ANGLE TO SIDE MEMBER | ||
| 039 | A 3533220201 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 039 | A 3523220301 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 042 | A 3219901301 | SCREW |
| Repalced by: A 3229903101 | ||
| 042 | A 3229903101 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 14X32 | ||
| 043 | A 3219901901 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 045 | A 3523110063 | CONSOLE |
| LEFT | ||
| 045 | A 3523110163 | CONSOLE |
| RIGHT | ||
| N 000933010164 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M 10X22 | ||
| N 000933010128 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M 10X20 | ||
| N 912004010102 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| CONSOLE TO SIDE MEMBER | ||
| 047 | A 3583250001 | REAR SPRING BRACKET |
| A 3219901901 | SCREW | |
| Repalced by: N 910005014020 | ||
| N 910005014056 | RIVET | |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 14X45 MM | ||
| 049 | A 3523250041 | STIFFENING |
| Repalced by: A 3813250041 | ||
| 049 | A 3813250041 | STIFFENING |
| HELPER SPRING BRACKET,REAR | ||
| 049 | A 3583250041 | STIFFENING |
| HELPER SPRING BRACKET,REAR | ||
| 051 | A 3523250417 | HELPER SPRING BRACKET |
| REAR | ||
| A 3523170328 | REINFORCEMENT | |
| Repalced by: A 3523170728 | ||
| A 3523170728 | REINFORCEMENT | |
| BETWEEN SIDE MEMBER AND BODY SUPPORT | ||
| A 3523170228 | REINFORCEMENT | |
| Repalced by: A 3523170628 | ||
| A 3523170628 | REINFORCEMENT | |
| BETWEEN SIDE MEMBER AND BODY SUPPORT | ||
| N 910005010082 | RIVET | |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 10X22 MM | ||
| N 910005010014 | RIVET | |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 10X26 MM | ||
| N 910005010016 | RIVET | |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 10X28 MM | ||
| N 910005012073 | RIVET | |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 12X28 MM | ||
| A 3589901414 | SCREW | |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 10X32 MM | ||
| A 3609900314 | SCREW | |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 10X26 MM | ||
| N 913004010011 | NUT | |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| N 910005010020 | RIVET | |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 10X32 MM | ||
| 052 | A 3283100367 | BODY SUPPORT |
| LEFT | ||
| 052 | A 3283100367 | BODY SUPPORT |
| LEFT | ||
| A 3283100467 | BODY SUPPORT | |
| RIGHT | ||
| A 3283100467 | BODY SUPPORT | |
| RIGHT | ||
| A 3413100163 | CONSOLE | |
| RIGHT | ||
| 053 | A 3523101667 | BODY SUPPORT |
| REAR | ||
| A 3523171201 | CONSOLE | |
| REAR | ||
| A 3223170209 | SUPPORT | |
| Repalced by: A 3523101767 | ||
| A 3523101767 | BODY SUPPORT | |
| REAR | ||
| N 000933010105 | SCREW | |
| BODY SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BODY SUPPORT TO SIDE MEMBER | ||
| M 10X30 | ||
| N 000933010145 | SCREW | |
| BODY SUPPORT TO SIDE MEMBER | ||
| M 10X35 | ||
| N 000961012016 | SCREW | |
| BODY SUPPORT TO SIDE MEMBER | ||
| M 12X28 | ||
| N 000961012122 | SCREW | |
| BODY SUPPORT TO SIDE MEMBER | ||
| M 12X40 | ||
| N 000961012106 | SCREW | |
| BODY SUPPORT TO SIDE MEMBER | ||
| M 12X25 | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BODY SUPPORT TO SIDE MEMBER | ||
| A 3129905040 | WASHER | |
| BODY SUPPORT TO SIDE MEMBER | ||
| N 000125013008 | WASHER | |
| N 912004010102 | LOCK WASHER | |
| BODY SUPPORT TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BODY SUPPORT TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BODY SUPPORT TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BODY SUPPORT TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| Repalced by: N 308676012013 | ||
| N 308676012013 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3229903101 | SCREW | |
| M 14X14X14X32 | ||
| A 3859900814 | SCREW | |
| Repalced by: A 3229903101 | ||
| A 3229903101 | SCREW | |
| M 14X14X16X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| Repalced by: A 3169900014 | ||
| A 3169900014 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| Repalced by: N 308676016020 | ||
| N 308676016020 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| Repalced by: A 3959900501 | ||
| A 3959900501 | SCREW | |
| M 16X16X20X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 910005010082 | RIVET | |
| 10X22 MM | ||
| N 910005010012 | RIVET | |
| 10X24 MM | ||
| N 910005010014 | RIVET | |
| 10X26 MM | ||
| N 910005010016 | RIVET | |
| 10X28 MM | ||
| N 910005010018 | RIVET | |
| 10X30 MM | ||
| N 910005010020 | RIVET | |
| 10X32 MM | ||
| N 910005010022 | RIVET | |
| 10X34 MM | ||
| N 910005010026 | RIVET | |
| 10X38 MM | ||
| N 910005012012 | RIVET | |
| 12X26 MM | ||
| N 910005012073 | RIVET | |
| 12X28 MM | ||
| N 910005012080 | RIVET | |
| 12X42 MM | ||
| N 910005014056 | RIVET | |
| 14X45 MM | ||
| N 910005014057 | RIVET | |
| 14X48 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CAB FRONT MOUNTING,SEE FOOTNOTE 10 | ||

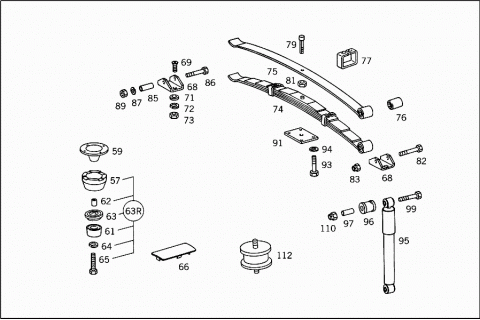

| 057 | A 3228910101 | RUBBER MOUNTING |
| CAB MOUNTING,FRONT | ||
| 059 | A 3228910120 | MOUNTING |
| CAB SUSPENSION | ||
| N 000933008148 | SCREW | |
| Repalced by: N 304017008023 | ||
| N 304017008023 | SCREW | |
| MOUNTING TO CAB | ||
| N 912004008102 | LOCK WASHER | |
| MOUNTING TO CAB | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| MOUNTING TO CAB | ||
| 061 | A 1203331965 | RUBBER BUFFER |
| CAB MOUNTING,FRONT | ||
| 062 | A 3229910540 | SPACER TUBE |
| CAB MOUNTING,FRONT | ||
| 063 | A 3228910010 | WASHER |
| Repalced by: A 1203330567 | ||
| 063 | A 1203330567 | RETAINER |
| CAB MOUNTING,FRONT | ||
| 063R | A 3525860031 | REPAIR KIT |
| CAB MOUNTING,FRONT | ||
| 064 | N 912004012100 | LOCK WASHER |
| CAB SUSPENSION | ||
| 064 | A 1209901401 | SCREW |
| Repalced by: N 000961012079 | ||
| 065 | N 000961012079 | SCREW |
| Repalced by: N 308676012032 | ||
| 065 | N 308676012032 | SCREW |
| CAB SUSPENSION | ||
| 066 | A 3228910411 | PLATE |
| CAB | ||
| 068 | A 3223170440 | BRACKET |
| Repalced by: A 3523170240 | ||
| 068 | A 3523170240 | BRACKET |
| (SPRING BRACKET),CAB SUSPENSION | ||
| A 3229900030 | SCREW | |
| SPRING BRACKET TO SIDE MEMBER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| SPRING BRACKET TO SIDE MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| SPRING BRACKET TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| SPRING BRACKET TO SIDE MEMBER | ||
| 069 | A 3529900030 | SCREW |
| Repalced by: N 000000000011 | ||
| 069 | N 000000000011 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 071 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 071 | N 000125010532 | WASHER |
| SPRING BRACKET TO SIDE MEMBER | ||
| 072 | N 912004010102 | LOCK WASHER |
| SPRING BRACKET TO SIDE MEMBER | ||
| 073 | N 000934010014 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 074 | A 3223100179 | SPRING |
| CAB SUSPENSION | ||
| 075 | A 3223100279 | SPRING |
| SPRING LEAF | ||
| NO.1 | ||
| 076 | A 0009883610 | RUBBER MOUNTING |
| 077 | A 0033211833 | SPRING CLAMP |
| Repalced by: A 0033211933 | ||
| 077 | A 0033211933 | SPRING CLAMP |
| N 000660006029 | RIVET | |
| 079 | N 004626008103 | SPRING BOLT |
| 081 | N 304032008006 | NUT |
| 082 | A 3229900214 | SCREW |
| Repalced by: A 3229901314 | ||
| 082 | A 3229901314 | SCREW |
| LEAF SPRING TO BEARING BRACKET | ||
| 083 | N 910113012002 | NUT |
| LEAF SPRING TO BEARING BRACKET | ||
| 083 | N 000935012000 | NUT |
| LEAF SPRING TO BEARING BRACKET | ||
| N 000094003219 | COTTER PIN | |
| LEAF SPRING TO BEARING BRACKET | ||
| N 913002012002 | NUT | |
| LEAF SPRING TO BEARING BRACKET | ||
| 085 | A 3229910640 | SPACER TUBE |
| LEAF SPRING TO BEARING BRACKET | ||
| 086 | N 000960012230 | SCREW |
| LEAF SPRING TO BEARING BRACKET | ||
| 087 | N 912004012100 | LOCK WASHER |
| LEAF SPRING TO BEARING BRACKET | ||
| 089 | N 000934012022 | NUT |
| LEAF SPRING TO BEARING BRACKET | ||
| 089 | N 913002012002 | NUT |
| LEAF SPRING TO BEARING BRACKET | ||
| 091 | A 3228910211 | PLATE |
| Repalced by: A 3358910411 | ||
| 091 | A 3358910411 | PLATE |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 093 | N 000931010258 | SCREW |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 094 | N 912004010102 | LOCK WASHER |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 095 | A 0008910205 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 095 | A 0008910805 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 096 | A 0003232644 | RUBBER BUFFER |
| Repalced by: A 0003234385 | ||
| 096 | A 0003234385 | RUBBER MOUNTING |
| TO 000 891 02 05 | ||
| 096 | A 0008910001 | RUBBER MOUNTING |
| TO 000 891 08 05 | ||
| 097 | A 0003231450 | BUSHING |
| Repalced by: A 0002410150 | ||
| 097 | A 0002410150 | BUSHING |
| TO 000 891 02 05 | ||
| 097 | A 0008910717 | BUSHING |
| Repalced by: A 0008910017 | ||
| 097 | A 0008910017 | BUSHING |
| TO 000 891 08 05 | ||
| 099 | A 3229900114 | SCREW |
| Repalced by: N 000960012197 | ||
| 099 | A 3229901214 | SCREW |
| Repalced by: N 000960012197 | ||
| 099 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 099 | N 000960012384 | SCREW |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 110 | N 913002012002 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| N 000094003219 | COTTER PIN | |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| N 912004012100 | LOCK WASHER | |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 112 | A 3378905001 | MOUNTING |
| Repalced by: A 3358900101 | ||
| 112 | A 3358900101 | MOUNTING |
| CAB,REAR | ||
| 112 | A 3358900101 | MOUNTING |
| CAB,REAR | ||
| A 3209905640 | WASHER | |
| MOUNTING TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| MOUNTING TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| MOUNTING TO SIDE MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
