Transporto priemonė: LAK 1517 MBSA; VIN numerio dalis: 360113
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

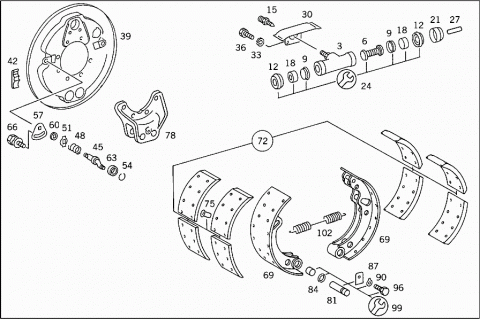

| 003 | A 0034207918 | WHEEL BRAKE CYLINDER |
| 46.83 MM | ||
| 003 | A 0084203018 | WHEEL BRAKE CYLINDER |
| 46.83 MM | ||
| 006 | A 0004233193 | SPRING |
| 009 | A 0004231686 | CUP |
| 012 | A 0004232187 | PROTECTIVE CAP |
| 015 | A 3075530107 | VALVE |
| 018 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 018 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 018 | A 0004210887 | PROTECTIVE CAP |
| 021 | A 0004213087 | PROTECTIVE CAP |
| 024 | A 0005862842 | REPAIR KIT |
| 027 | A 3024210088 | THRUST PIN |
| 030 | A 3024210020 | PROTECTIVE PLATE |
| 033 | N 912004010102 | LOCK WASHER |
| 036 | N 000933010164 | SCREW |
| 039 | A 3604200616 | BRAKE ANCHOR PLATE |
| 042 | A 3094210211 | PLUG |
| 045 | A 3024202038 | ADJUSTER |
| 048 | A 3029930501 | SPRING |
| 051 | A 3024210176 | WASHER |
| 054 | A 3124211073 | LOCK |
| 057 | A 3024200386 | BRACKET |
| 060 | A 3604210273 | LOCK |
| 063 | A 3024210329 | SLIDE |
| 066 | N 000933010164 | SCREW |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| 069 | A 3024202019 | BRAKE SHOE |
| 072 | A 3604212410 | BRAKE LINING |
| (PARTS KIT) | ||
| 15.70 MM | ||
| 072 | A 3604212510 | BRAKE LINING |
| (PARTS KIT) | ||
| 16.70 MM | ||
| 072 | A 3604212610 | BRAKE LINING |
| (PARTS KIT) | ||
| 17.70 MM | ||
| 075 | A 3079900197 | RIVET |
| BRAKE SHOE | ||
| 078 | A 3604210606 | BRAKE ANCHOR |
| 081 | A 3024211074 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 084 | A 3029970445 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 087 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 090 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 090 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 096 | N 000933010130 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 099 | A 3954200041 | REPAIR KIT |
| BRAKE SHOE BEARING | ||
| 102 | A 3534210092 | SPRING |

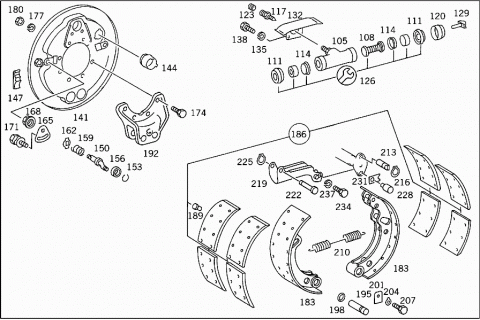

| 105 | A 0034208018 | WHEEL BRAKE CYLINDER |
| 50.80 MM;TEVES | ||
| 105 | A 0094204118 | WHEEL BRAKE CYLINDER |
| 50.80 MM;KUGELFISCHER | ||
| 108 | A 0004231993 | SPRING |
| TO 003 420 80 18 | ||
| 111 | A 0004232587 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 114 | A 0004216187 | PROTECTIVE CAP |
| TO 009 420 41 18 | ||
| 117 | A 3075530107 | VALVE |
| TO 003 420 80 18 | ||
| 120 | A 0004232787 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 123 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 123 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 123 | A 0004210887 | PROTECTIVE CAP |
| TO 009 420 41 18,KUGELFISCHER | ||
| 126 | A 0005862342 | REPAIR KIT |
| TO 003 420 80 18,TEVES | ||
| 126 | A 0015869042 | REPAIR KIT |
| TO 009 420 41 18,KUGELFISCHER | ||
| 129 | A 3024210088 | THRUST PIN |
| 132 | A 3024210020 | PROTECTIVE PLATE |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 135 | N 912004010102 | LOCK WASHER |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 138 | N 000933010164 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 141 | A 3024203017 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 141 | A 3024203117 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 144 | A 3024270054 | PIPE SOCKET |
| 147 | A 3094210211 | PLUG |
| 150 | A 3024201938 | ADJUSTER |
| 153 | A 3124211073 | LOCK |
| 156 | A 3024210329 | SLIDE |
| 159 | A 3029930701 | SPRING |
| 162 | A 3024210176 | WASHER |
| 165 | A 3024200386 | BRACKET |
| 168 | N 074361012201 | NUT |
| 171 | N 000933010164 | SCREW |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| 174 | A 3029900504 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 174 | N 000961012106 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 177 | N 912004012100 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 177 | N 912004016101 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 180 | N 000934012023 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 180 | N 000934016011 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 183 | A 3024202119 | BRAKE SHOE |
| 186 | A 3604232610 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.30 MM,8X 360 423 00 10) | ||
| 186 | A 3604233910 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.70 MM,8X 360 423 33 10) | ||
| 186 | A 3604232710 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.70 MM,8X 360 423 01 10) | ||
| 186 | A 3604234010 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.70 MM,8X 360 423 34 10) | ||
| 186 | A 3604232810 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.70 MM,8X 360 423 02 10) | ||
| 186 | A 3604234110 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.70 MM,8X 360 423 35 10) | ||
| 189 | A 3079900197 | RIVET |
| 192 | A 3024230806 | BRAKE ANCHOR |
| 195 | A 3024211074 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 198 | A 3029970445 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 201 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 204 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 204 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 207 | N 000933010130 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 210 | A 3029930610 | SPRING |
| RELEASE SPRING | ||
| 213 | A 3024230618 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 216 | A 3029940035 | SNAP RING |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 219 | A 3834200389 | SHACKLE |
| 222 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 225 | N 000471018000 | LOCK RING |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 228 | A 3024230874 | PIN |
| Repalced by: A 3024230974 | ||
| 228 | A 3024230974 | PIN |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 231 | A 3029940109 | LOCK |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 234 | N 000933008130 | SCREW |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 237 | N 912004008102 | LOCK WASHER |
| BRAKE SHAFT TO THRUST SHACKLE | ||

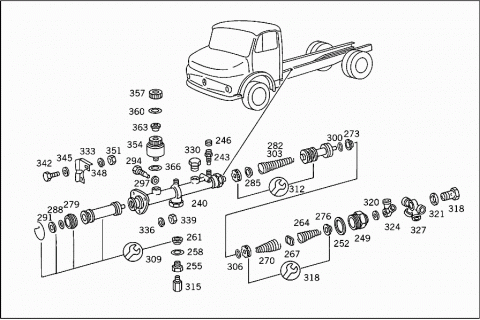

| 240 | A 0024301901 | BRAKE MASTER CYLINDER |
| TEVES | ||
| 240 | A 0024308201 | BRAKE MASTER CYLINDER |
| KUGELFISCHER | ||
| 243 | A 3075530107 | VALVE |
| 246 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 246 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 246 | A 0004210887 | PROTECTIVE CAP |
| 249 | A 0004310522 | THREADED UNION |
| TEVES | ||
| 252 | N 007603040102 | SEAL RING |
| TEVES | ||
| 255 | A 0004310475 | THREADED UNION |
| TEVES | ||
| 258 | N 007603032101 | SEAL RING |
| TEVES | ||
| 261 | A 0004300381 | VALVE |
| TEVES | ||
| 264 | A 0009930605 | SPRING |
| TEVES | ||
| 267 | A 0004312676 | WASHER |
| TEVES | ||
| 270 | A 0004317393 | SPRING |
| TEVES | ||
| 273 | A 0004312089 | SPRING RETAINER |
| TEVES | ||
| 276 | A 0004300381 | VALVE |
| TEVES | ||
| 279 | A 0049972046 | SEAL RING |
| TEVES | ||
| 282 | A 0004317493 | SPRING |
| TEVES | ||
| 285 | A 0004312089 | SPRING RETAINER |
| TEVES | ||
| 288 | A 0004310585 | FILLER RING |
| TEVES | ||
| 291 | A 0004311176 | WASHER |
| TEVES | ||
| 294 | A 0004310671 | SCREW |
| TEVES | ||
| 297 | N 007603008109 | SEAL RING |
| TEVES | ||
| 300 | A 0004319360 | SEAL RING |
| KUGELFISCHER | ||
| 300 | A 0004319260 | SEAL RING |
| KUGELFISCHER | ||
| 303 | A 0009933705 | SPRING |
| KUGELFISCHER | ||
| 306 | A 0004319160 | SEAL RING |
| KUGELFISCHER | ||
| 309 | A 0005864943 | REPAIR KIT |
| TO 002 430 19 01,TEVES | ||
| 312 | A 0005869543 | REPAIR KIT |
| Repalced by: A 0004303083 | ||
| 312 | A 0004303083 | PISTON |
| TO 002 430 82 01,KUGELFISCHER | ||
| 315 | A 0004230184 | FITTING |
| TEVES | ||
| 318 | A 0009902963 | HOLLOW SCREW |
| KUGELFISCHER | ||
| 318 | A 0004280026 | HOLLOW SCREW |
| TEVES | ||
| 320 | A 0004318860 | SEAL RING |
| KUGELFISCHER | ||
| 321 | N 007603014405 | SEAL RING |
| TEVES | ||
| 324 | A 0004310330 | BANJO UNION |
| KUGELFISCHER | ||
| 327 | A 0004280124 | DISTRIBUTOR |
| TEVES | ||
| 330 | A 0004280032 | SCREW PLUG |
| TEVES | ||
| 333 | A 3524310940 | BRACKET |
| BRAKE MASTER CYLINDER | ||
| 336 | N 912004010102 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 339 | N 000934010014 | NUT |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 342 | N 000933010157 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 345 | N 000125010518 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 348 | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 351 | N 000934010014 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 354 | A 0004311602 | RESERVOIR |
| FLUID RESERVOIR | ||
| 357 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 360 | A 0009972940 | SEAL RING |
| 363 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 363 | A 0004314334 | STRAINER |
| 366 | N 007603022102 | SEAL RING |
| AT CYLINDER | ||

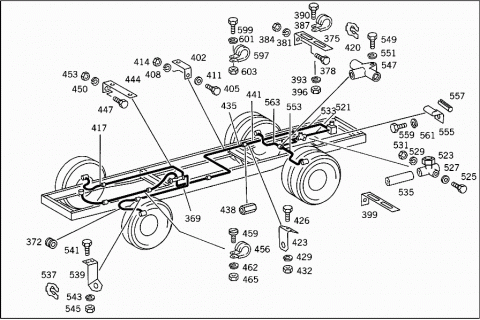

| 369 | A 3404204029 | LINE |
| FROM BRAKE MASTER CYLINDER TO FRONT AXLE | ||
| 2600 MM | ||
| 372 | A 3859970081 | GROMMET |
| SIDE MEMBER,FRONT | ||
| 375 | A 3524290740 | BRACKET |
| BRAKE LINE TO CROSS MEMBER | ||
| 378 | N 000933008147 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 381 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO CROSS MEMBER | ||
| 384 | N 000934008010 | NUT |
| BRAKE LINE TO CROSS MEMBER | ||
| 387 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 387 | N 916016008200 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 390 | N 000084006197 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 393 | N 912004006102 | LOCK WASHER |
| BRAKE LINE TO CROSS MEMBER | ||
| 396 | N 000934006007 | NUT |
| BRAKE LINE TO CROSS MEMBER | ||
| 399 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 399 | A 3464296040 | BRACKET |
| BRAKE LINE TO SIDE MEMBER | ||
| 402 | A 3604280143 | ANGLE |
| BRAKE LINE TO SIDE MEMBER | ||
| 405 | N 000084006137 | SCREW |
| BRAKE LINE TO SIDE MEMBER | ||
| 408 | N 912004006102 | LOCK WASHER |
| BRAKE LINE TO SIDE MEMBER | ||
| 411 | N 000433006405 | WASHER |
| BRAKE LINE TO SIDE MEMBER | ||
| 414 | N 000934006007 | NUT |
| BRAKE LINE TO SIDE MEMBER | ||
| 417 | A 0004288935 | BRAKE HOSE |
| 650 MM | ||
| 417 | A 0014284835 | BRAKE HOSE |
| 650 MM | ||
| 420 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 420 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 423 | A 3604280240 | BRACKET |
| BRAKE HOSE,FRONT | ||
| 426 | N 000933008145 | SCREW |
| BRAKE HOSE BRACKET | ||
| 429 | N 912004008102 | LOCK WASHER |
| BRAKE HOSE BRACKET | ||
| 432 | N 000934008010 | NUT |
| BRAKE HOSE BRACKET | ||
| 435 | A 3404201329 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 438 | A 0004292736 | CONNECTOR |
| 441 | A 3404204429 | LINE |
| FROM INTERMEDIATE PIECE TO BRAKE PRESSURE REGULATOR | ||
| 3400 MM | ||
| 444 | A 3184280240 | BRACKET |
| BRAKE LINE TO SIDE MEMBER | ||
| 447 | N 000933008137 | SCREW |
| BRAKE LINE TO SIDE MEMBER | ||
| 450 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO SIDE MEMBER | ||
| 453 | N 000934008010 | NUT |
| BRAKE LINE TO SIDE MEMBER | ||
| 456 | A 3609950601 | CLAMP |
| BRAKE LINE TO SIDE MEMBER | ||
| 456 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 456 | N 916016008200 | CLAMP |
| BRAKE LINE TO SIDE MEMBER | ||
| 459 | N 000084006197 | SCREW |
| BRAKE LINE TO SIDE MEMBER | ||
| 462 | N 912004006102 | LOCK WASHER |
| BRAKE LINE TO SIDE MEMBER | ||
| 465 | N 000934006007 | NUT |
| BRAKE LINE TO SIDE MEMBER | ||

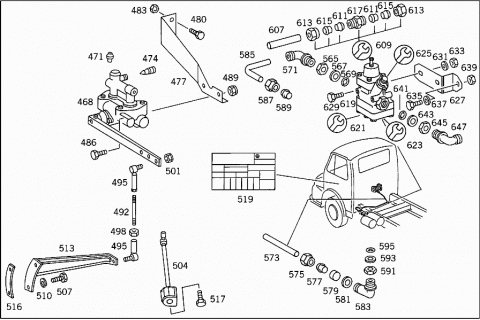

| 468 | A 0004314312 | BRAKE PRESSURE REGULATOR |
| 471 | A 0004311068 | VALVE PART |
| 474 | A 3075530107 | VALVE |
| 477 | A 3604300339 | SUPPORT |
| BRAKE POWER REGULATOR | ||
| 480 | N 000961012097 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 483 | N 913004012008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 486 | N 000931010258 | SCREW |
| BRAKE POWER REGULATOR TO SUPPORT | ||
| 489 | N 913004010008 | NUT |
| BRAKE POWER REGULATOR TO SUPPORT | ||
| 492 | N 900331008426 | PULL ROD |
| 495 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 495 | A 0004310867 | YOKE |
| L.H. THREAD | ||
| 498 | N 000934008010 | NUT |
| R.H. THREAD | ||
| 498 | N 000934008035 | NUT |
| L.H. THREAD | ||
| 501 | N 913004008004 | NUT |
| BRAKE POWER REGULATOR CONTROL | ||
| 504 | A 0004311718 | METAL SPRING BELLOWS |
| 507 | N 000961012047 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| 510 | N 912004012100 | LOCK WASHER |
| METAL SPRING BELLOWS TO BRACKET | ||
| 513 | A 3524316640 | BRACKET |
| METAL SPRING BELLOWS | ||
| 515 | A 3554310484 | SHIM |
| BRACKET TO AXLE HOUSING | ||
| 517 | N 000933010157 | SCREW |
| BRACKET TO AXLE HOUSING | ||
| 519 | A 3605841621 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 521 | A 3404201229 | LINE |
| FROM BRAKE POWER REGULATOR TO TEST CONNECTION | ||
| 750 MM | ||
| 523 | A 0004311231 | TEST CONNECTION |
| 523 | A 0004316631 | TEST CONNECTION |
| 525 | N 000931006118 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 527 | N 000125006421 | WASHER |
| TEST CONNECTION TO BRACKET | ||
| 529 | N 912004006102 | LOCK WASHER |
| TEST CONNECTION TO BRACKET | ||
| 531 | N 000934006007 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 533 | A 3404200529 | LINE |
| FROM TEST CONNECTION TO BRAKE HOSE BRACKET | ||
| 400 MM | ||
| 535 | A 0004288935 | BRAKE HOSE |
| 650 MM | ||
| 535 | A 0014284835 | BRAKE HOSE |
| 650 MM | ||
| 537 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 537 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 539 | A 3224280140 | BRACKET |
| BRAKE HOSE,REAR | ||
| 541 | N 000933008147 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 543 | N 912004008102 | LOCK WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 545 | N 000934008010 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 547 | A 0004290437 | DISTRIBUTOR |
| REAR AXLE | ||
| 547 | A 0004294337 | DISTRIBUTOR |
| REAR AXLE | ||
| 549 | N 000931008152 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| 551 | N 912004008102 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 553 | A 3404202029 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 1150 MM | ||
| 555 | A 3129951020 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 557 | A 3129973482 | HOSE |
| BRAKE LINE TO REAR AXLE | ||
| 559 | N 000933008212 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 561 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 563 | A 3404200729 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 500 MM | ||
| 565 | N 074305022202 | NUT |
| AT AIR COMPRESSOR | ||
| 567 | A 0009870446 | SEALING CORD |
| AT AIR COMPRESSOR | ||
| 569 | A 0004290227 | THRUST RING |
| AT AIR COMPRESSOR | ||
| 571 | N 074301026202 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| 573 | A 0005516456 | TUBE |
| 18 MM | ||
| 575 | N 915018018000 | UNION NUT |
| 577 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 577 | A 0019901167 | SEAL CONE |
| 579 | N 915065018101 | THRUST RING |
| PRESSURE REGULATOR | ||
| 581 | N 915045015100 | SEAL RING |
| PRESSURE REGULATOR | ||
| 583 | A 0009903371 | ELBOW FITTING |
| AT SIDE MEMBER | ||
| 585 | A 0005516256 | TUBE |
| 15MM | ||
| 587 | N 915018015000 | UNION NUT |
| 589 | N 003861015004 | GLAND |
| 591 | N 074305026202 | NUT |
| ELBOW FITTING TO SIDE MEMBER | ||
| 593 | N 915065015101 | THRUST RING |
| 595 | N 915045012100 | SEAL RING |
| 597 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 597 | A 6739950001 | CLAMP |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 599 | N 000084006197 | SCREW |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 601 | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 603 | N 000934006007 | NUT |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 605 | N 074298022203 | DOUBLE FITTING |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 607 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 607 | A 0009872827 | PLASTIC PIPE |
| 9X12 MM | ||
| 609 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 609 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 59 82 | ||
| 611 | N 915062009000 | SLEEVE |
| 613 | N 915017012100 | UNION NUT |
| 615 | N 003861012007 | GLAND |
| 617 | N 074315012100 | FITTING |
| 619 | A 0024316006 | PRESSURE REGULATOR |
| "WABCO" | ||
| 619 | A 0024315906 | PRESSURE REGULATOR |
| "BOSCH" | ||
| 621 | A 0014304960 | REPAIR KIT |
| TO 002 431 60 06,WABCO 975 303 440 0 | ||
| 623 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 625 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 627 | A 3524316340 | BRACKET |
| PRESSURE REGULATOR | ||
| 629 | N 000933008153 | SCREW |
| PRESSURE REGULATOR TO FRAME | ||
| 631 | N 000125008418 | WASHER |
| PRESSURE REGULATOR TO FRAME | ||
| 633 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO FRAME | ||
| 635 | N 000931008228 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 637 | N 000125008418 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 639 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 641 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "1","21" | ||
| 643 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "1","21" | ||
| 645 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "1","21" | ||
| 647 | A 0004293238 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 647 | N 074301022203 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 649 | A 0004317206 | VALVE |
| (TWO-CIRCUIT PROTECTIVE VALVE) | ||
| 651 | A 0004311981 | VALVE DISC |
| TOP | ||
| 653 | A 0004312081 | VALVE DISC |
| BOTTOM | ||
| 655 | A 0007630454 | SEAL |
| 657 | A 0004315086 | CUP |
| 659 | A 0004290227 | THRUST RING |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 661 | A 0009870446 | SEALING CORD |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 663 | N 074305022202 | NUT |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||

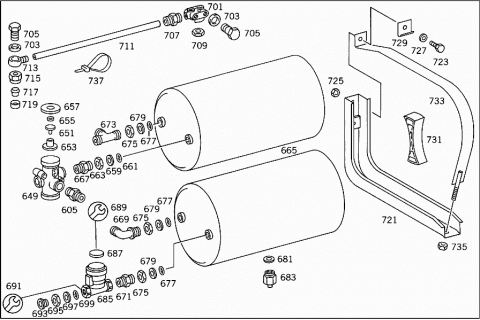

| 665 | A 3214300205 | RESERVOIR |
| Repalced by: A 0034322501 | ||
| 665 | A 0034322501 | RESERVOIR |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 40 L | ||
| 667 | N 074298022203 | DOUBLE FITTING |
| OUTSIDE AIR RESERVOIR | ||
| 669 | N 074301022203 | ELBOW FITTING |
| INSIDE AIR RESERVOIR | ||
| 671 | A 0019972372 | FITTING |
| INSIDE AIR RESERVOIR | ||
| 673 | A 0009902470 | T-FITTING |
| OUTSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 675 | N 074305022202 | NUT |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 677 | A 0009870446 | SEALING CORD |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 679 | A 0004290227 | THRUST RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 681 | N 007603022102 | SEAL RING |
| AT VALVE | ||
| 683 | A 0004321107 | VALVE |
| DRAIN VALVE | ||
| 683 | A 0004322107 | VALVE |
| DRAIN VALVE | ||
| 683 | A 0004322407 | VALVE |
| DRAIN | ||
| 685 | A 0014295244 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 685 | A 0014299844 | VALVE |
| (OVERFLOW VALVE) | ||
| BOSCH | ||
| 685 | A 0014297944 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| 685 | A 0034290244 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| A 0024298844 | VALVE | |
| TO 001 429 79 44,GRAU | ||
| 687 | A 0004290745 | DIAPHRAGM |
| TO 001 429 79 44,GRAU | ||
| 689 | A 0015862642 | REPAIR KIT |
| TO 001 429 98 44,BOSCH | ||
| 691 | A 0015862042 | REPAIR KIT |
| TO 001 429 52 44,WABCO | ||
| 693 | A 0009904468 | FITTING |
| AT OVERFLOW VALVE | ||
| 695 | N 074305022202 | NUT |
| AT OVERFLOW VALVE | ||
| 697 | A 0004290227 | THRUST RING |
| AT OVERFLOW VALVE | ||
| 699 | A 0009870446 | SEALING CORD |
| AT OVERFLOW VALVE | ||
| 701 | A 0004294137 | DISTRIBUTOR |
| 703 | N 007603012405 | SEAL RING |
| AT DISTRIBUTOR | ||
| 705 | N 915036008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE | ||
| 707 | A 0039977572 | FITTING |
| AT DISTRIBUTOR | ||
| 707 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 707 | A 0029906071 | FITTING |
| AT DISTRIBUTOR | ||
| 709 | N 080705014002 | NUT |
| DISTRIBUTOR TO FRAME | ||
| 711 | A 0089979082 | HOSE |
| FROM DISTRIBUTOR TO OVERFLOW VALVE | ||
| 800 MM | ||
| A 0039978972 | PART NAME MISSING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 713 | N 915052006013 | BANJO UNION |
| 715 | N 915017008100 | UNION NUT |
| 717 | N 003861008005 | GLAND |
| 719 | N 915062006000 | SLEEVE |
| 721 | A 3604301311 | CONSOLE |
| RESERVOIR | ||
| 723 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 723 | A 0029909604 | SCREW |
| RESERVOIR TO SUPPORT | ||
| M 14X1.5X40 | ||
| 725 | N 913004014002 | NUT |
| RESERVOIR TO SUPPORT | ||
| 727 | N 007349015003 | WASHER |
| RESERVOIR TO SUPPORT | ||
| 729 | A 3434320026 | PLATE |
| RESERVOIR TO SUPPORT | ||
| 731 | A 3354320218 | BASE |
| RESERVOIR | ||
| 733 | A 3604300040 | STRAP |
| RESERVOIR | ||
| 735 | N 000934010014 | NUT |
| AIR RESERVOIR TO CONSOLE | ||
| 737 | A 0019978390 | LOOM TIE |
| 739 | A 0004311675 | THREADED UNION |
| AT BRAKE CYLINDER | ||
| 741 | A 3529900071 | ELBOW FITTING |
| AT BRAKE CYLINDER | ||
| 743 | N 080705016003 | NUT |
| AT BRAKE CYLINDER | ||
| 745 | A 0009971548 | SEAL RING |
| AT BRAKE CYLINDER | ||
| 747 | A 0004310051 | SPACER RING |
| AT BRAKE CYLINDER | ||

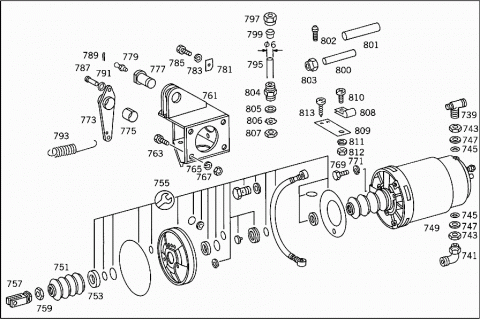

| 749 | A 0004318914 | BRAKE CYLINDER |
| AIR BRAKE BOOSTER | ||
| 751 | A 0004317186 | CUP |
| 753 | A 0059974745 | SEAL RING |
| 755 | A 0004309160 | REPAIR KIT |
| TO 000 431 89 14 | ||
| 757 | A 3604310267 | YOKE |
| AT BRAKE CYLINDER | ||
| 759 | N 000936010010 | NUT |
| AT BRAKE CYLINDER | ||
| 761 | A 3604302111 | CONSOLE |
| BRAKE BOOSTER | ||
| 763 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| 765 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 767 | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
| 769 | N 000933010129 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 771 | N 912004010102 | LOCK WASHER |
| BRAKE CYLINDER TO CONSOLE | ||
| 773 | A 3524301323 | LEVER |
| BRAKE BOOSTER | ||
| 775 | A 3529920801 | BUSHING |
| 777 | A 3604310074 | PIN |
| DOUBLE LEVER TO CONSOLE | ||
| 779 | N 071412010200 | GREASE NIPPLE |
| DOUBLE LEVER TO CONSOLE | ||
| 781 | A 3149940101 | LOCK |
| DOUBLE LEVER TO CONSOLE | ||
| 783 | N 912004008102 | LOCK WASHER |
| DOUBLE LEVER TO CONSOLE | ||
| 785 | N 000933008130 | SCREW |
| DOUBLE LEVER TO CONSOLE | ||
| 787 | A 3149910207 | PIN |
| LEVER TO ROD | ||
| 789 | N 000094003219 | COTTER PIN |
| LEVER TO ROD | ||
| 791 | N 000433010505 | WASHER |
| LEVER TO ROD | ||
| 793 | A 3609930210 | SPRING |
| RELEASE SPRING | ||
| 795 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 795 | A 0004296201 | LINE |
| 6 MM | ||
| 797 | N 915017006100 | UNION NUT |
| 799 | N 003861006007 | GLAND |
| 800 | A 0089976082 | HOSE |
| A 0039979172 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 801 | N 040621010200 | INSULATING HOSE |
| BRAKE PRESSURE CONTROL | ||
| 802 | A 0019975072 | FITTING |
| BRAKE PRESSURE CONTROL | ||
| 803 | N 915017006200 | UNION NUT |
| BRAKE PRESSURE CONTROL | ||
| 804 | N 915059004001 | FITTING |
| BRAKE PRESSURE CONTROL | ||
| 805 | N 000125013008 | WASHER |
| FITTING TO FIRE WALL | ||
| 806 | N 006797012153 | TOOTHED WASHER |
| FITTING TO FIRE WALL | ||
| 807 | N 000936012009 | NUT |
| FITTING TO FIRE WALL | ||
| 808 | A 3609950101 | CLAMP |
| LINE MOUNTING | ||
| 809 | A 3124292440 | BRACKET |
| LINE MOUNTING | ||
| 810 | N 007985006155 | SCREW |
| LINE MOUNTING | ||
| 810 | N 000084006134 | SCREW |
| 811 | N 912004006102 | LOCK WASHER |
| 812 | N 000934006007 | NUT |
| 813 | N 007971004227 | SHEET METAL SCREW |
| LINE MOUNTING | ||

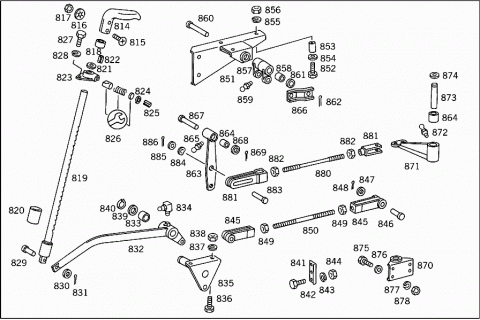

| 814 | A 3124271220 | HANDLE |
| HAND BRAKE VALVE | ||
| 815 | N 000964006028 | SCREW |
| HANDLE TO RATCHET ROD | ||
| 816 | N 006797006146 | TOOTHED WASHER |
| HANDLE TO RATCHET ROD | ||
| 817 | N 001587006001 | CAP NUT |
| HANDLE TO RATCHET ROD | ||
| 818 | A 3124271086 | DAMPING RING |
| 819 | A 3214201374 | ROD |
| 820 | A 3534270095 | PROTECTIVE CAP |
| 821 | A 3124271151 | SPACER RING |
| 822 | N 001473004021 | GROOVED PIN |
| 823 | A 3124201178 | BEARING BRACKET |
| PISTOL-GRIP HAND BRAKE | ||
| 824 | N 000472015000 | LOCK RING |
| 825 | N 001473004023 | GROOVED PIN |
| 826 | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 827 | N 000933008145 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| 828 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 829 | A 3529910407 | PIN |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| 830 | N 000433008406 | WASHER |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| 831 | N 000094002059 | COTTER PIN |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| 832 | A 3604200812 | BRAKE LEVER |
| HAND BRAKE | ||
| 833 | A 3529921201 | BUSHING |
| 834 | N 071412010300 | GREASE NIPPLE |
| 835 | A 3214200778 | BEARING BRACKET |
| 836 | N 000933010129 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 837 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 838 | N 000934010014 | NUT |
| BEARING BRACKET TO FRAME | ||
| 839 | A 3129901540 | WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| 840 | N 000471022000 | LOCK RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 841 | A 3604200286 | BRACKET |
| HAND BRAKE LINKAGE | ||
| 842 | N 000933008145 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 843 | N 912004008102 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 844 | N 000934008010 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 845 | A 3214200176 | END PIECE |
| 846 | A 3529910007 | PIN |
| 847 | N 000125010518 | WASHER |
| 848 | N 000094003219 | COTTER PIN |
| 849 | N 000934010014 | NUT |
| 850 | N 900331010660 | PULL ROD |
| 851 | A 3604300310 | BRACKET |
| HAND BRAKE VALVE | ||
| 852 | N 000931010331 | SCREW |
| VALVE TO CROSS MEMBER | ||
| 853 | A 3604270253 | SPACER TUBE |
| VALVE TO CROSS MEMBER | ||
| 854 | N 000125010518 | WASHER |
| VALVE TO CROSS MEMBER | ||
| 855 | N 912004010102 | LOCK WASHER |
| VALVE TO CROSS MEMBER | ||
| 856 | N 000934010014 | NUT |
| VALVE TO CROSS MEMBER | ||
| 857 | A 3604200681 | LEVER |
| TOP | ||
| 858 | A 3229920101 | BUSHING |
| 859 | N 071412010100 | GREASE NIPPLE |
| 860 | N 001434014052 | PIN |
| UPPER LEVER TO BRACKET | ||
| 861 | N 000125015000 | WASHER |
| UPPER LEVER TO BRACKET | ||
| 862 | N 000094004065 | COTTER PIN |
| UPPER LEVER TO BRACKET | ||
| 863 | A 3604200881 | LEVER |
| BOTTOM | ||
| 864 | A 3229920101 | BUSHING |
| 865 | N 071412010100 | GREASE NIPPLE |
| 866 | A 3604200089 | SHACKLE |
| 867 | N 001434014045 | PIN |
| SHACKLE TO LEVER | ||
| 868 | N 000125015013 | WASHER |
| SHACKLE TO LEVER | ||
| 869 | N 000094004065 | COTTER PIN |
| SHACKLE TO LEVER | ||
| 870 | A 3404200278 | BEARING BRACKET |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 871 | A 3524203081 | LEVER |
| 872 | N 071412010300 | GREASE NIPPLE |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 873 | A 3124261574 | PIN |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 874 | N 000471022000 | LOCK RING |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 875 | N 000933010129 | SCREW |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 876 | A 3609901240 | WASHER |
| Repalced by: A 1159903140 | ||
| 876 | A 1159903140 | WASHER |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 877 | N 912004010102 | LOCK WASHER |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 878 | N 000934010014 | NUT |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 880 | N 900331010657 | PULL ROD |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 881 | A 0009961501 | YOKE |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 882 | N 000934010014 | NUT |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 883 | A 3149910207 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 884 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 884 | N 000137010205 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 885 | N 000433010505 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 886 | N 000094003219 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 887 | N 900331010655 | PULL ROD |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 888 | A 0009961501 | YOKE |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 889 | A 3224200247 | YOKE |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 890 | N 000934010014 | NUT |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 891 | A 3529910007 | PIN |
| 892 | N 900055010003 | SPRING WASHER |
| 893 | N 000433010505 | WASHER |
| 894 | N 000094003219 | COTTER PIN |

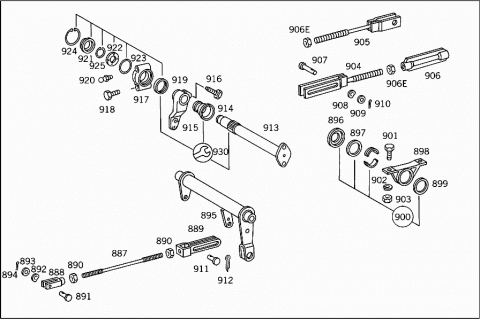

| 895 | A 3604200980 | BRAKE INTERMEDIATE SHAFT |
| 896 | A 3274270058 | SEAL HOLDER |
| BRAKE INTERMEDIATE SHAFT | ||
| 897 | A 3279970040 | SEAL RING |
| BRAKE INTERMEDIATE SHAFT | ||
| 898 | A 3584200278 | BEARING BRACKET |
| 899 | N 000470052000 | EXPANSION PLUG |
| 900 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 901 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRONT CROSS MEMBER | ||
| 902 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO FRONT CROSS MEMBER | ||
| 903 | N 000934012022 | NUT |
| BEARING BRACKET TO FRONT CROSS MEMBER | ||
| 904 | A 3604200474 | ROD |
| FRONT | ||
| 905 | A 3604200774 | ROD |
| REAR | ||
| 906 | A 3859960034 | NUT |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 906E | N 000934012020 | NUT |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 906E | N 000934012021 | NUT |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 907 | A 3529910207 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 908 | N 900055012001 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 909 | N 000433013005 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 910 | N 000094003210 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 911 | A 3529910107 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 912 | N 000094003210 | COTTER PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 913 | A 3604231136 | BRAKE CAMSHAFT |
| Repalced by: A 3604232536 | ||
| 913 | A 3604232536 | BRAKE CAMSHAFT |
| 914 | A 3414230186 | CUP |
| 915 | A 3604261811 | LEVER |
| LEFT | ||
| 915 | A 3604261911 | LEVER |
| RIGHT | ||
| 916 | N 000931010271 | SCREW |
| BRAKE LEVER ON BRAKE SHAFT | ||
| 917 | A 3024260405 | BEARING |
| 918 | N 000960016140 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 919 | A 0119975546 | SEAL RING |
| 920 | N 071412008100 | GREASE NIPPLE |
| 921 | A 3609970020 | EXPANSION PLUG |
| AT BEARING BRACKET | ||
| 922 | A 3604230057 | STOP WASHER |
| AT BEARING BRACKET | ||
| 923 | A 0019972848 | SEAL RING |
| AT BEARING BRACKET | ||
| 924 | N 000472062000 | LOCK RING |
| AT BEARING BRACKET | ||
| 925 | N 000471032000 | LOCK RING |
| AT BEARING BRACKET | ||
| 930 | A 3604200241 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||

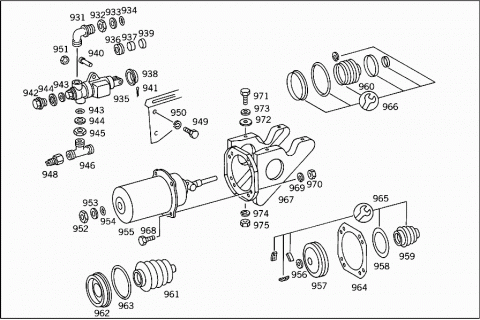

| 931 | N 074301022203 | ELBOW FITTING |
| AT HAND BRAKE VALVE | ||
| 932 | N 074305022202 | NUT |
| AT HAND BRAKE VALVE | ||
| 933 | A 0004290227 | THRUST RING |
| AT HAND BRAKE VALVE | ||
| 934 | A 0009870446 | SEALING CORD |
| AT HAND BRAKE VALVE | ||
| 935 | A 0004310616 | VALVE |
| HAND BRAKE VALVE | ||
| 936 | A 0004317386 | CUP |
| 937 | A 0004290695 | AIR CLEANER |
| 938 | A 0004317087 | PROTECTIVE CAP |
| 939 | A 0004350390 | VALVE DISC |
| 940 | N 001433012015 | PIN |
| 941 | N 000094004065 | COTTER PIN |
| 942 | N 000908022001 | SCREW PLUG |
| AT HAND BRAKE VALVE | ||
| 943 | A 0009870446 | SEALING CORD |
| AT HAND BRAKE VALVE | ||
| 944 | A 0004290227 | THRUST RING |
| AT HAND BRAKE VALVE | ||
| 945 | N 074305022202 | NUT |
| AT HAND BRAKE VALVE | ||
| 946 | N 074302022304 | T-FITTING |
| AT HAND BRAKE VALVE | ||
| 946 | A 0019979572 | FITTING |
| AT HAND BRAKE VALVE | ||
| 948 | A 0005455414 | SWITCH |
| AT HAND BRAKE VALVE | ||
| 949 | N 000931010272 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 950 | N 912004010102 | LOCK WASHER |
| HAND BRAKE VALVE TO BRACKET | ||
| 951 | N 000934010014 | NUT |
| HAND BRAKE VALVE TO BRACKET | ||
| 952 | N 080705016003 | NUT |
| AT BRAKE CYLINDER | ||
| 953 | A 0004290927 | THRUST RING |
| AT BRAKE CYLINDER | ||
| 954 | A 0009971548 | SEAL RING |
| AT BRAKE CYLINDER | ||
| 955 | A 0004312114 | BRAKE CYLINDER |
| BOSCH | ||
| 955 | A 0014311314 | BRAKE CYLINDER |
| WABCO | ||
| 955 | A 0004317714 | BRAKE CYLINDER |
| KNORR | ||
| 956 | A 0014311160 | SEAL RING |
| TO 000 431 77 14,KNORR | ||
| 957 | A 0004319683 | PISTON |
| TO 000 431 77 14,KNORR | ||
| 958 | A 0059971148 | SEAL RING |
| TO 000 431 77 14,KNORR | ||
| 959 | A 0004319586 | CUP |
| TO 000 431 77 14,KNORR | ||
| 960 | A 0004318587 | PROTECTIVE CAP |
| TO 001 431 13 14,WABCO | ||
| 961 | A 0004312786 | CUP |
| TO 000 431 21 14,BOSCH | ||
| 962 | A 0004318583 | PISTON |
| TO 000 431 21 14,BOSCH | ||
| 963 | A 0049971740 | SEAL RING |
| TO 000 431 21 14,BOSCH | ||
| 964 | A 0004311880 | GASKET |
| TO 000 431 77 14,KNORR | ||
| 965 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 965 | A 0034201724 | REPAIR KIT |
| TO 000 431 21 14,BOSCH | ||
| 966 | A 0025861443 | REPAIR KIT |
| TO 001 431 13 14,WABCO | ||
| 967 | A 3604302411 | CONSOLE |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 968 | N 000933010105 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 969 | N 912004010102 | LOCK WASHER |
| BRAKE CYLINDER TO CONSOLE | ||
| 970 | N 000934010014 | NUT |
| BRAKE CYLINDER TO CONSOLE | ||
| 971 | N 000933010129 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| 972 | A 3609900040 | WASHER |
| Repalced by: A 4219905440 | ||
| 972 | A 4219905440 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 973 | N 000125010518 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 974 | N 912004010102 | LOCK WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 975 | N 000934010014 | NUT |
| CONSOLE TO CROSS MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
