Transporto priemonė: LAK 1517 MBSA; VIN numerio dalis: 360113
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

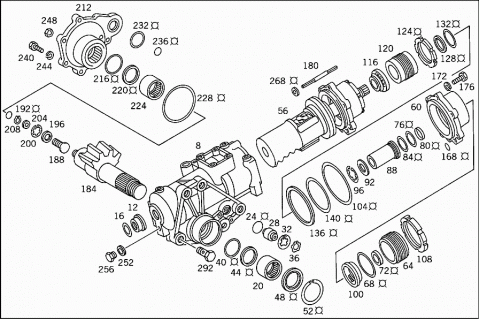

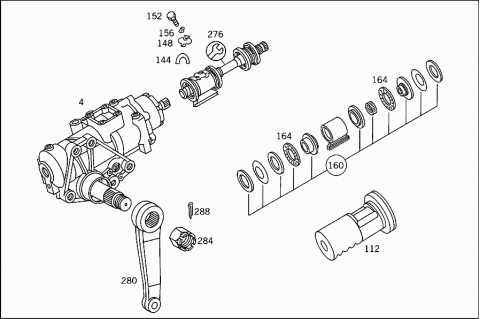

| 004 | A 3604603201 | STEERING BOX ASSEMBLY |
| 008 | A 3604602902 | STEERING BOX |
| WITH SLEEVE VALVE | ||
| 012 | A 3604610005 | COVER |
| STEERING BOX | ||
| 016 | A 0059979345 | SEAL RING |
| STEERING BOX | ||
| 020 | A 0039812110 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 024 | A 0059979445 | SEAL RING |
| VALVE HOUSING SEALING | ||
| 028 | A 3604660405 | COVER |
| VALVE HOUSING SEALING | ||
| 032 | A 0019943741 | LOCK |
| VALVE HOUSING SEALING | ||
| 036 | A 0009945541 | LOCK |
| VALVE HOUSING SEALING | ||
| 040 | A 0069977445 | SEAL RING |
| STEERING NUT BEARING | ||
| 55X3 MM | ||
| 044 | A 3604660260 | SEAL RING |
| STEERING NUT BEARING | ||
| 55.5X3.5 MM | ||
| 048 | A 0119977946 | SEAL RING |
| STEERING SHAFT BEARING | ||
| 50.8-6.5-9/7 MM | ||
| 052 | A 1124660173 | LOCK |
| STEERING SHAFT BEARING | ||
| 056 | A 3604602285 | PISTON |
| WITH STEERING WORM AND STEERING NUT | ||
| 060 | A 3604602114 | STEERING BOX COVER |
| PISTON | ||
| 064 | A 3604620034 | SCREW COLLAR |
| 068 | A 0029974745 | SEAL RING |
| STEERING NUT BEARING | ||
| 75X3 MM | ||
| A 0119977246 | SEAL RING | |
| Repalced by: A 0149976947 | ||
| 072 | A 0149976947 | SEAL RING |
| STEERING NUT BEARING | ||
| 28-5 -816 MM | ||
| 076 | A 3604660460 | SEAL RING |
| STEERING NUT BEARING | ||
| 32.15X3.4 MM | ||
| 080 | A 0079973745 | SEAL RING |
| STEERING NUT BEARING | ||
| 33X3 MM | ||
| 084 | A 0009979745 | SEAL RING |
| STEERING NUT BEARING | ||
| 3X2.5 MM | ||
| 088 | A 3604610050 | BUSHING |
| STEERING NUT BEARING | ||
| 092 | N 000988037006 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.0 MM | ||
| 092 | N 000988037007 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.1 MM | ||
| 092 | N 000988037008 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.2 MM | ||
| 092 | N 000988037009 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.3 MM | ||
| 096 | A 0019943441 | LOCK |
| 100 | A 3609810027 | ANGULAR CONTACT BEARING |
| STEERING WORM | ||
| 104 | A 0089971345 | SEAL RING |
| STEERING NUT BEARING | ||
| 108X4 MM | ||
| N 070852085000 | NUT | |
| Repalced by: A 6173560026 | ||
| 108 | A 6173560026 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 112 | A 3604660883 | PISTON |
| 112 | A 3604661383 | PISTON |
| 116 | A 3609810227 | ANGULAR CONTACT BEARING |
| STEERING NUT BEARING | ||
| 120 | A 3604660205 | COVER |
| STEERING NUT BEARING | ||
| 124 | N 070852070000 | NUT |
| STEERING NUT BEARING | ||
| 128 | A 3604660060 | SEAL RING |
| STEERING NUT BEARING | ||
| 132 | A 0059979645 | SEAL RING |
| STEERING NUT BEARING | ||
| 41X3 MM | ||
| 136 | A 3604660660 | SEAL RING |
| STEERING NUT BEARING | ||
| 117.3X4 MM | ||
| 140 | A 0079979445 | SEAL RING |
| STEERING NUT BEARING | ||
| 102X5.5 MM | ||
| 144 | A 3604620325 | BALL GUIDE |
| 148 | A 3609950120 | CLAMP |
| BALL GUIDE TO PISTON | ||
| 152 | A 1209900520 | SCREW |
| BALL GUIDE TO PISTON | ||
| 156 | A 1129940005 | LOCK |
| BALL GUIDE TO PISTON | ||
| 160 | A 3604603199 | INSTALLATION KIT |
| CONICAL SPRING WASHER CUSHIONING | ||
| 164 | A 3859810018 | ROLLER BEARING |
| 168 | A 0059979745 | SEAL RING |
| COVER TO STEERING BOX | ||
| 172 | N 912004010102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 176 | N 000933010200 | SCREW |
| COVER TO STEERING BOX | ||
| M 10X30 | ||
| 180 | A 3604660983 | PISTON |
| STROKE LIMIT | ||
| 184 | A 3604600011 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 188 | A 3604620071 | SCREW |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 192 | A 0059979845 | SEAL RING |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 10X3 MM | ||
| 196 | A 3604620252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 196 | A 3604620352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 196 | A 3604620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 196 | A 3604620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 196 | A 3604620652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 196 | A 3604620852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.80 MM | ||
| 196 | A 3604620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.75 MM | ||
| 196 | A 3604621052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.65 MM | ||
| 196 | A 3604621252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.55 MM | ||
| 196 | A 3604621352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 196 | A 3604621452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.45 MM | ||
| 200 | A 0049949441 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 204 | A 3604620062 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 208 | N 000471015000 | LOCK RING |
| STEERING SHAFT BEARING IN COVER | ||
| 15X1 MM | ||
| 212 | A 3604602314 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 216 | A 3604660260 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 220 | A 0069977445 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 55X3 MM | ||
| 224 | A 0039812210 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 228 | A 0059979945 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 114X4 MM | ||
| 232 | A 0059979645 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 41X3 MM | ||
| 236 | A 0059979745 | SEAL RING |
| BOX COVER | ||
| 9X2.5 MM | ||
| 240 | N 000933010200 | SCREW |
| COVER TO STEERING BOX | ||
| 244 | N 912004010102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 248 | N 000936014010 | NUT |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 252 | N 007603012405 | SEAL RING |
| OIL DRAIN | ||
| 256 | N 000910012000 | SCREW PLUG |
| OIL DRAIN | ||
| 260 | A 3605861646 | REPAIR KIT |
| CHECK VALVE IN BEARING COVER | ||
| 264 | A 3605861746 | REPAIR KIT |
| CHECK VALVE IN BOX | ||
| 268 | N 007603014405 | SEAL RING |
| 272 | A 3605861846 | REPAIR KIT |
| (GASKET KIT) | ||
| 276 | A 3605862046 | REPAIR KIT |
| STEERING WORM WITH NUT | ||
| 280 | A 3604630301 | PITMAN ARM |
| 284 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 288 | N 000094008014 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 292 | A 3529900302 | SCREW |
| STEERING TO STEERING BRACKET | ||
| N 000177001021 | WIRE | |
| STEERING TO STEERING BRACKET | ||

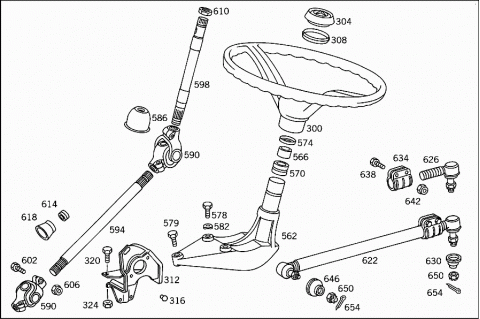

| 300 | A 0004641201 | STEERING WHEEL |
| 304 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 308 | A 0004640177 | PROTECTIVE RING |
| 312 | A 3604600129 | STEERING BRACKET |
| AT FRAME | ||
| 316 | N 915005014020 | LOCKING CONE |
| STEERING BRACKET TO SIDE MEMBER | ||
| 320 | A 3229903101 | SCREW |
| STEERING TO FRAME | ||
| 324 | N 000934014020 | NUT |
| STEERING TO FRAME | ||
| 328 | A 1899970172 | FITTING |
| AT PUMP | ||
| 332 | A 3229970076 | SEAL CONE |
| AT PUMP | ||
| 336 | A 0002610283 | OIL PIPE |
| FROM PUMP TO HOSE | ||
| 340 | A 3609970682 | HOSE |
| 344 | A 3609971282 | HOSE |
| 348 | A 0002610283 | OIL PIPE |
| FROM HOSE TO STEERING | ||
| 352 | N 003861010009 | GLAND |
| FOR 10-MM PIPE | ||
| 356 | N 003861010009 | GLAND |
| FOR 10-MM PIPE | ||
| 360 | N 915017010100 | UNION NUT |
| FOR 10-MM PIPE | ||
| 364 | N 915017010104 | UNION NUT |
| FOR 10-MM PIPE | ||
| 368 | N 003901010009 | SCREW-IN FITTING |
| FROM DELIVERY LINE TO STEERING | ||
| 372 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| 376 | A 3604660165 | LINE |
| FROM STEERING TO OIL TANK | ||
| 380 | N 003861015004 | GLAND |
| OIL LINES | ||
| 384 | N 915017015100 | UNION NUT |
| OIL LINES | ||
| A 3439970582 | HOSE | |
| Repalced by: A 3859971682 | ||
| 388 | A 3859971682 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 392 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 392 | N 000000000667 | CLAMP |
| FROM STEERING TO OIL TANK | ||
| 20-32X13 MM | ||
| 396 | A 0004662402 | TANK |
| 400 | A 0004661305 | COVER |
| 404 | A 0004660260 | SEAL RING |
| 408 | N 000315008006 | NUT |
| 412 | A 0004660067 | OIL DIPSTICK |
| 416 | A 0009870643 | RUBBER SLEEVE |
| 420 | A 0004660675 | CENTERING RING |
| 424 | A 0004660037 | REINFORCEMENT |
| 428 | A 0014664465 | FILTER CARRIER |
| 432 | A 0004660153 | SPACER TUBE |
| 436 | A 0004660571 | FITTING |
| 440 | A 0004660275 | WASHER |
| 444 | A 0004660604 | FILTER |
| 448 | A 0004660840 | BRACKET |
| 452 | A 0059970848 | SEAL RING |
| 456 | A 0004660358 | CONNECTOR |
| 460 | A 0004660458 | CONNECTOR |
| 464 | A 0099970145 | SEAL RING |
| 468 | N 912004008102 | LOCK WASHER |
| 472 | N 000934008010 | NUT |
| 474 | A 3604660440 | BRACKET |
| OIL TANK | ||
| 478 | A 3604660540 | BRACKET |
| OIL TANK | ||
| 482 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET | ||
| 486 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 490 | N 000125010518 | WASHER |
| OIL TANK TO BRACKET | ||
| 494 | N 000934010014 | NUT |
| OIL TANK TO BRACKET | ||
| 498 | N 000933008154 | SCREW |
| BRACKET TO CAB | ||
| 502 | N 009021010202 | WASHER |
| BRACKET TO CAB | ||
| 506 | N 912004008102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 510 | N 000934008010 | NUT |
| BRACKET TO CAB | ||
| 514 | A 3604603124 | LINE |
| FROM OIL TANK TO SUCTION LINE HOSE | ||
| 518 | N 003861022004 | GLAND |
| 522 | N 915017022100 | UNION NUT |
| 526 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 526 | A 3859971582 | HOSE |
| FROM OIL TANK TO PUMP | ||
| 530 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 530 | N 000000000668 | CLAMP |
| FROM OIL TANK TO PUMP | ||
| 25-40X13 MM | ||
| 534 | A 3604605824 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 538 | N 915017022200 | UNION NUT |
| 542 | A 3604660740 | BRACKET |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 546 | N 916016010201 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 546 | N 916016022206 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 550 | N 000084006197 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| AM 6X16 | ||
| 554 | N 912004006102 | LOCK WASHER |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 558 | N 000934006007 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| A 3434600137 | BEARING | |
| Repalced by: A 3434600237 | ||
| 562 | A 3434600237 | BEARING |
| A 3124621150 | BUSHING | |
| Repalced by: A 0119815110 | ||
| 566 | A 0119815110 | NEEDLE BEARING |
| 570 | A 3214620165 | RING |
| 574 | A 3224620023 | COVER |
| 578 | N 000931010258 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 579 | N 000933010129 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 582 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 586 | A 3604620596 | BOOT |
| UNIVERSAL JOINT TO STEERING | ||
| A 4214600457 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| A 3164600057 | UNIVERSAL JOINT | |
| Repalced by: A 0004600057 | ||
| 590 | A 0004600057 | UNIVERSAL JOINT |
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| 590 | A 0004600157 | UNIVERSAL JOINT |
| 594 | A 3604621201 | STEERING SHAFT |
| 594 | A 3604622101 | STEERING SHAFT |
| A 3524622601 | STEERING SHAFT | |
| Repalced by: A 3524623101 | ||
| 598 | A 3524623101 | STEERING SHAFT |
| A 3524622801 | STEERING SHAFT | |
| Repalced by: A 3524623601 | ||
| 598 | A 3524623601 | STEERING SHAFT |
| 602 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 602 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 606 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 610 | N 000936022004 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 614 | A 3214620060 | SEAL RING |
| THRU CAB | ||
| 618 | A 3354620096 | BOOT |
| THRU CAB | ||
| 622 | A 3524605605 | DRAG LINK |
| 626 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| A 0003300385 | BOOT | |
| Repalced by: A 0003301185 | ||
| 630 | A 0003301185 | BOOT |
| 634 | A 4619955044 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| "6245" | ||
| 638 | N 000960010075 | SCREW |
| CLAMP TO DRAG LINK | ||
| 642 | N 913004010010 | NUT |
| CLAMP TO DRAG LINK | ||
| A 0003300285 | BOOT | |
| Repalced by: A 0003300885 | ||
| 646 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 650 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| 654 | N 000094004065 | COTTER PIN |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
