Transporto priemonė: LAS 1313; VIN numerio dalis: 352114
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

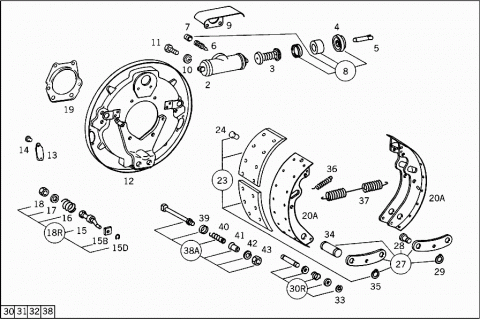

| A 0024207718 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207818 | ||
| 002 | A 0034207818 | WHEEL BRAKE CYLINDER |
| 44.45 MM | ||
| 003 | A 0004232493 | SPRING |
| 004 | A 0004232187 | PROTECTIVE CAP |
| 005 | A 0004231088 | THRUST PIN |
| 006 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 006 | A 3075530107 | VALVE |
| 007 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 007 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 007 | A 0004210887 | PROTECTIVE CAP |
| 008 | A 0005863142 | REPAIR KIT |
| 009 | A 3024210020 | PROTECTIVE PLATE |
| 010 | N 912004010102 | LOCK WASHER |
| 011 | N 000933010164 | SCREW |
| 012 | A 3524200116 | BRAKE ANCHOR PLATE |
| 013 | A 3124211068 | INSPECTION HOLE COVER |
| 014 | A 3129900096 | RIVET |
| A 3024230019 | ADJUSTING PIN | |
| Repalced by: A 3024230619 | ||
| 015 | A 3024230619 | ADJUSTING PIN |
| Repalced by: A 3025860042 | ||
| 015B | A 3024210229 | SLIDE |
| Repalced by: A 3024210329 | ||
| 015B | A 3024210329 | SLIDE |
| 015D | A 3124211073 | LOCK |
| 016 | A 3129934901 | SPRING |
| 017 | A 3029900340 | WASHER |
| 018 | A 3529900050 | NUT |
| Repalced by: A 3589900051 | ||
| 018 | A 3589900051 | NUT |
| 018R | A 3025860042 | REPAIR KIT |
| Repalced by: A 3024202938 | ||
| 018R | A 3024202938 | REPAIR KIT |
| BRAKE READJUSTMENT | ||
| 019 | A 3023340082 | OIL COLLECTOR |
| Repalced by: A 3553340082 | ||
| 019 | A 3553340082 | OIL COLLECTOR |
| A 3414200620 | BRAKE SHOE | |
| Repalced by: A 3414200319 | ||
| A 3414200720 | BRAKE SHOE | |
| Repalced by: A 3414200319 | ||
| A 3414200820 | BRAKE SHOE | |
| Repalced by: A 3414200319 | ||
| 020A | A 3414200319 | BRAKE SHOE |
| Repalced by: A 3414201019 | ||
| 020A | A 3414201019 | BRAKE SHOE |
| 023 | A 3414230810 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.30 MM,8X 941 423 00 10) | ||
| 023 | A 3414234510 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.30 MM,8X 341 423 42 10) | ||
| 023 | A 3414230910 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.30 MM,8X 341 423 01 10) | ||
| 023 | A 3414234610 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.30 MM,8X 341 423 43 10) | ||
| 023 | A 3414231010 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.30 MM,8X 341 423 02 10) | ||
| 023 | A 3414234710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.30 MM,8X 341 423 44 10) | ||
| 024 | A 3079900197 | RIVET |
| A 3024210013 | SHACKLE | |
| Repalced by: A 3385860042 | ||
| 027 | A 3385860042 | REPAIR KIT |
| Repalced by: A 3384200289 | ||
| 027 | A 3384200289 | REPAIR KIT |
| BRAKE SHOE SHACKLE | ||
| 028 | A 3024210174 | PIN |
| 029 | N 900055025301 | LOCK RING |
| 030 | A 3124231174 | PIN |
| Repalced by: A 3385860342 | ||
| 030R | A 3385860342 | REPAIR KIT |
| Repalced by: A 3384200082 | ||
| 030R | A 3384200082 | REPAIR KIT |
| BRAKE SHOE SHACKLE SPACER PIN | ||
| 031 | A 3024210052 | SPACER WASHER |
| Repalced by: A 3385860342 | ||
| 032 | A 3029930201 | SPRING |
| Repalced by: A 3385860342 | ||
| 033 | A 3124211073 | LOCK |
| 034 | A 3024210118 | PIVOT PIN |
| 035 | N 900055025301 | LOCK RING |
| 036 | A 3029930310 | SPRING |
| 037 | A 3534210092 | SPRING |
| 038 | A 3414210174 | PIN |
| Repalced by: A 3585860242 | ||
| 038A | A 3415860042 | REPAIR KIT |
| Repalced by: A 3585860242 | ||
| 038A | A 3585860242 | REPAIR KIT |
| Repalced by: A 3584200182 | ||
| 038A | A 3584200182 | REPAIR KIT |
| BRAKE SHOE MOUNTING BOLT | ||
| 039 | A 3124231089 | FILLER |
| 040 | A 3129933801 | SPRING |
| Repalced by: A 3529930501 | ||
| 040 | A 3529930501 | SPRING |
| 041 | A 3124231189 | FILLER |
| 042 | N 912004008102 | LOCK WASHER |
| 043 | N 304032008006 | NUT |
| A 0024207018 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207918 | ||
| 045 | A 0024206918 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034207918 | ||
| A 0034207918 | WHEEL BRAKE CYLINDER | |
| 46.83 MM | ||
| A 0084203018 | WHEEL BRAKE CYLINDER | |
| 46.83 MM | ||
| 046 | A 0004233193 | SPRING |
| A 0004231686 | CUP | |
| 047 | A 0004232187 | PROTECTIVE CAP |
| A 0004213087 | PROTECTIVE CAP | |
| TO 002 420 69 18,003 420 79 18 | ||
| 048 | A 0004231088 | THRUST PIN |
| TO 002 420 70 18,002 420 69 18 | ||
| A 0004232183 | PISTON | |
| 049 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 049 | A 3075530107 | VALVE |
| 050 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 050 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 050 | A 0004210887 | PROTECTIVE CAP |
| 051 | A 0005862842 | REPAIR KIT |

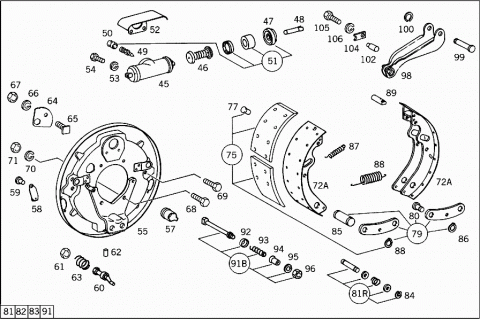

| 052 | A 3024210020 | PROTECTIVE PLATE |
| 053 | N 912004010102 | LOCK WASHER |
| 054 | N 000933010164 | SCREW |
| 055 | A 3024202317 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024204017 | ||
| 055 | A 3024204017 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 055 | A 3024202217 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024203917 | ||
| 055 | A 3024203917 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 057 | A 3024270054 | PIPE SOCKET |
| 058 | A 3124211068 | INSPECTION HOLE COVER |
| 059 | A 3129900096 | RIVET |
| 060 | A 3024200638 | ADJUSTER |
| Repalced by: A 3025860442 | ||
| 061 | A 3024230175 | HEXAGONAL PIECE |
| 062 | N 001473006012 | GROOVED PIN |
| 063 | A 3129934901 | SPRING |
| 064 | A 3024210173 | LOCK |
| 065 | A 3024210071 | SCREW |
| 066 | N 912004012100 | LOCK WASHER |
| 067 | N 000934012022 | NUT |
| A 3025860442 | REPAIR KIT | |
| Repalced by: A 3024203138 | ||
| A 3024203138 | REPAIR KIT | |
| BRAKE READJUSTMENT | ||
| 068 | N 308676012010 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 069 | N 000961012190 | SCREW |
| Repalced by: N 308676012012 | ||
| 069 | N 308676012012 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 070 | N 912004012100 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 071 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 071 | N 308673012002 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| A 3524200020 | BRAKE SHOE | |
| Repalced by: A 3384200019 | ||
| A 3524200120 | BRAKE SHOE | |
| Repalced by: A 3384200019 | ||
| A 3524200220 | BRAKE SHOE | |
| Repalced by: A 3384200019 | ||
| 072A | A 3384200019 | BRAKE SHOE |
| Repalced by: A 3384200219 | ||
| 072A | A 3384200219 | BRAKE SHOE |
| 075 | A 3524230310 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.30 MM,8X 352 423 00 10) | ||
| 075 | A 3524231110 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.30 MM,8X 352 423 08 10) | ||
| 075 | A 3524230410 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.30 MM,8X 352 423 01 10) | ||
| 075 | A 3524231210 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.30 MM,8X 352 423 09 10) | ||
| 075 | A 3524230510 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.30 MM,8X 352 423 02 10) | ||
| 075 | A 3524231310 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.30 MM,8X 352 423 10 10) | ||
| 077 | N 007338008305 | RIVET |
| Repalced by: A 3079900197 | ||
| 077 | A 3079900197 | RIVET |
| A 3024210013 | SHACKLE | |
| Repalced by: A 3385860042 | ||
| 079 | A 3385860042 | REPAIR KIT |
| Repalced by: A 3384200289 | ||
| 079 | A 3384200289 | REPAIR KIT |
| BRAKE SHOE SHACKLE | ||
| 080 | A 3024210174 | PIN |
| 081 | A 3124231174 | PIN |
| Repalced by: A 3385860342 | ||
| 081R | A 3385860342 | REPAIR KIT |
| Repalced by: A 3384200082 | ||
| 081R | A 3384200082 | REPAIR KIT |
| BRAKE SHOE SHACKLE SPACER PIN | ||
| 082 | A 3024210052 | SPACER WASHER |
| Repalced by: A 3385860342 | ||
| 083 | A 3029930201 | SPRING |
| Repalced by: A 3385860342 | ||
| 084 | A 3124211073 | LOCK |
| 085 | A 3024210118 | PIVOT PIN |
| 086 | N 900055025301 | LOCK RING |
| 087 | A 3029930310 | SPRING |
| 088 | A 3029930610 | SPRING |
| 089 | A 3024230018 | PIVOT PIN |
| Repalced by: A 3024230518 | ||
| 089 | A 3024230518 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| N 000094004023 | COTTER PIN | |
| 091 | A 3414210174 | PIN |
| Repalced by: A 3585860242 | ||
| 091B | A 3415860042 | REPAIR KIT |
| Repalced by: A 3585860242 | ||
| 091B | A 3585860242 | REPAIR KIT |
| Repalced by: A 3584200182 | ||
| 091B | A 3584200182 | REPAIR KIT |
| BRAKE SHOE MOUNTING BOLT | ||
| 092 | A 3124231089 | FILLER |
| 093 | A 3129933801 | SPRING |
| Repalced by: A 3529930501 | ||
| 093 | A 3529930501 | SPRING |
| 094 | A 3124231189 | FILLER |
| 095 | N 912004008102 | LOCK WASHER |
| 096 | N 304032008006 | NUT |
| A 3024200119 | THRUST SHACKLE | |
| Repalced by: A 3024201419 | ||
| 098 | A 3024201419 | THRUST SHACKLE |
| Repalced by: A 3834200389 | ||
| 098 | A 3834200389 | SHACKLE |
| 099 | A 3024230074 | PIN |
| Repalced by: A 3024230774 | ||
| 099 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 100 | N 000471018000 | LOCK RING |
| A 3024230174 | PIN | |
| 102 | A 3024230474 | PIN |
| Repalced by: A 3024230874 | ||
| 102 | A 3024230874 | PIN |
| Repalced by: A 3024230974 | ||
| 102 | A 3024230974 | PIN |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| N 000094004065 | COTTER PIN | |
| 104 | A 3029940109 | LOCK |
| 105 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 105 | N 304017008039 | SCREW |
| 106 | N 912004008102 | LOCK WASHER |

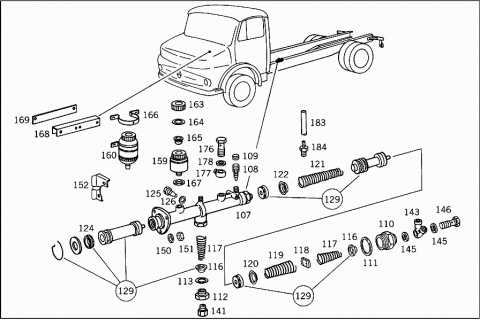

| 107 | A 0014306801 | BRAKE MASTER CYLINDER |
| Repalced by: A 0024301901 | ||
| 107 | A 0024301901 | BRAKE MASTER CYLINDER |
| 108 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 108 | A 3075530107 | VALVE |
| 109 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 109 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 109 | A 0004210887 | PROTECTIVE CAP |
| 110 | A 0004310522 | THREADED UNION |
| 111 | N 007603040102 | SEAL RING |
| 112 | A 0004310475 | THREADED UNION |
| 113 | N 007603032101 | SEAL RING |
| A 0004310760 | SEAL RING | |
| Repalced by: A 0004300381 | ||
| 116 | A 0004300081 | VALVE |
| Repalced by: A 0004300381 | ||
| 116 | A 0004300381 | VALVE |
| 117 | A 0009930605 | SPRING |
| 118 | A 0004312676 | WASHER |
| 119 | A 0004317393 | SPRING |
| 120 | A 0004312089 | SPRING RETAINER |
| 121 | A 0004317493 | SPRING |
| 122 | A 0004312089 | SPRING RETAINER |
| A 0004310585 | FILLER RING | |
| 124 | A 0004311176 | WASHER |
| 125 | A 0004310671 | SCREW |
| 126 | N 007603008109 | SEAL RING |
| A 0005840910 | INSTRUCTION PLATE | |
| 129 | A 0005864943 | REPAIR KIT |
| TO 001 430 68 01,002 430 19 01 | ||
| A 0024308801 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024308201 | ||
| A 0024308201 | BRAKE MASTER CYLINDER | |
| A 0004310971 | SCREW | |
| A 0004319360 | SEAL RING | |
| A 0004319260 | SEAL RING | |
| A 0009933705 | SPRING | |
| A 0009933805 | SPRING | |
| A 0009933905 | SPRING | |
| A 0004319160 | SEAL RING | |
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005869543 | REPAIR KIT | |
| Repalced by: A 0004303083 | ||
| A 0004303083 | PISTON | |
| TO 002 430 88 01;002 430 82 01 | ||
| 141 | A 0004230184 | FITTING |
| TO 001 430 68 01 | ||
| A 0019978772 | FITTING | |
| TO 002 430 88 01 | ||
| 143 | A 0004280124 | DISTRIBUTOR |
| TO 001 430 68 01 | ||
| A 0004310330 | BANJO UNION | |
| TO 002 430 88 01 | ||
| 145 | N 007603014405 | SEAL RING |
| 146 | A 0004280026 | HOLLOW SCREW |
| TO 001 430 68 01 | ||
| A 0009902963 | HOLLOW SCREW | |
| TO 002 430 88 01 | ||
| A 0004280032 | SCREW PLUG | |
| TO 001 430 68 01 | ||
| A 0004311956 | SCREW PLUG | |
| TO 002 430 88 01 | ||
| 150 | N 912004010102 | LOCK WASHER |
| 151 | N 000934010014 | NUT |
| 152 | A 3524310740 | BRACKET |
| A 3524310940 | BRACKET | |
| N 000933010157 | SCREW | |
| MASTER CYLINDER BRACKET | ||
| M 10X28 MM | ||
| N 000933010145 | SCREW | |
| MASTER CYLINDER BRACKET | ||
| M 10X35 MM | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| 159 | A 0004311602 | RESERVOIR |
| AT BRAKE MASTER CYLINDER | ||
| TEVES | ||
| A 0002951815 | RESERVOIR | |
| Repalced by: A 0004311602 | ||
| 160 | A 0004314702 | RESERVOIR |
| IN CAB | ||
| TEVES | ||
| A 0014312902 | RESERVOIR | |
| IN CAB | ||
| SCHAEFER | ||
| 163 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 164 | A 0009972940 | SEAL RING |
| TO 000 431 51 33 | ||
| A 0039976440 | SEAL RING | |
| 42X21.5 MM | ||
| 165 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 165 | A 0004314334 | STRAINER |
| 166 | A 0004311040 | CLAMP |
| 167 | N 007603022102 | SEAL RING |
| 168 | A 3524281940 | BRACKET |
| FRONT AXLE BRAKE CIRCUIT I | ||
| 169 | A 3524310184 | SHIM |
| N 000933006102 | SCREW | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| N 000934006007 | NUT | |
| N 000137006204 | SPRING WASHER | |
| FLUID RESERVOIR TO FIRE WALL | ||
| TO 002 430 88 01 | ||
| N 000933006229 | SCREW | |
| FLUID RESERVOIR TO FIRE WALL | ||
| TO 002 430 88 01 | ||
| 176 | A 0004280126 | HOLLOW SCREW |
| AT BRAKE CYLINDER | ||
| 177 | A 0009902188 | BANJO UNION |
| AT BRAKE CYLINDER | ||
| 178 | N 007603022102 | SEAL RING |
| AT BRAKE CYLINDER | ||
| 179 | A 0009978952 | HOSE |
| FROM MASTER CYLINDER TO RESERVOIR | ||
| 300 MM | ||
| 180 | A 0004292201 | LINE |
| FROM MASTER CYLINDER TO RESERVOIR | ||
| 181 | A 0009978952 | HOSE |
| FROM MASTER CYLINDER TO RESERVOIR | ||
| 105 MM | ||
| N 900288015000 | CLAMP | |
| 183 | A 0089975582 | HOSE |
| Repalced by: A 0089975482 | ||
| 183 | A 0089975482 | HOSE |
| FROM MASTER CYLINDER TO RESERVOIR | ||
| 184 | A 0009971473 | FITTING |
| N 900288011002 | CLAMP | |
| 186 | A 3524282440 | BRACKET |
| 187 | A 3129951232 | CLAMP |
| BRAKE LINE TO BRACKET | ||
| 188 | A 3529950120 | CLAMP |
| BRAKE LINE TO BRACKET | ||
| A 0009951201 | CLAMP | |
| Repalced by: N 916016010201 | ||
| N 916016010201 | CLAMP | |
| Repalced by: N 916016010211 | ||
| N 916016010211 | CLAMP | |
| Repalced by: N 000000001045 | ||
| N 000000001045 | CLAMP | |
| BRAKE LINE TO BRACKET | ||
| A 3609951601 | CLAMP | |
| Repalced by: A 3604292940 | ||
| A 3604292940 | BRACKET | |
| BRAKE LINE TO BRACKET | ||
| N 000933006102 | SCREW | |
| BRAKE LINE TO BRACKET | ||
| N 000934006007 | NUT | |
| BRAKE LINE TO BRACKET | ||
| A 0019978490 | LOOM TIE | |
| BRAKE LINE TO BRACKET | ||
| 192 | A 0009973081 | GROMMET |
| BRAKE LINE THRU CAB FLOOR | ||
| A 0009972281 | GROMMET | |
| BRAKE LINE THRU CAB FLOOR | ||
| 196 | A 3404202329 | LINE |
| 1300 MM | ||
| 199 | A 3404204029 | LINE |
| 2600 MM | ||
| 200 | A 3129970582 | HOSE |
| SIDE MEMBER,FRONT | ||
| A 3859970081 | GROMMET | |
| SIDE MEMBER,FRONT | ||
| A 3604280243 | ANGLE | |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 202 | A 3524290740 | BRACKET |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 203 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 203 | N 304017008021 | SCREW |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 204 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 205 | N 304032008006 | NUT |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 207 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 207 | A 3184280240 | BRACKET |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 208 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 208 | A 3464296040 | BRACKET |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 211 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 211 | N 916016008200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 212 | A 3604280143 | ANGLE |
| BRAKE LINE TO FRAME | ||
| 213 | N 000084006197 | SCREW |
| BRAKE LINE TO FRAME | ||
| N 000084006162 | SCREW | |
| Repalced by: A 0029903712 | ||
| A 0029903712 | SCREW | |
| Repalced by: N 000000001149 | ||
| N 000000001149 | SCREW | |
| BRAKE LINE TO FRAME | ||
| 215 | N 912004006102 | LOCK WASHER |
| BRAKE LINE TO FRAME | ||
| 216 | N 000433006417 | WASHER |
| BRAKE LINE TO FRAME | ||
| 216E | N 000934006007 | NUT |
| BRAKE LINE TO FRAME | ||
| 217 | A 3129950935 | CLAMP |
| BRAKE LINE TO FRAME | ||
| N 000084004151 | SCREW | |
| BRAKE LINE TO FRAME | ||
| N 000934004006 | NUT | |
| BRAKE LINE TO FRAME | ||
| 220 | A 0004288935 | BRAKE HOSE |
| LEFT FRONT BRAKE HOSE TO FRONT AXLE | ||
| 650 MM | ||
| 220 | A 0014284835 | BRAKE HOSE |
| LEFT FRONT BRAKE HOSE TO FRONT AXLE | ||
| 650 MM | ||
| 221 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 221 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 222 | A 3524282040 | BRACKET |
| 223 | N 000933008145 | SCREW |
| BRACKET TO CAB CROSS MEMBER | ||
| 224 | N 912004008102 | LOCK WASHER |
| BRACKET TO CAB CROSS MEMBER | ||
| 225 | N 304032008006 | NUT |
| BRACKET TO CAB CROSS MEMBER | ||
| A 3404203729 | LINE | |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 2000 MM | ||
| A 3404201729 | LINE | |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 1000 MM | ||
| A 3604203829 | LINE | |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| 2200 MM | ||
| A 3404203029 | LINE | |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| 1650 MM | ||
| 240 | A 3404202029 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 1150 MM | ||
| 240 | A 3404202029 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 1150 MM | ||
| A 3404201329 | LINE | |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 800 MM | ||
| A 3404201329 | LINE | |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 800 MM | ||
| 242 | A 0004292736 | CONNECTOR |
| 242 | A 0004292736 | CONNECTOR |
| 244 | A 3404203829 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 2200 MM | ||
| 244 | A 3404204129 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 2800 MM | ||
| 244 | A 3404203329 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE | ||
| 1800 MM | ||
| 246 | A 3404204129 | LINE |
| FROM INTERMEDIATE PIECE TO BRAKE PRESSURE REGULATOR | ||
| 2800 MM | ||
| 246 | A 3404203929 | LINE |
| FROM INTERMEDIATE PIECE TO BRAKE PRESSURE REGULATOR | ||
| 2400 MM | ||
| 249 | A 3404202429 | LINE |
| FROM BRAKE POWER REGULATOR TO TEST CONNECTION | ||
| 1350 MM | ||
| 249 | A 3404203129 | LINE |
| FROM BRAKE POWER REGULATOR TO TEST CONNECTION | ||
| 1700 MM | ||
| 249 | A 3404201229 | LINE |
| FROM BRAKE POWER REGULATOR TO TEST CONNECTION | ||
| 750 MM | ||
| 253 | A 0004311231 | TEST CONNECTION |
| A 0004316631 | TEST CONNECTION | |
| 254 | N 000931006118 | SCREW |
| TEST CONNECTION TO SIDE MEMBER | ||
| 255 | N 000125006421 | WASHER |
| TEST CONNECTION TO SIDE MEMBER | ||
| 256 | N 912004006102 | LOCK WASHER |
| TEST CONNECTION TO SIDE MEMBER | ||
| 257 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 257 | N 913004006001 | NUT |
| TEST CONNECTION TO SIDE MEMBER | ||
| 259 | A 3404200329 | LINE |
| FROM TEST CONNECTION TO REAR AXLE | ||
| 300 MM | ||
| A 3404200529 | LINE | |
| FROM TEST CONNECTION TO BRAKE HOSE BRACKET | ||
| 400 MM | ||
| A 3524290740 | BRACKET | |
| BRAKE LINE TO FRAME | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRAKE LINE TO FRAME | ||
| N 912004008102 | LOCK WASHER | |
| BRAKE LINE TO FRAME | ||
| N 304032008006 | NUT | |
| BRAKE LINE TO FRAME | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| BRAKE LINE TO FRAME | ||
| A 3609950601 | CLAMP | |
| BRAKE LINE TO FRAME | ||
| N 000084006197 | SCREW | |
| BRAKE LINE TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| BRAKE LINE TO FRAME | ||
| N 000934006007 | NUT | |
| BRAKE LINE TO FRAME | ||
| 271 | A 3224280140 | BRACKET |
| 272 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 272 | N 916016008200 | CLAMP |
| BRAKE LINE TO SUPPORT | ||
| N 000084006197 | SCREW | |
| BRAKE LINE TO SUPPORT | ||
| N 912004006102 | LOCK WASHER | |
| BRAKE LINE TO SUPPORT | ||
| N 000934006007 | NUT | |
| BRAKE LINE TO SUPPORT | ||
| 277 | A 0004288935 | BRAKE HOSE |
| 650 MM | ||
| 277 | A 0014284835 | BRAKE HOSE |
| 650 MM | ||
| A 0004280473 | BRACKET | |
| Repalced by: A 6525040038 | ||
| A 6525040038 | MOUNTING PLATE | |
| 279 | A 3834280140 | BRACKET |
| 280 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 280 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 281 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 282 | N 304032008006 | NUT |
| BRACKET TO FRAME | ||
| 283 | A 0004290437 | DISTRIBUTOR |
| 283 | A 0004294337 | DISTRIBUTOR |
| 284 | N 000931008152 | SCREW |
| 285 | N 912004008102 | LOCK WASHER |
| 287 | A 3404202429 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 1350 MM | ||
| 288 | A 3129951020 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 289 | A 3129973482 | HOSE |
| BRAKE LINE TO REAR AXLE | ||
| 290 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 290 | N 304017008016 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 291 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 293 | A 3404201029 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 650 MM | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| BRAKE LINE TO REAR AXLE | ||
| A 3854294040 | BRACKET | |
| Repalced by: A 3812711640 | ||
| A 3812711640 | BRACKET | |
| BRAKE LINE TO REAR AXLE | ||
| N 000933008290 | SCREW | |
| BRACKET TO REAR AXLE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO REAR AXLE | ||
| N 000084006197 | SCREW | |
| BRACKET TO REAR AXLE HOUSING | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO REAR AXLE HOUSING | ||

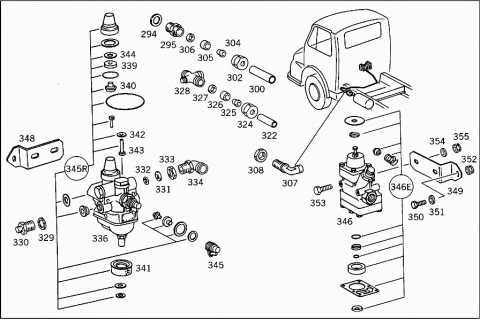

| 294 | N 007603022102 | SEAL RING |
| AT AIR COMPRESSOR | ||
| N 074305022202 | NUT | |
| AT AIR COMPRESSOR | ||
| A 0009870446 | SEALING CORD | |
| AT AIR COMPRESSOR | ||
| A 0004290227 | THRUST RING | |
| AT AIR COMPRESSOR | ||
| 295 | N 074313018201 | FITTING |
| AT AIR COMPRESSOR | ||
| N 074301026202 | ELBOW FITTING | |
| AT AIR COMPRESSOR | ||
| 300 | A 0005516456 | TUBE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 18 MM | ||
| 302 | N 915018018000 | UNION NUT |
| TO 18-MM-DIA. COMPRESSED AIR LINES | ||
| 304 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 304 | A 0019901167 | SEAL CONE |
| TO 18-MM-DIA. COMPRESSED AIR LINES | ||
| 305 | N 915065018101 | THRUST RING |
| TO 18-MM-DIA. COMPRESSED AIR LINES | ||
| 306 | N 915045014100 | SEAL RING |
| 307 | A 0009903371 | ELBOW FITTING |
| 308 | N 074305026202 | NUT |
| ELBOW FITTING TO SIDE MEMBER | ||
| 322 | A 0005516256 | TUBE |
| 15 MM | ||
| 324 | N 915018015000 | UNION NUT |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||
| 325 | N 003861015004 | GLAND |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||
| 326 | N 915065015101 | THRUST RING |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||
| 327 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 327 | N 007603012121 | SEAL RING |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||
| 328 | A 0004292837 | DISTRIBUTOR |
| 329 | N 007603022102 | SEAL RING |
| AT PRESSURE REGULATOR | ||
| 329 | N 007603022102 | SEAL RING |
| AT PRESSURE REGULATOR | ||
| 330 | N 074313018201 | FITTING |
| AT PRESSURE REGULATOR | ||
| 330 | N 074313018201 | FITTING |
| AT PRESSURE REGULATOR | ||
| 331 | A 0004290227 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 331 | A 0004290227 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 332 | A 0009870446 | SEALING CORD |
| AT PRESSURE REGULATOR | ||
| 332 | A 0009870446 | SEALING CORD |
| AT PRESSURE REGULATOR | ||
| 333 | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| 333 | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| 334 | N 074301022203 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| A 0004293238 | ELBOW FITTING | |
| AT PRESSURE REGULATOR | ||
| 336 | A 0004314006 | VALVE |
| Repalced by: A 0004319106 | ||
| 336 | A 0004319106 | PRESSURE REGULATOR |
| BOSCH | ||
| A 0004314906 | VALVE | |
| Repalced by: A 0004319206 | ||
| A 0004319206 | PRESSURE REGULATOR | |
| Repalced by: A 0004319106 | ||
| A 0004319106 | PRESSURE REGULATOR | |
| BOSCH | ||
| 339 | A 0004318360 | SEAL RING |
| 340 | A 0007630253 | SLEEVE |
| Repalced by: A 0007630553 | ||
| 340 | A 0007630553 | SLEEVE |
| 341 | A 0004311434 | STRAINER |
| 342 | A 0004310681 | VALVE DISC |
| 343 | A 0004311381 | VALVE DISC |
| 344 | A 0004311081 | VALVE DISC |
| 345 | A 0004314787 | PROTECTIVE CAP |
| Repalced by: A 0009979486 | ||
| 345 | A 0009979486 | PLUG |
| A 0025864143 | REPAIR KIT | |
| TO 000 431 92 06/40 06/49 06 | ||
| A 0025864143 | REPAIR KIT | |
| BOSCH 0 481 039 012/007/008 | ||
| 345R | A 0025865043 | REPAIR KIT |
| TO 000 431 92 06/91 06/40 06/49 06 | ||
| 345R | A 0025865043 | REPAIR KIT |
| BOSCH 0 481 039 012/011/007/008 | ||
| A 0025864243 | REPAIR KIT | |
| TO 000 431 91 06,BOSCH 0 481 039 011 | ||
| 346 | A 0014314106 | PRESSURE REGULATOR |
| Repalced by: A 0024313506 | ||
| 346 | A 0024313506 | PRESSURE REGULATOR |
| Repalced by: A 0024315906 | ||
| 346 | A 0014314306 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 346 | A 0014314206 | PRESSURE REGULATOR |
| Repalced by: A 0024315906 | ||
| 346 | A 0024315906 | PRESSURE REGULATOR |
| "BOSCH" | ||
| 346 | A 0014312206 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 346 | A 0024316006 | PRESSURE REGULATOR |
| "WESTINGHOUSE" | ||
| A 0025866043 | REPAIR KIT | |
| TO 001 431 42 06,GRAU | ||
| 346E | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 346E | A 0004301407 | REPAIR KIT |
| TO 001 431 41 06,BOSCH 0 481 039 102 | ||
| A 0015864343 | REPAIR KIT | |
| Repalced by: A 0004301107 | ||
| A 0004301107 | REPAIR KIT | |
| TO 001 431 22 06,WEST. 975 300 111 0 | ||
| A 0024304681 | REPAIR KIT | |
| VALVE KIT | ||
| TO 001 431 22 06,WEST. 975 300 111 0 | ||
| A 0014304960 | REPAIR KIT | |
| TO 002 431 60 06,WEST.975 303 440 0 | ||
| A 0025866743 | REPAIR KIT | |
| TO 001 431 46 06,KNORR | ||
| A 0004301768 | REPAIR KIT | |
| DIAPHRAGM | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| A 0004307960 | REPAIR KIT | |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 348 | A 3524315340 | BRACKET |
| PRESSURE REGULATOR | ||
| 349 | A 3524316340 | BRACKET |
| PRESSURE REGULATOR | ||
| 350 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 350 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 351 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 351 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 352 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 352 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 353 | N 000931008322 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 354 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 354 | N 000125008443 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 355 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 355 | N 913004008001 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| A 0004290227 | THRUST RING | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| A 0009870446 | SEALING CORD | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| N 074305022202 | NUT | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 358 | A 0019972372 | FITTING |
| 359 | N 007603022102 | SEAL RING |
| 360 | A 3214300205 | RESERVOIR |
| Repalced by: A 0034322501 | ||
| 360 | A 0034322501 | RESERVOIR |
| NO.1; INSIDE | ||
| 361 | A 3214300205 | RESERVOIR |
| Repalced by: A 0034322501 | ||
| 361 | A 0034322501 | RESERVOIR |
| NO.2; OUTSIDE | ||
| 361 | A 3274300005 | RESERVOIR |
| Repalced by: A 0034322701 | ||
| 361 | A 0034322701 | RESERVOIR |
| NO.2; OUTSIDE | ||
| A 0009970934 | SCREW | |
| AIR RESERVOIR,CONNECTIONS: | ||
| 363 | N 074298022203 | DOUBLE FITTING |
| 364 | N 007603022102 | SEAL RING |
| 365 | N 074301022203 | ELBOW FITTING |
| AT INSIDE AIR RESERVOIR | ||
| 365 | N 074301022203 | ELBOW FITTING |
| AT INSIDE AIR RESERVOIR | ||
| 365B | A 0009902470 | T-FITTING |
| 366 | N 074305022201 | NUT |
| 367 | A 0009870446 | SEALING CORD |
| 368 | A 0004290227 | THRUST RING |
| 368B | A 0014299844 | VALVE |
| (OVERFLOW VALVE) | ||
| 368B | A 0014295244 | VALVE |
| (OVERFLOW VALVE) | ||
| 368B | A 0014297944 | VALVE |
| (OVERFLOW VALVE) | ||
| 368B | A 0034290244 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| 368E | A 0009904468 | FITTING |
| AT OVERFLOW VALVE | ||
| 368F | N 007603022102 | SEAL RING |
| AT OVERFLOW VALVE | ||
| 368H | N 074305022202 | NUT |
| OVERFLOW VALVE TO FRONT OF RESERVOIR | ||
| 368K | A 0004290227 | THRUST RING |
| OVERFLOW VALVE TO FRONT OF RESERVOIR | ||
| 368L | A 0009870446 | SEALING CORD |
| OVERFLOW VALVE TO FRONT OF RESERVOIR | ||
| 368M | A 0004294137 | DISTRIBUTOR |
| 368N | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 368N | N 000908012009 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| 368N | N 000908012009 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| 368P | N 007603012405 | SEAL RING |
| AT DISTRIBUTOR | ||
| 368P | N 007603012405 | SEAL RING |
| AT DISTRIBUTOR | ||
| A 0039977572 | FITTING | |
| AT DISTRIBUTOR | ||
| N 915036008202 | HOLLOW SCREW | |
| AT DISTRIBUTOR | ||
| N 000931006084 | SCREW | |
| Repalced by: N 304017006027 | ||
| N 304017006027 | SCREW | |
| DISTRIBUTOR TO BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| DISTRIBUTOR TO BRACKET | ||
| N 080705014002 | NUT | |
| DISTRIBUTOR TO FRAME | ||
| 368S | A 3604291440 | BRACKET |
| DISTRIBUTOR | ||
| A 3604291540 | BRACKET | |
| DISTRIBUTOR | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 368U | N 915036008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE | ||
| 368U | N 915036008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE | ||
| 368W | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE | ||
| 368W | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE | ||
| 368X | A 0089979082 | HOSE |
| FROM DISTRIBUTOR TO OVERFLOW VALVE | ||
| 800 MM | ||
| 368Y | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006000 | ||
| 368Y | N 915052006013 | BANJO UNION |
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| A 0007630043 | SLEEVE | |
| Repalced by: N 915062006000 | ||
| N 915062006000 | SLEEVE | |
| 368Z | A 0019978390 | LOOM TIE |
| 368Z | A 0019978390 | LOOM TIE |
| 369 | N 074298022203 | DOUBLE FITTING |
| 370 | N 007603022102 | SEAL RING |
| 371 | A 0004317206 | VALVE |
| 372 | A 0004311181 | VALVE DISC |
| Repalced by: A 0004311981 | ||
| 372 | A 0004311981 | VALVE DISC |
| TOP | ||
| 024 | ||
| 373 | A 0004311781 | VALVE DISC |
| Repalced by: A 0004312081 | ||
| 373 | A 0004312081 | VALVE DISC |
| BOTTOM | ||
| 024 | ||
| 374 | A 0007630454 | SEAL |
| 024 | ||
| 375 | A 0004315086 | CUP |
| 024 | ||
| A 0014312086 | CUP | |
| Repalced by: A 0014312386 | ||
| A 0014312386 | CUP | |
| 104 | ||
| A 0014312186 | CUP | |
| 104 | ||
| A 0004350780 | GASKET | |
| 104 | ||
| A 0004317987 | PROTECTIVE CAP | |
| 104 | ||
| A 0004315323 | VALVE | |
| 104 | ||
| A 0009934905 | SPRING | |
| 104 | ||
| A 0049977945 | SEAL RING | |
| Repalced by: A 0179974148 | ||
| A 0179974148 | SEAL RING | |
| 104 | ||
| 376 | N 007603022102 | SEAL RING |
| A 0004320607 | VALVE | |
| Repalced by: A 0004321107 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 378 | A 0004320407 | VALVE |
| Repalced by: A 0004320807 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 0004322407 | VALVE | |
| AIR RESERVOIR | ||
| A 0004322407 | VALVE | |
| DRAIN | ||
| 379 | N 900397000201 | RING |
| Repalced by: A 0005830296 | ||
| 379 | A 0005830296 | RING |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 379 | A 0005830296 | RING |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| A 3224300111 | CONSOLE | |
| Repalced by: A 3224320215 | ||
| A 3224320215 | CONSOLE | |
| 381 | A 3604301311 | CONSOLE |
| 382 | A 3354320218 | BASE |
| 383 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 383 | N 308676012026 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X1,5X35 | ||
| 383 | N 308676012026 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X1,5X35 | ||
| 383 | N 308676012026 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X1,5X35 | ||
| N 000961012122 | SCREW | |
| CONSOLE TO FRAME | ||
| M 12X1,5X40 | ||
| N 000961014028 | SCREW | |
| CONSOLE TO FRAME | ||
| M14X1.5X40 | ||
| N 000961014064 | SCREW | |
| CONSOLE TO FRAME | ||
| M 14X1.5X50 | ||
| N 000961012069 | SCREW | |
| Repalced by: N 308676012015 | ||
| N 308676012015 | SCREW | |
| CONSOLE TO FRAME | ||
| M 12X1,5X45 | ||
| N 308676012015 | SCREW | |
| CONSOLE TO FRAME | ||
| M 12X1,5X45 | ||
| N 000961014054 | SCREW | |
| CONSOLE TO FRAME | ||
| M14X1.5X45 | ||
| N 000961012095 | SCREW | |
| CONSOLE TO FRAME | ||
| 384 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 384 | N 007349013005 | WASHER |
| CONSOLE TO FRAME | ||
| 384 | N 007349015009 | WASHER |
| 385 | A 3434320026 | PLATE |
| CONSOLE TO FRAME | ||
| A 3529900640 | WASHER | |
| CONSOLE TO FRAME | ||
| A 3524750084 | SHIM | |
| Repalced by: A 3604750484 | ||
| A 3604750484 | SHIM | |
| CONSOLE TO FRAME | ||
| A 3604750484 | SHIM | |
| CONSOLE TO FRAME | ||
| A 3604750484 | SHIM | |
| CONSOLE TO FRAME | ||
| A 3604750484 | SHIM | |
| CONSOLE TO FRAME | ||
| A 3609901740 | WASHER | |
| Repalced by: A 3859900440 | ||
| A 3859900440 | WASHER | |
| Repalced by: A 3379900440 | ||
| A 3379900440 | WASHER | |
| CONSOLE TO FRAME | ||
| N 007349015003 | WASHER | |
| 388 | N 912004012100 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 389 | N 910113012002 | NUT |
| CONSOLE TO FRAME | ||
| 389 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 389 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| A 3219870214 | RUBBER STRIP | |
| Repalced by: A 0009870814 | ||
| A 0009870814 | RUBBER STRIP | |
| A 3224300240 | STRAP | |
| 395 | A 3604300040 | STRAP |
| 396 | N 000934010014 | NUT |
| 397 | A 0004311675 | THREADED UNION |
| AT BRAKE BOOSTER | ||
| 397 | A 0004311675 | THREADED UNION |
| AT BRAKE BOOSTER | ||
| 398 | A 3529970272 | FITTING |
| AT BRAKE BOOSTER | ||
| A 3529900071 | ELBOW FITTING | |
| AT BRAKE BOOSTER | ||
| N 000936010010 | NUT | |
| AT BRAKE BOOSTER | ||
| 401 | N 080705016003 | NUT |
| AT BRAKE BOOSTER | ||
| 402 | A 0009971548 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 403 | A 0004310051 | SPACER RING |
| AT BRAKE BOOSTER | ||
| 404 | A 0004311514 | BRAKE BOOSTER |
| Repalced by: A 0004318914 | ||
| 404 | A 0004316214 | BRAKE BOOSTER |
| Repalced by: A 0004318914 | ||
| 404 | A 0004318914 | BRAKE CYLINDER |
| 405 | A 0004317186 | CUP |
| 406 | A 0004312886 | SEAL RING |
| 407 | A 0004315783 | PISTON |
| Repalced by: A 0004316983 | ||
| 407 | A 0004316983 | PISTON |
| 408 | A 0004317060 | SEAL RING |
| 409 | A 0003270032 | VALVE PART |
| TO 000 431 15 14 | ||
| 410 | A 0004319460 | SEAL RING |
| TO 000 431 15 14,000 431 62 14 | ||
| A 0004319560 | SEAL RING | |
| TO 000 431 62 14 | ||
| A 0004311881 | VALVE DISC | |
| TO 000 431 62 14 | ||
| 411 | A 0004289435 | BRAKE HOSE |
| Repalced by: A 0004289535 | ||
| 411 | A 0004289535 | BRAKE HOSE |
| 505 MM | ||
| N 007603014405 | SEAL RING | |
| A 0004310336 | FILTER BOTTOM | |
| 412 | A 0025860043 | REPAIR KIT |
| Repalced by: A 0004309160 | ||
| 412 | A 0004309160 | REPAIR KIT |
| TO 000 431 89 14 | ||
| 416 | A 3604310267 | YOKE |
| 417 | N 000936010010 | NUT |
| A 3524300211 | CONSOLE | |
| 419 | A 3604302011 | CONSOLE |
| A 3524300311 | CONSOLE | |
| 419 | A 3604302111 | CONSOLE |
| 420 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| N 000933010157 | SCREW | |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 421 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 422 | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
| 423 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 423 | N 304017010002 | SCREW |
| BRAKE BOOSTER TO BRACKET | ||
| 424 | N 912004010102 | LOCK WASHER |
| BRAKE BOOSTER TO BRACKET | ||
| 429 | A 3524300223 | LEVER |
| Repalced by: A 3524301323 | ||
| 429 | A 3524301323 | LEVER |
| 430 | A 3529920801 | BUSHING |
| A 3524310074 | PIN | |
| 432 | A 3604310074 | PIN |
| 433 | N 071412010100 | GREASE NIPPLE |
| 434 | N 000471030000 | LOCK RING |
| 435 | A 3149940101 | LOCK |
| 436 | N 912004008102 | LOCK WASHER |
| 437 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 437 | N 304017008039 | SCREW |
| 438 | A 3529910007 | PIN |
| DOUBLE LEVER TO BRAKE VALVE BRACKET | ||
| N 000094003219 | COTTER PIN | |
| DOUBLE LEVER TO BRAKE VALVE BRACKET | ||
| 442 | A 3609930210 | SPRING |
| 443 | N 074301022203 | ELBOW FITTING |
| AT BRAKE VALVE | ||
| 443 | N 074301022203 | ELBOW FITTING |
| AT BRAKE VALVE | ||
| 444 | N 074305022202 | NUT |
| AT BRAKE VALVE | ||
| 444 | N 074305022202 | NUT |
| AT BRAKE VALVE | ||
| 445 | A 0009870446 | SEALING CORD |
| AT BRAKE VALVE | ||
| 445 | A 0009870446 | SEALING CORD |
| AT BRAKE VALVE | ||
| 446 | A 0004290227 | THRUST RING |
| AT BRAKE VALVE | ||
| 446 | A 0004290227 | THRUST RING |
| AT BRAKE VALVE | ||
| 447 | N 074298022203 | DOUBLE FITTING |
| AT BRAKE VALVE | ||
| 447 | N 074298022203 | DOUBLE FITTING |
| AT BRAKE VALVE | ||
| 448 | N 007603022102 | SEAL RING |
| AT BRAKE VALVE | ||

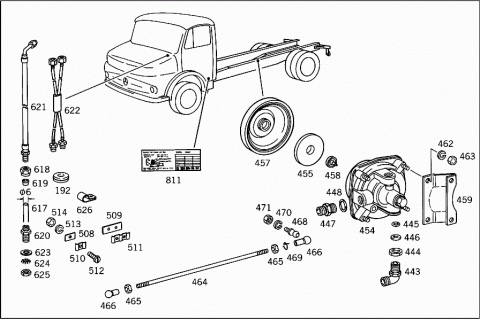

| A 0004314405 | BRAKE VALVE | |
| A 0004316105 | BRAKE VALVE | |
| A 0004313086 | CUP | |
| A 0004312976 | WASHER | |
| A 0004350390 | VALVE DISC | |
| 454 | A 0004318705 | BRAKE VALVE |
| 455 | A 0004313086 | CUP |
| A 0004317286 | CUP | |
| 457 | A 0004313186 | CUP |
| 458 | A 0004350390 | VALVE DISC |
| 459 | A 3524311540 | BRACKET |
| AT BRAKE VALVE | ||
| A 3524311640 | BRACKET | |
| AT BRAKE VALVE | ||
| 462 | N 912004010102 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 463 | N 000934010014 | NUT |
| VALVE TO BRACKET | ||
| 464 | N 900331008420 | PULL ROD |
| 465 | N 304032008006 | NUT |
| 466 | N 071805013203 | BALL SOCKET |
| N 071805013302 | SNAP RING | |
| 468 | N 071803013102 | BALL PIVOT |
| 469 | N 071805013402 | SECURING CLIP |
| 470 | N 912004008102 | LOCK WASHER |
| 471 | N 304032008006 | NUT |
| N 074301022203 | ELBOW FITTING | |
| TO CONNECT COMPRESSED AIR LINES TO SHUT-OFF COCK | ||
| N 074305022202 | NUT | |
| TO CONNECT COMPRESSED AIR LINES TO SHUT-OFF COCK | ||
| A 0004290227 | THRUST RING | |
| TO CONNECT COMPRESSED AIR LINES TO SHUT-OFF COCK | ||
| N 007603012405 | SEAL RING | |
| TO CONNECT COMPRESSED AIR LINES TO SHUT-OFF COCK | ||
| 474 | N 007603022102 | SEAL RING |
| TO CONNECT COMPRESSED AIR LINES TO SHUT-OFF COCK | ||
| 475 | N 074298022203 | DOUBLE FITTING |
| TO CONNECT COMPRESSED AIR LINES TO SHUT-OFF COCK | ||

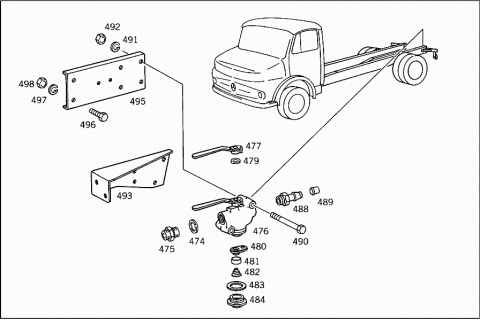

| 476 | A 0004290631 | SHUT-OFF COCK |
| Repalced by: A 0004291431 | ||
| 476 | A 0004291431 | SHUT-OFF COCK |
| 476 | A 0004291631 | SHUT-OFF COCK |
| 477 | A 0004290278 | HANDLE |
| TO 000 429 14 31 | ||
| A 0009974077 | HANDLE | |
| TO 000 429 16 31 | ||
| N 001473004012 | GROOVED PIN | |
| TO 000 429 14 31 | ||
| 479 | A 0004290162 | THRUST WASHER |
| TO 000 429 14 31 | ||
| 480 | A 0004290284 | SEAL RING |
| TO 000 429 14 31 | ||
| A 0004292684 | SEAL RING | |
| TO 000 429 16 31 | ||
| A 0119976748 | SEAL RING | |
| TO 000 429 16 31 | ||
| 481 | A 0004290085 | SEAL HOLDER |
| TO 000 429 14 31 | ||
| 482 | A 0004290393 | SPRING |
| TO 000 429 14 31 | ||
| A 0004292293 | SPRING | |
| TO 000 429 16 31 | ||
| A 0004292393 | SPRING | |
| TO 000 429 16 31 | ||
| 483 | N 007603038300 | SEAL RING |
| TO 000 429 14 31 | ||
| 484 | A 0005910156 | SCREW PLUG |
| TO 000 429 14 31 | ||
| A 0005866342 | REPAIR KIT | |
| TO 000 429 14 31 | ||
| N 007603022102 | SEAL RING | |
| 488 | A 0004290141 | FITTING |
| Repalced by: N 074304022201 | ||
| 488 | N 074301022201 | ELBOW FITTING |
| 489 | A 0004290181 | GROMMET |
| 490 | N 000063008022 | SCREW |
| SHUT-OFF COCK TO BRACKET | ||
| 491 | N 912004008102 | LOCK WASHER |
| SHUT-OFF COCK TO BRACKET | ||
| 492 | N 304032008006 | NUT |
| SHUT-OFF COCK TO BRACKET | ||
| 493 | A 3224290640 | BRACKET |
| 493 | A 3224290740 | BRACKET |
| 495 | A 3524291140 | BRACKET |
| 496 | N 000933010157 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 497 | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 498 | N 007603012405 | SEAL RING |
| BRACKET TO SIDE MEMBER | ||

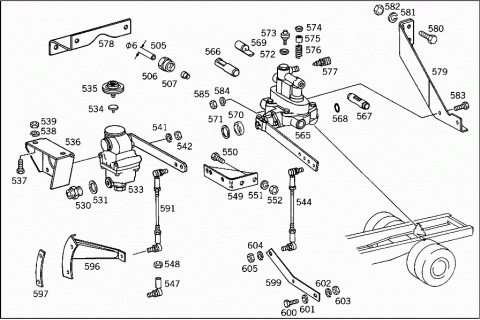

| 505 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 505 | A 0004296201 | LINE |
| 6 MM | ||
| 506 | N 915017006100 | UNION NUT |
| COMPRESSED AIR LINE | ||
| 6 MM | ||
| 507 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 507 | A 0019901667 | SEAL CONE |
| COMPRESSED AIR LINE | ||
| 6 MM | ||
| 508 | A 3125421039 | PLATE |
| COMPRESSED AIR LINES TO FRAME | ||
| 509 | A 3125421139 | PLATE |
| COMPRESSED AIR LINES TO FRAME | ||
| 510 | A 3129950332 | CLAMP |
| Repalced by: A 3609950101 | ||
| 510 | A 3609950101 | CLAMP |
| COMPRESSED AIR LINES TO FRAME | ||
| 511 | A 3129950033 | CLAMP |
| COMPRESSED AIR LINES TO FRAME | ||
| 512 | N 007985004107 | SCREW |
| COMPRESSED AIR LINES TO FRAME | ||
| 513 | N 000127004206 | LOCK WASHER |
| COMPRESSED AIR LINES TO FRAME | ||
| 514 | N 000934004006 | NUT |
| COMPRESSED AIR LINES TO FRAME | ||
| 515 | N 074302022202 | T-FITTING |
| AT AIR RESERVOIR | ||
| N 007603022102 | SEAL RING | |
| AT OVERFLOW VALVE | ||
| 517 | A 0004293034 | ADAPTER FITTING |
| Repalced by: A 0039972072 | ||
| 517 | A 0039972072 | FITTING |
| AT OVERFLOW VALVE | ||
| A 0009870446 | SEALING CORD | |
| AT OVERFLOW VALVE | ||
| A 0004290227 | THRUST RING | |
| AT OVERFLOW VALVE | ||
| N 074305022202 | NUT | |
| AT OVERFLOW VALVE | ||
| 521 | A 3609900071 | ELBOW FITTING |
| AT OVERFLOW VALVE | ||
| 524 | A 0004297544 | VALVE |
| Repalced by: A 0014296444 | ||
| 524 | A 0014296444 | VALVE |
| 524 | A 0024290844 | VALVE |
| (OVERFLOW VALVE) | ||
| BOSCH | ||
| 524 | A 0024296944 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| 524 | A 0024290944 | VALVE |
| (OVERFLOW VALVE) | ||
| WESTINGHOUSE | ||
| 524 | A 0034290344 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| A 0004290545 | DIAPHRAGM | |
| TO 002 429 09 44 | ||
| A 0004290745 | DIAPHRAGM | |
| TO 002 429 69 44 | ||
| A 0004290945 | DIAPHRAGM | |
| TO 003 429 03 44 | ||
| A 0005863642 | REPAIR KIT | |
| Repalced by: A 0005865842 | ||
| A 0005865842 | REPAIR KIT | |
| TO 000 429 75 44 | ||
| A 0015862042 | REPAIR KIT | |
| TO 001 429 64 44 | ||
| A 0015862642 | REPAIR KIT | |
| TO 002 429 08 44 | ||
| 525 | A 3524312640 | BRACKET |
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| OVERFLOW VALVE TO BRACKET,AND BRACKET TO CROSS MEMBER | ||
| 526 | N 000933008145 | SCREW |
| OVERFLOW VALVE TO BRACKET,AND BRACKET TO CROSS MEMBER | ||
| 527 | N 912004008102 | LOCK WASHER |
| OVERFLOW VALVE TO BRACKET,AND BRACKET TO CROSS MEMBER | ||
| 528 | N 304032008006 | NUT |
| OVERFLOW VALVE TO BRACKET,AND BRACKET TO CROSS MEMBER | ||
| 530 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 530 | A 0029906071 | FITTING |
| 531 | N 007603012405 | SEAL RING |
| 533 | A 0004316006 | VALVE |
| Repalced by: A 0004318706 | ||
| 533 | A 0004318706 | PRESSURE SENDER UNIT |
| 534 | A 0003270032 | VALVE PART |
| 535 | A 0004314883 | PISTON |
| 536 | A 3524312340 | BRACKET |
| 537 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 538 | N 912004010102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 539 | N 000934010014 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 541 | N 912004008102 | LOCK WASHER |
| PRESSURE SENDER UNIT TO BRACKET | ||
| 542 | N 304032008006 | NUT |
| PRESSURE SENDER UNIT TO BRACKET | ||
| 544 | A 3534300792 | ROD |
| Repalced by: N 900331008427 | ||
| N 900331008427 | PULL ROD | |
| 547 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 547 | A 0004310867 | YOKE |
| L.H. THREAD | ||
| 548 | N 304032008006 | NUT |
| R.H. THREAD | ||
| 548 | N 000934008035 | NUT |
| L.H. THREAD | ||
| 549 | A 3524315140 | BRACKET |
| 550 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 550 | N 304017008021 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| 551 | N 912004008102 | LOCK WASHER |
| BRACKET TO REAR AXLE HOUSING | ||
| 552 | N 304032008006 | NUT |
| BRACKET TO REAR AXLE HOUSING | ||
| A 0039979072 | FITTING | |
| Repalced by: A 0029906071 | ||
| A 0029906071 | FITTING | |
| N 007603012405 | SEAL RING | |
| A 0004312912 | BRAKE PRESSURE REGULATOR | |
| Repalced by: A 0004314212 | ||
| A 0004314212 | BRAKE PRESSURE REGULATOR | |
| A 0004314160 | SEAL RING | |
| A 0004315786 | CUP | |
| A 0129975448 | SEAL RING | |
| A 0004318560 | SEAL RING | |
| A 0004318660 | SEAL RING | |
| A 0004310968 | VALVE PART | |
| Repalced by: A 0004311068 | ||
| A 0004311068 | VALVE PART | |
| 565 | A 0004314412 | BRAKE PRESSURE REGULATOR |
| 565 | A 0004314312 | BRAKE PRESSURE REGULATOR |
| 566 | A 0004312713 | GUIDE BUSHING |
| TO 000 431 43 12,000 431 44 12 | ||
| 567 | A 0004316583 | PISTON |
| TO 000 431 43 12,000 431 44 12 | ||
| 568 | A 0109975845 | SEAL RING |
| TO 000 431 43 12,000 431 44 12 | ||
| 569 | A 0004310949 | GUIDE BUSHING |
| TO 000 431 43 12,000 431 44 12 | ||
| 570 | A 0004318760 | FELT STRIP |
| TO 000 431 43 12,000 431 44 12 | ||
| 571 | A 0089975646 | SEAL RING |
| TO 000 431 43 12,000 431 44 12 | ||
| 572 | A 0004318560 | SEAL RING |
| TO 000 431 43 12,000 431 44 12 | ||
| 573 | A 0004310968 | VALVE PART |
| Repalced by: A 0004311068 | ||
| 573 | A 0004311068 | VALVE PART |
| TO 000 431 44 12,000 431 43 12 | ||
| A 0014315793 | SPRING | |
| TO 000 431 44 12,000 431 43 12 | ||
| 574 | A 0004318660 | SEAL RING |
| TO 000 431 43 12,000 431 44 12 | ||
| 575 | A 0004311049 | GUIDE BUSHING |
| TO 000 431 43 12,000 431 44 12 | ||
| 576 | A 0029937201 | SPRING |
| TO 000 431 43 12,000 431 44 12 | ||
| N 007603018101 | SEAL RING | |
| TO 000 431 43 12,000 431 44 12 | ||
| 577 | A 0004310465 | VALVE |
| Repalced by: A 0004310265 | ||
| 577 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 577 | A 3075530107 | VALVE |
| 578 | A 3604311140 | BRACKET |
| A 3604311540 | BRACKET | |
| Repalced by: A 3604300339 | ||
| 579 | A 3604300339 | SUPPORT |
| N 000960012216 | SCREW | |
| Repalced by: N 308765012007 | ||
| N 308765012007 | SCREW | |
| BRAKE POWER REGULATOR TO FRAME | ||
| N 912004012100 | LOCK WASHER | |
| BRAKE POWER REGULATOR TO FRAME | ||
| N 000934012022 | NUT | |
| BRAKE POWER REGULATOR TO FRAME | ||
| 580 | N 000931010258 | SCREW |
| BRAKE POWER REGULATOR TO FRAME | ||
| 581 | N 912004010102 | LOCK WASHER |
| BRAKE POWER REGULATOR TO FRAME | ||
| 582 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 582 | N 910113010000 | NUT |
| BRAKE POWER REGULATOR TO FRAME | ||
| N 000961012164 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| 583 | N 000961012122 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 584 | N 912004012100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 585 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 591 | A 3534300792 | ROD |
| Repalced by: N 900331008427 | ||
| 591 | A 3604307292 | ROD |
| Repalced by: N 900331008427 | ||
| N 900331008427 | PULL ROD | |
| A 0004310667 | YOKE | |
| R.H. THREAD | ||
| A 0004310867 | YOKE | |
| L.H. THREAD | ||
| N 304032008006 | NUT | |
| R.H. THREAD | ||
| N 000934008035 | NUT | |
| L.H. THREAD | ||
| 596 | A 3604311740 | BRACKET |
| OPERATING ROD | ||
| 596 | A 3604311740 | BRACKET |
| OPERATING ROD | ||
| A 0004311418 | METAL SPRING BELLOWS | |
| Repalced by: A 0004311718 | ||
| A 0004311718 | METAL SPRING BELLOWS | |
| N 000933012058 | SCREW | |
| METAL SPRING BELLOWS TO BRACKET | ||
| N 000961012056 | SCREW | |
| Repalced by: N 308676012038 | ||
| N 308676012038 | SCREW | |
| METAL SPRING BELLOWS TO BRACKET | ||
| N 912004012100 | LOCK WASHER | |
| METAL SPRING BELLOWS TO BRACKET | ||
| A 3524316740 | BRACKET | |
| METAL SPRING BELLOWS | ||
| 597 | A 3554310384 | SHIM |
| BRACKET TO AXLE HOUSING | ||
| 597 | A 3554310384 | SHIM |
| BRACKET TO AXLE HOUSING | ||
| N 000933010157 | SCREW | |
| BRACKET TO AXLE HOUSING | ||
| N 000933010157 | SCREW | |
| BRACKET TO AXLE HOUSING | ||
| 599 | A 3604230125 | WEB |
| 600 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 600 | N 304017008021 | SCREW |
| CLAMP TO OPERATING ROD BRACKET | ||
| 601 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 601 | N 000125008443 | WASHER |
| CLAMP TO OPERATING ROD BRACKET | ||
| 602 | N 912004008102 | LOCK WASHER |
| CLAMP TO OPERATING ROD BRACKET | ||
| 603 | N 304032008006 | NUT |
| CLAMP TO OPERATING ROD BRACKET | ||
| 604 | N 912004008102 | LOCK WASHER |
| OPERATING ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET | ||
| 605 | N 304032008006 | NUT |
| OPERATING ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET | ||
| A 3525840221 | GUIDE SIGN | |
| A 3525840721 | GUIDE SIGN | |
| A 3525841221 | GUIDE SIGN | |
| A 3525841521 | GUIDE SIGN | |
| A 3875840055 | ADHESIVE FOIL | |
| 617 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 617 | A 0004296201 | LINE |
| PRESSURE GAUGE | ||
| 6 MM | ||
| 618 | N 915017006100 | UNION NUT |
| PRESSURE GAUGE LINES | ||
| 6 MM | ||
| 619 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 619 | A 0019901667 | SEAL CONE |
| PRESSURE GAUGE LINES | ||
| 6 MM | ||
| 620 | A 0009977172 | FITTING |
| 621 | A 3215420035 | HOSE |
| 622 | A 3525407461 | ELECTRIC CABLE |
| Repalced by: A 0089976082 | ||
| A 0089976082 | HOSE | |
| Repalced by: A 0009872627 | ||
| A 0009872627 | PLASTIC PIPE | |
| BRAKE PRESSURE CONTROL | ||
| N 040621010200 | INSULATING HOSE | |
| BRAKE PRESSURE CONTROL | ||
| A 0019975072 | FITTING | |
| BRAKE PRESSURE CONTROL | ||
| N 915017006200 | UNION NUT | |
| BRAKE PRESSURE CONTROL | ||
| A 0019973772 | FITTING | |
| BRAKE PRESSURE CONTROL | ||
| 623 | N 000125013008 | WASHER |
| 624 | N 006797012153 | TOOTHED WASHER |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 625 | N 000936012009 | NUT |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 626 | A 3609950101 | CLAMP |
| COMPRESSED AIR LINE TO FRAME | ||
| A 3124292440 | BRACKET | |
| Repalced by: A 3124761535 | ||
| A 3124761535 | BRACKET | |
| COMPRESSED AIR LINE TO FRAME | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| COMPRESSED AIR LINE TO FRAME | ||
| N 000084006134 | SCREW | |
| COMPRESSED AIR LINE TO FRAME | ||
| N 007971004227 | SHEET METAL SCREW | |
| COMPRESSED AIR LINE TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| COMPRESSED AIR LINE TO FRAME | ||
| N 000934006007 | NUT | |
| COMPRESSED AIR LINE TO FRAME | ||
| 631 | A 3414200484 | PARKING BRAKE |
| 632 | A 3214270126 | PAWL ROD HANDLE |
| 633 | A 3214270674 | PIN |
| 634 | A 3214201474 | ROD |
| 635 | A 3219900075 | SCREW |
| 636 | A 3524270174 | PIN |
| 637 | N 912007006001 | CLIP |
| 638 | A 3214270841 | BRACKET |
| 639 | A 3044270064 | GUIDE BALL |
| 640 | N 000933008145 | SCREW |
| BRACKET TO FIRE WALL | ||
| 641 | N 912004008102 | LOCK WASHER |
| BRACKET TO FIRE WALL | ||
| 642 | A 3214270183 | SPHERICAL PIECE |
| 643 | A 3219900751 | NUT |
| 644 | A 3214270283 | SPHERICAL PIECE |
| 645 | A 3524201712 | BRAKE LEVER |
| A 3524201812 | BRAKE LEVER | |
| 647 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 647 | N 071412008102 | GREASE NIPPLE |
| 648 | A 3214270250 | BUSHING |
| 649 | A 3524270430 | PAWL ROD |
| 650 | N 071805013203 | BALL SOCKET |
| N 071805013302 | SNAP RING | |
| 652 | N 071805013402 | SECURING CLIP |
| 653 | N 304032008006 | NUT |
| 654 | A 3529930001 | SPRING |
| 655 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 655 | N 000125008443 | WASHER |
| 656 | A 3524270841 | BRACKET |
| N 000085004114 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| 660 | A 3214271041 | BRACKET |
| N 000660004041 | RIVET | |
| 662 | A 3224200292 | PAWL |
| A 3224200392 | PAWL | |
| 664 | A 3229920201 | BUSHING |
| 665 | A 3524270274 | PIN |
| 666 | A 3524270176 | WASHER |
| 667 | N 000471014000 | LOCK RING |
| 668 | A 3529930610 | SPRING |
| 669 | A 3524200778 | BEARING BRACKET |
| A 3524200878 | BEARING BRACKET | |
| 671 | A 3214270374 | PIN |
| 672 | A 3224270574 | PIN |
| 673 | A 3224271174 | PIN |
| 674 | A 3224270176 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 674 | A 3224270276 | WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 674 | A 3224270376 | WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| N 000094004065 | COTTER PIN | |
| 678 | A 3524270050 | BUSHING |
| 679 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 679 | N 304017010050 | SCREW |
| 680 | N 000933010128 | SCREW |
| 681 | N 912004010102 | LOCK WASHER |
| 682 | N 000934010014 | NUT |
| 683 | A 0005454009 | SWITCH |
| 684 | A 3229900240 | WASHER |
| 685 | A 3524270674 | PIN |
| 687 | A 3224200193 | CABLE PULLEY |
| A 3224200293 | CABLE PULLEY | |
| 690 | A 3214270250 | BUSHING |
| 691 | A 3214270076 | WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 691 | A 3214270176 | WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 691 | A 3214270276 | WASHER |
| AS REQUIRED | ||
| 2.30 MM | ||
| 694 | N 000471030000 | LOCK RING |
| 695 | A 3524270374 | PIN |
| 696 | A 3524270176 | WASHER |
| 697 | N 912004014100 | LOCK WASHER |
| 698 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 698 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 698 | N 308675014002 | NUT |
| 699 | A 3224200092 | PAWL |
| A 3224200192 | PAWL | |
| 701 | A 3229920201 | BUSHING |
| 702 | A 3224270114 | ROLLER |
| AS REQUIRED | ||
| 18.50 MM | ||
| 702 | A 3224270214 | ROLLER |
| AS REQUIRED | ||
| 19.00 MM | ||
| 702 | A 3224270314 | ROLLER |
| AS REQUIRED | ||
| 19.50 MM | ||
| 705 | N 000471010001 | LOCK RING |
| N 000471014000 | LOCK RING | |
| 707 | A 3224271041 | BRACKET |
| 708 | N 000933010128 | SCREW |
| 709 | N 912004010102 | LOCK WASHER |
| 710 | A 3529930610 | SPRING |
| 711 | A 3224270013 | LEVER |
| 712 | N 001434010001 | PIN |
| 713 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 713 | N 000125010532 | WASHER |
| N 000094003219 | COTTER PIN | |
| 715 | A 3529911007 | PIN |
| 716 | N 000125006421 | WASHER |
| N 000094001518 | COTTER PIN | |
| 718 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 718 | N 304017008018 | SCREW |
| 719 | N 304032008006 | NUT |
| 720 | A 3224200290 | GUIDE |
| 720 | A 3224200390 | GUIDE |
| 721 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 721 | N 304017010028 | SCREW |
| 722 | N 912004010102 | LOCK WASHER |
| 724 | A 3224200085 | BRAKE CABLE |
| 725 | A 3214200176 | END PIECE |
| 726 | N 000934010014 | NUT |
| 727 | N 001434010009 | PIN |
| N 000094003219 | COTTER PIN | |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| 730 | A 3224203678 | BEARING BRACKET |
| 731 | N 000933010128 | SCREW |
| 731 | N 000933010128 | SCREW |
| 732 | N 912004010102 | LOCK WASHER |
| 732 | N 912004010102 | LOCK WASHER |
| 733 | N 000934010014 | NUT |
| 733 | N 000934010014 | NUT |
| 734 | A 3224270341 | BRACKET |
| 735 | N 000933010105 | SCREW |
| 736 | N 000933008145 | SCREW |
| 737 | N 912004008102 | LOCK WASHER |
| 738 | N 912004010102 | LOCK WASHER |
| 739 | N 304032008006 | NUT |
| 740 | N 000934010014 | NUT |
| 741 | A 3524200581 | LEVER |
| FRONT | ||
| A 3524200981 | LEVER | |
| FRONT | ||
| 743 | A 3529921201 | BUSHING |
| 744 | N 071412010100 | GREASE NIPPLE |
| 745 | A 3124261574 | PIN |
| 746 | N 000471022000 | LOCK RING |
| 747 | A 3379935010 | SPRING |
| 748 | N 071752012002 | YOKE |
| 749 | A 3529910107 | PIN |
| A 3529910807 | PIN | |
| 751 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 751 | N 000433013010 | WASHER |
| N 000094004065 | COTTER PIN | |
| 753 | N 900331012330 | PULL ROD |
| N 900331012332 | PULL ROD | |
| N 900331012118 | PULL ROD | |
| 756 | N 001480012200 | TURNBUCKLE |
| Repalced by: A 3859960034 | ||
| 756 | A 3859960034 | NUT |
| 757 | N 000934012021 | NUT |
| 758 | N 900331012339 | PULL ROD |
| 759 | N 000934012020 | NUT |
| 760 | A 3524200180 | BRAKE INTERMEDIATE SHAFT |
| REAR | ||
| 760 | A 3524200180 | BRAKE INTERMEDIATE SHAFT |
| REAR | ||
| A 3604200380 | BRAKE INTERMEDIATE SHAFT | |
| REAR | ||
| A 3524200280 | BRAKE INTERMEDIATE SHAFT | |
| Repalced by: A 3524201080 | ||
| A 3524201080 | BRAKE INTERMEDIATE SHAFT | |
| REAR | ||
| A 3524201080 | BRAKE INTERMEDIATE SHAFT | |
| REAR | ||
| A 3604200480 | BRAKE INTERMEDIATE SHAFT | |
| A 3274270058 | SEAL HOLDER | |
| 766 | A 3279970040 | SEAL RING |
| A 3524200478 | BEARING BRACKET | |
| 768 | A 3584200278 | BEARING BRACKET |
| 768 | A 3584200278 | BEARING BRACKET |
| 769 | A 3024260083 | SPHERICAL PIECE |
| Repalced by: A 3025860242 | ||
| 770 | N 000470052000 | EXPANSION PLUG |
| 772 | A 3025860242 | REPAIR KIT |
| Repalced by: A 3534200067 | ||
| 772 | A 3534200067 | REPAIR KIT |
| Repalced by: A 3534200167 | ||
| 772 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 773 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 773E | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 773N | N 000934012022 | NUT |
| BEARING BRACKET TO FRAME | ||
| 774 | A 3524200047 | YOKE |
| 775 | N 001434012007 | PIN |
| YOKE TO BRAKE LEVER | ||
| N 000433013005 | WASHER | |
| Repalced by: N 000433013010 | ||
| N 000433013010 | WASHER | |
| YOKE TO BRAKE LEVER | ||
| N 900055012001 | SPRING WASHER | |
| YOKE TO BRAKE LEVER | ||
| N 000094004065 | COTTER PIN | |
| YOKE TO BRAKE LEVER | ||
| 779 | N 900331012122 | PULL ROD |
| 780 | N 071752012002 | YOKE |
| N 000934012021 | NUT | |
| YOKE TO REAR PULL ROD | ||
| N 000934012020 | NUT | |
| YOKE TO REAR PULL ROD | ||
| A 3529910107 | PIN | |
| YOKE TO REAR PULL ROD | ||
| N 000433013005 | WASHER | |
| Repalced by: N 000433013010 | ||
| N 000433013010 | WASHER | |
| YOKE TO REAR PULL ROD | ||
| N 000094004065 | COTTER PIN | |
| YOKE TO REAR PULL ROD | ||
| 786 | A 3544230036 | BRAKE CAMSHAFT |
| 787 | A 3414230186 | CUP |
| 788 | A 3024230037 | ADJUSTING LEVER |
| LEFT | ||
| A 3024230137 | ADJUSTING LEVER | |
| RIGHT | ||
| 791 | A 3024230170 | STUD |
| 792 | N 000936018006 | NUT |
| 794 | A 3544230171 | SCREW |
| 795 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 795 | N 308675012000 | NUT |
| A 3524260011 | LEVER | |
| Repalced by: A 3604260611 | ||
| A 3604260011 | LEVER | |
| Repalced by: A 3604260611 | ||
| A 3604260011 | LEVER | |
| Repalced by: A 3604260611 | ||
| 798 | A 3604260611 | LEVER |
| LEFT | ||
| A 3524260111 | LEVER | |
| Repalced by: A 3604260711 | ||
| A 3604260111 | LEVER | |
| Repalced by: A 3604260711 | ||
| A 3604260111 | LEVER | |
| Repalced by: A 3604260711 | ||
| A 3604260711 | LEVER | |
| RIGHT | ||
| 802 | A 3604270025 | LEVER |
| LEFT | ||
| A 3604270125 | LEVER | |
| RIGHT | ||
| 804 | N 000610012003 | FITTED SCREW |
| 805 | A 3149901114 | SCREW |
| 806 | N 912004012100 | LOCK WASHER |
| 807 | N 000934012021 | NUT |
| 808 | A 3024260083 | SPHERICAL PIECE |
| Repalced by: A 3025860142 | ||
| 809 | N 003760045300 | RADIAL SEAL RING |
| IN BEARING BRACKET | ||
| 810 | N 071412010100 | GREASE NIPPLE |
| IN BEARING BRACKET | ||
| 811 | A 3029970020 | EXPANSION PLUG |
| Repalced by: A 3609970020 | ||
| 811 | A 3609970020 | EXPANSION PLUG |
| IN BEARING BRACKET | ||
| 812 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 812 | A 0039945241 | LOCK |
| IN BEARING BRACKET | ||
| 813 | A 3024230153 | SPACER TUBE |
| AS REQUIRED | ||
| 11.00 MM | ||
| 813 | A 3024230253 | SPACER TUBE |
| AS REQUIRED | ||
| 11.50 MM | ||
| 813 | A 3024230353 | SPACER TUBE |
| AS REQUIRED | ||
| 12.00 MM | ||
| 813 | A 3024230453 | SPACER TUBE |
| AS REQUIRED | ||
| 12.50 MM | ||
| 813 | A 3024230553 | SPACER TUBE |
| AS REQUIRED | ||
| 13.00 MM | ||
| 813 | A 3024230653 | SPACER TUBE |
| AS REQUIRED | ||
| 13.50 MM | ||
| 813 | A 3024230753 | SPACER TUBE |
| AS REQUIRED | ||
| 10.50 MM | ||
| 819 | N 000471045000 | LOCK RING |
| 820 | N 000471035000 | LOCK RING |
| 820E | A 3025860142 | REPAIR KIT |
| Repalced by: A 3024200067 | ||
| 820E | A 3024200067 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||
| 821 | A 3124271220 | HANDLE |
| 822 | N 000964006028 | SCREW |
| HANDLE TO RATCHET ROD | ||
| N 006797006146 | TOOTHED WASHER | |
| HANDLE TO RATCHET ROD | ||
| 823 | N 912004006102 | LOCK WASHER |
| HANDLE TO RATCHET ROD | ||
| 824 | N 001587006002 | CAP NUT |
| HANDLE TO RATCHET ROD | ||
| 825 | A 3124271086 | DAMPING RING |
| 826 | A 3214201274 | ROD |
| 826 | A 3214201374 | ROD |
| 828 | A 3534270095 | PROTECTIVE CAP |
| 829 | A 3124201178 | BEARING BRACKET |
| PISTOL-GRIP HAND BRAKE | ||
| 830 | N 001473004023 | GROOVED PIN |
| 833 | A 3124271215 | PAWL |
| Repalced by: A 3145860142 | ||
| 834 | A 1539930701 | SPRING |
| Repalced by: A 3145860142 | ||
| 835 | A 3129900043 | PLATE |
| Repalced by: A 3145860142 | ||
| 836 | N 000472015000 | LOCK RING |
| 836R | A 3145860142 | REPAIR KIT |
| Repalced by: A 3144200092 | ||
| 836R | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 836S | N 000933008145 | SCREW |
| 836T | N 912004008102 | LOCK WASHER |
| 837 | A 3529910407 | PIN |
| 838 | N 000433008406 | WASHER |
| N 000094002059 | COTTER PIN | |
| 840 | A 3604201012 | BRAKE LEVER |
| A 3604200812 | BRAKE LEVER | |
| 842 | A 3529921201 | BUSHING |
| 843 | N 071412010300 | GREASE NIPPLE |
| 844 | A 3214200778 | BEARING BRACKET |
| 845 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 845 | N 304017010002 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 846 | N 912004010102 | LOCK WASHER |
| 846E | N 000934010014 | NUT |
| BEARING BRACKET TO FRAME | ||
| 847 | A 3129901540 | WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| 848 | N 000471022000 | LOCK RING |
| 849 | A 3604200286 | BRACKET |
| 850 | N 000933008145 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 851 | N 912004008102 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 852 | N 304032008006 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 853 | A 3214200176 | END PIECE |
| 854 | A 3529910007 | PIN |
| 855 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 855 | N 000125010532 | WASHER |
| N 000094003219 | COTTER PIN | |
| 857 | N 000934010014 | NUT |
| 858 | N 900331010660 | PULL ROD |
| 859 | A 3604300310 | BRACKET |
| 860 | N 000933010164 | SCREW |
| BRACKET TO FRAME | ||
| 860 | N 000931010331 | SCREW |
| BRACKET TO FRAME | ||
| 861 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 861 | N 000125010532 | WASHER |
| BRACKET TO FRAME | ||
| 862 | A 3604270253 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 863 | N 912004010102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 864 | N 000934010014 | NUT |
| BRACKET TO FRAME | ||
| 866 | A 3604200681 | LEVER |
| TOP | ||
| 867 | A 3229920101 | BUSHING |
| N 071412010100 | GREASE NIPPLE | |
| 869 | N 001434014052 | PIN |
| UPPER LEVER TO BRACKET | ||
| 870 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 870 | N 000125015019 | WASHER |
| UPPER LEVER TO BRACKET | ||
| N 000094004065 | COTTER PIN | |
| UPPER LEVER TO BRACKET | ||
| 872 | A 3604200781 | LEVER |
| BOTTOM | ||
| A 3604200881 | LEVER | |
| BOTTOM | ||
| 874 | A 3229920101 | BUSHING |
| N 071412010300 | GREASE NIPPLE | |
| 876 | A 3604200089 | SHACKLE |
| 877 | N 001434012078 | PIN |
| SHACKLE TO HAND BRAKE VALVE | ||
| N 000433013005 | WASHER | |
| Repalced by: N 000433013010 | ||
| N 000433013010 | WASHER | |
| SHACKLE TO HAND BRAKE VALVE | ||
| N 000094004024 | COTTER PIN | |
| SHACKLE TO HAND BRAKE VALVE | ||
| 880 | N 001434014045 | PIN |
| 881 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 881 | N 000125015019 | WASHER |
| N 000094004065 | COTTER PIN | |
| 883 | N 900331010653 | PULL ROD |
| 883 | N 900331010657 | PULL ROD |
| 885 | A 3224200247 | YOKE |
| 886 | A 0009961501 | YOKE |
| 887 | N 000934010014 | NUT |
| 888 | A 3529910007 | PIN |
| 889 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 889 | N 000137010205 | SPRING WASHER |
| 890 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 890 | N 000433010510 | WASHER |
| N 000094003219 | COTTER PIN | |
| 892 | A 3524202381 | LEVER |
| A 3524203081 | LEVER | |
| 894 | A 3529921201 | BUSHING |
| 895 | N 071412010300 | GREASE NIPPLE |
| 896 | A 3404200278 | BEARING BRACKET |
| 897 | A 3124261574 | PIN |
| 898 | N 000471022000 | LOCK RING |
| 899 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 899 | N 304017010002 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 900 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 901 | N 000934010014 | NUT |
| BEARING BRACKET TO FRAME | ||
| 902 | A 3609901240 | WASHER |
| Repalced by: A 1159903140 | ||
| 902 | A 1159903140 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 903 | N 900331010657 | PULL ROD |
| 903 | N 900331010656 | PULL ROD |
| 903 | N 900331010655 | PULL ROD |
| 906 | A 3224200247 | YOKE |
| 907 | A 0009961501 | YOKE |
| 908 | N 000934010014 | NUT |
| 909 | A 3149910207 | PIN |
| 910 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 910 | N 000137010205 | SPRING WASHER |
| 911 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 911 | N 000433010510 | WASHER |
| N 000094003219 | COTTER PIN | |
| 913 | A 3604200080 | BRAKE INTERMEDIATE SHAFT |
| 913 | A 3604200380 | BRAKE INTERMEDIATE SHAFT |
| A 3604200880 | BRAKE INTERMEDIATE SHAFT | |
| A 3604201180 | BRAKE INTERMEDIATE SHAFT | |
| 913 | A 3524200580 | BRAKE INTERMEDIATE SHAFT |
| 913 | A 3604200480 | BRAKE INTERMEDIATE SHAFT |
| A 3604200980 | BRAKE INTERMEDIATE SHAFT | |
| A 3604201280 | BRAKE INTERMEDIATE SHAFT | |
| 921 | A 3274270058 | SEAL HOLDER |
| 922 | A 3279970040 | SEAL RING |
| 923 | A 3584200278 | BEARING BRACKET |
| 923 | A 3584200278 | BEARING BRACKET |
| A 3524200478 | BEARING BRACKET | |
| 926 | N 000470052000 | EXPANSION PLUG |
| 928 | A 3025860242 | REPAIR KIT |
| Repalced by: A 3534200067 | ||
| 928 | A 3534200067 | REPAIR KIT |
| Repalced by: A 3534200167 | ||
| 928 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 929 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 929E | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 929N | N 000934012022 | NUT |
| BEARING BRACKET TO FRAME | ||
| 930 | A 3524201474 | ROD |
| Repalced by: A 3604200474 | ||
| 930C | A 3604200474 | ROD |
| 930E | A 3604200774 | ROD |
| REAR | ||
| 930H | N 001480012200 | TURNBUCKLE |
| Repalced by: A 3859960034 | ||
| 930H | A 3859960034 | NUT |
| 930L | N 000934012020 | NUT |
| 930P | N 000934012021 | NUT |
| 931 | A 3529910207 | PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 932 | N 900055012001 | SPRING WASHER |
| PULL RODS TO BRAKE LEVERS | ||
| 933 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 933 | N 000433013010 | WASHER |
| PULL RODS TO BRAKE LEVERS | ||
| N 000094003210 | COTTER PIN | |
| PULL RODS TO BRAKE LEVERS | ||
| A 3529910007 | PIN | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000433010505 | WASHER | |
| Repalced by: N 000433010510 | ||
| N 000433010510 | WASHER | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 939 | A 3544230036 | BRAKE CAMSHAFT |
| A 3414230186 | CUP | |
| 941 | A 3024230037 | ADJUSTING LEVER |
| LEFT | ||
| A 3024230137 | ADJUSTING LEVER | |
| RIGHT | ||
| 943 | A 3024230170 | STUD |
| 944 | N 000936018006 | NUT |
| 945 | A 3544230171 | SCREW |
| 946 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 946 | N 308675012000 | NUT |
| A 3604260011 | LEVER | |
| Repalced by: A 3604260611 | ||
| A 3604260011 | LEVER | |
| Repalced by: A 3604260611 | ||
| 948 | A 3604260611 | LEVER |
| LEFT | ||
| 948 | A 3604260611 | LEVER |
| LEFT | ||
| A 3604260011 | LEVER | |
| Repalced by: A 3604260711 | ||
| A 3604260011 | LEVER | |
| Repalced by: A 3604260711 | ||
| A 3604260711 | LEVER | |
| RIGHT | ||
| A 3604260711 | LEVER | |
| RIGHT | ||
| 951 | A 3604270025 | LEVER |
| LEFT | ||
| A 3604270225 | LEVER | |
| LEFT | ||
| A 3604270125 | LEVER | |
| RIGHT | ||
| A 3604270325 | LEVER | |
| RIGHT | ||
| 955 | N 000610012003 | FITTED SCREW |
| 955 | N 000610012003 | FITTED SCREW |
| 957 | N 912004012100 | LOCK WASHER |
| 958 | N 000934012021 | NUT |
| 959 | A 3024260083 | SPHERICAL PIECE |
| Repalced by: A 3025860142 | ||
| 960 | N 003760045300 | RADIAL SEAL RING |
| IN BEARING BRACKET | ||
| 961 | N 071412010100 | GREASE NIPPLE |
| IN BEARING BRACKET | ||
| 962 | A 3029970020 | EXPANSION PLUG |
| Repalced by: A 3609970020 | ||
| 962 | A 3609970020 | EXPANSION PLUG |
| IN BEARING BRACKET | ||
| 963 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 963 | A 0039945241 | LOCK |
| IN BEARING BRACKET | ||
| 964 | A 3024230153 | SPACER TUBE |
| AS REQUIRED | ||
| 11.00 MM | ||
| 964 | A 3024230253 | SPACER TUBE |
| AS REQUIRED | ||
| 11.50 MM | ||
| 964 | A 3024230353 | SPACER TUBE |
| AS REQUIRED | ||
| 12.00 MM | ||
| 964 | A 3024230453 | SPACER TUBE |
| AS REQUIRED | ||
| 12.50 MM | ||
| 964 | A 3024230553 | SPACER TUBE |
| AS REQUIRED | ||
| 13.00 MM | ||
| 964 | A 3024230653 | SPACER TUBE |
| AS REQUIRED | ||
| 13.50 MM | ||
| 964 | A 3024230753 | SPACER TUBE |
| AS REQUIRED | ||
| 10.50 MM | ||
| 970 | N 000471045000 | LOCK RING |
| 971 | N 000471035000 | LOCK RING |
| 971E | A 3025860142 | REPAIR KIT |
| Repalced by: A 3024200067 | ||
| 971E | A 3024200067 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||
| 972 | A 0005516256 | TUBE |
| 15 MM | ||
| A 0109975982 | HOSE | |
| Repalced by: A 0009872827 | ||
| A 0009872827 | PLASTIC PIPE | |
| A 0049971772 | FITTING | |
| Repalced by: A 0029906171 | ||
| A 0029906171 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 59 82 | ||
| A 0009921505 | BUSHING | |
| Repalced by: N 915062009000 | ||
| N 915062009000 | SLEEVE | |
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| Repalced by: A 0019901967 | ||
| A 0019901967 | SEAL CONE | |
| N 074298022203 | DOUBLE FITTING | |
| 974 | N 915018015000 | UNION NUT |
| 975 | N 003861015004 | GLAND |
| 976 | N 915065015101 | THRUST RING |
| 977 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 977 | N 007603012121 | SEAL RING |
| 978 | A 3524290740 | BRACKET |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| LINE TO CROSS MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| LINE TO CROSS MEMBER | ||
| N 304032008006 | NUT | |
| LINE TO CROSS MEMBER | ||
| 982 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 982 | A 6739950001 | CLAMP |
| LINE TO CROSS MEMBER | ||
| N 000084006197 | SCREW | |
| LINE TO CROSS MEMBER | ||
| N 000934006007 | NUT | |
| LINE TO CROSS MEMBER | ||
| N 000934006007 | NUT | |
| A 0019978490 | LOOM TIE | |
| 200 MM | ||
| A 3609901140 | WASHER | |
| 986 | N 007603022102 | SEAL RING |
| 987 | N 074298022203 | DOUBLE FITTING |
| 987 | N 074298022203 | DOUBLE FITTING |
| N 074301022203 | ELBOW FITTING | |
| N 074301022203 | ELBOW FITTING | |
| 988 | A 0004310616 | VALVE |
| 989 | A 0004317386 | CUP |
| 990 | A 0004290695 | AIR CLEANER |
| 990E | A 0004317087 | PROTECTIVE CAP |
| 991 | A 0004350390 | VALVE DISC |
| N 001433012015 | PIN | |
| N 000094004065 | COTTER PIN | |
| 992 | N 007603022102 | SEAL RING |
| 993 | N 007604022201 | SCREW PLUG |
| N 000908022001 | SCREW PLUG | |
| Repalced by: N 000908022011 | ||
| N 000908022011 | SCREW PLUG | |
| A 0009870446 | SEALING CORD | |
| A 0004290227 | THRUST RING | |
| N 074305022202 | NUT | |
| 994 | A 0004295032 | T-FITTING |
| Repalced by: A 0009902970 | ||
| 994 | A 0009902970 | T-FITTING |
| A 0019979572 | FITTING | |
| N 074302022304 | T-FITTING | |
| 995 | A 0005455414 | SWITCH |
| 995C | N 000931010272 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 995F | N 912004010102 | LOCK WASHER |
| HAND BRAKE VALVE TO BRACKET | ||
| N 007603016401 | SEAL RING | |
| HAND BRAKE VALVE TO BRACKET | ||
| N 007603016401 | SEAL RING | |
| 996 | A 0009970572 | FITTING |
| Repalced by: N 074313010100 | ||
| 996 | N 074313010100 | FITTING |
| N 074315012100 | FITTING | |
| Repalced by: A 0019903371 | ||
| A 0019903371 | ELBOW FITTING | |
| 996C | N 080705016003 | NUT |
| 996H | A 0004290927 | THRUST RING |
| 996K | A 0009971548 | SEAL RING |
| 997 | A 0004312114 | BRAKE CYLINDER |
| BOSCH | ||
| 997 | A 0004317714 | BRAKE CYLINDER |
| KNORR | ||
| 997 | A 0014311314 | BRAKE CYLINDER |
| WESTINGHOUSE | ||
| 997B | A 0004319186 | CUP |
| Repalced by: A 0004312786 | ||
| A 0004319686 | CUP | |
| TO 000 431 77 14 | ||
| A 0004312786 | CUP | |
| TO 000 431 21 14 | ||
| A 0004318583 | PISTON | |
| TO 000 431 21 14 | ||
| A 0059971148 | SEAL RING | |
| TO 000 431 77 14 | ||
| A 0004310649 | SLIDE | |
| A 0089977548 | SEAL RING | |
| TO 000 431 21 14 | ||
| A 0049971740 | SEAL RING | |
| TO 000 431 21 14 | ||
| A 0004311880 | GASKET | |
| TO 000 431 77 14 | ||
| A 0014311160 | SEAL RING | |
| TO 000 431 77 14 | ||
| A 0004319586 | CUP | |
| TO 000 431 77 14 | ||
| 997D | A 0004318186 | CUP |
| Repalced by: A 0015864342 | ||
| 997F | A 0004310736 | FILTER BOTTOM |
| TO 000 431 21 14 | ||
| 997K | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 997K | A 0034201724 | REPAIR KIT |
| TO 000 431 21 14 | ||
| A 0015864243 | REPAIR KIT | |
| Repalced by: A 0025861443 | ||
| A 0025861443 | REPAIR KIT | |
| TO 001 431 13 14 | ||
| 998 | A 3604300911 | CONSOLE |
| A 3604302411 | CONSOLE | |
| 998B | N 000933010105 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 998D | N 912004010102 | LOCK WASHER |
| BRAKE CYLINDER TO CONSOLE | ||
| 998H | N 000934010014 | NUT |
| BRAKE CYLINDER TO CONSOLE | ||
| 999 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 999 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| 999B | A 3609900040 | WASHER |
| Repalced by: A 4219905440 | ||
| 999B | A 4219905440 | WASHER |
| CONSOLE TO FRAME | ||
| 999D | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 999D | N 000125010532 | WASHER |
| CONSOLE TO FRAME | ||
| 999F | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 999K | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
