Transporto priemonė: LAS 1313; VIN numerio dalis: 352114

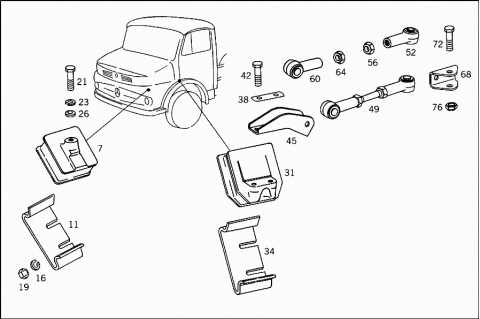

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3522400217 | RUBBER MOUNTING |
| Repalced by: A 3522400417 | ||
| 007 | A 3522400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 011 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 016 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 019 | N 000934012022 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 021 | N 000960014237 | SCREW |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| M 14X50 | ||
| N 000961016096 | SCREW | |
| Repalced by: N 308676016007 | ||
| N 308676016007 | SCREW | |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| M 16X50 | ||
| N 000960016237 | SCREW | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X60 | ||
| 023 | N 000137014201 | SPRING WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 026 | A 3529901040 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| A 3529902440 | WASHER | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 031 | A 3522400318 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 034 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 912004012100 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000934012022 | NUT | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 038 | A 3529940032 | LOCK |
| ENGINE REAR SUSPENSION | ||
| 042 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 042 | N 308676014008 | SCREW |
| ENGINE REAR SUSPENSION | ||
| M 14X35 | ||
| N 000961014063 | SCREW | |
| Repalced by: A 9429901304 | ||
| A 9429901304 | SCREW | |
| ENGINE REAR SUSPENSION | ||
| M 14X40 | ||
| 045 | A 3522420207 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 045 | A 3522420307 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 049 | A 3522400225 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| A 3522420237 | ROD | |
| 052 | A 0009961540 | ROD END |
| 056 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 056 | N 308673016001 | NUT |
| 060 | A 0009961740 | ROD END |
| 064 | N 000934016014 | NUT |
| 068 | A 3522420407 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 072 | A 3522420071 | SCREW |
| PULL ROD TO BEARING BRACKET | ||
| 076 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 076 | N 000979016007 | NUT |
| PULL ROD TO BEARING BRACKET | ||
| N 000094004023 | COTTER PIN | |
| PULL ROD TO BEARING BRACKET | ||
| N 000931012008 | SCREW | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
