Transporto priemonė: LAS 1313; VIN numerio dalis: 352114

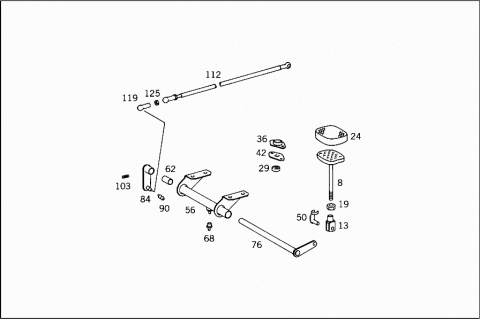

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3524300318 | BRAKE PEDAL |
| 013 | N 071752008002 | YOKE |
| 019 | N 304032008006 | NUT |
| 024 | A 3203015082 | PAD |
| 029 | A 3524340123 | GUIDE |
| A 3524340140 | BRACKET | |
| 036 | A 3524341040 | BRACKET |
| A 3524340087 | SHIM | |
| 042 | A 3524340187 | SHIM |
| N 000571006012 | WOOD SCREW | |
| BRACKET TO CAB FLOOR | ||
| 050 | N 918001008000 | PIN |
| N 900055008002 | SPRING WASHER | |
| 056 | A 3524300438 | BEARING |
| EXHAUST BRAKE | ||
| A 3524300538 | BEARING | |
| EXHAUST BRAKE | ||
| 062 | A 3524340150 | BUSHING |
| EXHAUST BRAKE | ||
| 068 | N 071412010200 | GREASE NIPPLE |
| EXHAUST BRAKE | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BEARING BRACKET TO CAB | ||
| N 912004008102 | LOCK WASHER | |
| BEARING BRACKET TO CAB | ||
| N 304032008006 | NUT | |
| BEARING BRACKET TO CAB | ||
| 076 | A 3524301446 | INTERMEDIATE SHAFT |
| A 3524301546 | INTERMEDIATE SHAFT | |
| 084 | A 3524300523 | LEVER |
| A 3524300923 | LEVER | |
| 090 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 090 | A 3129910120 | BALL PIVOT |
| 103 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 103 | N 308752004001 | CLAMPING PIN |
| 112 | A 3604302092 | ROD |
| 119 | N 071805010204 | BALL SOCKET |
| A 0009912422 | BALL SOCKET | |
| 125 | N 000934006007 | NUT |
| A 3524301192 | ROD | |
| Repalced by: A 3524300079 | ||
| A 3524300079 | CONNECTOR | |
| N 071805010204 | BALL SOCKET | |
| N 071752006006 | YOKE | |
| N 000934006007 | NUT | |
| N 071805010403 | SECURING CLIP | |
| PULL ROD TO LEVER | ||
| N 918001006004 | PIN | |
