Transporto priemonė: LAS 1313; VIN numerio dalis: 352114

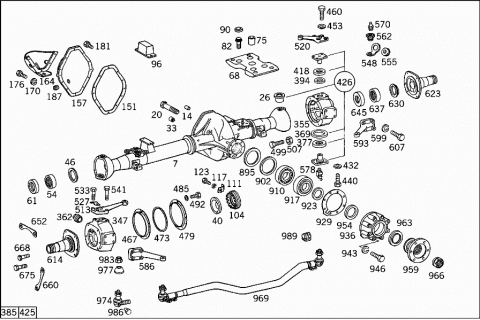

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3523304400 | FRONT AXLE | |
| A 3523304500 | FRONT AXLE | |
| 007 | A 3523300205 | FRONT AXLE HOUSING |
| 014 | N 000007006205 | CYLINDRICAL PIN |
| 020 | A 3129902201 | SCREW |
| Repalced by: N 914126016000 | ||
| 020 | N 914126016000 | SCREW |
| Repalced by: A 0009905704 | ||
| 020 | A 0009905704 | SCREW |
| 026 | A 3403310050 | BUSHING |
| Repalced by: A 3403310250 | ||
| 026 | A 3403310250 | BUSHING |
| 033 | A 3523510174 | PIN |
| 040 | A 3123571082 | OIL COLLECTOR |
| Repalced by: A 3853570082 | ||
| 040 | A 3853570082 | OIL COLLECTOR |
| 046 | A 3223310351 | SPACER RING |
| A 0009815312 | ROLLER ASSEMBLY | |
| Repalced by: A 0049814410 | ||
| 054 | A 0049814410 | NEEDLE BEARING |
| 054 | A 0059816310 | NEEDLE BEARING |
| 061 | A 0039972546 | SEAL RING |
| 068 | A 3523220412 | SPRING SADDLE |
| Repalced by: A 3603220512 | ||
| 068 | A 3603220512 | SPRING SADDLE |
| RIGHT | ||
| 075 | A 3529910064 | BUSHING |
| 082 | A 3529900304 | SCREW |
| 090 | A 3389945043 | LOCK |
| A 3603230040 | BRACKET | |
| A 3223310351 | SPACER RING | |
| A 0009815312 | ROLLER ASSEMBLY | |
| Repalced by: A 0049814410 | ||
| A 0049814410 | NEEDLE BEARING | |
| A 0059816310 | NEEDLE BEARING | |
| A 0039972546 | SEAL RING | |
| 096 | A 3523300175 | RUBBER MOUNTING |
| Repalced by: A 3853300075 | ||
| 096 | A 3853300075 | RUBBER MOUNTING |
| N 000933010105 | SCREW | |
| N 000933010128 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| 104 | A 3403350025 | ADJUSTING NUT |
| Repalced by: A 3853350025 | ||
| 104 | A 3853350025 | ADJUSTING NUT |
| Repalced by: A 6743530025 | ||
| 104 | A 6743530025 | SCREW COLLAR |
| 111 | A 3123531173 | LOCK |
| 117 | N 006797008120 | TOOTHED WASHER |
| 123 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 123 | N 304017008016 | SCREW |
| 130 | A 3143530076 | SET SCREW |
| Repalced by: A 3143530176 | ||
| 130 | A 3143530176 | SET SCREW |
| 136 | A 3123531049 | SLIDE |
| 143 | N 000936022002 | NUT |
| 151 | A 3123511080 | GASKET |
| Repalced by: A 3123511480 | ||
| 151 | A 3123511480 | GASKET |
| 157 | A 3813300021 | COVER |
| Repalced by: A 3813300121 | ||
| 157 | A 3813300121 | COVER |
| 164 | A 3123301283 | PROTECTIVE PLATE |
| Repalced by: A 3603300083 | ||
| 164 | A 3603300083 | PROTECTIVE PLATE |
| 170 | N 912004010102 | LOCK WASHER |
| 176 | N 000933010164 | SCREW |
| 181 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 181 | N 304017010028 | SCREW |
| 187 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 187 | A 3529970032 | SCREW PLUG |
| 193 | A 3523300001 | DRIVE SHAFT |
| Repalced by: A 3813300201 | ||
| 193 | A 3813300201 | DRIVE SHAFT |
| LEFT | ||
| 201 | A 3523300101 | DRIVE SHAFT |
| Repalced by: A 3813300301 | ||
| 201 | A 3813300301 | DRIVE SHAFT |
| RIGHT | ||
| 225 | A 3223370380 | GASKET |
| Repalced by: A 3819970046 | ||
| 225 | A 3819970046 | SEAL RING |
| 232 | A 3813300601 | DRIVE SHAFT |
| OUTSIDE | ||
| 239 | A 3229810181 | INNER RING |
| Repalced by: A 3819810081 | ||
| 239 | A 3819810081 | INNER RING |
| 246 | A 3523370074 | PIN |
| Repalced by: A 3813370074 | ||
| 246 | A 3813370074 | PIN |
| DIA., | ||
| 28.65 MM | ||
| A 0009812687 | NEEDLE | |
| Repalced by: A 0005860435 | ||
| 252 | A 0005860435 | REPAIR KIT |
| SET = 33 PIECES | ||
| A 3609900077 | SCREW | |
| 260 | A 3229900801 | SCREW |
| 267 | A 3223370030 | COVER |
| 273 | A 3223370062 | THRUST WASHER |
| 279 | A 3223370118 | BEARING BRACKET |
| Repalced by: A 3953300033 | ||
| 279 | A 3953300033 | BEARING HOUSING |
| REPAIR KIT | ||
| 285 | A 3223370180 | GASKET |
| Repalced by: A 4949970246 | ||
| 285 | A 4949970246 | SEAL RING |
| A 0009812587 | NEEDLE | |
| Repalced by: A 0005860235 | ||
| 291 | A 0005860235 | REPAIR KIT |
| SET = 30 PIECES | ||
| 298 | A 3813300401 | DRIVE SHAFT |
| 304 | A 3813300501 | DRIVE SHAFT |
| A 3229810181 | INNER RING | |
| Repalced by: A 3819810081 | ||
| A 3819810081 | INNER RING | |
| A 3223370217 | FOLLOWER | |
| Repalced by: A 3523370017 | ||
| 311 | A 3523370017 | FOLLOWER |
| 317 | A 0009971888 | GREASE NIPPLE |
| Repalced by: N 071412008100 | ||
| 317 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 317 | N 071412008102 | GREASE NIPPLE |
| 324 | A 3223370280 | GASKET |
| 332 | A 3229900102 | SCREW |
| Repalced by: N 914125010900 | ||
| 332 | N 914125010900 | SCREW |
| 340 | A 3229900055 | NUT |
| Repalced by: N 000935010007 | ||
| 340 | N 000935010007 | NUT |
| N 000094002008 | COTTER PIN | |
| 345 | A 3815860033 | REPAIR KIT |
| Repalced by: A 3813300435 | ||
| 345 | A 3813300435 | REPAIR KIT |
| LEFT DRIVE SHAFT JOURNAL CROSS | ||
| 345 | A 3815860133 | REPAIR KIT |
| Repalced by: A 3813300535 | ||
| 345 | A 3813300535 | REPAIR KIT |
| RIGHT DRIVE SHAFT JOURNAL CROSS | ||
| 347 | A 3223370606 | HOUSING |
| LEFT | ||
| 355 | A 3223370706 | HOUSING |
| RIGHT | ||
| 362 | N 000906042002 | SCREW PLUG |
| 369 | A 0109979847 | SEAL RING |
| LEFT AND RIGHT BOTTOM | ||
| 377 | A 0009810518 | ROLLER BEARING |
| 394 | A 3403320362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| 394 | A 3403320562 | THRUST WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 394 | A 3403320762 | THRUST WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 394 | A 3403320962 | THRUST WASHER |
| AS REQUIRED | ||
| 4.40 MM | ||
| 394 | A 3403321162 | THRUST WASHER |
| AS REQUIRED | ||
| 4.60 MM | ||
| 394 | A 3403321362 | THRUST WASHER |
| AS REQUIRED | ||
| 4.80 MM | ||
| 394 | A 3403321562 | THRUST WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 418 | A 3403320062 | THRUST WASHER |
| 426 | A 3405860033 | REPAIR KIT |
| Repalced by: A 3403300019 | ||
| 426 | A 3403300019 | KING PIN |
| PARTS KIT | ||
| 432 | N 912004012100 | LOCK WASHER |
| 440 | N 000961012164 | SCREW |
| 453 | N 912004014100 | LOCK WASHER |
| 460 | N 000961014113 | SCREW |
| 467 | A 3223310009 | SEAL HOLDER |
| INSIDE | ||
| 473 | A 3223310080 | GASKET |
| 479 | A 3223310109 | SEAL HOLDER |
| OUTSIDE | ||
| 485 | N 912004008102 | LOCK WASHER |
| 492 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 492 | N 304017008016 | SCREW |
| 499 | A 3603370171 | SCREW |
| 507 | N 000936010008 | NUT |
| 513 | A 3523380101 | STEERING ARM |
| 520 | A 3523380102 | STEERING ARM |
| 527 | A 3229940130 | LOCK |
| LEFT | ||
| 527 | A 3229940230 | LOCK |
| RIGHT | ||
| 533 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 533 | N 308676014012 | SCREW |
| 541 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 541 | N 308676014013 | SCREW |
| 548 | A 3404280240 | BRACKET |
| 555 | A 3129970581 | GROMMET |
| 562 | A 3124281026 | HOLLOW SCREW |
| 570 | N 071412010100 | GREASE NIPPLE |
| 578 | N 071412010200 | GREASE NIPPLE |
| 586 | A 3453380205 | STEERING ARM |
| LEFT | ||
| 593 | A 3453380306 | STEERING ARM |
| RIGHT | ||
| 599 | N 912004012100 | LOCK WASHER |
| 607 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 607 | N 308676012026 | SCREW |
| 614 | A 3223321016 | SUPPORTING SLEEVE |
| LEFT | ||
| 623 | A 3223321016 | SUPPORTING SLEEVE |
| RIGHT | ||
| 630 | A 3223310351 | SPACER RING |
| 637 | A 0049814410 | NEEDLE BEARING |
| 637 | A 0059816310 | NEEDLE BEARING |
| 645 | A 0039972546 | SEAL RING |
| 652 | A 3229940125 | LOCK |
| 660 | A 3229940025 | LOCK |
| 668 | N 000960012043 | SCREW |
| N 000961012106 | SCREW | |
| 675 | N 308765016002 | SCREW |
| 682 | A 3523340003 | HUB |
| 689 | A 3129901705 | STUD |
| 695 | A 3124021071 | WHEEL MOUNTING BOLT |
| Repalced by: A 3524020171 | ||
| 695 | A 3524020171 | WHEEL MOUNTING BOLT |
| 703 | A 3524210101 | BRAKE DRUM |
| 710 | A 3123311052 | SPACER WASHER |
| 717 | A 3129810301 | CYLINDR. ROLLER BEARING |
| OUTSIDE | ||
| 717 | A 0019815205 | TAPERED ROLLER BEARING |
| 725 | A 3123311073 | LOCK |
| 5 MM | ||
| 732 | A 3523340015 | RING |
| 740 | A 0009816105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 740 | A 0019819605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 740 | A 0019811405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 748 | A 3403340051 | SPACER RING |
| 755 | A 0029976446 | SEAL RING |
| Repalced by: A 0039972247 | ||
| 755 | A 0039972247 | SEAL RING |
| Repalced by: A 0169976347 | ||
| 755 | A 0169976347 | SEAL RING |
| 762 | A 3123560126 | GROOVED NUT |
| 769 | A 3123321073 | LOCK |
| 776 | A 3223370417 | FOLLOWER |
| 783 | A 3223370051 | SPACER RING |
| N 000934012022 | NUT | |
| 790 | A 3229940034 | SNAP RING |
| 790 | A 3459940134 | SNAP RING |
| 798 | A 3273530272 | NUT |
| Repalced by: A 3853510272 | ||
| 798 | A 3853510272 | NUT |
| 805 | A 3803300723 | DIFFERENTIAL GEAR |
| A 3233300027 | DIFFERENTIAL CASE | |
| Repalced by: A 3803300723 | ||
| A 3803300723 | DIFFERENTIAL GEAR | |
| 811 | N 900170014004 | SCREW |
| 818 | A 3213530220 | DIFFERENTIAL SPIDER |
| 824 | A 3223530614 | DIFFERENTIAL PINION |
| 831 | A 3123531224 | SPHERICAL WASHER |
| 837 | A 3123531515 | SIDE GEAR |
| 843 | A 3123531062 | THRUST WASHER |
| 2.00 MM | ||
| 849 | A 3833300439 | RING GEAR AND PINION |
| Repalced by: A 3833301539 | ||
| 849 | A 3833301539 | RING GEAR AND PINION |
| RATIO: | ||
| 7 : 48 | ||
| 856 | A 3239900101 | SCREW |
| 862 | A 3223530273 | LOCK |
| 869 | A 0019817905 | TAPERED ROLLER BEARING |
| 869 | A 0019818205 | TAPERED ROLLER BEARING |
| 869 | A 0019812405 | TAPERED ROLLER BEARING |
| 869 | A 0029812305 | TAPERED ROLLER BEARING |
| 875 | A 0009818701 | CYLINDR. ROLLER BEARING |
| 875 | A 0009819001 | CYLINDR. ROLLER BEARING |
| 882 | N 000471025002 | LOCK RING |
| 889 | A 3129940141 | LOCK |
| 895 | A 3603350052 | SPACER WASHER |
| 1.00 MM | ||
| 902 | A 3123531352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 902 | A 3123531452 | SPACER WASHER |
| AS REQUIRED | ||
| 902 | A 3123533252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 910 | N 005412100309 | CYLINDR. ROLLER BEARING |
| 917 | A 0009810027 | ANGULAR CONTACT BEARING |
| 923 | A 3123531951 | SPACER RING |
| 929 | A 3123532852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 929 | A 3123532952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.25 MM | ||
| 929 | A 3123533152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 936 | A 3123511915 | FLANGE |
| 943 | N 912004010102 | LOCK WASHER |
| 946 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 946 | N 304017010030 | SCREW |
| 954 | A 0009976647 | SEAL RING |
| Repalced by: A 0019973247 | ||
| 954 | A 0019973247 | SEAL RING |
| Repalced by: A 0119977447 | ||
| 954 | A 0119977447 | SEAL RING |
| 954 | A 0099976347 | SEAL RING |
| 954 | A 0129972947 | SEAL RING |
| 959 | A 3523300044 | COUPLING FLANGE |
| Repalced by: A 3523300144 | ||
| 959 | A 3523300144 | COUPLING FLANGE |
| 963 | A 3122621063 | PROTECTIVE PLATE |
| 966 | A 3243530072 | NUT |
| Repalced by: A 3853510372 | ||
| 966 | A 3853510372 | NUT |
| 969 | A 3523302303 | TIE ROD |
| LEMFOERDER | ||
| 969 | A 3523302403 | TIE ROD |
| EHRENREICH | ||
| A 0003385315 | TIE ROD | |
| 974 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 974 | A 0003309535 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 977 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 977 | A 0003300885 | BOOT |
| 983 | N 000937018003 | NUT |
| N 000094004065 | COTTER PIN | |
| 986 | N 900087008000 | PLUG |
| 989 | A 0003380645 | CLAMP |
| N 000960012349 | SCREW | |
| N 000935012014 | NUT | |
| N 000094003226 | COTTER PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
