Transporto priemonė: LAS 1313; VIN numerio dalis: 352114

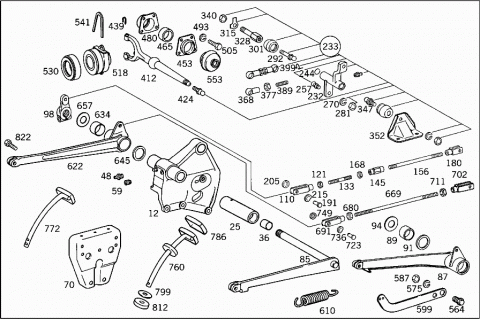

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3522900519 | BEARING BRACKET | |
| Repalced by: A 3522901819 | ||
| 012 | A 3522901819 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 012 | A 3522900919 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| A 3522900619 | BEARING BRACKET | |
| Repalced by: A 3522901919 | ||
| 012 | A 3522901919 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 012 | A 3522901019 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 025 | A 3522900336 | BEARING TUBE |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| 025 | A 3522900436 | BEARING TUBE |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| 036 | A 3529920901 | BUSHING |
| BEARING TUBE | ||
| 036 | A 3529922001 | BUSHING |
| BEARING TUBE | ||
| 048 | N 071412010100 | GREASE NIPPLE |
| PEDAL BEARING | ||
| 059 | A 3529900080 | SCREW |
| BEARING TUBE TO PEDAL BEARING BRACKET | ||
| N 000933010145 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 070 | A 3523230195 | REINFORCEMENT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000963010033 | SCREW | |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 085 | A 3522900516 | PEDAL |
| Repalced by: A 3522902216 | ||
| 085 | A 3522902216 | PEDAL |
| CLUTCH | ||
| 087 | A 3522900716 | PEDAL |
| Repalced by: A 3522902916 | ||
| 087 | A 3522902916 | PEDAL |
| CLUTCH | ||
| 089 | A 3529920401 | BUSHING |
| CLUTCH PEDAL | ||
| 091 | A 3202940051 | SPACER RING |
| Repalced by: A 3202940251 | ||
| 091 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 091 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 091 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 094 | A 3039910345 | RING |
| PEDAL TO BEARING TUBE | ||
| 098 | A 3522930310 | LEVER |
| CLUTCH | ||
| N 000931010260 | SCREW | |
| Repalced by: N 304017010030 | ||
| N 304017010030 | SCREW | |
| CLUTCH LEVER TO PEDAL SHAFT | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| CLUTCH LEVER TO PEDAL SHAFT | ||
| A 3522901139 | ROD | |
| Repalced by: N 900331010653 | ||
| 110 | A 0009961501 | YOKE |
| CLUTCH LINKAGE | ||
| 121 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 133 | N 900331010667 | PULL ROD |
| ROD TO CLUTCH LEVER | ||
| 145 | N 001479010000 | TURNBUCKLE |
| CLUTCH ADJUSTMENT | ||
| 156 | N 900331010653 | PULL ROD |
| ROD TO CLUTCH LEVER | ||
| 168 | N 000934010035 | NUT |
| YOKE TO ROD | ||
| 180 | A 0009961401 | YOKE |
| CLUTCH LINKAGE | ||
| 191 | A 3529910007 | PIN |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 205 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 205 | N 000433010510 | WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 215 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 215 | N 000137010205 | SPRING WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| N 000094003219 | COTTER PIN | |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 232 | A 3522900328 | LEVER |
| Repalced by: A 3522905639 | ||
| 232 | A 3522901438 | YOKE |
| Repalced by: A 3522905639 | ||
| 232 | A 3522901738 | YOKE |
| Repalced by: A 3522905639 | ||
| 232 | A 3522901428 | LEVER |
| Repalced by: A 3525860029 | ||
| 232 | A 3522901828 | LEVER |
| Repalced by: A 3525860029 | ||
| 233 | A 3525860229 | REPAIR KIT |
| Repalced by: A 3522905639 | ||
| 233 | A 3522905639 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 233 | A 3525860029 | REPAIR KIT |
| Repalced by: A 3522905539 | ||
| 233 | A 3522905539 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 244 | N 071805016300 | SNAP RING |
| BALL PIVOT TO BRACKET | ||
| 257 | A 3179910515 | BALL PIVOT |
| Repalced by: A 3529910415 | ||
| 257 | A 3529910415 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 257 | A 3029910015 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 270 | N 912004012100 | LOCK WASHER |
| BALL PIVOT TO BRACKET | ||
| 281 | N 000936012011 | NUT |
| Repalced by: N 304035012002 | ||
| 281 | N 304035012002 | NUT |
| BALL PIVOT TO BRACKET | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| N 071412010100 | GREASE NIPPLE | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 292 | A 3529910415 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 292 | A 3029910015 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 301 | A 3522930060 | SEAL RING |
| CLUTCH OPERATION | ||
| 315 | N 000463017002 | LOCK PLATE |
| CLUTCH OPERATION | ||
| A 3529910315 | BALL PIVOT | |
| Repalced by: A 3529910915 | ||
| 328 | A 3529910715 | BALL PIVOT |
| Repalced by: A 3529910915 | ||
| 328 | A 3529910915 | SPACER |
| CLUTCH OPERATION | ||
| 340 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 340 | N 308673016001 | NUT |
| CLUTCH OPERATION | ||
| 347 | A 3529910215 | BALL PIVOT |
| Repalced by: A 3529910515 | ||
| 347 | A 3529910515 | BALL PIVOT |
| CLUTCH OPERATION | ||
| N 000463013002 | LOCK PLATE | |
| CLUTCH OPERATION | ||
| N 000934012021 | NUT | |
| CLUTCH OPERATION | ||
| 352 | A 3522930236 | BEARING BRACKET |
| Repalced by: A 3522932536 | ||
| 352 | A 3522931936 | BEARING BRACKET |
| Repalced by: A 3522932536 | ||
| 352 | A 3522932536 | BEARING BRACKET |
| Repalced by: A 3522932736 | ||
| 352 | A 3522932736 | BEARING BRACKET |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| N 000933010105 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| A 3529910815 | BALL PIVOT | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| A 3522930060 | SEAL RING | |
| Repalced by: A 3522930160 | ||
| A 3522930160 | SEAL RING | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| N 000125013008 | WASHER | |
| N 000934012021 | NUT | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| A 3522901039 | ROD | |
| Repalced by: A 3522905439 | ||
| A 3522905439 | ROD | |
| CLUTCH OPERATION | ||
| 368 | A 0009916222 | BALL SOCKET |
| CLUTCH LINKAGE | ||
| N 071805016300 | SNAP RING | |
| CLUTCH LINKAGE | ||
| 377 | N 000936010008 | NUT |
| CLUTCH LINKAGE | ||
| 389 | N 900331010653 | PULL ROD |
| CLUTCH LINKAGE | ||
| 399 | N 071805016402 | SECURING CLIP |
| CLUTCH LINKAGE | ||
| A 3522900029 | RELEASE YOKE | |
| Repalced by: A 3522500311 | ||
| 412 | A 3522500113 | RELEASE LEVER |
| Repalced by: A 3522930311 | ||
| A 3522930311 | RELEASE YOKE | |
| CLUTCH RELEASE | ||
| 424 | A 3179910515 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 424 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 424 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 439 | A 3402540013 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| A 3522900031 | BEARING | |
| OUTSIDE | ||
| A 3522900131 | BEARING | |
| OUTSIDE | ||
| A 3522930012 | BRACKET | |
| INSIDE | ||
| A 3522930112 | BRACKET | |
| INSIDE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO BELL HOUSING | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO BELL HOUSING | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BRACKET TO BELL HOUSING | ||
| 453 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| 465 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| A 3802540035 | BEARING | |
| OUTSIDE | ||
| A 3802540135 | BEARING | |
| OUTSIDE | ||
| A 3802540059 | SEAL RING | |
| SOFT | ||
| A 3802540259 | SEAL RING | |
| OUTSIDE | ||
| A 3802540159 | SEAL RING | |
| HARD | ||
| A 3802540359 | SEAL RING | |
| HARD | ||
| 480 | A 3522540040 | BRACKET |
| INSIDE | ||
| 493 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 505 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 505 | N 304017008021 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 518 | A 3522500115 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 518 | A 3522500515 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 518 | A 3402500215 | RELEASE BEARING |
| WITH RELEASE BODY | ||
| 530 | A 0002540020 | RELEASE BEARING |
| CLUTCH | ||
| 530 | A 0002540120 | RELEASE BEARING |
| CLUTCH | ||
| 541 | A 3129870110 | STRIP |
| Repalced by: A 3409830010 | ||
| 541 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 352 250 01 15,352 250 05 15 | ||
| 541 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 340 250 02 15 | ||
| A 3052540033 | COVER | |
| TO 352 250 01 15 | ||
| 553 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 553 | A 3142540197 | BOOT |
| RELEASE LEVER | ||
| 564 | A 3522910474 | PIN |
| RELEASE SPRING | ||
| 564 | A 3522910474 | PIN |
| RELEASE SPRING | ||
| 564 | A 3522910574 | PIN |
| RELEASE SPRING | ||
| A 3529902340 | WASHER | |
| PIN TO RELEASE SPRING BRACKET | ||
| 575 | N 912004014100 | LOCK WASHER |
| PIN TO RELEASE SPRING BRACKET | ||
| 587 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 587 | N 308673014001 | NUT |
| PIN TO RELEASE SPRING BRACKET | ||
| A 3522910253 | SPACER TUBE | |
| PIN TO RELEASE SPRING BRACKET | ||
| A 3522910432 | LEVER | |
| RELEASE SPRING | ||
| 599 | A 3522910732 | LEVER |
| RELEASE SPRING | ||
| 610 | A 3379930210 | SPRING |
| CLUTCH | ||
| 610 | A 3529931310 | SPRING |
| CLUTCH | ||
| 622 | A 3522900518 | PEDAL |
| BRAKE | ||
| 622 | A 3522900318 | PEDAL |
| BRAKE | ||
| 634 | A 3529920501 | BUSHING |
| BRAKE PEDAL | ||
| 645 | A 3202940051 | SPACER RING |
| Repalced by: A 3202940251 | ||
| 645 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 645 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 645 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 657 | A 3039910345 | RING |
| PEDAL TO BEARING TUBE | ||
| A 3522930310 | LEVER | |
| Repalced by: A 3522933110 | ||
| A 3522933110 | LEVER | |
| BRAKE | ||
| N 000931010258 | SCREW | |
| BRAKE PEDAL TO BEARING TUBE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRAKE PEDAL TO BEARING TUBE | ||
| A 3522901239 | ROD | |
| Repalced by: N 900331010668 | ||
| 669 | N 900331010668 | PULL ROD |
| BRAKE LINKAGE | ||
| 680 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 680 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 691 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 691 | A 0009961501 | YOKE |
| LEVER TO PULL ROD | ||
| 691 | A 0009961501 | YOKE |
| LEVER TO PULL ROD | ||
| 702 | A 3419960001 | YOKE |
| LEVER TO PULL ROD | ||
| 711 | N 000934010035 | NUT |
| YOKE TO ROD | ||
| 723 | A 3529910007 | PIN |
| YOKE TO LEVER | ||
| 736 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 736 | N 000137010205 | SPRING WASHER |
| YOKE TO LEVER | ||
| 749 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 749 | N 000433010510 | WASHER |
| YOKE TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| SPRING | ||
| 760 | A 3522900624 | PEDAL PLATE |
| CLUTCH | ||
| 772 | A 3222900824 | PEDAL PLATE |
| Repalced by: A 3222901324 | ||
| 772 | A 3222901324 | PEDAL PLATE |
| BRAKE | ||
| A 3222900924 | PEDAL PLATE | |
| CLUTCH AND BRAKE | ||
| 786 | A 3202925082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 799 | A 3226880024 | WASHER |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 812 | A 3122911197 | SEAL WASHER |
| Repalced by: A 3182910084 | ||
| 812 | A 3182910084 | SEAL RING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 822 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
