Transporto priemonė: LAS 1313; VIN numerio dalis: 352114

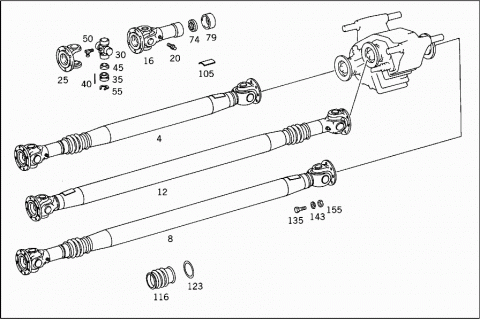

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
004	A 3524104902	PROPELLER SHAFT
	Repalced by: A 6744102202
004	A 6744102202	PROPELLER SHAFT
		FROM TRANSMISSION TO TRANSFER CASE
		650 MM
004	A 3524105002	PROPELLER SHAFT
		FROM TRANSMISSION TO TRANSFER CASE
		1245 MM
008	A 3524101402	PROPELLER SHAFT
	Repalced by: A 6744102602
008	A 6744102602	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1365 MM
008	A 3524101502	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1420 MM
008	A 3524101102	PROPELLER SHAFT
	Repalced by: A 6744101902
008	A 6744101902	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		974 MM
008	A 3524105602	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1032 MM
012	A 3524101202	PROPELLER SHAFT
		FROM TRANSFER CASE TO FRONT AXLE
		1076 MM
012	A 3524100802	PROPELLER SHAFT
	Repalced by: A 6744100002
012	A 6744100002	PROPELLER SHAFT
		FROM TRANSFER CASE TO FRONT AXLE
		1664 MM
016	A 3524100008	UNIVERSAL JOINT YOKE
020	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
020	N 071412008102	GREASE NIPPLE
025	A 3524110011	DRIVE FLANGE
	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
030	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
035	A 3224100542	BEARING BUSHING
040	A 0009815087	NEEDLE
	Repalced by: A 3189810287
040	A 3189810287	NEEDLE
		SET = 132 PIECES
045	A 3124111233	EXPANSION PLUG
050	N 071412008302	GREASE NIPPLE
055	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
055	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
055	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
055	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
055	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
055	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
074	A 3374130080	SEAL RING
079	A 3214110158	SEAL HOLDER
	A 3524110011	DRIVE FLANGE
	A 3814110811	DRIVE FLANGE
	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
	A 6174100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
	A 3224100542	BEARING BUSHING
	A 0009815087	NEEDLE
	Repalced by: A 3189810287
	A 3189810287	NEEDLE
		SET = 132 PIECES
	A 3124111233	EXPANSION PLUG
	N 071412008302	GREASE NIPPLE
	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
	A 0039944541	LOCK
	Repalced by: A 0039944441
	A 0039944441	LOCK
	Repalced by: A 0059949441
	A 0059949441	LOCK
	Repalced by: N 000472042001
	N 000472042001	LOCK RING
		AS REQUIRED
		1,78 MM
	A 0039945041	LOCK
	Repalced by: A 0059949941
	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
	A 0059941041	LOCK
	Repalced by: A 0069940441
	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
105	A 3224110194	BALANCING PLATE
116	A 3524100080	BOOT
123	A 3214110053	WIRE RING
	N 916002078100	CLAMP
135	A 3529900401	SCREW
	Repalced by: A 3529904701
135	A 3529904701	SCREW
	Repalced by: A 0079901001
135	A 0079901001	SCREW
		PROPELLER SHAFT TO TRANSMISSION, TRANSFER CASE AND AXLES
143	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION, TRANSFER CASE AND AXLES
155	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION, TRANSFER CASE AND AXLES
