Transporto priemonė: LAS 1313; VIN numerio dalis: 352114

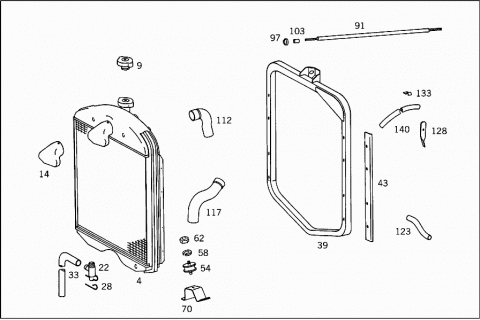

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3235010201 | RADIATOR |
| Repalced by: A 3525011801 | ||
| 004 | A 3525011401 | RADIATOR |
| Repalced by: A 3525011801 | ||
| 004 | A 3525011801 | RADIATOR |
| Repalced by: A 3525012201 | ||
| 004 | A 3525012201 | RADIATOR |
| WITH FILLER CAP | ||
| BEHR | ||
| A 0005010215 | RADIATOR CAP | |
| Repalced by: A 0005012915 | ||
| 009 | A 0005012915 | RADIATOR CAP |
| A 0005010880 | GASKET | |
| O.D., | ||
| 37 MM | ||
| 014 | A 0005010556 | PIPE ELBOW |
| N 000433003206 | WASHER | |
| N 007974003201 | SHEET METAL SCREW | |
| 022 | A 0009976436 | VALVE |
| Repalced by: A 0009970436 | ||
| 022 | A 0009970436 | VALVE |
| WATER DRAIN | ||
| 028 | A 0009930225 | SPRING |
| 033 | A 3049972582 | HOSE |
| WATER DRAIN | ||
| N 900263005000 | STRAP | |
| 165 MM | ||
| 039 | A 3225002027 | SUPPORT |
| RADIATOR | ||
| 043 | A 3225050024 | COVER PLATE |
| LATERAL | ||
| 054 | A 3225040312 | RUBBER MOUNTING |
| Repalced by: A 3605040012 | ||
| 054 | A 3605040012 | RUBBER MOUNTING |
| 058 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 062 | N 000934010014 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| RUBBER BUFFER TO BASE FRAME | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| N 912004008102 | LOCK WASHER | |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| N 304032008006 | NUT | |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 070 | A 3525040039 | CLAMP |
| N 000961012164 | SCREW | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO ENGINE CROSS MEMBER | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| RADIATOR TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| RADIATOR TO BRACKET | ||
| N 000934010014 | NUT | |
| RADIATOR TO BRACKET | ||
| 091 | A 3225001345 | RADIATOR STRUT |
| Repalced by: A 3525000345 | ||
| 091 | A 3525000345 | RADIATOR STRUT |
| RADIATOR STRUT TO BRACKET | ||
| 097 | A 3275045082 | RUBBER RING |
| RADIATOR STRUT TO BRACKET | ||
| 103 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO BRACKET | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| RADIATOR STRUT TO BRACKET | ||
| N 000934010014 | NUT | |
| RADIATOR STRUT TO BRACKET | ||
| 112 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 117 | A 3405010482 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| A 3525012082 | HOSE | |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| N 916017032000 | CLAMP | |
| Repalced by: N 000000000670 | ||
| N 000000000670 | CLAMP | |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| N 916017040000 | CLAMP | |
| Repalced by: N 000000000671 | ||
| N 000000000671 | CLAMP | |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 123 | N 900271015037 | HOSE |
| COOLING WATER LINE | ||
| A 3525011982 | HOSE | |
| Repalced by: A 3355010782 | ||
| A 3355010782 | HOSE | |
| COOLING WATER LINE | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| COOLING WATER LINE | ||
| 128 | A 3225060040 | BRACKET |
| 133 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 133 | A 1109950401 | CLAMP |
| RETURN LINE TO BRACKET | ||
| N 000084006197 | SCREW | |
| RETURN LINE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| RETURN LINE TO BRACKET | ||
| N 000934006007 | NUT | |
| RETURN LINE TO BRACKET | ||
| 140 | N 900271015037 | HOSE |
| RETURN | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| RETURN | ||
