Transporto priemonė: LAS 1313; VIN numerio dalis: 352114

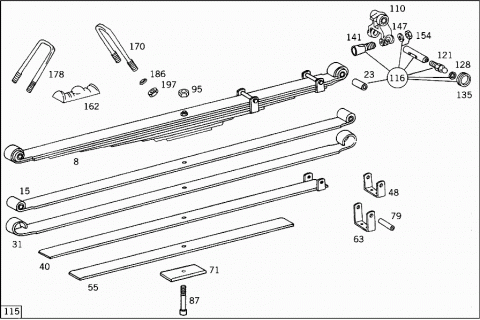

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3523201402 | FRONT SPRING |
| 7-LEAF | ||
| 008 | A 3523201402 | FRONT SPRING |
| 7-LEAF | ||
| 015 | A 3523202194 | SPRING LEAF |
| NO.1 | ||
| 015 | A 3523202194 | SPRING LEAF |
| NO.1 | ||
| 023 | A 3523220050 | BUSHING |
| 023 | A 3523220050 | BUSHING |
| 023 | A 3853220050 | BUSHING |
| 023 | A 3853220050 | BUSHING |
| 031 | A 3523211012 | SPRING LEAF |
| NO.2 | ||
| 031 | A 3523211012 | SPRING LEAF |
| NO.2 | ||
| 040 | A 3523202294 | SPRING LEAF |
| Repalced by: A 3523200594 | ||
| 040 | A 3523200594 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3523200594 | SPRING LEAF |
| NO.3 | ||
| 048 | A 0033212733 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 048 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 048 | A 3123240633 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 048 | A 3123240633 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| N 000660008026 | RIVET | |
| N 000660008026 | RIVET | |
| 055 | A 3523211014 | SPRING LEAF |
| Repalced by: A 3523210514 | ||
| 055 | A 3523210514 | SPRING LEAF |
| NO.4 | ||
| 055 | A 3523210514 | SPRING LEAF |
| NO.4 | ||
| 063 | A 0013217133 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 063 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 063 | A 3123240633 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 063 | A 3123240633 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| N 000660008026 | RIVET | |
| N 000660008026 | RIVET | |
| 071 | A 3523221284 | SHIM |
| 071 | A 3523221284 | SHIM |
| 079 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 079 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 079 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| N 000931008326 | SCREW | |
| Repalced by: N 304014008009 | ||
| N 304014008009 | SCREW | |
| FOR SPRING CLAMPS | ||
| N 304014008009 | SCREW | |
| FOR SPRING CLAMPS | ||
| N 304032008006 | NUT | |
| FOR SPRING CLAMPS | ||
| N 304032008006 | NUT | |
| FOR SPRING CLAMPS | ||
| 087 | N 004626012108 | SPRING BOLT |
| 087 | N 004626012108 | SPRING BOLT |
| 095 | N 000934012021 | NUT |
| 095 | N 000934012021 | NUT |
| A 3603200802 | FRONT SPRING | |
| 11-LEAF | ||
| A 3603201294 | SPRING LEAF | |
| NO.1 | ||
| A 3523220050 | BUSHING | |
| A 3853220050 | BUSHING | |
| A 3603210812 | SPRING LEAF | |
| NO.2 | ||
| A 3603201394 | SPRING LEAF | |
| NO.3 | ||
| A 3423240133 | SPRING CLAMP | |
| Repalced by: A 3123213333 | ||
| A 3123213333 | SPRING CLAMP | |
| Repalced by: A 3123240633 | ||
| A 3123240633 | SPRING CLAMP | |
| TO SPRING LEAF NO.3 | ||
| N 000660008026 | RIVET | |
| A 3603210814 | SPRING LEAF | |
| Repalced by: A 3603210714 | ||
| A 3603210714 | SPRING LEAF | |
| NO.4 | ||
| A 3523210233 | SPRING CLAMP | |
| Repalced by: A 3123213333 | ||
| A 3123213333 | SPRING CLAMP | |
| Repalced by: A 3123240633 | ||
| A 3123240633 | SPRING CLAMP | |
| FOR SPRING LEAF NO. 7 | ||
| N 000660008026 | RIVET | |
| N 004626012164 | SPRING BOLT | |
| N 000934012021 | NUT | |
| 110 | A 3523200063 | SHACKLE |
| Repalced by: A 6173200163 | ||
| 110 | A 6173200163 | SHACKLE |
| LEAF SPRING | ||
| A 3523220050 | BUSHING | |
| A 3853220050 | BUSHING | |
| 115 | A 3523220530 | SHACKLE PIN |
| Repalced by: A 3855860332 | ||
| 115 | A 3853220030 | SHACKLE PIN |
| Repalced by: A 3855860032 | ||
| 116 | A 3855860032 | REPAIR KIT |
| Repalced by: A 3855860332 | ||
| 116 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 116 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 121 | N 071412010100 | GREASE NIPPLE |
| 121 | N 071412010300 | GREASE NIPPLE |
| 128 | A 3523230176 | WASHER |
| Repalced by: A 3523230376 | ||
| 128 | A 3523230276 | WASHER |
| Repalced by: A 3523230376 | ||
| 128 | A 3523231476 | WASHER |
| Repalced by: A 3523230376 | ||
| 128 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 128 | A 3523231576 | WASHER |
| Repalced by: A 3523230476 | ||
| 128 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 128 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 135 | A 0029973140 | SEAL RING |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 141 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 147 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 147 | N 000125010532 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 154 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 154 | N 910113010000 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 162 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 170 | A 3523310425 | U-BOLT |
| Repalced by: A 3523310325 | ||
| 170 | A 3523310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 210 MM | ||
| 170 | A 3523310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 178 | A 3523311025 | U-BOLT |
| Repalced by: A 3523311125 | ||
| 178 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 186 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 197 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3523300175 | RUBBER MOUNTING | |
| Repalced by: A 3853300075 | ||
| A 3853300075 | RUBBER MOUNTING | |
| STOP | ||
| N 000933010105 | SCREW | |
| STOP BUFFER TO FRONT AXLE,LEFT | ||
| M 10X25 | ||
| N 000933010128 | SCREW | |
| STOP BUFFER TO FRONT AXLE,RIGHT | ||
| M 10X20 | ||
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |

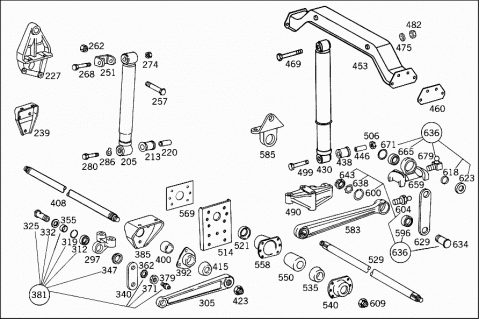

| 205 | A 0023230600 | SHOCK ABSORBER |
| Repalced by: A 0043236200 | ||
| 205 | A 0043236200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 205 | A 0023233400 | SHOCK ABSORBER |
| Repalced by: A 0043237500 | ||
| 205 | A 0043237500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 213 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 06 00,002 323 34 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 62 00 | ||
| 213 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 213 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 75 00 | ||
| 220 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 220 | A 0003233150 | SPACER RING |
| TO 002 323 06 00,002 323 34 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 62 00 | ||
| 220 | A 0003235250 | BUSHING |
| TO 004 323 75 00 | ||
| A 3283230063 | BEARING BRACKET | |
| TOP | ||
| 227 | A 3523232063 | BEARING BRACKET |
| Repalced by: A 3523232463 | ||
| 227 | A 3413230263 | BEARING BRACKET |
| Repalced by: A 3413230463 | ||
| 227 | A 3523232463 | BEARING BRACKET |
| TOP | ||
| 227 | A 3413230463 | BEARING BRACKET |
| TOP | ||
| 227 | A 3283230163 | BEARING BRACKET |
| TOP | ||
| 227 | A 3523232163 | BEARING BRACKET |
| Repalced by: A 3523232563 | ||
| 227 | A 3413230363 | BEARING BRACKET |
| Repalced by: A 3413230563 | ||
| 227 | A 3523232563 | BEARING BRACKET |
| TOP | ||
| 227 | A 3413230563 | BEARING BRACKET |
| TOP | ||
| N 000933010145 | SCREW | |
| TOP BEARING BRACKET TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| TOP BEARING BRACKET TO FRAME | ||
| N 000934010014 | NUT | |
| TOP BEARING BRACKET TO FRAME | ||
| 239 | A 3523230195 | REINFORCEMENT |
| AT SIDE MEMBER | ||
| N 000963010033 | SCREW | |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 10X22 | ||
| N 000933010105 | SCREW | |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 10X25 | ||
| N 912004010102 | LOCK WASHER | |
| REINFORCEMENT TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| REINFORCEMENT TO SIDE MEMBER | ||
| A 3523230118 | END PIECE | |
| SHOCK ABSORBER | ||
| 251 | A 3523230340 | BRACKET |
| SHOCK ABSORBER | ||
| N 000937024002 | NUT | |
| FORK TO BRACKET | ||
| 262 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 262 | N 913004020003 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| N 000094005045 | COTTER PIN | |
| SHOCK ABSORBER TO TOP BRACKET | ||
| N 000094004023 | COTTER PIN | |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 257 | A 3529903201 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 268 | A 3409900002 | SCREW |
| SHOCK ABSORBER TO FORK | ||
| 268 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 274 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 274 | N 000979016007 | NUT |
| SHOCK ABSORBER TO FORK | ||
| 274 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 274 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 280 | A 3529901501 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 286 | N 000093015001 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 297 | A 3603230463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 305 | A 3603230369 | LEVER |
| TORSION BAR | ||
| 312 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 312 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 312 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 312 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 312 | A 0019814631 | JOINT BEARING |
| TORSION BAR | ||
| 312 | A 0019814831 | JOINT BEARING |
| TORSION BAR | ||
| 319 | N 009045035001 | SNAP RING |
| ARTICULATED ROD TO LEVER | ||
| 325 | A 3603230274 | PIN |
| Repalced by: A 3605860032 | ||
| 332 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 340 | A 3603230116 | LINK |
| ARTICULATED ROD TO LEVER | ||
| 347 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 355 | A 3603230153 | SPACER TUBE |
| SHACKLE TO BEARING BRACKET | ||
| 362 | N 006797021101 | TOOTHED WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 371 | N 000936020010 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 379 | N 071412010100 | GREASE NIPPLE |
| 381 | A 3605860032 | REPAIR KIT |
| Repalced by: A 3603200041 | ||
| 381 | A 3603200041 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 385 | A 3603200378 | CONSOLE |
| Repalced by: A 3533200378 | ||
| 385 | A 3533200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| CONSOLE TO FRAME | ||
| N 912004012100 | LOCK WASHER | |
| CONSOLE TO FRAME | ||
| N 000934012022 | NUT | |
| CONSOLE TO FRAME | ||
| 392 | A 3603230083 | HOUSING |
| Repalced by: A 3523230283 | ||
| 392 | A 3523230283 | HOUSING |
| TORSION BAR BEARING | ||
| 400 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| N 000933010105 | SCREW | |
| HOUSING TO BEARING BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| HOUSING TO BEARING BRACKET | ||
| N 000934010014 | NUT | |
| HOUSING TO BEARING BRACKET | ||
| 408 | A 3603230265 | TORSION BAR |
| FRONT | ||
| 415 | A 3603230151 | SPACER RING |
| TORSION BAR BEARING | ||
| 423 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| N 000094006317 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| 430 | A 0013263300 | SHOCK ABSORBER |
| REAR | ||
| 430 | A 0013266600 | SHOCK ABSORBER |
| REAR | ||
| 430 | A 0013264600 | SHOCK ABSORBER |
| Repalced by: A 0033269900 | ||
| 430 | A 0033269900 | SHOCK ABSORBER |
| REAR AXLE | ||
| 430 | A 0023261000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 438 | A 0003230785 | RUBBER MOUNTING |
| 446 | A 0003260750 | BUSHING |
| Repalced by: A 0003230553 | ||
| 446 | A 0003230553 | SPACER TUBE |
| 453 | A 3523100140 | CROSS MEMBER |
| Repalced by: A 3523101440 | ||
| 453 | A 3523101440 | CROSS MEMBER |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 460 | A 3523120084 | SHIM |
| Repalced by: A 3123121557 | ||
| 460 | A 3123121557 | MOUNTING PLATE |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 000933010157 | SCREW | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 912004010102 | LOCK WASHER | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 000934010014 | NUT | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 469 | A 3529901301 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 475 | A 3529901540 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 482 | N 000937020001 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| N 000094004065 | COTTER PIN | |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| A 3523260271 | SCREW | |
| SHOCK ABSORBER TO BRACKET | ||
| A 3523260273 | LOCK | |
| SHOCK ABSORBER TO BRACKET | ||
| 490 | A 3523261240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 490 | A 3523261040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 490 | A 3523261340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 490 | A 3523261140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| N 000960014073 | SCREW | |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| N 000960014244 | SCREW | |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| N 000960014145 | SCREW | |
| BRACKET TO SPRING SADDLE | ||
| M 14X130 | ||
| N 912004014100 | LOCK WASHER | |
| BRACKET TO SPRING SADDLE | ||
| 499 | A 3529901201 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 506 | N 000937020001 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| N 000094004065 | COTTER PIN | |
| SHOCK ABSORBER TO BRACKET | ||
| 514 | A 3523260125 | PLATE |
| TORSION BAR,REAR | ||
| 521 | A 3223260151 | SPACER RING |
| Repalced by: A 3523230751 | ||
| 521 | A 3523230751 | SPACER RING |
| TORSION BAR BEARING | ||
| 521 | A 3523230751 | SPACER RING |
| TORSION BAR BEARING | ||
| 521 | A 3523260251 | SPACER RING |
| TORSION BAR BEARING | ||
| 529 | A 3223260065 | TORSION BAR |
| Repalced by: A 3523260665 | ||
| 529 | A 3523260665 | TORSION BAR |
| REAR | ||
| 529 | A 3223260265 | TORSION BAR |
| REAR | ||
| 529 | A 3523260065 | TORSION BAR |
| REAR | ||
| 535 | A 3523260181 | RUBBER MOUNTING |
| REAR OUTSIDE | ||
| 535 | A 3523260181 | RUBBER MOUNTING |
| REAR OUTSIDE | ||
| 535 | A 3523260381 | RUBBER MOUNTING |
| REAR OUTSIDE | ||
| 540 | A 3403260082 | HOUSING |
| REAR OUTSIDE | ||
| 540 | A 3403260082 | HOUSING |
| REAR OUTSIDE | ||
| 540 | A 3523260182 | HOUSING |
| REAR OUTSIDE | ||
| 550 | A 3523260081 | RUBBER MOUNTING |
| REAR INSIDE | ||
| 550 | A 3523260081 | RUBBER MOUNTING |
| REAR INSIDE | ||
| 550 | A 3523260681 | RUBBER MOUNTING |
| REAR INSIDE | ||
| 558 | A 3403260182 | HOUSING |
| REAR INSIDE | ||
| 558 | A 3403260182 | HOUSING |
| REAR INSIDE | ||
| 558 | A 3523260082 | HOUSING |
| REAR INSIDE | ||
| N 000933010145 | SCREW | |
| TORSION BAR BEARING | ||
| M 10X35 | ||
| N 000933010145 | SCREW | |
| TORSION BAR BEARING | ||
| M 10X35 | ||
| N 000931010260 | SCREW | |
| Repalced by: N 304017010030 | ||
| N 304017010030 | SCREW | |
| TORSION BAR BEARING | ||
| M 10X50 | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| TORSION BAR BEARING | ||
| M 10X30 | ||
| N 912004010102 | LOCK WASHER | |
| TORSION BAR BEARING | ||
| N 000934010014 | NUT | |
| TORSION BAR BEARING | ||
| 569 | A 3523260225 | PLATE |
| TORSION BAR,REAR | ||
| A 3223200027 | LEVER | |
| AT TORSION BAR AND SHACKLES | ||
| A 0003261081 | RUBBER MOUNTING | |
| A 0003260350 | BUSHING | |
| A 0003260076 | WASHER | |
| N 000472050001 | LOCK RING | |
| A 0003260057 | SEAL RING | |
| 10.00 MM | ||
| A 0003260157 | SEAL RING | |
| 7.50 MM | ||
| A 3403260174 | PIN | |
| Repalced by: A 3605860132 | ||
| N 000937020001 | NUT | |
| N 000094004065 | COTTER PIN | |
| A 3605860132 | REPAIR KIT | |
| Repalced by: A 3603200141 | ||
| A 3603200141 | REPAIR KIT | |
| TORSION BAR,REAR | ||
| 583 | A 3523260369 | LEVER |
| TORSION BAR,REAR | ||
| 583 | A 3523260069 | LEVER |
| TORSION BAR,REAR | ||
| 585 | A 3523260063 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| N 000961014054 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| N 007991014001 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| A 3604750484 | SHIM | |
| BEARING BRACKET TO FRAME | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| BEARING BRACKET TO FRAME | ||
| N 912004014100 | LOCK WASHER | |
| BEARING BRACKET TO FRAME | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| BEARING BRACKET TO FRAME | ||
| 596 | A 0009810831 | JOINT BEARING |
| 596 | A 0009811231 | JOINT BEARING |
| 600 | N 000472055000 | LOCK RING |
| 604 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 604 | N 071412008102 | GREASE NIPPLE |
| 609 | N 000937027004 | NUT |
| LEVER TO TORSION BAR | ||
| 609 | N 000937028000 | NUT |
| LEVER TO TORSION BAR | ||
| 609 | N 000937028000 | NUT |
| LEVER TO TORSION BAR | ||
| 609 | N 000937027004 | NUT |
| LEVER TO TORSION BAR | ||
| 609 | N 000937040000 | NUT |
| LEVER TO TORSION BAR | ||
| N 000094005045 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| N 000094005045 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| N 000094006014 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| A 3523260147 | SHACKLE | |
| 90 MM | ||
| A 3403260047 | SHACKLE | |
| 120 MM | ||
| 618 | A 3523260153 | SPACER TUBE |
| 623 | A 3603230560 | SEAL RING |
| 629 | A 3523260116 | LINK |
| TORSION BAR,REAR | ||
| 629 | A 3523260216 | LINK |
| TORSION BAR,REAR | ||
| 629 | A 3603260016 | LINK |
| Repalced by: A 3853260016 | ||
| 629 | A 3853260016 | LINK |
| TORSION BAR,REAR | ||
| 634 | A 3523260274 | PIN |
| Repalced by: A 3605860332 | ||
| 636 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 636 | A 3603200341 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 638 | N 070952035101 | LOCK PLATE |
| LINK TO LEVER | ||
| 643 | N 070852035000 | NUT |
| LINK TO LEVER | ||
| A 3223200029 | PLATE | |
| TORSION BAR,REAR | ||
| A 0003261081 | RUBBER MOUNTING | |
| A 0003260350 | BUSHING | |
| A 0003260076 | WASHER | |
| N 000472050000 | LOCK RING | |
| A 0003260057 | SEAL RING | |
| 10.00 MM | ||
| A 0003260157 | SEAL RING | |
| 7.50 MM | ||
| A 3403260174 | PIN | |
| Repalced by: A 3605860132 | ||
| N 000937020001 | NUT | |
| N 000094004065 | COTTER PIN | |
| A 3605860132 | REPAIR KIT | |
| Repalced by: A 3603200141 | ||
| A 3603200141 | REPAIR KIT | |
| TORSION BAR,REAR | ||
| 659 | A 3523250331 | PLATE |
| Repalced by: A 3523200035 | ||
| A 3523200035 | PLATE | |
| TORSION BAR,REAR | ||
| 665 | A 0009810831 | JOINT BEARING |
| 665 | A 0009811231 | JOINT BEARING |
| 671 | N 000472055000 | LOCK RING |
| 679 | N 071412008302 | GREASE NIPPLE |

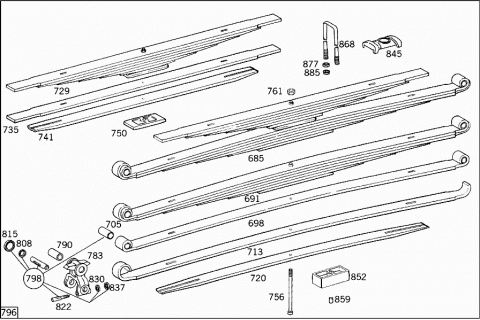

| 685 | A 3523201408 | REAR SPRING |
| 6-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 685 | A 3523201408 | REAR SPRING |
| 6-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 691 | A 3523201506 | REAR SPRING |
| 6-LEAF | ||
| 691 | A 3523201506 | REAR SPRING |
| 6-LEAF | ||
| 698 | A 3523201693 | SPRING LEAF |
| NO.1 | ||
| 698 | A 3523201693 | SPRING LEAF |
| NO.1 | ||
| 705 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 705 | A 3523250150 | BUSHING |
| 705 | A 3523250150 | BUSHING |
| 705 | A 3853250050 | BUSHING |
| 705 | A 3853250050 | BUSHING |
| 713 | A 3523241812 | SPRING LEAF |
| NO.2 | ||
| 713 | A 3523241812 | SPRING LEAF |
| NO.2 | ||
| 720 | A 3523241813 | SPRING LEAF |
| NO.3 | ||
| 720 | A 3523241813 | SPRING LEAF |
| NO.3 | ||
| A 3523241714 | SPRING LEAF | |
| NO.4 | ||
| A 3523241714 | SPRING LEAF | |
| NO.4 | ||
| A 3523241715 | SPRING LEAF | |
| NO.5 | ||
| A 3523241715 | SPRING LEAF | |
| NO.5 | ||
| A 3523241716 | SPRING LEAF | |
| NO.6 | ||
| A 3523241716 | SPRING LEAF | |
| NO.6 | ||
| N 004626012136 | SPRING BOLT | |
| FOR REAR SPRING LESS HELPER SPRING | ||
| N 004626012136 | SPRING BOLT | |
| FOR REAR SPRING LESS HELPER SPRING | ||
| N 000934012010 | NUT | |
| N 000934012010 | NUT | |
| 729 | A 3523200610 | HELPER SPRING |
| 6-LEAF | ||
| 729 | A 3523200610 | HELPER SPRING |
| 6-LEAF | ||
| 735 | A 3523241140 | SPRING LEAF |
| NO.1 | ||
| 735 | A 3523241140 | SPRING LEAF |
| NO.1 | ||
| 741 | A 3523241141 | SPRING LEAF |
| NO.2 | ||
| 741 | A 3523241141 | SPRING LEAF |
| NO.2 | ||
| A 3523241042 | SPRING LEAF | |
| NO.3 | ||
| A 3523241042 | SPRING LEAF | |
| NO.3 | ||
| A 3523241043 | SPRING LEAF | |
| NO.4 | ||
| A 3523241043 | SPRING LEAF | |
| NO.4 | ||
| A 3523241044 | SPRING LEAF | |
| NO.5 | ||
| A 3523241044 | SPRING LEAF | |
| NO.5 | ||
| A 3523241045 | SPRING LEAF | |
| NO.6 | ||
| A 3523241045 | SPRING LEAF | |
| NO.6 | ||
| 750 | A 3523240135 | SPACER |
| 750 | A 3523240135 | SPACER |
| 756 | N 004626012156 | SPRING BOLT |
| 756 | N 004626012156 | SPRING BOLT |
| 761 | N 000934012010 | NUT |
| 761 | N 000934012010 | NUT |
| A 3523201206 | REAR SPRING | |
| 11-LEAF | ||
| A 3523201793 | SPRING LEAF | |
| NO.1 | ||
| A 3273255050 | BUSHING | |
| Repalced by: A 3523250150 | ||
| A 3523250150 | BUSHING | |
| A 3853250050 | BUSHING | |
| A 3523242012 | SPRING LEAF | |
| NO.2 | ||
| A 3523242013 | SPRING LEAF | |
| NO.3 | ||
| A 3523241914 | SPRING LEAF | |
| Repalced by: A 3523202493 | ||
| A 3523202493 | SPRING LEAF | |
| NO.4,WITH SPRING CLAMP | ||
| A 3603210033 | SPRING CLAMP | |
| N 910006008024 | RIVET | |
| A 3523241915 | SPRING LEAF | |
| NO.5 | ||
| A 3523241816 | SPRING LEAF | |
| NO.6 | ||
| A 3523241617 | SPRING LEAF | |
| NO.7 | ||
| A 3523241518 | SPRING LEAF | |
| NO.8 | ||
| A 3523241219 | SPRING LEAF | |
| NO.9 | ||
| A 3523241120 | SPRING LEAF | |
| NO.10 | ||
| A 3523240421 | SPRING LEAF | |
| NO.11 | ||
| N 004626012113 | SPRING BOLT | |
| N 000934012010 | NUT | |
| A 0003212553 | SPACER TUBE | |
| Repalced by: A 0003212753 | ||
| A 3033210153 | SPACER TUBE | |
| Repalced by: A 0003212753 | ||
| A 0003212753 | SPACER TUBE | |
| N 000931012081 | SCREW | |
| N 000934012022 | NUT | |
| 783 | A 3523200163 | SHACKLE |
| 790 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 790 | A 3523250150 | BUSHING |
| 790 | A 3853250050 | BUSHING |
| 796 | A 3523250530 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| 796 | A 3853250030 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| 798 | A 3855860132 | REPAIR KIT |
| Repalced by: A 3855860232 | ||
| 798 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 798 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| N 000933010105 | SCREW | |
| HOUSING TO BEARING BRACKET | ||
| 808 | A 3523230776 | WASHER |
| Repalced by: A 3523230976 | ||
| 808 | A 3523230876 | WASHER |
| Repalced by: A 3523230976 | ||
| 808 | A 3523231276 | WASHER |
| Repalced by: A 3523230976 | ||
| 808 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 808 | A 3523231376 | WASHER |
| Repalced by: A 3523231076 | ||
| 808 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 808 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 815 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 822 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 830 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 830 | N 000125010532 | WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 837 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 837 | N 910113010000 | NUT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 845 | A 3213250831 | PLATE |
| Repalced by: A 3833250031 | ||
| 845 | A 3543515026 | SPRING CLAMPING PLATE |
| Repalced by: A 3833250031 | ||
| 845 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 852 | A 3523250384 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 859 | A 3129910960 | DOWEL PIN |
| REAR SPRING TO REAR AXLE | ||
| 859 | A 3129910460 | DOWEL PIN |
| REAR SPRING TO REAR AXLE | ||
| 868 | A 3213512325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 868 | A 3403510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 868 | A 3403510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 868 | A 3403510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 868 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 460 MM | ||
| 868 | A 3383515425 | U-BOLT |
| Repalced by: A 3383515125 | ||
| 868 | A 3383515125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 470 MM | ||
| 868 | A 3383515125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 470 MM | ||
| 868 | A 3273510325 | U-BOLT |
| Repalced by: A 3403510025 | ||
| 868 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| 868 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 430 MM | ||
| 868 | A 3123514825 | U-BOLT |
| Repalced by: A 3523511225 | ||
| 868 | A 3523511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 330 MM | ||
| 877 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 885 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
