Transporto priemonė: LAS 1313; VIN numerio dalis: 352114
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

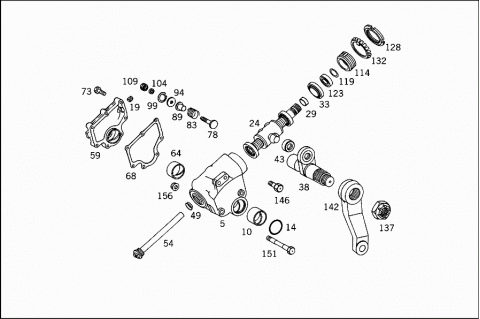

| A 3274606101 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3274606501 | ||
| A 3274606501 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3444601201 | ||
| A 3444601201 | STEERING BOX ASSEMBLY | |
| A 3274606201 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3094601501 | ||
| A 3094601501 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3084600001 | ||
| A 3084600001 | STEERING BOX ASSEMBLY | |
| 005 | A 3214601302 | STEERING BOX |
| WITH BEARING BUSHING | ||
| 005 | A 3274600202 | STEERING BOX |
| WITH BEARING BUSHING | ||
| 010 | A 3214610350 | BUSHING |
| STANDARD | ||
| 47.10 MM | ||
| 010 | A 3214610550 | BUSHING |
| REPAIR SIZE I | ||
| 47.60 MM | ||
| 014 | A 0019970645 | SEAL RING |
| 014 | A 0049976845 | SEAL RING |
| 019 | A 3029970035 | PLUG |
| Repalced by: N 000906016002 | ||
| 019 | N 000906016002 | SCREW PLUG |
| BOX COVER | ||
| 024 | A 3274602208 | STEERING WORM |
| Repalced by: A 4064600118 | ||
| 024 | A 4064600118 | STEERING NUT |
| Repalced by: A 4064600218 | ||
| 024 | A 4064600218 | STEERING NUT |
| WITH WORM | ||
| A 3274602308 | STEERING WORM | |
| Repalced by: A 3094600708 | ||
| A 3094600708 | STEERING WORM | |
| Repalced by: A 3094601018 | ||
| A 3094601018 | STEERING NUT | |
| Repalced by: A 3094600708 | ||
| A 3094600708 | STEERING WORM | |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| 029 | A 3219970740 | SEAL RING |
| STEERING NUT BEARING | ||
| 033 | A 0009811306 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 033 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 033 | A 0009810806 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 038 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 043 | A 3214620537 | BALL CUP |
| STEERING WORM SECTOR SHAFT | ||
| N 009045038001 | SNAP RING | |
| STEERING WORM SECTOR SHAFT | ||
| 049 | A 3219970640 | SEAL RING |
| STEERING WORM SECTOR SHAFT | ||
| 054 | A 3214600315 | OIL LEVEL CHECK PIPE |
| STEERING WORM SECTOR SHAFT | ||
| N 007603030400 | SEAL RING | |
| STEERING WORM SECTOR SHAFT | ||
| N 007604030201 | SCREW PLUG | |
| Repalced by: N 007604030206 | ||
| N 007604030206 | SCREW PLUG | |
| STEERING WORM SECTOR SHAFT | ||
| 059 | A 3274600214 | STEERING BOX COVER |
| Repalced by: A 3214600414 | ||
| 059 | A 3214600414 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| A 3274600314 | STEERING BOX COVER | |
| Repalced by: A 3214600514 | ||
| 059 | A 3214600514 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 064 | A 3214620250 | BUSHING |
| 068 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 068 | A 3524610180 | GASKET |
| COVER TO BOX | ||
| 073 | A 0019909101 | SCREW |
| COVER TO BOX | ||
| 078 | A 3214620171 | SCREW |
| STEERING SHAFT TO BOX | ||
| 083 | A 3219932201 | SPRING |
| STEERING SHAFT TO BOX | ||
| 089 | A 3214620185 | THRUST PIECE |
| STEERING SHAFT TO BOX | ||
| 094 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT TO BOX | ||
| 099 | A 0009946041 | LOCK |
| STEERING SHAFT TO BOX | ||
| 104 | A 0019976140 | SEAL RING |
| STEERING SHAFT TO BOX | ||
| 109 | A 3219900050 | NUT |
| STEERING SHAFT TO BOX | ||
| A 0029900251 | NUT | |
| STEERING SHAFT TO BOX | ||
| 114 | A 3224620151 | RING |
| STEERING NUT BEARING | ||
| 119 | A 0029979845 | SEAL RING |
| STEERING NUT BEARING | ||
| 123 | A 0029974346 | SEAL RING |
| STEERING NUT BEARING | ||
| 128 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 128 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 132 | A 3229940115 | LOCK |
| STEERING NUT BEARING | ||
| 137 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094006013 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 142 | A 3524631401 | PITMAN ARM |
| 142 | A 3524631501 | PITMAN ARM |
| 146 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 151 | A 3229900914 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 156 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| N 000094003222 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||

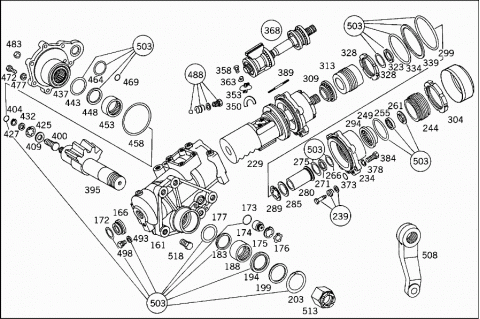

| A 3604603101 | STEERING BOX ASSEMBLY | |
| A 3604603201 | STEERING BOX ASSEMBLY | |
| A 3604601602 | STEERING BOX | |
| Repalced by: A 3604602802 | ||
| 161 | A 3604602802 | STEERING BOX |
| WITH SLEEVE VALVE | ||
| 161 | A 3604601702 | STEERING BOX |
| Repalced by: A 3604602902 | ||
| 161 | A 3604602902 | STEERING BOX |
| WITH SLEEVE VALVE | ||
| 166 | A 3604610005 | COVER |
| STEERING BOX | ||
| 172 | A 0059979345 | SEAL RING |
| STEERING BOX | ||
| 173 | A 0059979445 | SEAL RING |
| VALVE HOUSING SEALING | ||
| 174 | A 3604660105 | COVER |
| VALVE HOUSING SEALING | ||
| 174 | A 3604660305 | COVER |
| VALVE HOUSING SEALING | ||
| 174 | A 3604660405 | COVER |
| VALVE HOUSING SEALING | ||
| 175 | A 0019943741 | LOCK |
| VALVE HOUSING SEALING | ||
| 176 | A 0009945541 | LOCK |
| VALVE HOUSING SEALING | ||
| 177 | A 0069977445 | SEAL RING |
| STEERING NUT BEARING | ||
| 55X3 | ||
| 183 | A 3604660260 | SEAL RING |
| STEERING NUT BEARING | ||
| 55.5X3.5 | ||
| 188 | A 0039812110 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 194 | A 0059974246 | SEAL RING |
| Repalced by: A 0119977946 | ||
| 199 | A 0119977946 | SEAL RING |
| STEERING SHAFT BEARING | ||
| 203 | A 1124660173 | LOCK |
| STEERING SHAFT BEARING | ||
| 229 | A 3604602185 | PISTON |
| WITH STEERING WORM AND STEERING NUT | ||
| 229 | A 3604602285 | PISTON |
| WITH STEERING WORM AND STEERING NUT | ||
| A 3604661383 | PISTON | |
| 234 | A 3604602014 | STEERING BOX COVER |
| PISTON | ||
| 234 | A 3604602114 | STEERING BOX COVER |
| PISTON | ||
| 239 | A 3605861646 | REPAIR KIT |
| CHECK VALVE IN BEARING COVER | ||
| 244 | A 3604620034 | SCREW COLLAR |
| 249 | A 0029974745 | SEAL RING |
| STEERING NUT BEARING | ||
| 75X3 | ||
| 255 | A 0059974346 | SEAL RING |
| Repalced by: A 0119977246 | ||
| 261 | A 0119977246 | SEAL RING |
| Repalced by: A 0149976947 | ||
| 261 | A 0149976947 | SEAL RING |
| STEERING NUT BEARING | ||
| 28-40-8/6 MM | ||
| 266 | A 3604660460 | SEAL RING |
| STEERING NUT BEARING | ||
| 32.15X3.4 MM | ||
| 271 | A 0079973745 | SEAL RING |
| STEERING NUT BEARING | ||
| 33X3 MM | ||
| 275 | A 0009979745 | SEAL RING |
| STEERING NUT BEARING | ||
| 9X2.5 MM | ||
| 280 | A 3604610050 | BUSHING |
| STEERING NUT BEARING | ||
| 285 | N 000988037006 | FITTED WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 285 | N 000988037007 | FITTED WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 285 | N 000988037008 | FITTED WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 285 | N 000988037009 | FITTED WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 289 | A 0019943441 | LOCK |
| 294 | A 3609810027 | ANGULAR CONTACT BEARING |
| STEERING WORM | ||
| 299 | A 0089971345 | SEAL RING |
| STEERING NUT BEARING | ||
| 304 | N 070852085000 | NUT |
| Repalced by: A 6173560026 | ||
| 304 | A 6173560026 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 309 | A 3609810227 | ANGULAR CONTACT BEARING |
| STEERING NUT BEARING | ||
| 313 | A 3604660205 | COVER |
| STEERING NUT BEARING | ||
| N 070852070000 | NUT | |
| STEERING NUT BEARING | ||
| 323 | A 3604660060 | SEAL RING |
| STEERING NUT BEARING | ||
| 328 | A 0059979645 | SEAL RING |
| STEERING NUT BEARING | ||
| 41X3 MM | ||
| 334 | A 3604660660 | SEAL RING |
| STEERING NUT BEARING | ||
| 117.3X4 MM | ||
| 339 | A 0079979445 | SEAL RING |
| STEERING NUT BEARING | ||
| 102X5.5 MM | ||
| 350 | A 3604620225 | BALL GUIDE |
| 350 | A 3604620325 | BALL GUIDE |
| 353 | A 3609950120 | CLAMP |
| BALL GUIDE TO PISTON | ||
| 358 | A 1209900520 | SCREW |
| BALL GUIDE TO PISTON | ||
| 363 | A 1129940005 | LOCK |
| BALL GUIDE TO PISTON | ||
| 368 | A 3605861946 | REPAIR KIT |
| STEERING WORM WITH NUT | ||
| 368 | A 3605862046 | REPAIR KIT |
| STEERING WORM WITH NUT | ||
| A 3604620225 | BALL GUIDE | |
| A 3604620325 | BALL GUIDE | |
| A 3609950120 | CLAMP | |
| A 1209900520 | SCREW | |
| A 1129940005 | LOCK | |
| A 3609810227 | ANGULAR CONTACT BEARING | |
| A 3609810027 | ANGULAR CONTACT BEARING | |
| A 3609810085 | BALL | |
| A 3604603199 | INSTALLATION KIT | |
| CONICAL SPRING WASHER CUSHIONING | ||
| A 3604620028 | BEARING RING | |
| A 3604620128 | BEARING RING | |
| A 3604620228 | BEARING RING | |
| A 3609902140 | WASHER | |
| A 0059812510 | NEEDLE BEARING | |
| A 3859930026 | DISC SPRING | |
| A 3859930126 | DISC SPRING | |
| A 3859810018 | ROLLER BEARING | |
| 373 | A 0059979745 | SEAL RING |
| COVER TO STEERING BOX | ||
| 9X2.5 MM | ||
| 378 | N 912004010102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 384 | N 000933010200 | SCREW |
| COVER TO STEERING BOX | ||
| M 10X30 | ||
| 389 | A 3604660983 | PISTON |
| STROKE LIMIT | ||
| 395 | A 3604600011 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 400 | A 3604620071 | SCREW |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 404 | A 0059979845 | SEAL RING |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 10X3 MM | ||
| 409 | A 3604620152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 409 | A 3604620252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 409 | A 3604620352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 409 | A 3604620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 409 | A 3604620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 409 | A 3604620652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 409 | A 3604620852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.80 MM | ||
| 409 | A 3604620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.75 MM | ||
| 409 | A 3604620952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.70 MM | ||
| 409 | A 3604621052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.65 MM | ||
| 409 | A 3604621152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.60 MM | ||
| 409 | A 3604621252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.55 MM | ||
| 409 | A 3604621352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 409 | A 3604621452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.45 MM | ||
| 409 | A 3604621552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.40 MM | ||
| 425 | A 0049949441 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 427 | A 3604620062 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 432 | N 000471015000 | LOCK RING |
| STEERING SHAFT BEARING IN COVER | ||
| 15X1 MM | ||
| 437 | A 3604601614 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| A 3604602214 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| 437 | A 3604601714 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 437 | A 3604602314 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 443 | A 3604660260 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 448 | A 0069977445 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 55X3 | ||
| 453 | A 0039812210 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| 458 | A 0059979945 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 11X4 MM | ||
| 464 | A 0059979645 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 41X3 MM | ||
| 469 | A 0059979745 | SEAL RING |
| BOX COVER | ||
| 9X2.5 MM | ||
| 472 | N 000933010200 | SCREW |
| COVER TO STEERING BOX | ||
| 477 | N 912004010102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 483 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 483 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 483 | N 308675014002 | NUT |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 488 | A 3605861746 | REPAIR KIT |
| CHECK VALVE IN BOX | ||
| 493 | N 007603012405 | SEAL RING |
| OIL DRAIN | ||
| 498 | A 3859970030 | SCREW PLUG |
| Repalced by: N 000910012000 | ||
| 498 | N 000910012000 | SCREW PLUG |
| OIL DRAIN | ||
| 503 | A 3605861846 | REPAIR KIT |
| (GASKET KIT) | ||
| 508 | A 3604630201 | PITMAN ARM |
| 508 | A 3604630301 | PITMAN ARM |
| 513 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 518 | A 3529900302 | SCREW |
| STEERING TO STEERING BRACKET | ||
| N 000177001003 | WIRE | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 1.60 MM | ||

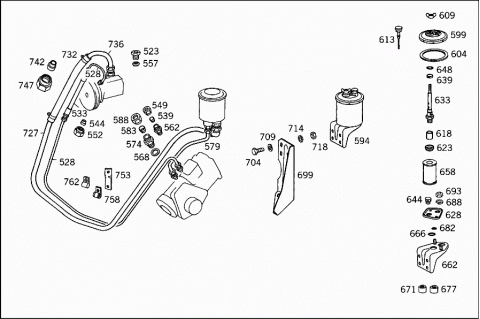

| 523 | A 1899970172 | FITTING |
| LINE TO OIL PUMP | ||
| 528 | A 0002610283 | OIL PIPE |
| 10 MM | ||
| 528 | A 0002610283 | OIL PIPE |
| FROM PUMP TO HOSE | ||
| 10 MM | ||
| 528 | A 0002610283 | OIL PIPE |
| FROM HOSE TO STEERING | ||
| 10 MM | ||
| 533 | A 3609970682 | HOSE |
| 533 | A 3609971282 | HOSE |
| 539 | N 003861010009 | GLAND |
| FOR 10-MM PIPE | ||
| 544 | N 003861010009 | GLAND |
| FOR 10-MM PIPE | ||
| 549 | N 915017010104 | UNION NUT |
| FOR 10-MM PIPE | ||
| 552 | N 915017010100 | UNION NUT |
| FOR 10-MM PIPE | ||
| 557 | A 3229970076 | SEAL CONE |
| LINE TO OIL PUMP | ||
| 562 | N 003901010009 | SCREW-IN FITTING |
| FROM DELIVERY LINE TO STEERING | ||
| 568 | N 007603018101 | SEAL RING |
| FROM DELIVERY LINE TO STEERING | ||
| 574 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| 579 | A 3604600024 | LINE |
| FROM STEERING TO OIL TANK | ||
| A 3604660165 | LINE | |
| FROM STEERING TO HOSE | ||
| A 3439970582 | HOSE | |
| Repalced by: A 6999974082 | ||
| A 6999974082 | HOSE | |
| Repalced by: A 3859971682 | ||
| A 3859971682 | HOSE | |
| FROM STEERING TO OIL TANK | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| FROM STEERING TO OIL TANK | ||
| 583 | N 003861015004 | GLAND |
| OIL LINES | ||
| 588 | N 915017015100 | UNION NUT |
| OIL LINES | ||
| 594 | A 0004662402 | TANK |
| STEERING | ||
| 599 | A 0004661305 | COVER |
| 604 | A 0004660260 | SEAL RING |
| 609 | N 000315008006 | NUT |
| 613 | A 0004660067 | OIL DIPSTICK |
| 618 | A 0009870643 | RUBBER SLEEVE |
| 623 | A 0004660675 | CENTERING RING |
| 628 | A 0004660037 | REINFORCEMENT |
| 633 | A 0014664465 | FILTER CARRIER |
| 639 | A 0004660153 | SPACER TUBE |
| 644 | A 0004660571 | FITTING |
| 648 | A 0004660775 | WASHER |
| 658 | A 0004660604 | FILTER |
| 662 | A 0004660840 | BRACKET |
| 666 | A 0059970848 | SEAL RING |
| 671 | A 0004660358 | CONNECTOR |
| 677 | A 0004660458 | CONNECTOR |
| 682 | A 0099970145 | SEAL RING |
| 688 | N 912004008102 | LOCK WASHER |
| 693 | N 304032008006 | NUT |
| 699 | A 3604660240 | BRACKET |
| OIL TANK | ||
| 699 | A 3604660440 | BRACKET |
| OIL TANK | ||
| 699 | A 3604660540 | BRACKET |
| OIL TANK | ||
| 704 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET | ||
| N 000933010105 | SCREW | |
| OIL TANK TO BRACKET | ||
| 709 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 709 | N 000125010532 | WASHER |
| OIL TANK TO BRACKET | ||
| 714 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 718 | N 000934010014 | NUT |
| OIL TANK TO BRACKET | ||
| N 000933010128 | SCREW | |
| OIL TANK TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| OIL TANK TO BRACKET | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| OIL TANK TO BRACKET | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| OIL TANK TO BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| OIL TANK TO BRACKET | ||
| N 304032008006 | NUT | |
| OIL TANK TO BRACKET | ||
| 727 | A 3604606324 | LINE |
| FROM OIL TANK TO HOSE | ||
| A 3604603124 | LINE | |
| FROM OIL TANK TO HOSE | ||
| 732 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 732 | A 3859971582 | HOSE |
| FROM OIL TANK TO PUMP | ||
| N 916017025000 | CLAMP | |
| Repalced by: N 000000000668 | ||
| N 000000000668 | CLAMP | |
| FROM OIL TANK TO PUMP | ||
| A 3604663565 | LINE | |
| FROM HOSE TO PUMP | ||
| 736 | A 3604605724 | LINE |
| FROM HOSE TO PUMP | ||
| A 3604603724 | LINE | |
| FROM HOSE TO PUMP | ||
| 736 | A 3604605824 | LINE |
| FROM HOSE TO PUMP | ||
| 742 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 742 | A 0019901267 | SEAL CONE |
| OIL LINES | ||
| 747 | N 915017022100 | UNION NUT |
| OIL LINES | ||
| N 915017022200 | UNION NUT | |
| OIL LINES | ||
| 753 | A 3604660340 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| 753 | A 3604660740 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| 758 | N 916016010203 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| N 916016022202 | CLAMP | |
| DELIVERY AND SUCTION LINES | ||
| 22 MM | ||
| 762 | A 3609950401 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 12 MM | ||
| 762 | A 3609950301 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 10 MM | ||
| 762 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 762 | N 916016018202 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 22 MM | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| DELIVERY AND SUCTION LINES | ||
| M 8X20 | ||
| N 912004008102 | LOCK WASHER | |
| DELIVERY AND SUCTION LINES | ||
| N 304032008006 | NUT | |
| DELIVERY AND SUCTION LINES | ||
| N 000084006197 | SCREW | |
| DELIVERY AND SUCTION LINES | ||
| AM 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| DELIVERY AND SUCTION LINES | ||
| N 000934006007 | NUT | |
| DELIVERY AND SUCTION LINES | ||

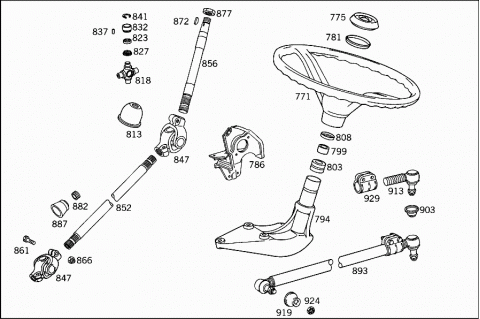

| 771 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 771 | A 0004641101 | STEERING WHEEL |
| A 0004641201 | STEERING WHEEL | |
| 775 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 775 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 781 | A 0004640177 | PROTECTIVE RING |
| 786 | A 3224600935 | BRACKET |
| AT FRAME | ||
| A 3604600029 | STEERING BRACKET | |
| AT FRAME | ||
| 786 | A 3224601235 | BRACKET |
| AT FRAME | ||
| A 3604600129 | STEERING BRACKET | |
| AT FRAME | ||
| N 910005012080 | RIVET | |
| STEERING BRACKET TO FRAME | ||
| N 910005014056 | RIVET | |
| STEERING BRACKET TO FRAME | ||
| A 0029908201 | SCREW | |
| STEERING BRACKET TO SIDE MEMBER | ||
| A 3229903101 | SCREW | |
| STEERING TO FRAME | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| STEERING BRACKET TO SIDE MEMBER | ||
| N 000934014020 | NUT | |
| STEERING TO FRAME | ||
| 794 | A 3434600037 | BEARING |
| Repalced by: A 3434600137 | ||
| A 3434600137 | BEARING | |
| Repalced by: A 3434600237 | ||
| 794 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 794 | A 3434600237 | BEARING |
| 799 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 799 | A 0119815110 | NEEDLE BEARING |
| 803 | A 3214620165 | RING |
| 808 | A 3224620023 | COVER |
| N 000931010258 | SCREW | |
| STEERING COLUMN BRACKET TO CAB | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| STEERING COLUMN BRACKET TO CAB | ||
| N 000137010201 | SPRING WASHER | |
| STEERING COLUMN BRACKET TO CAB | ||
| 813 | A 3524620296 | BOOT |
| Repalced by: A 3604620596 | ||
| 813 | A 3604620596 | BOOT |
| UNIVERSAL JOINT TO STEERING | ||
| 818 | A 1884100231 | UNIVERSAL JOINT CROSS |
| 823 | A 1884110258 | SEAL HOLDER |
| 827 | A 1884110460 | RUBBER RING |
| 832 | A 1104110242 | BEARING BUSHING |
| A 1104110342 | BEARING BUSHING | |
| 837 | A 0009811487 | NEEDLE |
| Repalced by: A 3229810087 | ||
| 837 | A 3229810087 | NEEDLE |
| SET = 192 PIECES | ||
| 841 | A 1889940534 | SNAP RING |
| AS REQUIRED | ||
| 1.45 MM | ||
| 841 | A 1889940034 | SNAP RING |
| AS REQUIRED | ||
| 1.50 MM | ||
| 841 | A 1889940134 | SNAP RING |
| AS REQUIRED | ||
| 1.55 MM | ||
| 841 | A 1889940234 | SNAP RING |
| AS REQUIRED | ||
| 1.60 MM | ||
| 841 | A 1889940334 | SNAP RING |
| AS REQUIRED | ||
| 1.65 MM | ||
| 841 | A 1889940434 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 847 | A 3524600057 | UNIVERSAL JOINT |
| 847 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 847 | A 0004600057 | UNIVERSAL JOINT |
| 847 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 847 | A 0004600157 | UNIVERSAL JOINT |
| 847 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 852 | A 3384625101 | STEERING SHAFT |
| 852 | A 3544625201 | STEERING SHAFT |
| A 3604621301 | STEERING SHAFT | |
| A 3604622201 | STEERING SHAFT | |
| A 3604621201 | STEERING SHAFT | |
| A 3604622101 | STEERING SHAFT | |
| 856 | A 3524620001 | STEERING SHAFT |
| Repalced by: A 3524623901 | ||
| 856 | A 3524623901 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 856 | A 3524621801 | STEERING SHAFT |
| Repalced by: A 3524624101 | ||
| 856 | A 3524624101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 856 | A 3524622601 | STEERING SHAFT |
| Repalced by: A 3524623101 | ||
| 856 | A 3524623101 | STEERING SHAFT |
| TOP | ||
| 856 | A 3524622801 | STEERING SHAFT |
| Repalced by: A 3524623601 | ||
| 856 | A 3524623601 | STEERING SHAFT |
| TOP | ||
| 861 | A 3219900401 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 10X35 | ||
| 861 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X38 | ||
| 861 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X42 | ||
| N 000463010502 | LOCK PLATE | |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 866 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 872 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 877 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 882 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| 887 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| 893 | A 3524602305 | DRAG LINK |
| Repalced by: A 3524603105 | ||
| 893 | A 3524603105 | DRAG LINK |
| Repalced by: A 3524605605 | ||
| 893 | A 3524605605 | DRAG LINK |
| LEMFOERDER | ||
| 893 | A 3524602405 | DRAG LINK |
| Repalced by: A 3524603105 | ||
| 893 | A 3524603205 | DRAG LINK |
| Repalced by: A 3524603105 | ||
| 893 | A 3524604905 | DRAG LINK |
| Repalced by: A 3524604805 | ||
| 893 | A 3524604805 | DRAG LINK |
| EHRENREICH | ||
| 893 | A 3524604805 | DRAG LINK |
| EHRENREICH | ||
| 893 | A 3524604805 | DRAG LINK |
| EHRENREICH | ||
| 903 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 903 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 903 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 903 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 913 | A 0003303135 | JOINT |
| Repalced by: A 0013300335 | ||
| 913 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 913 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 913 | A 0013300435 | JOINT |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 913 | A 0013300435 | JOINT |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 913 | A 0013300435 | JOINT |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 919 | A 0003300385 | BOOT |
| Repalced by: A 0003301185 | ||
| 919 | A 0003301185 | BOOT |
| 919 | A 0003301185 | BOOT |
| 924 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| 929 | A 0003381545 | CLAMP |
| CLAMP, TWO-HOLE | ||
| 929 | A 0003381545 | CLAMP |
| CLAMP, TWO-HOLE | ||
| A 0003381645 | CLAMP | |
| Repalced by: A 4619955044 | ||
| A 0003383345 | CLAMP | |
| Repalced by: A 4619955044 | ||
| A 4619955044 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| "6245" | ||
| N 000960010035 | SCREW | |
| CLAMP, TWO-HOLE | ||
| N 000960010035 | SCREW | |
| CLAMP, TWO-HOLE | ||
| N 000960010072 | SCREW | |
| CLAMP, ONE-HOLE | ||
| N 000935010010 | NUT | |
| CLAMP, TWO-HOLE | ||
| N 000935010010 | NUT | |
| CLAMP, TWO-HOLE | ||
| N 913004010010 | NUT | |
| Repalced by: N 910113010002 | ||
| N 910113010002 | NUT | |
| CLAMP, ONE-HOLE | ||
| N 000094002077 | COTTER PIN | |
| CLAMP TO DRAG LINK | ||
| N 000094002077 | COTTER PIN | |
| CLAMP TO DRAG LINK | ||
| 924 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
