Transporto priemonė: LAS 1924; VIN numerio dalis: 346114

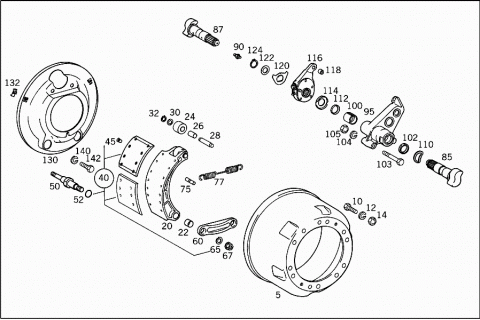

Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3354210301 | BRAKE DRUM |
| 010 | A 0009900514 | SCREW |
| 012 | N 912004014100 | LOCK WASHER |
| 014 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 014 | N 308673014001 | NUT |
| 020 | A 3354202920 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 020 | A 3354203020 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 020 | A 3354203120 | BRAKE SHOE |
| Repalced by: A 3354200119 | ||
| 020 | A 3354200119 | BRAKE SHOE |
| 022 | A 3354210450 | BUSHING |
| 024 | A 3174200139 | ROLLER |
| Repalced by: A 3014200039 | ||
| 024 | A 3464200039 | ROLLER |
| Repalced by: A 3014200039 | ||
| 024 | A 3014200039 | ROLLER |
| Repalced by: A 3354200039 | ||
| 026 | A 3174210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 026 | A 3464210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 026 | A 3464210550 | BUSHING |
| TO 346 420 00 39 | ||
| 026 | A 6204210050 | BUSHING |
| TO 346 420 00 39 | ||
| A 3014210050 | BUSHING | |
| TO 301 420 00 39 | ||
| A 0039971548 | SEAL RING | |
| 028 | A 3354210074 | PIN |
| Repalced by: A 3354200039 | ||
| A 3354200039 | REPAIR KIT | |
| 030 | A 3179901640 | WASHER |
| 032 | N 000471017000 | LOCK RING |
| 040 | A 3494210610 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.00 MM,8X 349 421 03 10) | ||
| 040 | A 3494211210 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.00 MM,8X 349 421 09 10) | ||
| 040 | A 3494210710 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.00 MM,8X 349 421 04 10) | ||
| 040 | A 3494211310 | BRAKE LINING |
| Repalced by: A 3494211410 | ||
| 040 | A 3494211410 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.00 MM,8X 349 421 10 10) | ||
| 040 | A 3494210810 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.00 MM,8X 349 421 05 10) | ||
| 040 | A 3494211410 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.00 MM,8X 349 421 11 10) | ||
| 045 | N 007338008307 | RIVET |
| Repalced by: A 3079900297 | ||
| 045 | A 3079900297 | RIVET |
| 050 | A 3354210018 | PIVOT PIN |
| Repalced by: A 3354210218 | ||
| 050 | A 3354210218 | PIVOT PIN |
| 052 | A 0089974245 | SEAL RING |
| 060 | A 3354230044 | THRUST SHACKLE |
| Repalced by: A 3354230144 | ||
| 060 | A 3354230144 | THRUST SHACKLE |
| A 3174210016 | THRUST PIECE | |
| N 000937022000 | NUT | |
| N 000094005013 | COTTER PIN | |
| 065 | N 074361022351 | LOCK WASHER |
| 067 | N 074361022205 | NUT |
| 075 | A 3354210174 | PIN |
| 077 | A 3354210192 | SPRING |
| 085 | A 3354210336 | BRAKE CAMSHAFT |
| 087 | A 3354210436 | BRAKE CAMSHAFT |
| 090 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 090 | N 071412008102 | GREASE NIPPLE |
| 095 | A 3354202878 | BEARING BRACKET |
| LEFT | ||
| A 3354202778 | BEARING BRACKET | |
| RIGHT | ||
| 100 | A 3354210250 | BUSHING |
| 102 | A 0029976946 | SEAL RING |
| Repalced by: A 0219972947 | ||
| 102 | A 0219972947 | SEAL RING |
| 103 | N 000960016172 | SCREW |
| 104 | N 912004016101 | LOCK WASHER |
| 105 | N 000934016002 | NUT |
| 110 | A 3354210752 | SPACER WASHER |
| 112 | A 0059978145 | SEAL RING |
| 114 | A 3354211052 | SPACER WASHER |
| 116 | A 3054200038 | ADJUSTER |
| 118 | A 0004230550 | BUSHING |
| 120 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 120 | N 308673014001 | NUT |
| 122 | A 3174210352 | SPACER WASHER |
| 2.0 MM | ||
| 124 | N 000471030000 | LOCK RING |
| 130 | A 3354200144 | PROTECTIVE PLATE |
| 132 | A 3094210211 | PLUG |
| 140 | N 912004010102 | LOCK WASHER |
| 142 | N 304017010027 | SCREW |

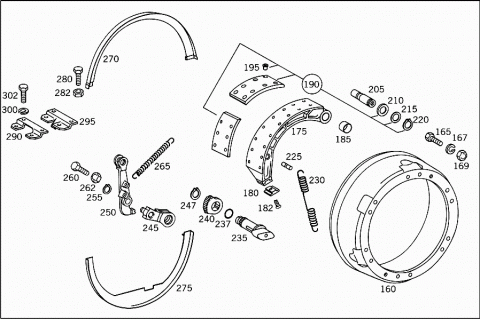

| 160 | A 3044210101 | BRAKE DRUM |
| 160 | A 3364210001 | BRAKE DRUM |
| 165 | A 3043340071 | SCREW |
| BRAKE DRUM TO FRONT WHEEL SPIDER | ||
| 165 | A 0009900514 | SCREW |
| BRAKE DRUM TO FRONT WHEEL SPIDER | ||
| 167 | N 912004014100 | LOCK WASHER |
| BRAKE DRUM TO FRONT WHEEL SPIDER | ||
| 167 | N 912004014100 | LOCK WASHER |
| BRAKE DRUM TO FRONT WHEEL SPIDER | ||
| 169 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 169 | N 308673014001 | NUT |
| BRAKE DRUM TO FRONT WHEEL SPIDER | ||
| 169 | N 308673014001 | NUT |
| BRAKE DRUM TO FRONT WHEEL SPIDER | ||
| A 3354203720 | BRAKE SHOE | |
| Repalced by: A 3354200319 | ||
| 175 | A 3354203820 | BRAKE SHOE |
| Repalced by: A 3354200319 | ||
| 175 | A 3354203920 | BRAKE SHOE |
| Repalced by: A 3354200319 | ||
| 175 | A 3354200319 | BRAKE SHOE |
| 175 | A 3464205420 | BRAKE SHOE |
| Repalced by: A 3464200719 | ||
| 175 | A 3464205520 | BRAKE SHOE |
| Repalced by: A 3464200719 | ||
| 175 | A 3464205620 | BRAKE SHOE |
| Repalced by: A 3464200719 | ||
| 175 | A 3464200719 | BRAKE SHOE |
| 180 | A 3154230062 | THRUST WASHER |
| 182 | N 007513008401 | TAPPING SCREW |
| 185 | A 3044210150 | BUSHING |
| 185 | A 3464215050 | BUSHING |
| 190 | A 3354211510 | BRAKE LINING |
| 10.0 MM | ||
| 190 | A 3434211210 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 10.00 MM,8X 343 421 03 10) | ||
| 190 | A 3434212110 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 10.00 MM,8X 343 421 18 10) | ||
| 190 | A 3354211610 | BRAKE LINING |
| 11.00 MM | ||
| 190 | A 3434211310 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 11.00 MM,8X 343 421 04 10) | ||
| 190 | A 3434212210 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 11.00 MM,8X 343 421 19 10) | ||
| 190 | A 3354211710 | BRAKE LINING |
| 12.00 MM | ||
| 190 | A 3434211410 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 12.00 MM,8X 343 421 05 10) | ||
| 190 | A 3434212310 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 12.00 MM,8X 343 421 20 10) | ||
| 195 | A 3079900297 | RIVET |
| A 3044210018 | PIVOT PIN | |
| A 3464215018 | PIVOT PIN | |
| Repalced by: A 3464215118 | ||
| 205 | A 3464215118 | PIVOT PIN |
| BRAKE SHOE BEARING | ||
| 210 | A 0089974245 | SEAL RING |
| 210 | A 0009978941 | SEAL RING |
| Repalced by: A 0219974547 | ||
| 210 | A 0219974547 | SEAL RING |
| BRAKE SHOE BEARING | ||
| A 3034210052 | SPACER WASHER | |
| BRAKE SHOES TO BRAKE SHOE PIN | ||
| N 000471030000 | LOCK RING | |
| BRAKE SHOES TO BRAKE SHOE PIN | ||
| N 000960016052 | SCREW | |
| TO CLAMP BRAKE SHOE PIN | ||
| N 912004016101 | LOCK WASHER | |
| TO CLAMP BRAKE SHOE PIN | ||
| N 000934016002 | NUT | |
| TO CLAMP BRAKE SHOE PIN | ||
| A 3024231052 | SPACER WASHER | |
| 215 | N 000988032000 | FITTED WASHER |
| BRAKE SHOE BEARING | ||
| 220 | N 000471032000 | LOCK RING |
| BRAKE SHOE BEARING | ||
| A 3464200382 | REPAIR KIT | |
| BRAKE SHOE BEARING | ||
| 225 | A 3044210154 | PIN |
| 230 | A 3049930510 | SPRING |
| 230 | A 3369930010 | SPRING |
| A 3044210236 | BRAKE CAMSHAFT | |
| A 3034230041 | COVER | |
| N 912004012100 | LOCK WASHER | |
| COVER TO BRAKE CAMSHAFT | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| COVER TO BRAKE CAMSHAFT | ||
| N 071412010100 | GREASE NIPPLE | |
| A 3044210143 | THRUST PIECE | |
| 235 | A 3364210036 | BRAKE CAMSHAFT |
| LEFT | ||
| A 3364210136 | BRAKE CAMSHAFT | |
| RIGHT | ||
| 237 | A 3049970240 | SEAL RING |
| 240 | A 3044200477 | GUIDE |
| N 001473005004 | GROOVED PIN | |
| 245 | A 3044200447 | YOKE |
| 247 | N 000471030000 | LOCK RING |
| A 3354200042 | BRAKE LEVER | |
| Repalced by: A 3464215042 | ||
| A 3464215042 | LEVER | |
| LEFT | ||
| 250 | A 3464215042 | LEVER |
| LEFT | ||
| A 3354200142 | BRAKE LEVER | |
| Repalced by: A 3464215142 | ||
| A 3464215142 | LEVER | |
| RIGHT | ||
| A 3464215142 | LEVER | |
| RIGHT | ||
| 255 | N 000471022000 | LOCK RING |
| A 3044210051 | SPACER RING | |
| N 000961012029 | SCREW | |
| 260 | N 000960012342 | SCREW |
| 262 | N 000936012002 | NUT |
| 265 | A 3044210492 | SPRING |
| A 3049902340 | WASHER | |
| RELEASE SPRING TO BRAKE LEVER | ||
| N 000125010504 | WASHER | |
| RELEASE SPRING TO BRAKE LEVER | ||
| N 000471010001 | LOCK RING | |
| RELEASE SPRING TO BRAKE LEVER | ||
| A 3044200244 | PROTECTIVE PLATE | |
| LEFT TOP | ||
| A 3044200444 | PROTECTIVE PLATE | |
| RIGHT TOP | ||
| 270 | A 3464205044 | PROTECTIVE PLATE |
| TOP | ||
| 275 | A 3044200344 | PROTECTIVE PLATE |
| LEFT BOTTOM | ||
| 275 | A 3464205244 | PROTECTIVE PLATE |
| LEFT BOTTOM | ||
| A 3044200544 | PROTECTIVE PLATE | |
| RIGHT BOTTOM | ||
| A 3464205144 | PROTECTIVE PLATE | |
| RIGHT BOTTOM | ||
| N 912004008102 | LOCK WASHER | |
| PROTECTIVE PLATE HALVES TO FRONT AXLE JOINT HOUSING | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| PROTECTIVE PLATE HALVES TO FRONT AXLE JOINT HOUSING | ||
| 280 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 280 | N 304017008034 | SCREW |
| PROTECTIVE PLATE HALVES TO FRONT AXLE JOINT HOUSING | ||
| 282 | N 913002008000 | NUT |
| PROTECTIVE PLATE HALVES TO FRONT AXLE JOINT HOUSING | ||
| 290 | A 3354210094 | BRACKET |
| FRONT LEFT | ||
| A 3354210194 | BRACKET | |
| FRONT RIGHT | ||
| 295 | A 3354210294 | BRACKET |
| REAR LEFT | ||
| A 3354210394 | BRACKET | |
| REAR RIGHT | ||
| 300 | N 912004012100 | LOCK WASHER |
| BRACKET TO JOINT HOUSING | ||
| 302 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 302 | N 308676012038 | SCREW |
| BRACKET TO JOINT HOUSING | ||

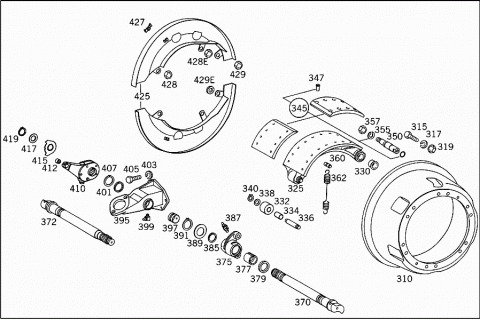

| 310 | A 3354230101 | BRAKE DRUM |
| 310 | A 3354230101 | BRAKE DRUM |
| 315 | A 0009900514 | SCREW |
| 315 | A 0009900514 | SCREW |
| 317 | N 912004014100 | LOCK WASHER |
| 317 | N 912004014100 | LOCK WASHER |
| 319 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 319 | N 308673014001 | NUT |
| 319 | N 308673014001 | NUT |
| 325 | A 3354204520 | BRAKE SHOE |
| Repalced by: A 3354200019 | ||
| 325 | A 3354204620 | BRAKE SHOE |
| Repalced by: A 3354200019 | ||
| 325 | A 3354204720 | BRAKE SHOE |
| Repalced by: A 3354200019 | ||
| 325 | A 3354200019 | BRAKE SHOE |
| 325 | A 3354200019 | BRAKE SHOE |
| 330 | A 3354230150 | BUSHING |
| Repalced by: A 3634230150 | ||
| 330 | A 3634230150 | BUSHING |
| 330 | A 3634230150 | BUSHING |
| 330 | A 3634230250 | BUSHING |
| Repalced by: A 3634230150 | ||
| 330 | A 3634230150 | BUSHING |
| 330 | A 3634230150 | BUSHING |
| 332 | A 3174200139 | ROLLER |
| Repalced by: A 3014200039 | ||
| 332 | A 3464200039 | ROLLER |
| Repalced by: A 3014200039 | ||
| 332 | A 3014200039 | ROLLER |
| Repalced by: A 3354200039 | ||
| 332 | A 3014200039 | ROLLER |
| 334 | A 3174210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 334 | A 3464210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 334 | A 3464210550 | BUSHING |
| TO 346 420 00 39 | ||
| 334 | A 6204210050 | BUSHING |
| TO 346 420 00 39 | ||
| 334 | A 6204210050 | BUSHING |
| TO 346 420 00 39 | ||
| A 3014210050 | BUSHING | |
| TO 301 420 00 39 | ||
| A 3014210050 | BUSHING | |
| TO 301 420 00 39 | ||
| A 0039971548 | SEAL RING | |
| 336 | A 3354210074 | PIN |
| Repalced by: A 3354200039 | ||
| A 3354200039 | REPAIR KIT | |
| BRAKE SHOE ROLLER | ||
| A 3354200039 | REPAIR KIT | |
| BRAKE SHOE ROLLER | ||
| 338 | A 3179901640 | WASHER |
| 338 | A 3179901640 | WASHER |
| 340 | N 000471017000 | LOCK RING |
| 340 | N 000471017000 | LOCK RING |
| 345 | A 3354230210 | BRAKE LINING |
| Repalced by: A 3434230610 | ||
| 345 | A 3434230610 | BRAKE LINING |
| Repalced by: A 3434231110 | ||
| 345 | A 3434231110 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.00 MM,8X 343 423 03 10) | ||
| 345 | A 3434231110 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.00 MM,8X 343 423 03 10) | ||
| 345 | A 3434231510 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.00 MM,8X 343 423 12 10) | ||
| 345 | A 3434231510 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.00 MM,8X 343 423 12 10) | ||
| 345 | A 3354230310 | BRAKE LINING |
| Repalced by: A 3434230710 | ||
| 345 | A 3434230710 | BRAKE LINING |
| Repalced by: A 3434231010 | ||
| 345 | A 3434231010 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.00 MM,8X 343 423 04 10) | ||
| 345 | A 3434231010 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.00 MM,8X 343 423 04 10) | ||
| 345 | A 3434231610 | BRAKE LINING |
| Repalced by: A 3434231710 | ||
| 345 | A 3434231710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.00 MM,8X 343 423 13 10) | ||
| 345 | A 3434231710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.00 MM,8X 343 423 13 10) | ||
| 345 | A 3354230410 | BRAKE LINING |
| Repalced by: A 3434230810 | ||
| 345 | A 3434230810 | BRAKE LINING |
| Repalced by: A 3434230910 | ||
| 345 | A 3434230910 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.00 MM,8X 343 423 05 10) | ||
| 345 | A 3434230910 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.00 MM,8X 343 423 05 10) | ||
| 345 | A 3434231710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.00 MM,8X 343 423 14 10) | ||
| 345 | A 3434231710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.00 MM,8X 343 423 14 10) | ||
| 347 | A 3079900297 | RIVET |
| 347 | A 3079900297 | RIVET |
| 350 | A 3664230018 | PIVOT PIN |
| Repalced by: A 3464200282 | ||
| 350 | A 3464200282 | REPAIR KIT |
| BRAKE SHOE BEARING | ||
| 350 | A 3464200282 | REPAIR KIT |
| BRAKE SHOE BEARING | ||
| A 0079973545 | SEAL RING | |
| BRAKE SHOE BEARING | ||
| 355 | N 912004020100 | LOCK WASHER |
| BRAKE SHOE BEARING | ||
| 355 | N 912004020100 | LOCK WASHER |
| BRAKE SHOE BEARING | ||
| 357 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 357 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 357 | N 308674020000 | NUT |
| BRAKE SHOE BEARING | ||
| 357 | N 308674020000 | NUT |
| BRAKE SHOE BEARING | ||
| A 3464200282 | REPAIR KIT | |
| BRAKE SHOE BEARING | ||
| 360 | A 3354210174 | PIN |
| 360 | A 3354210174 | PIN |
| 362 | A 3269930010 | SPRING |
| 362 | A 3269930010 | SPRING |
| 370 | A 3354230236 | BRAKE CAMSHAFT |
| 370 | A 3354230236 | BRAKE CAMSHAFT |
| 372 | A 3354230336 | BRAKE CAMSHAFT |
| 372 | A 3354230336 | BRAKE CAMSHAFT |
| 375 | A 3664200141 | BRAKE CAMSHAFT BEARING |
| 375 | A 3664200141 | BRAKE CAMSHAFT BEARING |
| 377 | A 3354210250 | BUSHING |
| 377 | A 3354210250 | BUSHING |
| 379 | A 0029976946 | SEAL RING |
| Repalced by: A 0219972947 | ||
| 379 | A 0219972947 | SEAL RING |
| 379 | A 0219972947 | SEAL RING |
| 385 | A 0059978145 | SEAL RING |
| 385 | A 0059978145 | SEAL RING |
| 387 | N 071412008200 | GREASE NIPPLE |
| 387 | N 071412008200 | GREASE NIPPLE |
| 389 | A 3354230052 | SPACER WASHER |
| 389 | A 3354230052 | SPACER WASHER |
| 391 | N 000471042000 | LOCK RING |
| 391 | N 000471042000 | LOCK RING |
| 395 | A 3464205078 | BEARING BRACKET |
| LEFT | ||
| 395 | A 3464205078 | BEARING BRACKET |
| LEFT | ||
| A 3464205178 | BEARING BRACKET | |
| RIGHT | ||
| A 3464205178 | BEARING BRACKET | |
| RIGHT | ||
| 397 | A 3044230050 | BUSHING |
| 397 | A 3044230050 | BUSHING |
| 399 | N 071412010300 | GREASE NIPPLE |
| 399 | N 071412010300 | GREASE NIPPLE |
| 401 | A 0004230459 | GROOVED RING |
| 401 | A 0004230459 | GROOVED RING |
| 403 | N 912004010102 | LOCK WASHER |
| 403 | N 912004010102 | LOCK WASHER |
| 405 | N 000933010105 | SCREW |
| 405 | N 000933010105 | SCREW |
| 407 | N 000471038002 | LOCK RING |
| 407 | N 000471038002 | LOCK RING |
| 410 | A 3054200038 | ADJUSTER |
| 410 | A 3054200038 | ADJUSTER |
| 412 | A 0004230550 | BUSHING |
| 412 | A 0004230550 | BUSHING |
| 415 | A 3614230157 | STOP WASHER |
| 415 | A 3614230157 | STOP WASHER |
| 417 | A 3174210152 | SPACER WASHER |
| 1.25 MM | ||
| 417 | A 3174210152 | SPACER WASHER |
| 1.25 MM | ||
| 417 | A 3174210252 | SPACER WASHER |
| Repalced by: A 3174210352 | ||
| 417 | A 3174210352 | SPACER WASHER |
| 1.5 MM | ||
| 417 | A 3174210352 | SPACER WASHER |
| 1.5 MM | ||
| 417 | A 3174210352 | SPACER WASHER |
| 2.0 MM | ||
| 417 | A 3174210352 | SPACER WASHER |
| 2.0 MM | ||
| 419 | N 000471030000 | LOCK RING |
| 419 | N 000471030000 | LOCK RING |
| A 3664200044 | PROTECTIVE PLATE | |
| Repalced by: A 3664200944 | ||
| 425 | A 3664200944 | PROTECTIVE PLATE |
| 425 | A 3664200944 | PROTECTIVE PLATE |
| 427 | A 3094210211 | PLUG |
| 427 | A 3094210211 | PLUG |
| 428 | N 000934014020 | NUT |
| 428 | N 000934014020 | NUT |
| 428E | N 000934016002 | NUT |
| 428E | N 000934016002 | NUT |
| 429 | N 000936016007 | NUT |
| 429 | N 000936016007 | NUT |
| TO 004 420 64 18,005 420 92 18 | ||
| 429E | N 000433015005 | WASHER |
| 429E | N 000433015005 | WASHER |
| A 0004290401 | LINE | |
| Repalced by: A 0005516456 | ||

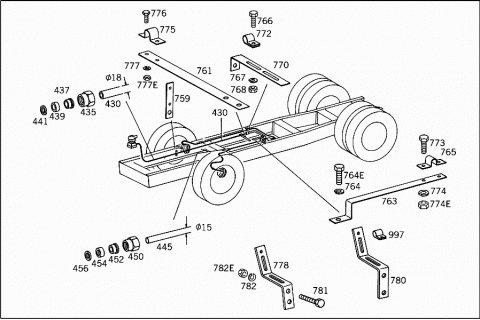

| 430 | A 0005516456 | TUBE |
| 18 MM | ||
| 435 | N 915018018000 | UNION NUT |
| 437 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 437 | A 0019901167 | SEAL CONE |
| TO LINE | ||
| 18 MM | ||
| 439 | N 915065018101 | THRUST RING |
| TO LINE | ||
| 18 MM | ||
| 441 | N 915045015100 | SEAL RING |
| TO LINE | ||
| 18 MM | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 445 | A 0005516256 | TUBE |
| 15 MM | ||
| 450 | N 915018015000 | UNION NUT |
| TO LINE | ||
| 15 MM | ||
| 452 | N 003861015004 | GLAND |
| FOR 12-MM LINES | ||
| 454 | N 915065015101 | THRUST RING |
| FOR 12-MM LINES | ||
| 456 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 456 | N 007603012121 | SEAL RING |
| FOR 12-MM LINES | ||
| 461 | N 007603026104 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 463 | N 074313018201 | FITTING |
| AT AIR COMPRESSOR | ||
| 465 | N 915045015100 | SEAL RING |
| AT AIR COMPRESSOR | ||
| A 0004318006 | PRESSURE REGULATOR | |
| Repalced by: A 0004317906 | ||

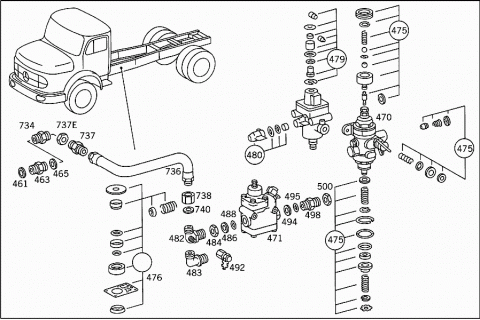

| 470 | A 0004317906 | PRESSURE REGULATOR |
| Repalced by: A 0014314106 | ||
| 471 | A 0014314106 | PRESSURE REGULATOR |
| Repalced by: A 0024313506 | ||
| 471 | A 0024313506 | PRESSURE REGULATOR |
| Repalced by: A 0024315906 | ||
| 471 | A 0014312206 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 471 | A 0014314306 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 471 | A 0024316006 | PRESSURE REGULATOR |
| WABCO | ||
| 471 | A 0014314206 | PRESSURE REGULATOR |
| Repalced by: A 0024315906 | ||
| 471 | A 0024315906 | PRESSURE REGULATOR |
| BOSCH | ||
| A 0004312381 | VALVE DISC | |
| TO 001 431 42 06,GRAU | ||
| A 0059972948 | SEAL RING | |
| TO 001 431 42 06,GRAU | ||
| A 0059973048 | SEAL RING | |
| TO 001 431 42 06,GRAU | ||
| A 0004312481 | VALVE DISC | |
| TO 001 431 42 06,GRAU | ||
| A 0004311328 | DIAPHRAGM | |
| TO 001 431 42 06,GRAU | ||
| A 0004318687 | PROTECTIVE CAP | |
| TO 001 431 42 06,GRAU | ||
| A 0004313423 | VALVE | |
| TO 001 431 42 06,GRAU | ||
| A 0004313534 | STRAINER | |
| TO 001 431 42 06,GRAU | ||
| A 0004312888 | VALVE SEAT | |
| TO 001 431 42 06,GRAU | ||
| A 0059973148 | SEAL RING | |
| TO 001 431 42 06,GRAU | ||
| 475 | A 0005867743 | REPAIR KIT |
| TO 000 431 79 06,WABCO 475 304 101 0 | ||
| A 0025863643 | REPAIR KIT | |
| TO 000 431 79 06,WABCO 475 304 201 0 | ||
| A 0015864343 | REPAIR KIT | |
| Repalced by: A 0004301107 | ||
| A 0004301107 | REPAIR KIT | |
| TO 001 431 22 06,WABCO 975 300 111 0 | ||
| A 0024304681 | REPAIR KIT | |
| VALVE KIT | ||
| TO 001 431 22 06,WABCO 975 300 111 0 | ||
| A 0014304960 | REPAIR KIT | |
| TO 002 431 60 06,WABCO 975 303 440 0 | ||
| 476 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 476 | A 0004301407 | REPAIR KIT |
| TO 001 431 41 06,BOSCH 0 481 039 102 | ||
| A 0025866043 | REPAIR KIT | |
| TO 001 431 42 06,GRAU | ||
| 479 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 35 06,BOSCH 0 481 039 222, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 431 59 06,BOSCH 0 481 039 202 | ||
| 480 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 35 06,BOSCH 0 481 039 222, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 431 59 06,BOSCH 0 481 039 202 | ||
| N 007603026104 | SEAL RING | |
| AT PRESSURE REGULATOR | ||
| 482 | A 0004292138 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 483 | N 074301026202 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| N 074313018201 | FITTING | |
| AT PRESSURE REGULATOR | ||
| N 074305026202 | NUT | |
| AT PRESSURE REGULATOR | ||
| 484 | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| A 0004290527 | THRUST RING | |
| AT PRESSURE REGULATOR | ||
| 486 | A 0004290227 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| A 0009872846 | SEALING CORD | |
| AT PRESSURE REGULATOR | ||
| 488 | A 0009870446 | SEALING CORD |
| AT PRESSURE REGULATOR | ||
| N 007603022102 | SEAL RING | |
| AT PRESSURE REGULATOR | ||
| 492 | A 0004312031 | TEST CONNECTION |
| AT PRESSURE REGULATOR | ||
| VOSS | ||
| 492 | A 0004314531 | TEST CONNECTION |
| AT PRESSURE REGULATOR | ||
| SCHAEFER | ||
| 492 | A 0004314831 | TEST CONNECTION |
| AT PRESSURE REGULATOR | ||
| WABCO | ||
| 492 | A 0004316131 | TEST CONNECTION |
| AT PRESSURE REGULATOR | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 494 | A 0004290227 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 495 | A 0009870446 | SEALING CORD |
| AT PRESSURE REGULATOR | ||
| 498 | N 003940014201 | BULKHEAD FITTING |
| AT PRESSURE REGULATOR | ||
| 500 | N 074305022202 | NUT |
| FROM DOUBLE FITTING TO PRESSURE REGULATOR | ||

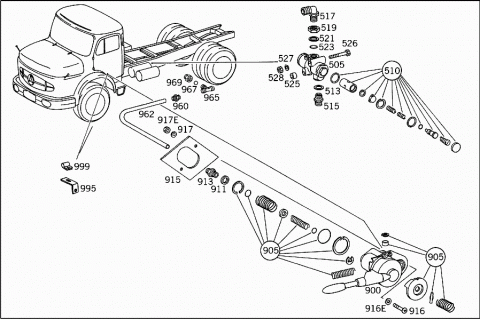

| 505 | A 0004315006 | VALVE |
| 510 | A 0005866943 | REPAIR KIT |
| Repalced by: A 0015860843 | ||
| 510 | A 0015860843 | REPAIR KIT |
| 513 | N 007603022102 | SEAL RING |
| 515 | N 074298022203 | DOUBLE FITTING |
| 517 | A 0004293838 | ELBOW FITTING |
| Repalced by: A 0004294638 | ||
| 517 | A 0004294638 | ELBOW FITTING |
| 519 | N 074305022202 | NUT |
| 521 | A 0004290227 | THRUST RING |
| 523 | A 0009870446 | SEALING CORD |
| 525 | A 3382930053 | SPACER TUBE |
| Repalced by: A 3872640974 | ||
| 525 | A 3872640974 | PIN |
| TWO-CIRCUIT PROTECTIVE VALVE TO BRACKET | ||
| 526 | N 000931008189 | SCREW |
| TWO-CIRCUIT PROTECTIVE VALVE TO BRACKET | ||
| 527 | N 912004008102 | LOCK WASHER |
| TWO-CIRCUIT PROTECTIVE VALVE TO BRACKET | ||
| 528 | N 304032008006 | NUT |
| TWO-CIRCUIT PROTECTIVE VALVE TO BRACKET | ||

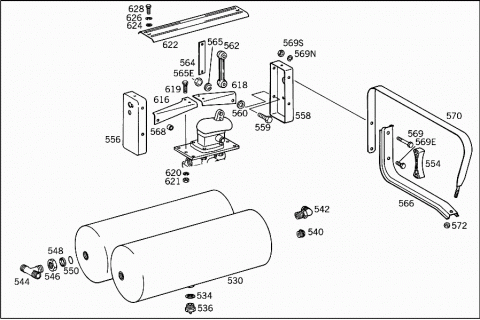

| 530 | A 0004321001 | RESERVOIR |
| Repalced by: A 0034322501 | ||
| 530 | A 0034322501 | RESERVOIR |
| I,II | ||
| 534 | N 007603022102 | SEAL RING |
| 536 | A 0004320207 | VALVE |
| Repalced by: A 0004320807 | ||
| 536 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 540 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 540 | N 000908022011 | SCREW PLUG |
| AT AIR RESERVOIRS I AND II | ||
| 542 | N 074301022203 | ELBOW FITTING |
| AT AIR RESERVOIRS I AND II | ||
| 544 | N 074302022202 | T-FITTING |
| AT AIR RESERVOIRS I AND II | ||
| 546 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 548 | A 0004290227 | THRUST RING |
| AT AIR RESERVOIR | ||
| 550 | A 0009870446 | SEALING CORD |
| AT AIR RESERVOIR | ||
| 554 | A 3354320218 | BASE |
| 556 | A 3464305010 | BRACKET |
| 558 | A 3464305110 | BRACKET |
| N 000960012342 | SCREW | |
| 559 | N 000961012027 | SCREW |
| N 000960012224 | SCREW | |
| Repalced by: N 000961012208 | ||
| N 000961012208 | SCREW | |
| N 007349013003 | WASHER | |
| Repalced by: N 007349013005 | ||
| N 007349013005 | WASHER | |
| 560 | N 000125013008 | WASHER |
| 562 | A 3464315084 | SHIM |
| 564 | A 3464315184 | SHIM |
| 565 | N 912004012100 | LOCK WASHER |
| 565E | N 000934012022 | NUT |
| 566 | A 3464325016 | SUPPORT |
| 568 | A 3382920050 | BUSHING |
| SUPPORT TO FRAME SIDE MEMBER | ||
| 569 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 569 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 569 | N 308676012011 | SCREW |
| SUPPORT TO FRAME SIDE MEMBER | ||
| 569E | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 569E | N 308676012012 | SCREW |
| SUPPORT TO FRAME SIDE MEMBER | ||
| 569N | N 912004012100 | LOCK WASHER |
| SUPPORT TO FRAME SIDE MEMBER | ||
| 569S | N 000934012022 | NUT |
| SUPPORT TO FRAME SIDE MEMBER | ||
| 570 | A 3464305140 | STRAP |
| 572 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 572 | N 304032010002 | NUT |

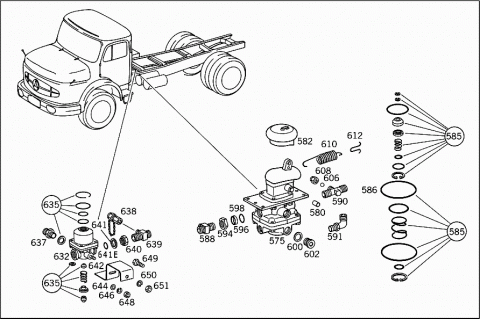

| 575 | A 0004319405 | BRAKE VALVE |
| A 0029974148 | SEAL RING | |
| 580 | A 0019920701 | BUSHING |
| 582 | A 0004317786 | CUP |
| Repalced by: A 0004317886 | ||
| 582 | A 0004317886 | CUP |
| 585 | A 0005868643 | REPAIR KIT |
| 586 | A 0029974148 | SEAL RING |
| 588 | N 074302022304 | T-FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 590 | A 0009901670 | T-FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 591 | N 074301022203 | ELBOW FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 594 | N 074305022202 | NUT |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 596 | A 0004290227 | THRUST RING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 598 | A 0009870446 | SEALING CORD |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 600 | N 007603022102 | SEAL RING |
| 602 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 602 | N 000908022011 | SCREW PLUG |
| A 3209970286 | PLUG | |
| Repalced by: A 3879970086 | ||
| 606 | A 3879970086 | PLUG |
| 608 | N 007605014000 | LOCK NUT |
| 610 | A 3129931510 | SPRING |
| 612 | A 3614320088 | EYE |
| 616 | A 3464315240 | BRACKET |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET | ||
| 618 | A 3704310240 | BRACKET |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET | ||
| 619 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 619 | N 304017008021 | SCREW |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET | ||
| 620 | N 912004008102 | LOCK WASHER |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET | ||
| 621 | N 304032008006 | NUT |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET | ||
| 622 | A 3613250255 | COVER PLATE |
| 622 | A 3613250255 | COVER PLATE |
| 624 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 624 | N 000125008443 | WASHER |
| 624 | N 000125008443 | WASHER |
| 626 | N 912004008102 | LOCK WASHER |
| 626 | N 912004008102 | LOCK WASHER |
| 628 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 628 | N 304017008021 | SCREW |
| 628 | N 304017008021 | SCREW |
| 632 | A 0004304881 | VALVE |
| 635 | A 0005867343 | REPAIR KIT |
| Repalced by: A 0034304381 | ||
| 635 | A 0034304381 | REPAIR KIT |
| 637 | N 074298022203 | DOUBLE FITTING |
| AT CONTROL VALVE | ||
| 638 | A 0004290439 | CONNECTOR |
| Repalced by: A 0004312031 | ||
| 638 | A 0004312031 | TEST CONNECTION |
| AT CONTROL VALVE | ||
| VOSS | ||
| 638 | A 0004314531 | TEST CONNECTION |
| AT CONTROL VALVE | ||
| SCHAEFER | ||
| 638 | A 0004314831 | TEST CONNECTION |
| AT CONTROL VALVE | ||
| WABCO | ||
| 638 | A 0004316131 | TEST CONNECTION |
| AT CONTROL VALVE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 639 | N 074302022304 | T-FITTING |
| AT CONTROL VALVE | ||
| 640 | N 074305022202 | NUT |
| AT CONTROL VALVE | ||
| 641 | A 0004290227 | THRUST RING |
| AT CONTROL VALVE | ||
| 641E | A 0009870446 | SEALING CORD |
| AT CONTROL VALVE | ||
| 642 | A 3614295340 | BRACKET |
| AT CONTROL VALVE | ||
| 644 | N 000125008400 | WASHER |
| REGULATING VALVE TO BRACKET | ||
| 646 | N 912004008102 | LOCK WASHER |
| REGULATING VALVE TO BRACKET | ||
| 648 | N 304032008006 | NUT |
| REGULATING VALVE TO BRACKET | ||
| 649 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 649 | N 308676012012 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 650 | N 912004012100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 651 | N 000934012022 | NUT |
| BRACKET TO SIDE MEMBER | ||

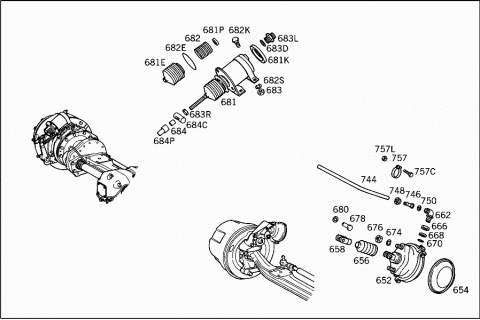

| 652 | A 0004205524 | BRAKE CYLINDER |
| Repalced by: A 0014203624 | ||
| 652 | A 0014203624 | BRAKE CYLINDER |
| RIGHT | ||
| WABCO | ||
| 652 | A 0004207424 | BRAKE CYLINDER |
| Repalced by: A 0014203924 | ||
| 652 | A 0014203924 | BRAKE CYLINDER |
| RIGHT | ||
| KNORR | ||
| 652 | A 0004209124 | BRAKE CYLINDER |
| Repalced by: A 0014203724 | ||
| 652 | A 0014203724 | BRAKE CYLINDER |
| RIGHT | ||
| GRAU | ||
| 652 | A 0014206724 | BRAKE CYLINDER |
| RIGHT | ||
| BOSCH | ||
| A 0004205624 | BRAKE CYLINDER | |
| Repalced by: A 0014203524 | ||
| A 0014203524 | BRAKE CYLINDER | |
| LEFT | ||
| WABCO | ||
| A 0004207524 | BRAKE CYLINDER | |
| Repalced by: A 0014204024 | ||
| A 0014204024 | BRAKE CYLINDER | |
| LEFT | ||
| KNORR | ||
| A 0004209224 | BRAKE CYLINDER | |
| Repalced by: A 0014203824 | ||
| A 0014203824 | BRAKE CYLINDER | |
| LEFT | ||
| GRAU | ||
| 652 | A 0014206824 | BRAKE CYLINDER |
| LEFT | ||
| BOSCH | ||
| 654 | A 0004212086 | DIAPHRAGM |
| TO 000 420 55 24,000 420 56 24 | ||
| A 0004311528 | DIAPHRAGM | |
| TO 000 420 91 24,000 420 92 24, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 420 37 24,001 420 38 24 | ||
| A 0004311828 | DIAPHRAGM | |
| Repalced by: A 0004314128 | ||
| A 0004311428 | DIAPHRAGM | |
| Repalced by: A 0004314128 | ||
| A 0004314128 | DIAPHRAGM | |
| TO 001 420 39 24,001 420 40 24 | ||
| 656 | A 0004212286 | CUP |
| Repalced by: A 0004215286 | ||
| 656 | A 0004215286 | CUP |
| TO 000 420 55 24,000 420 56 24 | ||
| A 0004319786 | CUP | |
| TO 000 420 91 24,000 420 92 24, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 420 37 24,001 420 38 24 | ||
| A 0014311286 | CUP | |
| Repalced by: A 0004216186 | ||
| A 0004216186 | CUP | |
| TO 001 420 39 24,001 420 40 24 | ||
| A 0009978786 | PLUG | |
| TO 001 420 39 24,001 420 40 24 | ||
| 658 | A 0004210763 | GUIDE |
| TO 000 420 55 24,000 420 56 24 | ||
| A 0025863442 | REPAIR KIT | |
| TO 001 420 39 24,001 420 40 24 | ||
| 662 | N 074301022203 | ELBOW FITTING |
| 666 | N 074305022202 | NUT |
| 668 | A 0004290227 | THRUST RING |
| 670 | A 0009870446 | SEALING CORD |
| 674 | N 912004016101 | LOCK WASHER |
| 676 | N 000934016012 | NUT |
| TO 000 420 55 24/74 24/91 24, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 420 56 24/75 24/92 24 | ||
| 676 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 676 | N 910113016002 | NUT |
| TO 001 420 36 24/39 24/37 24/67 24, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 420 35 24/40 24/38 24/68 24 | ||
| 678 | N 001434014002 | PIN |
| 680 | N 000433015005 | WASHER |
| N 000094004021 | COTTER PIN | |
| 681 | A 0004203824 | BRAKE CYLINDER |
| FRONT | ||
| 681E | A 0004318087 | PROTECTIVE CAP |
| 681K | A 0004230059 | GROOVED RING |
| 681P | A 0004230376 | WASHER |
| 682 | A 0004232293 | SPRING |
| 682E | A 0019874346 | SEALING CORD |
| A 0004231986 | CUP | |
| A 0004232387 | PROTECTIVE CAP | |
| 682K | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 682K | N 308676012012 | SCREW |
| BRAKE CYLINDER TO BRACKET | ||
| 682S | N 000127012009 | LOCK WASHER |
| BRAKE CYLINDER TO BRACKET | ||
| 683 | N 000934012022 | NUT |
| BRAKE CYLINDER TO BRACKET | ||
| 683D | N 007603022102 | SEAL RING |
| AT BRAKE CYLINDER | ||
| 683L | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 683L | A 0019972372 | FITTING |
| AT BRAKE CYLINDER | ||
| 683R | N 000936014008 | NUT |
| PISTON ROD ADJUSTMENT AT FRONT WHEEL BRAKE CYLINDER | ||
| 683R | N 000936014008 | NUT |
| PISTON ROD ADJUSTMENT AT FRONT WHEEL BRAKE CYLINDER | ||
| A 3044210172 | NUT | |
| Repalced by: A 3464215061 | ||
| 684 | A 3464215061 | SPACER |
| PISTON ROD ADJUSTMENT AT FRONT WHEEL BRAKE CYLINDER | ||
| 684C | A 3044210374 | PIN |
| PISTON ROD ADJUSTMENT AT FRONT WHEEL BRAKE CYLINDER | ||
| A 3044200052 | CAP | |
| Repalced by: A 3464215087 | ||
| 684P | A 3464215087 | PROTECTIVE CAP |
| PISTON ROD ADJUSTMENT AT FRONT WHEEL BRAKE CYLINDER | ||
| A 0034202118 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034204718 | ||
| A 0004230060 | SEAL RING | |
| A 0004230360 | SEAL RING | |
| A 0089977345 | SEAL RING | |
| A 0099975045 | SEAL RING | |
| A 0004233087 | PROTECTIVE CAP | |
| A 0004212086 | DIAPHRAGM | |

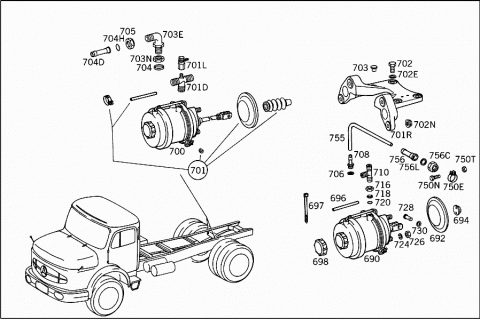

| 690 | A 0034204718 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0074201318 | ||
| 690 | A 0054200518 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0094201718 | ||
| 690 | A 0054200818 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0074201318 | ||
| 690 | A 0054209318 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0074201318 | ||
| 690 | A 0074201318 | WHEEL BRAKE CYLINDER |
| TRISTOP CYLINDER | ||
| 690 | A 0074201318 | WHEEL BRAKE CYLINDER |
| TRISTOP CYLINDER | ||
| A 0004233686 | CUP | |
| TO 005 420 05 18 | ||
| 692 | A 0004212086 | DIAPHRAGM |
| TO 003 420 21 18,003 420 47 18, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 005 420 08 18,005 420 93 15 | ||
| 692 | A 0004212086 | DIAPHRAGM |
| TO 003 420 21 18,003 420 47 18, | ||
| 694 | A 0004233187 | PROTECTIVE CAP |
| TO 003 420 21 18,003 420 47 18, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 005 420 08 18,005 420 93 18 | ||
| 694 | A 0004233187 | PROTECTIVE CAP |
| TO 003 420 21 18,003 420 47 18, | ||
| 696 | A 0099979482 | HOSE |
| 14X8 MM,TO 003 420 21 18,03 420 47 18, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 005 420 08 18,005 420 93 18 | ||
| 696 | A 0099979482 | HOSE |
| 14X8 MM,TO 003 420 21 18,03 420 47 18, | ||
| 697 | A 0019976590 | LOOM TIE |
| Repalced by: N 900288014002 | ||
| N 900288014002 | CLAMP | |
| TO 003 420 21 18,003 420 47 18, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 005 420 08 18,005 420 93 18 | ||
| N 900288014002 | CLAMP | |
| TO 003 420 21 18,003 420 47 18, | ||
| 698 | A 0004233087 | PROTECTIVE CAP |
| TO 003 420 21 18,003 420 47 18, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 005 420 08 18,005 420 93 18 | ||
| 698 | A 0004233087 | PROTECTIVE CAP |
| TO 003 420 21 18,003 420 47 18, | ||
| A 0004210111 | PLUG | |
| TO 007 420 13 18 | ||
| A 0004210111 | PLUG | |
| TO 007 420 13 18 | ||
| A 0004233486 | CUP | |
| TO 007 420 13 18 | ||
| A 0004233486 | CUP | |
| TO 007 420 13 18 | ||
| A 0004212286 | CUP | |
| Repalced by: A 0004215286 | ||
| A 0004215286 | CUP | |
| A 0004210763 | GUIDE | |
| TO 007 420 13 18 | ||
| A 0004210763 | GUIDE | |
| TO 007 420 13 18 | ||
| A 0005868142 | REPAIR KIT | |
| TO 003 420 21 18,003 420 47 18, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 005 420 08 18,005 420 93 18 | ||
| A 0005868142 | REPAIR KIT | |
| TO 003 420 21 18,003 420 47 18, | ||
| A 0015869442 | REPAIR KIT | |
| TO 005 420 05 18 | ||
| A 0025860842 | REPAIR KIT | |
| Repalced by: A 0025865242 | ||
| A 0025865242 | REPAIR KIT | |
| Repalced by: A 0024301560 | ||
| A 0024301560 | REPAIR KIT | |
| TO 007 420 13 18 | ||
| A 0024301560 | REPAIR KIT | |
| TO 007 420 13 18 | ||
| 700 | A 0044201018 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0074201218 | ||
| 700 | A 0044206418 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0074201218 | ||
| 700 | A 0054209218 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0074201218 | ||
| 700 | A 0074201218 | WHEEL BRAKE CYLINDER |
| TRISTOP CYLINDER | ||
| WABCO | ||
| 700 | A 0104207318 | WHEEL BRAKE CYLINDER |
| TRISTOP CYLINDER | ||
| KNORR | ||
| A 0004212086 | DIAPHRAGM | |
| TO 005 420 92 18 | ||
| A 0004233187 | PROTECTIVE CAP | |
| TO 005 420 92 18 | ||
| A 0003530191 | BOOT | |
| A 0099979482 | HOSE | |
| TO 005 420 92 18 | ||
| A 0019976590 | LOOM TIE | |
| Repalced by: N 900288014002 | ||
| N 900288014002 | CLAMP | |
| TO 005 420 92 18 | ||
| A 0004233087 | PROTECTIVE CAP | |
| TO 005 420 92 18 | ||
| A 0004234187 | PROTECTIVE CAP | |
| TO 010 420 73 18,KNORR | ||
| A 0009978786 | PLUG | |
| TO 010 420 73 18,KNORR | ||
| A 0003530191 | BOOT | |
| TO 007 420 12 18 | ||
| 701 | A 0015864542 | REPAIR KIT |
| TO 004 420 64 18,005 420 92 18 | ||
| A 0025860842 | REPAIR KIT | |
| Repalced by: A 0025865242 | ||
| A 0025865242 | REPAIR KIT | |
| Repalced by: A 0024301560 | ||
| A 0024301560 | REPAIR KIT | |
| TO 007 420 12 18 | ||
| A 0025861542 | REPAIR KIT | |
| Repalced by: A 0004301168 | ||
| A 0004301168 | REPAIR KIT | |
| TO 007 420 12 18 | ||
| A 0004303960 | REPAIR KIT | |
| Repalced by: A 0024209724 | ||
| A 0024209724 | REPAIR KIT | |
| DIAPHRAGM PART | ||
| TO 010 420 73 18,KNORR | ||
| A 0024209424 | REPAIR KIT | |
| SPRING LOAD ACCUMULATOR PART | ||
| TO 010 420 73 18,KNORR | ||
| 701D | N 074303000202 | CROSS FITTING |
| 701L | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 701L | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 701L | A 0004314831 | TEST CONNECTION |
| WABCO | ||
| 701L | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| A 0009979486 | PLUG | |
| 701R | A 3894230133 | BEARING BRACKET |
| Repalced by: A 3634230033 | ||
| 701R | A 3634230033 | BEARING BRACKET |
| TRISTOP CYLINDER | ||
| 702 | N 000961016118 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 702E | N 912004016101 | LOCK WASHER |
| BEARING BRACKET TO REAR AXLE | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| TRISTOP CYLINDER TO BEARING BRACKET | ||
| 702N | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 702N | N 910113016002 | NUT |
| TRISTOP CYLINDER TO BEARING BRACKET | ||
| 703 | N 915042015000 | PLUG |
| 703E | N 074301022203 | ELBOW FITTING |
| 703E | N 074301022203 | ELBOW FITTING |
| 703N | N 074305022202 | NUT |
| 703N | N 074305022202 | NUT |
| 704 | A 0004290227 | THRUST RING |
| 704 | A 0004290227 | THRUST RING |
| 704D | A 0029971872 | FITTING |
| 704D | A 0029971872 | FITTING |
| 704H | A 0009870446 | SEALING CORD |
| 704H | A 0009870446 | SEALING CORD |
| 705 | N 915017015200 | UNION NUT |
| 705 | N 915017015200 | UNION NUT |
| N 007603016105 | SEAL RING | |
| A 0009974172 | FITTING | |
| A 0004290734 | ADAPTER FITTING | |
| 706 | N 007603022102 | SEAL RING |
| 708 | N 074304022201 | FITTING |
| 710 | N 074302022202 | T-FITTING |
| A 0009900987 | CROSS FITTING | |
| 716 | N 074305022202 | NUT |
| 718 | A 0004290227 | THRUST RING |
| 720 | A 0009870446 | SEALING CORD |
| 724 | N 912004016101 | LOCK WASHER |
| TRISTOP CYLINDER TO BEARING BRACKET | ||
| 726 | N 000934016012 | NUT |
| TRISTOP CYLINDER TO BEARING BRACKET | ||
| 726 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 726 | N 910113016002 | NUT |
| TRISTOP CYLINDER TO BEARING BRACKET | ||
| 728 | A 3619910005 | PIN |
| 730 | N 000433015005 | WASHER |
| N 000094004049 | COTTER PIN | |
| 734 | N 074313018201 | FITTING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 736 | A 0004293335 | BRAKE HOSE |
| Repalced by: A 0004297335 | ||
| 736 | A 0004295635 | BRAKE HOSE |
| Repalced by: A 0004297335 | ||
| 736 | A 0004297335 | BRAKE HOSE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 737 | N 003940018102 | BULKHEAD FITTING |
| AT SIDE MEMBER | ||
| 737E | N 074305026202 | NUT |
| AT SIDE MEMBER | ||
| 738 | A 3434290034 | ADAPTER FITTING |
| HOSE TO FITTING | ||
| 740 | N 007603026104 | SEAL RING |
| HOSE TO FITTING | ||
| 744 | N 916027013006 | HOSE |
| 535 MM | ||
| 746 | A 0029971872 | FITTING |
| 748 | N 915017015200 | UNION NUT |
| 750 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 750 | N 007603012121 | SEAL RING |
| 750E | A 0009950565 | CLAMP |
| Repalced by: A 0029973890 | ||
| 750E | A 0029973890 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 750E | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 750E | N 000000000667 | CLAMP |
| 750N | N 000933006124 | SCREW |
| 750T | N 000934006007 | NUT |
| N 074313016401 | FITTING | |
| Repalced by: A 0019972372 | ||
| A 0019972372 | FITTING | |
| A 0004290439 | CONNECTOR | |
| Repalced by: A 0004312031 | ||
| A 0004312031 | TEST CONNECTION | |
| VOSS | ||
| A 0004314531 | TEST CONNECTION | |
| SCHAEFER | ||
| A 0004314831 | TEST CONNECTION | |
| WABCO | ||
| A 0004316131 | TEST CONNECTION | |
| WIRA | ||
| A 0009979486 | PLUG | |
| N 074302022304 | T-FITTING | |
| 755 | N 916027013006 | HOSE |
| 756 | A 0029971872 | FITTING |
| 756C | N 915017015200 | UNION NUT |
| 756L | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 756L | N 007603012121 | SEAL RING |
| 757 | A 0009950565 | CLAMP |
| Repalced by: A 0029973890 | ||
| 757 | A 0029973890 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 757 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 757 | N 000000000667 | CLAMP |
| 757C | N 000933006124 | SCREW |
| 757L | N 000934006007 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINE MOUNTING | ||
| 759 | A 3354293440 | BRACKET |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 761 | A 3434290940 | BRACKET |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| A 3434291040 | BRACKET | |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 763 | A 3464296140 | BRACKET |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 764 | N 912004012100 | LOCK WASHER |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 764E | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 764E | N 308676012038 | SCREW |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 765 | N 001593019001 | CLAMP |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 766 | N 000000001147 | SCREW |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| M 6X20 | ||
| 767 | N 912004006102 | LOCK WASHER |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 768 | N 000934006007 | NUT |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 770 | A 3464295640 | BRACKET |
| Repalced by: A 3464296040 | ||
| 770 | A 3464296040 | BRACKET |
| LINE TO SIDE MEMBER | ||
| 772 | A 3609950501 | CLAMP |
| Repalced by: A 3609952001 | ||
| 772 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 772 | A 6739950001 | CLAMP |
| LINE TO SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 773 | N 000000001147 | SCREW |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| M 6X20 | ||
| 774 | N 912004006102 | LOCK WASHER |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| 774E | N 000934006007 | NUT |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| 775 | A 3609950210 | CLAMP |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| 776 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 776 | N 304017006020 | SCREW |
| AT SHOCK ABSORBER BRACKET | ||
| 777 | N 912004006102 | LOCK WASHER |
| 777E | N 000934006007 | NUT |
| 778 | A 3464296440 | BRACKET |
| 778 | A 3464296440 | BRACKET |
| A 3604312640 | BRACKET | |
| A 3464295940 | BRACKET | |
| Repalced by: A 3464296040 | ||
| A 3464295640 | BRACKET | |
| Repalced by: A 3464296040 | ||
| A 3464296040 | BRACKET | |
| 780 | A 3464316540 | BRACKET |
| Repalced by: A 3464296440 | ||
| 780 | A 3464296440 | BRACKET |
| 780 | A 3464296440 | BRACKET |
| A 3604312640 | BRACKET | |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| 781 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 781 | N 308676012026 | SCREW |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| N 304032008006 | NUT | |
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| 782 | N 912004012100 | LOCK WASHER |
| BRACKET TO LEFT SIDE MEMBER | ||
| 782E | N 000934012022 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| BRACKET TO LEFT SIDE MEMBER | ||
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| A 3609952001 | CLAMP | |
| Repalced by: A 6739950001 | ||
| A 6739950001 | CLAMP | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 007985006115 | SCREW | |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| N 000934006007 | NUT | |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| A 3274295340 | BRACKET | |
| Repalced by: A 3524290740 | ||
| A 3524290740 | BRACKET | |
| AT RELAY VALVE | ||
| 785 | A 3634292740 | BRACKET |
| AT RELAY VALVE | ||
| 786 | A 3609950210 | CLAMP |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| 787 | N 000000001147 | SCREW |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| M 6X20 | ||
| 788 | N 000125006410 | WASHER |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| 789 | N 912004006102 | LOCK WASHER |
| MOUNTING CLAMP TO BRACKET AND TO FRAME | ||
| 789E | N 000934006007 | NUT |
| TO PLUG THE HOLE IN FIRE WALL | ||
| A 0009872544 | EXPANSION PLUG | |
| TO PLUG THE HOLE IN FIRE WALL | ||
| A 3129970981 | GROMMET | |
| TO PLUG THE HOLE IN FIRE WALL | ||
| 790 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 790 | A 0004296201 | LINE |
| 6 MM | ||
| 792 | N 915017006100 | UNION NUT |
| 794 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 794 | A 0019901667 | SEAL CONE |
| 796 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 796 | A 0029906071 | FITTING |
| 798 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 798 | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 6X4 MM | ||
| 800 | A 0019973772 | FITTING |
| 804 | N 000936012002 | NUT |
| AT FIRE WALL | ||
| 806 | A 0019975072 | FITTING |
| 808 | N 915017006200 | UNION NUT |
| 810 | N 040621022200 | INSULATING HOSE |
| 300 MM | ||
| 811 | A 3464295940 | BRACKET |
| Repalced by: A 3464296040 | ||
| 811 | A 3464296040 | BRACKET |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| FROM AIR RESERVOIR T-FITTING TO DOUBLE FITTING | ||
| N 304032008006 | NUT | |
| BRACKET TO LEFT SIDE MEMBER | ||
| 818 | A 3404760136 | BRACKET |
| 819 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 819 | N 308676012012 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 819E | N 912004012100 | LOCK WASHER |
| BRACKET TO LEFT SIDE MEMBER | ||
| 819N | N 000934012022 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 820 | A 3609950101 | CLAMP |
| AT BRACKET | ||
| 820 | A 3609950101 | CLAMP |
| AT BRACKET | ||
| 821 | N 000000001147 | SCREW |
| AT BRACKET | ||
| M 6X20 | ||
| 822 | N 912004006102 | LOCK WASHER |
| AT BRACKET | ||
| 823 | N 000934006007 | NUT |
| AT BRACKET | ||
| 825 | A 0004290201 | LINE |
| Repalced by: A 0005516256 | ||
| 825 | A 0005516256 | TUBE |
| 15 MM | ||
| N 915018015000 | UNION NUT | |
| 830 | N 915018015000 | UNION NUT |
| 832 | N 003861015004 | GLAND |
| 834 | N 915065015101 | THRUST RING |
| 836 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 836 | N 007603012121 | SEAL RING |
| 840 | A 0004290801 | LINE |
| 8 MM | ||
| 842 | N 915017008100 | UNION NUT |
| 844 | N 003861008005 | GLAND |
| 848 | A 0004322601 | RESERVOIR |
| Repalced by: A 0034321801 | ||
| 848 | A 0034321801 | RESERVOIR |
| III,30 L | ||
| 850 | A 3464325118 | BASE |
| 852 | A 3464305040 | STRAP |
| 853 | N 000933010105 | SCREW |
| 853E | N 912004010102 | LOCK WASHER |
| 854 | N 000934010035 | NUT |
| 856 | N 007603022102 | SEAL RING |
| 858 | A 0009970171 | FITTING |
| 860 | N 074298022203 | DOUBLE FITTING |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 862 | A 0004320207 | VALVE |
| Repalced by: A 0004320807 | ||
| 862 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 864 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 864 | A 0019972372 | FITTING |
| 866 | N 074302022202 | T-FITTING |
| 871 | N 074305022202 | NUT |
| 873 | A 0004290227 | THRUST RING |
| 875 | A 0009870446 | SEALING CORD |
| N 915045012100 | SEAL RING | |
| Repalced by: N 007603012121 | ||
| N 007603012121 | SEAL RING | |
| 880 | N 007605022000 | LOCK NUT |
| 885 | A 0034294844 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| 885 | A 0024296744 | VALVE |
| OVERFLOW VALVE | ||
| GRAU | ||
| 885 | A 0004296044 | VALVE |
| Repalced by: A 0014294944 | ||
| 885 | A 0014294944 | VALVE |
| OVERFLOW VALVE | ||
| WABCO | ||
| A 0004290945 | DIAPHRAGM | |
| TO 003 429 48 44 | ||
| A 0004290545 | DIAPHRAGM | |
| TO 001 429 49 44 | ||
| A 0004290745 | DIAPHRAGM | |
| TO 002 429 67 44 | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| TO 001 429 49 44 M 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| TO 001 429 49 44 | ||
| 890 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| A 0004304781 | VALVE | |
| Repalced by: A 0004305581 | ||
| A 0004304481 | VALVE | |
| Repalced by: A 0004305681 | ||
| A 0089974045 | SEAL RING | |
| A 0009933305 | SPRING | |
| A 0004312188 | VALVE SEAT | |
| A 0089973845 | SEAL RING | |
| A 0089973745 | SEAL RING | |
| N 000472042001 | LOCK RING | |
| A 0004313323 | VALVE | |
| A 0009933205 | SPRING | |
| A 0059976545 | SEAL RING | |
| A 0089974145 | SEAL RING | |
| A 0014311093 | SPRING | |
| 900 | A 0004305581 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| A 0004305681 | VALVE | |
| HAND BRAKE VALVE | ||
| WABCO | ||
| A 0004306681 | VALVE | |
| HAND BRAKE VALVE | ||
| KNORR | ||
| A 0004306781 | VALVE | |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 905 | A 0005868043 | REPAIR KIT |
| Repalced by: A 0004305760 | ||
| 905 | A 0004305760 | REPAIR KIT |
| TO 000 430 55 81,WABCO | ||
| A 0005868143 | REPAIR KIT | |
| Repalced by: A 0004305860 | ||
| A 0004305860 | REPAIR KIT | |
| TO 000 430 56 81,WABCO | ||
| A 0025866243 | REPAIR KIT | |
| Repalced by: A 0034303881 | ||
| A 0034303881 | REPAIR KIT | |
| TO 000 430 66 81,000 430 67 81 | ||
| 911 | N 007603014405 | SEAL RING |
| 913 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 913 | A 0039979972 | FITTING |
| 915 | A 3464316040 | BRACKET |
| HAND BRAKE VALVE TO CAB | ||
| A 3874310684 | SHIM | |
| HAND BRAKE VALVE TO CAB | ||
| 916 | N 000965006003 | SCREW |
| HAND BRAKE VALVE TO CAB | ||
| 916E | N 000125006410 | WASHER |
| HAND BRAKE VALVE TO CAB | ||
| 917 | N 912004006102 | LOCK WASHER |
| 917E | N 000934006007 | NUT |
| 918 | A 0004296544 | VALVE |
| RELAY VALVE | ||
| WABCO | ||
| 918 | A 0014293044 | VALVE |
| RELAY VALVE | ||
| GRAU | ||
| 918 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 918 | A 0034295244 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| A 0059972648 | SEAL RING | |
| 22.3X2.4 MM,TO 001 429 30 44 | ||
| A 0004312788 | VALVE SEAT | |
| TO 001 429 30 44 | ||
| A 0059972748 | SEAL RING | |
| 80X3 MM,TO 000 429 28 95, GRAU | ||
| A 0014311660 | SEAL RING | |
| 28X2 MM,TO 001 429 30 44 | ||
| A 0014311760 | SEAL RING | |
| 86X2 MM,TO 001 429 30 44 | ||
| A 0014311980 | GASKET | |
| Repalced by: A 0004311980 | ||
| A 0004311980 | GASKET | |
| 34X2X6 MM,TO 001 429 30 44 | ||
| A 0025863542 | REPAIR KIT | |
| TO 001 429 54 44,003 429 42 44 | ||
| 925 | A 0005865742 | REPAIR KIT |
| TO 000 429 65 44 | ||
| 920 | N 912004008102 | LOCK WASHER |
| RELAY VALVE TO BRACKET | ||
| 922 | N 304032008006 | NUT |
| RELAY VALVE TO BRACKET | ||
| 930 | N 007603022102 | SEAL RING |
| 932 | N 074313008101 | FITTING |
| Repalced by: A 0009970171 | ||
| 932 | A 0009970171 | FITTING |
| 934 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 934 | A 3469970230 | SCREW PLUG |
| 938 | A 0004290439 | CONNECTOR |
| Repalced by: A 0004312031 | ||
| 938 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 938 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 938 | A 0004314831 | TEST CONNECTION |
| WABCO | ||
| 938 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| A 0009979486 | PLUG | |
| 940 | N 074302022304 | T-FITTING |
| 942 | A 0004290734 | ADAPTER FITTING |
| 946 | N 074305022202 | NUT |
| 948 | A 0004290227 | THRUST RING |
| 950 | A 0009870446 | SEALING CORD |
| 955 | A 3464315940 | BRACKET |
| 956 | N 000933010105 | SCREW |
| 957 | N 000125010500 | WASHER |
| 958 | N 912004010102 | LOCK WASHER |
| 959 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 959 | N 304032010002 | NUT |
| A 0019902171 | ELBOW FITTING | |
| 960 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 960 | A 0029905971 | FITTING |
| 962 | A 0004295235 | HOSE |
| N 900288012004 | CLAMP | |
| 965 | A 0009902670 | T-FITTING |
| A 3209970286 | PLUG | |
| Repalced by: A 3879970086 | ||
| 967 | A 3879970086 | PLUG |
| 969 | N 007605014000 | LOCK NUT |
| 975 | N 916027013006 | HOSE |
| 535 MM | ||
| 980 | A 0029971872 | FITTING |
| 982 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 982 | N 007603012121 | SEAL RING |
| 984 | N 915017015200 | UNION NUT |
| 985 | A 0009950565 | CLAMP |
| Repalced by: A 0029973890 | ||
| 985 | A 0029973890 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 985 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 985 | N 000000000667 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 986 | N 000933006124 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 987 | N 000934006007 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 990 | A 3039971440 | SEAL RING |
| 991 | N 916027013006 | HOSE |
| 290 MM | ||
| 991E | A 0029971872 | FITTING |
| 991K | N 915017015200 | UNION NUT |
| 991R | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 991R | N 007603012121 | SEAL RING |
| 992 | A 0009950565 | CLAMP |
| Repalced by: A 0029973890 | ||
| 992 | A 0029973890 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 992 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 992 | N 000000000667 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 993 | N 000933006124 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 994 | N 000934006007 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 995 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 995 | A 3464296040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 997 | A 3609950501 | CLAMP |
| Repalced by: A 3609952001 | ||
| 997 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 997 | A 6739950001 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 999 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 999 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 999 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000000001147 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| M 6X20 | ||
| N 912004006102 | LOCK WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000934006007 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
