Transporto priemonė: LAS 1924; VIN numerio dalis: 346114

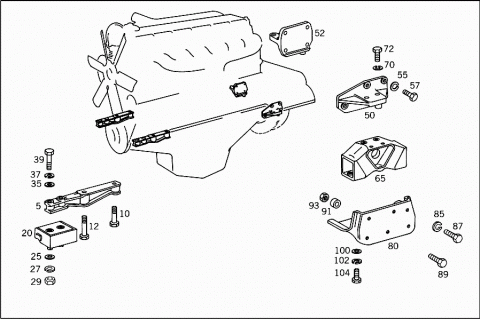

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3042410005 | SUPPORTING ARM |
| LEFT AND RIGHT | ||
| 010 | N 000931016026 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 16X65 | ||
| 012 | N 000931016037 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 16X82 | ||
| 020 | A 0002410113 | RUBBER MOUNTING |
| FRONT | ||
| 020 | A 0002410513 | RUBBER MOUNTING |
| FRONT | ||
| 025 | N 000125013008 | WASHER |
| 027 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 029 | N 000934012022 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 035 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 035 | N 000125015019 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 037 | N 912004014100 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 039 | N 000960014108 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 050 | A 3432420501 | ENGINE SUPPORT |
| REAR LEFT | ||
| 052 | A 3432420401 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 055 | N 912004012100 | LOCK WASHER |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 057 | N 000933012133 | SCREW |
| Repalced by: N 304017012013 | ||
| 057 | N 304017012013 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 057 | N 000933012070 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M 12X32 | ||
| 065 | A 0002421213 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 070 | N 912004014100 | LOCK WASHER |
| ENGINE REAR SUPPORT TO MOUNTING | ||
| 072 | N 000961014028 | SCREW |
| ENGINE REAR SUPPORT TO MOUNTING | ||
| 080 | A 3352401006 | CONSOLE |
| Repalced by: A 3352401206 | ||
| 080 | A 3352401206 | CONSOLE |
| LEFT | ||
| 080 | A 3352400906 | CONSOLE |
| Repalced by: A 3352401106 | ||
| 080 | A 3352401106 | CONSOLE |
| RIGHT | ||
| 085 | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 087 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X32 | ||
| 089 | N 000961012122 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X40 | ||
| 091 | A 3049902540 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 093 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 100 | N 000125013008 | WASHER |
| 102 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO CONSOLE | ||
| 104 | N 000961012164 | SCREW |
| RUBBER MOUNTING TO CONSOLE | ||
