Transporto priemonė: LAS 1924; VIN numerio dalis: 346114

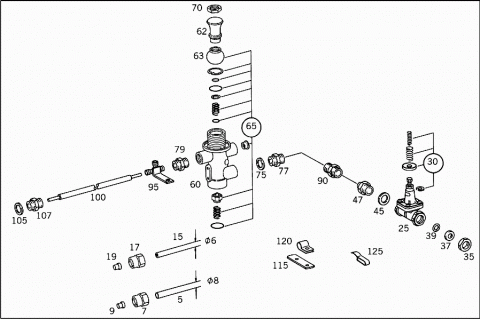

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		EXHAUST BRAKE,COMPRESSED AIR OPERATED
005	A 0004290801	LINE
		8 MM
007	N 915017008100	UNION NUT
009	N 003861008005	GLAND
015	A 0004290701	LINE
	Repalced by: A 0004296201
015	A 0004296201	LINE
		6 MM
017	N 915017006100	UNION NUT
019	N 003861006007	GLAND
	Repalced by: A 0019901667
019	A 0019901667	SEAL CONE
025	A 0014297544	VALVE
		OVERFLOW VALVE
		GRAU
025	A 0004296244	VALVE
	Repalced by: A 0014295144
025	A 0014295144	VALVE
		OVERFLOW VALVE
		WESTINGHOUSE
025	A 0034294744	VALVE
		(OVERFLOW VALVE)
		KNORR
	A 0024298844	VALVE
		TO 001 429 75 44
	A 0004290645	DIAPHRAGM
	Repalced by: A 0004290745
	A 0004290745	DIAPHRAGM
		TO 001 429 75 44
	A 0004290545	DIAPHRAGM
		TO 001 429 51 44
	A 0004290945	DIAPHRAGM
		TO 003 429 47 44
	N 007985006193	SCREW
	Repalced by: N 000000001146
	N 000000001146	SCREW
		TO 001 429 51 44 M 6X16
	N 912004006102	LOCK WASHER
		TO 001 429 51 44
030	A 0005865842	REPAIR KIT
		TO 000 429 62 44
035	N 074305022202	NUT
037	A 0004290227	THRUST RING
039	A 0009870446	SEALING CORD
045	N 007603022102	SEAL RING
047	A 0009970171	FITTING
	A 0007631252	VALVE
	Repalced by: A 0004340801
060	A 0004340801	VALVE
	Repalced by: A 0004342401
060	A 0004342401	VALVE
		WESTINGHOUSE
060	A 0004341101	VALVE
		BOSCH
	A 0059979248	SEAL RING
		TO 000 434 11 01
	A 0079972448	SEAL RING
		TO 000 434 24 01,17X1.5 MM
	A 0079972548	SEAL RING
		TO 000 434 24 01,5.7X1.9 MM
	A 0014315193	SPRING
		TO 000 434 11 01
062	A 0009972077	HANDLE
		TO 000 434 24 01
063	A 0004340586	CUP
		TO 000 434 24 01
	A 0005866443	REPAIR KIT
		TO 000 763 12 52
	A 0025868343	REPAIR KIT
		TO 000 434 11 01
	A 0025868443	REPAIR KIT
		TO 000 434 11 01
	A 0005869743	REPAIR KIT
		TO 000 434 08 01
065	A 0025869843	REPAIR KIT
		TO 000 434 24 01
070	N 074305026202	NUT
	N 000137027201	SPRING WASHER
075	N 007603012405	SEAL RING
	A 0009971572	FITTING
	Repalced by: A 0019972572
077	N 003901008001	SCREW-IN FITTING
	Repalced by: A 0019972572
077	A 0019972572	FITTING
	A 0019972872	FITTING
	Repalced by: A 0039979072
079	A 0039979072	FITTING
	Repalced by: A 0029906071
079	A 0029906071	FITTING
	A 3933280065	PIPE SOCKET
	Repalced by: A 4063580065
	A 4063580065	BREATHER
	Repalced by: A 3933280065
	A 3933280065	PIPE SOCKET
		3/2-WAY VALVE;CONNECTION:
		"3"
	A 3354340023	GUIDE
090	A 0039978972	FITTING
	Repalced by: A 0029905971
090	A 0029905971	FITTING
095	A 3354300610	BRACKET
	N 000933008147	SCREW
	Repalced by: N 304017008021
	N 304017008021	SCREW
		BRACKET TO FRONT CROSS MEMBER
	N 912004008102	LOCK WASHER
		BRACKET TO FRONT CROSS MEMBER
	N 304032008006	NUT
		BRACKET TO FRONT CROSS MEMBER
	A 0005454509	SWITCH
	Repalced by: A 0005456009
	A 0005456009	SWITCH
		EXHAUST BRAKE
100	A 3045730336	HOSE
		320 MM
105	N 007603012405	SEAL RING
107	A 0019972872	FITTING
	Repalced by: A 0039979072
107	A 0039979072	FITTING
	Repalced by: A 0029906071
107	A 0029906071	FITTING
115	A 3044661040	BRACKET
		LINE MOUNTING
	N 000933008147	SCREW
	Repalced by: N 304017008021
	N 304017008021	SCREW
		BRACKET TO LEFT OR RIGHT SIDE MEMBER, RESP.
	N 912004008102	LOCK WASHER
		BRACKET TO LEFT OR RIGHT SIDE MEMBER, RESP.
	N 304032008006	NUT
		BRACKET TO LEFT OR RIGHT SIDE MEMBER, RESP.
120	A 3609950101	CLAMP
125	A 3045460175	CLAMP
	N 000000001147	SCREW
		MOUNTING CLAMP TO BRACKET AND TO FRAME
		M 6X20
	N 912004006102	LOCK WASHER
		MOUNTING CLAMP TO BRACKET AND TO FRAME
	N 000934006007	NUT
		MOUNTING CLAMP TO BRACKET AND TO FRAME
