Transporto priemonė: LAS 1924; VIN numerio dalis: 346114
Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3463305000 | FRONT AXLE | |
| Repalced by: A 3463307200 | ||
| A 3463307200 | FRONT AXLE | |
| WITH BRAKE | ||
| A 3463305100 | FRONT AXLE | |
| Repalced by: A 3463307300 | ||
| A 3463307300 | FRONT AXLE | |
| WITH BRAKE | ||

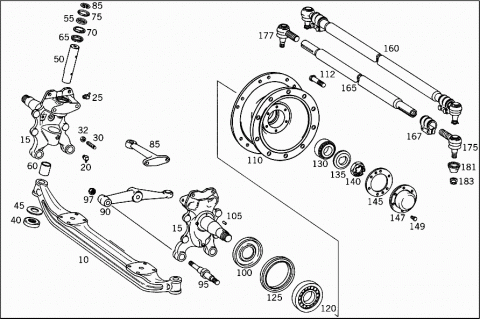

| 010 | A 3433310101 | FRONT AXLE BEAM |
| 015 | A 3353320101 | STEERING KNUCKLE |
| LESS BUSHING | ||
| 020 | N 071412008302 | GREASE NIPPLE |
| 025 | N 071412008200 | GREASE NIPPLE |
| 030 | A 3223510071 | SCREW |
| Repalced by: A 3633320071 | ||
| 030 | A 3633320071 | SCREW |
| 032 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 032 | N 308673014001 | NUT |
| 040 | A 0009818318 | ROLLER BEARING |
| 045 | A 3173321252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 045 | A 3173320252 | SPACER WASHER |
| Repalced by: A 3173321952 | ||
| 045 | A 3173321952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 045 | A 3173320652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.90 MM | ||
| 045 | A 3173320852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.10 MM | ||
| 045 | A 3173320952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.20 MM | ||
| 050 | A 3433300219 | KING PIN |
| KINGPIN,STANDARD | ||
| 45.00 MM | ||
| 050 | A 3433300319 | KING PIN |
| KINGPIN,STANDARD SIZE I | ||
| 45.30 MM | ||
| 050 | A 3433300419 | KING PIN |
| Repalced by: A 3433320406 | ||
| 050 | A 3433320406 | KINGPIN |
| KINGPIN,REPAIR SIZE I | ||
| 45.60 MM | ||
| 055 | A 3179970045 | SEAL RING |
| 060 | A 3173320048 | BUSHING |
| BOTTOM | ||
| 060 | A 3433320048 | BUSHING |
| TOP | ||
| 065 | A 3173320051 | SPACER RING |
| 070 | A 3173320229 | SEALING CAP |
| 075 | A 3173320129 | SEALING CAP |
| 080 | N 000472055000 | LOCK RING |
| 085 | A 3343381001 | STEERING ARM |
| 085 | A 3363380002 | STEERING ARM |
| A 3439900002 | SCREW | |
| STEERING ARM TO STEERING KNUCKLE | ||
| N 000935018001 | NUT | |
| STEERING ARM TO STEERING KNUCKLE | ||
| N 000094004065 | COTTER PIN | |
| STEERING ARM TO STEERING KNUCKLE | ||
| 090 | A 3433380105 | STEERING ARM |
| LEFT | ||
| A 3433380106 | STEERING ARM | |
| RIGHT | ||
| A 3354210018 | PIVOT PIN | |
| Repalced by: A 3354210218 | ||
| 095 | A 3354210218 | PIVOT PIN |
| 097 | N 000935020000 | NUT |
| N 000094004065 | COTTER PIN | |
| 100 | A 3173340015 | RING |
| 043 | A 0019812905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 043 | A 0019817605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 105 | N 001481005022 | CLAMPING SLEEVE |
| 110 | A 3353340101 | WHEEL HUB |
| 112 | A 3384015071 | WHEEL MOUNTING BOLT |
| 120 | A 0019817705 | TAPERED ROLLER BEARING |
| 120 | A 0019817505 | TAPERED ROLLER BEARING |
| 125 | A 3359970047 | SEAL RING |
| 130 | A 0019812905 | TAPERED ROLLER BEARING |
| 130 | A 0019817405 | TAPERED ROLLER BEARING |
| 130 | A 0019817605 | TAPERED ROLLER BEARING |
| 135 | A 3173340062 | THRUST WASHER |
| 140 | A 0009901555 | NUT |
| 145 | A 3173340059 | SEAL RING |
| 147 | A 3173340025 | HUB CAP |
| 149 | N 304017010027 | SCREW |
| 160 | A 3463302903 | TIE ROD |
| Repalced by: A 3463304303 | ||
| 160 | A 3463304303 | TIE ROD |
| LEMFOERDER | ||
| 160 | A 3463304403 | TIE ROD |
| EHRENREICH | ||
| 165 | A 0003380216 | TIE ROD TUBE |
| 167 | A 0003382545 | CLAMP |
| TO 346 330 29 03 | ||
| N 000960012246 | SCREW | |
| Repalced by: N 000960012353 | ||
| N 000960012353 | SCREW | |
| TO 346 330 29 03 | ||
| N 913002012004 | NUT | |
| TO 346 330 29 03 | ||
| 175 | A 3023300035 | JOINT |
| Repalced by: A 3023300235 | ||
| 175 | A 3023300235 | JOINT |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 175 | A 3023300335 | JOINT |
| L.H. THREAD | ||
| EHRENREICH | ||
| 177 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 177 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 177 | A 0013300235 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 181 | A 0003301085 | BOOT |
| 183 | N 000937020001 | NUT |
| N 000094004065 | COTTER PIN | |
| A 3463305600 | FRONT AXLE | |
| WITH BRAKE | ||
| A 3463305700 | FRONT AXLE | |
| WITH BRAKE | ||

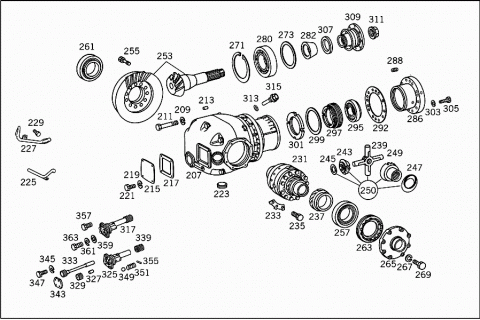

| 200 | A 3433310001 | FRONT AXLE BEAM |
| 205 | A 3463305023 | DIFFERENTIAL GEAR |
| RATIO: | ||
| 9:23 | ||
| 207 | A 3043300041 | DIFFERENTIAL CARRIER |
| 209 | N 912004016101 | LOCK WASHER |
| 211 | N 000960016068 | SCREW |
| 213 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 213 | N 000007010102 | CYLINDRICAL PIN |
| 215 | A 3153530006 | COVER |
| 217 | A 3153530080 | GASKET |
| 219 | N 912004010102 | LOCK WASHER |
| 221 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 221 | N 304017010028 | SCREW |
| 223 | A 3039970006 | PLUG |
| 225 | A 3203500180 | LINE |
| 227 | A 3203500063 | OIL COLLECTOR |
| 229 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 229 | N 304017008008 | SCREW |
| 231 | A 3353300223 | DIFFERENTIAL GEAR |
| 231 | A 3353500527 | DIFFERENTIAL CASE |
| Repalced by: A 3353300223 | ||
| 233 | A 3353530073 | LOCK |
| 235 | N 000960012296 | SCREW |
| 237 | A 3043530368 | GEAR |
| 239 | A 3043530020 | DIFFERENTIAL SPIDER |
| 239 | A 3433530020 | DIFFERENTIAL SPIDER |
| 243 | A 3263530314 | DIFFERENTIAL PINION |
| Repalced by: A 3263530414 | ||
| 243 | A 3263530414 | DIFFERENTIAL PINION |
| 245 | A 3043530162 | THRUST WASHER |
| 247 | A 3043530362 | THRUST WASHER |
| 249 | A 3263530315 | SIDE GEAR |
| 250 | A 3435860035 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 253 | A 3493500139 | RING GEAR AND PINION |
| Repalced by: A 3463505039 | ||
| 253 | A 3463505039 | RING GEAR AND PINION |
| RATIO: | ||
| 9:23 | ||
| 255 | A 3049900403 | SCREW |
| 257 | A 0009810205 | TAPERED ROLLER BEARING |
| LEFT | ||
| 257 | A 0019818505 | TAPERED ROLLER BEARING |
| LEFT | ||
| 261 | A 0009817205 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 261 | A 0009819405 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 261 | A 0069810605 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 263 | A 3663530225 | SCREW COLLAR |
| 265 | A 3043570121 | END PIECE |
| 267 | N 912004010102 | LOCK WASHER |
| 269 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 269 | N 304017010002 | SCREW |
| 271 | N 000472160000 | LOCK RING |
| 273 | A 3153350152 | SPACER WASHER |
| 1.00 MM | ||
| A 3463355051 | SPACER RING | |
| 280 | A 0019819201 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0009813401 | ||
| 280 | A 0009813401 | CYLINDR. ROLLER BEARING |
| 282 | A 3043530644 | SPACER BUSHING |
| A 3463355044 | BUSHING | |
| 286 | A 3203500050 | BUSHING |
| 288 | N 000906012002 | SCREW PLUG |
| N 915042011000 | PLUG | |
| 292 | A 3043533652 | SPACER WASHER |
| 0.10 MM | ||
| 292 | A 3043533852 | SPACER WASHER |
| 0.50 MM | ||
| 295 | A 0009810005 | TAPERED ROLLER BEARING |
| 297 | A 3043530348 | RING |
| 299 | A 3043530373 | LOCK |
| 301 | A 3043530126 | NUT |
| 303 | N 912004012100 | LOCK WASHER |
| 305 | N 000960012050 | SCREW |
| 307 | A 3049970847 | SEAL RING |
| 309 | A 3043500645 | FLANGE |
| 311 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 311 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 311 | A 3853510172 | NUT |
| 313 | N 007603024106 | SEAL RING |
| 315 | A 3043500190 | VALVE |
| 317 | A 3043500369 | OIL PUMP |
| 325 | A 3043500478 | PUMP HOUSING |
| Repalced by: A 3463505078 | ||
| 325 | A 3463505078 | PUMP HOUSING |
| 327 | A 3049910101 | PIN |
| 329 | A 3043530269 | GEAR |
| DRIVEN | ||
| 333 | A 3043530369 | GEAR |
| Repalced by: A 3433530069 | ||
| 333 | A 3433530069 | GEAR |
| DRIVING | ||
| N 006888005012 | WOODRUFF KEY | |
| 339 | A 3043530268 | GEAR |
| Repalced by: A 3463535068 | ||
| 339 | A 3463535068 | GEAR |
| N 000471014000 | LOCK RING | |
| 343 | A 3043530167 | COVER |
| 345 | N 912004006102 | LOCK WASHER |
| 347 | N 000933006102 | SCREW |
| 349 | N 005401307000 | BALL |
| 351 | A 3049931001 | SPRING |
| A 3049970430 | SCREW PLUG | |
| 355 | N 007346002002 | CLAMPING SLEEVE |
| 357 | N 915042009000 | PLUG |
| 359 | N 000125010504 | WASHER |
| 361 | N 912004010102 | LOCK WASHER |
| 363 | N 000933010105 | SCREW |
| 370 | A 3039910060 | DOWEL PIN |
| 375 | N 912004012100 | LOCK WASHER |
| 377 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 377 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 377 | N 308676012011 | SCREW |

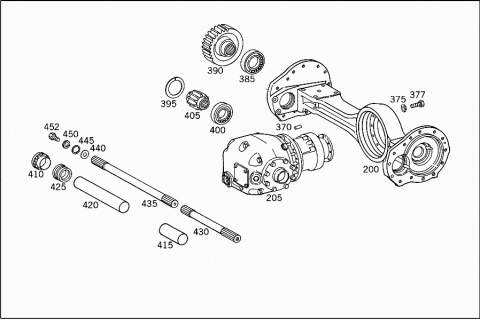

| 385 | N 005412400005 | CYLINDR. ROLLER BEARING |
| 390 | A 3043543012 | OUTSIDE GEAR |
| 27 TEETH | ||
| 395 | A 3043360092 | INTERMEDIATE RING |
| 400 | N 005412410212 | CYLINDR. ROLLER BEARING |
| 405 | A 3043540510 | SPUR GEAR |
| 12 TEETH | ||
| 410 | A 3043570521 | END PIECE |
| 415 | A 3043370220 | PROTECTIVE TUBE |
| 420 | A 3043370320 | PROTECTIVE TUBE |
| 425 | A 3353570022 | BOOT |
| 430 | A 3043370401 | DRIVE SHAFT |
| Repalced by: A 3043370301 | ||
| 430 | A 3043370301 | DRIVE SHAFT |
| LEFT | ||
| 435 | A 3043370402 | DRIVE SHAFT |
| Repalced by: A 3043370202 | ||
| 435 | A 3043370202 | DRIVE SHAFT |
| RIGHT | ||
| 440 | A 3049910025 | WASHER |
| 445 | N 000472047000 | LOCK RING |
| 450 | N 912004016101 | LOCK WASHER |
| 452 | N 000961016002 | SCREW |
| N 900263005000 | STRAP | |
| ORDER BY THE METER | ||
| 600 MM | ||
| N 900262005100 | LOOM TIE | |
| X XXXXXXXXXXXX | PART NAME MISSING | |

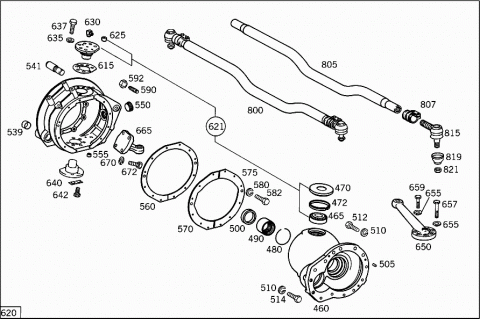

| FRONT AXLE JOINT, PROPELLER SHAFT, AND TIE ROD | ||
| A 3463315013 | JOINT HEAD | |
| LEFT | ||
| 460 | A 3463315113 | JOINT HEAD |
| RIGHT | ||
| 465 | A 0029815705 | TAPERED ROLLER BEARING |
| Repalced by: A 0059816305 | ||
| 465 | A 0059816305 | TAPERED ROLLER BEARING |
| 470 | A 3363300065 | SEAL HOLDER |
| 472 | A 3049870010 | STRIP |
| 480 | N 009045085001 | SNAP RING |
| 490 | A 3043310050 | BUSHING |
| Repalced by: A 0029816510 | ||
| 490 | A 0029816510 | NEEDLE BEARING |
| 490 | A 0049817210 | NEEDLE BEARING |
| 500 | A 3049970947 | SEAL RING |
| 500 | A 0099971646 | SEAL RING |
| 505 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 505 | N 000007010102 | CYLINDRICAL PIN |
| 510 | N 912004016101 | LOCK WASHER |
| 512 | N 308676016022 | SCREW |
| 514 | N 000960016046 | SCREW |

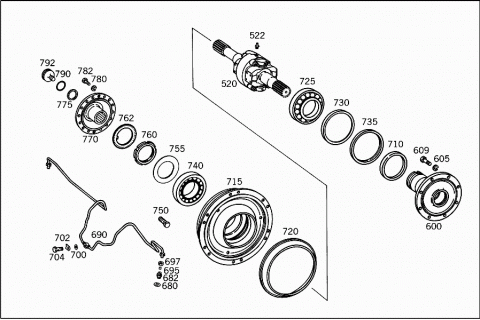

| 520 | A 3043370103 | PROPELLER SHAFT |
| 520 | A 3043370403 | PROPELLER SHAFT |
| 522 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 522 | N 071412008102 | GREASE NIPPLE |
| A 3043300815 | FLANGE | |
| FOR LEFT FRONT AXLE JOINT | ||
| A 3043300915 | FLANGE | |
| FOR RIGHT FRONT AXLE JOINT | ||
| A 3463305214 | HOUSING | |
| FOR LEFT FRONT AXLE JOINT | ||
| 535 | A 3463305314 | HOUSING |
| FOR RIGHT FRONT AXLE JOINT | ||
| 539 | A 3044210350 | BUSHING |
| 539 | A 3439920003 | BUSHING |
| 541 | A 3464215118 | PIVOT PIN |
| 550 | A 3039970006 | PLUG |
| 555 | N 000906016002 | SCREW PLUG |
| A 0009870736 | RUBBER SECTION | |
| 560 | A 3463375080 | GASKET |
| A 3043300121 | COVER | |
| Repalced by: A 3463375430 | ||
| A 3463375430 | COVER | |
| LEFT | ||
| A 3463375530 | COVER | |
| LEFT | ||
| A 3043300021 | COVER | |
| Repalced by: A 3463375230 | ||
| 570 | A 3463375230 | COVER |
| RIGHT | ||
| 575 | A 3463375330 | COVER |
| RIGHT | ||
| 580 | N 912004008102 | LOCK WASHER |
| 582 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 582 | N 304017008021 | SCREW |
| 590 | A 3223510071 | SCREW |
| Repalced by: A 3633320071 | ||
| 590 | A 3633320071 | SCREW |
| 592 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 592 | N 308673014001 | NUT |
| 600 | A 3043320116 | SUPPORTING SLEEVE |
| 600 | A 3463325016 | SUPPORTING SLEEVE |
| A 3043340084 | OIL BAFFLE | |
| 605 | N 912004016101 | LOCK WASHER |
| 609 | N 000960016112 | SCREW |
| Repalced by: N 308676016015 | ||
| 609 | N 308676016015 | SCREW |
| 609 | N 000960016013 | SCREW |
| 615 | A 3043310152 | SPACER WASHER |
| 0.10 MM | ||
| 615 | A 3043310252 | SPACER WASHER |
| 0.25 MM | ||
| 615 | A 3043310352 | SPACER WASHER |
| 0.50 MM | ||
| 615 | A 3043310452 | SPACER WASHER |
| 1.00 MM | ||
| 620 | A 3433300119 | KING PIN |
| Repalced by: A 3363300065 | ||
| 620 | A 3363300065 | SEAL HOLDER |
| 620 | A 3433320106 | KINGPIN |
| Repalced by: A 3435860033 | ||
| 621 | A 3435860033 | REPAIR KIT |
| Repalced by: A 3433300019 | ||
| 621 | A 3433300019 | KING PIN |
| KINGPIN | ||
| 625 | N 000960012000 | SCREW |
| 630 | N 071412010300 | GREASE NIPPLE |
| 635 | N 912004016101 | LOCK WASHER |
| 637 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 637 | N 308676016020 | SCREW |
| 640 | A 3049940230 | LOCK |
| 642 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 642 | N 308676016020 | SCREW |
| 642 | N 914112014001 | SCREW |
| 650 | A 3463385101 | STEERING ARM |
| 650 | A 3463385201 | STEERING ARM |
| Repalced by: A 3463381701 | ||
| 650 | A 3463381701 | STEERING ARM |
| 650 | A 3463385102 | STEERING ARM |
| 650 | A 3463385202 | STEERING ARM |
| 655 | N 912004016101 | LOCK WASHER |
| N 007346018000 | CLAMPING SLEEVE | |
| 657 | N 000960016031 | SCREW |
| Repalced by: N 000960016237 | ||
| 657 | N 000960016237 | SCREW |
| 657 | N 914112014308 | SCREW |
| Repalced by: A 6529901204 | ||
| 657 | A 6529901204 | SCREW |
| Repalced by: N 914112014016 | ||
| 657 | N 914112014016 | SCREW |
| M 14X55 | ||
| 659 | N 000960016057 | SCREW |
| 659 | N 914112014301 | SCREW |
| A 3353380205 | STEERING ARM | |
| Repalced by: A 3433380205 | ||
| A 3433380205 | STEERING ARM | |
| LEFT | ||
| 665 | A 3353380206 | STEERING ARM |
| Repalced by: A 3433380206 | ||
| 665 | A 3433380206 | STEERING ARM |
| RIGHT | ||
| 670 | N 912004016101 | LOCK WASHER |
| 672 | N 308676016022 | SCREW |
| 680 | N 007603014405 | SEAL RING |
| 682 | A 3049970072 | FITTING |
| 690 | A 3043300282 | LINE |
| 695 | A 0009900267 | SEAL CONE |
| Repalced by: N 003862010000 | ||
| 695 | N 003862010000 | DOUBLE TAPER RING |
| 697 | N 915017010100 | UNION NUT |
| 700 | N 007603014405 | SEAL RING |
| 702 | N 900117014001 | LOCK |
| 704 | N 900117014201 | HOLLOW SCREW |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| WHEEL BEARING | ||
| 710 | A 3043340515 | RING |
| 710 | A 3463345015 | RING |
| N 001481005022 | CLAMPING SLEEVE | |
| A 3043341101 | WHEEL HUB | |
| Repalced by: A 3043341401 | ||
| 715 | A 3043341401 | WHEEL HUB |
| 715 | A 3463345001 | WHEEL HUB |
| 720 | A 3043340082 | OIL COLLECTOR |
| 720 | A 3463345082 | OIL COLLECTOR |
| 725 | N 000720030221 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 730 | A 3043340051 | SPACER RING |
| 735 | A 3049970447 | SEAL RING |
| Repalced by: A 0099971846 | ||
| 735 | A 0099971846 | SEAL RING |
| 740 | N 000720030220 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 750 | A 3044010171 | WHEEL MOUNTING BOLT |
| 750 | A 3384015071 | WHEEL MOUNTING BOLT |
| N 000934020008 | NUT | |
| Repalced by: N 308673020002 | ||
| N 308673020002 | NUT | |
| Repalced by: N 308674020000 | ||
| N 308674020000 | NUT | |
| 755 | A 3043340162 | THRUST WASHER |
| A 3043340026 | NUT | |
| 760 | A 3439900460 | NUT |
| Repalced by: A 3469905160 | ||
| 760 | A 3469905160 | NUT |
| 762 | A 3043340073 | LOCK |
| 770 | A 3043340105 | FOLLOWER |
| 770 | A 3463345005 | FOLLOWER |
| 775 | N 900055052311 | LOCK RING |
| 775 | N 000472052000 | LOCK RING |
| 780 | N 912004014100 | LOCK WASHER |
| 782 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 782 | N 308676014008 | SCREW |
| A 3043300055 | THRUST WASHER | |
| A 3123371073 | LOCK | |
| A 3123371271 | SCREW | |
| 790 | A 0004313060 | SEAL RING |
| 63X2 MM | ||
| 792 | A 3463345171 | SCREW |
| Repalced by: A 3463345071 | ||
| 792 | A 3463345071 | SCREW |
| A 3463305103 | TIE ROD | |
| Repalced by: A 3463304503 | ||
| 800 | A 3463304503 | TIE ROD |
| LEMFOERDER | ||
| 805 | A 3463385016 | TIE ROD TUBE |
| Repalced by: A 3433300003 | ||
| 805 | A 3433380016 | TIE ROD TUBE |
| Repalced by: A 3433300003 | ||
| 807 | A 0003380645 | CLAMP |
| 807 | A 0003382345 | CLAMP |
| Repalced by: A 0003382545 | ||
| N 000960012349 | SCREW | |
| N 000935012014 | NUT | |
| N 000094003226 | COTTER PIN | |
| 815 | A 0004602648 | DRAG LINK END |
| 815 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 815 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 815 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 815 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 819 | A 0004621896 | BOOT |
| 821 | N 000937020001 | NUT |
| 821 | N 000937024002 | NUT |
| N 000094005016 | COTTER PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
